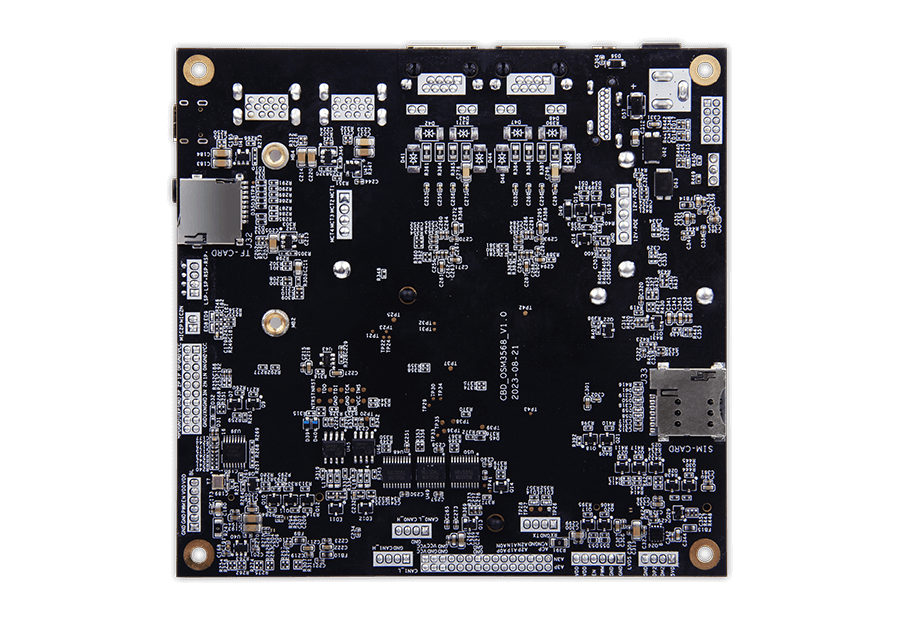

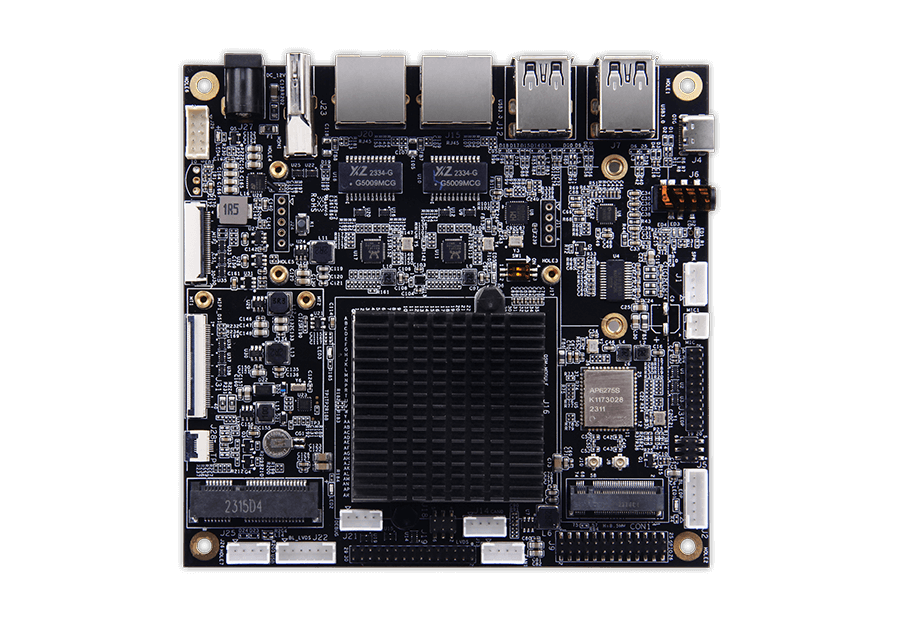

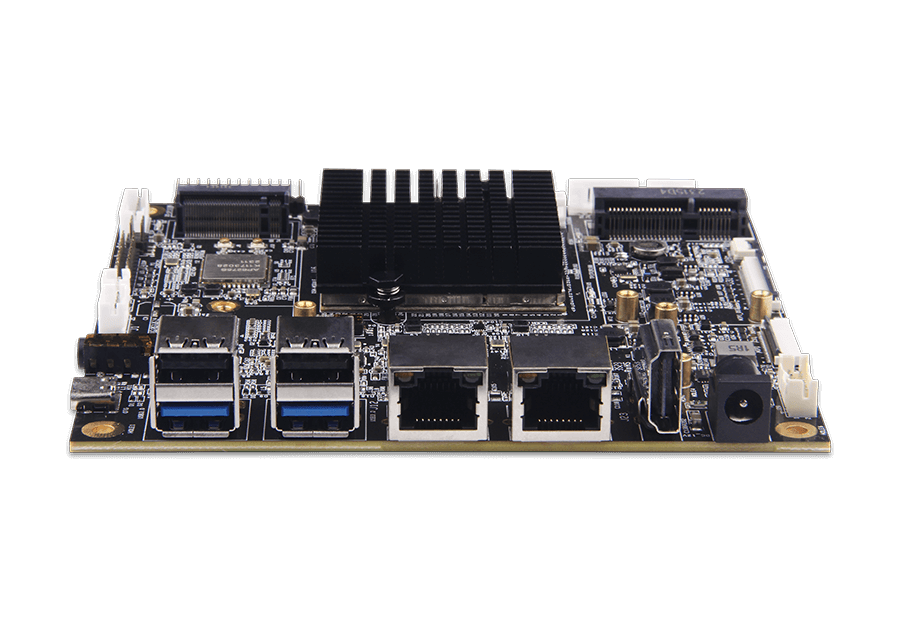

RK3568 Development Board
DB3568
DB3568 is using Rockchip RK3568 processor, a high-performance and low power quad-core application processor designed for personal mobile internet device and AIoT equipments. It supports almost full-format H.264 decoder by 4K@60fps, H.265 decoder by 4K@60fps, also support H.264/H.265 encoder by 1080p@60fps.
Used in commercial display, security, industrial control and other fields.
high performance
CPU adopts 4-core A55 architecture processor, integrated G52
graphics processor, and built-in independent NPU,
computing power of 0.8TOPS
(For Al video, simple face recognition) 8M ISP
High reliability
industrial-grade motherboard design,
strict quality control, 7*24h uninterrupted
continuous stable operation
High scalability
the equipment adopts standard interface, rich interfaces:
LVDS, EDP, SATA, M.2, USB3.0, multiple USB2.0 interfaces, HDMI IN (MIPI),
HDMI OUT, GTIOT, SPDIF, RF, 40Pin-XP, Double Gigabit Network Interface
(RGMII0/RGMI1) DEBUG, RS-232, MICPHONE, POE
Multioperating system
Android 10.0 and Linux(Buildroot/Debian/Ypcto)
High Cost Performance, Low Power Consumption
DB3568 has a high-performance external storage interface, can maintain a high demand for memory bandwidth, support with cost-effective LPDDR4X,can effectively reduce the power consumption of the product
Support Double Gigabit Network Port（RGMII0/RGMII1）
Support double gigabit transmission rate, can support the use of dual network segment Internet
Voice Noise Reduction
Support multi-channel MICPHONE, multi-MIC matrix can be used for noise reduction,
Meet the meeting to pick up the pitch requirements of the scene
M.2 Interface
M.2 supports the PCIE3.0 (8Gbps) protocol and is backward compatible with PCLE2.1
and PCIE1.1 protocols.Supports dual pCLE X1 mode or single pCLE X2 mode
Adopt SATA3.0 Interface
Compatible with mainstream hard disk interface, facilitate customer data reading and writing,support larger storage space and faster transmission rate
Remote device management
Remote wake up, restart, standby and other operations
APP customization service
Personalized GUI customization services
Application Scenario
Al robot
face recognition
smart POS machine
business display integrated equipment
vending machine
smart home
