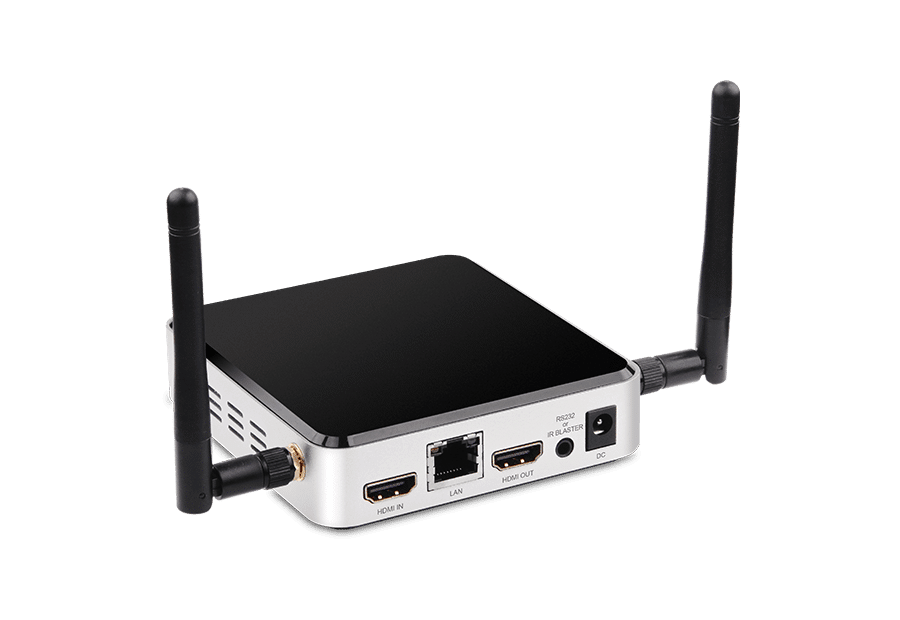

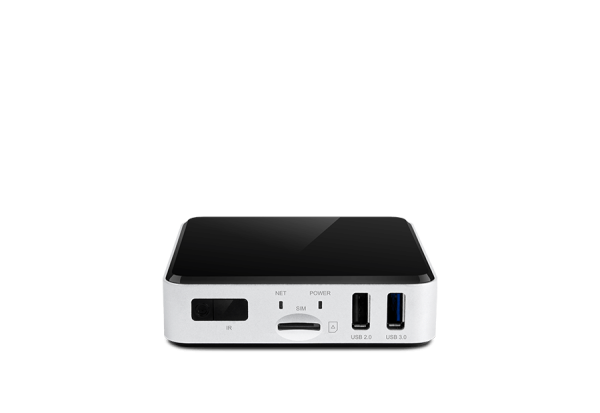

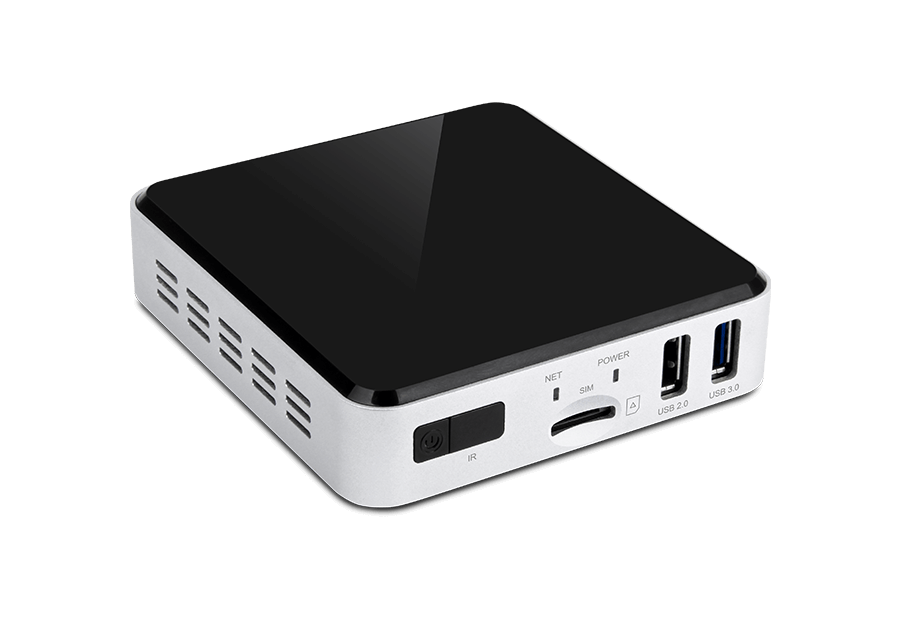

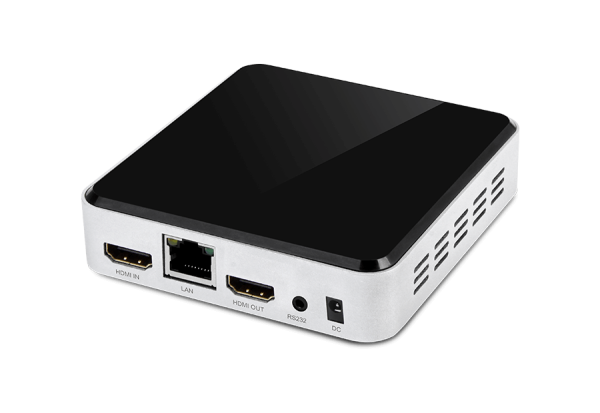

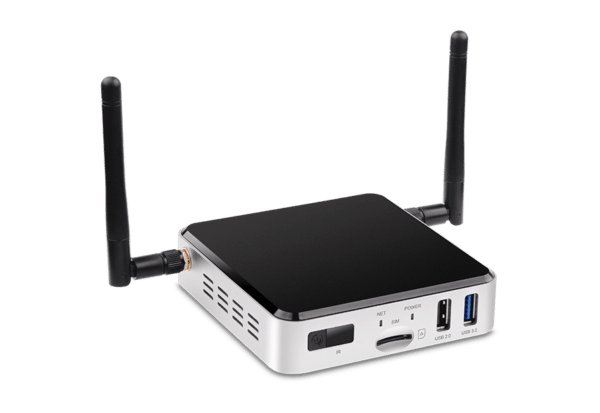

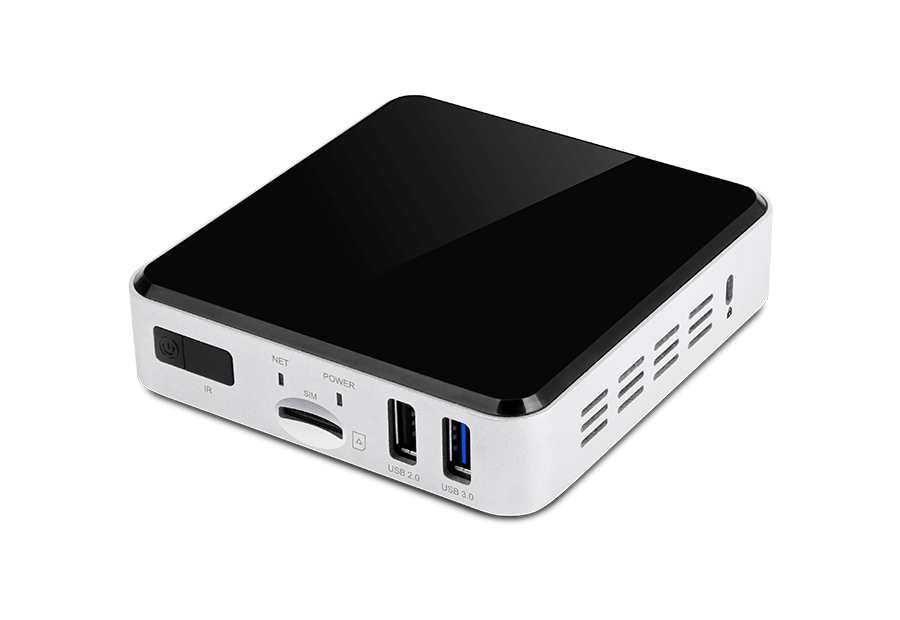

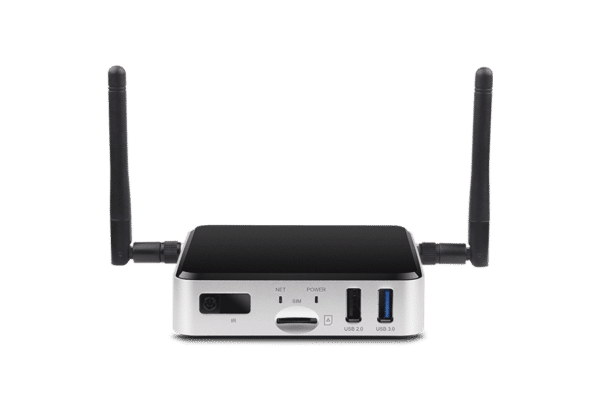

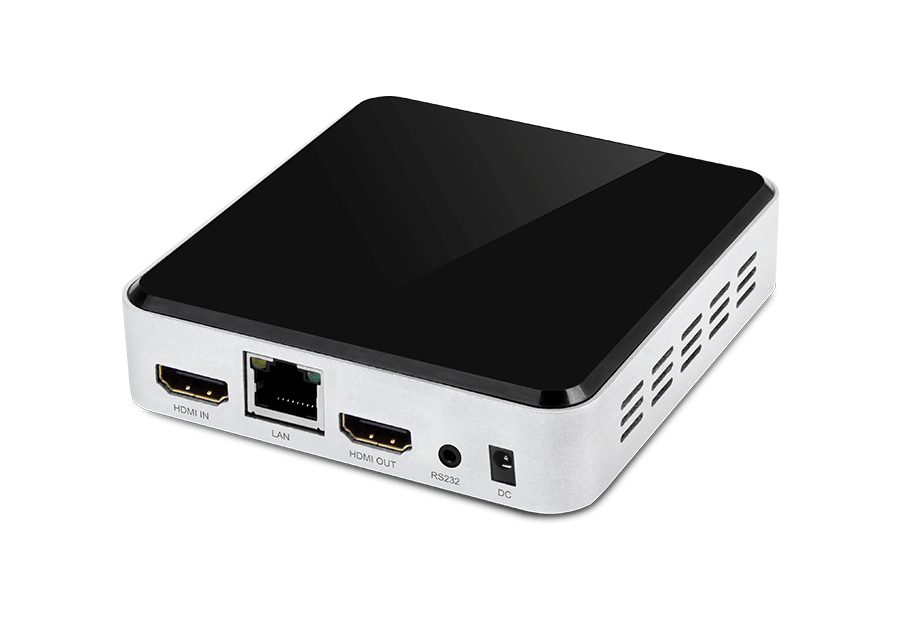

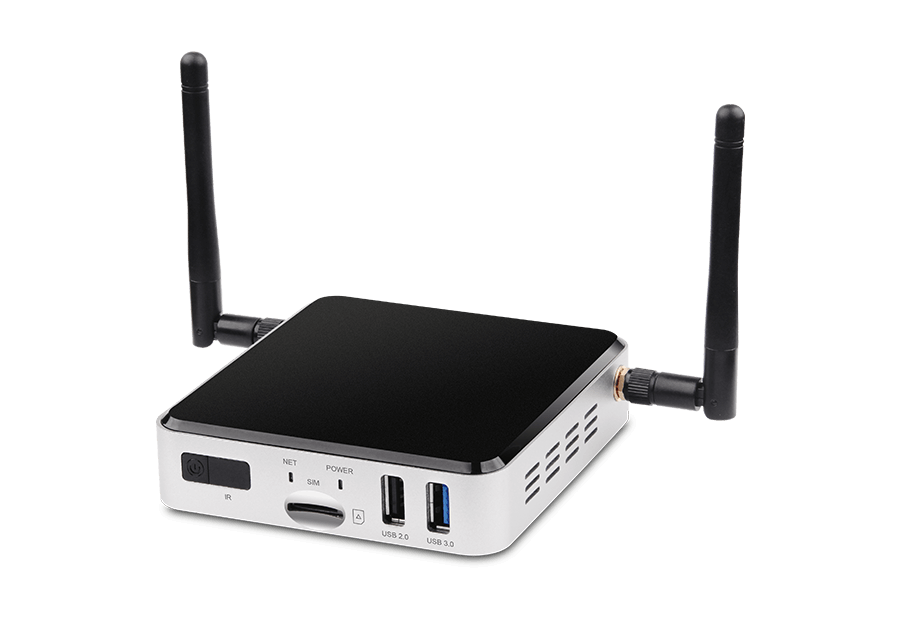

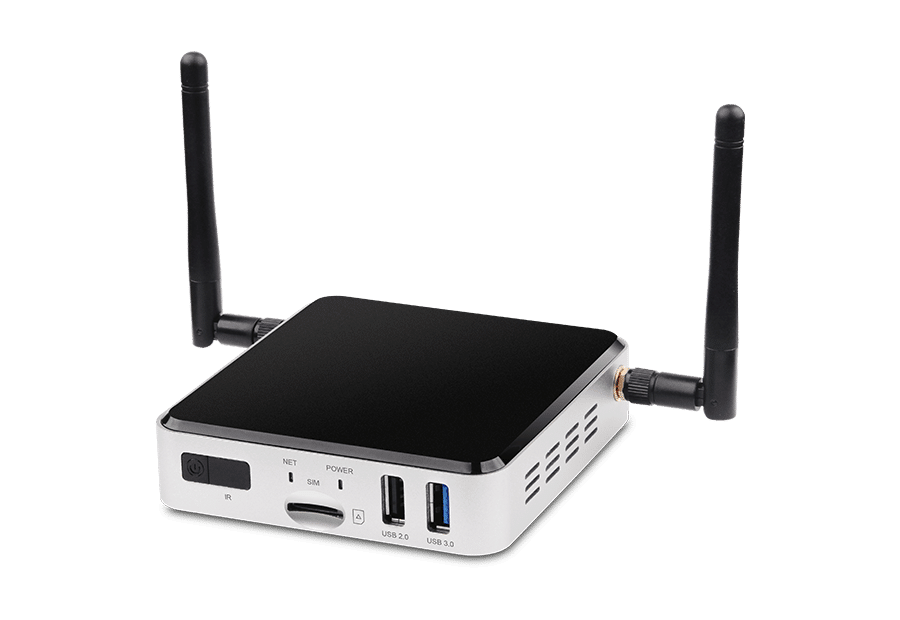

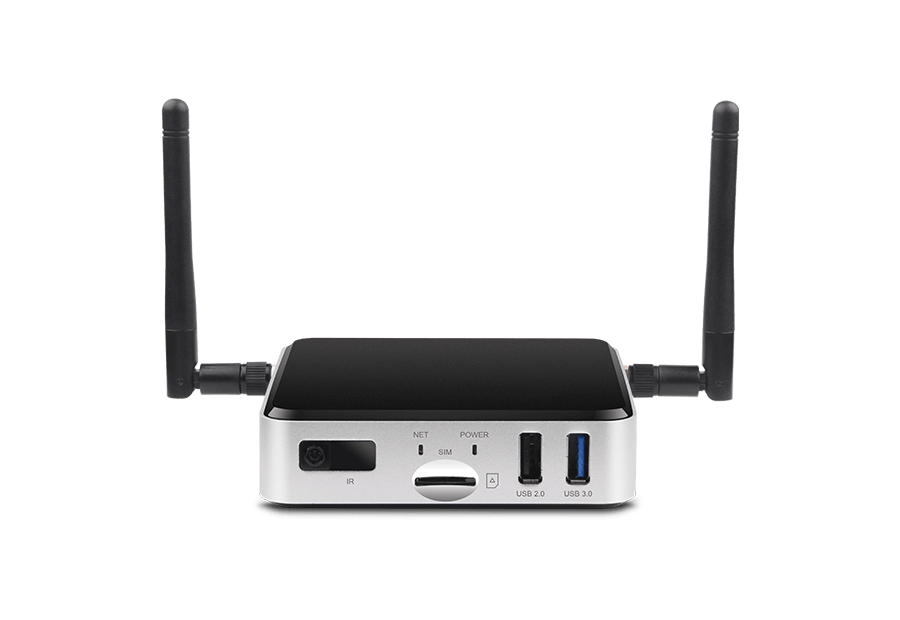

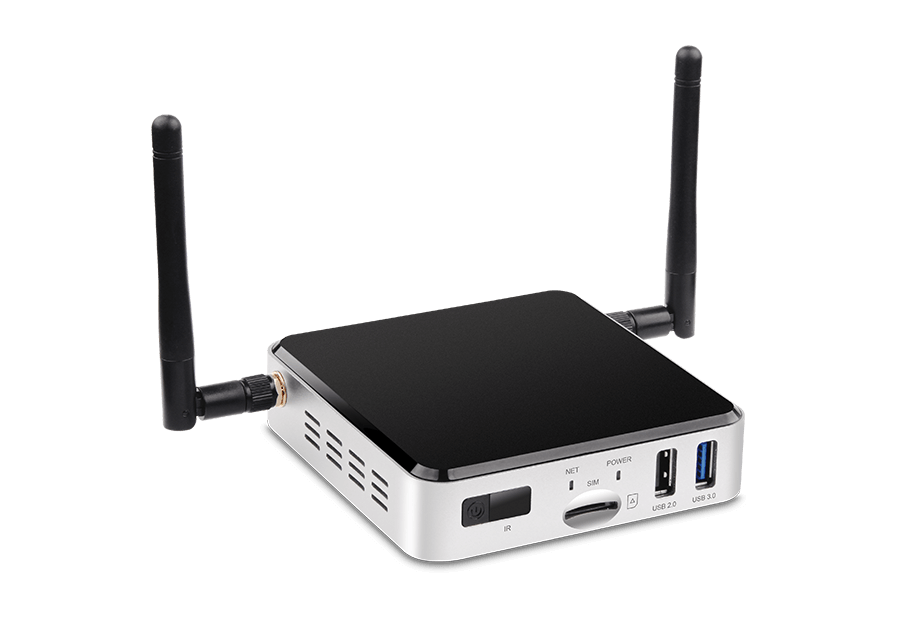

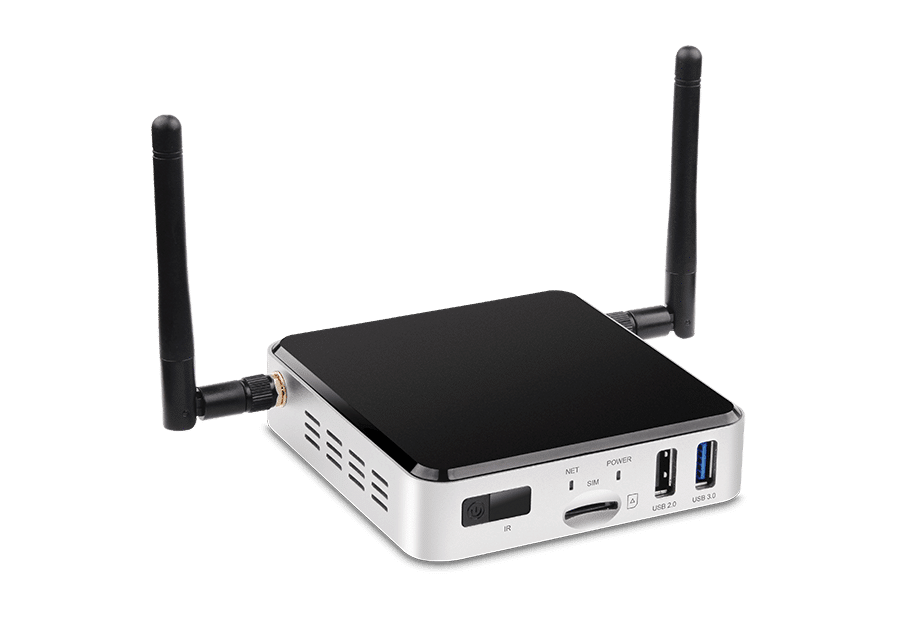

APC390K mini PC box is a robust and compact computing solution featuring the Rockchip RK3566 Quad-core processor, designed to elevate your digital experience!

  • Rockchip RK3566 Quad-core ARM Cortex-A55 CPU @ 1.8GHz
  • Seamless connectivity: 4G LTE (Optional), Gigabit LAN, Wi-Fi, Bluetooth
  •  2GB LPDDR4 (4GB/8GB optional), 8GB eMMC (8~128GB optional), expandable via TF card
  • Stunning 4K Ultra HD display through HDMI®
  • Easy remote management with pre-installed MDM app
  • Fanless, small form factor, VESA-ready

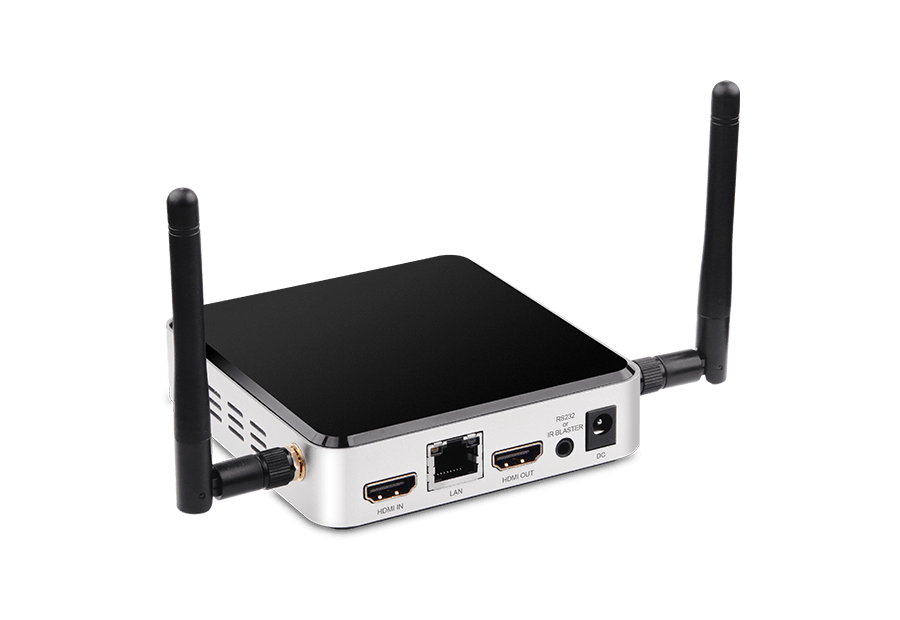

  • Rich I/O: HDMI® In (picture-in-picture), HDMI® Out, USB3.0, USB2.0, RS232, IR blaster
  • Supports IoT wireless protocols such as Z-Wave, Zigbee, and LoRa.
  • Supports Android 11.0 / Linux Debian OS

Buy a Sample

Get A Quote
Multiple interfaces and high cost performance
Multi-mode display
Multiple communication protocols
Personalized customization

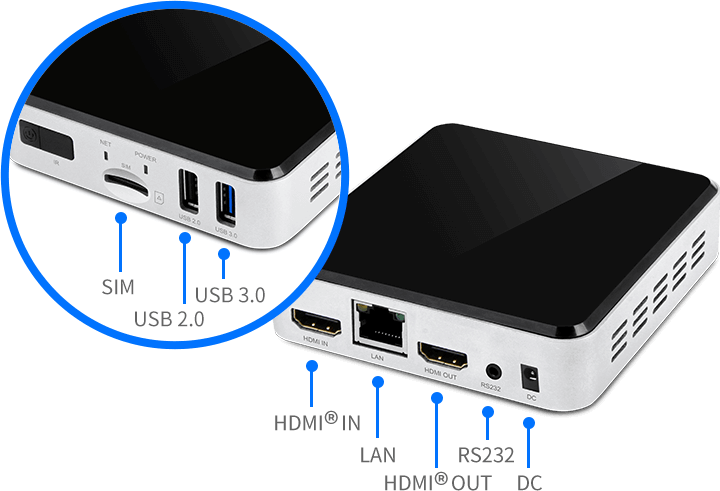

Multiple Interfaces and Cost-effective

  • Video output:1*HDMI®(4KP60)
  • Video input:1*HDMI®(4KP30)
  • Audio output: 1*HDMI®+1*BT
  • LAN:1*RJ45 10/100/1000M
  • LTE:1*Mini-PCIE+1*Micro Sim
  • WIFI:IEEE 802.11 a/b/g/n/ac 2.4G/5.8G (optional)
  • USB:1*USB 3.0+1*USB 2.0
  • RS232 / IR blaster: 1*3.5mm jack (optional)
  • 1*GTIOT(built-in)
  • K Lock: 1* K Lock

Display Mode

APC390K has a 4KP60 HDMI®output interface and a 4KP30 HDMI®input interface, which supports HDMI® standard protocol devices. Dual-screen content can be switched in full screen or displayed in picture-in-picture (PIP),in addition, both HDMI® input and output support encrypted video playback (HDCP 1.4/2.2 KEY);

Support Multiple Optional Wireless Protocols

Z-WAVE / ZIGBEE / LoRa / LTE / GPS / WiFi / BT5.0

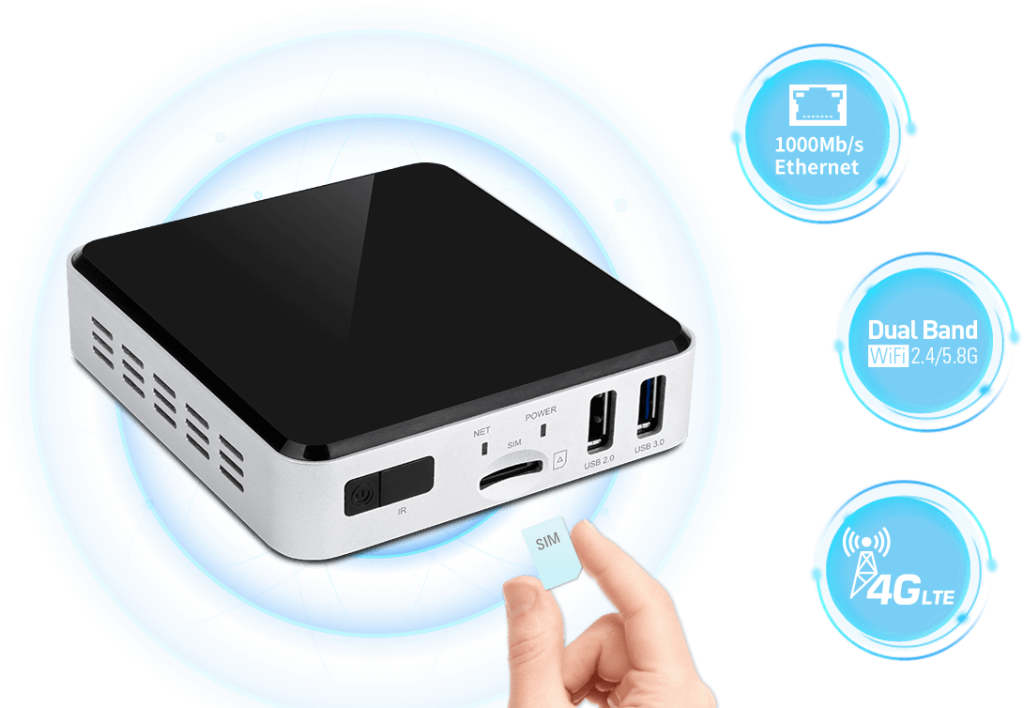

Support Multiple Communication Protocols

Support Gigabit Ethernet, WiFi (2.4G/5.8G) and LTE (4G) multiple flexible communication modes

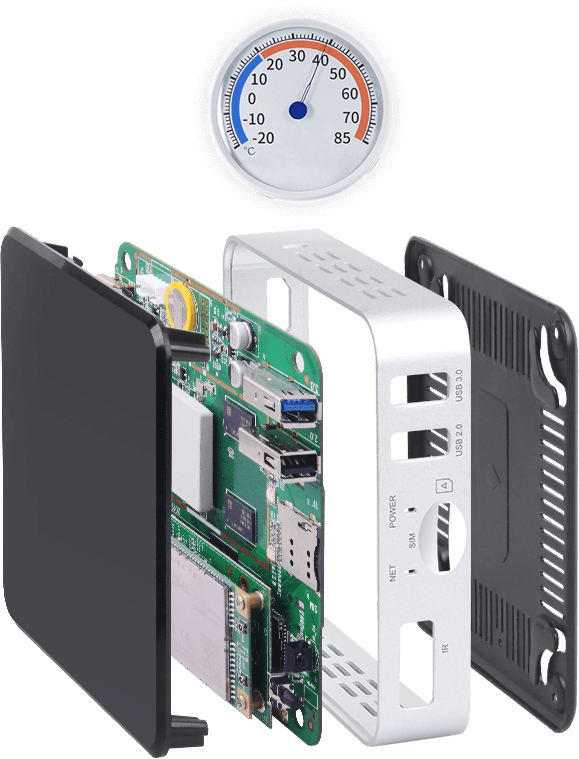

Multiple Functions and Reliable Performance

  • The PCBA board is made of solid materials and reliable performance
  • Built-in independent and reliable hardware watchdog, 7*24H Stable and unguarded
  • Solid metal case, excellent capacity of radiation
  • APC390K can work continuously and stably at -20~85℃ industrial wide temperature

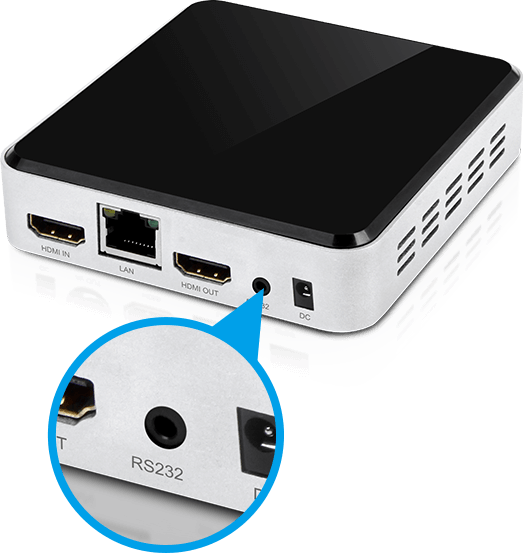

Various Interface Functions

RS232 / IR blaster function optional

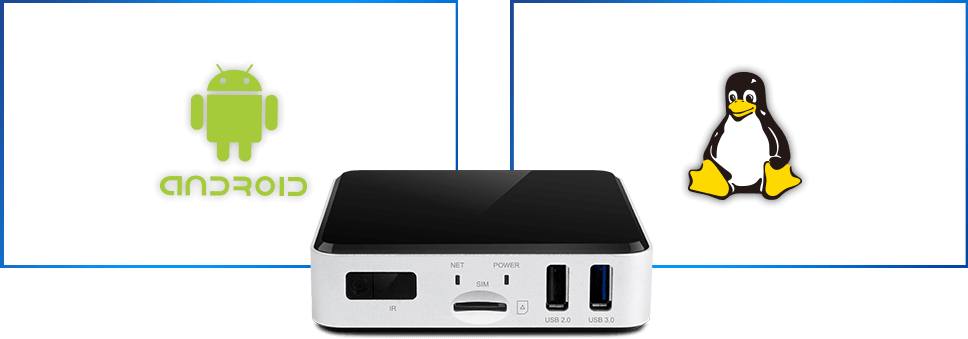

Dual System Option:Android11.0/Linux

Support Personalized Customization

Optional hardware configuration


Provide SDK secondary development

Customers can compile sensitive requirements by themselves

MDM customization (remote device management)

Remotely collect device status information and control the device (update firmware, uninstall/install APK, restart, standby/wake up, real-time advertising…)

APP customization

Easy to realize customer’s customized requirements, safe, fast and low-cost.

Application Scenarios

Commercial display, Digital signage, Smart home, Video conference, Smart medical…

  • CPU
    Quad-core ARM Cortex-A55 CPU @1.8GHz
  • GPU
    Mali-G52 GPU, OpenGL ES 1.1/2.0/3.2,OpenCL 2.0 and Vulkan 1.1
  • NPU
    supports INT8/INT16/FP16/BFP16 MAC hybrid operation
  • RAM
    2GB(4GB/8GB optional)
  • ROM
    8GB eMMC(8~128GB optional)
  • LAN
    1*RJ45 10/100/1000Mbps (LED)
  • WiFi
    IEEE 802.11 a/b/g/n/ac 2×2 MIMO(2.4G/5G)
  • BT
    Support multiple optional wireless protocols:
    Z-Wave/Zgibee / LoRa /LTE/GPS/WiFi / BT5.0
  • LTE
    Supports digital signals of various formats around the world
  • WatchDog & RTC
  • I/O
    1 x HDMI®IN (4KP30)
    1 x HDMI®OUT(4KP60)
    1 x RJ45 10/100/1000M(LED)
    1 x GTIOT(Built-in)
    1 x USB3.0
    1 x USB2.0(OTG)
    1 x 3.5mm jack (RS232 default, IR blaster optional)
    1 x Mini pcie LTE(Built-in) + 1 x Micro SIM
    1 x DC IN(Φ5.5/2.1mm)
    1 x Power key
    1 x IR reception(Built-in)
  • OS
    Android11.0 / Linux
    DC 12V/1.5A
  • Size(mm)
  • weight(g)
  • Certifications
    CE / FCC
