NXP i.MX8M Plus Mini Edge AI Box with Local AI Acceleration

APC880 Mini

NXP i.MX8M Plus Mini Edge AI Box with Local AI Acceleration

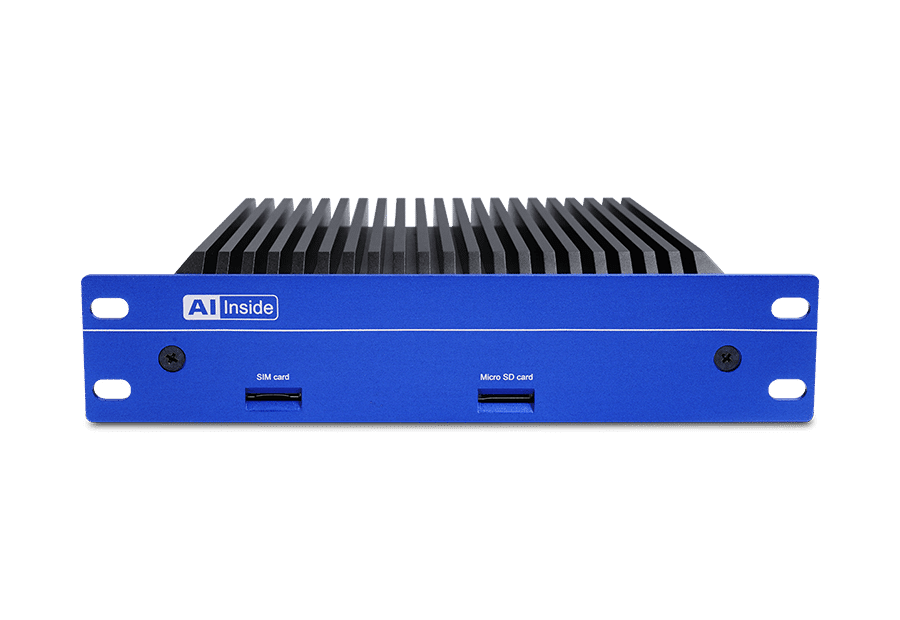

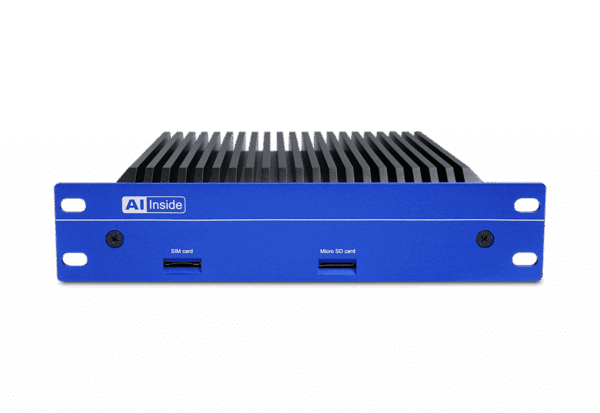

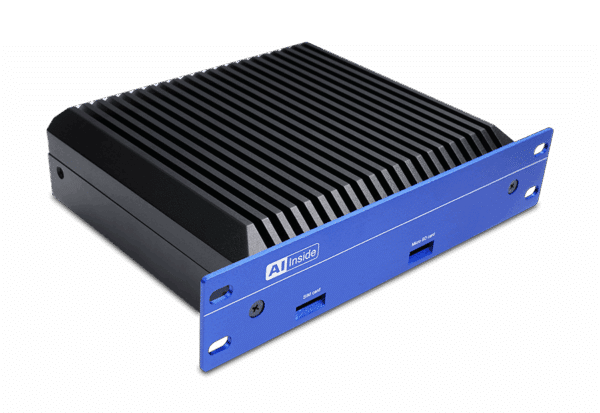

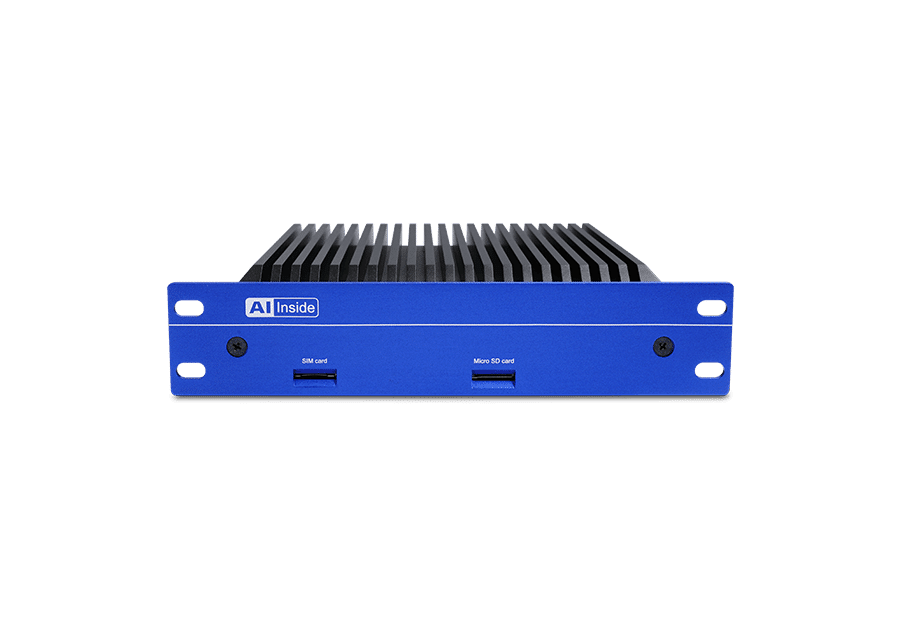

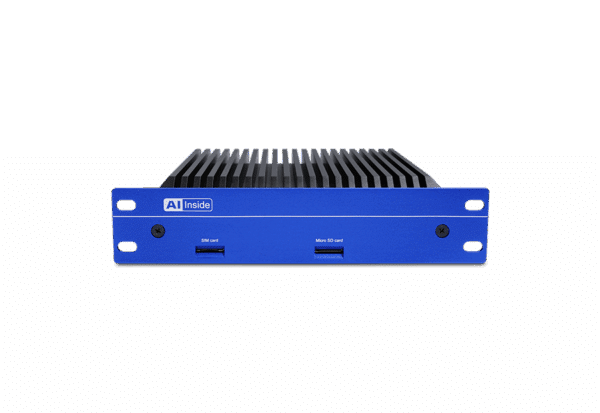

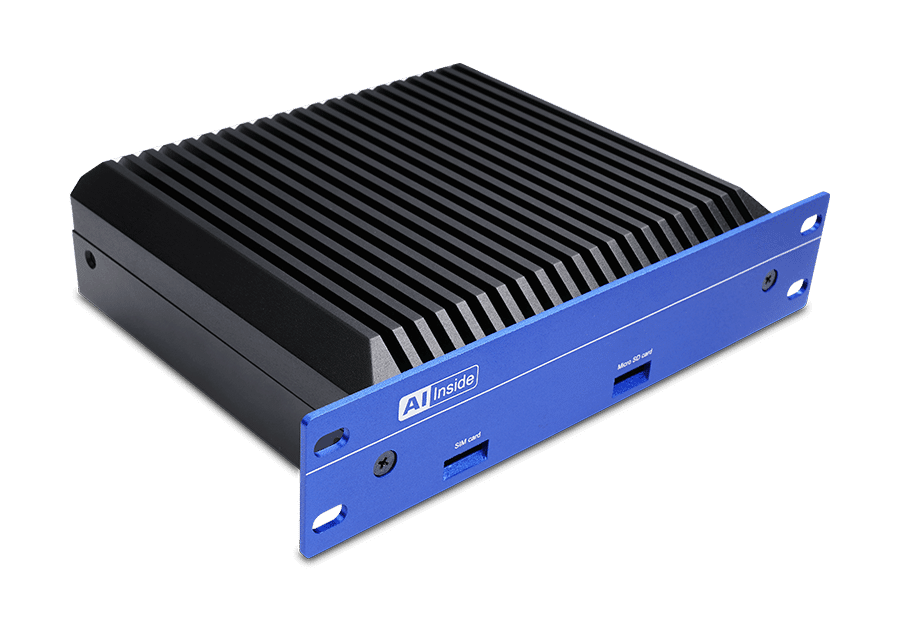

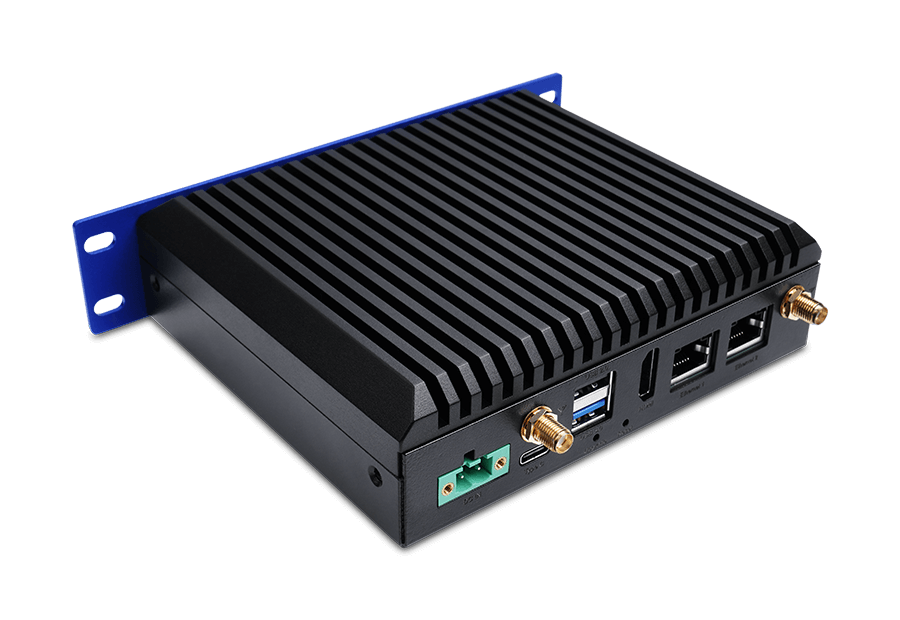

Geniatech APC880 Mini is a compact and cost-effective Edge AI mini PC, integrating NXP’s i.MX8M Plus SoC with an optional Ara-240 AI accelerator, delivering up to 40 TOPS AI performance.
Designed for space-constrained environments, it combines 4K video decoding, multi-protocol industrial I/O, and rugged connectivity. Ideal for AI vision, embedded systems, and smart edge devices.

Integrated NPU + M.2 slot for AI modules (up to 40 TOPS with Ara-240)
Optimized for Edge AI and GenAI workloads
Quad Cortex-A53 + Cortex-M7 with H.265/H.264/VP9 decoding
Rugged Build: -40°C to 85°C fanless design for harsh industrial use
Memory & Storage: Up to 8GB RAM, 128GB eMMC, microSD slot
Versatile I/O: Dual GbE, USB, HDMI^®, MIPI-CSI/DSI, 2×CAN, RS232/485, Mini PCIe (4G/5G ready)

Chipset	NXP i.MX8M Plus
CPU	4× Cortex-A53 (up to 1.8GHz) + 1× Cortex-M7 (up to 800MHz)
GPU	GC7000UL (OpenGL ES 1.1–3.0, OpenCL 1.2, Vulkan)

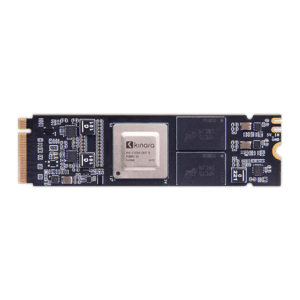

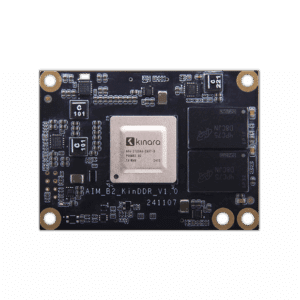

AI Performance	– i.MX8M Plus NPU: 2.3 TOPS – Optional 16GB Ara240 AI accelerator: Up to 40 TOPS – AI type: Edge AI inference (vision / perception workloads)
OS	Yocto Linux
Memory	4GB RAM (up to 8GB optional)
Storage	64GB eMMC 5.1 (8–128GB optional)
Network	2× GigE; Wi-Fi/Bluetooth/GPS/4G LTE optional

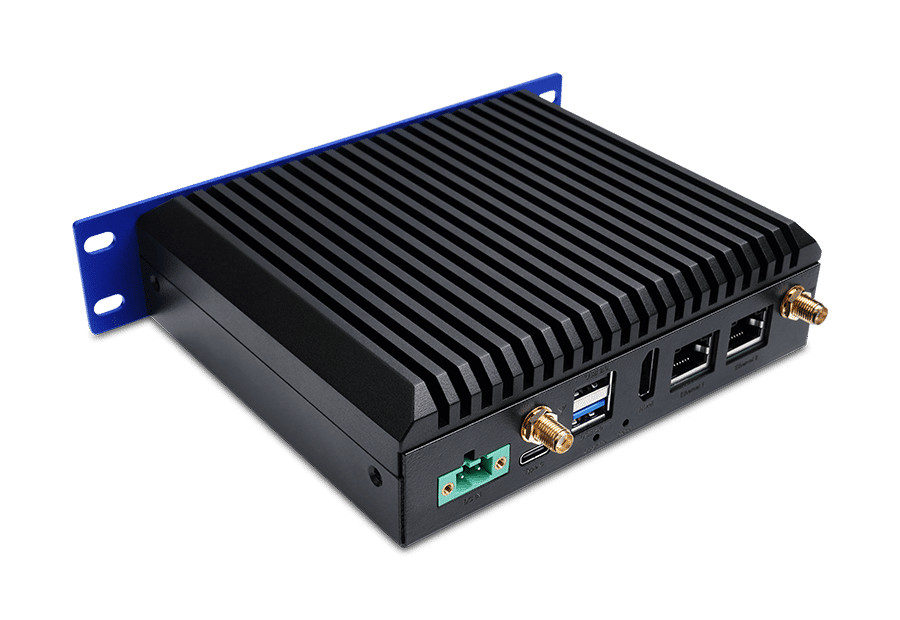

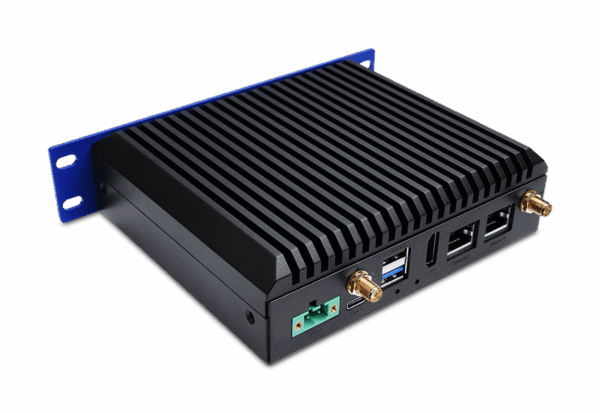

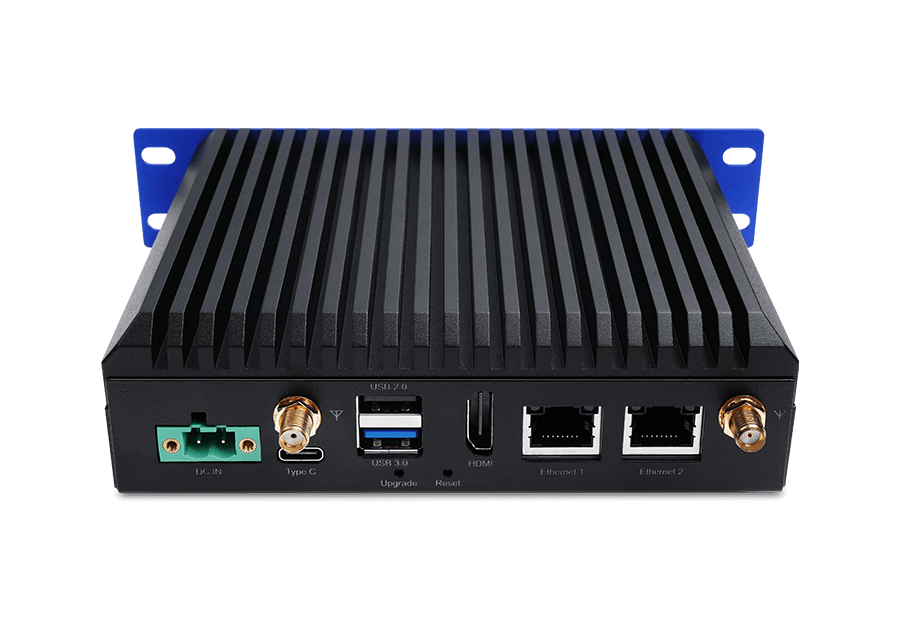

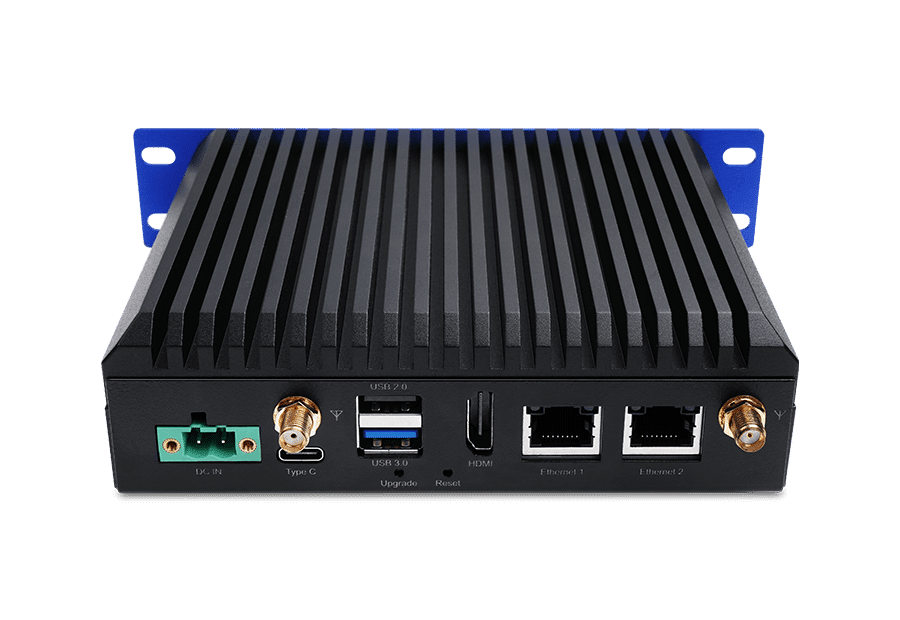

External I/O	1×HDMI out, 1×USB 3.0, 1×USB 2.0 , 1×USB-C , 1×Micro SD card slot, 1×SIM card slot, boot/reset keys
Internal/board-level only	1×LVDS, 2× MIPI-CSI, 1×MIPI-DSI, 1×M.2 Key M (for AI module), 1×Mini PCIe (for 4G module), 2× RS232/RS485, 1×CAN, 2× DI/DO, 1× I²C
Operating Temperature	– Commercial：0℃～60℃ – Industrial：-40℃～85℃
Power	DC 12V / 3A
Size	172 × 123.7 × 47.5 mm
Weight	1050 g
