SOM-G2L-OSM

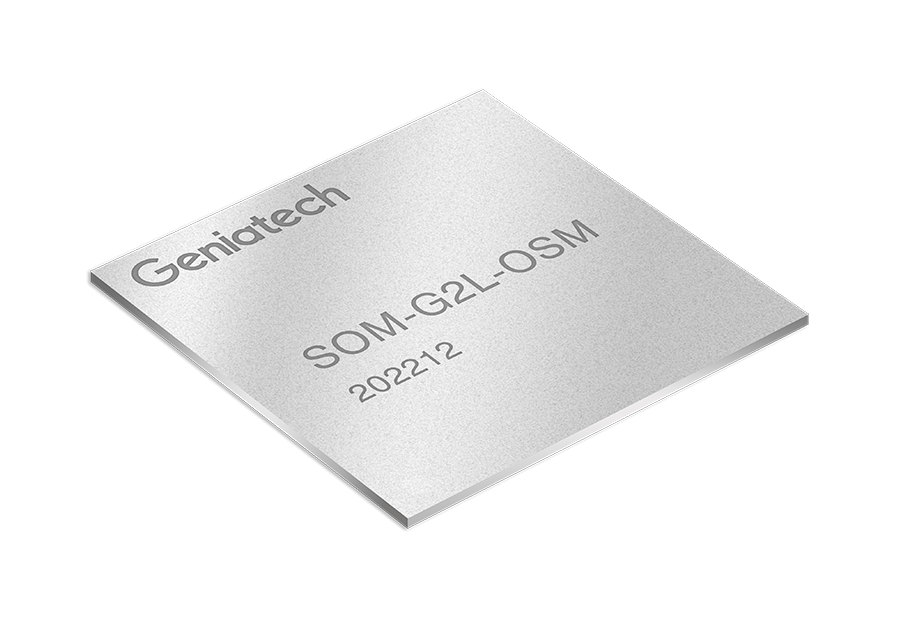

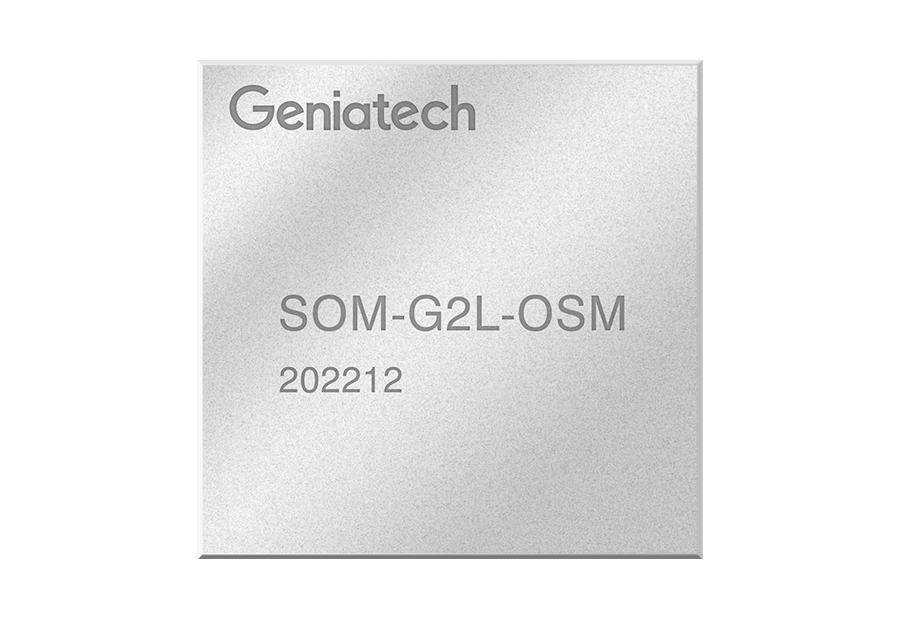

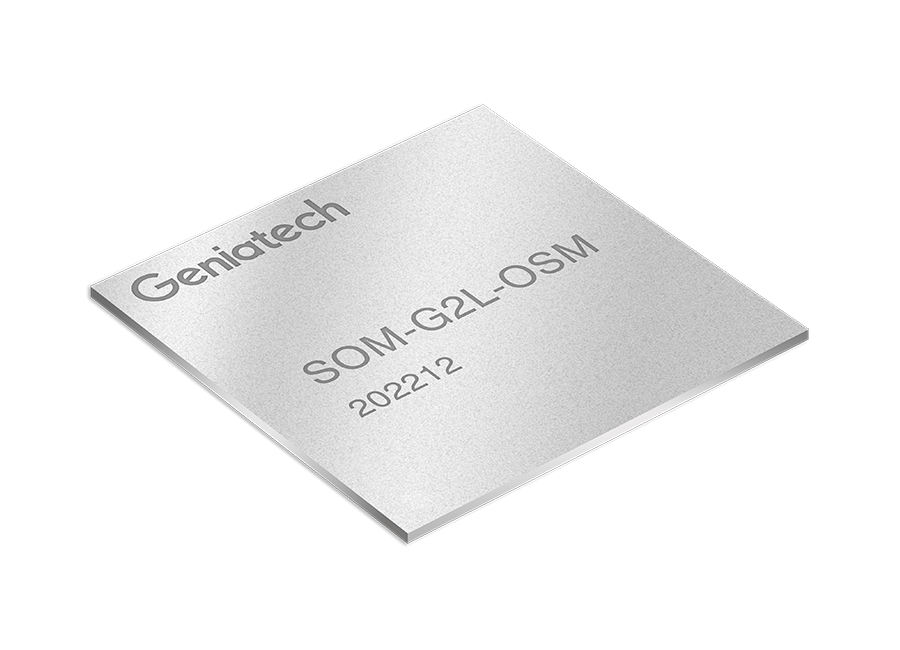

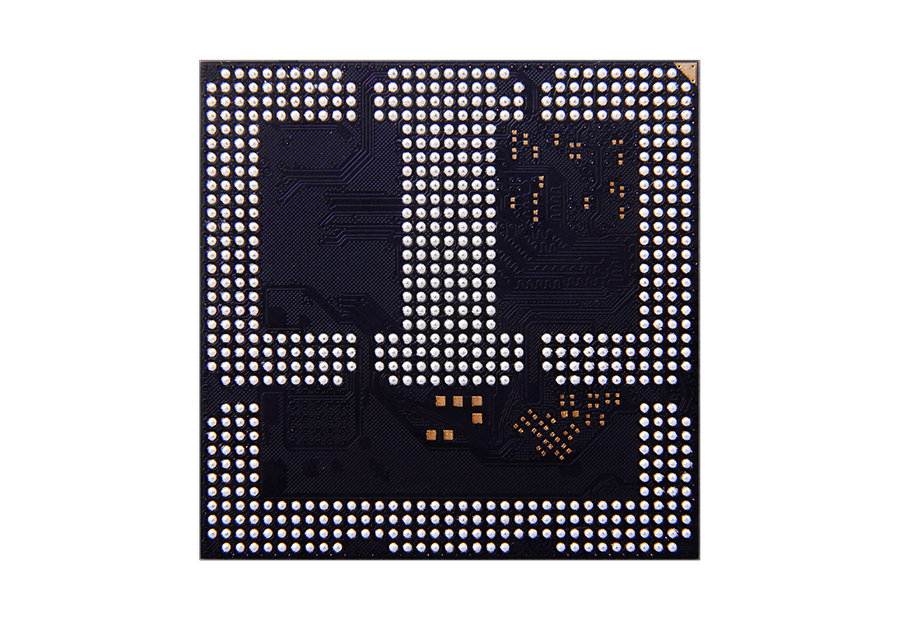

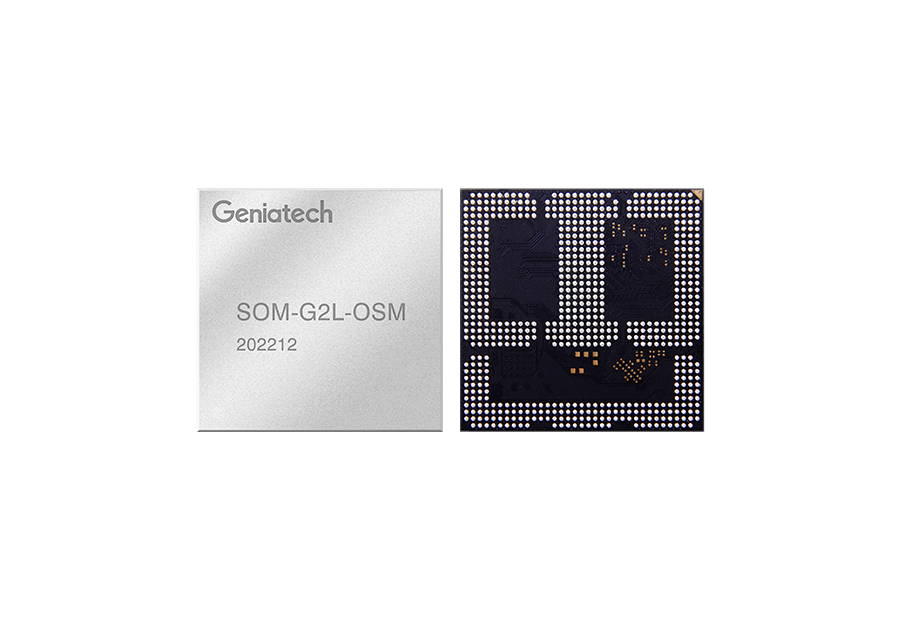

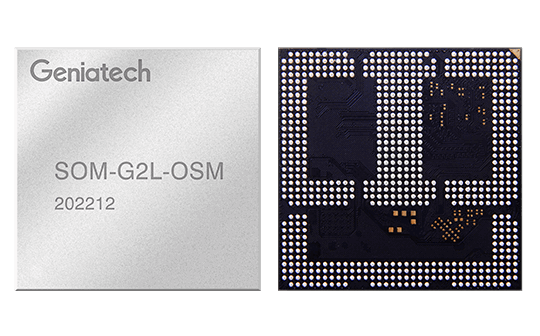

Geniatech SOM-G2L-OSM module using OSM-L standard, with LGA package. Based on high performance, lower power consumption, ultra-efficient processor RZ / G2L SoC, it use multi-core heterogeneous ARM Cortex-A55 + ARM Cortex-M33 MCU kernel, equipped with high-performance Mail-G31 GPU and various display interfaces. With rich industrial application interfaces, open board design data documents and open-source SDK, it can be widely used in industrial HMI, Human-computer interaction, industrial gateway, smart home, POS terminal, doorbell walkie-talkie, smart camera, bar code scanner, edge computing and other fields.

  • the size is only 45mm x 45mm, which can save more precious space
  • 2GB RAM, 16GB eMMc flash
  • Supports MIPI-DSI, RGB interface, double Gigabitethernet
  • With rich interfaces such as I2C, UART, SPI, SDIO3.0, USB, PWM, I2S and others
  • Supports Linux operating system, the performance is stable and reliable
  • Stable operation at -40 °C ~ 8 5°C working temperature for 7X24 hours
  • 10 year product availability
Categories: ,
Get A Quote

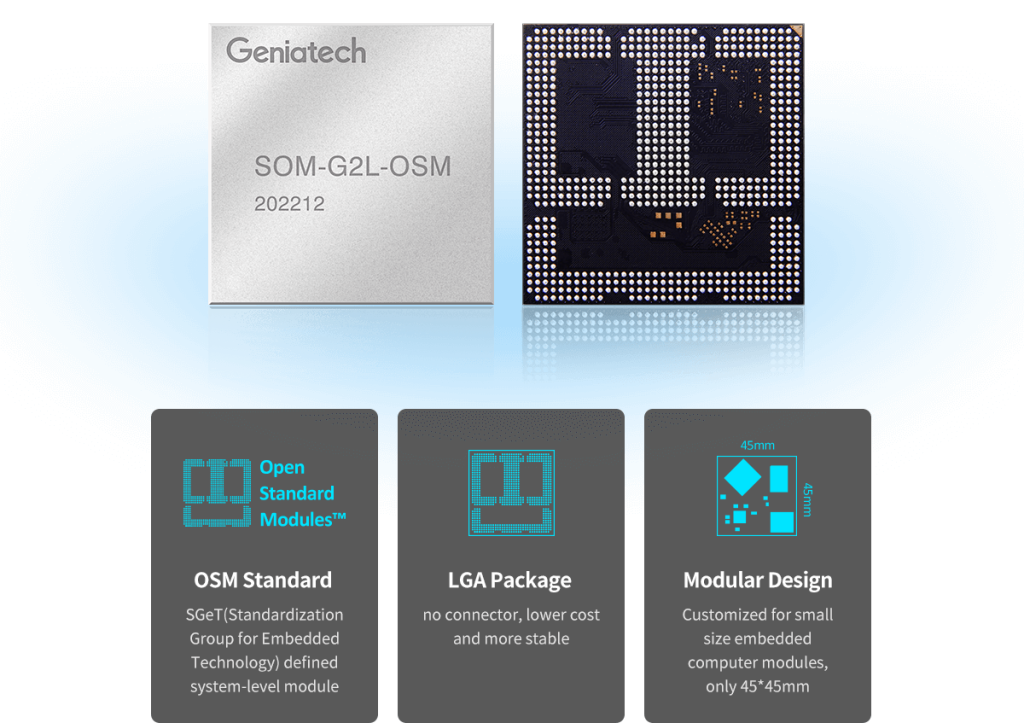

RENESAS RZ/G2L OSM SoM Module

Geniatech SOM-G2L-OSM module using OSM-L standard, with LGA package. Based on high performance, lower power consumption, ultra-efficient processor RZ / G2L SoC, it use multi-core heterogeneous ARM Cortex-A55 + ARM Cortex-M33 MCU kernel, equipped with high-performance Mail-G31 GPU and various display interfaces. With rich industrial application interfaces, open board design data documents and open-source SDK, it can be widely used in industrial HMI, Human-computer interaction, industrial gateway, smart home, POS terminal, doorbell walkie-talkie, smart camera, bar code scanner, edge computing and other fields.

Open system architecture design, powerful software customization ability

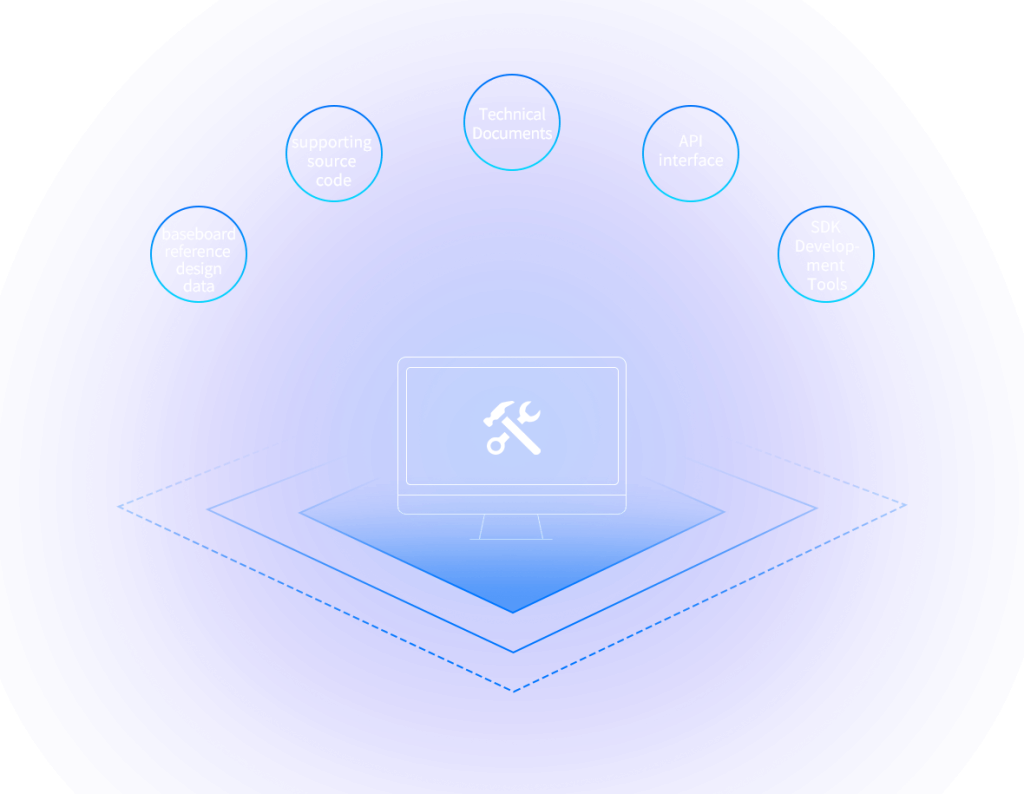

It can provide comprehensive technical data including baseboard reference design data, supporting source code, technical documents, API interface and SDK development tools, making the secondary development more simple, convenient and efficient, and helping customers to quickly create independent and controllable customized products.

Provide complete technical documentation and can be efficient for secondary development

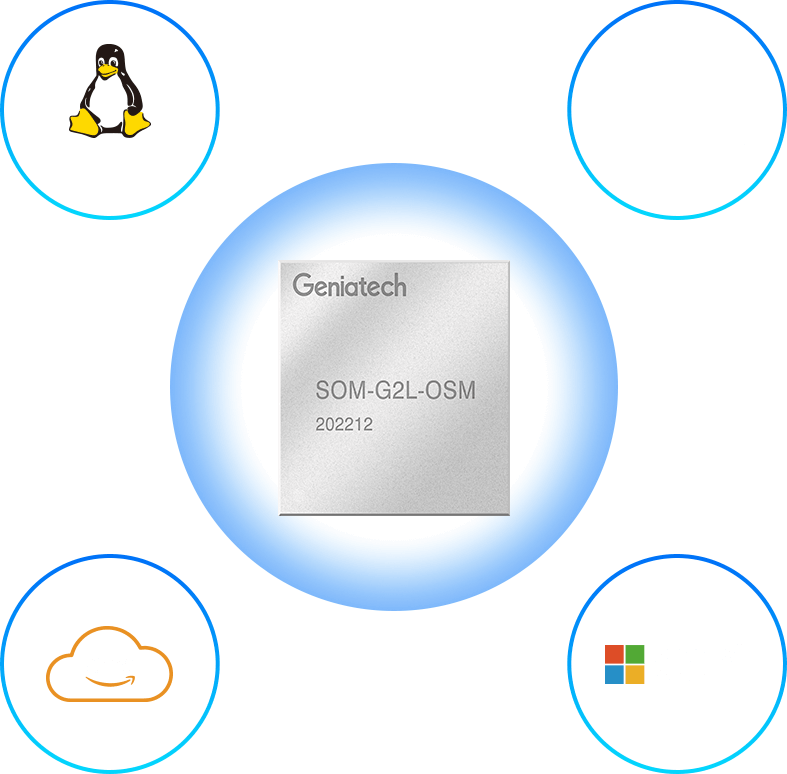

Using the mature, stable and highly expandable Linux 4.19 system, it can provide a complete set of software system customization services, including system kernel modification, driver transplantation, application development and UI customization, so as to provide a safe and stable system environment for product research and production. At the same time, it can be developed based on Renesas e²studio IDE software, which supports seamless connection with third-party platforms such as Amazon AWS and Microsoft Azure.

Industrial product standards, suitable for strict working environment

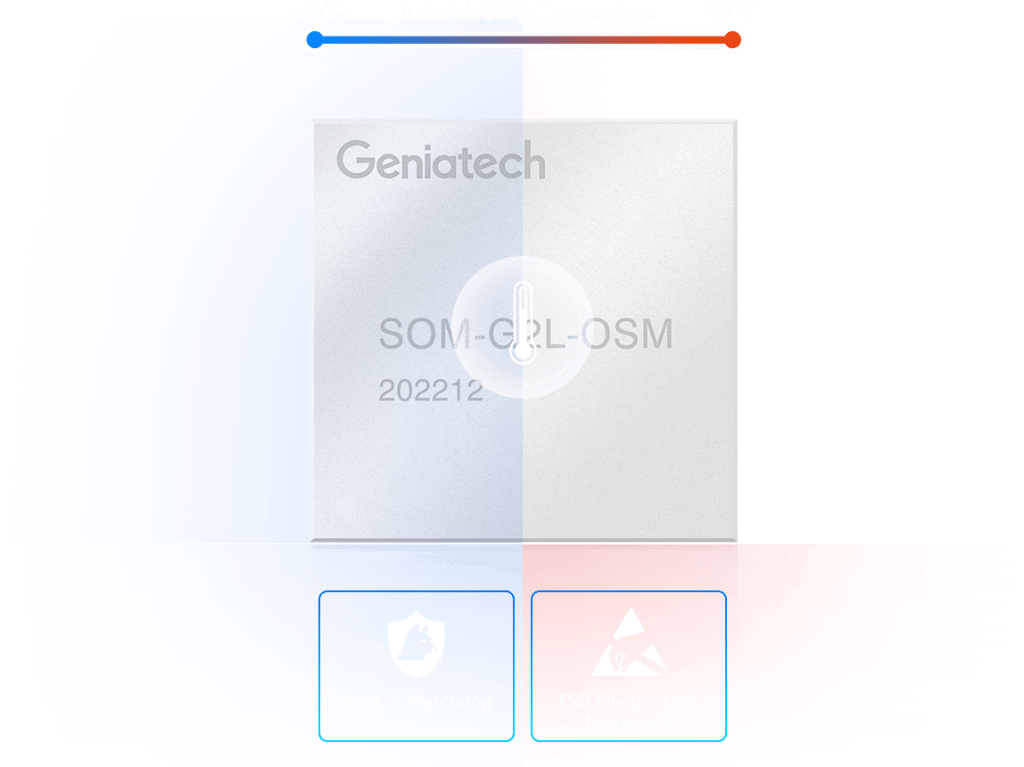

All components of the core board are designed with industrial wide temperature-40~85℃, with built-in watchdog and ESD electrostatic protection. They are tested and produced in strict process accordance with industrial standards to ensure 24*7 hours uninterrupted stable operation in a harsh outdoor environment, and meet the requirements of high quality and reliability of industrial applications.

Rich peripheral interface, widely used in different industries

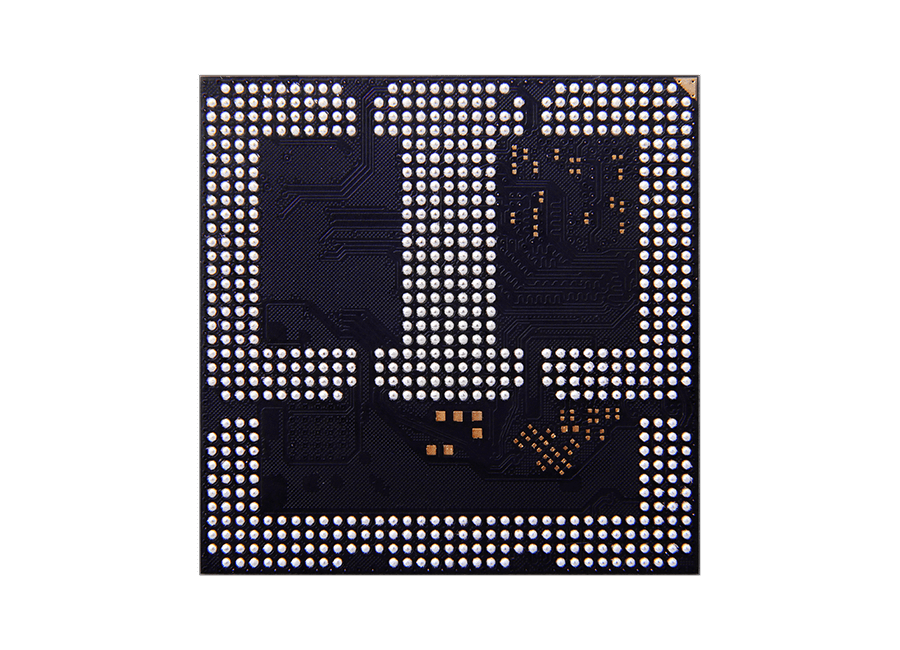

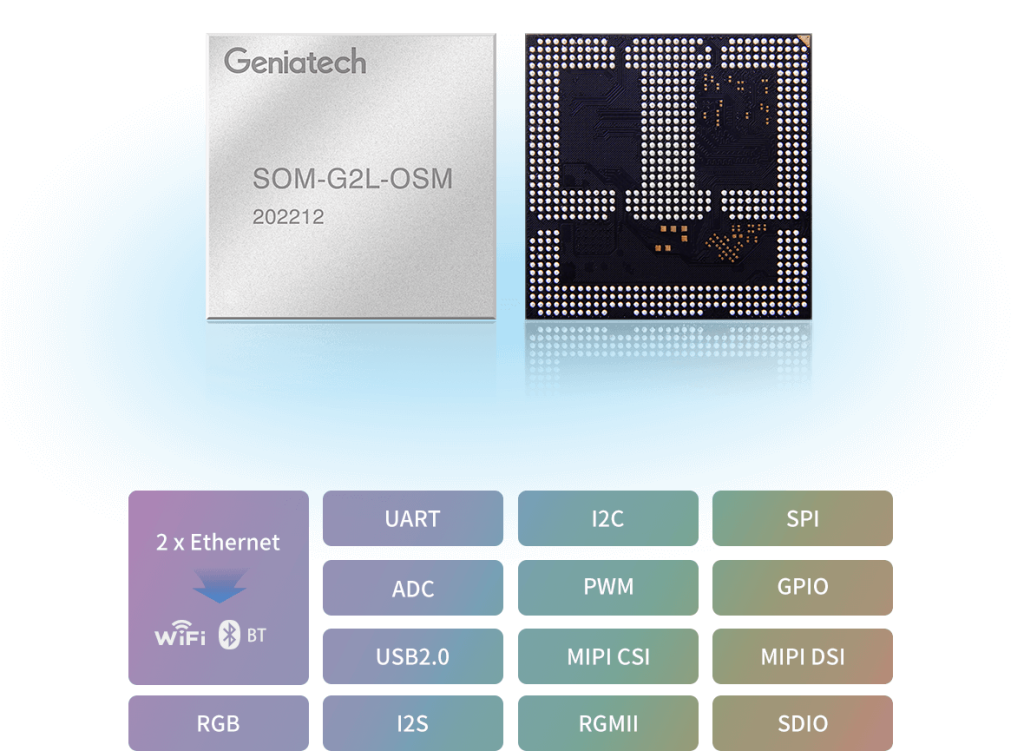

Up to 622 pins, it can provide rich peripheral interfaces for different industry applications, support 2 gigabit Ethernet interfaces, can extend Wifi and Bluetooth, and support UART, I2C, SPI, ADC, PWM, GPIO, USB2.0, MIPI CSI, MIPI DSI, RGB, I2S, RGM II, SDIO and other common extended interfaces.

Rich audio and video interfaces, greatly improve the human-computer interaction experience

Rich audio and video and touch interface resources, it can provide extended support for display, audio and camera, meet the needs of high-definition display, human-computer interaction and image acquisition, support H.264 1920×1080@30 fps video decoding, and also have 3D GPU and video hardware codec VPU. Support Vulkan, OpenGL, OpenCL, greatly improve the human-computer interaction experience.

Long life circle

Renesas provides RZ / G2L processor with 10 years + ultra-long life cycle guarantee, and also provides ultra-long-term and traceable Linux Kernel maintenance, providing stable and traceable guarantee for the long life cycle of customers’ products.

A full range of one-stop customization service

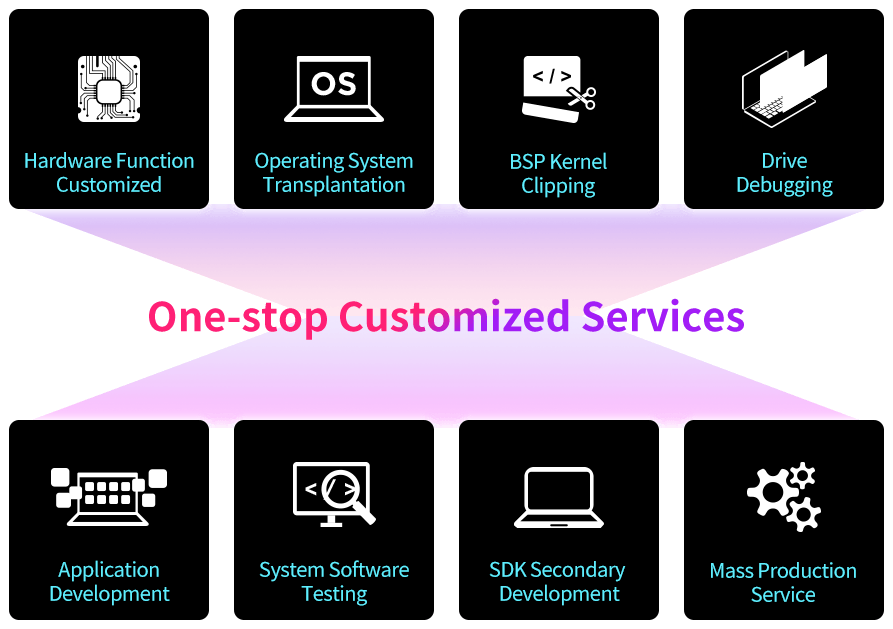

Geniatech has 25 years of technology research and development of ARM products and abundant partner resources, which can not only provide customized hardware but also cross-SOC platform operating system transplantation, BSP kernel tailoring and driver debugging, scenario-based application software development, overall system software testing services, perfect SDK secondary development interface and other one-stop consulting services. With our own production plant of nearly 30,000 square meters, it helps customers greatly shorten the cycle from product selection, research and development project approval, small trial production to mass production and delivery.

Application scenarios

Application to audio and video entertainment device, intelligent security, intelligent medical treatment, industrial automation control, edge computing, vehicle central control system, energy and chemical industry and other application fields.

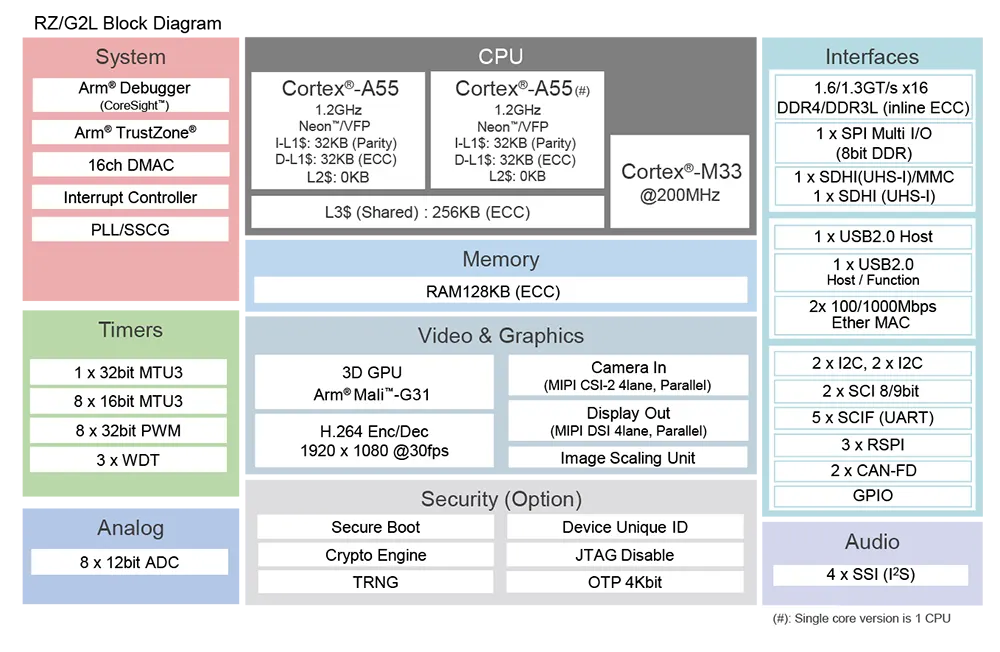

  • Chipset
    RENESAS RZ-G2L
  • Market area
    Global
  • CPU
    Dual-core Cortex-A55+Cotex-M33
  • GPU
    Mail-G31 GPU
    OpenGL ES 1.1/2.0/3.1/3.2、Vulkan 1.1、OpenCL 2.0
  • VPU
    Encoding / Decoding
    • H.264 / AVC (High Profile / Main Profile / Baseline Profile)
    • H.264 / MVC (Stereo High Profile)
    • Max resolution:1920 x 1080 x 30 fps
  • ISU
    Max input image resolution: 5M (2800×2047)
    • Max output image resolution: Full HD (1920×1080)
    • Support color format conversion
    • RGB / ARGB / YcbCr422 / YcbCr420 / RAW(Grayscale)
  • RAM
    2GB DDR4
  • ROM
    QSPI NorFlash:16MB
    16GB(Optional 8G/32G)eMMC
  • Ethernet
    Support 1000/100/10 Mbps transfer rate
    Support IEEE802.3 PHY RGMII and IEEE802.3 PHY MII
  • WiFi
    Extend Wifi and Bluetooth through SDIO3.0
  • Display
    MIPI-DSI: 4-lane MIPI displays serial interface,support up to 1.5 Gbps per lane,max resolution of 1920 x 1080@60fps
    RGB: Provides parallel display interface,support highest resolution of WXGA(1280×800@60fps)
  • USB
    1 x USB Host2.0 , 1 x USB OTG 2.0 support up to 480 Mbps
  • CAN FD
    CAN-FD ISO 11898-1 (CD2014) standard,max transmission speed of 4Mbps
  • I2C
    Supports master mode and slave mode, multi-host operation, timeout detection, and 7bit and 10bit slave address formats.
  • UART
    With FIFO, supports full duplex mode, supports modem control function (channels 0, 1 and 2 in asynchronous mode),
    optional clock synchronous mode, asynchronous mode or Smart Card mode, encodes and decodes IrDA communication waveform
    according to IrDA standard version 1.0 (on channel 0), Supports a separate 16-byte FIFO register for sending and receiving.
  • SPI
    Support master mode and slave mode, programmable bit length, clock polarity, clock phase optional, maximum transmission rate: 50 Mbps
  • Audio format
    Support I2S, mono, TDM mode, dual channel serial transmission
    Supports 8, 16, 18, 20, 22, 24 and 32 bit data formats
    Support 32 – level FIFO transmission and reception
  • MTU3
    Multi-function Timer Pulse Unit 3
    Supports Toggle, PWM, complementary PWM, and reset synchronous PWM modes
    Support dead zone time compensation counter function
    Digital filter function that supports input capture and external counting clock pins
  • GPT
    General PWM Timer
    Support counting up or down (sawtooth wave), and counting up or down (triangle wave)
    Each channel is individually optional, with 2 input/output pins per channel
  • WDT
    Watchdog Timer
    Channel function
    WDT CH0 WDT to check the operation of Cortex-A55-CPU Core0
    WDT CH1 WDT to check the operation of Cortex-A55-CPU Core1
    WDT CH2 WDT to check the operation of Cortex-M33 CPU
  • ADC
    Resolution: 12-bit Input voltage: 0V~1.8V Conversion time: 1us
    Operation mode: Single scan/continuous scan A/D conversion start condition: software trigger/asynchronous trigger
    (support external trigger)/synchronous trigger (MTU and PWM timer)
  • JTAG
    Support JTAG debugging interface
  • Operating system
    Linux 4.19
  • Mechanical properties
    • Size: 45mm × 45mm
    Interface mode: OSM-L standard LGA package
  • Operating temperature
    -40~85°C
  • Power supply
    DC input voltage 5V

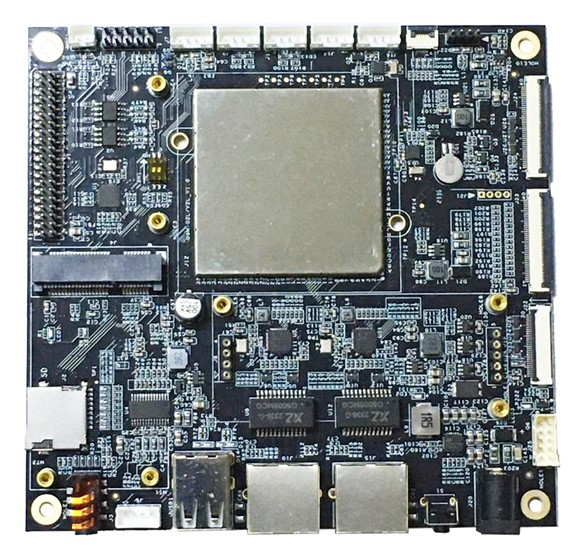

Carrier Board
