| Chipset | NXP iMX6Q,D,S | |
| Market area | Global | |
| OSD Language | English/Chinese(multi language OSD) | |
| Processor | Processor | i.MX 6Quad: Quad ARM Cortex-A9 core, up to 1.2 GHz i.MX 6Dual: Dual ARM Cortex-A9 core, up to 1.2 GHz i.MX 6Solo: Single ARM Cortex-A9 core, up to 1 GHz |
| Memory | LPDDR3 1066MHz, 1GB for 6Quad/Dual LPDDR3 800MHz, 1GB for 6Solo 8bit SDIO |
|
| EMMC FLASH | 8GB（16G/32G Optional） | |
| Network | Ethernet | Gigabit Ethernet (10/100/1000 Mbps) |
| Display | HDMI®1.4 LVDS (one port up to 165 Mpixels/s or two ports up to 85 Mpixels/s) |
|
| SATA | SATA II, 3.0 Gbps for 6Quad/Dual only | |
| USB | USB 2.0x 4 USB OTG x1 |
|
| Audio | Audio MUX (AUDMUX) | |
| PCI Express | PCI Express Gen 2.0 (x1 lane) | |
| Interface | UART x2 SPI x1 I2C x3 GPIO x8 CANx1 |
|
| Dimensions | 70 mm * 70 mm | |
| Adapter | DC input voltage 5V | |

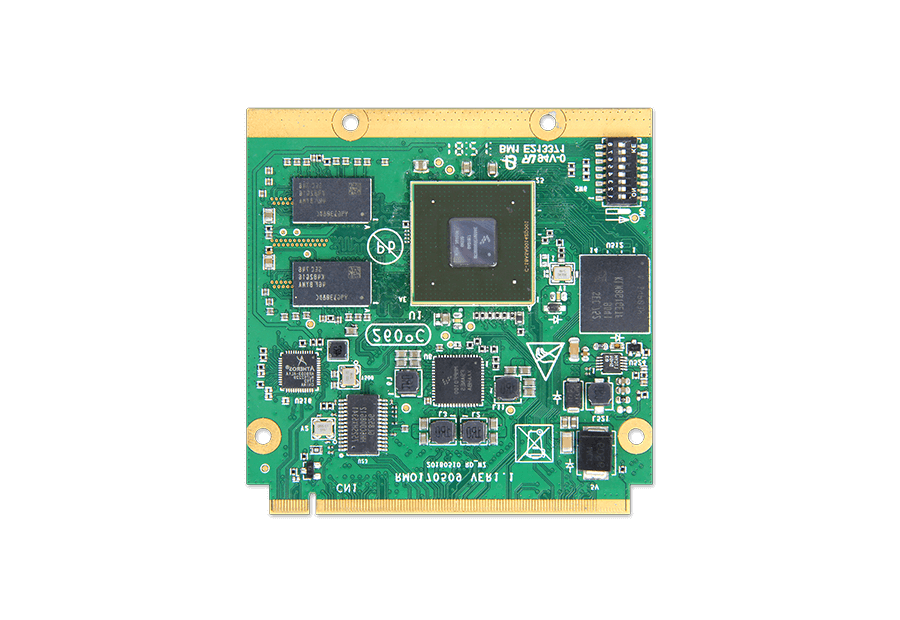

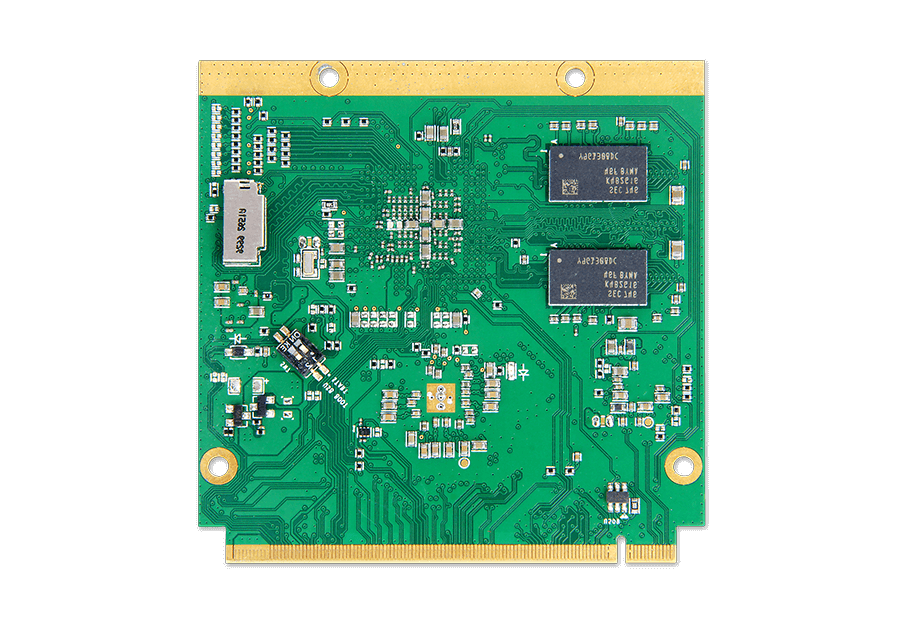

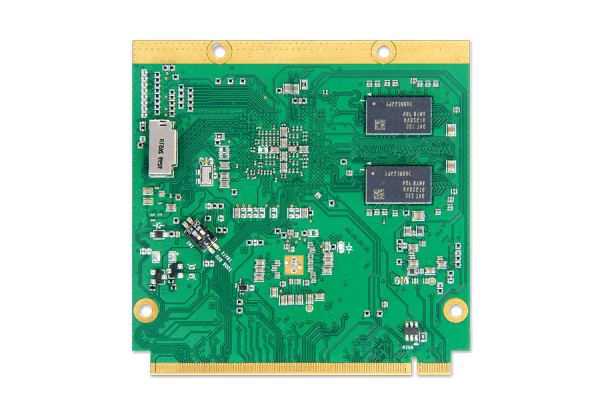

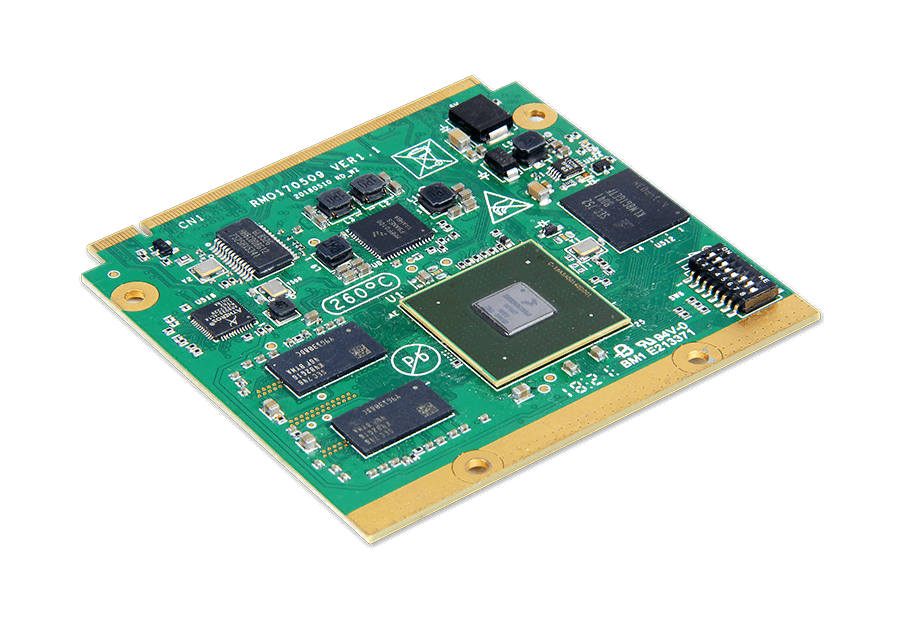

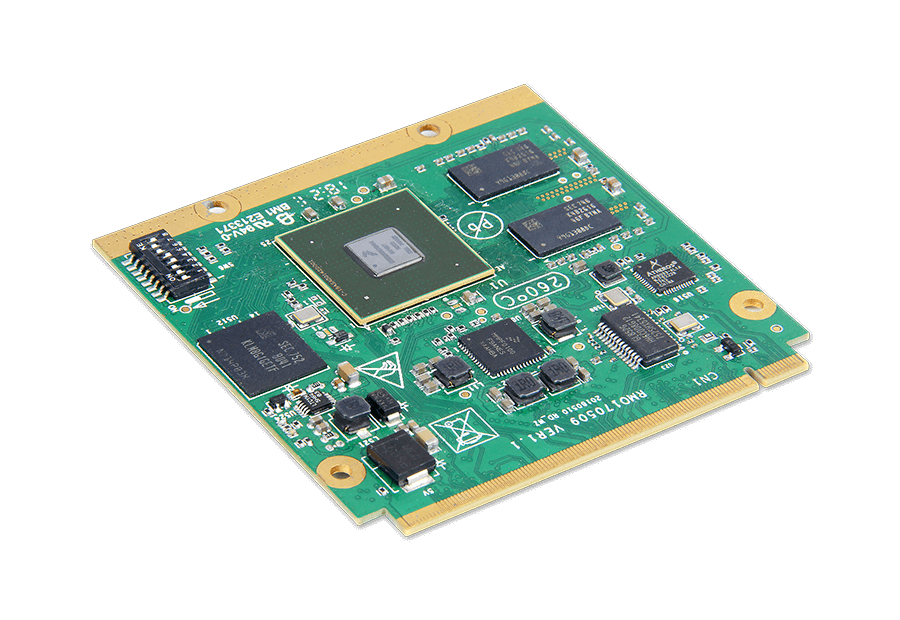

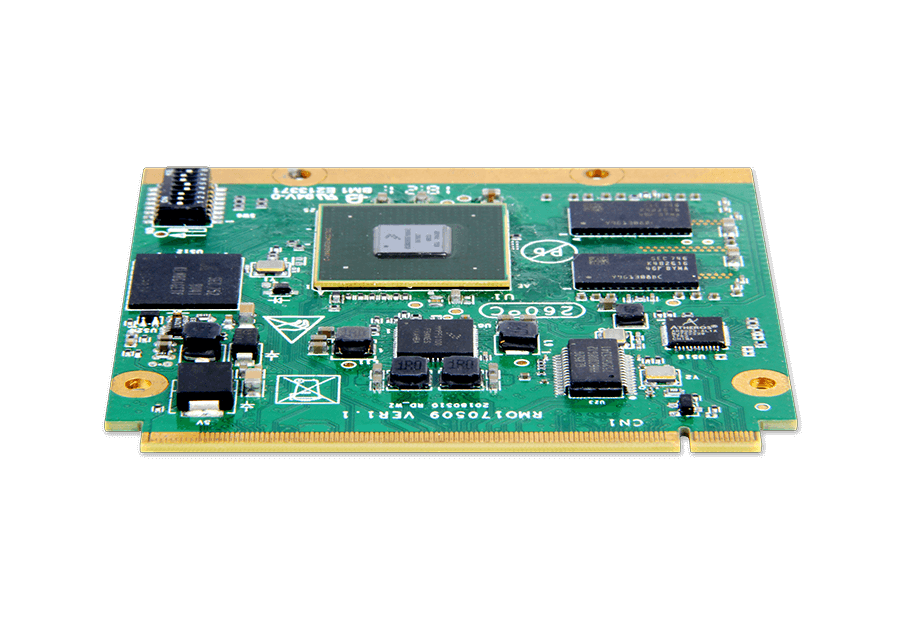

SOM-iMX6-Q7
The SOM-iMX6-Q7 is a System on Module (SOM) board based on the i.MX6 series of SoCs. The i.MX 6 series of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities particularly suited to multimedia applications.The i.MX 6Quad processors feature advanced implementation of the quad ARM Cortex-A9 core, which operates at speeds up to 1.2 GHz. They include 2D and 3D graphics processors, 1080p video processing, and integrated power management.Each processor provides a 64-bit DDR3/DDR3L/LPDDR2 memory interface and a number of other interfaces for connecting peripherals, such as WLAN, Bluetooth, GPS, hard drive, displays, and camera sensors.
