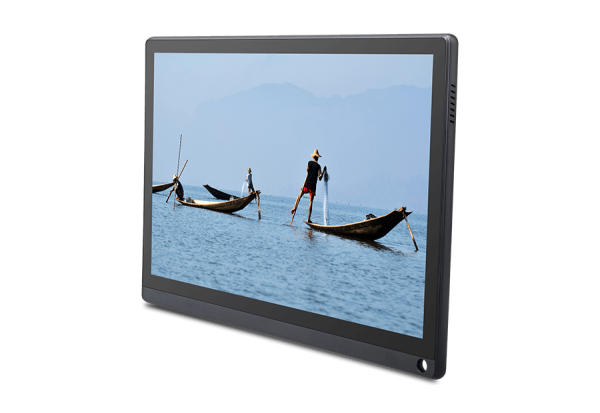

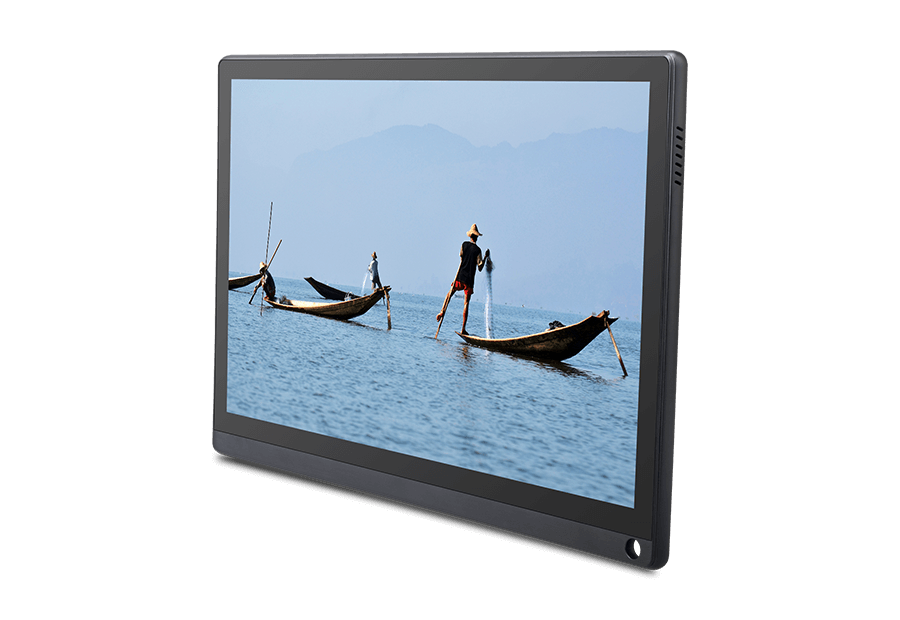

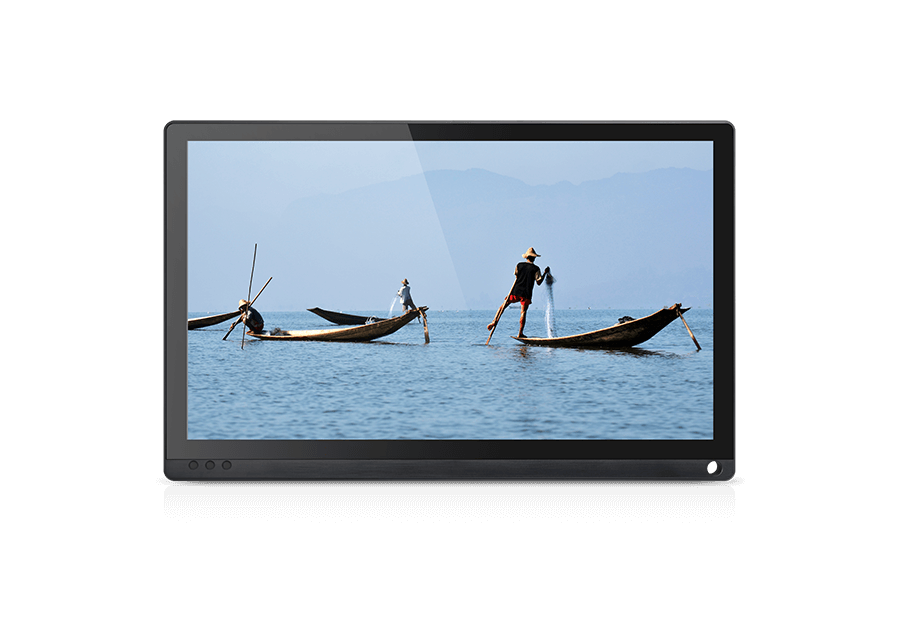

K2-3399 Industrial Touchscreen PC

  • Rockchip RK3399 ARM Dual-core ARM Cortex-A72 MPCoreprocessor@1.8GHz and Quad-core ARM Cortex-A53MPCore processor @1.4GHz
  • ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0, OpenCL1.2, DirectX11.1
  • support Android 10.0 / Linux DebianOS
  • Support 2GB/4GB LPDDR4, 8G~128GB eMMc flash, external expansion USBstorage
  • Ethernet 10/100/1000MLan interface
  • 11b/g/n/ac(2.4G&5.8G )+BT5.0 (optional)
  • Support mini PCIE LTE(Global standard)
  • 1 * HDMI®In, 1 * HDMI®Out, support 4K video play
  • 1 * LVDS, 1 * eDP
  • GTIOT:Z-WAVE / ZIGBEE / LoRa / LTE / GPS /WiFi / BT5.0
  • Support DVB-T/DVB-T2/DVB-C/ATSC1.0/3.0/ISDB-T/DMB-TH/DTMB(optional)
  • 1 * USB3.0 + 3 * USB2.0(built-in)
  • Support Watch dog&RTC+RS232+GPIO + SPK(MAX:2*5W8Ω)
  • Designed for retail, interactive communication

Buy a Sample

Get A Quote
Multi-operating System

Support Android 7.1 and above, Linux system

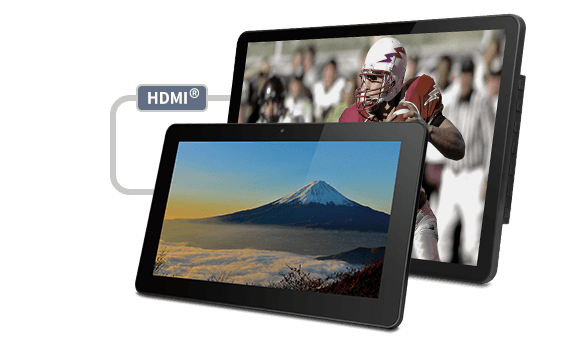

Dual Screen Different Display

The display of itself is different from HDMI® output

RK3399 SMARC Development Kit
High Reliability

Industrial main board design,
quality control, 365*24H continuous work without exception

Remote Device Management

Can remotely wake up, restart, standby, etc.

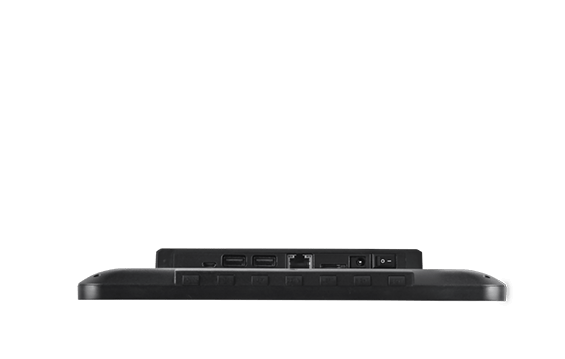

High Scalability

Rich device interfaces, expandable access to different devices

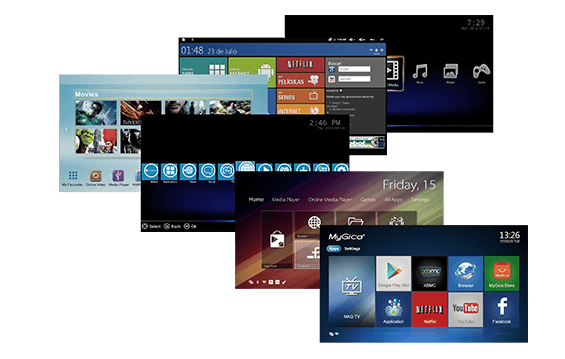

APP Customization Service

Personalized GUI customization service

Super Performance

Large and small core architecture, Six-core (Dual-core ARM-A72+quad-core ARM-A53), 2.0GHz core configuration, extreme performance, let the product to be fluent and have more possibilities

Built in TV Tuner

More suitable for hotel, sports equipment and other scenes

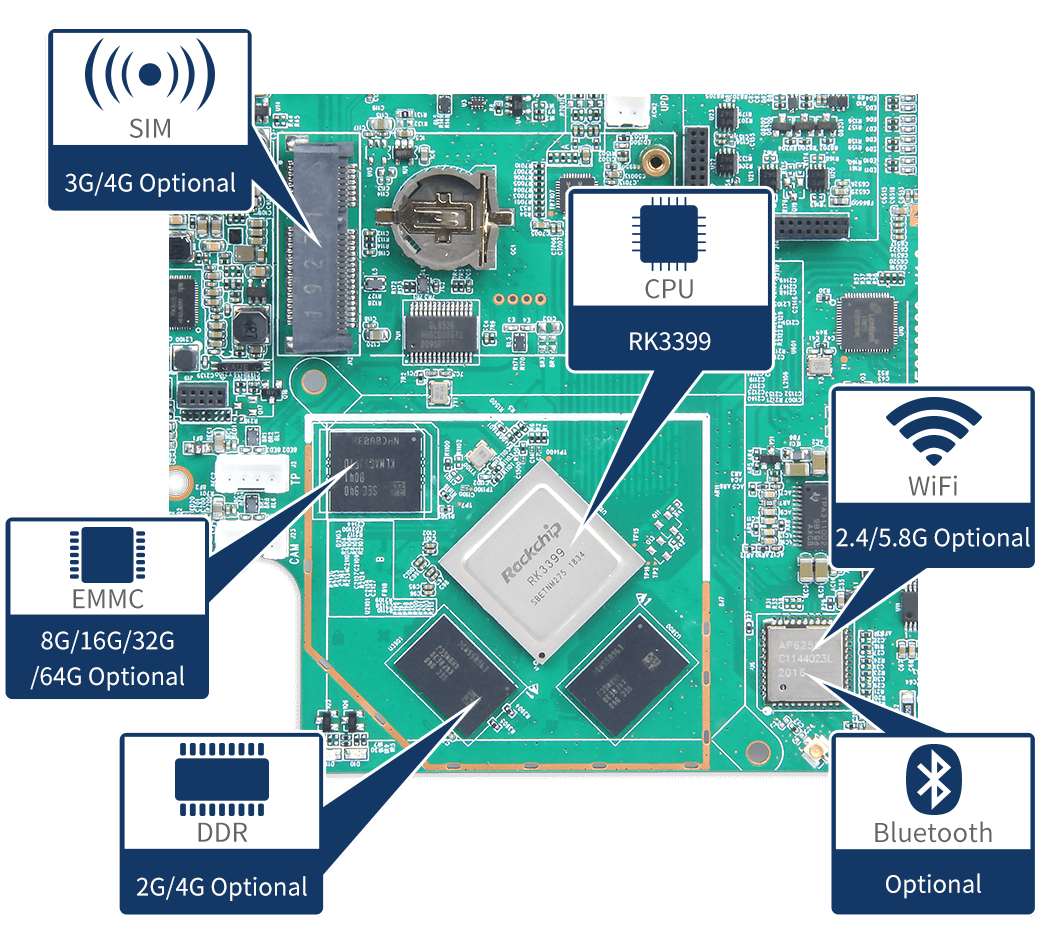

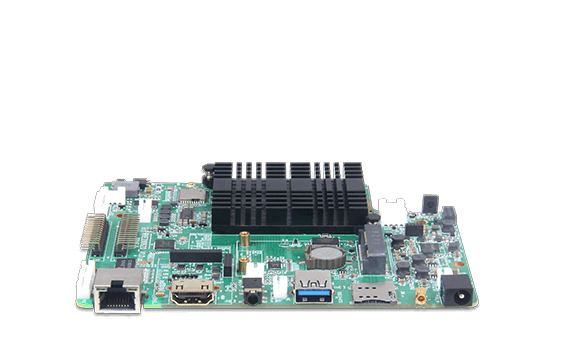

K2-3399 Main Board Specifications

RK3399 SMARC Development Kit

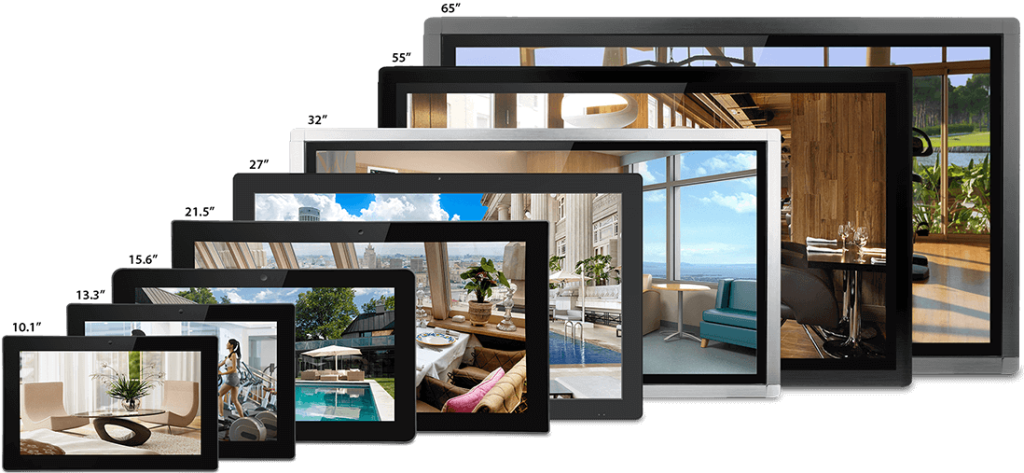

Screen Specifications

Display from 10.1 to 65 inches, resolution from 1280*600 to 4K screen

All-glass Capacitive Screen

10 points touch, short response time

Application Scenario

Digial Signage

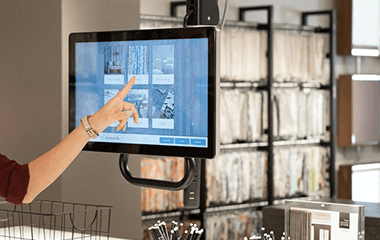

Smart Self-service Terminal
New Retail Smart Rerminal
O2O Smart Device
Robot Equipment
AI Equipment
  • CHIPSET
    Rockchip RK3399
  • OS
    Android 10/Linux
  • CPU
    Dual-core Cortex-A72 up to 1.8GHz
    Quad-core Cortex-A53 to 1.4GHz
  • GPU
    Mali T860MP4
  • DDR
    4GB LPDDR4(1G/2G Optional)
  • EMMC FLASH
    8GB(16G/32G/64G Optional)
  • Touch Screen
    10 Point Capacitive
  • Ethernet
    RJ45, 10/100M/1000M
  • WiFi
    802.11a/b/g/n/ac,2×2 MIMO
  • Bluetooth
    BT4.1
  • POE
    802.3at(Optional)
  • Speakers
    2*3W
  • Camera
    Front 2M/5M pixels(Optional)

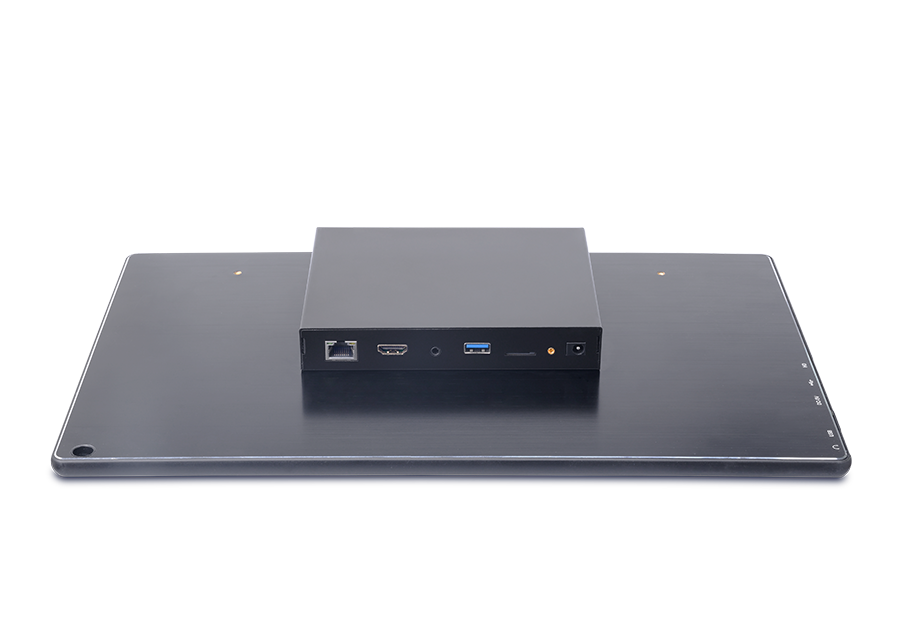

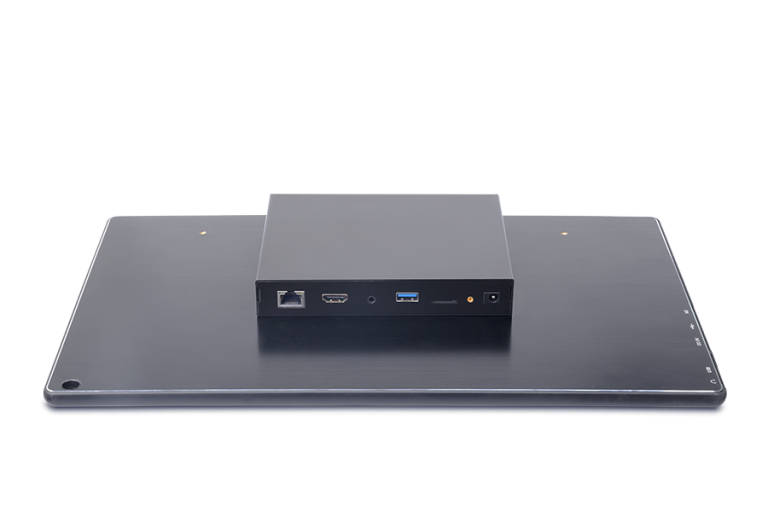

  • Interface
    Micro SD card *1(max. 64GB)
    HDMI®out*1
    USB Host 3.0*1
    USB Type C*1
    12V DC IN*1
