ChipsetRockchip RK3568/RK3568J
-
Market areaGlobal
-
OSD LanguageEnglish/Chinese(multi language OSD)
-
CPUQuad-core Cortex-A55 up to 1.8GHz
-
GPUMali-G52-2EE
-
DDR2GB(1G/4G/8G Optional)
-
EMMC FLASH8GB(16G/32G/64GB/128GB Optional)
-
OSDebian10/ Android11/Rasberry Pi OS emulater
-
EthernetRJ45, 1000M
-
WiFi2.4G/5G Dual Band
-
BluetoothBT4.0
-
Micro SD SlotMicro SD slot *1(max. 64GB)
-
HDMIHDMI out*1
-
USB HostUSB HOST 3.0 * 1,USB OTG 3.0*1,USB Host 2.0*2
-
TYPE-CPower IN*1
-
GPIOGPIO*40
-
DisplayMIPI-DSI, MIPI-CSI, IR
-
Dimensions85 mm * 55 mm
-
AdapterDC5V / 3A
-
AccessoryN/A, XPI only

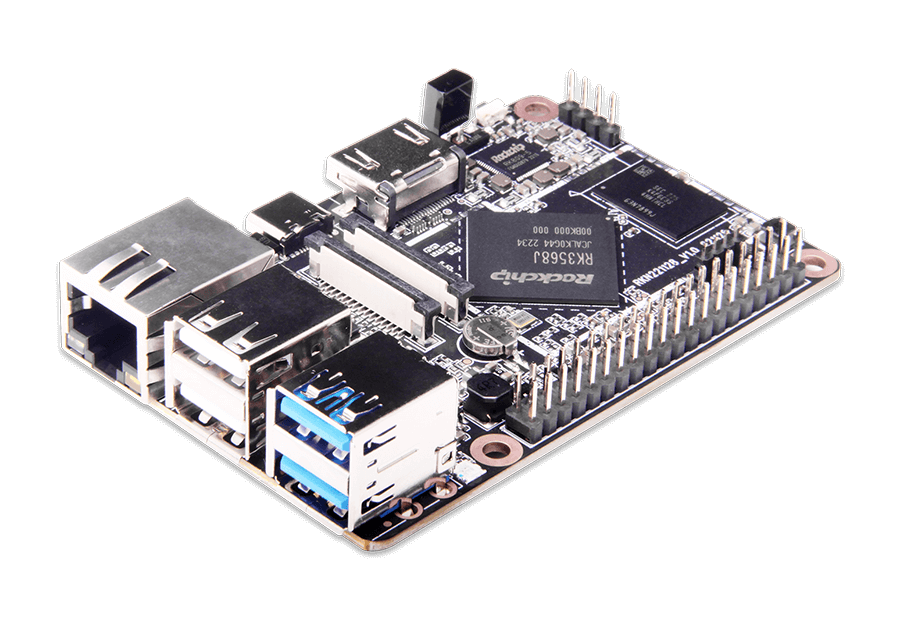

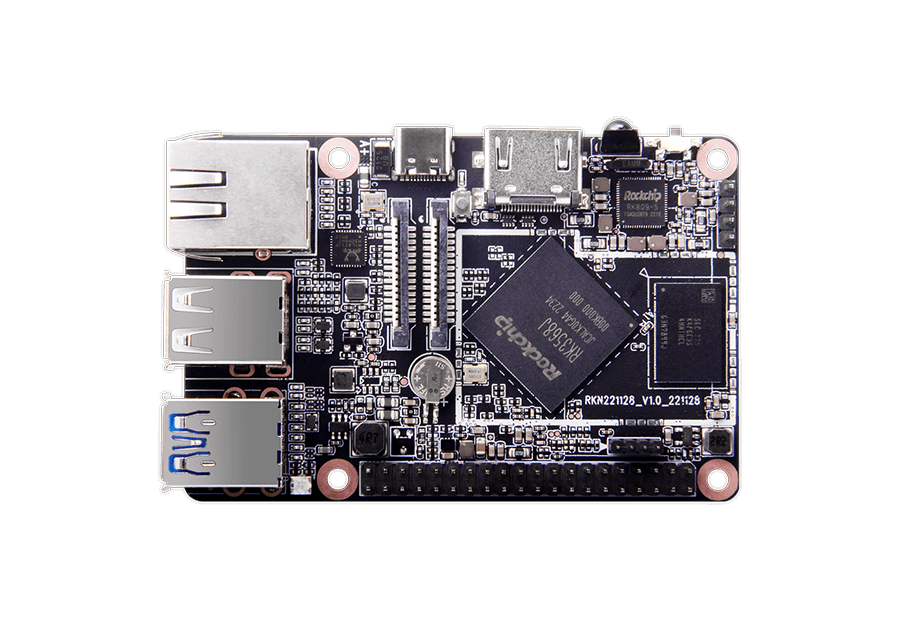

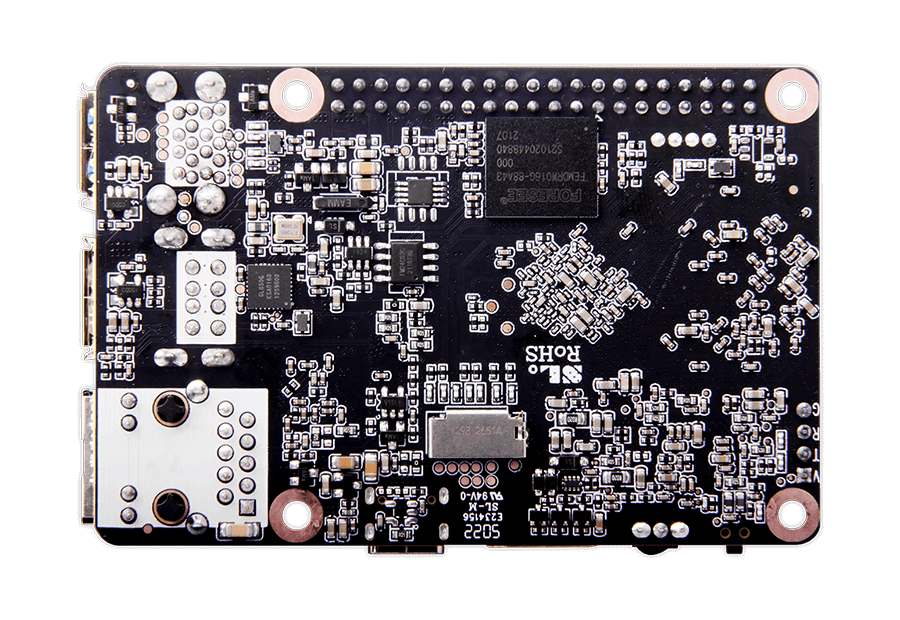

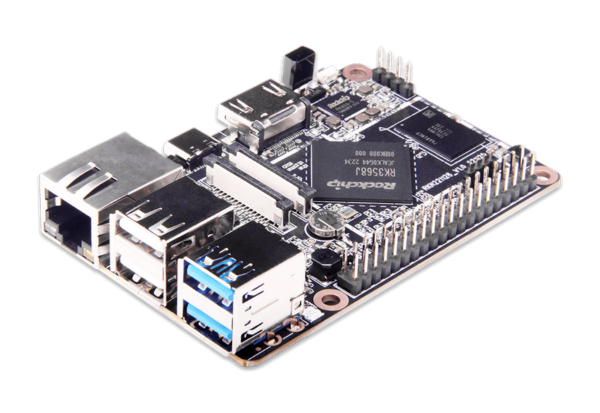

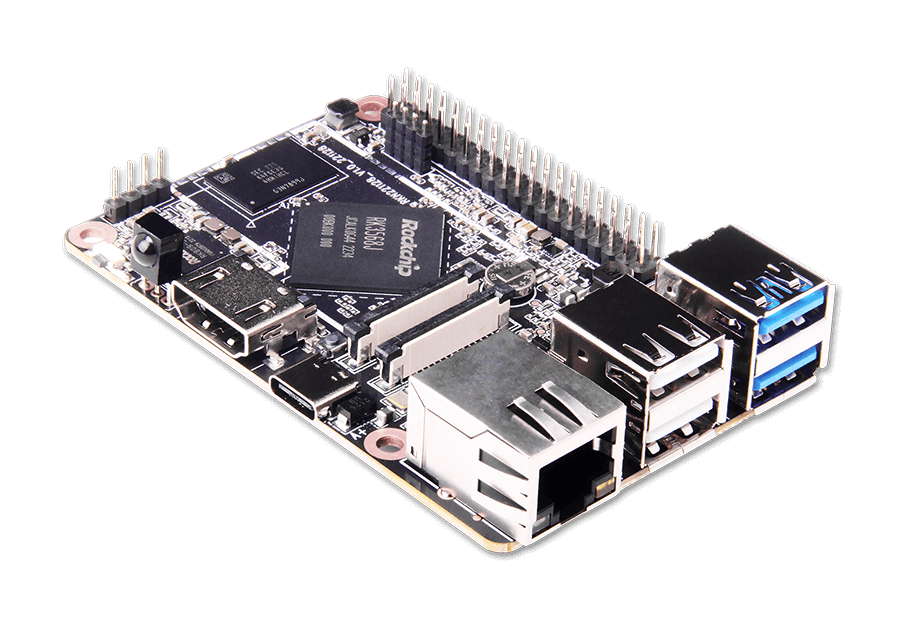

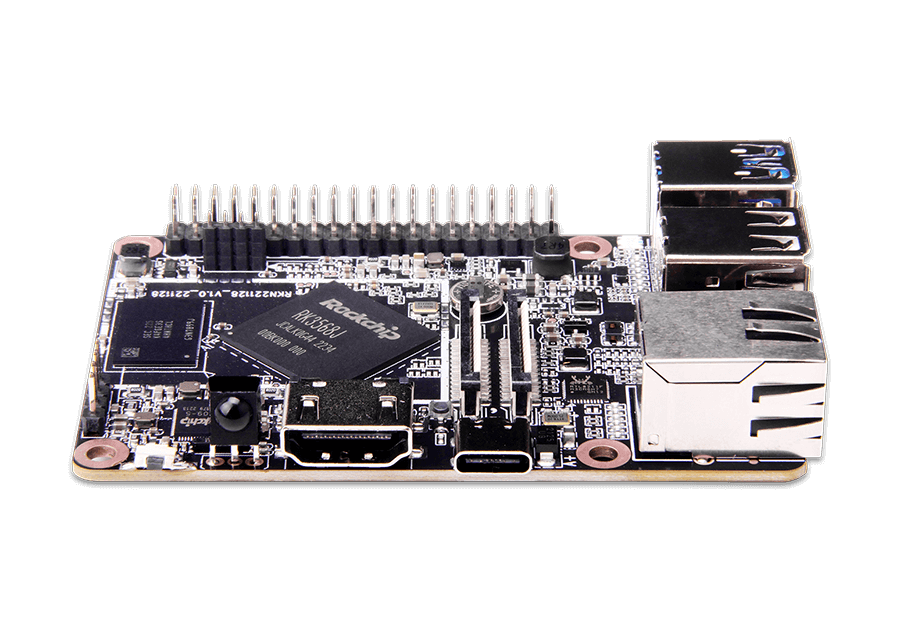

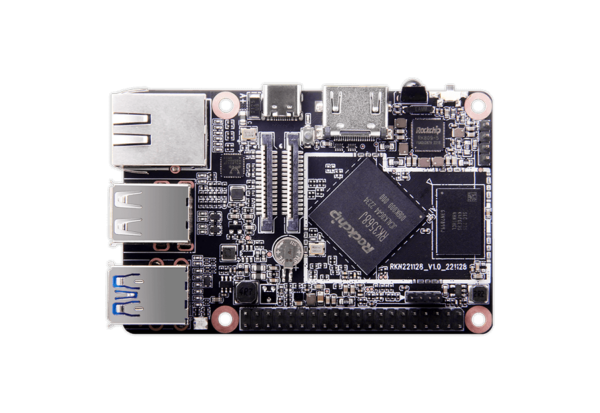

XPI-3568
Rockchip RK3568 with Quad-core Cortex-A55 up to 1.8GHz
- Supports Rasberry Pi OS emulater, Debian, Android operating systems, supports Raspberry PI system development applications

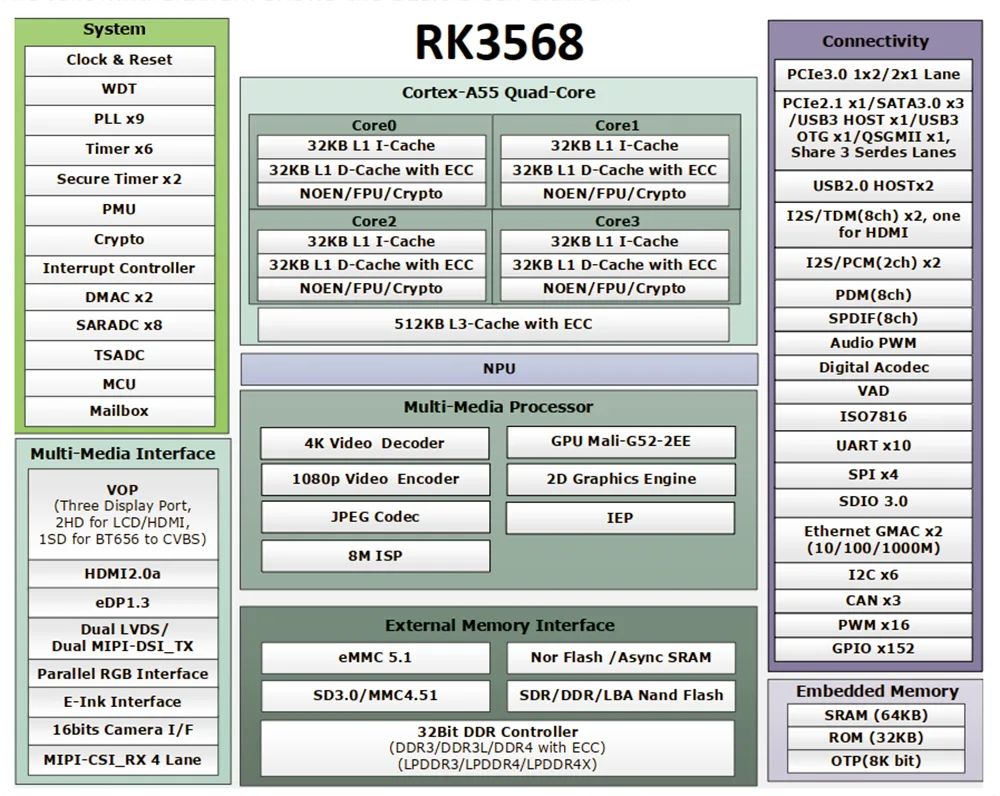

- Adopts with RK3568/RK3568J processor, integrated 1 Tops NPU, supports 4K@60fps HD video decoding
- Supports up to 8 GB memory, 8 GB to 128 GB eMMC, multiple storage configurations are optional
- Supports HDMI 4K output display, MIPI-DSI, MIPI-CSI video input and output
- Supports 40P GPIO and can be configured as rich expansion interfaces such as RS232, GPIO, SPI, I2C, and PWM
- Built-in 1000M Ethernet port, supports Wi-Fi/BT wireless network connection
- Using the original Raspberry PI development tools and the same API interfaces
- Open system architecture design, can provide complete system software customization services
Categories: Single Board Computer, XPI
