Renesas RZ/V2N OSM-M AI System-on-Module

SOM-V2N-OSM

Renesas RZ/V2N OSM-M AI System-on-Module

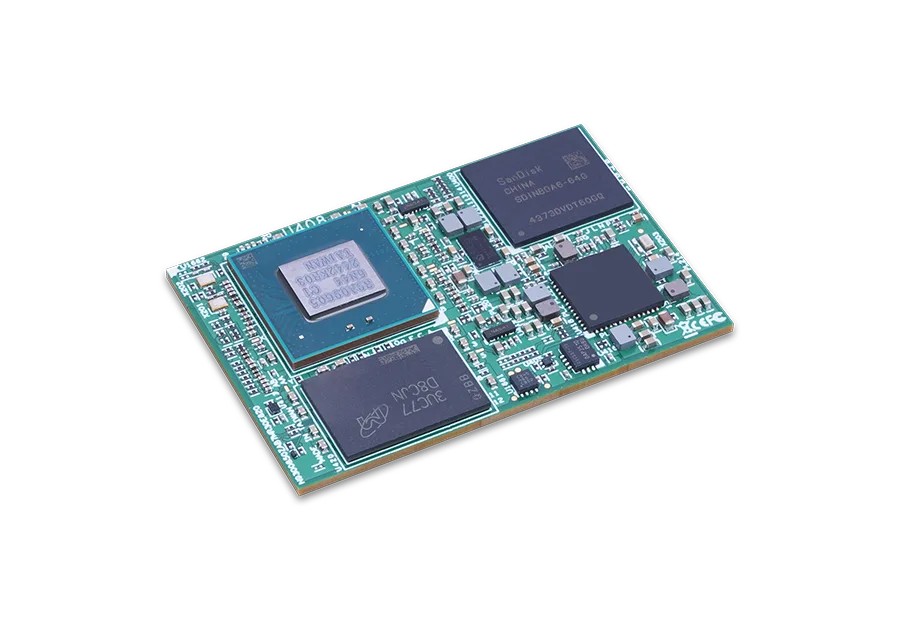

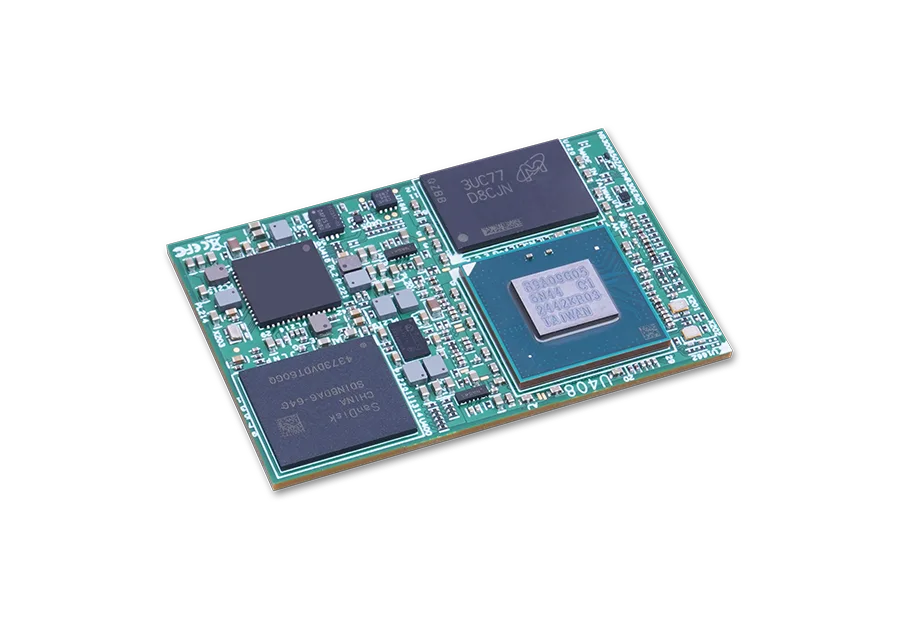

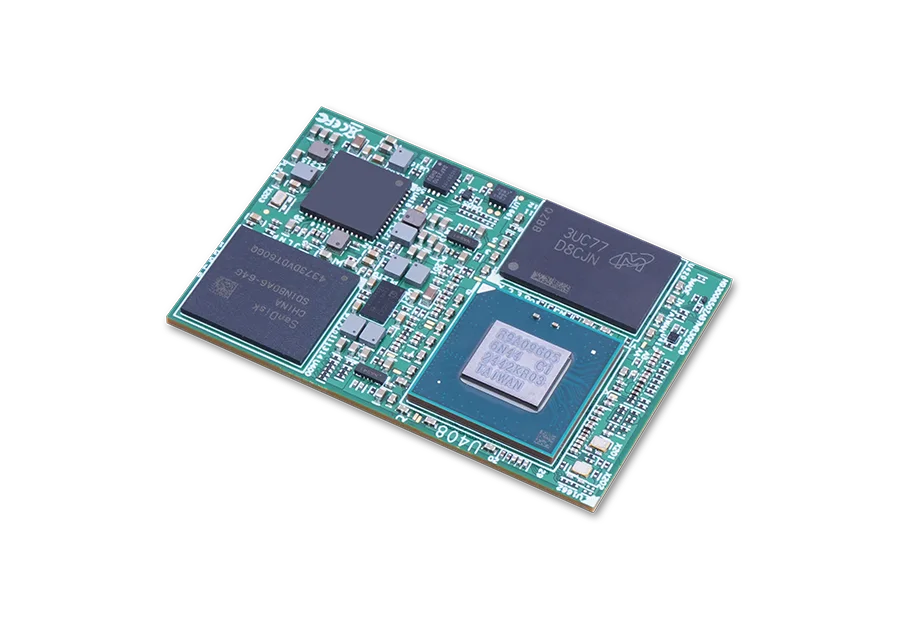

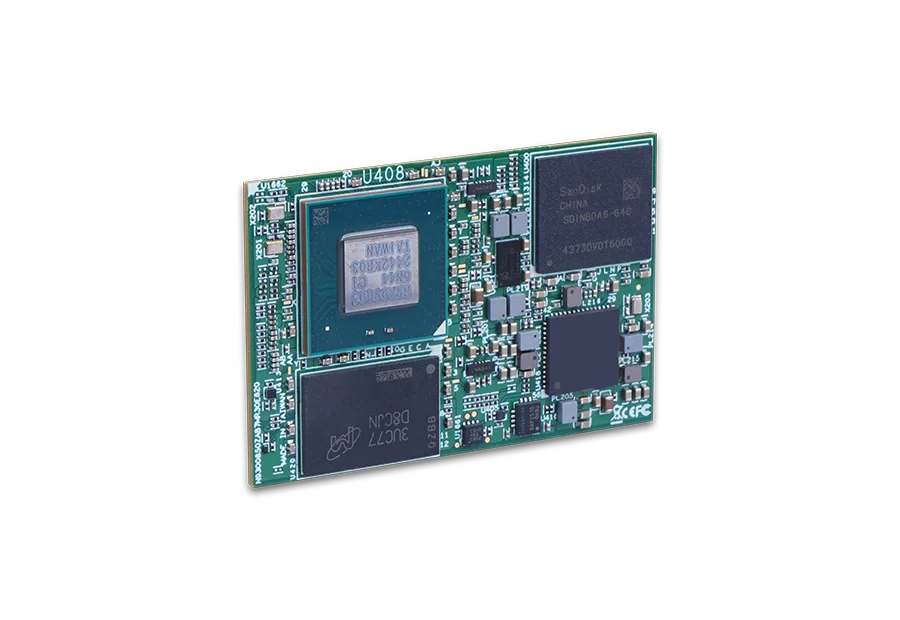

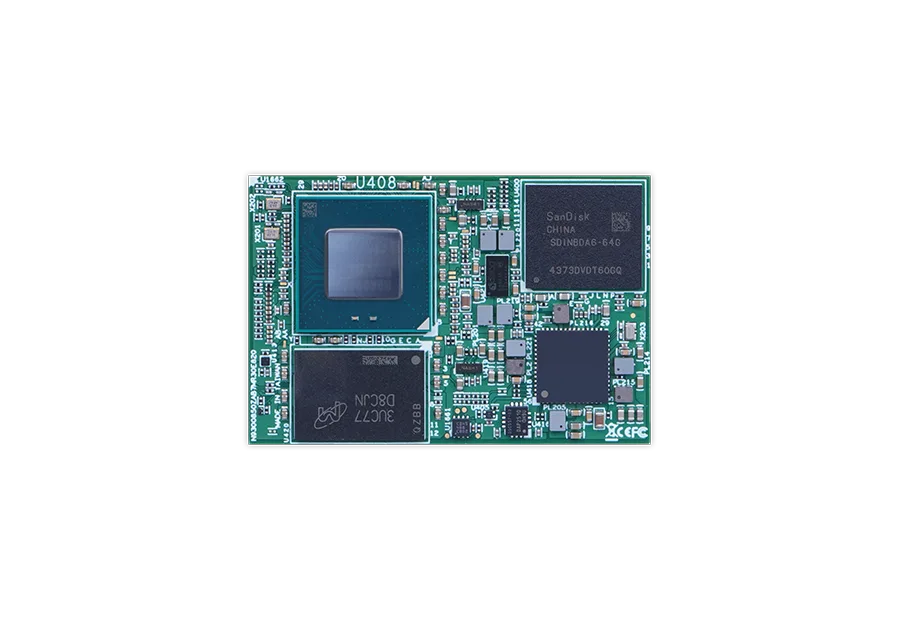

Geniatech SOM-V2N-OSM is an OSM Size-M System-on-Module based on the Renesas RZ/V2N. It integrates a quad-core Arm Cortex-A55 CPU and a Cortex-M33 core with the DRP-AI3 accelerator, providing up to 15 TOPS of AI performance with excellent power efficiency. The module includes a range of interfaces for camera, display, networking, and peripheral connectivity. It follows the SGeT OSM v1.2 specification and is designed for embedded systems requiring compact size, low power consumption, and AI capability.

4× Arm Cortex-A55 @ 1.8 GHz and 1× Cortex-M33 @ 200 MHz
DRP-AI3 accelerator up to 15 TOPS (sparse), ~10 TOPS/W efficiency
8GB LPDDR4X onboard memory and 64GB eMMC storage
2× MIPI CSI-2 (4-lane) and 1× MIPI-DSI (4-lane) interfaces
1× PCIe Gen3, USB 3.0, USB 2.0, and USB OTG support
Dual Gigabit Ethernet (RGMII) and multiple industrial I/Os (UART, CAN, SPI, GPIO)

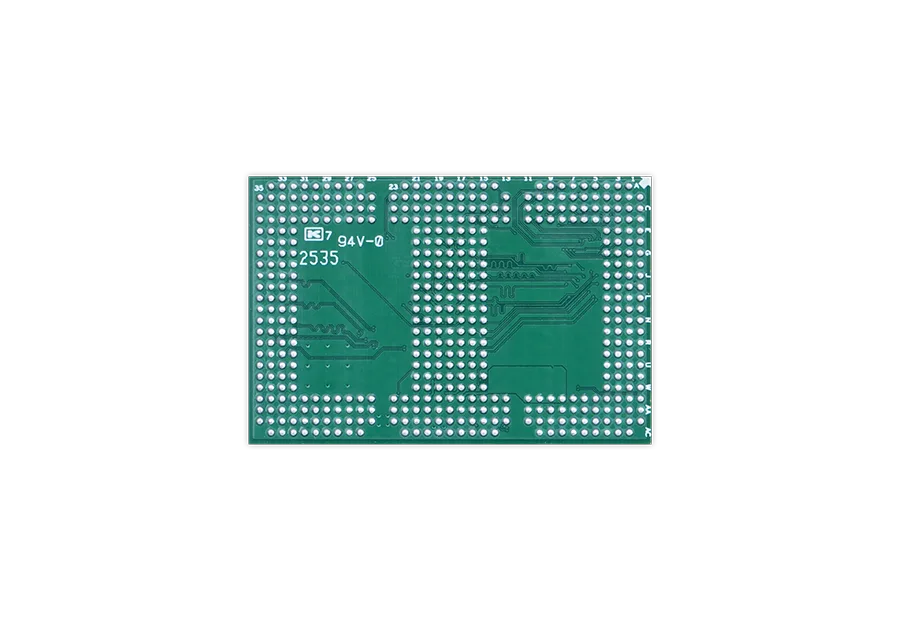

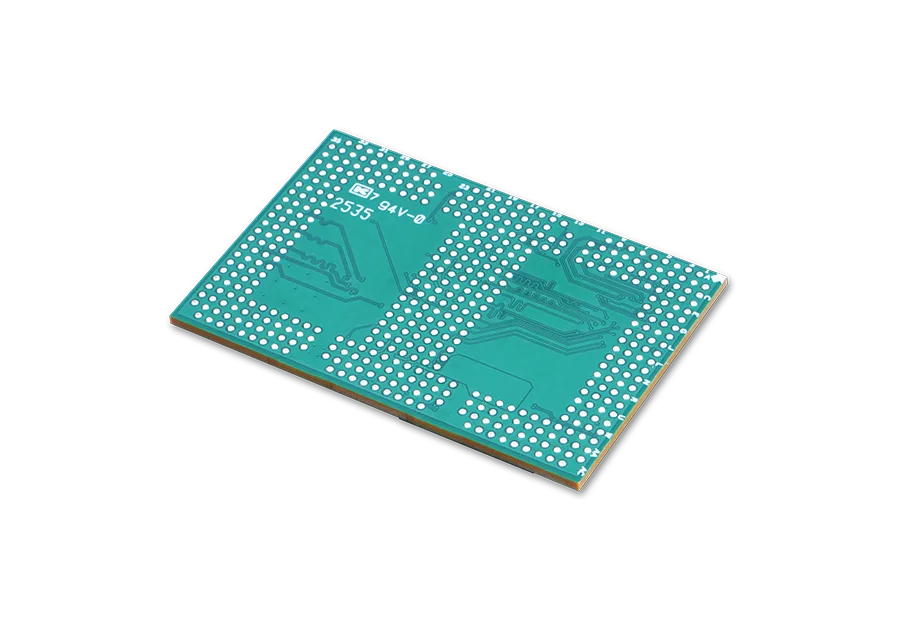

OSM Size-M form factor (30 × 45 mm, 476-pin), compliant with SGeT OSM v1.2
Operating temperature range: -20°C to 85°C

General
OSM Standard	SGeT OSM Specification v1.2, OSM Size-M
SoC	Renesas RZ/V2N
CPU	4x Arm Cortex-A55 @ 1.8 GHz, 1x Arm Cortex-M33 @ 200 MHz
Storage	64GB eMMC
Memory	8GB onboard LPDDR4X
Power Input	5V DC
Operating System	Linux (Yocto-based)
Hardware Interfaces
Audio	2x I²S
PCIe	1x PCIe Gen3
USB	1x USB OTG, 1x USB 2.0, 1x USB 3.0
Display	1x MIPI-DSI (4-lane)
Video	Integrated in SoC
Camera	2x MIPI CSI-2 (4-lane)
Ethernet	2x GbE LAN (RGMII)
Other Legacy I/O	5x UART (1x console), 16x GPIO, 2x SDIO, 2x CAN, 1x PWM x4, 1x SPI, 2x ADC, 1x JTAG
Mechanical & Environment
Form Factor	SGeT OSM v1.2, OSM Size-M, 476 pins
Dimensions	30 mm (L) x 45 mm (W)
Operating Temperature	-20°C to +85°C
Relative Humidity	5% to 95% RH (non-condensing)
