Renesas RZ/V2L OSM System-on-Module

SOM-V2L-OSM

Renesas RZ/V2L OSM System-on-Module

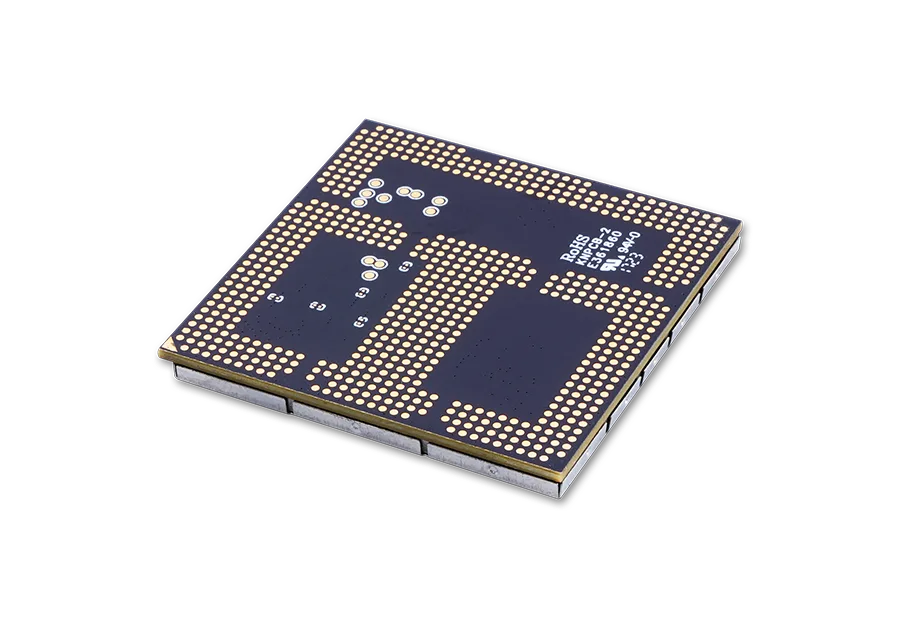

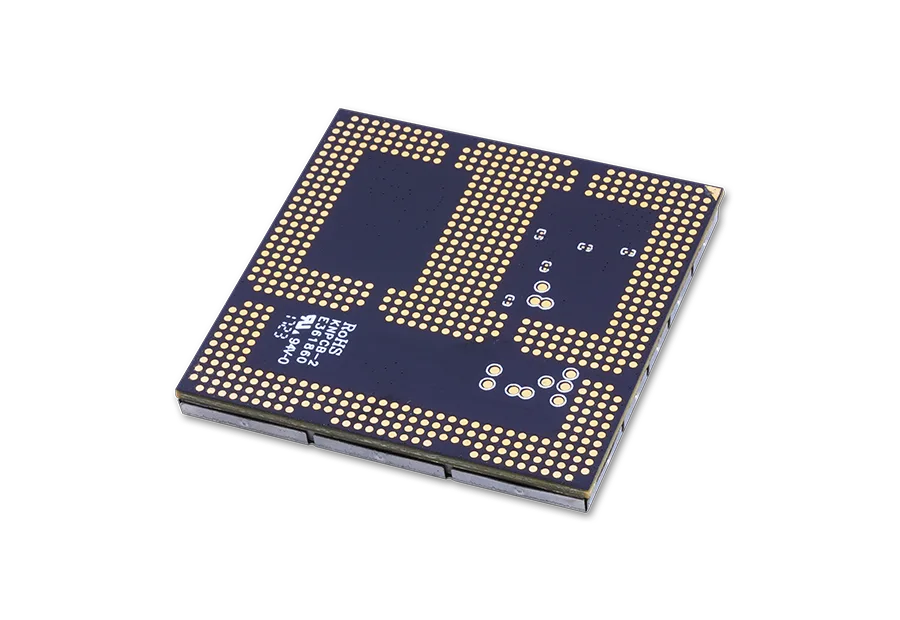

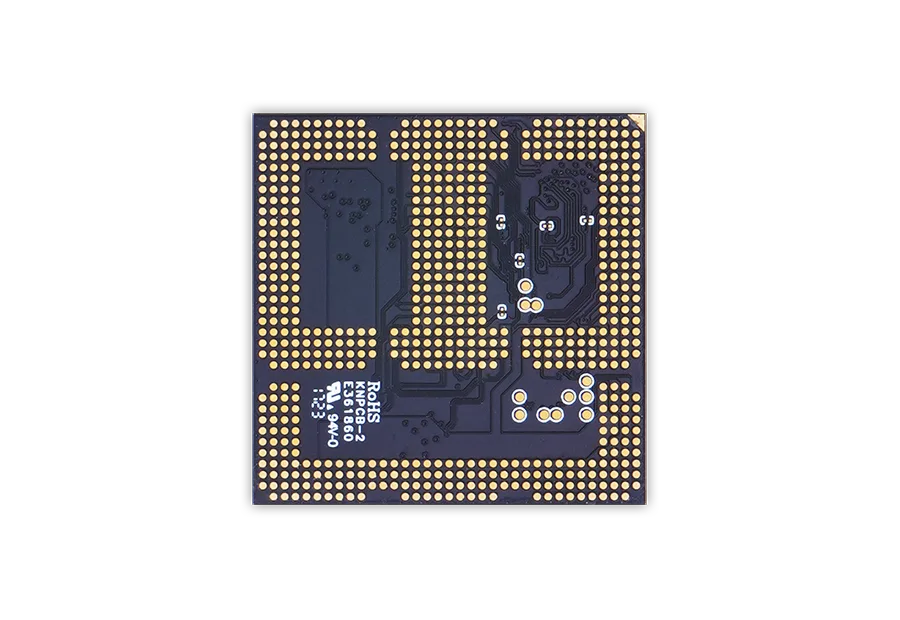

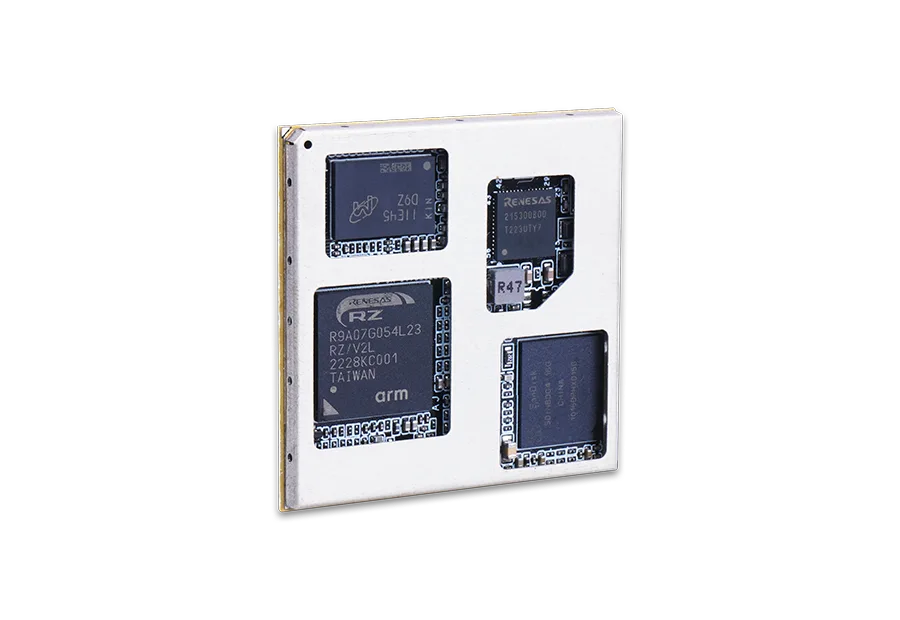

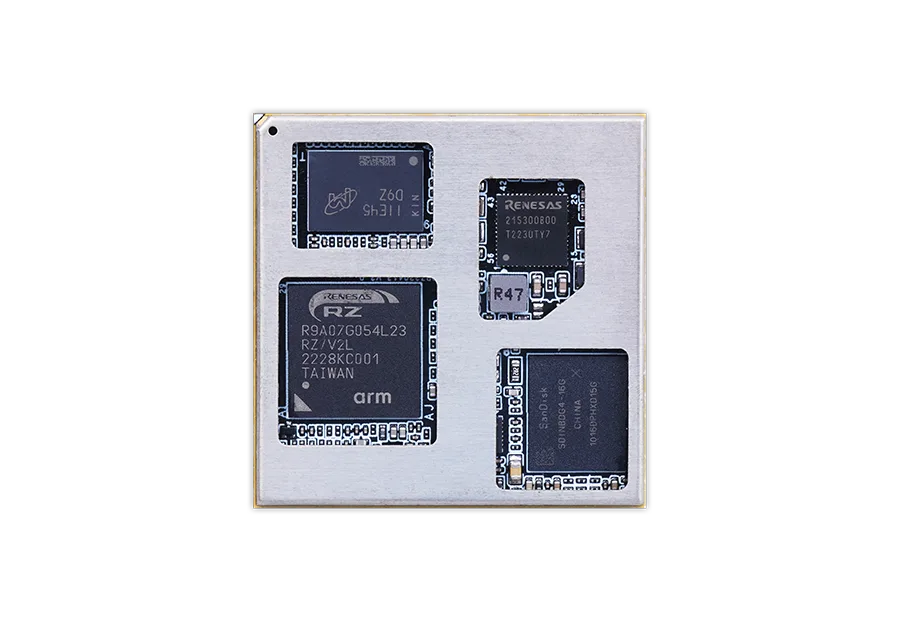

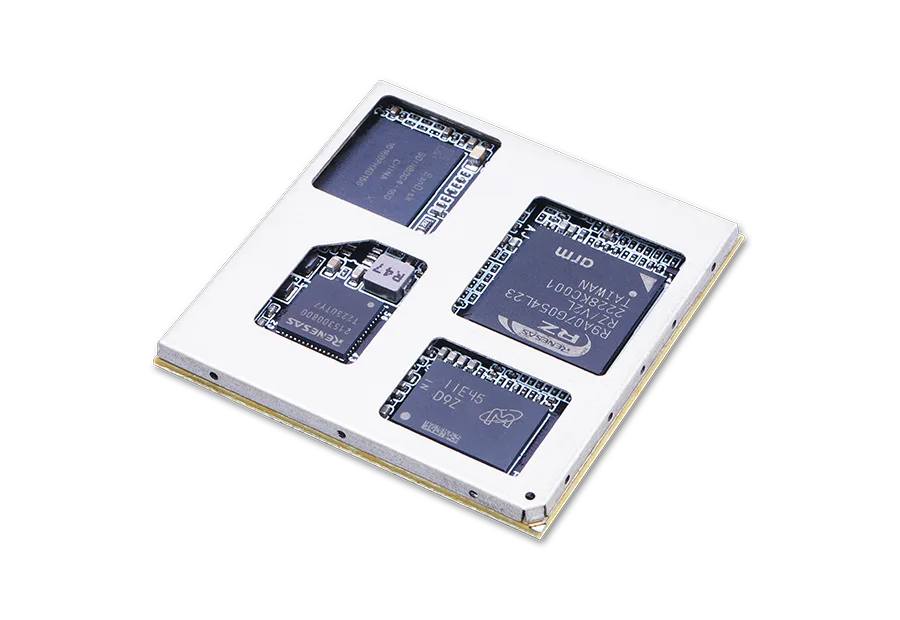

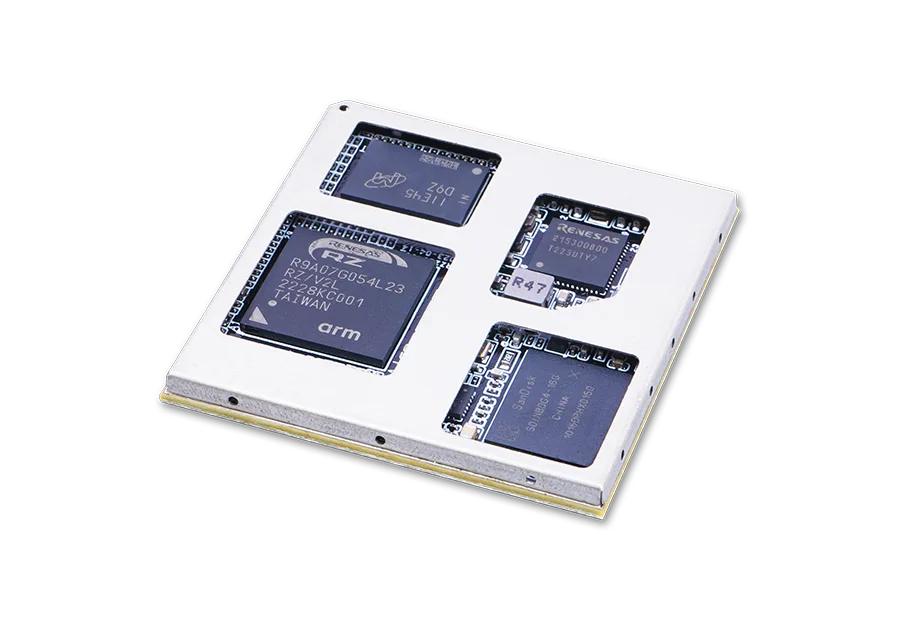

Geniatech SOM-V2L-OSM is a system-on-module based on the Renesas RZ/V2L SoC. It integrates a dual-core ARM Cortex-A55 processor with a Cortex-M33 real-time core and a Mali-G31 GPU for basic graphics and lightweight vision workloads, and uses an OSM-L standard LGA package for compact embedded system designs.

Heterogeneous cores 2× Cortex-A55 + Cortex-M33 Mali-G31 GPU
Multimedia H.264 1080p@30fps Full HD image pipeline
Memory 2GB RAM 16GB eMMC (opt 8/32GB)
Display and camera MIPI-DSI 1080p@60 MIPI CSI-2 5MP@30fps
Connectivity Dual GbE USB2.0 CAN FD SPI I2C UART SDIO ADC PWM
System Linux Yocto OSM-L 45×45mm 662-pin

SoC	Renesas RZ/V2L
CPU	Dual-core ARM Cortex-A55 + Cortex-M33 @ up to 1.2GHz
GPU	Mali-G31, OpenGL ES 3.2
Video	H.264 encoder/decoder, 1080p @ 30fps
Storage	16GB eMMC (8/32GB opt.)
Memory	2GB DDR onboard
Power Input	5V DC
Operating System	Linux (Yocto-based)
I/O	1x MIPI CSI (4-lane), 1x MIPI DSI (4-lane), 2x USB (Host + OTG), 2x GbE
Other Legacy Interfaces	2x SDIO, 2x CAN FD, 1x SPI, 4x UART, 3x I2C, 1x PWM, 2x ADC (12-bit), 1x JTAG
Form Factor	LGA, 662-pin (OSM 1.1)
Dimensions	45 mm (L) x 45 mm (W)
Operating Temperature	-40°C to +85°C
Relative Humidity	35% to 75% RH (non-condensing)
