Name: MediaTek Genio 720 OSM-L System on Module
Brand: Geniatech
SKU: som-g720-osm
Availability: OnlineOnly

SOM-G720-OSM

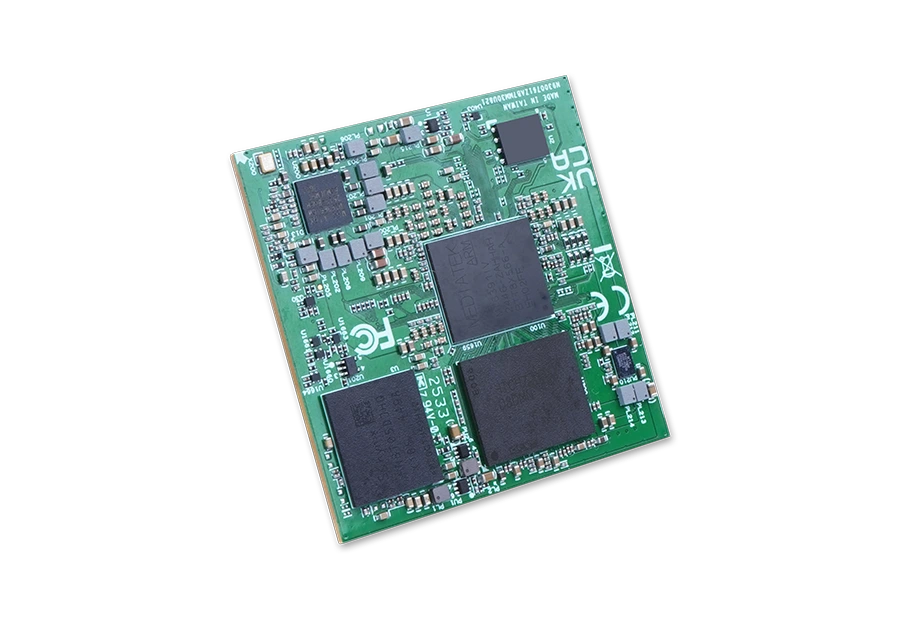

MediaTek Genio 720 OSM-L System on Module

Geniatech SOM-G720-OSM is an OSM v1.2 Size-L System on Module powered by the MediaTek Genio 720 processor. Featuring an octa-core Arm CPU, up to 10 TOPS AI performance, LPDDR5 memory, and rich industrial I/O, it is designed for edge AI, industrial automation, smart HMI, robotics, and IoT applications.

MediaTek Genio 720: 2× Cortex-A78 @ 2.6 GHz + 6× Cortex-A55 @ 2.0 GHz
Integrated 8th-generation NPU with up to 10 TOPS AI performance
OSM v1.2 Size-L, 45 × 45 mm module
8GB LPDDR5 with 128GB UFS 3.1 storage (up to 512GB optional)
Rich I/O: PCIe, USB, CAN, MIPI-CSI, MIPI-DSI/LVDS, eDP, I²C, UART, SPI, SD, I²S, PWM, GPIO
Industrial operating temperature: −40°C to +85°C
Supports Embedded Linux (Yocto)

General
OSM Standard	OSM v1.2, Size-L SoC Module, 662-pin LGA, 45 mm × 45 mm
Processor	MediaTek Genio 720: 2× Cortex-A78 @ 2.6 GHz + 6× Cortex-A55 @ 2.0 GHz
AI Engine (NPU)	Integrated MediaTek 8th-generation NPU, up to 10 TOPS total system AI performance, optimized for edge AI and generative AI tasks
GPU	Arm Mali-G57 MC2 GPU, performance-tuned graphics supporting ultra-high resolution (single 5K or dual 2.5K)
Memory	8GB LPDDR5
Storage	128GB 3.1 UFS(256GB/512GB Optional)
Operating Temperature	−40°C ~ 85°C
Operating System	Embedded Linux (Yocto)
Hardware Interfaces
Display	MIPI-DSI/LVDS, eDP
Camera	MIPI-CSI
Peripheral Interfaces	PCIe, USB, CAN, I²C, UART, SPI, SD, I²S, PWM, GPIO
