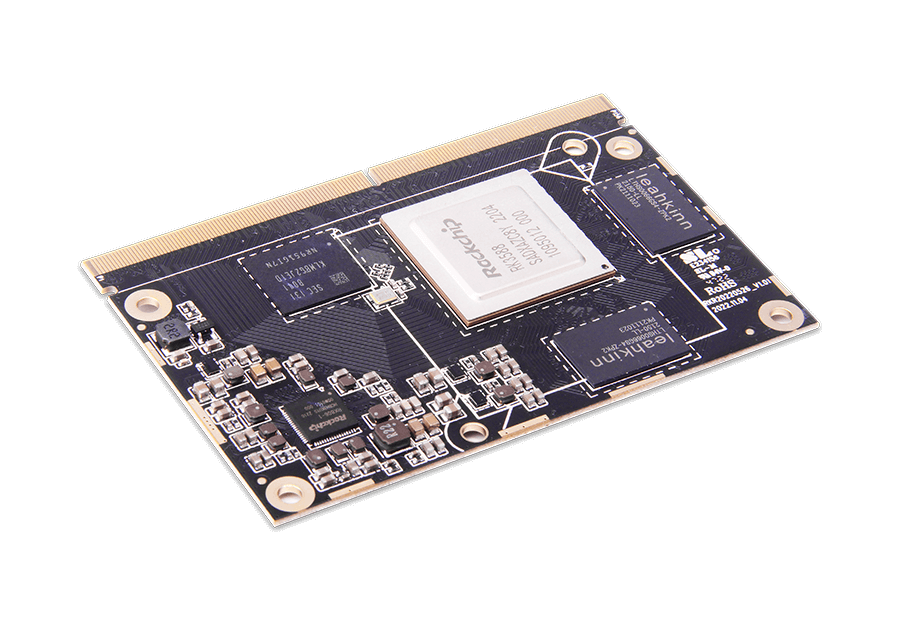

SOM3588

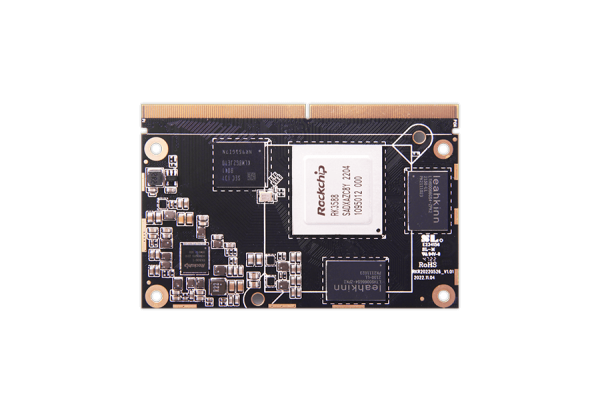

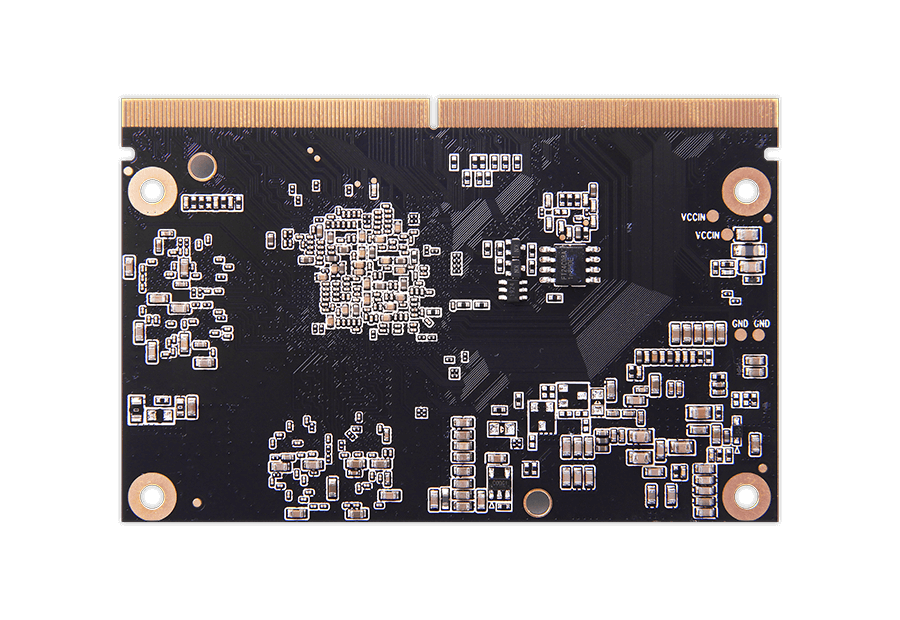

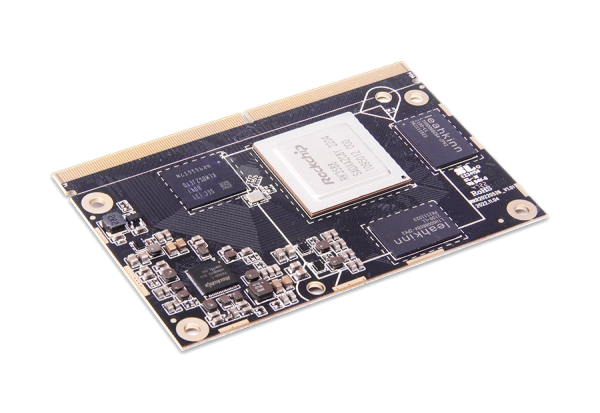

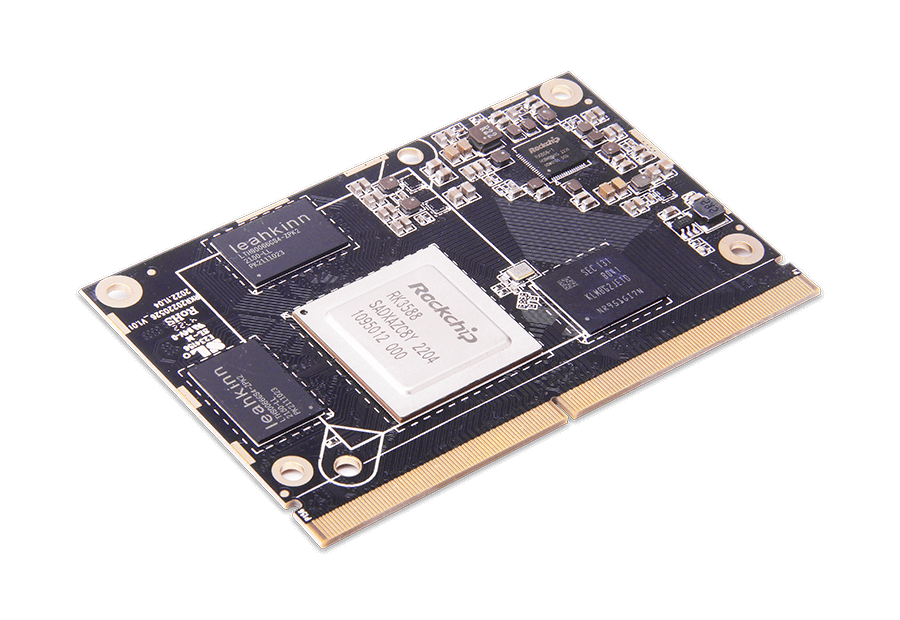

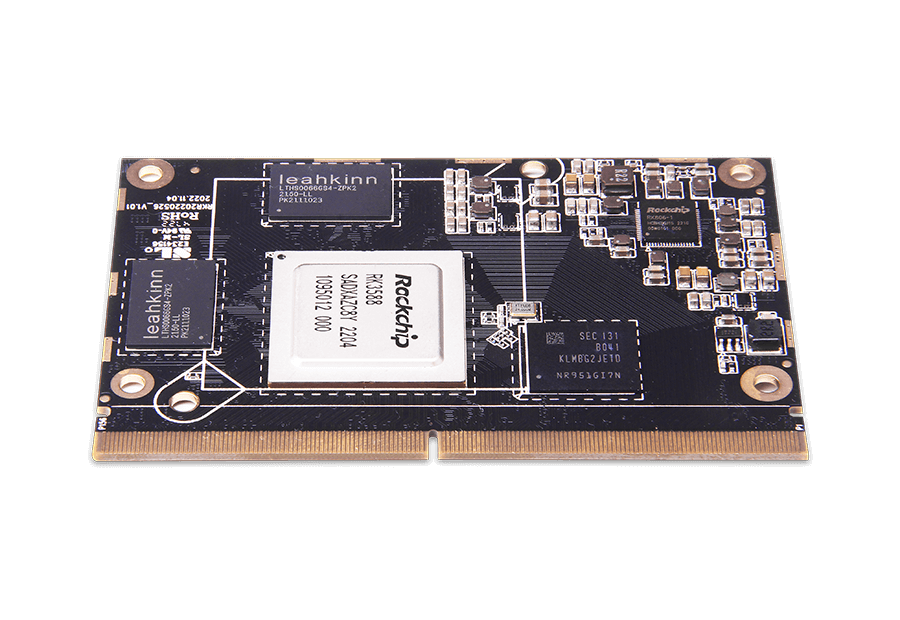

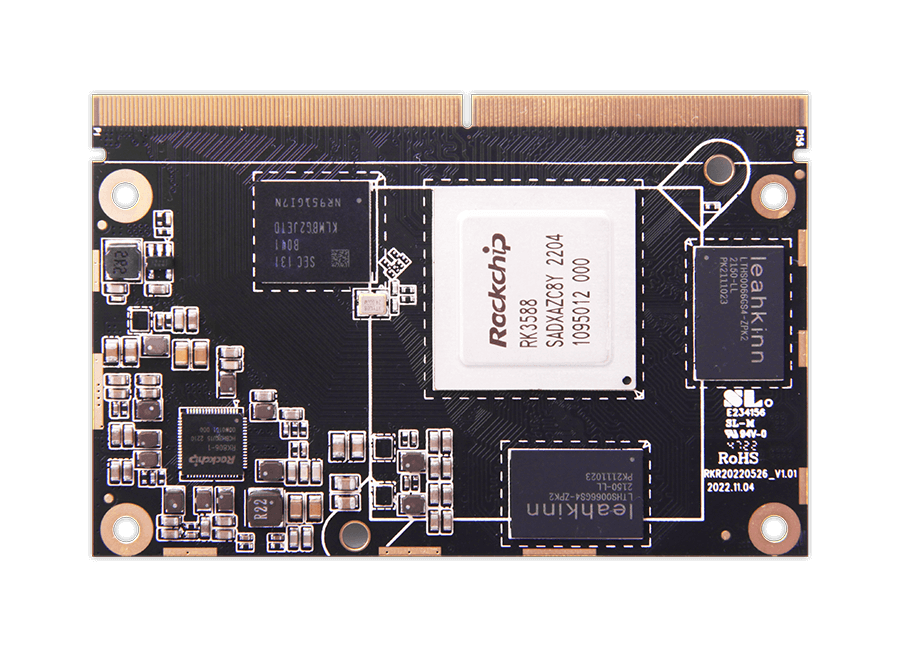

SOM3588 core board adopts Rockchip RK3588 scheme, quad-core Cortex-A76 and quad-core Cortex-A55, built-in NPU up to 6TOPS. It supports SDIO3.0, audio, video, camera and other functions, and it has a variety of video input and output interface. Dual-gigabit adaptive RJ45 Ethernet interface, applicable to intelligent NVR, cloud terminal, IoT gateway, industrial control, information release terminal, multimedia advertising machine and other scenarios, it can also be widely used in the field of embedded artificial intelligence. The core board and the bottom board are connected through the standard SODIMM 314P interface to form a complete AI development board.

Buy a Sample

Categories: ,
Get A Quote

High-Performance AI System-on-Module with RK3588

SOM3588 is a powerful system on module featuring the RockChip RK3588 flagship chip with an integrated 6Tops NPU and quad-core Mali-G610 MP4 GPU. It’s expandable with rich display and industry application interfaces, and a customized carrier board and open source SDK for efficient secondary development. Supporting various operating systems, including Android, Ubuntu, Debian, Buildroot, and RT Linux, it provides strong performance, stability, reliability, and scalability for AI application scenarios. This versatile SOM is ideal for edge computing, artificial intelligence, cloud computing, VR/AR, blockchain, smart security, smart industrial control, smart home, and more.

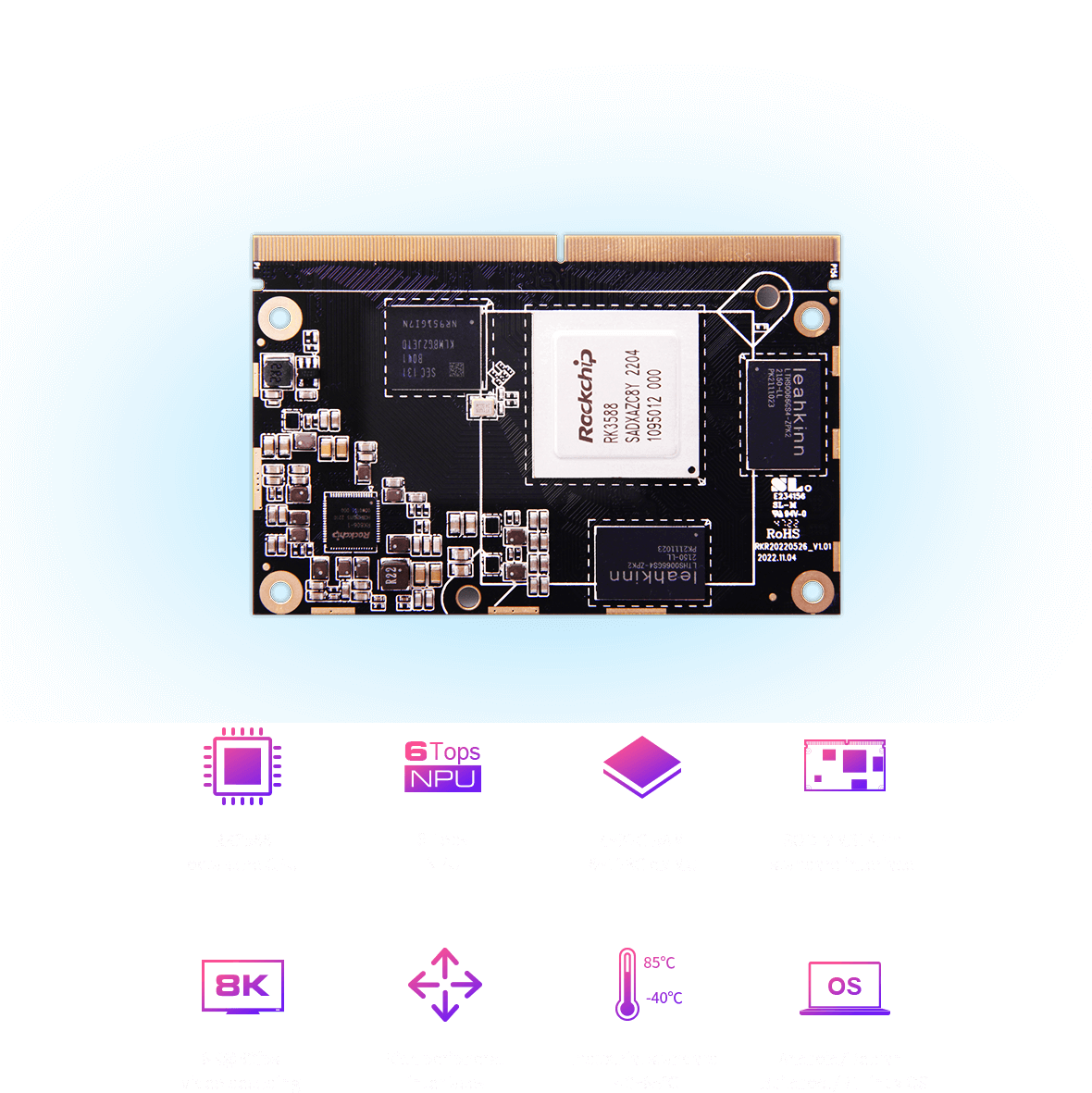

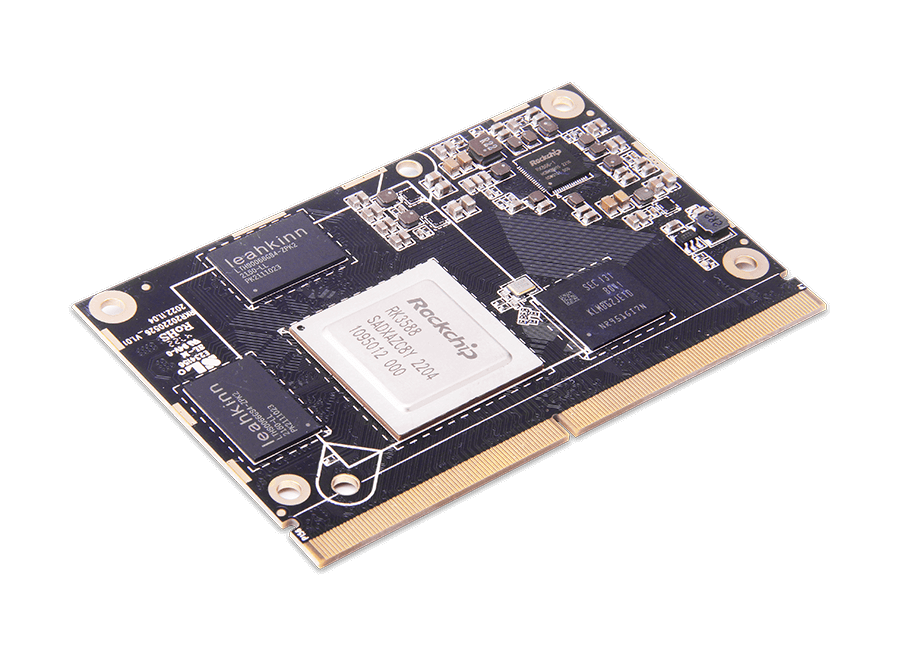

rk3588 industrial-grade system on module

A new generation of octa-core flagship processors

With RK3588 octa-core 64-bit flagship processor, integrated ARM Mali-G610 MP4 quad-core GPU, and built-in 6TOPs AI NPU. Designed to support mainstream deep learning frameworks in the market, it delivers enhanced performance for a wide range of AI application scenarios, opening up a world of possibilities for your products.



RockChip RK3588 build-in AI NPU

Unleash 8K video and four-screen HD display

Supports seamless 8K video output and 4K video input, allowing for up to four different displays.
Perfect for a wide range of high-definition, multi-screen interactive display scenarios.

RockChip RK3588 Module for display solutions

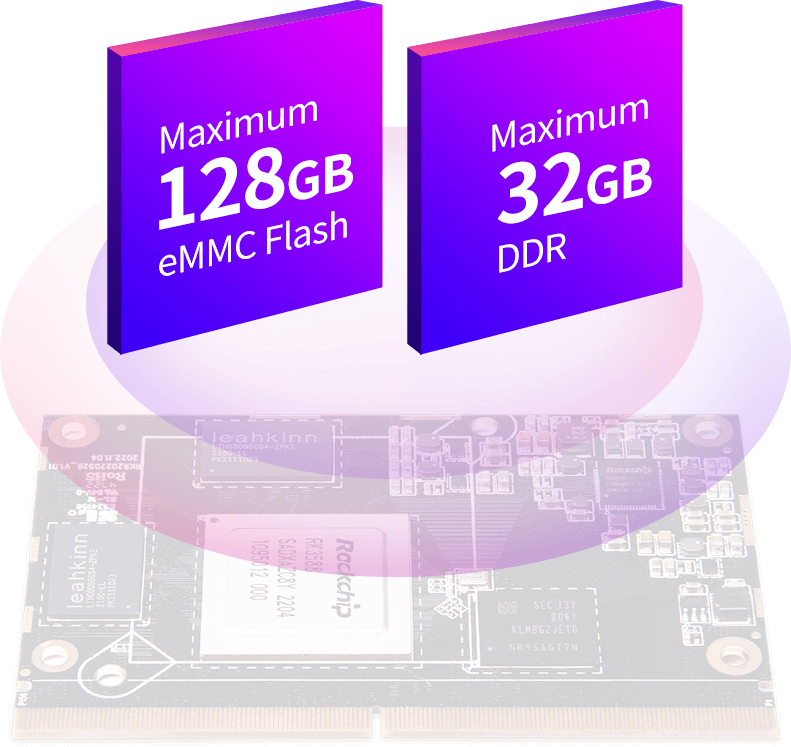

Ample Storage Capacity: Up to 32GB RAM and 128GB eMMC

With a maximum memory capacity of 32GB and high-speed storage of up to 128GB eMMC, the SOM3588 provides a superior storage option that exceeds previous memory capacity limits. The solution delivers faster response times and is ideal for meeting the demands of applications that require large memory and storage capacities.

rk3588 compute module with 32GB DDR and 128GB EMMC flash

Provides a full range of one-stop customized services, more than hardware​

Geniatech has ARM product technology research and development precipitation and partner resources over 25 years. We not only provide customers with hardware function customized design, but also provide one-stop consulting services such as cross-SOC platform operating system transplantation, BSP kernel clipping and driver development, based on scenario application software development, overall system software testing services, and complete SDK secondary development interface. With the company’s own production plant of nearly 30,000 square meters, It helps customers greatly shorten the cycle from product selection, research and development project, small trial production to mass production delivery

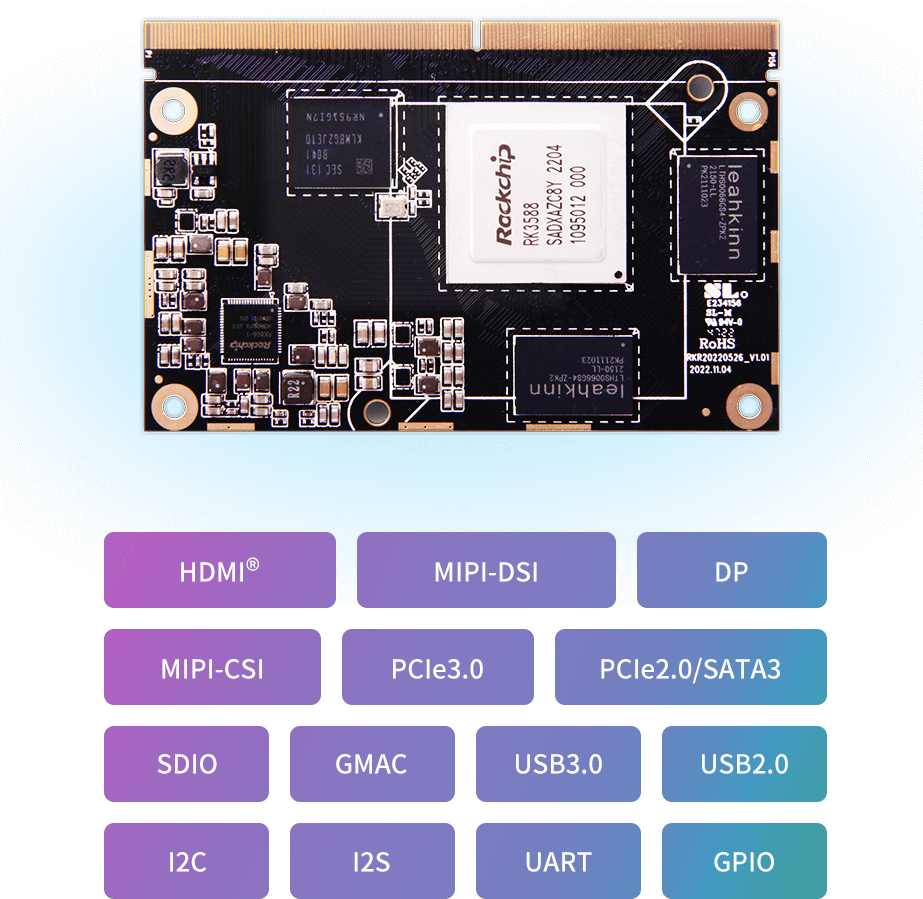

rk3588 development board supports HDMI, MIPI-DSI, DP, MIPI-CSI, PCIe3.0, PCIe2.0/SATA3, SDIO, GMAC, USB3.0, USB2.0, I2C, I2S, UART, GPIO, and more

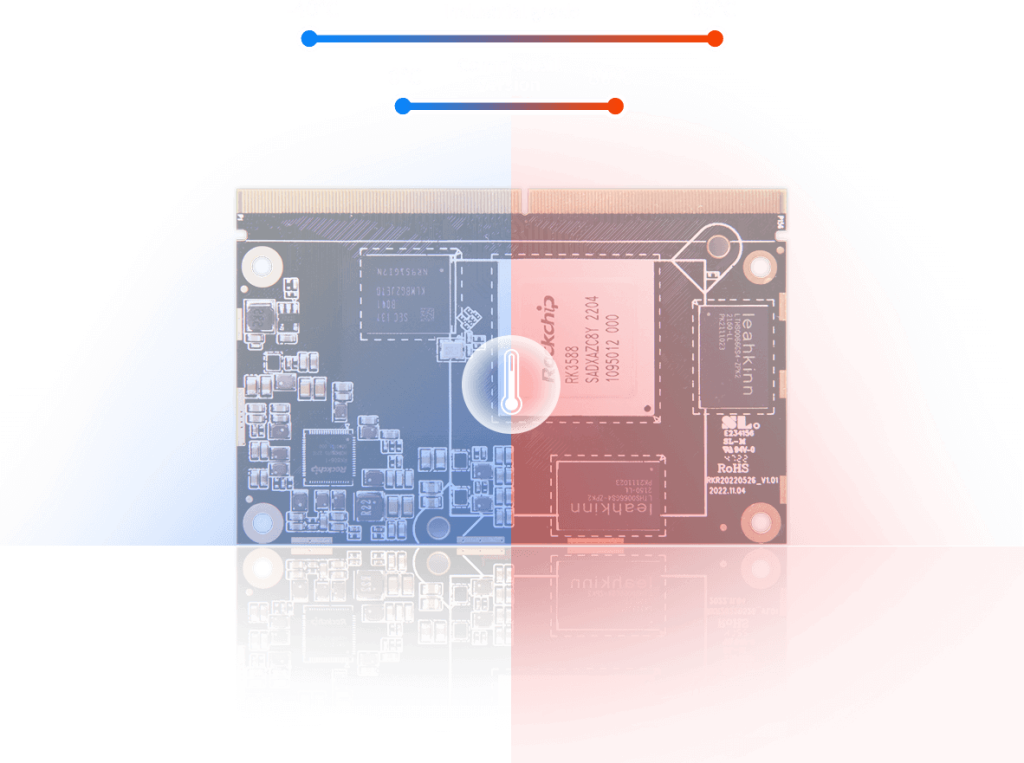

Industrial-grade products for reliable performance in harsh environments

Our optional industrial-grade processors and components are tested and manufactured to meet strict industrial standards, ensuring the reliability, safety, and stability of our products in harsh environments. Our products can operate stably 24/7 without interruption, even in extremely cold temperatures as low as -40°C and high temperatures as high as 85°C. This makes them ideal for a wide range of industrial-grade applications in various harsh working environments.

rk3588 high performance computer on module with wide temperatures

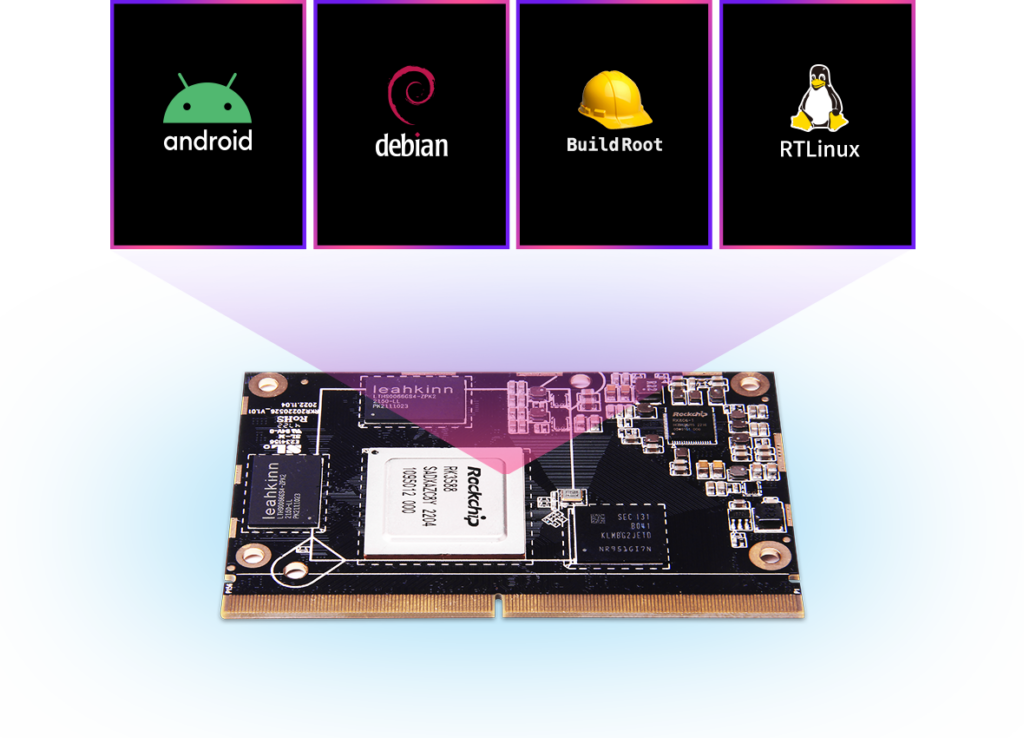

Multiple operating system support with open system architecture

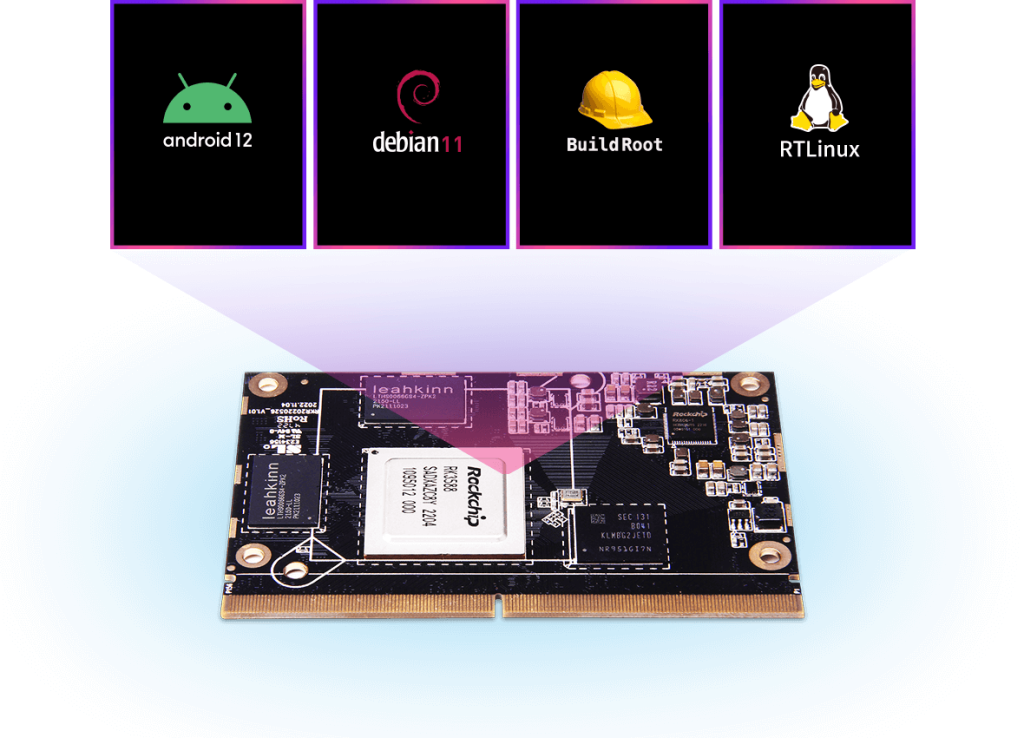

SOM3588 supports multiple operating systems, including Android 12.0, Ubuntu desktop and server versions, Debian11, Buildroot, and RTLinux kernel. Its open system architecture also allows for deep customization of the Linux system kernel, enabling remote upgrade and management of the device and enhancing operation and maintenance efficiency.

RockChip RK3588 Open source embedded computer Module supports Android 12.0, Ubuntu desktop and server versions, Debian11, Buildroot, and RTLinux kernel.

10-Year delivery period for extended product life cycle

The original main SoC, paired with a wealth of development resources, offers an ultra-long delivery period of 10+ years, with the added benefit of providing long-term, traceable Linux Kernel maintenance to support the product throughout its lifecycle.

RockChip RK3588 core board offers an ultra-long delivery period of 10+ years

Provide perfect technical data for efficient secondary development

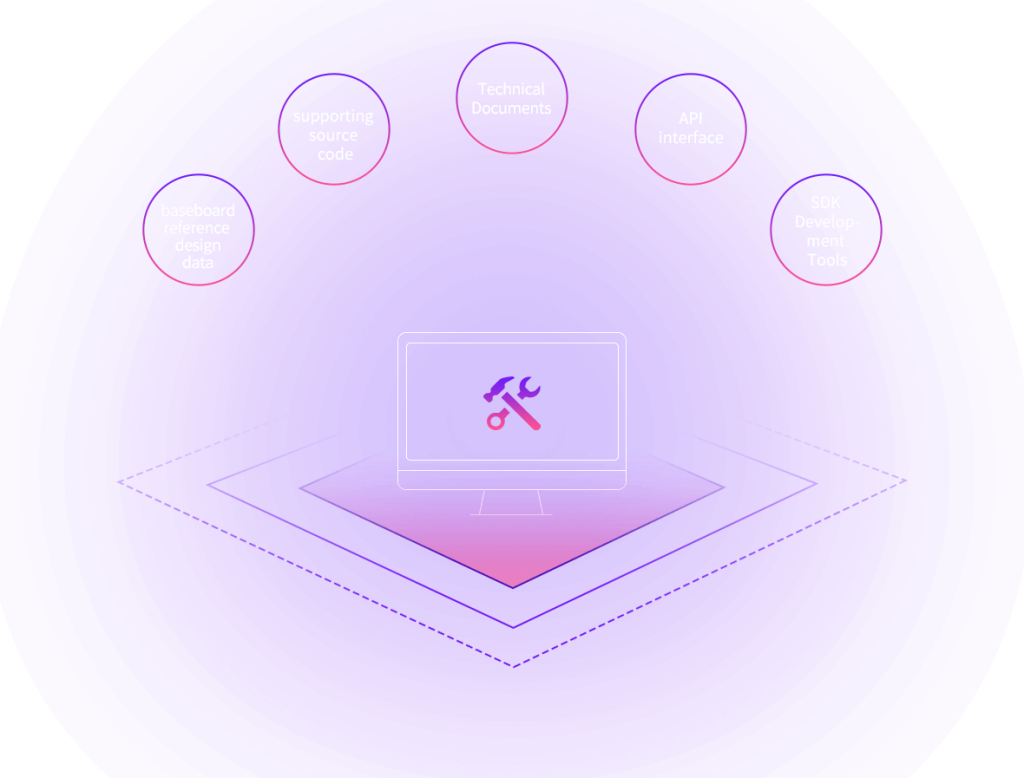

We offer a wealth of technical information, including PCB layout design materials, supporting source code, technical documentation, API interfaces, and SDK development tools. This comprehensive set of resources makes secondary development easier, more convenient, and more efficient. It helps our customers to quickly create customized products that are independent and controllable.

rk3588 sdk datasheet

One-stop customized services beyond hardware

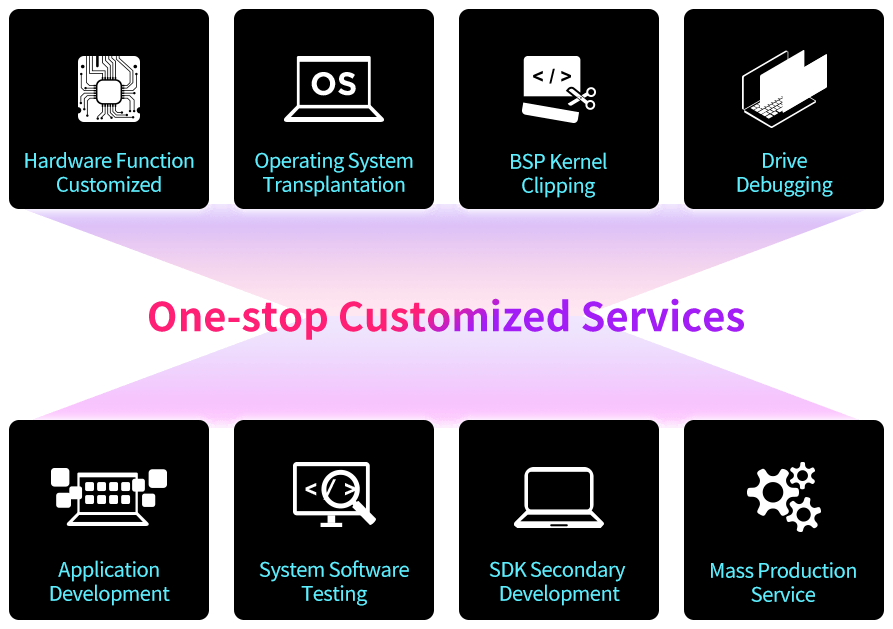

We provide not only hardware features and custom designs, but also one-stop customization services including OS porting, kernel trimming, software development, and system testing, to help customers quickly bring their products to market. With over 25 years of ARM product development and a self-built production facility spanning nearly 30,000 square meters, we can greatly shorten the product development cycle and help customers seize market opportunities.

Wide range of application scenarios

It can be used in edge computing, artificial intelligence, cloud computing, VR/AR, blockchain, smart security, smart industrial control, smart home, etc.

rk3588 customized board application
  • CPU
    RockChip RK3588
    Octa-core 64-bit 4 x Cortex-A76 + 4 x Cortex-A55 8nm advanced process, up to 2.4GHz
  • GPU
    Mali-G610 MP4 (4x256KB L2 Cache)
    OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, OpenCL 2.2, 450 GFLOPS
  • NPU
    NPU computing power up to 6TOPS, support INT4/INT8/INT16 mixed computing
    Network model conversion based on TensorFlow/MXNet/Pytorch/Caffe and other frameworks
  • ISP
    Integrated 48MP ISP and HDR & 3DNR multi-algorithm gas pedal
  • Codecs
    Video decoding.
    8K@60fps H.265/VP9/AVS2
    8K@30fps H.264 AVC/MVC
    4K@60fps AV1
    1080P@60fps MPEG-2/-1/VC-1/VP8
    Video encoding.
    8K@30fps encoding, H.265 / H.264 support
    * Up to 32 channels 1080P@30fps decoding and 16 channels 1080P@30fps encoding
  • RAM
    4GB LPDDR4(8/16/32G optional)
  • Storage
    32GB(64G/128G/256G optional)
  • Network
    Ethernet Interface: 2 x 1000/100/10 Mbps transmission speed
  • Display Interface
    HDMI: 2 x HDMI2.1 8K@60fps or 4K@120fps with HDCP2.3
    DP: 1 DP1.4 7680 x 4320@30Hz
    MIPI: 2 MIPI DPHY 4K@60Hz
    eDP: 1 shared with one of the HDMI outputs with HDCP1.2
  • Video Input
    HDMI input: 1 x HDMI2.0 4K@60fps
    MIPI camera input: 2 x MIPI CSI
  • OS
    Android 12.0, Linux Ubuntu Desktop, Linux Ubuntu Server, Debian 11.0, Buildroot, RTLinux
  • USB
    1 x USB Host3.0, 2 x USB Host2.0 , 2 x USB OTG 2.0 support up to 480 Mbps
  • I/O Interface
    • Scalable standard PCIe 3.0 × 2
    • PCIe2.1 or SATA3.0/SATA3.1 × 3
    • I2C × 9
    • SATA × 2 Standard SATA or PCIe2.0
    • I2S × 4
    • SDIO × 3
    • GPIO × 137
    • SPDIF × 2
    • SPI × 5
    • ADC × 6
    • PWM × 16
    • DEBUG × 1
  • POWER
    5V/3A
  • Mechanical Characteristics
    Size: 82 x 53 mm
    Board Structure: SDIOMM 314Pin standard core board
  • Operating temperature
    Commercial: 0~80°C
    Work gauge: -40~85°C
