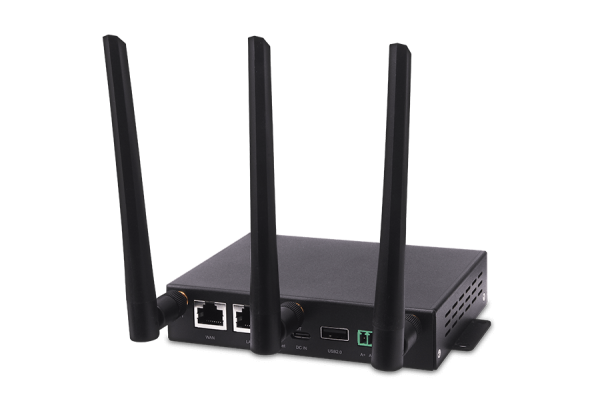

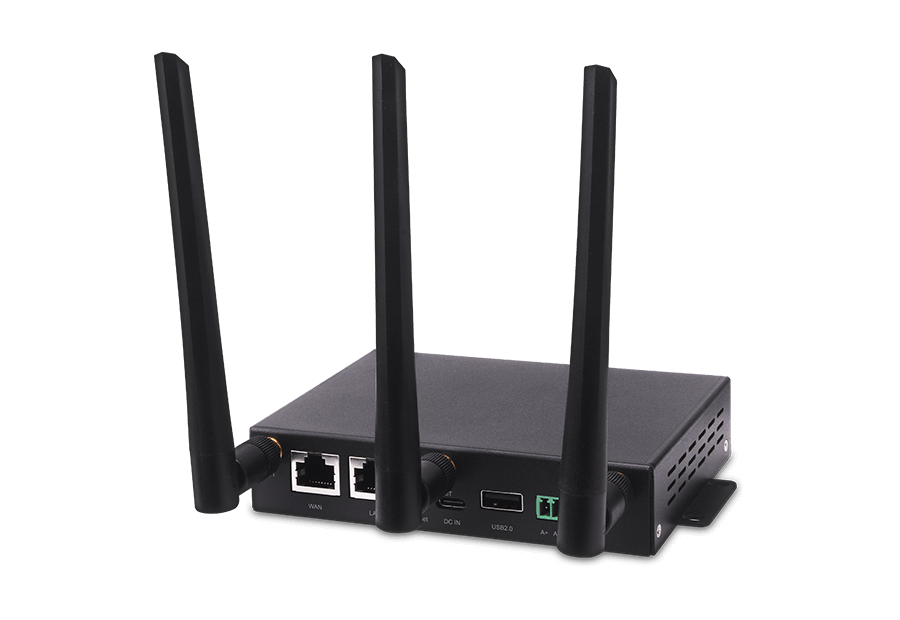

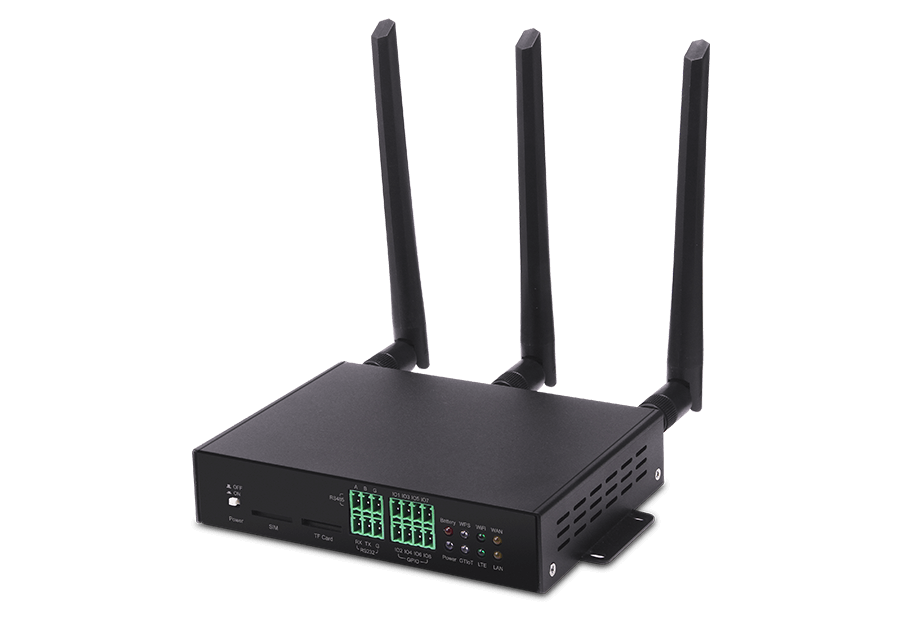

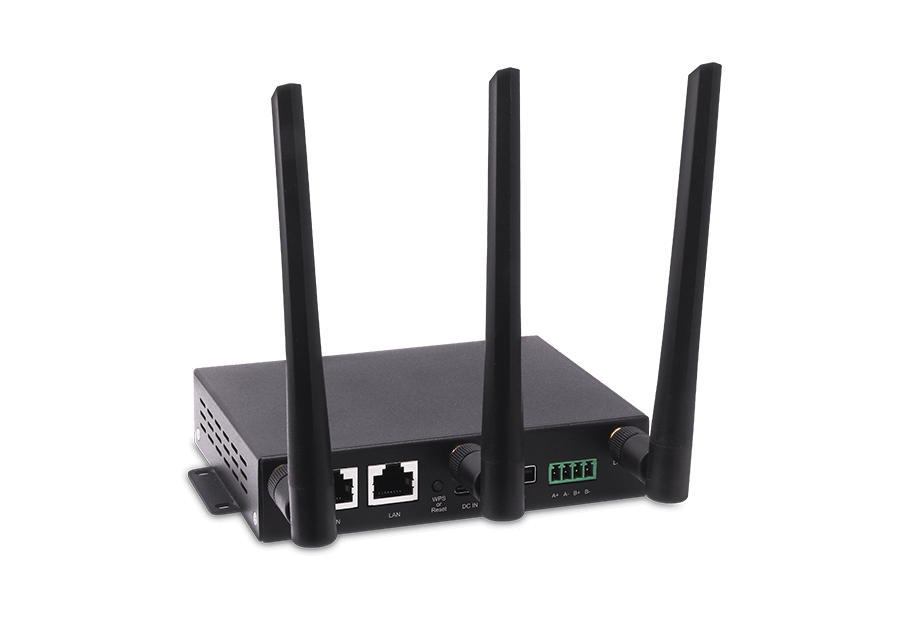

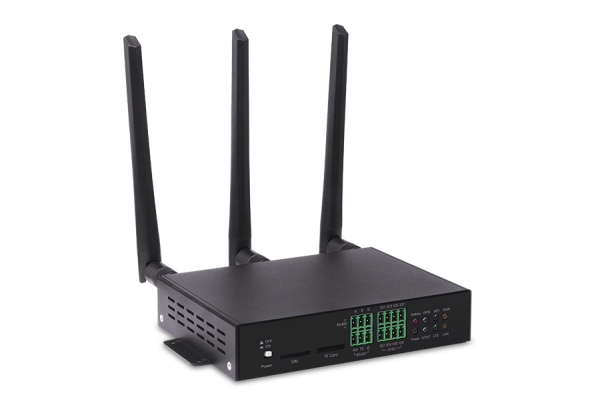

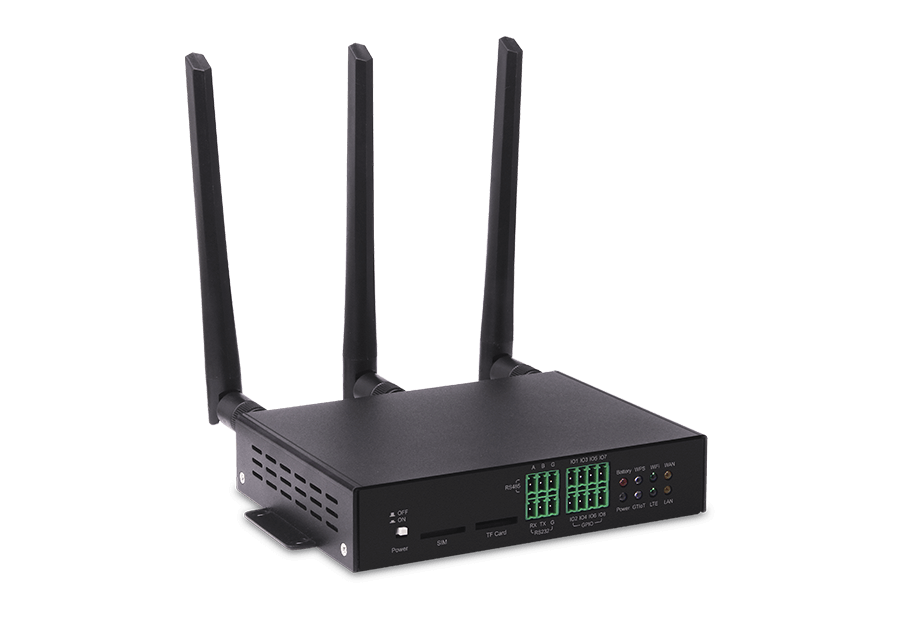

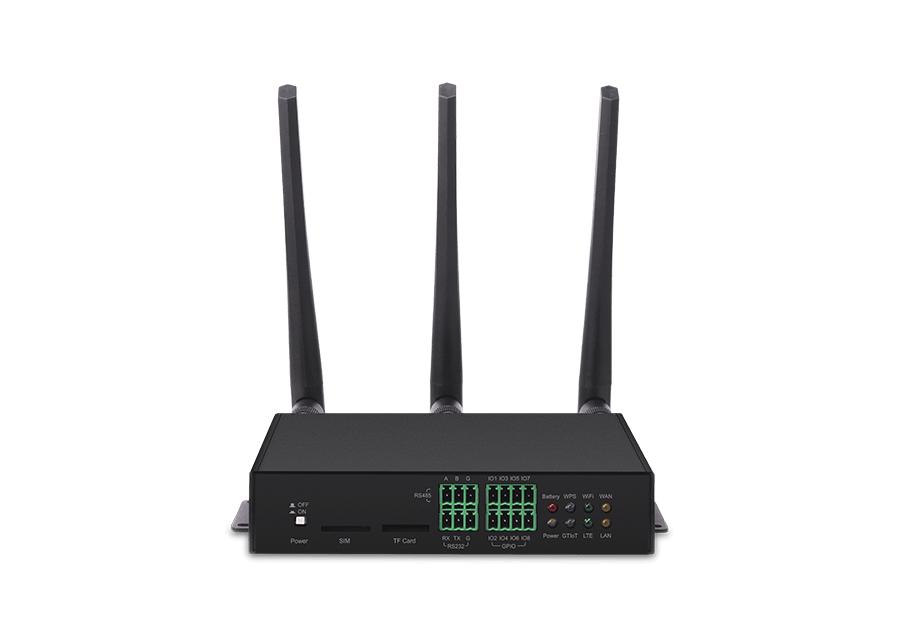

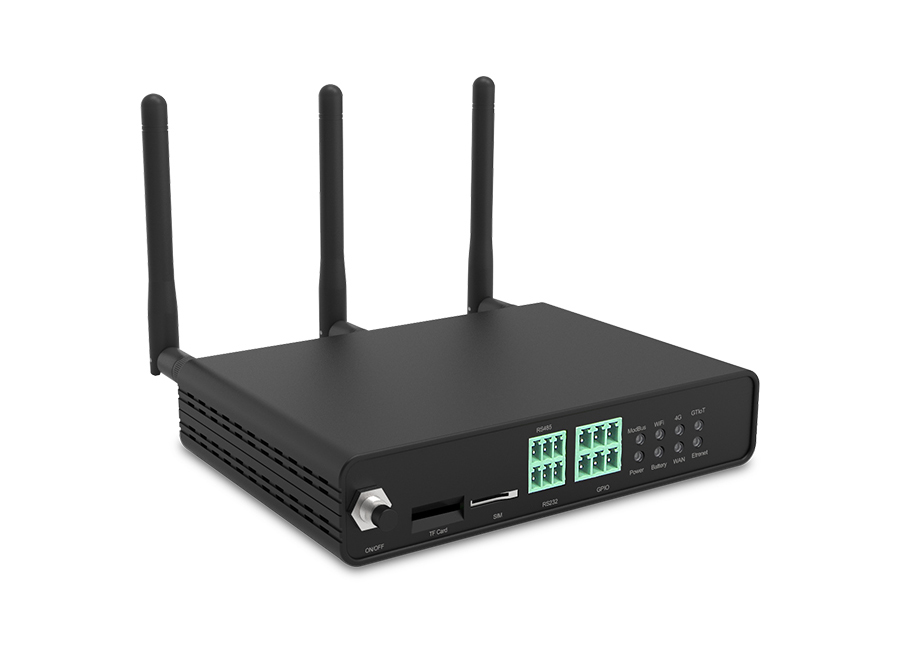

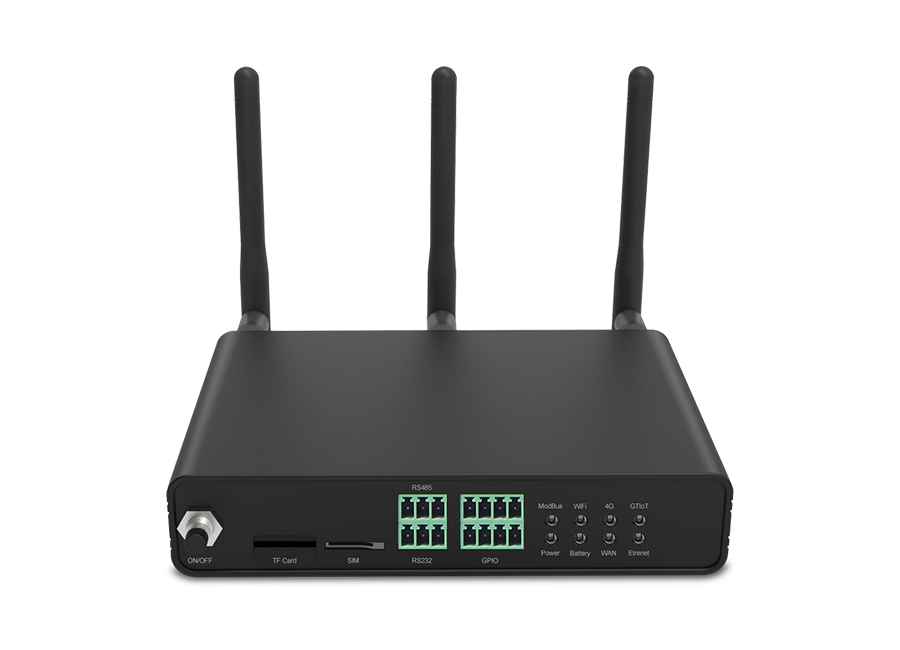

GTW351 Smart Home Commercial IoT Gateway

  • Using MT7628 scheme, the frequency up to 580MHz.
  • Optimized memory usage to minimize resource usage
  • Support IEEE802.11 a/b/g/n and 802.11ac standards
  • Integration of ZigBee,WiFi,BLE wireless network protocols
  • WAN and LAN network interface implement home network routing
  • The mature, stable and extensible OpenWRT system is adopted
  • Unique software algorithms ensure network security
  • USB2.0 data port for connecting USB storage devices and for connecting new RF modules.
  • Provides RS485,RS232,GPIO interfaces for industrial use, and supports ModBus and other common protocols.
  • Customization for special applications, open API interface
  • Operating temperature: 0°C to +55°C
Get A Quote

Features

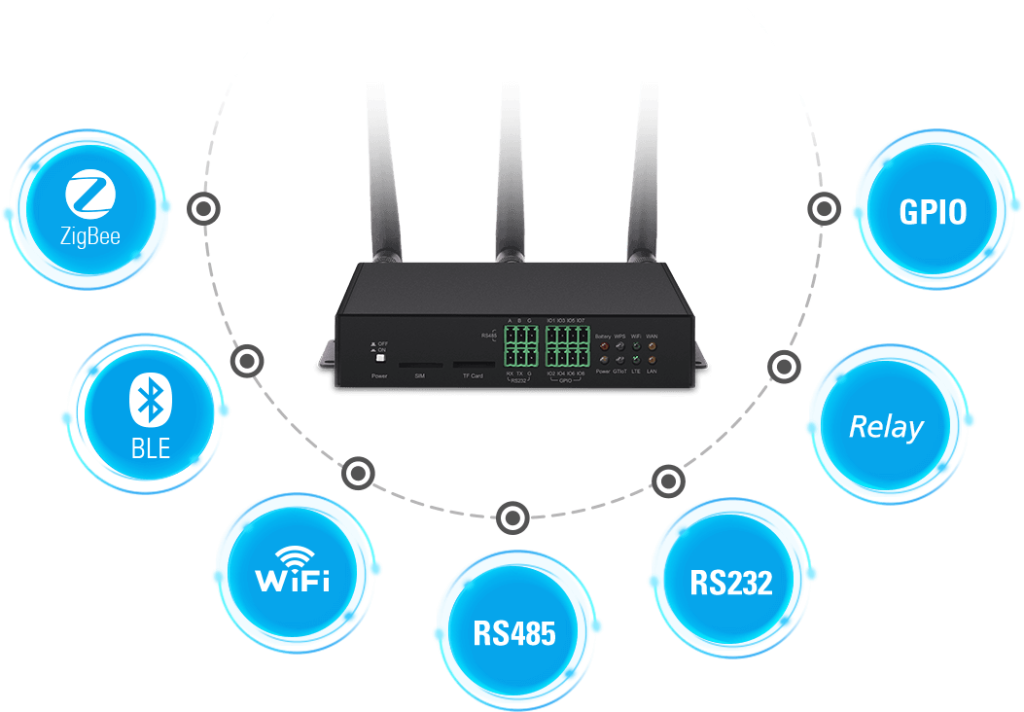

Popular Connectivity

Support for different popular connections including ZigBee, BLE, WiFi, Can also support industrial RS485, RS232, Mod Bus. You can also add a new RF module through the USB port.

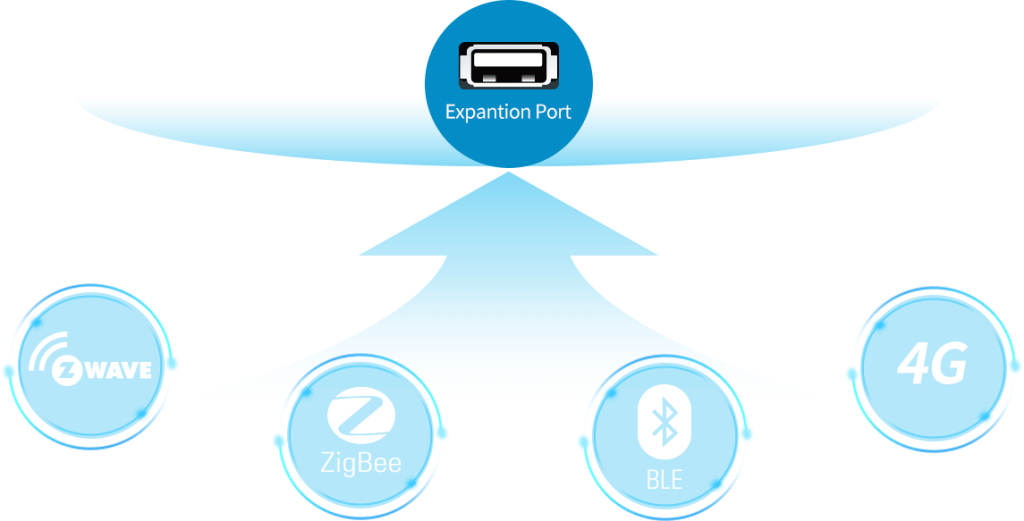

Expandable

Support external RF module (ZigBee, Z-Wave, BLE, 4G)

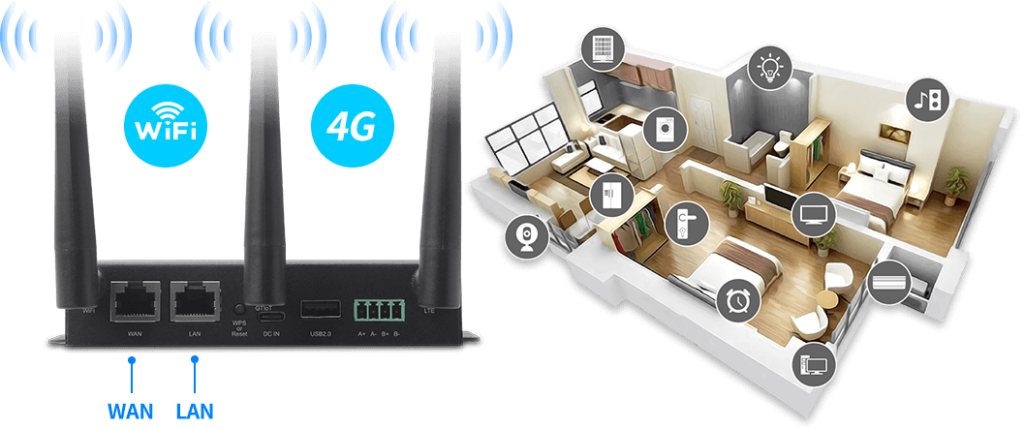

Easy to Use, Easy to Setup

Connect to your home network using WAN, LAN, WiFi or 4G to internet, you can easily remote control smart devices in your home

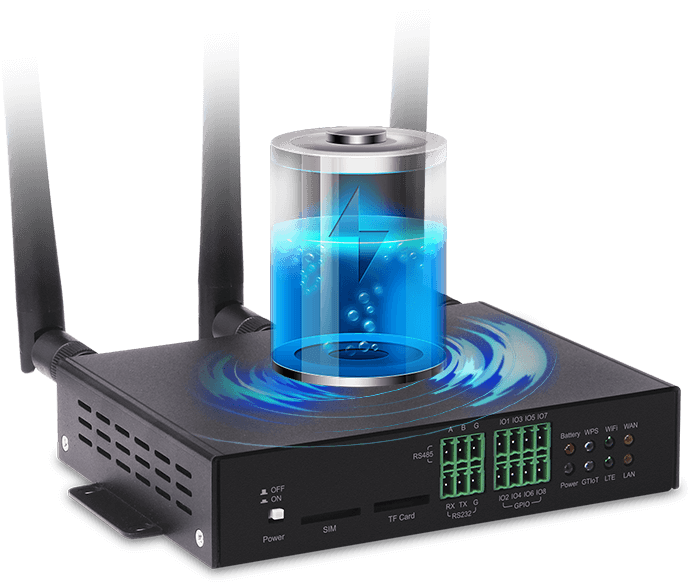

Built-in Rechargeable Battery

With the built-in rechargeable battery, connection to smart sensors will stay on even power is cut off accidentally.

High Security Standard

Using industrial grade wireless technology and highest level encryption to ensure your smart home network security

Application Scenarios

Traditional instrument wireless meter reading, remote intelligent display system, intelligent vehicle, Internet of things, etc

Support Personalized Customization

The hardware configuration is optional

CPU/ memory/storage /WIFI+ Bluetooth

Provide secondary SDK development

Provide SDK secondary development customers can compile their own sensitive requirements

MDM Customization (Remote device Management)

Remote collection of device status information and control of the device (firmware update, uninstall/install APK, restart, standby/wake up, real-time advertising……)

The APP customization

It is safe, fast and low cost to easily meet the requirements of customers

  • CPU
    MT7628A
  • CPU Frequency
    580MHz
  • Internal Memory
    128MB(256MB optional) DDR2
  • Internal Storage
    16MB(32MB optional) SPI
  • OS
    Linux/OpenWRT
  • 2G/3G/4G/LTE
    Optional
    LTE for EU
    LTE for AU
    LTE for US
  • Built-in WiFi
    802.11 a/b/g/n/ac
  • WiFi 2.4G Frequency Range
    2.400~2.497GHz
  • WiFi 5G Frequency Range
    5.15~5.925GHz(Optional)

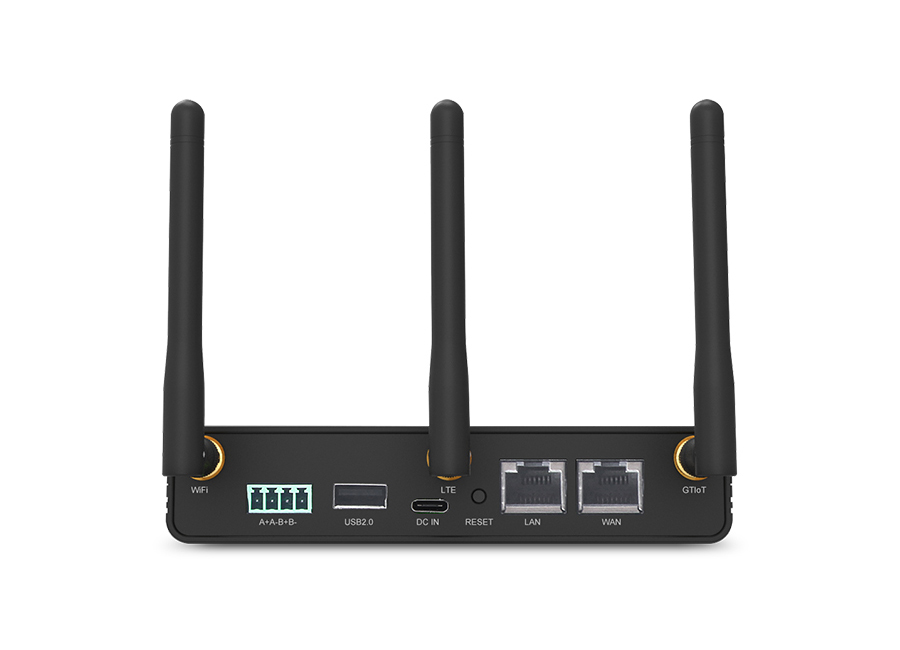

  • Ethernet port(LAN)
    RJ45 10/100Mbps
  • Ethernet port(WAN)
    RJ45 10/100Mbps
  • USB Interface
    USB-A 2.0 x 1
    Type C for Power Supply
  • ZigBee 3.0
    GTIoT interface (Optional)
  • SIM Slot
    Support (Optional)
  • BT 5.0/BLE
    GTIoT interface (Optional)
  • Z-Wave
    GTIoT interface (Optional)
  • RS485/RS232
    3P 15EDGK-3.81mm
  • CAN
    Support(Optional)
  • GPIO
    4P*2 15EDGK-3.81mm
  • Mod Bus
    8Support
  • LEDs
    4G, WAN, LAN,IoT, Status, Wi-Fi
  • Battery
    3.7V 1000mAH(Optional)

Mechanical Properties

  • Size (mm)
    120*75*30
  • Net Weight (g)
    200
  • Power Plug Types
    DC5V 2A US – Type A(America), EU – Type F(France)/E(Europe)/ G(England)
  • Certification
    EU&FCC
