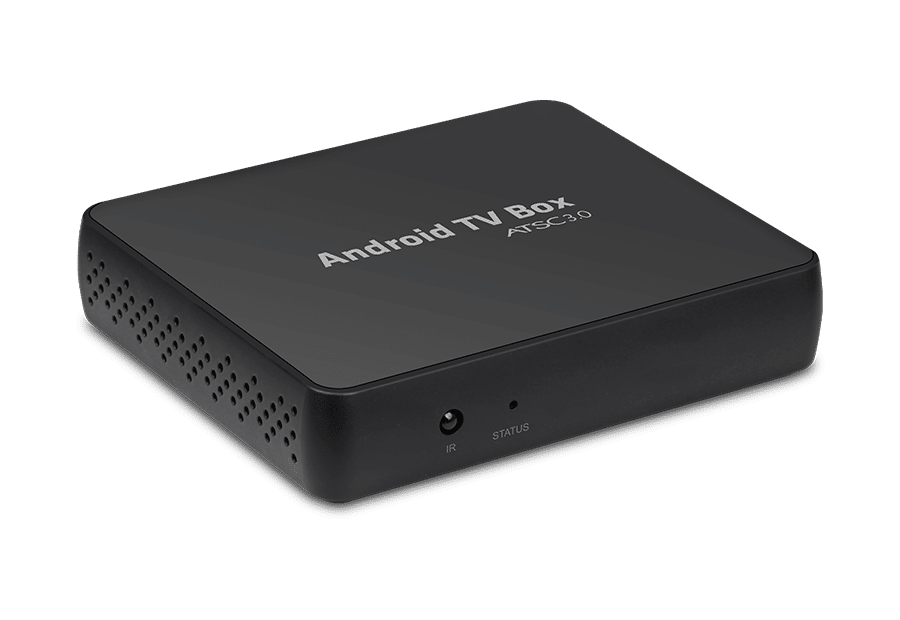

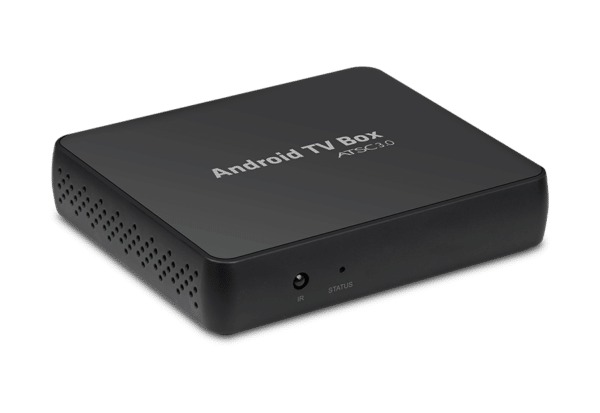

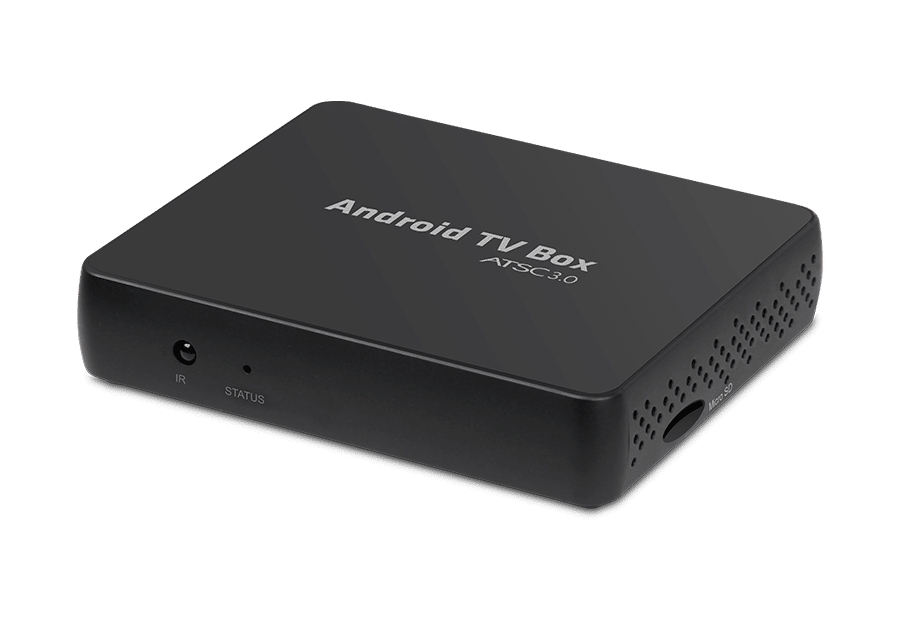

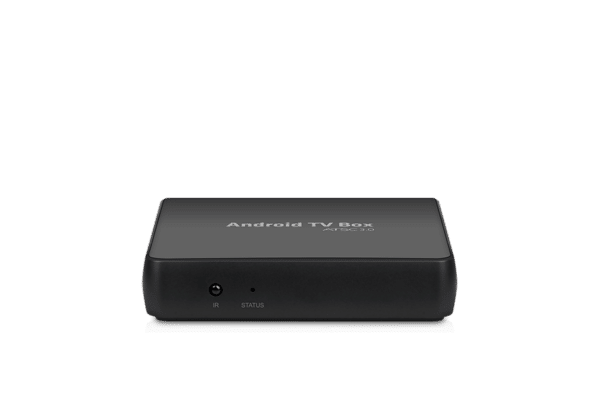

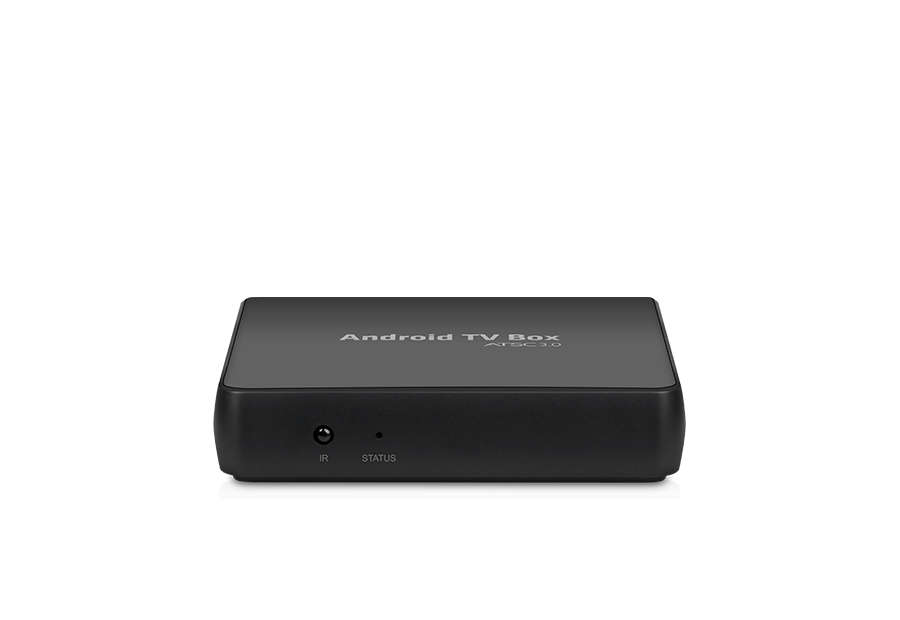

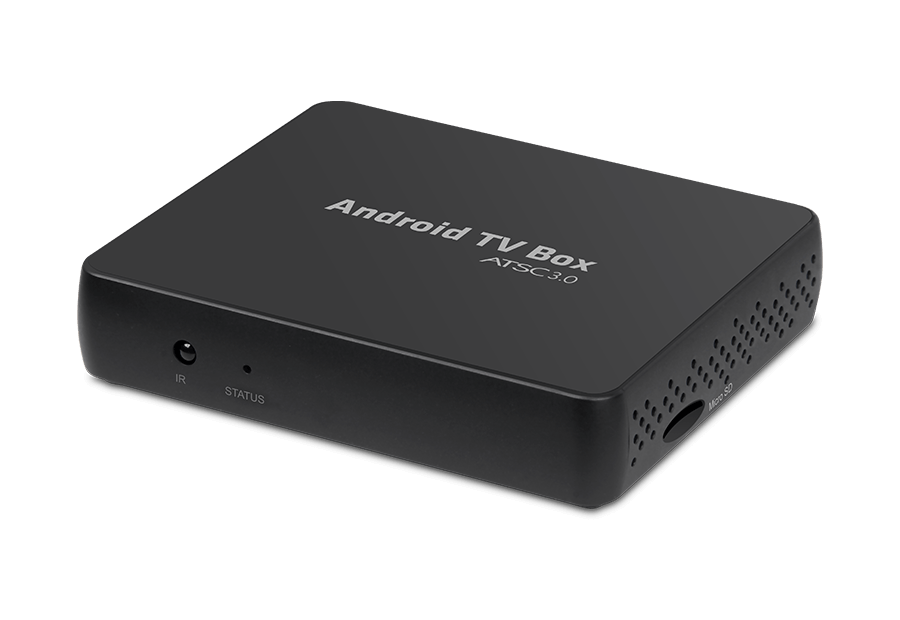

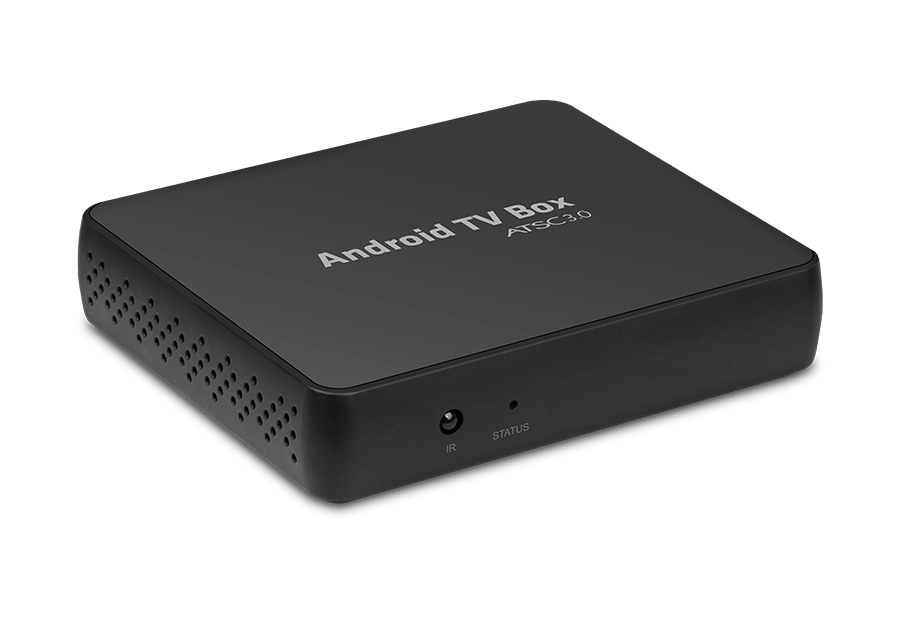

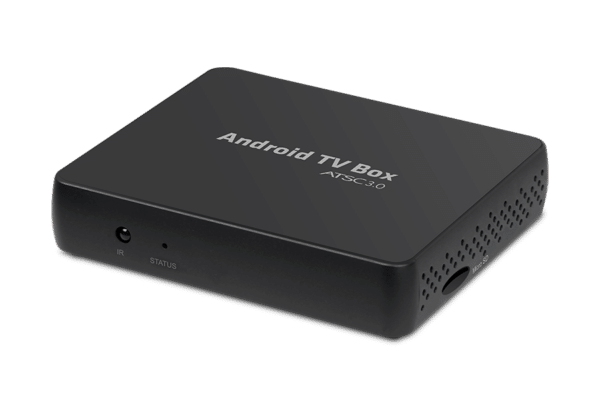

ATV316Max

NextGen ATSC 3.0 OTA TV Converter Box

Geniatech ATV316MAX is powered by Amlogic’s ultra-low power SOC (S905Y4-B); it is acost-effective Android OTA TV converter box that supports the latest ATSC 3.0 standard in the US and Korea.

  • Quad core ARM Cortex-A35 CPU @ 2.0GHz, ARM G31 MP2 GPU
  • Support Android OS
  • 2GB RAM (4GB Option), 8GB EMMC(16G/32G Option), MicroSD Card Slot
  • Support 802.11.a/b/g/n/ac(2.4G&5.0G) and BT4.2
  • Built-in Tuner (ATSC3.0/ATSC1.0 Dual Tuner&single option)
  • Support Ethernet 10 / 100M
  • Support RTC
  • Support 1 * HDMI® out
  • Built-in 1 * USB2.0 (Contains an OTG ) + 1 * IR reception
CHIPSET Amlogic S905Y4-B
MARKET AREA USA/Korea
OSD LANGUAGE English/Chinese (multi language  OSD)




Processor





OS Android
CPU Quad core ARM Cortex-A35 CPU  @ 2.0GHz
GPU ARM G31 MP2 GPU
DDR 2GB (4G Optional)
EMMC FLASH 8GB(16G/32G Optional)
NETWORK WiFi 802.11.a/b/g/n/ac (2.4G/5.0G Optional)
Bluetooth BT4.2
Standby Power <0.5W

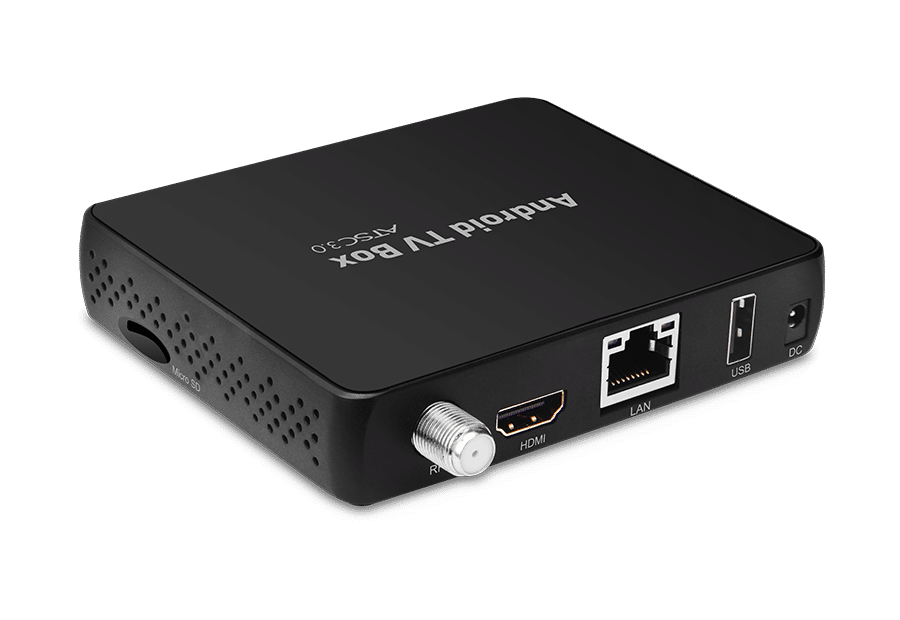

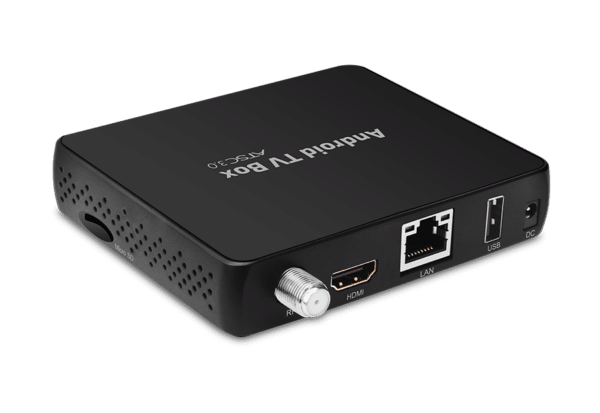

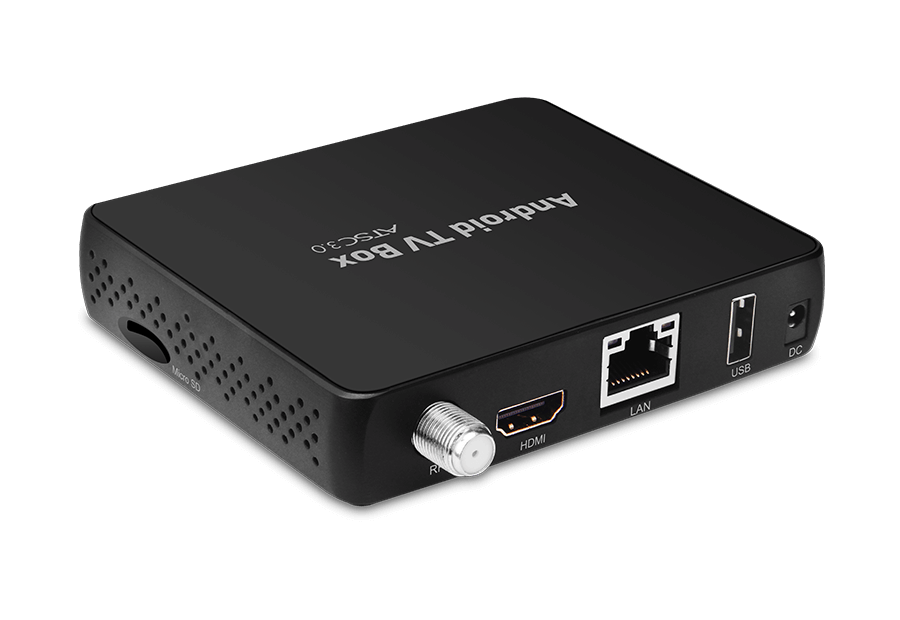

I/O

HDMI OUT 1 * HDMI out
LAN 1 * 10/100M
USB 2.0 1 * USB2.0
OTG 1 * OTG (Shared USB2.0 interface)
Micro SD 1 * Micro SD
DC IN 1 * DC IN
IR reception 1 * IR reception
RF IN Support ATSC3.0/ATSC1.0
LED 1 * (Red/Blue)
Size 101.8*85.2*22.8mm
DC IN 5V/2A
Adapter 1 * Adapter(AC100 ~ 240V 50/60Hz)
Customizable GUI We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from.

ATV316Max Specification
