ATSC 3.0 USB TV Tuner
ATSC 1.0/3.0/QAM USB Dongle

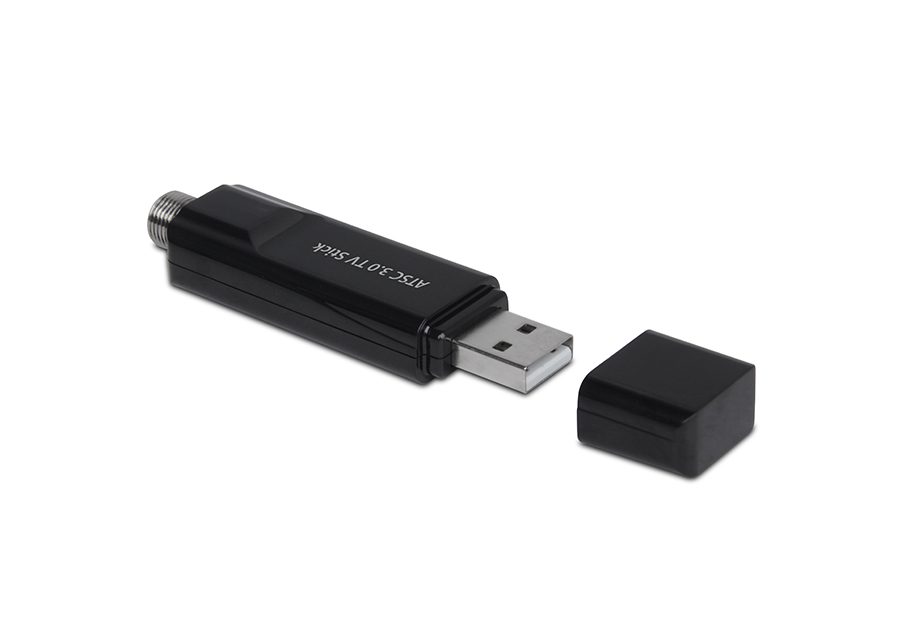

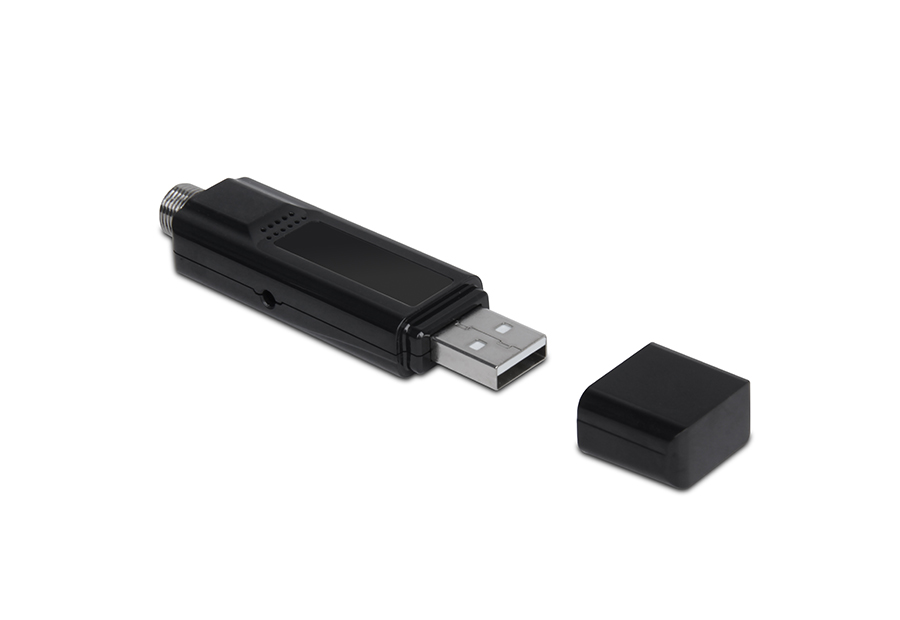

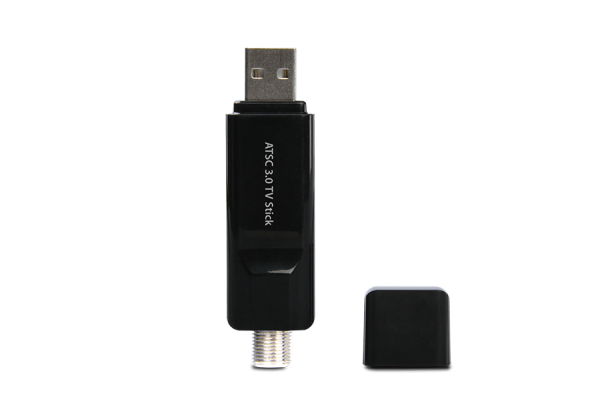

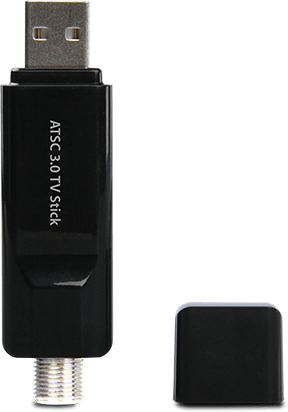

Geniatech A683 ATSC USB TV Stick is a Pen sized digital USB TV Stick. You can watch and record ATSC 1.0/3.0/QAM on smart devices.
The sleek and compact design makes viewing easy and fun. You may enjoy A683 entertainment whenever you like and wherever you go!
It is fully compatible with ATSC digital TV standard.
Free over-the-air ATSC 1.0/3.0 HD TV and clear QAM digital cable TV
ATSC 3.0 is the next-gen broadcast standard with new features including “H.265/HEVC for video channels of up to 2160p 4K resolution at 120 frames per second,
wide color gamut, high dynamic range, Dolby AC-4 and MPEG-H 3D Audio, datacasting capabilities, and more robust mobile television support
ATSC is free-to-air digital TV for North America and typically requires an antenna for reception. There is no monthly fee for ATSC HD TV
Clear QAM allows users to watch unencrypted HDTV stations without requiring a cable TV set top box
Real live TV without internet

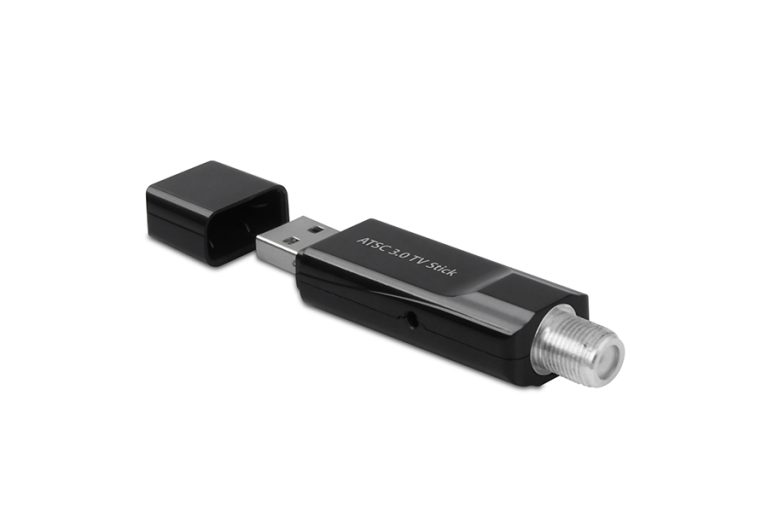

Despite the small size and built with a full-size coaxial plug, this little wonder does not require an adapter to connect an aerial.Simply connect to your TV aerial to receive the great variety of free-to-view TV programs that are broadcast over-the-air.
Superb Quality Television
Record digital HD TV in one quality setting. The digital stream is recorded unaltered for full quality digital content as encoded by the broadcaster. also supports multilingual programming.

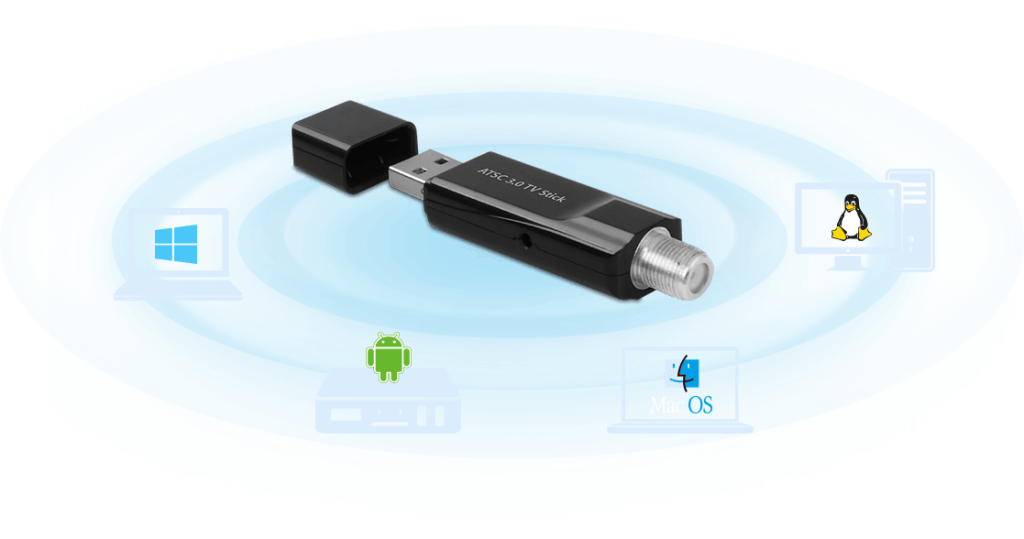

Live TV on Windows/Linux/Mac and AndroidTV OS Device
Compatible with Mac, Windows and Linux computer, netbook or laptop, support Plex.
By using Google’s TIF and Live Channels application, you can plug our TV Tuner to any Android TV OS device for watching free to air Digital TV.
- Net Weight(g)
FEC code:BCH, CRC+LDPC
Code Rate:2/15, 3/15, 4/15, 5/15, 6/15, 7/15, 8/15, 9/15, 10/15, 11/15, 12/15, 13/15
Constellation:QPSK, NUC, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
Transmission mode:SISO, MISO, MIMO, Channel bonding
Interleaving:Convolutional Time Interleaver, Hybrid Time Interleaver
FFT size:8K, 16K, 32K
Max bitrate:SISO 8 MHz 78.5 Mbps – 2×2 MIMO 8 MHz 157 Mbps
Frame duration:from 50ms to 5s
PLP number:from 1 up to 64 (min 4 in parallel for demod)
Versatile PLP mapping:TDM, FDM, TFDM, LDM
Receive Frequency: TV 54~ 862 MHz
ATSC compliant 8-VSB
Open Cable , ANSI/SCTE DVS-031,ITU-T J.83 Annex B, and DOCSIS compliant 64/256 QAM
Stream capture: PES & TS
Audio Format: mpg-II Audio Layer I & II/AAC
Software CD (inc. PDF user’s manual)
Quick Installation Guild
