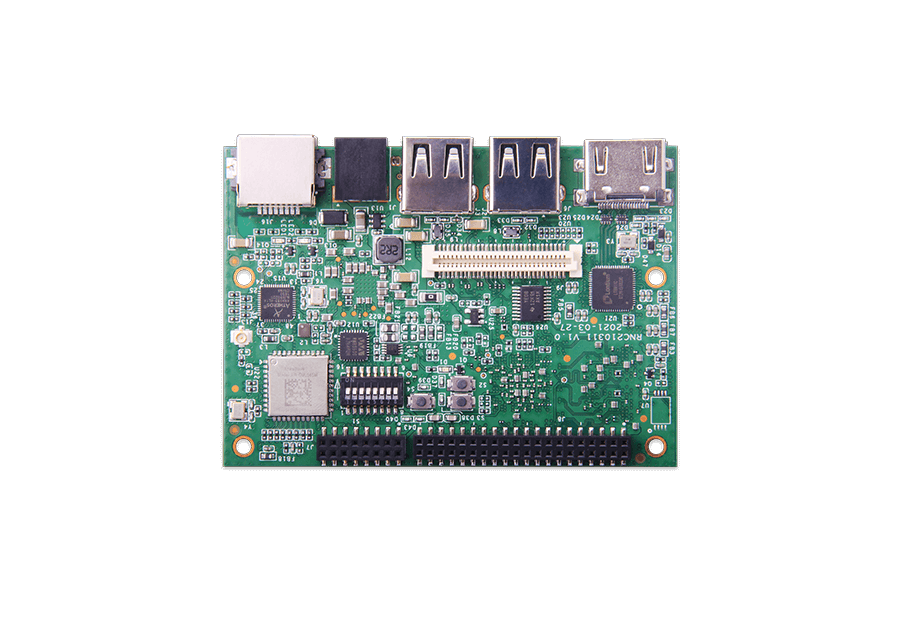

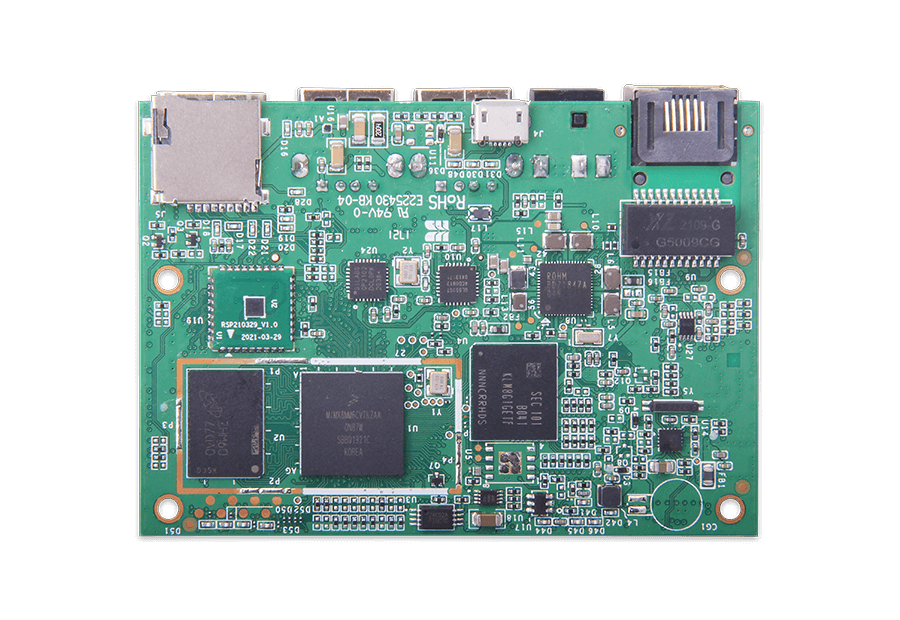

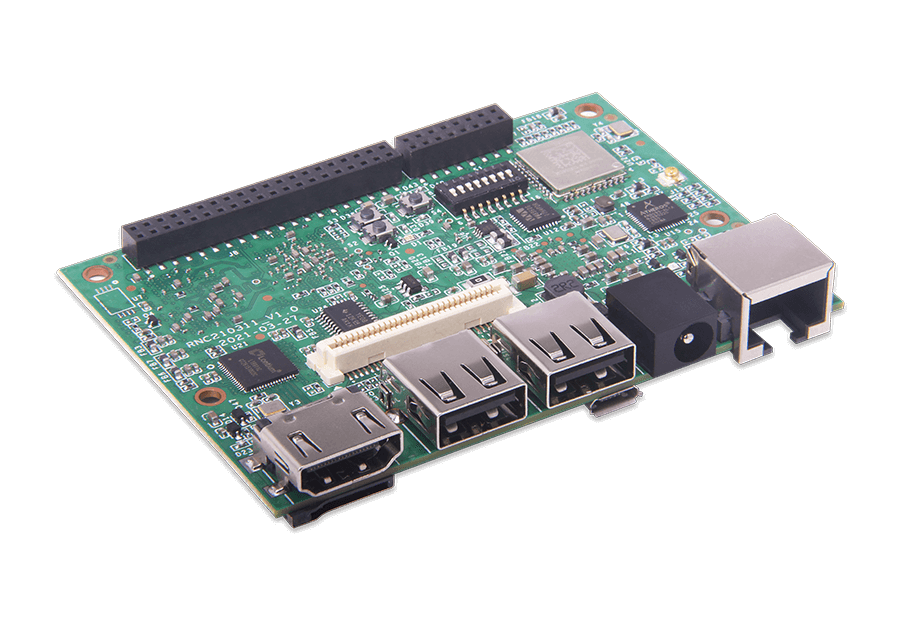

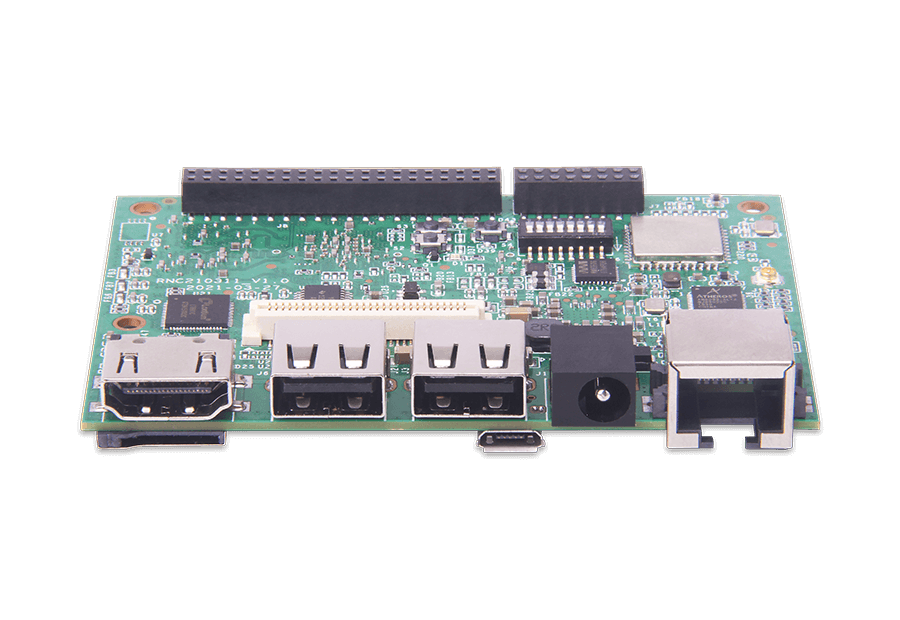

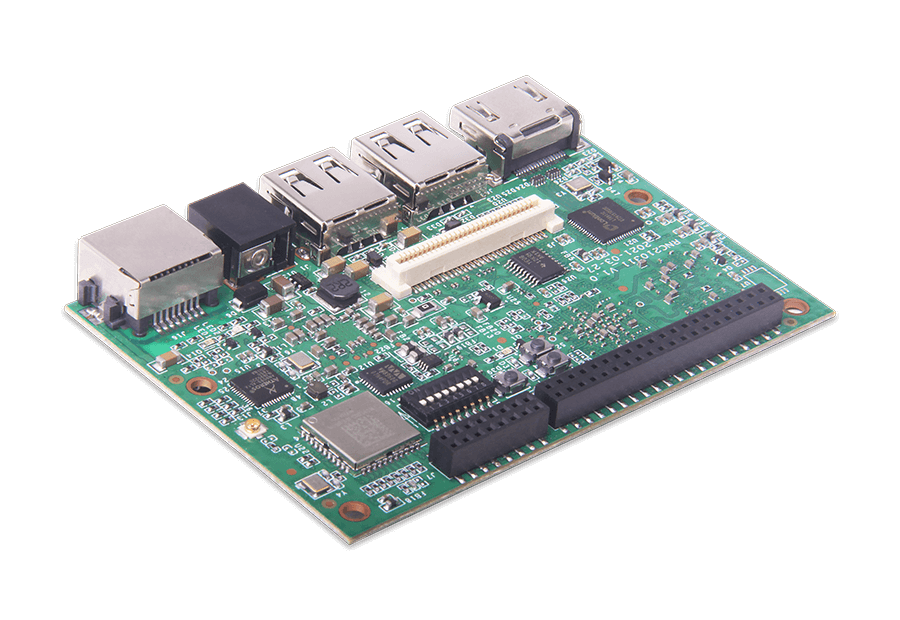

DB11 – Single Board Computer

  • Class 96Boards hardware architecture design, the size of only 85 * 60 mm
  • Integrated quad-core Cortex-A53 + single-core Cortex-M4 multicore heterogeneous processor, excellent real-time task processing capabilities
  • multiple storage specification combinations, 1/2/4GB RAM optional, 8/16/32GB eMMC optional.
  • supports 2.4G/5GHz WiFi, Bluetooth 4.2 wireless communication and Gigabit wired network communication.
  • integrates HDMI®, MIPI CSI/DSI, USB2.0, PCIe, UART, I2S, SPI and other universal interfaces.
  • supports Linux Yocto and Android 9.0 operating system
  • industrial-grade standard design to meet the needs of various industrial-grade applications and consumer applications.
Get A Quote

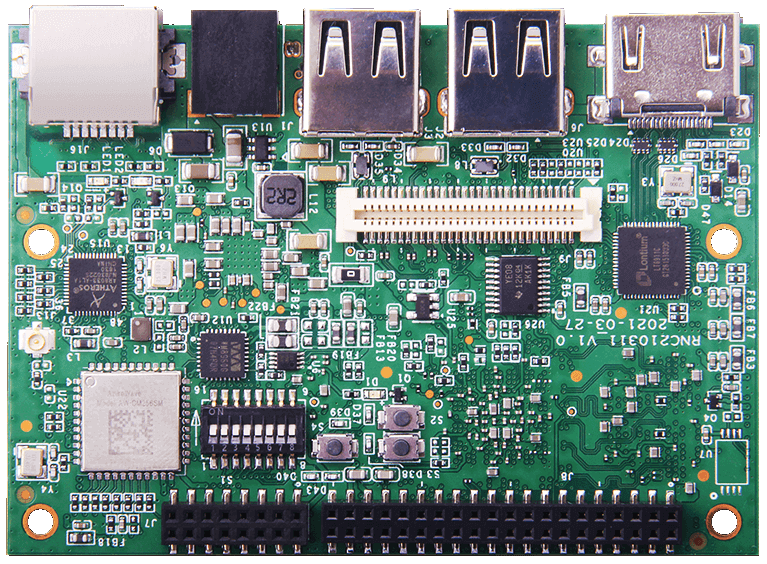

NXP iMX8MM Development Board

DB11 adopts NXP’s latest generation of low-power multi-core heterogeneous processor, i.MX8M Mini, with industry-leading audio, video and voice processing performance, support for 1080P@60fps H.264/H.265 video decoding and GPU graphic gas pedal, applicable to the industrial control and communication, human-machine interaction (HMI), Internet of Things (IoT), multimedia audio and video and machine visual learning, etc.

DB11 – Single Board Computer

High performance, low power consumption, real-time task processing

Adopting NXP i.MX8M.Mini multi-core heterogeneous processor with up to 1.6GHz main frequency, up to 4GB DDR4 memory, 32GB high-speed eMMC storage, it meets the application requirements of high-performance computing, low-power hibernation, and real-time task processing in a variety of industrial applications, and is more secure and reliable.

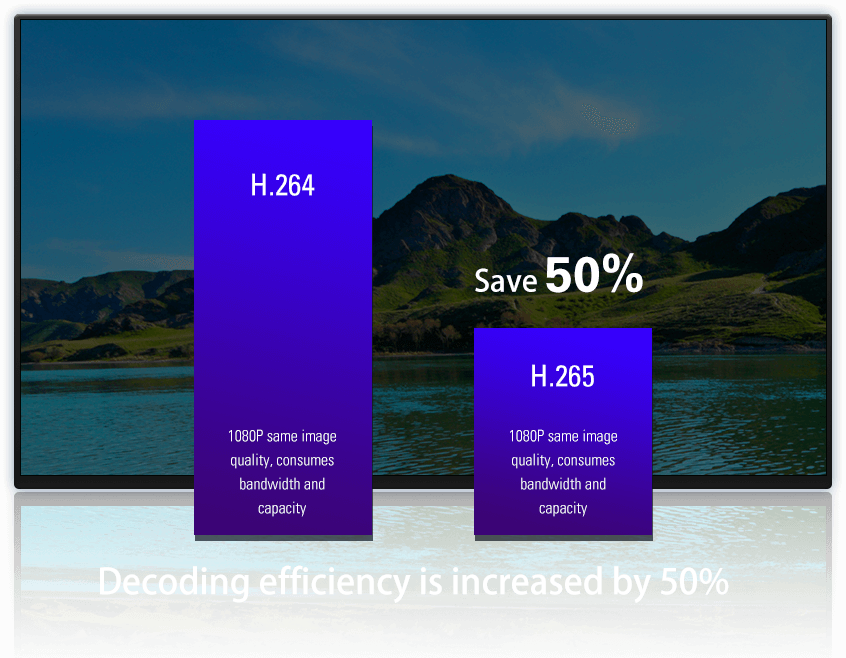

H.265/VP9 decoding, excellent audio and video processing capabilities

Support 1080P@60fps H.264/H.265 and VP9 video decoding, Compared with traditional H.264, the average decoding efficiency is increased by 50%, and the bandwidth and capacity occupied by transmitting and storing video is 50% of that of H.264.

Rich interfaces and good compatibility to meet a variety of application scenarios

Optional industrial-grade product standards, can be in -40 ° C ~ 85 ° C environment 7×24 hours of long-term stable operation, to meet the needs of all kinds of harsh industrial application environment.

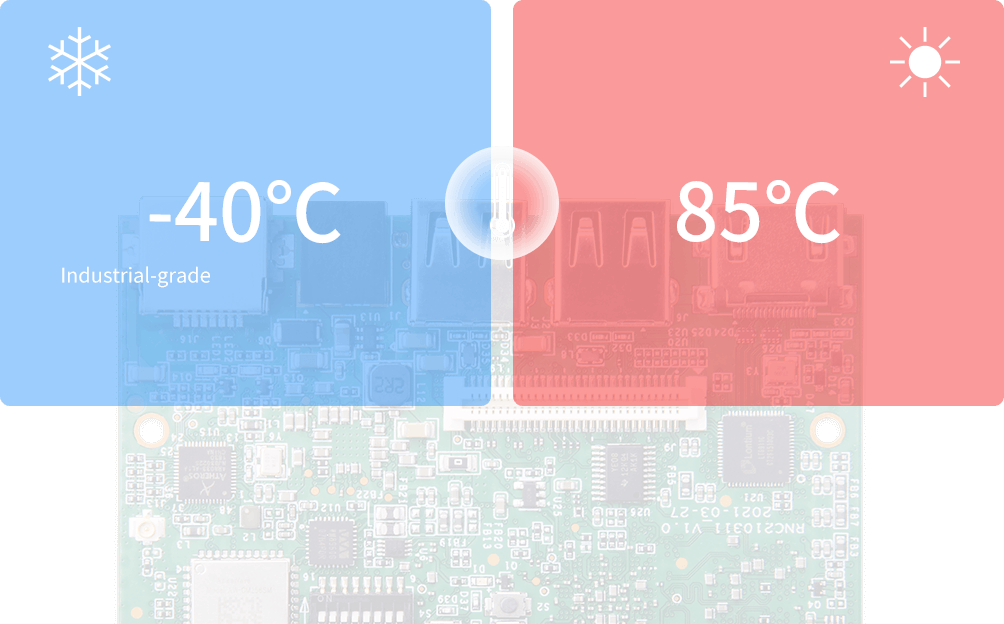

Optional industrial-grade standard, stable operation under -40°C~85°C environment

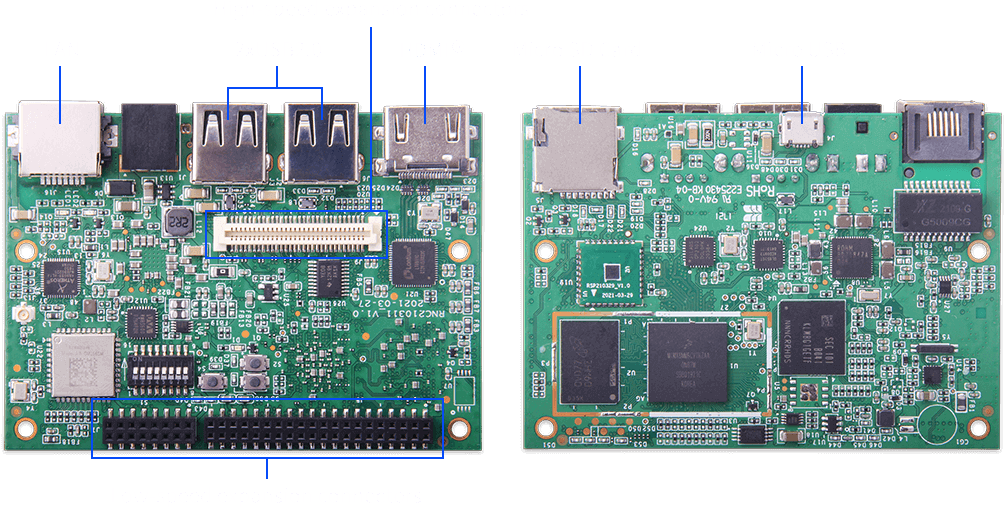

Good compatibility, onboard HDMI®, USB, Gigabit Ethernet ports and common high-speed and low-speed expansion connectors in the 96Boards standard, support for MIPI-DSI/CSI, PCIe, GPIO, UART, SAI, I2C, I2S, WiFi/BT and other general-purpose interfaces, to meet the expansion needs of a variety of application scenarios.

Linux Yocto and Android Multi-OS Support

Supports Linux Yocto and Android operating systems and provides free technical support and maintenance, which enables system designers to focus on application development rather than operating systems and underlying device drivers.

10 years + long lead time for long product lifecycles

NXP provides 10 years + product long-term supply program for iMX8M Mini processor, we will provide you with long-term technical support and continuous maintenance updates based on the original factory support, to provide stable supply guarantee for your designed products.

Provide comprehensive technical information for efficient secondary development

We can provide perfect technical information including baseboard reference design information, supporting source code, technical documents, API interface and SDK development tools, etc., which makes secondary development easier, more convenient and efficient, and helps customers quickly build self-controlled customized products.

More than hardware, one-stop customization service

With 26 years of ARM embedded product technology research and development experience and partner resources, We can not only provide customers with customized design of hardware functions, but also provide one-stop consulting services such as operating system transplantation across SoC platforms, BSP kernel trimming and driver debugging, scenario-based application software development, overall system software testing services, and perfect SDK secondary development interfaces, etc. With the help of its own production factory of nearly 30,000 square meters, We can help customers quickly build self-controlled customized products. With the company’s own production factory of nearly 30,000 square meters, we can help customers greatly shorten the cycle from product selection, R&D project, small trial production to mass production delivery.

Industry Applications

Suitable for industrial control and communication, human-machine interaction (HMI), intelligent medical, Internet of Things (IoT), smart home, multimedia audio and video and machine vision learning and other fields.

Processor NXP i.MX8Mini SoC
Quad core ARM Cortex A53(64bit) + Cortex M4
OS Linux Yocto,Android 9.0
Memory 1GB LPDDR4(2GB/4GB optional)
Storage 8GB eMMC5.1(8-128GB optional)
WLAN Wi-Fi 5 Dual-band 2.4GHz/5GHz
Bluetooth Bluetooth 5.0(integration)
Ethernet RJ45-100/1000 MHz
Security Encryption IC Support
Display HDMI® V1.4
USB USB 2.0 Type A *2
Micro-USB OTG
TF-Card SDIO 3.0
RTC(Real-Time Clock) Support
Key Volume+/volume-/Power
Indicator light User(Programmable)*4 System status*3
Connectivity 1x Mezzanine boards 40 pin Low-Speed connector
• UART, SPI, PCM/I2S, I2C, GPIO, SAI, DC power
1x Mezzanine boards 60 pin High-Speed connector
• 4L-MIPI DSI, USB, I2C, PCIe, 2L+4L-MIPI CSI
1xoptional 16-pin Analog expansion connector
• Headset, Speaker, Mic
Mechanical Properties
Size (mm) 85*60
Net Weight (g) 35
Power DC 12V/2A
Wide working range Consumer (0°C to 80°C Tj)
Industrial (-40°C to 85°C Tj)
RoHS and Reach compliant Yes
