Renesas RZ/V2H OSM AI System-on-Module

SOM-V2H-OSM

Renesas RZ/V2H OSM AI System-on-Module

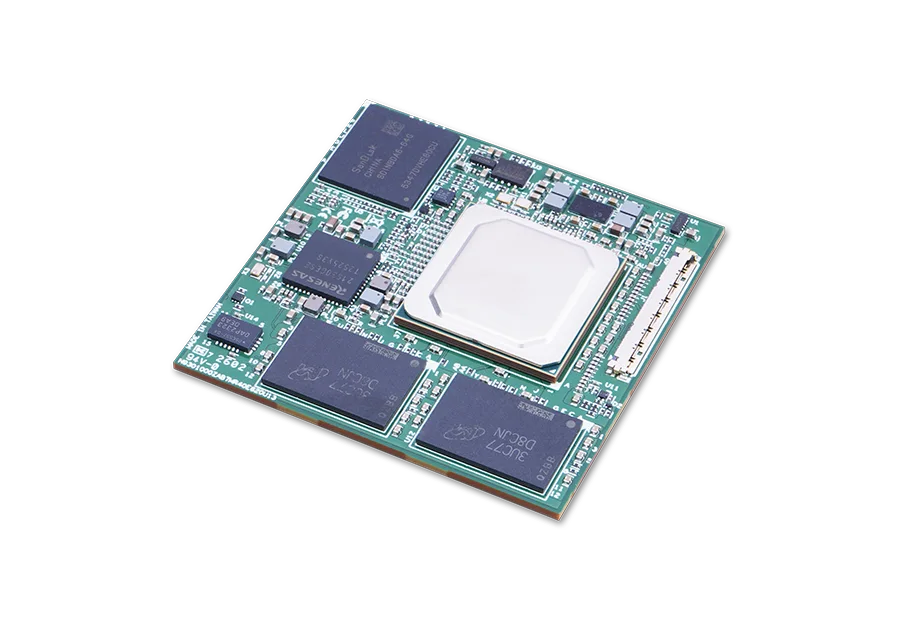

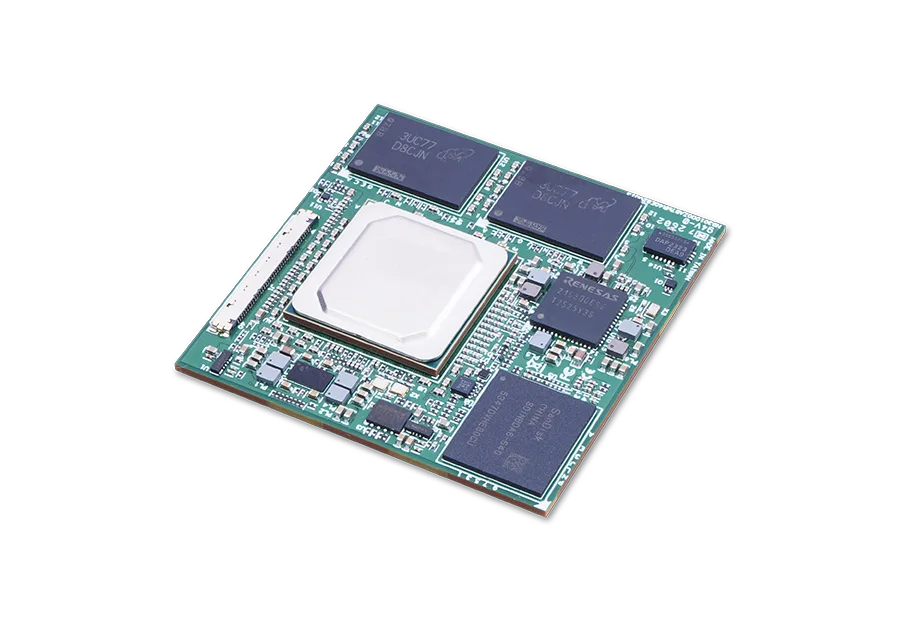

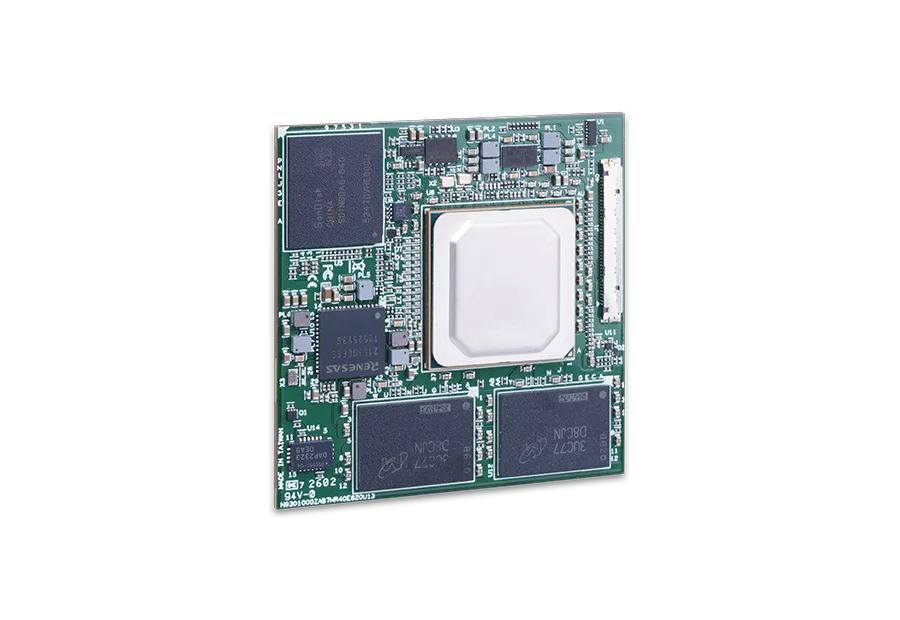

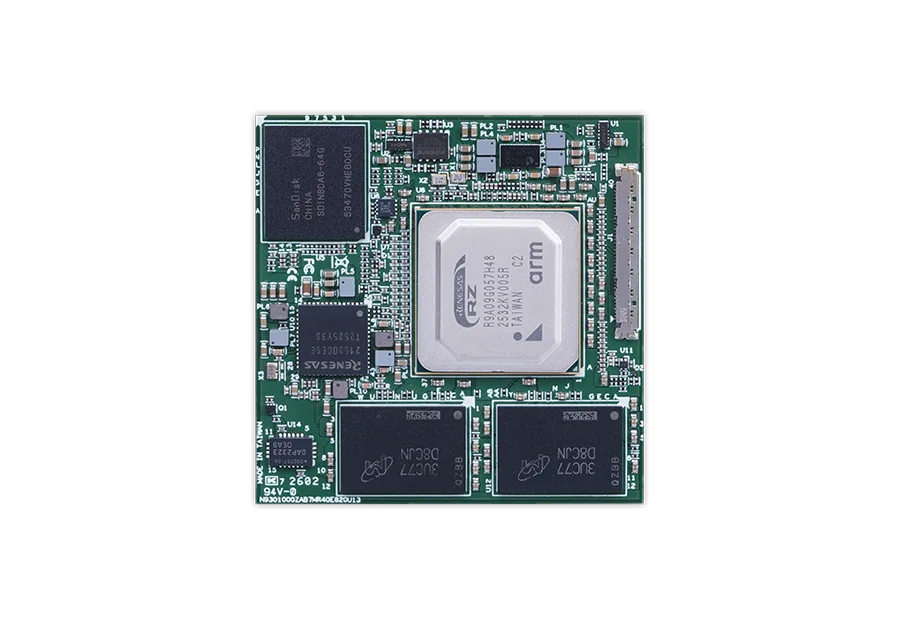

Geniatech SOM-V2H-OSM is an OSM System-on-Module based on the Renesas RZ/V2H, featuring Arm Cortex-A55, Cortex-R8, and Cortex-M33 cores, along with the DRP-AI3 accelerator delivering up to 80 TOPS for high-performance edge AI workloads. It includes interfaces for camera, display, networking, and peripherals. Compliant with SGeT OSM v1.2 Size-L, it is designed for embedded vision systems requiring high AI performance.

Heterogeneous cores: 4× Cortex®-A55 @ 1.8 GHz, 2× Cortex®-R8, and Cortex®-M33
DRP-AI3 accelerator up to 80 TOPS (sparse) for edge AI processing
Power efficiency up to 10 TOPS/W
LPDDR4X memory and onboard eMMC storage
PCIe Gen3 (2×1 lanes), USB 3.0, USB 2.0, and USB OTG interfaces
Dual MIPI CSI-2 and MIPI-DSI interfaces for camera and display
Dual Gigabit Ethernet and industrial I/O (UART, CAN, SPI, GPIO)
OSM Size-L form factor (662 pins), compliant with SGeT OSM v1.2
Operating temperature: -20°C to 85°C

General
OSM Standard	SGeT OSM Specification v1.2, OSM Size-L
SoC	Renesas RZ/V2H
CPU	4x Arm Cortex-A55 @ 1.8 GHz 2x Arm Cortex-R8 @ 800 MHz 1x Arm Cortex-M33 @ 200 MHz
Storage	64GB eMMC
Memory	2x 8GB (16GB total) onboard LPDDR4X
Power Input	5V DC
Operating System	Linux (Yocto-based)
Hardware Interfaces
Audio	2x I²S
PCIe	2x PCIe Gen3
USB	2x USB 2.0 (1 port with OTG) 2x USB 3.0
Display	1x MIPI-DSI (4-lane)
Video	Integrated in SoC
Camera	4x MIPI CSI-2 (4-lane): 2x on-board, 2x via OSM
Ethernet	2x GbE LAN (RGMII)
Other Legacy I/O	4x UART (1x console), 22x GPIO, 2x SDIO, 2x CAN, 1x PWM x3, 1x SPI, 2x ADC, 1x JTAG
Mechanical & Environment

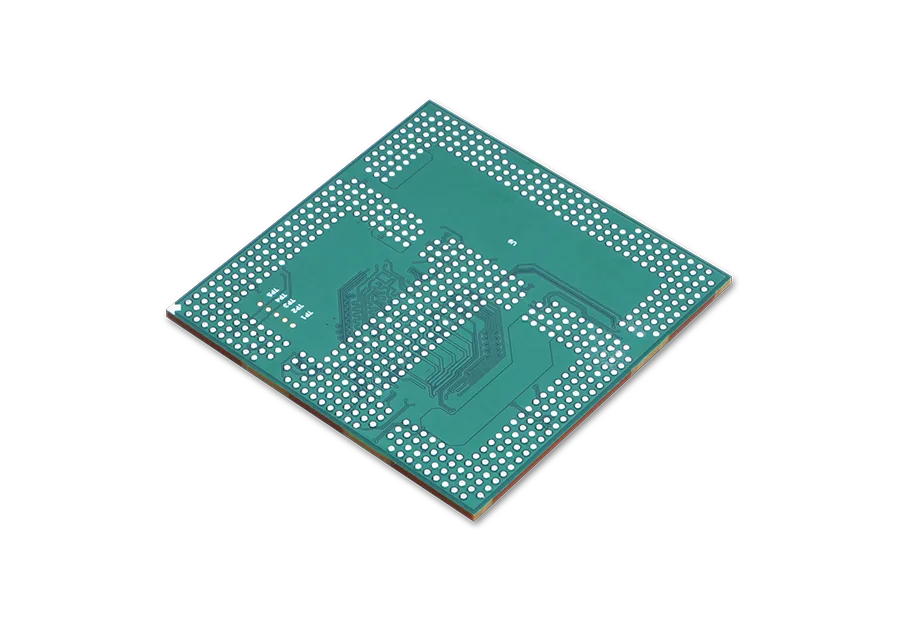

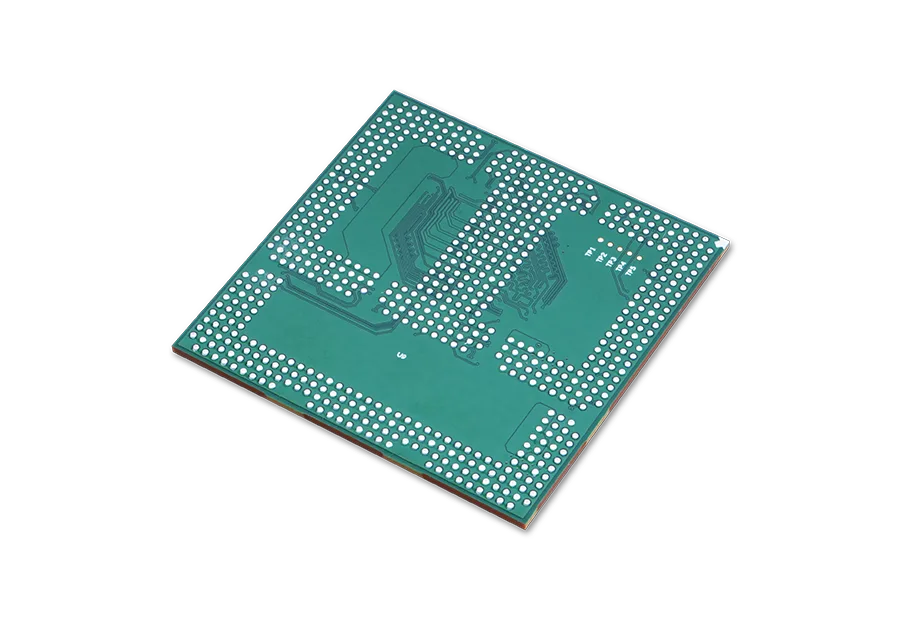

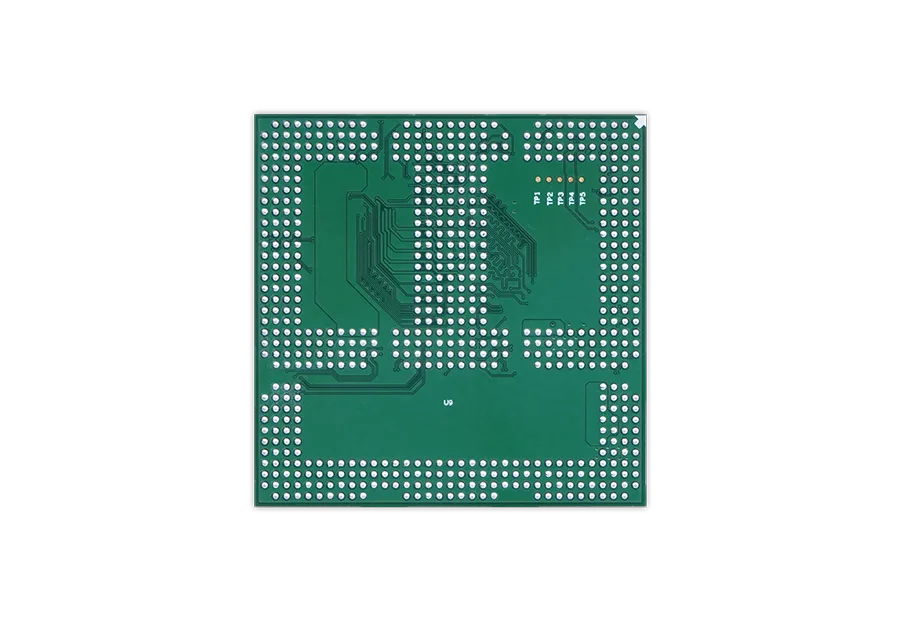

Form Factor	SGeT OSM v1.2, OSM Size-L, 662 pins
Dimensions	45 mm (L) x 45 mm (W)
Operating Temperature	-20°C to +85°C
Relative Humidity	5% to 95% RH (non-condensing)
