Renesas RZ 96Boards-CE SBC

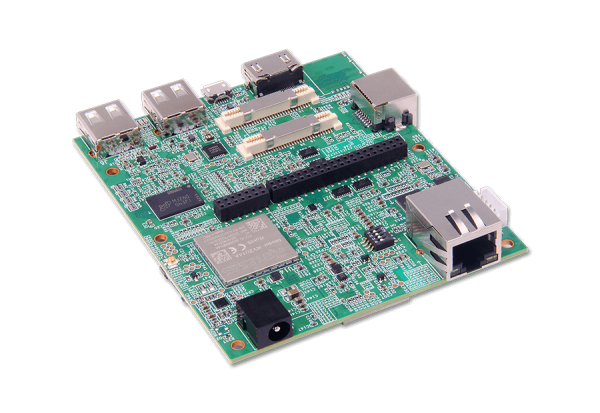

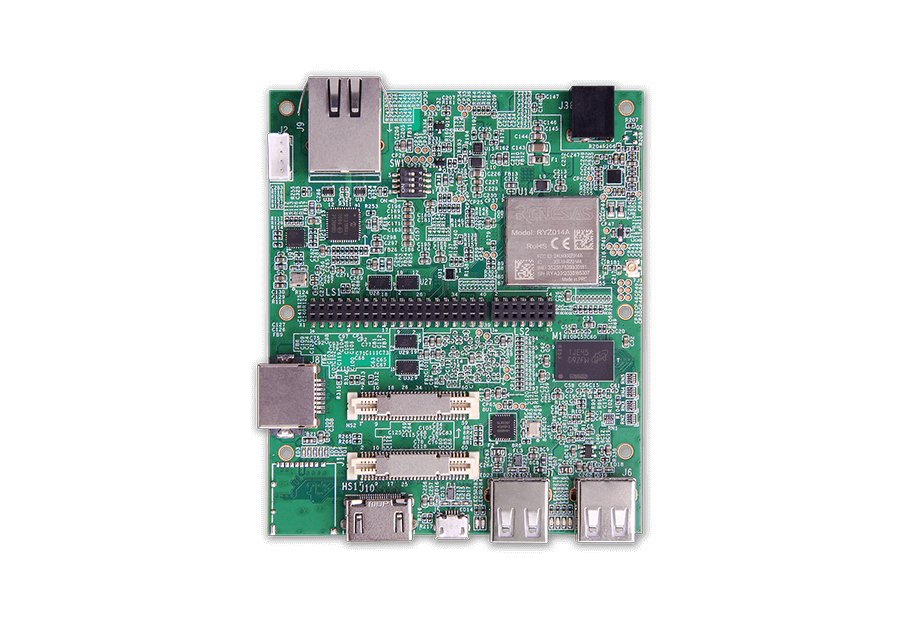

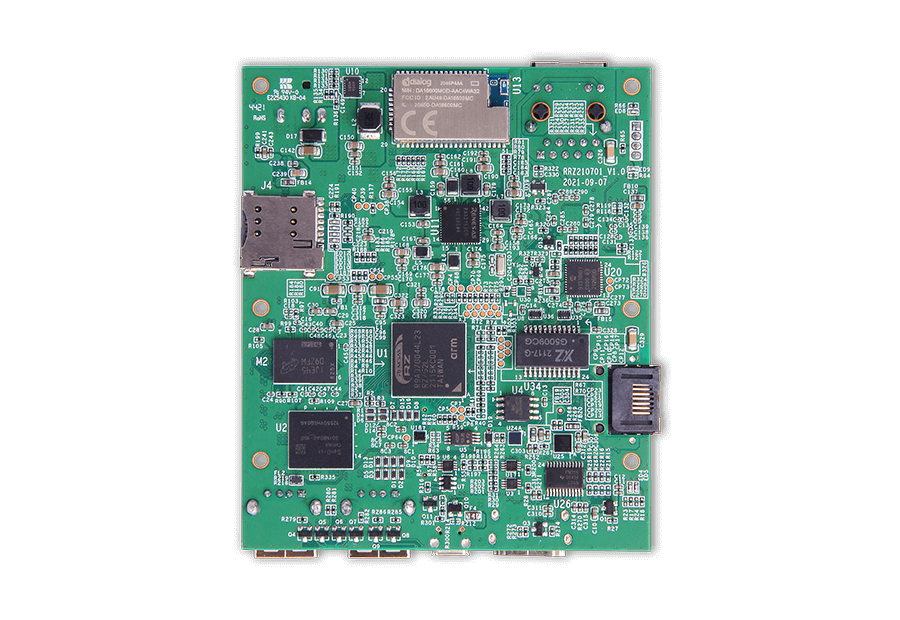

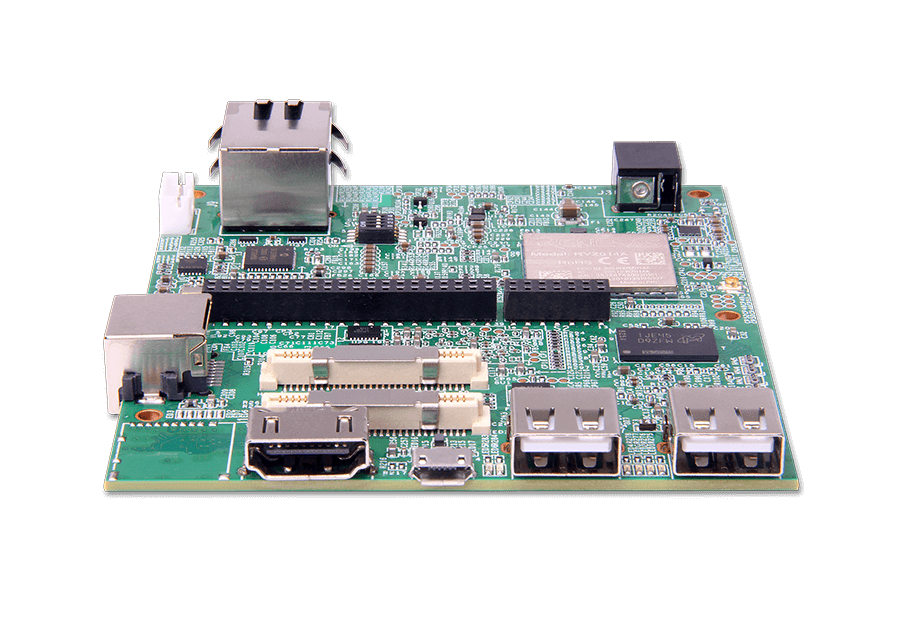

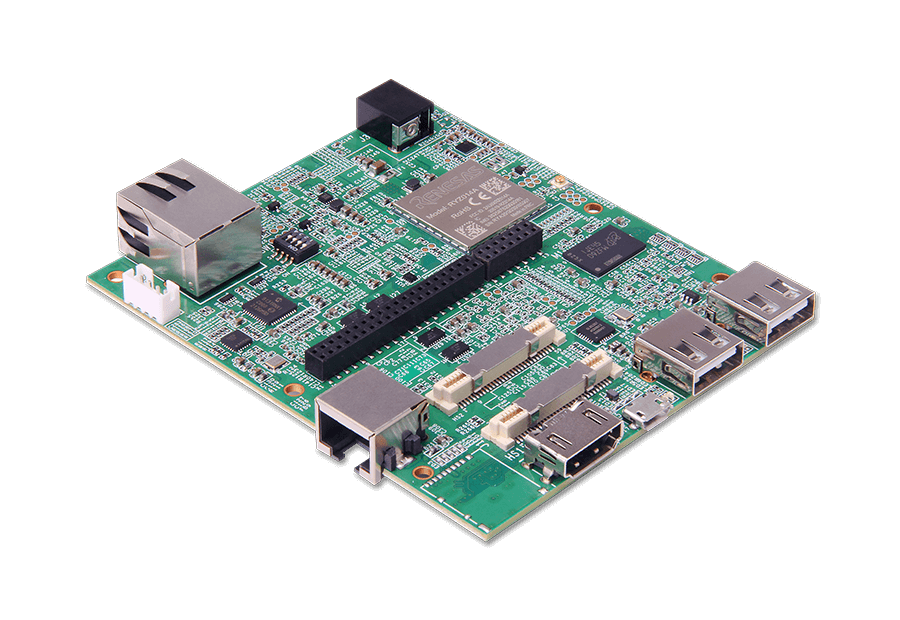

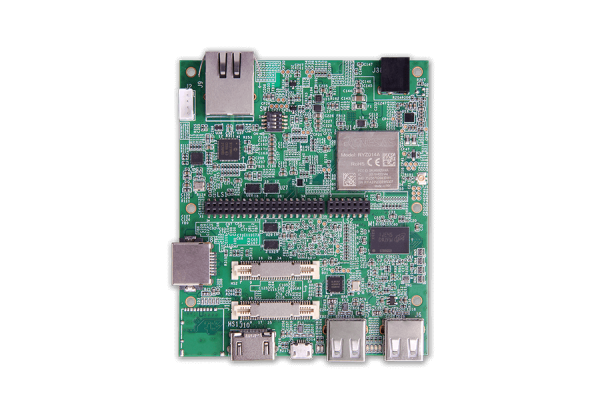

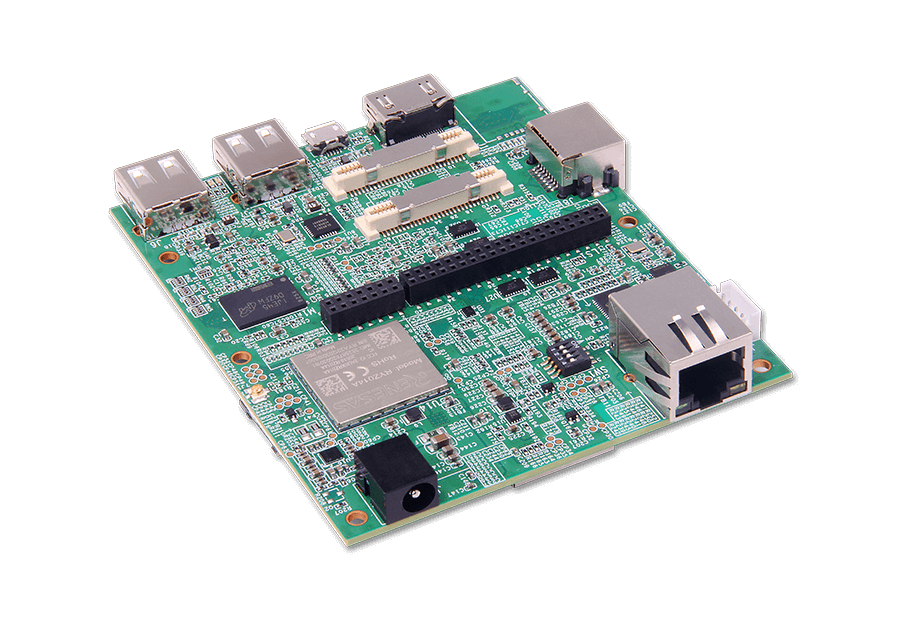

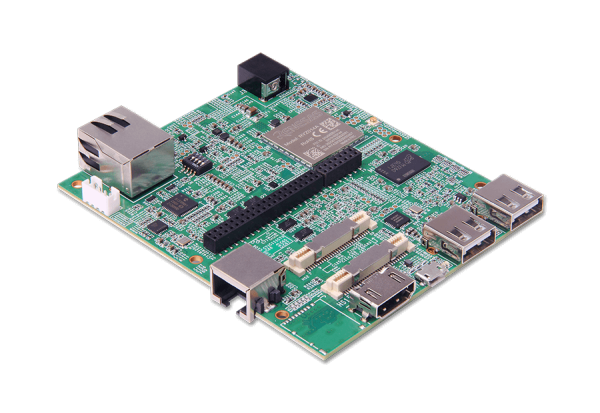

Geniatech AHAURA RS-G2L100 / AKITIO RS-V2L100 Development Board are based on Renesas low power highly efficient powerful RZ/G2L / RZ/V2L SoC, which is jointly designed & manufactured in closed collaboration with Geniatech & Renesas.
The board includes a high-performance 64-bit Dual-core (Cortex A55) processor, HDMI®out display support at resolutions up to 1080P, hardware video decodes up to 1080P, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth (BT 5.1 compliant BLE) two Gigabit Ethernet, two USB 2.0 and LTE Cat-M1, as well as supporting different high-speed interfaces such as MIPI-DSI / MIPI-CSI / USB2.0 and low speed 96Boards Mezzanine Connector.

Buy a Sample

Get A Quote

Multiple network access methods

Provide Gigabit Ethernet, WiFi, 4G mobile communication and other network access methods, to achieve stable, reliable, uninterrupted network access capabilities, users can choose flexibly according to the site working environment.

Rich peripheral interfaces, widely applicable to different industries

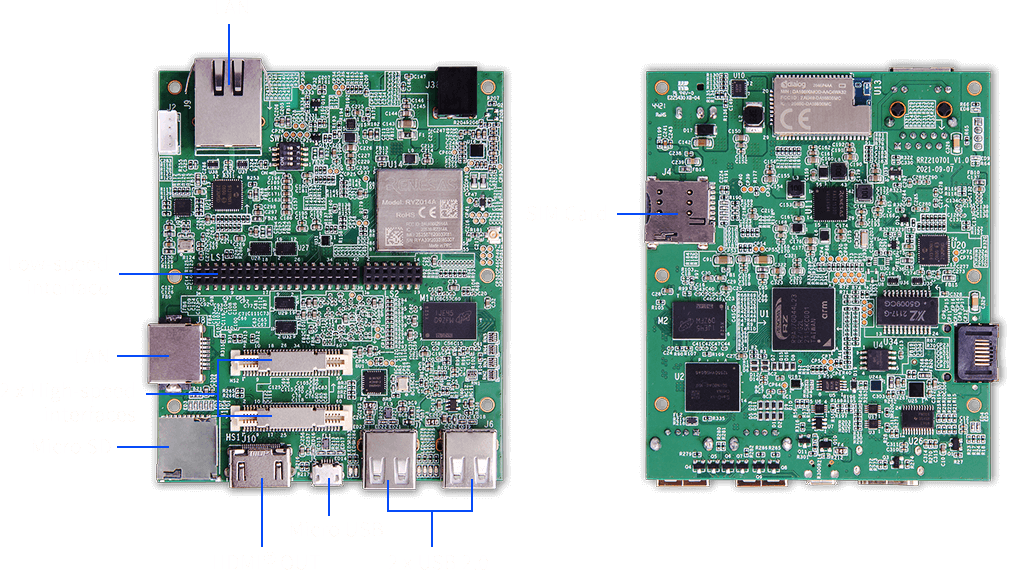

Provide two high-speed interfaces and one low-speed interface, up to 174 pins, support UART, I2C, SPI, GPIO, USB2.0, MIPI CSI, MIPI DSI, I2S, SDIO and other commonly used expansion interfaces. It supports two Gigabit Ethernet interfaces, one HDMI®1080P display output, onboard LTE Cat1, low power Wifi and Bluetooth, 12V/2A DC power supply, one Micro SD interface, two USB Host Type A interfaces, and one MicroUSB OTG interface, which can provide rich peripheral interfaces for different industry applications.

Powerful 3D graphics acceleration engine, rich multimedia processing capabilities

Rich audio/video and touch interface resources can provide extended support for display, audio, and camera to meet the needs of high-definition display, human-computer interaction, and image acquisition, supporting H.264 1920×1080@30 fps video decoding, and at the same time, it also has a 3D GPU and video hardware encoding and decoding VPU, and supports Vulkan, OpenGL, and OpenCL, which greatly improves the human-computer interaction and experience.

Open system architecture design, powerful software customization capability

Adopting the mature, stable and highly scalable Linux 4.19 system, it can provide a complete set of software system customization services including system kernel modification, driver transplantation, application development and UI interface customization, providing a safe and stable system environment for product research and production. Meanwhile, it can be developed based on Renesas e²studio IDE software, which supports seamless connection with third-party platforms such as Amazon AWS and Microsoft Azure.

Provide comprehensive technical data for efficient secondary development.

We can provide perfect technical materials including baseboard reference design materials, supporting source code, technical documents, API interface and SDK development tools, etc., which make the secondary development easier, more convenient and efficient, and help customers quickly build self-controllable customized products.

Industrial-grade product standards, fearless of various harsh working environments

All components are designed with industrial wide temperature -40~85℃, built-in watchdog, ESD electrostatic protection, tested and produced in strict accordance with industrial standards, guaranteeing uninterrupted and stable operation for 7×24 hours in harsh outdoor environments, and meeting the high quality and reliability requirements of industrial applications.

Extremely long delivery period for long product life cycle

Renesas provides 10 years + ultra-long lifecycle protection for RZ/G2L processors, as well as ultra-long-term, traceable Linux Kernel maintenance, providing customers with stable and traceable protection for the long life cycle of their products.

More than just hardware, comprehensive one-stop customization service

With 26 years of technical R&D precipitation of ARM products and partner resources, Gold Asia Pacific can not only provide customers with customized design of hardware functions, but also provide one-stop consulting services such as OS porting across SOC platforms, BSP kernel trimming and driver debugging, scenario-based application software development, overall system software testing services, and perfect SDK secondary development interfaces, etc. With the help of the company’s own production factory of nearly 30,000 square meters, we can help customers to greatly improve their product life cycle, and provide customers with more than just hardware. With the company’s own production factory of nearly 30,000 square meters, we can help customers greatly shorten the cycle from product selection, R&D project, small trial production to mass production and delivery.

Application Scenarios

Can be used in audio and video entertainment host, intelligent security, intelligent medical, industrial automation control, edge computing, vehicle central control system, energy and chemical applications.

  • CHIPSET
    Renesas RZ/G2L
    Renesas RZ/V2L
  • MARKET AREA
    Global
  • OS
    Yocto (Linux)
  • CPU
    2xCortex-A55 core up to 1.2GHz per core
    1x Cortex-M33 core up to 200MHz
  • DDR4
    4GB(4 or 8G optional)
  • EMMC FLASH
    8GB eMMC 5.1 (16/64/128GB optional)
  • Ethernet
    2*RJ45, 10/100/1000M
  • WiFi
    WIFI Module 2.4G/5.8G (optional)
  • Bluetooth
    BT4.0 (integrated in the WiFi module)
  • 4G LTE
    Optional
  • HDMI® Out
    *1(up to 1080P60)
  • USB 2.0
    *2
  • SIM Card slot
    *1
  • USB-OTG
    *1
  • DC IN
    *1 (12V/3A Power adapter,Bootup with electrify)
  • Connectivity I/O
    1x High-Speed Connector1
    • intergrade MIPI-CSI/MIPI-DSI/USB/SD1 function
    1x High-Speed Connector1
    • Support SPI/GPIO
    1x Low-Speed Connector1
    • UART/I2C/SPI/GPIO/I2S
    1x Low-Speed Connector2
    • Speak/MIC
  • Power
    DC 12V / 3A (12V/3A Power adapter,Bootup with electrify)
  • Dimensions
    100mm*85mm
  • Debug Interface
    • Arm® CoreSightTM architecture
    • JTAG / SWD interface supported
    • ETF 16 KBytes for program flow trace (each cluster)
    • JTAG Disable supported
