DB3566 – OSM Development Kit

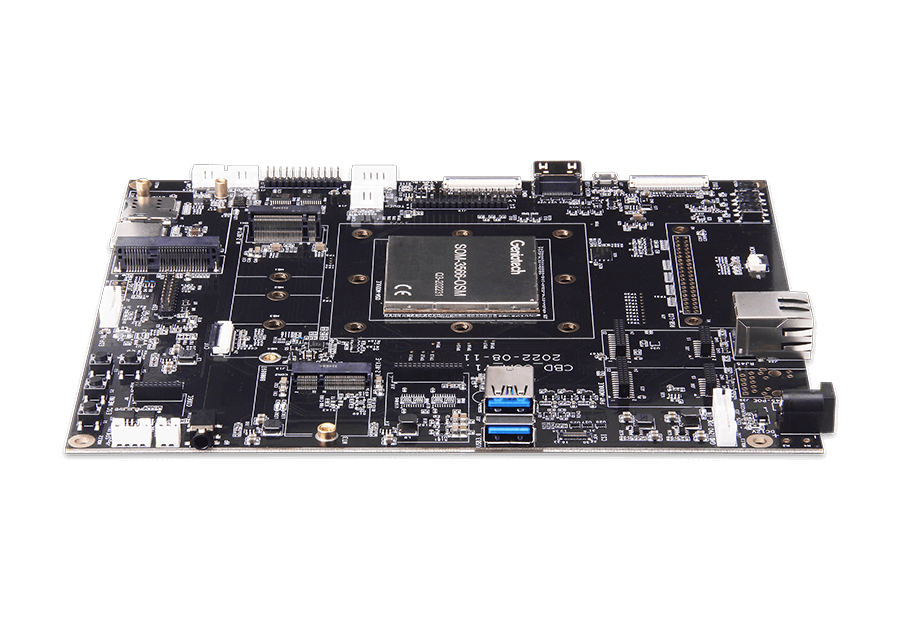

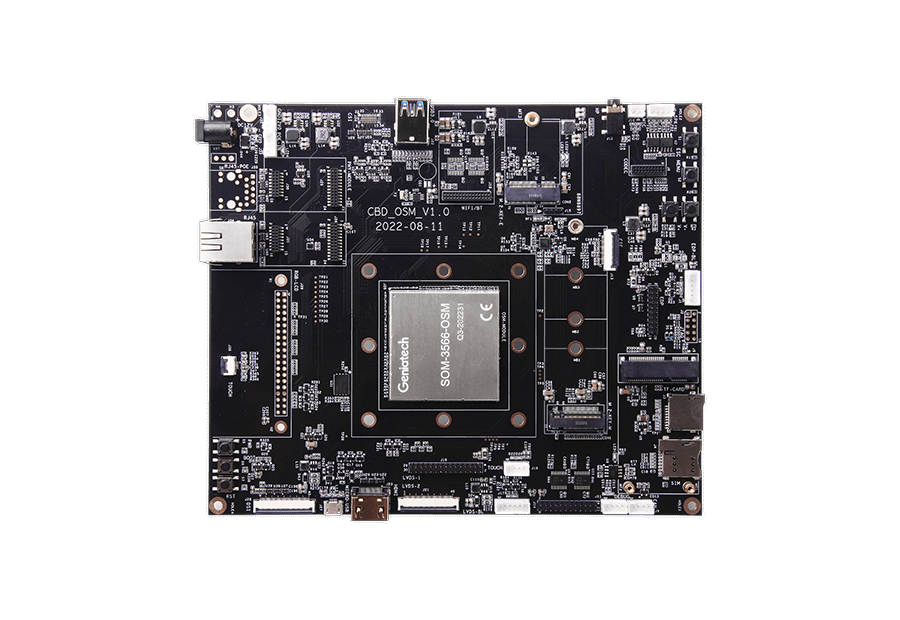

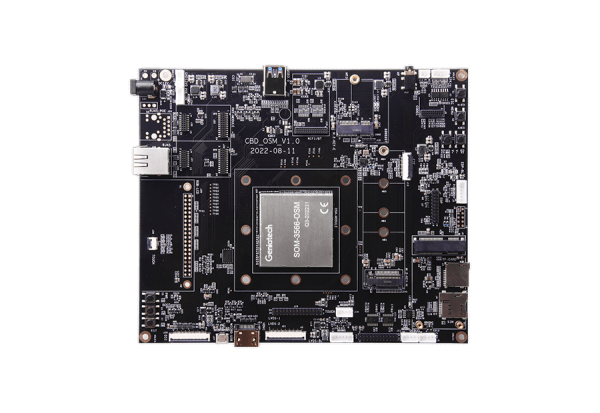

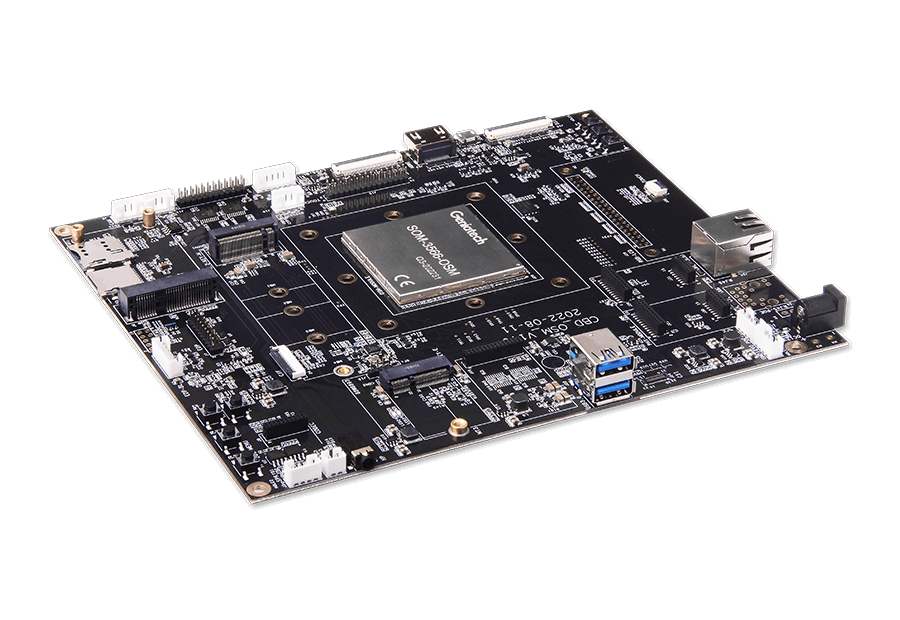

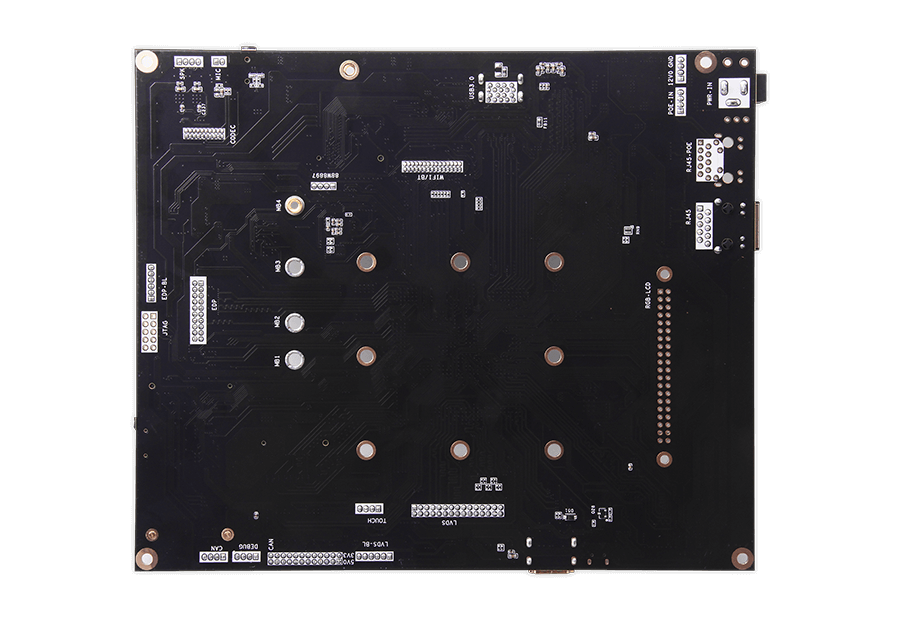

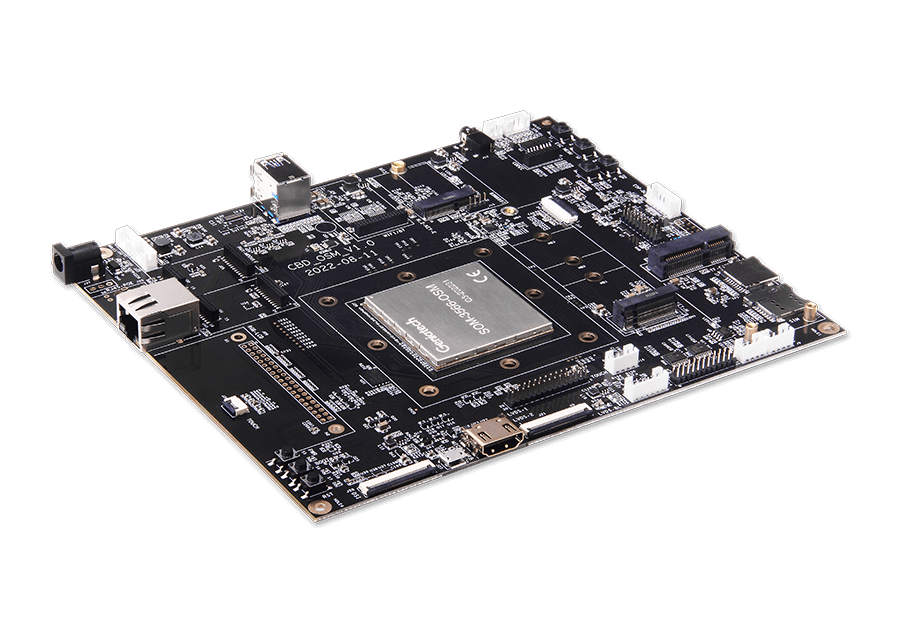

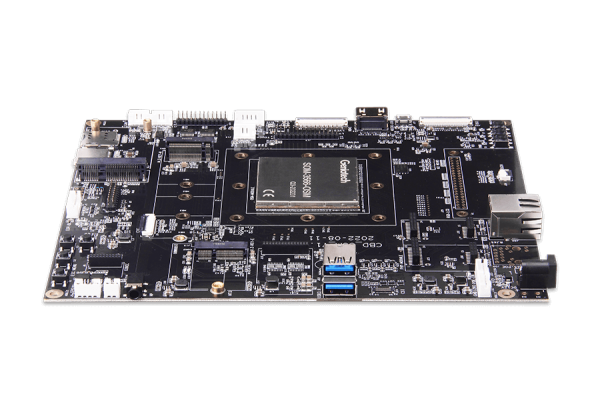

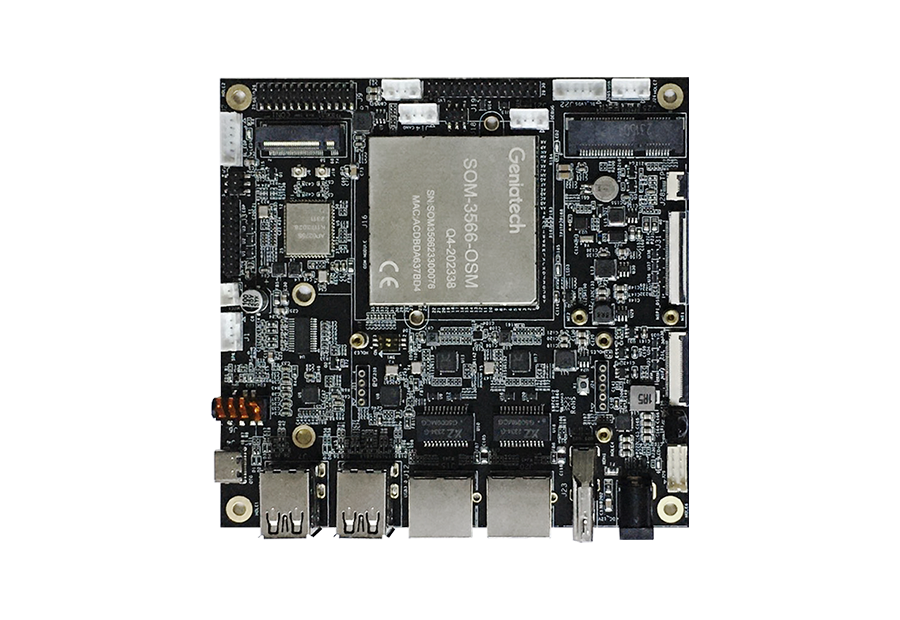

The RK3566 Development Platform incorporates SOM-3566-OSM and CBD-3566-OSM Carrier board for complete validation of RK3566 SoC functionality. The Development board DB3566 can be used for quick prototyping of various applications targeted by the RK3568 Applications Processor. With the 200mmx168mm size, OSM Carrier board is highly packed with all the necessary on-board connectors to validate the features of SOM-3566-OSM. With the high SOC performance, applications focusing on AIOT Internet of Things equipment, vehicle-mounted central control, entertainment/game equipment, commercial display equipment and other application fields.

Buy a Sample

Categories: , ,
Get A Quote
High Performance

CPU adopts 4-core A55 architecture processor, integrated G52
graphics processor, and built-in independent NPU,
computing power of 0.8TOPS
(For Al video, simple face recognition) 8M ISP

High Scalability

The equipment adopts standard interface, rich interfaces:
LVDS, EDP, SATA, M.2, USB3.0, multiple USB2.0 interfaces, HDMI®IN (MIPI),
HDMI®OUT, GTIOT, SPDIF, RF, 40Pin-XP, Double Gigabit Network Interface

High Reliability

Industrial-grade motherboard design,
strict quality control, 7*24h uninterrupted
continuous stable operation

Multi Operating System

Android 10.0 and Linux(Buildroot/Debian/Ypcto)

High Cost Performance, Low Power Consumption

Support LPDDR4X with high cost performance and low power mode of touch screen, which can effectively reduce the power consumption of products

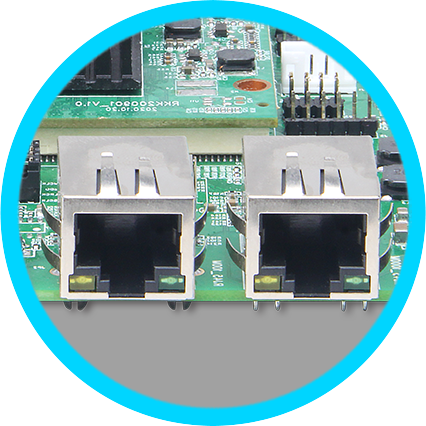

Support Double Gigabit Network Port (RGMII0/RGMII1)

Support double gigabit transmission rate, can support the use of dual network segment Internet

Voice Noise Reduction

Support 2-way MICPHONE, double MIC matrix can be used for noise reduction, sound picking more accurate,to meet the meeting and other requirements for the scene of pitch picking

M.2 Interface

M.2 supports PC1e2.1,Compatible with extensible Super-small interface for large storage capacity

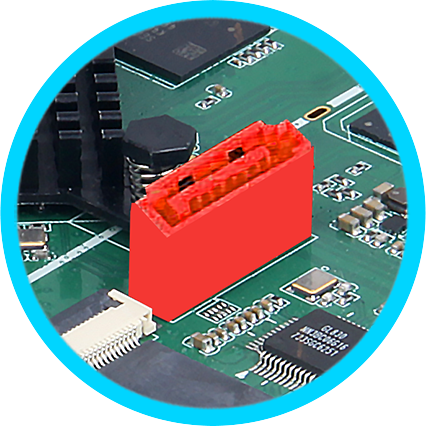

Adopt SATA3.0 Interface

Compatible with mainstream hard disk interface, facilitate customer data reading and writing,support larger storage space and faster transmission rate

Remote Device Management

Remote wake up, restart, standby and other operations

APP Customization Service

Personalized GUI customization services

Application Scenario

Smart POS

AI robot

Face recognition



Smart home

CPU Rockchip RK3566 quad-core Cortex-A55, up to 2.0 GHz
GPU Arm Mali-G52 GPU, support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1
Internal Memory Up to 4 GByte LPDDR4
Internal Storage Up to 128 GByte eMMC 5.1
OS Android 11.0 and Linux(Buildroot/Debian/Yocto)
ETHERNET/WIFI 1 x GIGABIT Ethernet/802.11AC(AX is optional)/BT5.0
BT BT 5.0
POE Optional
I/O 1 x PCIe 3.0(M.2 Slot)
1 x Dual Channel 24-bits LVDS(MIPI DSI )
1 x eDP 1.3
1 x HDMI®2.1, up to 4096 x 2160@60Hz(Output)
1 x HDMI® IN, Up to 4096 x 2160@30Hz
1 x SATA3.0
1 x USB3.0 Type-A, 1 x USB2.0 Type-A,3 x USB2.0 4 Pin Slot
2 x Antenna Slot(WIFI/BT)
1 x GTIoT
1 x POE(Optional)
1 x TF Card Slot(Up to 512GB)
1 x RF(Tuner RF In, Default ATSC , DVB-T/DVB-T2/ISDB-T/DMBT is optional)
3 x Serial Port(2 x 2-wire UART,1 x 2-wire UART/Debug)
1 x MIPI CSI RX(1 x 4-lane MIPI CSI)
12 x GPIO(1 x PWM)
