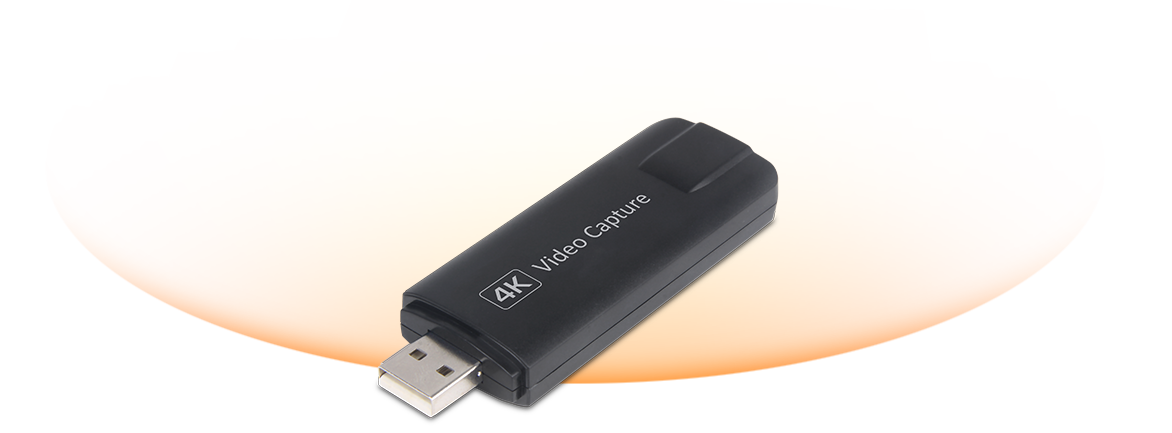

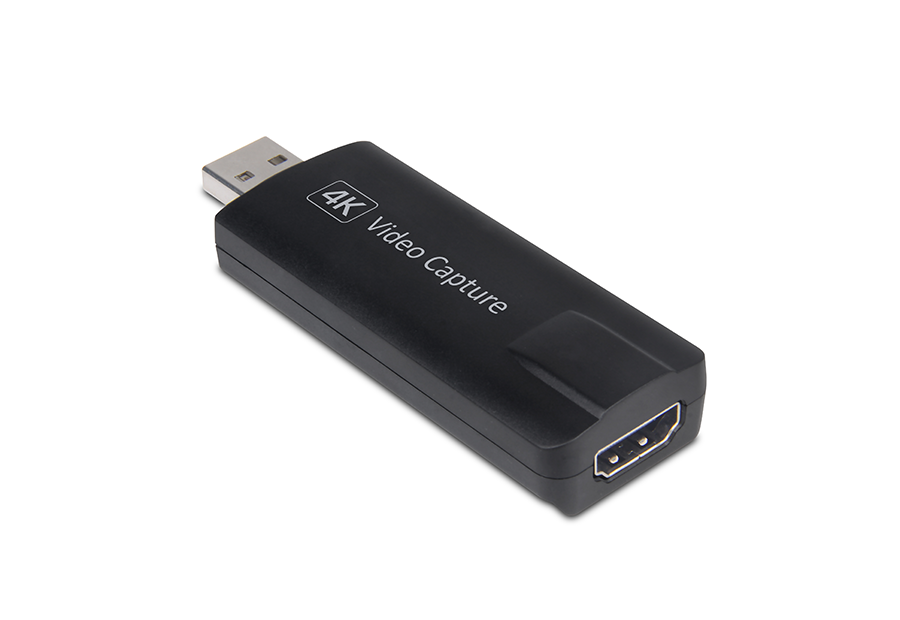

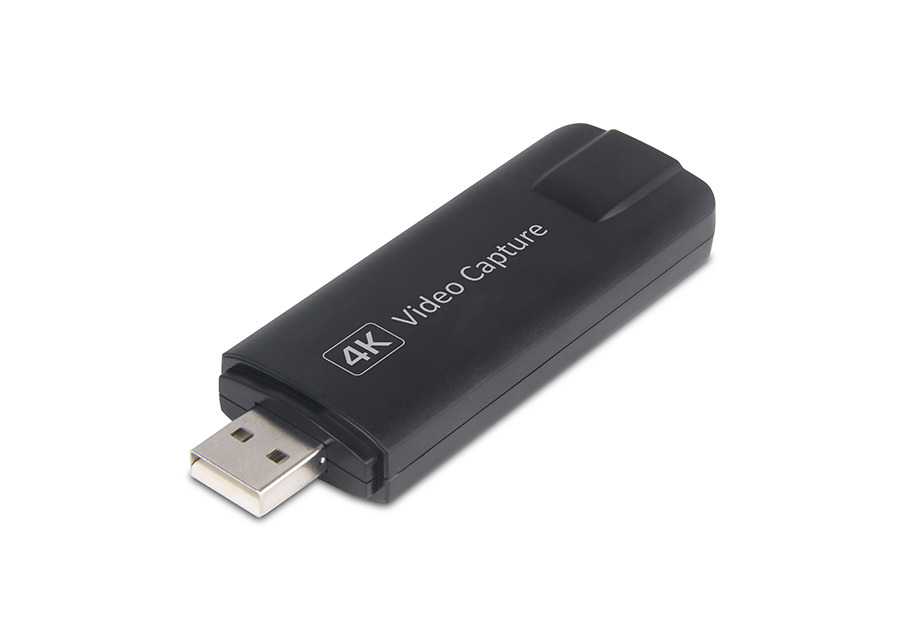

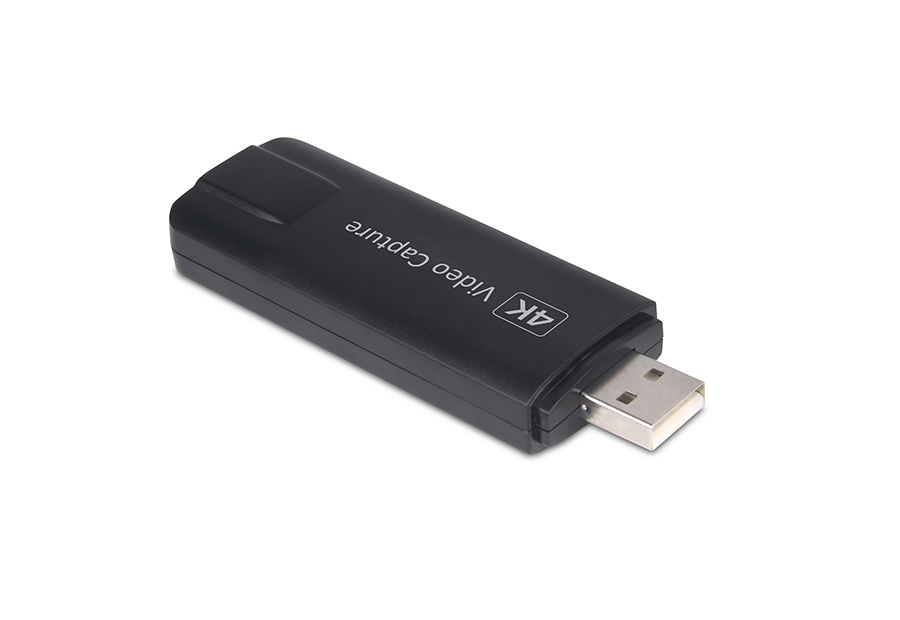

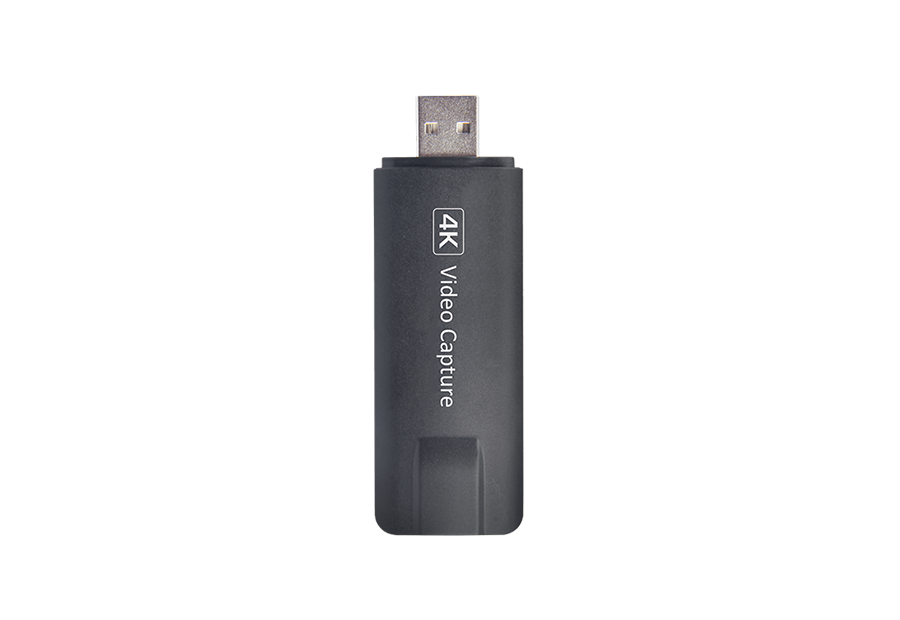

U900 HDMI Video Capture Device

U900 Pro Video capture is 4k 30ftp capture with USB 3.0. It support UVC and no need to install driver any more comparing with other captures. Moreover, it can be compatible with most third party media player,smoothly connecting with the mainstream broadcast platform which can transfer web broadcast, video conference and so on to Skype,Facebook Live、YouTube Live、ZOOM、LiveStream、UStream、Dacast、Wowza Cloud. Support Windows,Mac,Linux OS.

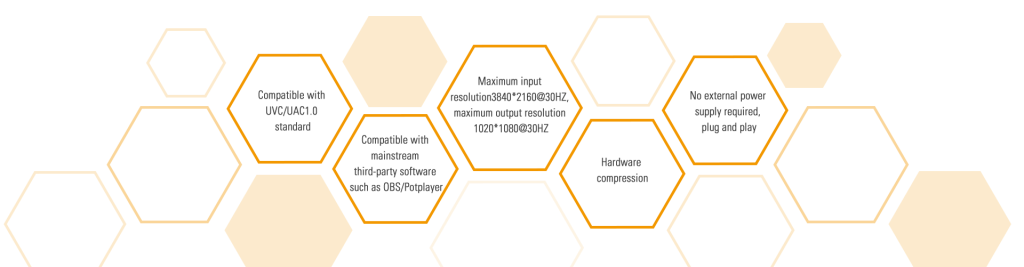

Compatible with UVC driver
Supports HDMI 4K@30 video input Capture resolution up to 4K@30
Auto detection of video resolution
Portable, good thermal performance.
No external power supply, compact and portable.
Compatible with OBS potplayer and other 3rd party software

Buy a Sample

Categories: Multimedia, Video Capture

Get A Quote

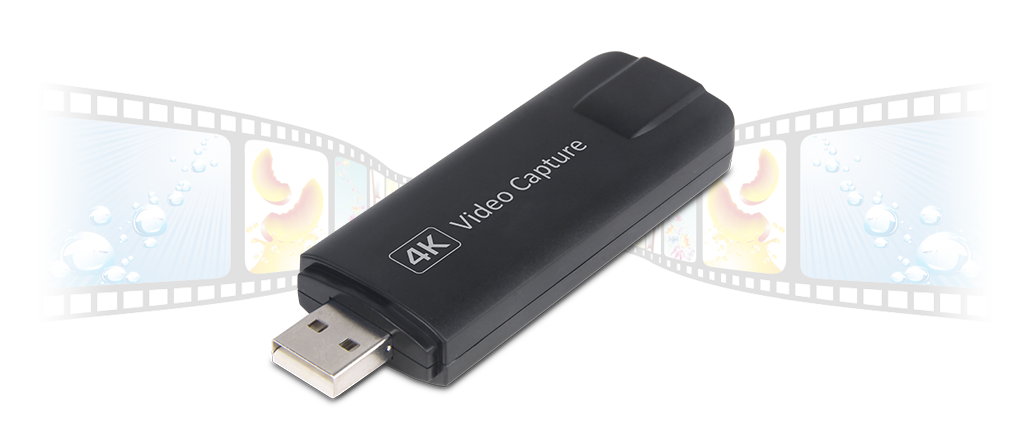

HDMI Video Capture Card

U900:4K input+1080P output+UVC
U900 Pro:4K input+4K output+UVC

Product application connection diagram

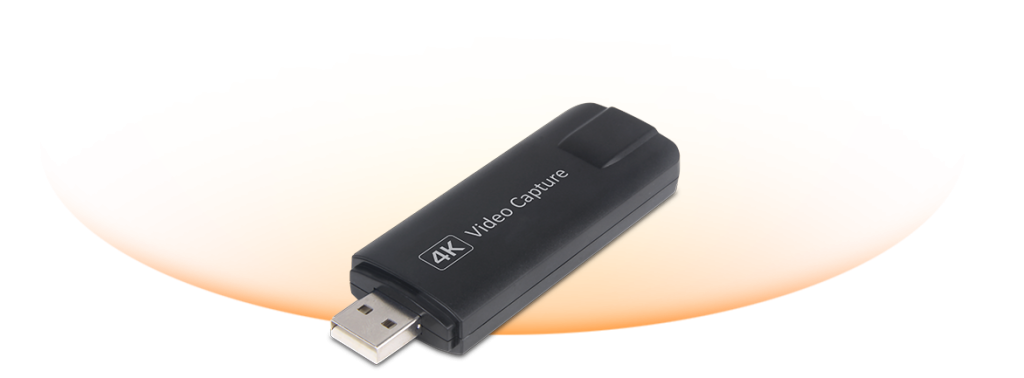

Strong performance, upgraded configuration

240FPS high frame rate picture ring out, wonderful moments more enjoyable U1000 is an external game capture device that can record 120 FPS in full HD quality, keeping every moving moment for you.U1000 can support 240 Hz high frame rate at the same time

USB 3.0 high-speed
data transmissionand power supply

Video Capture uses USB3.0 port, no need power adapter, compatible for USB2.0,low latency, high speed transmission

Application scenario

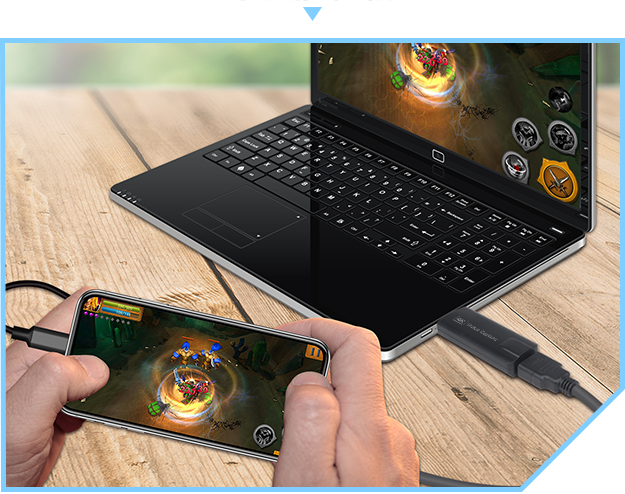

Mobile game livestreaming

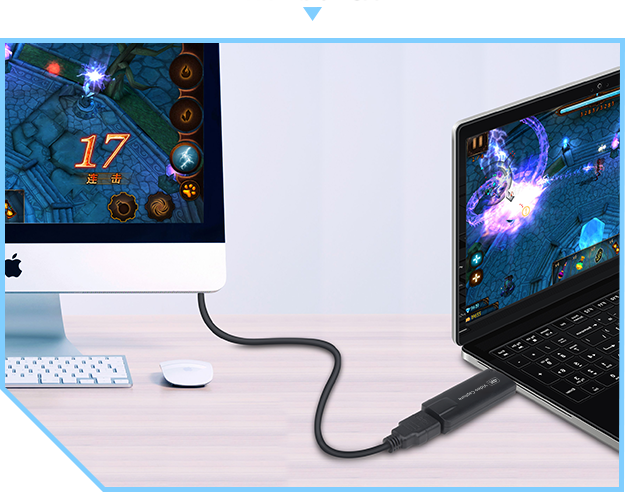

Dual computer livestreaming

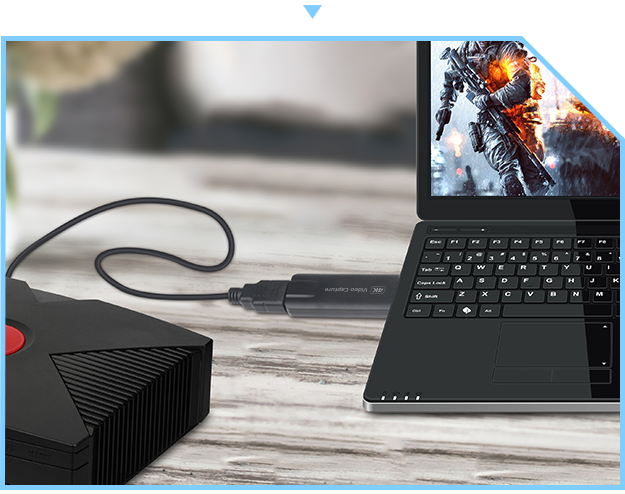

Game console equipment livestreaming

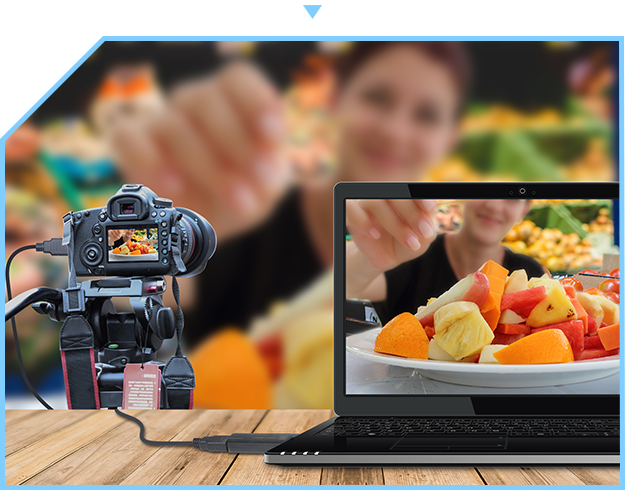

Sell goods through livestreaming

Support systems and software

Product	U900/U900Pro
Video in	1XHDMI Type A Female
USB Port	USB2.0
Max input Resolution	4K (3840*2160@30HZ),HDMI 1.4b support(unencrypend)
Max output Resolution	compressed 1080P30, UVC video stream with UAC audio
Audio Sampling	Format: 16bit,20bit,24bit L-PCM 32khz,44.1khz,48khz
Operating Temperature	0 – 40 ºC
Storage Temperature	-20 – 60 ºC
Dimensions (L x W x H)	812913mm
Weight	10g
Minimum Hardware Requirements	CPU:PC i7-4700 above ;NB i7-3537U 2.0GHZ above)
	Graphics:PC NVIDIA GTX660 or above; NB NVIDIA GT735M above
	DDR:4GDDR
OS Support	Windows 7/windows10 32bit and 64bit
	Mac OS X 10.13 and above
	Linux:Ubuntu 14.0 and above
