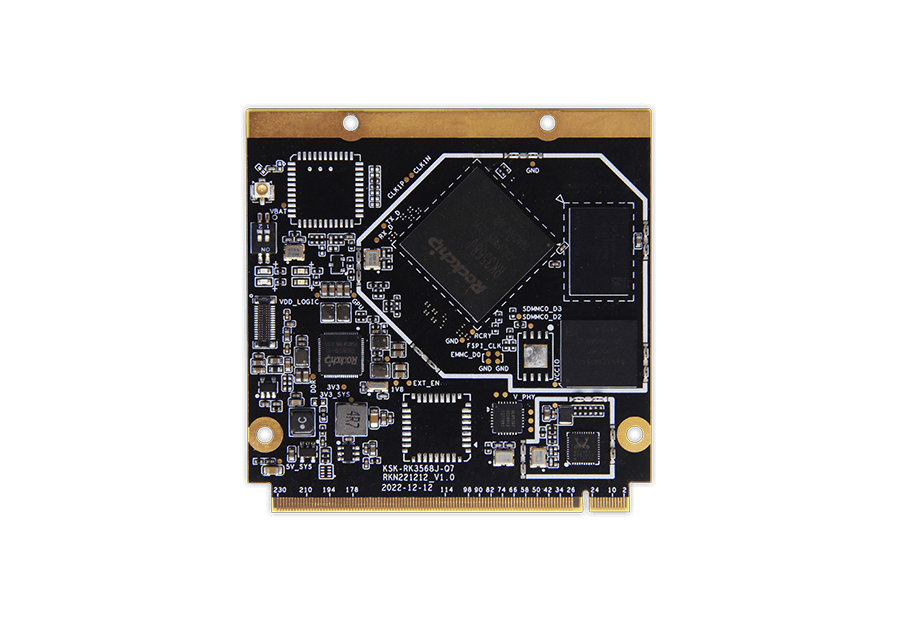

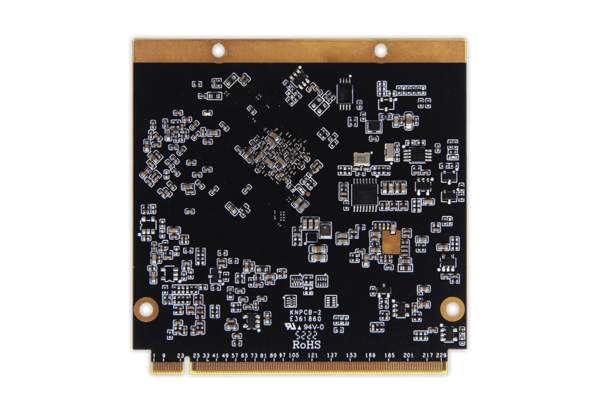

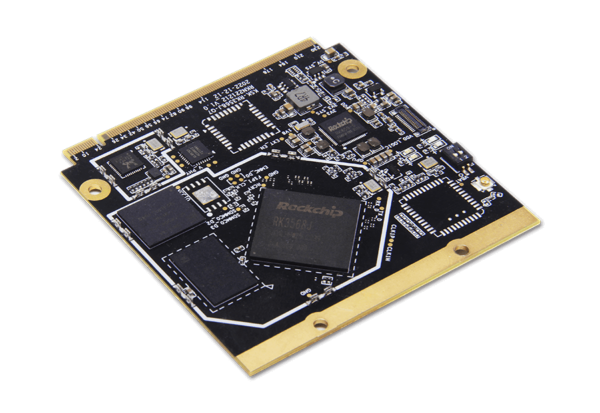

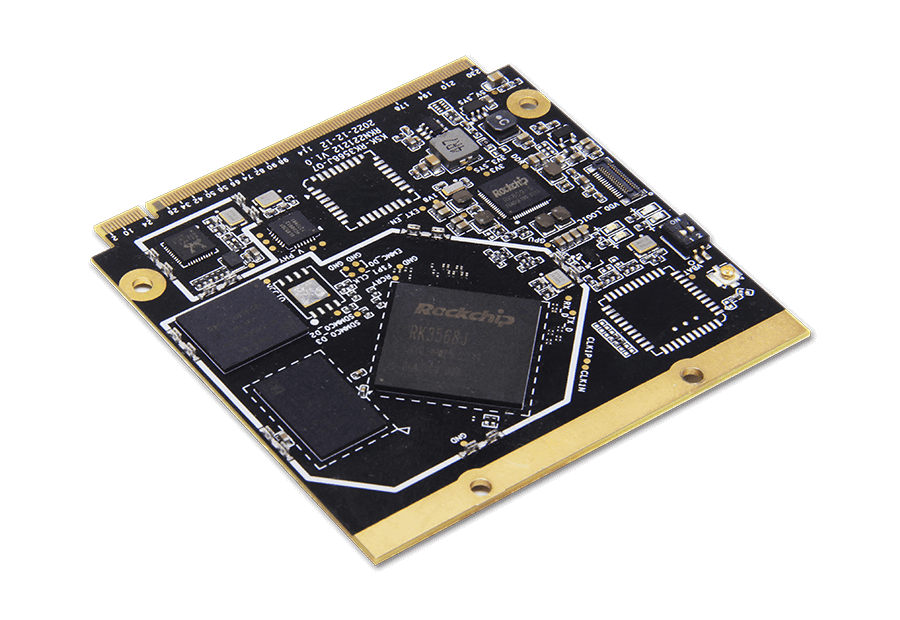

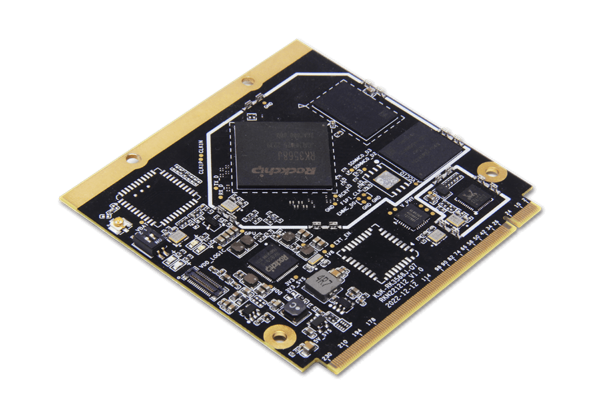

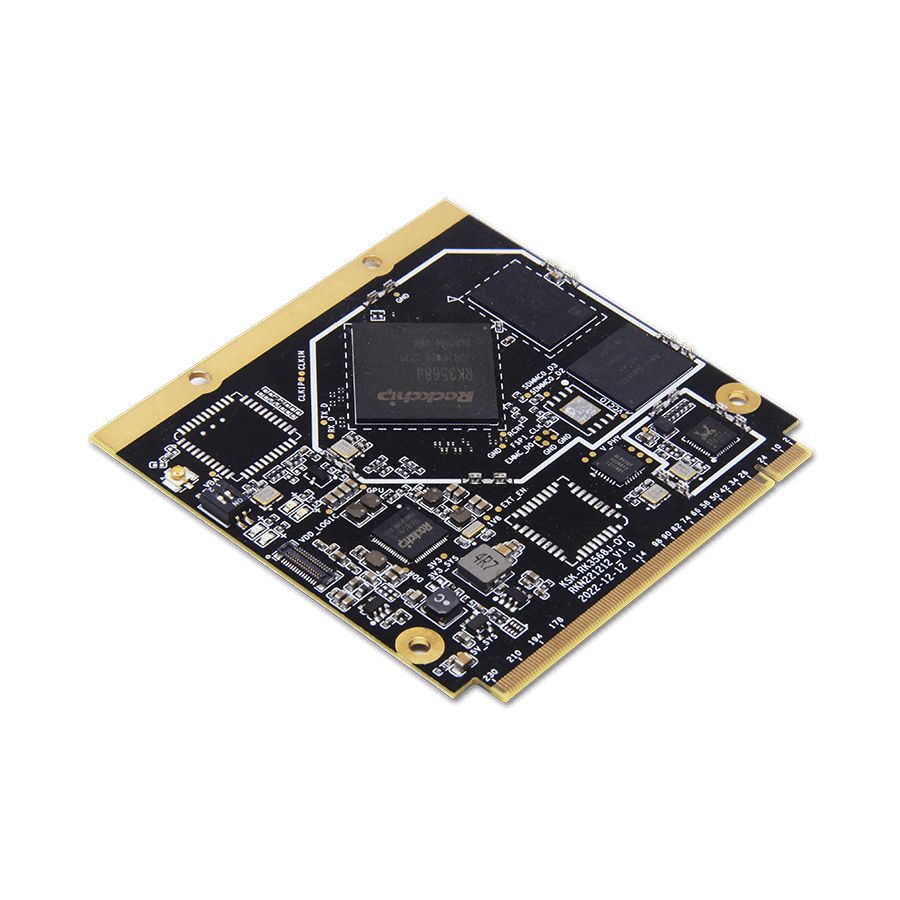

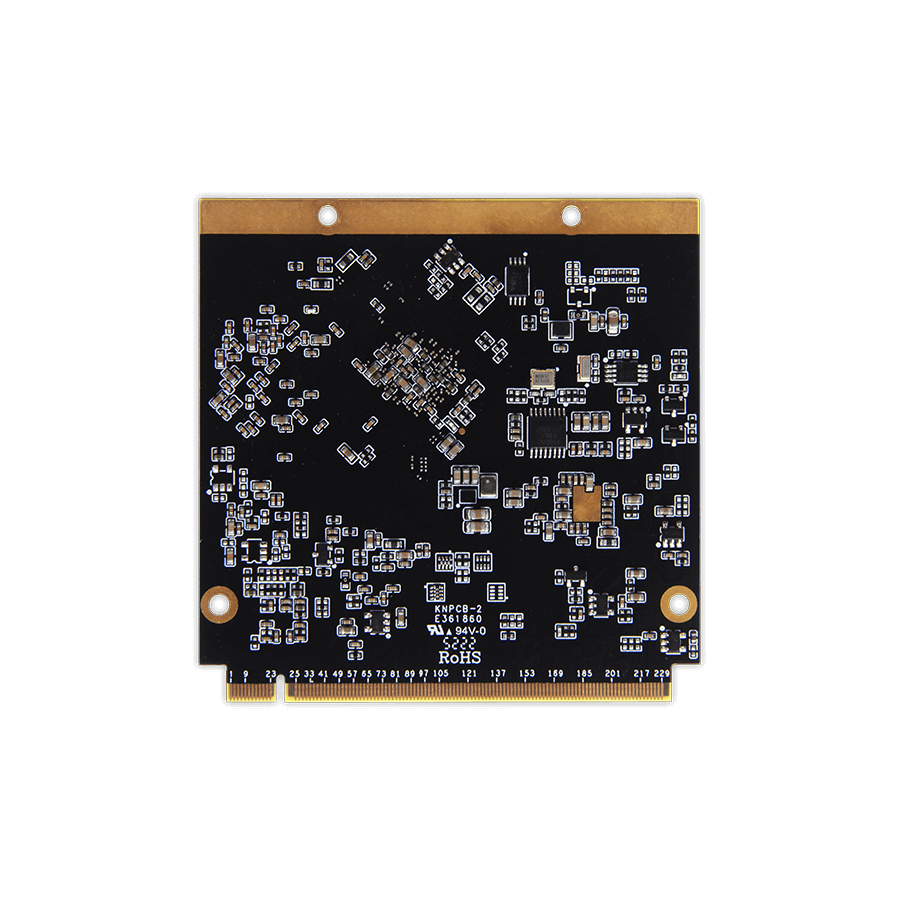

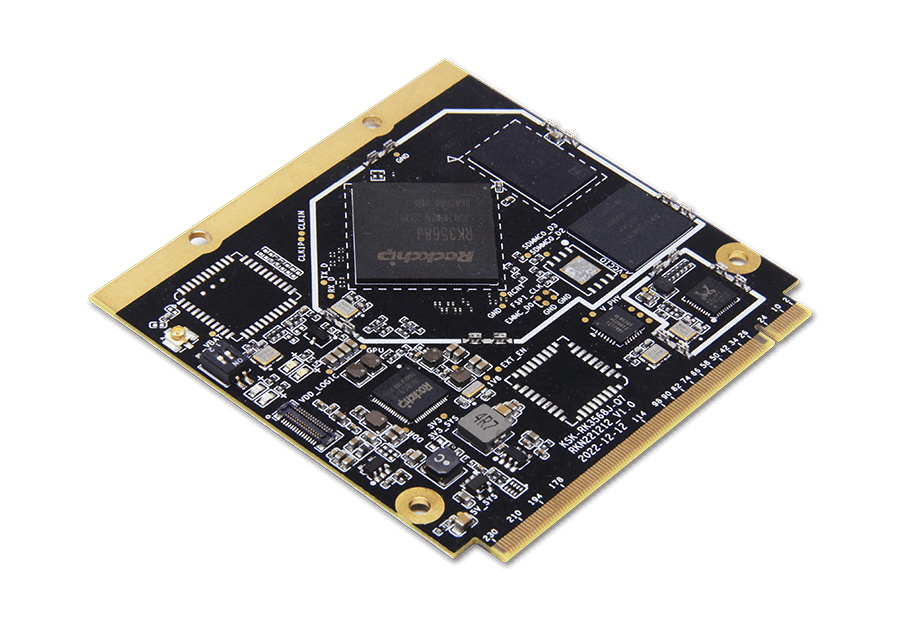

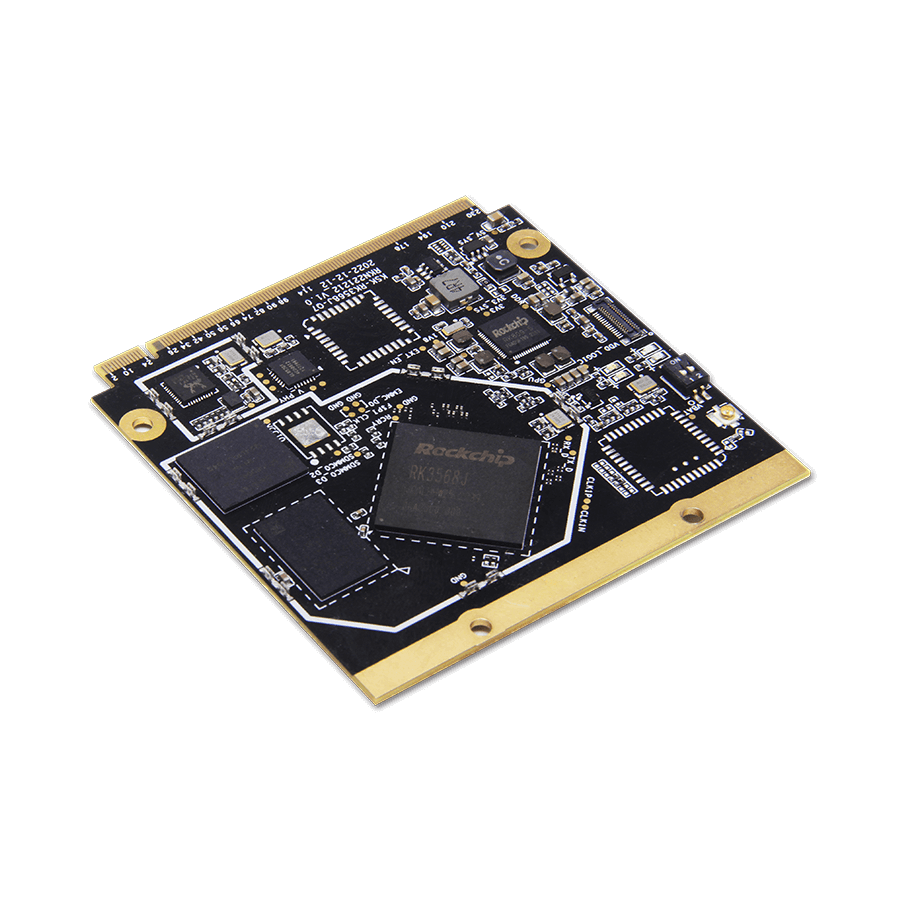

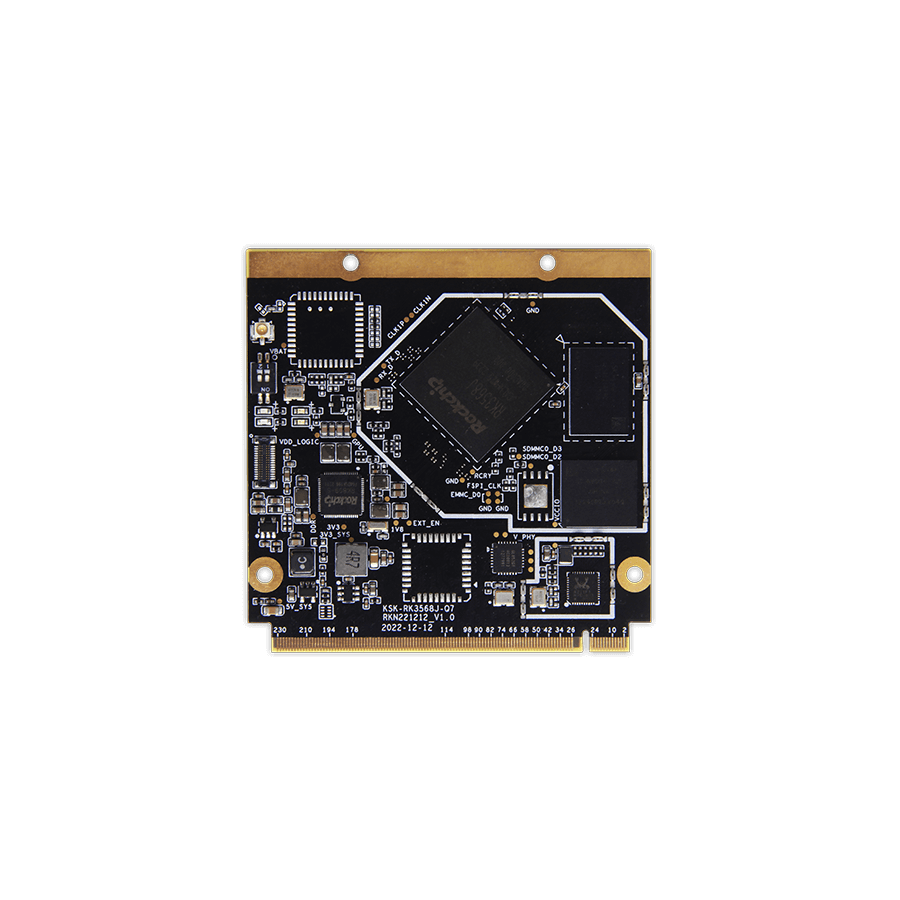

SOM-3568-Q7 is  a core board of Q7 standard. It is based on Rockchip RK3568 solution. It is suitable for various application scenarios, and is the best choice for advertising machines, industrial PCs, media playback and control and other fields.It is fully functional and convenient:

  • Quad core ARM Cortex-A55 CPU @0GHz, ARM G52 GPU, 1TOPS NPU
  • support Android 11.0 /Debian 10
  • 512MB RAM(up to 8GB), 32GB eMMc (up to 128GB)
  • Suitable for Q Seven Standard
  • Not less than 8 years supply period
  • Applicable to – 40 °~85 ° working environment
Categories: , Tags: , , , ,
Get A Quote
  • CHIPSET
    Rockchip RK3568
  • OS
    Android 11/Linux
  • CPU
    64 Bit Quad-core ARM Cortex-A55 to 1.8GHz
  • GPU
    Mali G52-2EE
  • NPU
    1Tops@INT8, integrated high-performance AI accelerator RKNN NPU
    Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
  • VPU
    Supports 4K 60fps H.265/H.264/VP9 video decoding
    Supports 1080P 60fps H.265/H.264 video encoding
    Supports 8M ISP, supports HDR
  • DDR
    512MB LPDDR4
  • EMMC FLASH
    32GB EMMC
  • Appearance
    80mm x 70mm
  • Environment
    Operation temperature:-40~ +85℃
    10%≤Relative humidity≤90%

Q7 interface PIN Definition

PIN Function PIN Function PIN Function PIN Function
1 GND 2 GND 3 PHY0_MDI3- 4 PHY0_MDI2-
5 PHY0_MDI3+ 6 PHY0_MDI2+ 7 PHY0_LED0/CFG_EXT 8 PHY0_LED1/CFG_LDO0
9 PHY0_MDI1- 10 PHY0_MDI0- 11 PHY0_MDI1+ 12 PHY0_MDI0+
13 GPIO1_B2 14 PHY0_LED2/CFG_LDO1 15 NC 16 GPIO4_D2
17 SATA1_ACT_LED 18 GPIO3_A4 19 TP_RST_L_GPIO0_B6 20 RK809_PWRON
21 PMIC_SLEEP_H 22 MIPI_CAM0_RST_L_GPIO3_D4 23 GND 24 GND
25 GND 26 GPIO2_D1 27 TP_INT_L_GPIO0_B5 28 RESETn
29 SATA0-TXP 30 SATA2-TXP 31 SATA0-TXN 32 SATA2-TXN
33 SATA0_ACT_LED 34 GND 35 SATA0-RXP 36 SATA2-RXP
37 SATA0-RXN 38 SATA2-RXN 39 GND 40 GND
41 SARADC_VIN0_KEY/RECOVERY 42 SDMMC0_CLK 43 SDMMC0_DET_L 44 EXT_EN
45 SDMMC0_CMD 46 NC 47 SDIO_PWR_EN 48 SDMMC0_D1
49 SDMMC0_D0 50 SDMMC0_D3/ARMJTAG_TMS 51 SDMMC0_D2/ARMJTAG_TCK 52 UART5_TX_M1
53 REFCLK_OUT 54 UART5_RX_M1 55 PWM10_M0 56 USB_OTG_PWREN_H_GPIO0_A7
57 GND 58 GND 59 I2S1_LRCK_TX_M0_RK809 60 I2C3_SCL_M0
61 GPIO3_A5 62 I2C3_SDA_M0 63 I2S1_SCLK_TX_M0_RK809 64 NC
65 I2S1_SDI0_M0/PDM_SDI0_M0_RK809 66 I2C1_SCL_TP 67 I2S1_SDO0_M0_RK809 68 I2C1_SDA_TP
69 GPIO3_A6 70 NC 71 GPIO3_B6 72 NC
73 GND 74 GND 75 USB3_HOST1_SSTXN 76 USB3_HOST1_SSRXN
77 USB3_HOST1_SSTXP 78 USB3_HOST1_SSRXP 79 NC 80 NC
81 USB2_HUB_DM3 82 USB2_HUB_DM2 83 USB2_HUB_DP3 84 USB2_HUB_DP2
85 NC 86 NC 87 USB2_HOST3_DM 88 USB2_HUB_DM1
89 USB2_HOST3_DP 90 USB2_HUB_DP1 91 USB3_OTG0_VBUSDET 92 USB3_OTG0_ID
93 USB3_OTG0_DM 94 USB3_HOST1_DM 95 USB3_OTG0_DP 96 USB3_HOST1_DP
97 GND 98 GND 99 MIPI_DSI_TX1_D0P/EDP_TX_D0P 100 MIPI_DSI_TX0_D0P/LVDS_TX0_D0P
101 MIPI_DSI_TX1_D0N/EDP_TX_D0N 102 MIPI_DSI_TX0_D0N/LVDS_TX0_D0N 103 MIPI_DSI_TX1_D1P/EDP_TX_D1P 104 MIPI_DSI_TX0_D1P/LVDS_TX0_D1P
105 MIPI_DSI_TX1_D1N/EDP_TX_D1N 106 MIPI_DSI_TX0_D1N/LVDS_TX0_D1N 107 MIPI_DSI_TX1_D2P/EDP_TX_D2P 108 MIPI_DSI_TX0_D2P/LVDS_TX0_D2P
109 MIPI_DSI_TX1_D2N/EDP_TX_D2N 110 MIPI_DSI_TX0_D2N/LVDS_TX0_D2N
111 GPIO3_C4 112 LCD_EN_H_GPIO3_C6 113 MIPI_DSI_TX1_D3P/EDP_TX_D3P 114 MIPI_DSI_TX0_D3P/LVDS_TX0_D3P
115 MIPI_DSI_TX1_D3N/EDP_TX_D3N 116 MIPI_DSI_TX0_D3N/LVDS_TX0_D3N 117 GND 118 GND
119 MIPI_DSI_TX1_CLKP/EDP_TX_AUXP 120 MIPI_DSI_TX0_CLKP/LVDS_TX0_CLKP 121 MIPI_DSI_TX1_CLKN/EDP_TX_AUXN 122 MIPI_DSI_TX0_CLKN/LVDS_TX0_CLK
123 PWM9_M0 124 HDMITX_CEC_M0 125 I2C5_SDA_M0 126 GPIO1_B0
127 I2C5_SCL_M0 128 NC 129 CAN1_TX_M1 130 CAN1_RX_M1
131 HDMI_TXCLKP_PORT 132 NC 133 HDMI_TXCLKN_PORT 134 NC
135 GND 136 GND 137 HDMI_TX1P_PORT 138 NC
139 HDMI_TX1N_PORT 140 NC 141 GND 142 GND
143 HDMI_TX0P_PORT 144 NC 145 HDMI_TX0N_PORT 146 NC
147 GND 148 GND 149 HDMI_TX2P_PORT 150 HDMITX_SDA
151 HDMI_TX2N_PORT 152 HDMITX_SCL 153 HDMI_TX_HPDIN 154 NC
155 PCIE30_REFCLKP_CON 156 PCIE30X1_WAKEn_M1 157 PCIE30_REFCLKN_CON 158 PCIE30X1_PERSTn_M1
159 GND 160 GND 161 NC 162 NC
163 NC 164 NC 165 GND 166 GND
167 NC 168 NC 169 NC 170 NC
171 UART0_TX 172 UART0_RTSn 173 PCIE30_TX1P 174 PCIE30_RX1P
175 PCIE30_TX1N 176 PCIE30_RX1N 177 UART0_RX 178 UART0_CTSn
179 PCIE30_TX0P 180 PCIE30_RX0P 181 PCIE30_TX0N 182 PCIE30_RX0N
183 GND 184 GND 185 USB_HOST_PWREN_H_GPIO0_A6 186 PCIE30X1_CLKREQn_M1
187 MIPI_CAM1_RST_L_GPIO3_D2 188 PCIE30X2_WAKEn_M0 189 GPIO1_B1 190 PCIE30X2_PERSTn_M0
191 MIPI_CAM1_PDN_L_GPIO3_D3 192 PCIE30X2_CLKREQn_M0 193 VCC_RTC_Backup 194 PWM3_IR
195 HDMIRX_DET_L_GPIO3_D0 196 PWM8_M0 197 GND 198 GND
199 SPI2_MOSI_M1 200 SPI2_CS0_M1 201 SPI2_MISO_M1 202 SPI2_CS1_M1
203 SPI2_CLK_M1 204 NC 205 VCC5V0_SYS 206 VCC5V0_SYS_Q7
207 NC 208 UART2_RX_M0_DEBUG 209 UART2_TX_M0_DEBUG 210 NC
211 NC 212 PDM_CLK0_M1 213 I2S1_MCLK_M0_RK809 214 PDM_SDI0_M1
215 PDM_SDI2_M1 216 PDM_CLK1_M1 217 PDM_SDI3_M1 218 PDM_SDI1_M1
219 VCC5V0_SYS 220 VCC5V0_SYS 221 VCC5V0_SYS 222 VCC5V0_SYS
223 VCC5V0_SYS 224 VCC5V0_SYS 225 VCC5V0_SYS 226 VCC5V0_SYS
227 VCC5V0_SYS 228 VCC5V0_SYS 229 VCC5V0_SYS 239 VCC5V0_SYS
