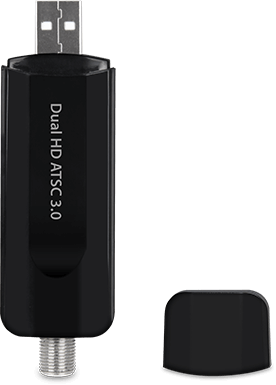

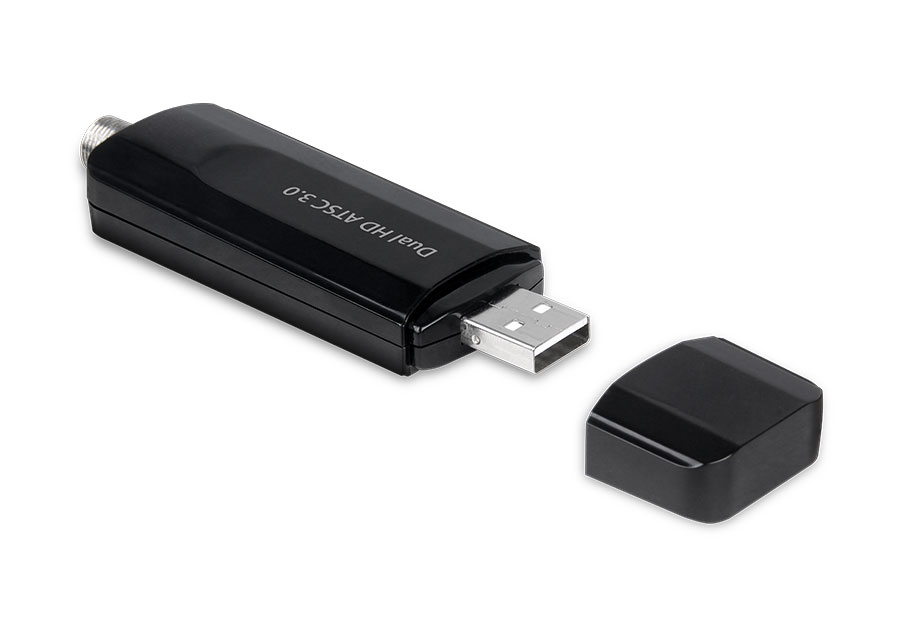

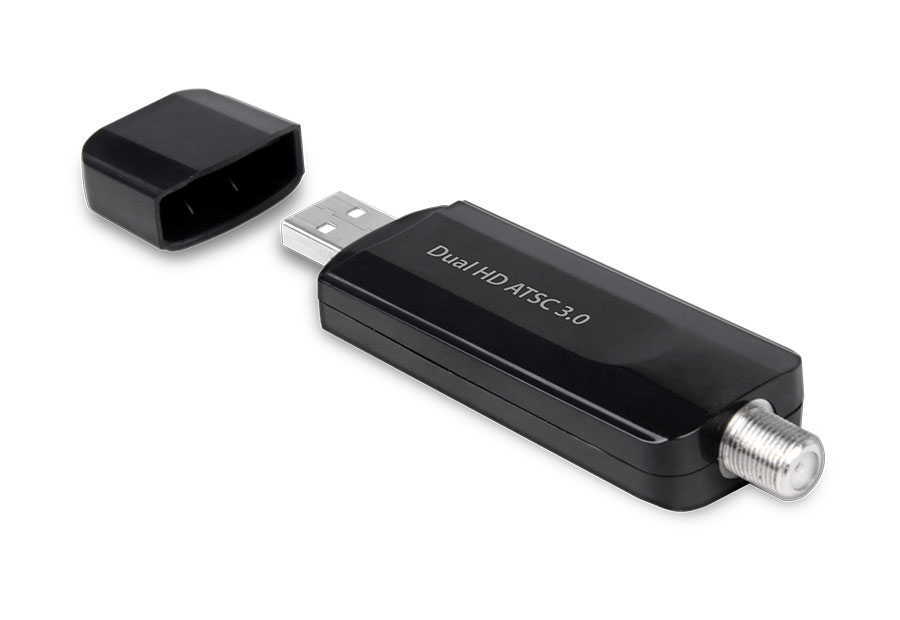

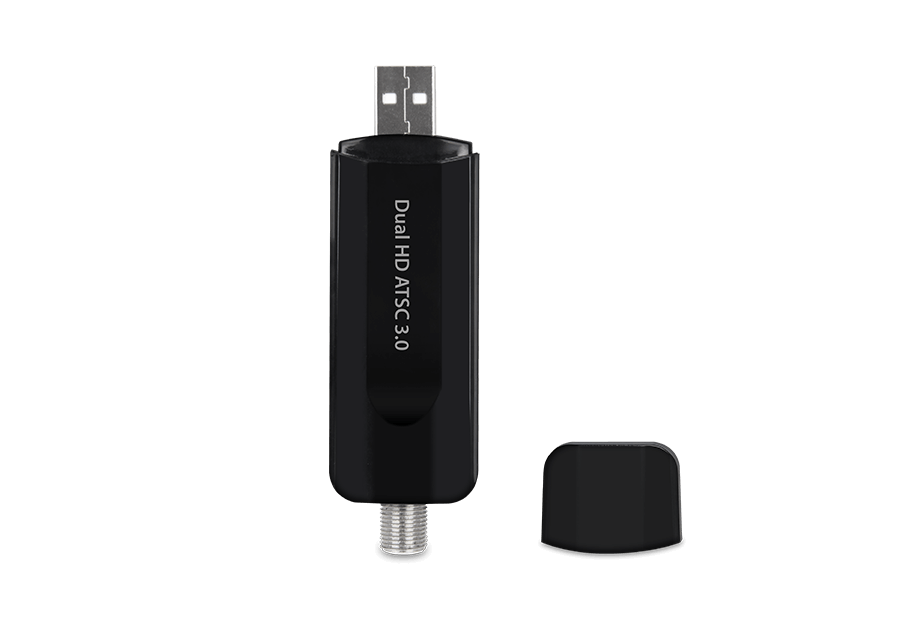

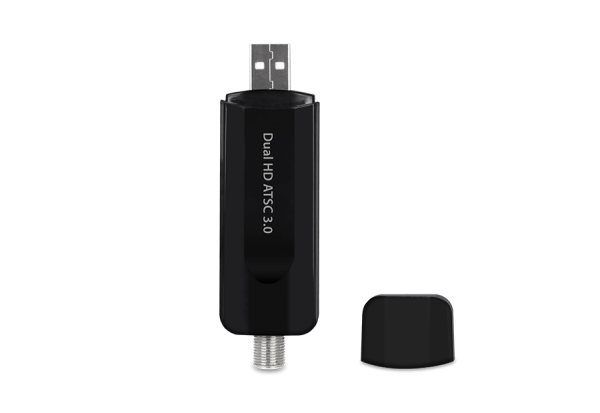

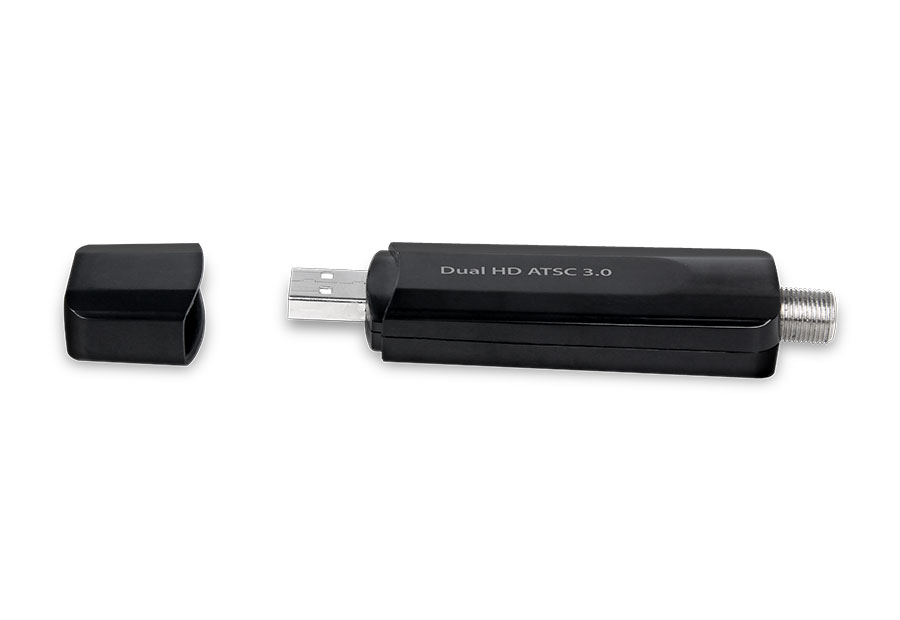

A684/A683B ATSC 3.0 Receiver with Quad/Dual Tuner

Explore the future of television with Geniatech’s A684 and A683B ATSC 3.0 Receivers. A684 offers quad-channel reception, and A683B supports dual-channel reception simultaneously. Enjoy ATSC 3.0—a new NextGen TV delivering super-clear 4K videos and immersive Dolby AC-4 audio. Just plug into your smart devices like PC, notebook, Linux STB, or Android device via USB2.0, and you can watch live programs in both ATSC 3.0 and ATSC 1.0. No WiFi or 3G/4G needed—just plug and play!

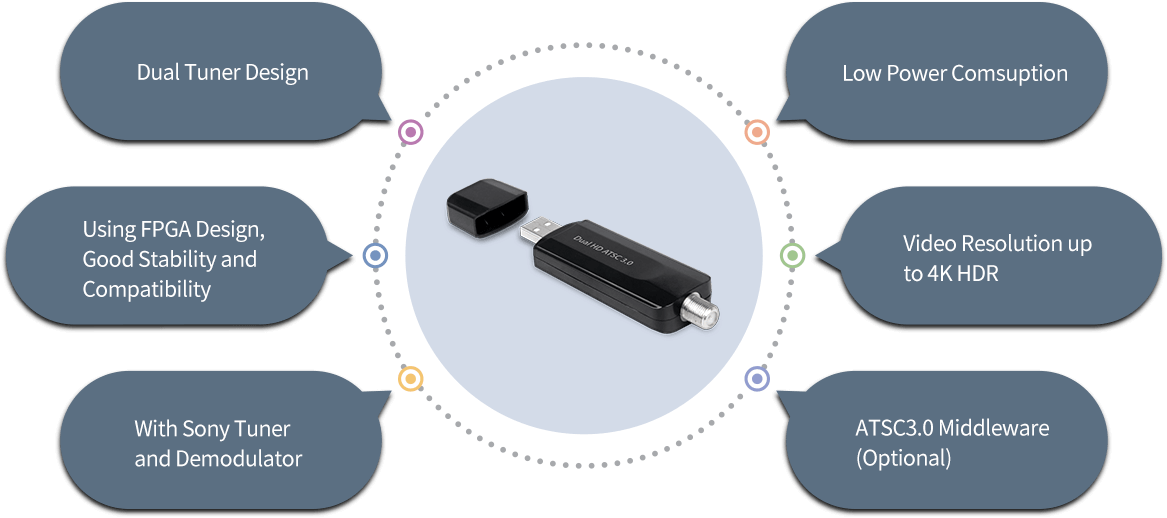

Support ATSC 3.0/1.0 standard
Sony tuner and demodulator inside
Low power comsuption
With mature drivers and application software
High sensitivity under low signal broad casting area
Up to quad-channel receiving simultaneously

Categories: Multimedia, TV Tuner

Get A Quote

ATSC3.0 Mobile TV Tuner

NextGen TV ATSC3.0

A684/A683B

Dual & Quad Tuner Inside

Compatible with Mac, Windows and Linux computer, notebook or laptop. Enjoy watch two or four frequency digital TV programs on the computer at the same time.

Application Scenarios

It can be connected to the Android OTT box to realize watch two or four ATSC 1.0/3.0 frequency channels at the same time or watch one channel while record another.

SDK and Software Customization Services

SDK/API Service

Your secondary development can be carried out based on the SDK/API provided by our company, which greatly saves development time and cost and promotes rapid product launch.

OEM Sevice

Provide long-term technical support and timely after-sales service.

SDK/API Service

In-depth software customization including UI, APK icon, software function addition or deletion can be provided.

Product Model	A684	A683B	A683
TV Standard	ATSC3.0/ATSC1.0	ATSC3.0/ATSC1.0	ATSC3.0/ATSC1.0
Receive Frequency	TV 42~1002MHz	TV 42~1002MHz	TV 42~1002MHz
Input level	-83dBm~-10dBm	-83dBm~-10dBm	-83dBm~-10dBm
Bandwitch	6M	6M	6M
Tuner	Quad tuner	Dual tuner	Single tuner
Support OS	Android/Windows/linux(Windows player currently supports ATSC1.0, and ATSC3.0 player is under development)	Android/Windows/linux(Windows player currently supports ATSC1.0, and ATSC3.0 player is under development)	Android/Windows/linux(Windows player currently supports ATSC1.0, and ATSC3.0 player is under development)
Size	86×30×16.5mm	86×30×16.5mm	76.4×20.7×13.8mm
