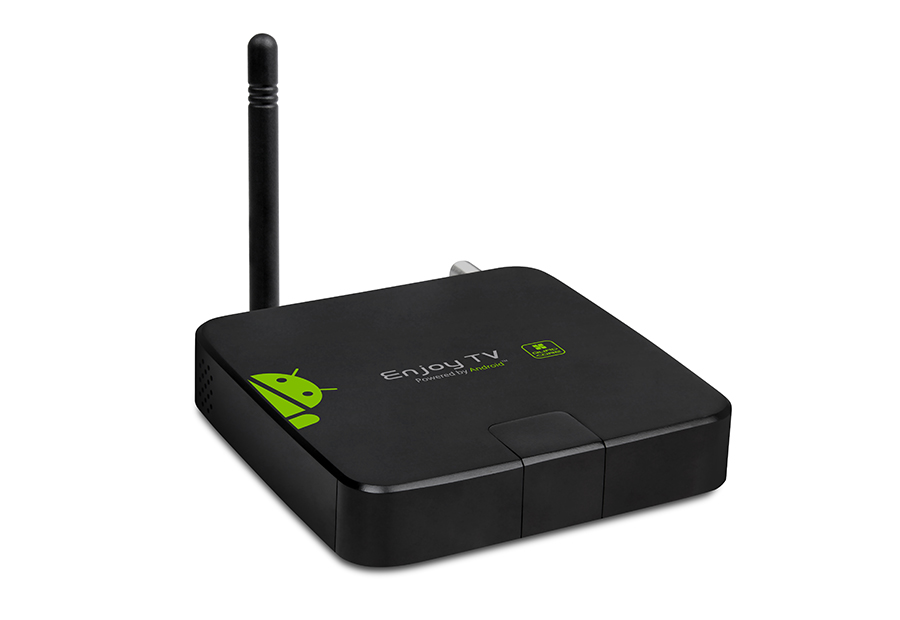

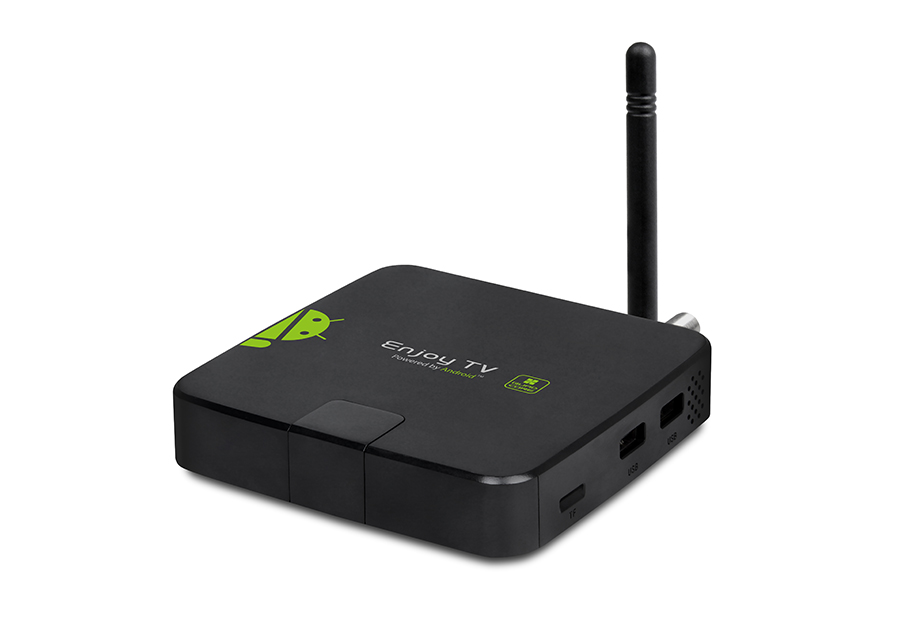

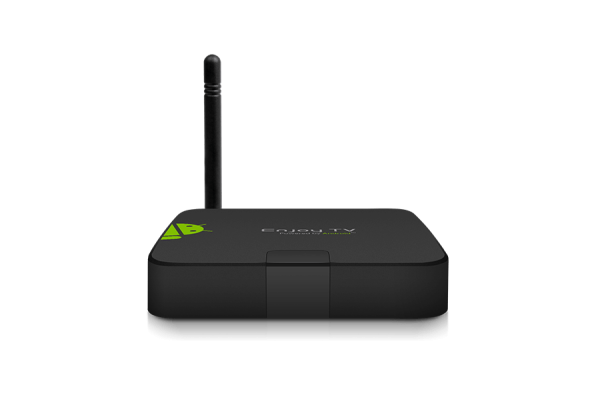

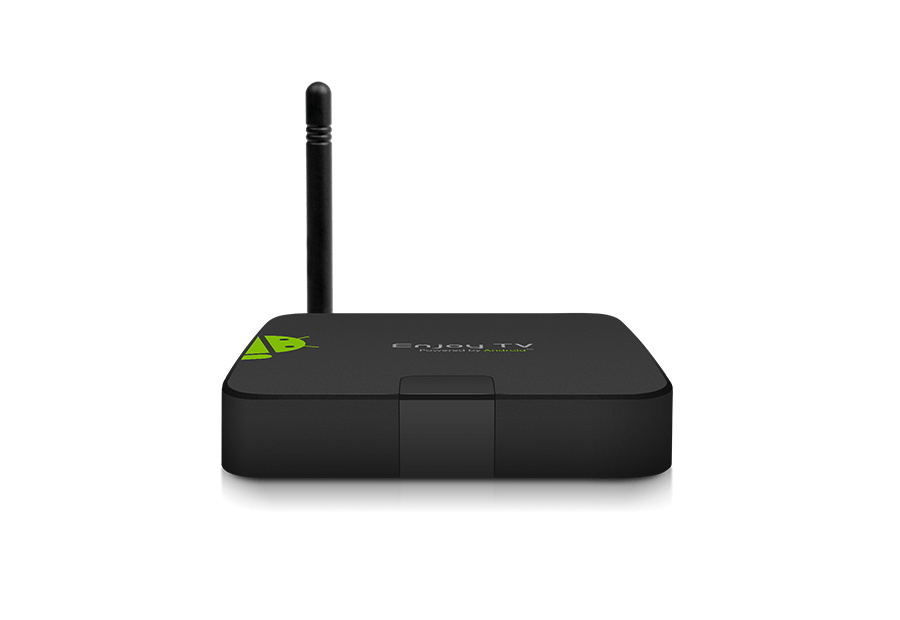

ATV698 ATSC 3.0 Set Top Box

Geniatech ATV698DMax is a cutting-edge Android 11.0 TV set-top box that supports ATSC3.0 digital TV signal input and IPTV/OTT. With a powerful quad-core Cortex A55 processor and Dolby/AC4 optional support, it delivers an immersive audio-visual experience. The ATV698DMax is the first set-top box to support two input ATSC3.0 signals, making it an ideal choice for viewers looking for superior audio and video quality.

  • Supports the latest ATSC 3.0 standard
  • 4K HDR HD, Dolby AC-4/MS12 support
  • Sony tuner, supports single/dual/quad tuners
  • Cost-effective and feature-rich interfaces
  • Android OS, rich applications, MDM support
  • Support Personalized Customization

Buy a Sample

Get A Quote

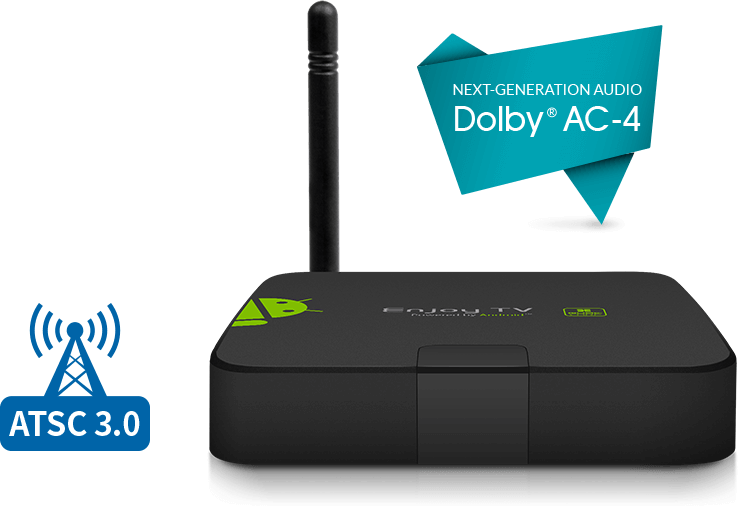

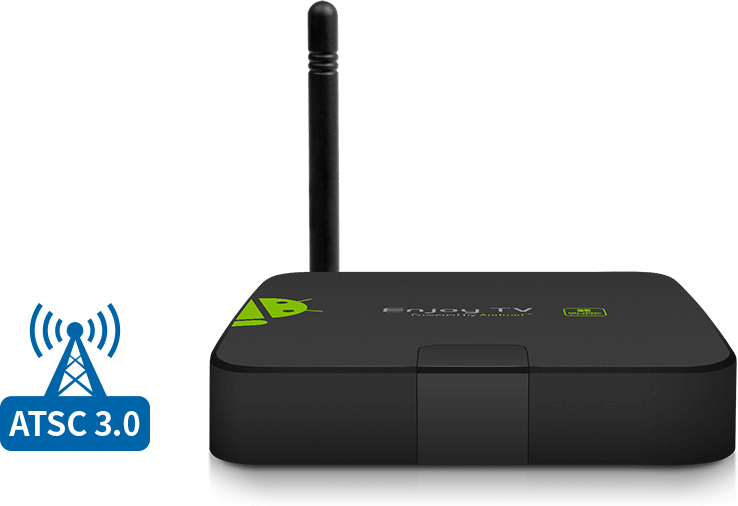

ATSC 3.0 set-top box for immersive entertainment

As an ATSC 3.0 set-top box, the ATV698DMax is capable of receiving and decoding the latest generation of ATSC 3.0 broadcast signals, providing high-quality audio and video content on your TV. With access to live TV channels and interactive services, the ATV698DMax delivers an immersive entertainment experience.



Ultra High Performance, Ultra Low Power Consumption

With its powerful Amlogic S905X4 chip and quad-core ARM Cortex-A55 CPU, the ATV698DMax delivers ultra-high performance while low power consumption. It also comes with 2GB DDR and 16GB EMMC storage (expandable to 4GB DDR and 32GB EMMC) for efficient and smooth operation.



Enhanced entertainment experience with 4K support and screen casting

ATV698DMax is designed to provide an immersive entertainment experience with support for 4K Ultra HD video. Enjoy cinema-level quality in the comfort of your own home. Plus, with mobile phone screen casting, you can easily display content from your mobile device on the big screen, making it ideal for multi-scene use scenarios.

Cost-effective and feature-rich interfaces

  • Video output:1*HDMI®
  • Audio output:1*HDMI®, 1*BT
  • USB:1*USB2.0、1*USB3.0
  • Ethernet: RJ45 100/1000M
  • WiFi: IEEE 802.11 b/g/n AC 2.4G/ 5.8G
  • Micro SD:1*Micro SD card
  • Tuner:1*RF(ATSC/T2)
  • The built-in two-way ATSC 1.0/3.0 (ATV698D Max)
  • Built-in single-channel ATSC 1.0/3.0 (ATV698 Max)

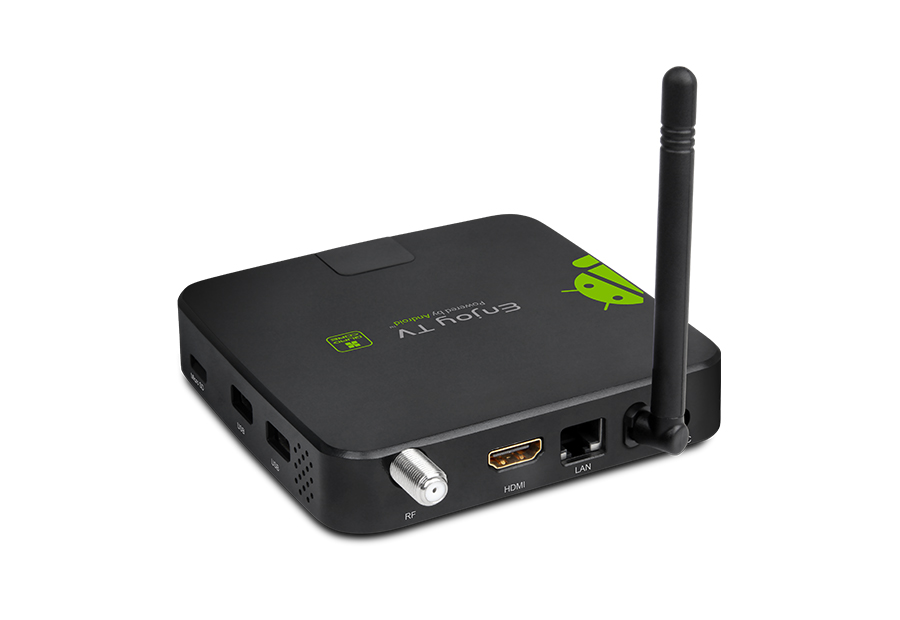

Note: The appearance of RF interface varies according to the different system. The figure shows the RF interface of ATSC3.0

Remote Device Management System (MDM)

The ATV698DMax offers remote control of online devices, allowing for easy management of content distribution, application deployment, and service push.



High-Speed network connectivity with dual WiFi and Gigabit ethernet

Gigabit LAN make the ATV698DMax an ideal choice for fast and stable local network video streaming and Ultra HD streaming. Its Dual WiFi / Dual Antenna(one inside and one outside) provides wider signal coverage with less interference, resulting in an optimized viewing experience.



Support Personalized Customization

The hardware configuration is optional

CPU/ memory/storage /WIFI+ Bluetooth

Provide secondary SDK development

Provide SDK secondary development customers can compile their own sensitive requirements

MDM Customization (Remote device Management)

Remote collection of device status information and control of the device (firmware update, uninstall/install APK, restart, standby/wake up, real-time advertising……)

The APP customization

It is safe, fast and low cost to easily meet the requirements of customers

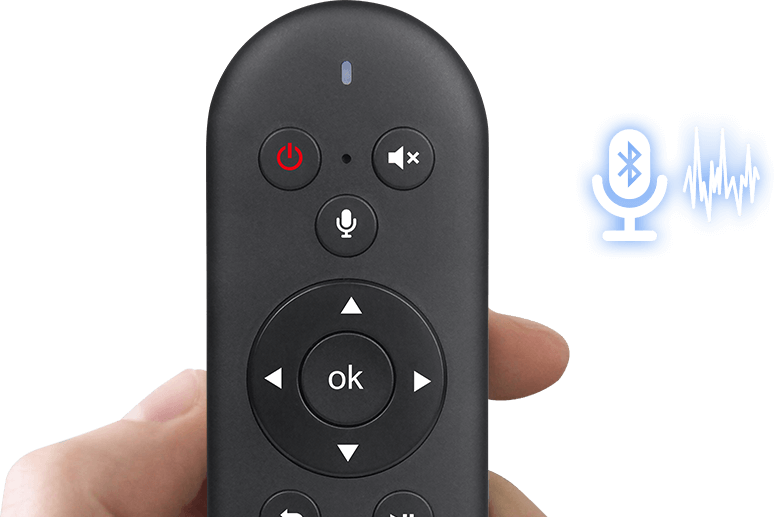

Supports Bluetooth Voice Remote Control

Application Scenarios

Product ATV698Max ATV698
SoC Amlogic S905X4 Amlogic S905X3
CPU Quad-core Cortex-A55 Quad-core Cortex-A55
RAM 4GB DDR4(2GB Optional) 2GB DDR4(4GB Optional)
Storage 32GB eMMC(16G/64GB Optional) 32GB eMMC(16G/64GB Optional)
Network 1000M ethernet, 2.4G/5.8G Dual band 1000M ethernet, 2.4G/5.8G Dual band
I/O DTV ×1,HDMI®×1, USB ×2, TF Card ×1 DTV ×1,HDMI® ×1, USB ×2, TF Card ×1
Telecontrol BT/IR BT/IR
OS Android 11 Android 9
Operating temperature 0~50℃ 0~50℃
Size 115×114x27mm(Wire not included) 115×114x27mm(Wire not included)
Weight 267g 267g



Product ATV698 ATV698Max ATV698D ATV698D Max ATV698Q ATV698Q Max
SoC S905X3 S905X4 S905X3 S905X4 S905X3 S905X4
DRAM 2 2/4 2 2/4 2 2/4
Flash 16 16 32 16/32 32 32
Tuner 1 1 2 2 4 4
Remote IR/BT IR/BT IR/BT IR/BT IR/BT IR/BT
Dolby AC-4 No Yes No Yes No Yes
