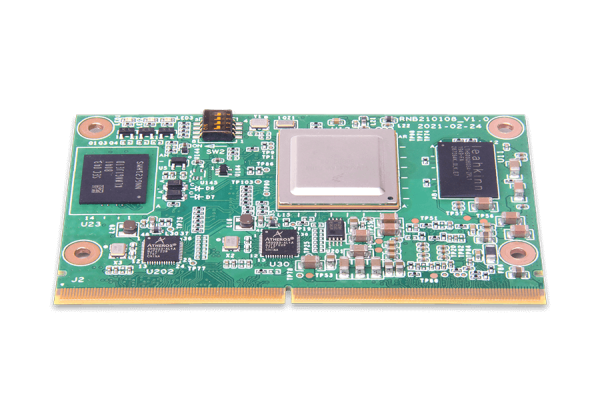

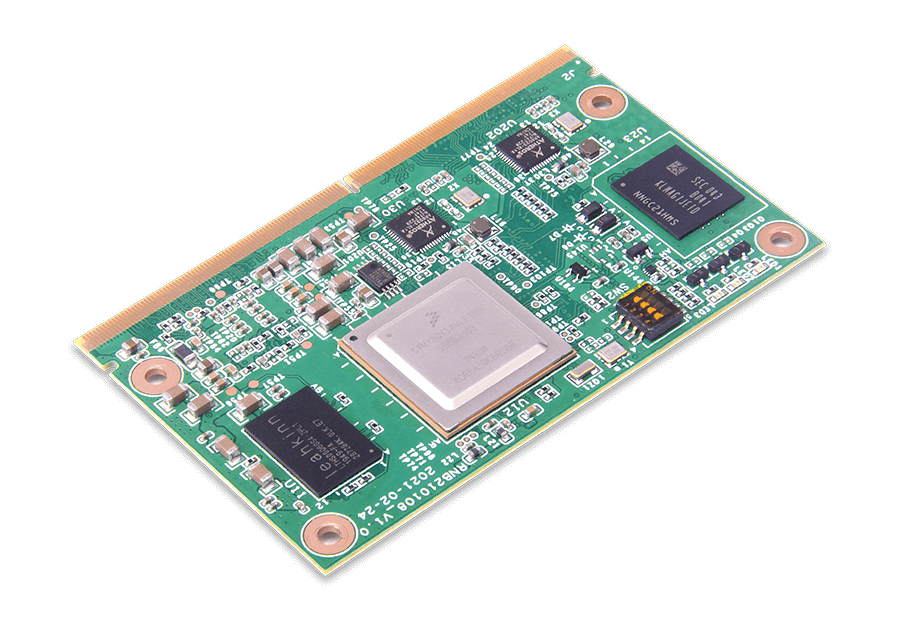

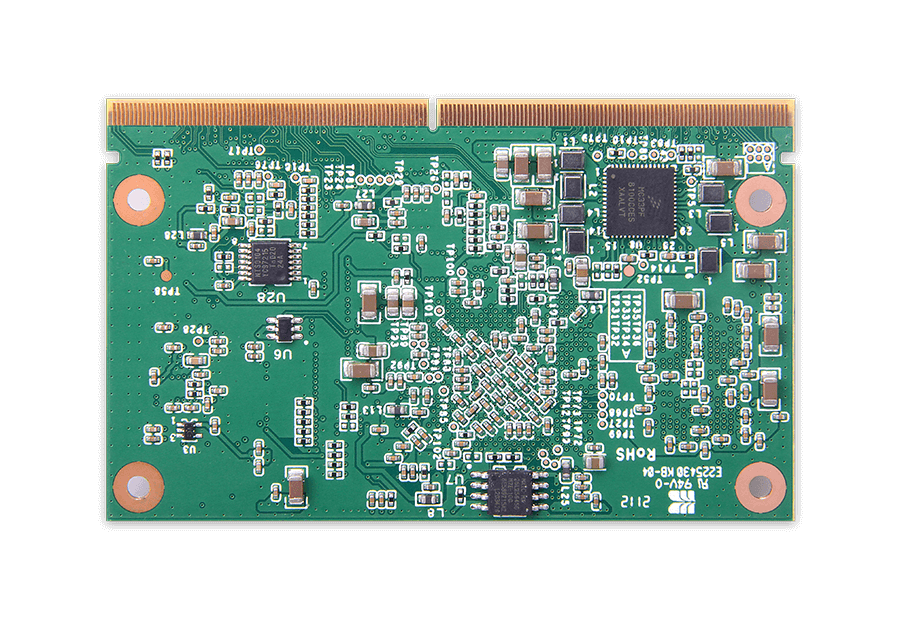

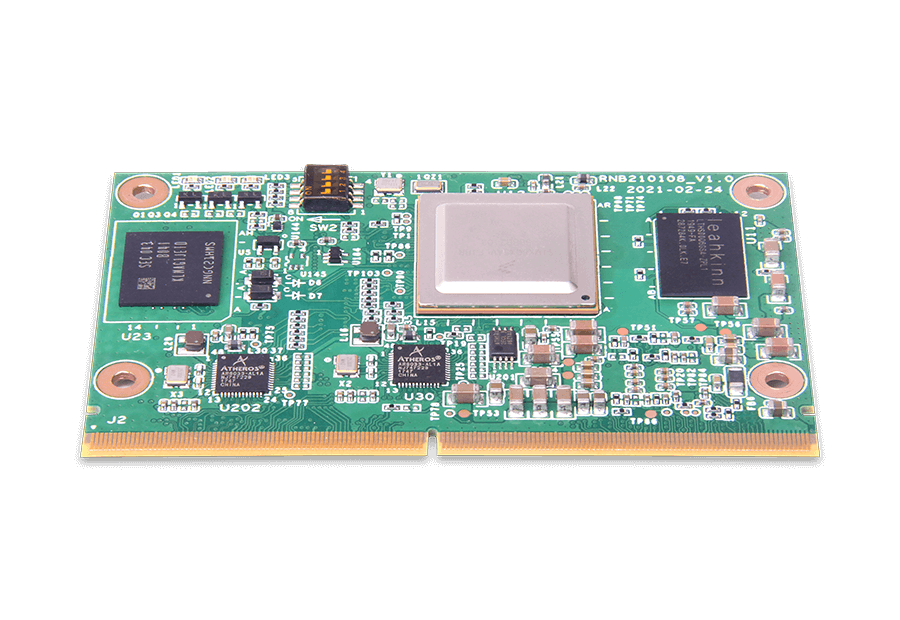

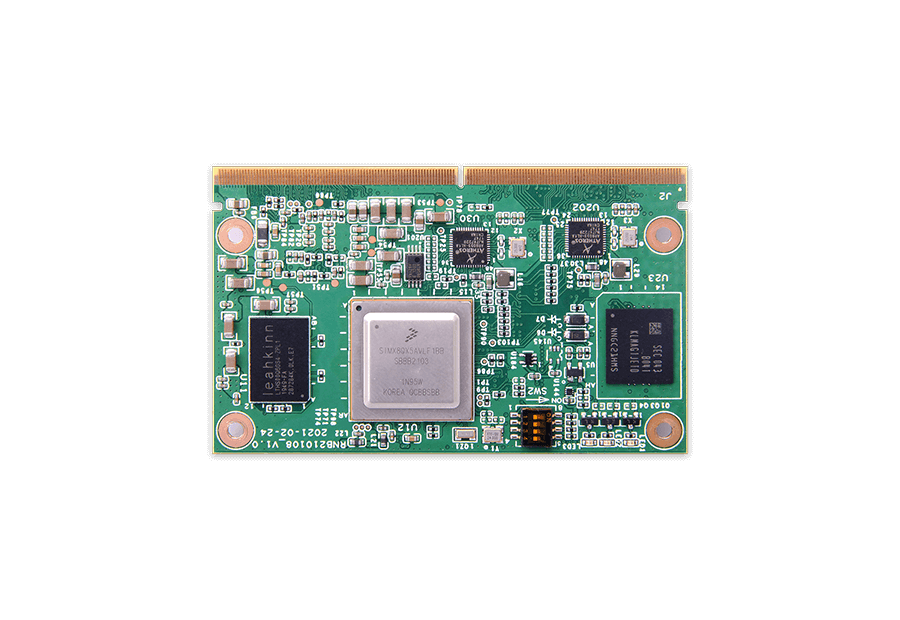

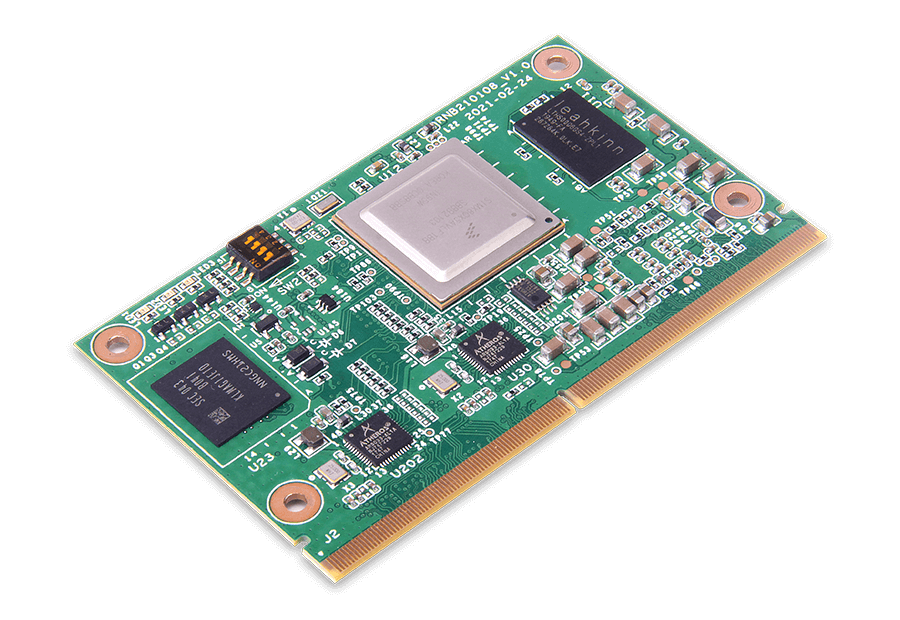

SOM-iMX8M-SMARC

Geniatech’s SMARC 2.1 module is based on the NXP i.MX 8M Plus or NXP i.MX8M Mini processor series, ideal for various applications in the embedded industrial markets due to its high reliability. The boards are designed according to the “SMARC Hardware Technical Specification 2.1,” ensuring compatibility with all development boards featuring the same interface.

  • Adapted with SMARC V2.1 standard
  • NXP i.MX8M Mini / i.MX 8M Plus 14nm processor with ARM 4-Core Cortex-A53/M7 + NPU
  • Highly improved power efficiency and performance
  • Supports up to 4GB RAM and 128GB eMMC flash storage
  • Supports Gigabit Ethernet, Wi-Fi/BT function
  • Offers rich interfaces such as HDMI, LVDS, MIPI, I2C, UART, SPI, SDIO, USB, I2S and others
  • Extended longevity up to 10 years
Categories: ,
Get A Quote
Module SOM-iMX8MM-SMARC SOM-iMX8MP-SMARC
Processor SoC NXP i.MX8M mini NXP i.MX8M Plus
CPU Quad ARM Cortex-A53 up to 1.8GHz & Cortex M4 up to 400MHz Quad ARM Cortex-A53 up to 1.8GHz & Cortex M7 up to 800MHz
GPU GC2000 GC7000UL with OpenCL and Vulkan support
NPU 2.3 TOP/s Neural Network performance
LPDDR4 2GB(1-4G Optional) 4GB(1-4G Optional)
EMMC FLASH 8GB(16-128G Optional) 16GB(16-128G Optional)
OS Android 9.0 and Linux(Yocto) Android 10.0 and Linux(Yocto)
SMARC 2.1 Ethernet 1 xRGMII 2 x RGMII
PCIe 3 x PCIe (PCIe Switch) 1 x PCIe Gen3(single lane)
USB2.0 *4 *4
USB 3.0 *1 *2
MIPI CSI *1(4 lane) *2(1*4 lane and 1*2 lane)
LVDS *1(Dual Channel LVDS) *1(LVDS0 multiplex with DSI)
LVDS Backlight *1 *1
I2S *2 *2
MIPI DSI *1(multiplex with LVDS) *1(multiplex with LVDS)
GPIO *12 *12
SDIO *1 *1
UART *3 *4
SPI *2 *2
I2C *3 *4
HDMI *1
CAN *2
Vin 5V/3A 5V/3A
Dimensions 82 x 50 mm 82 x 50 mm
