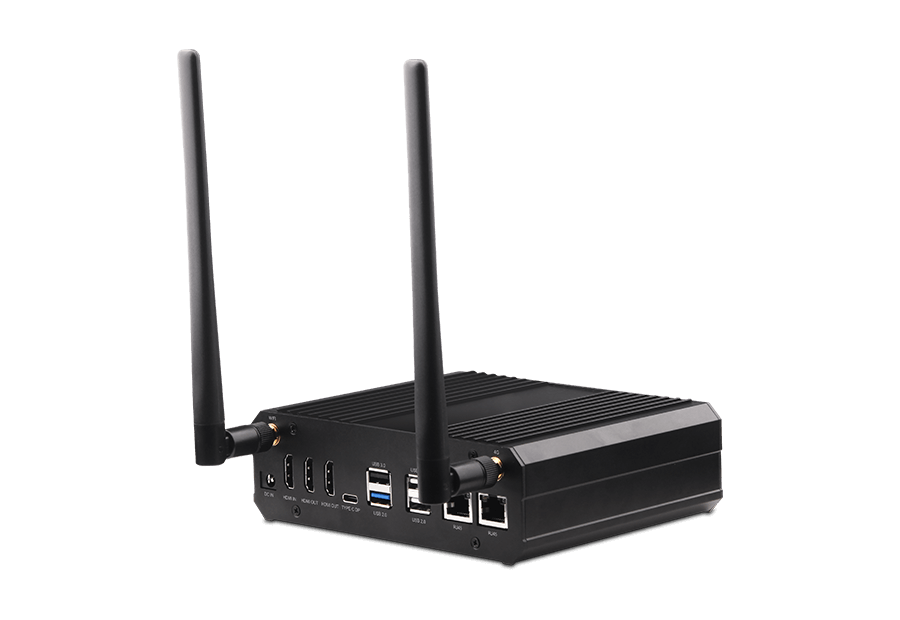

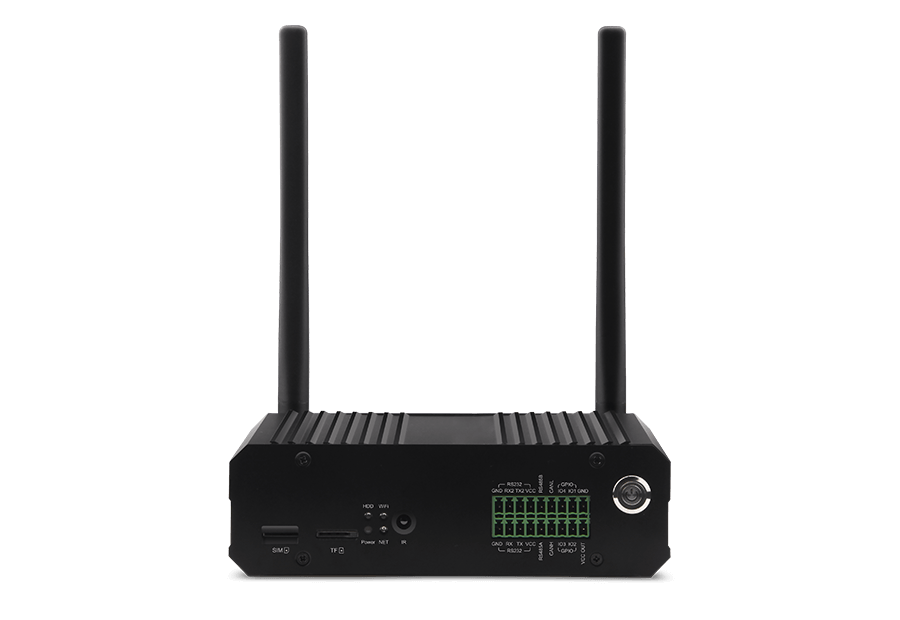

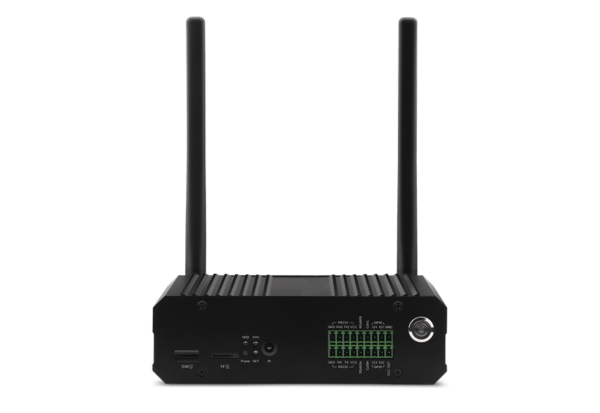

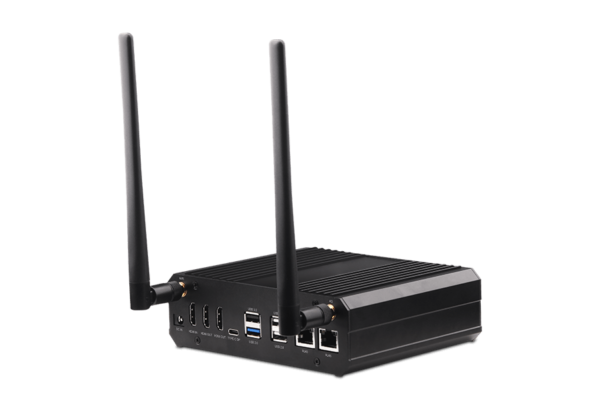

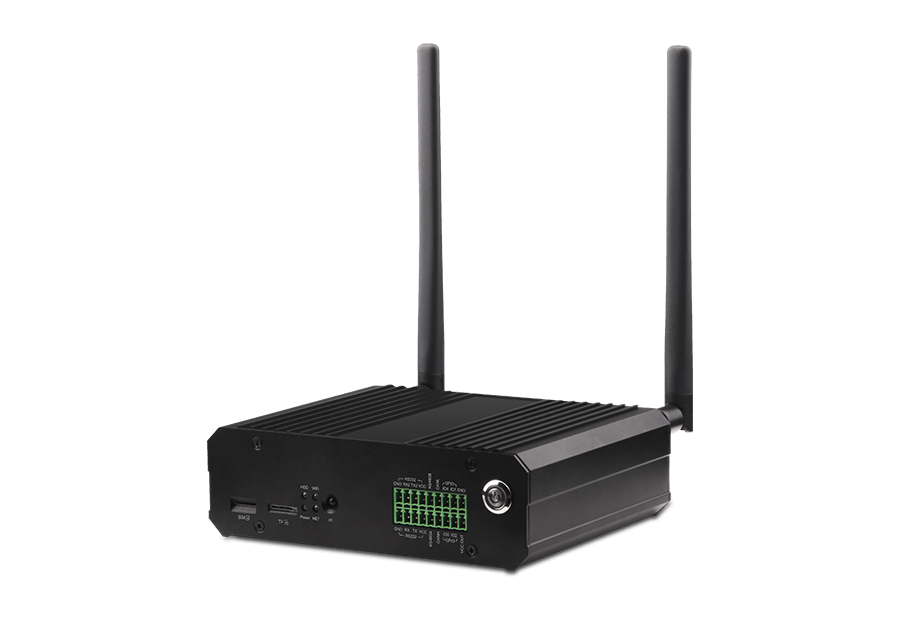

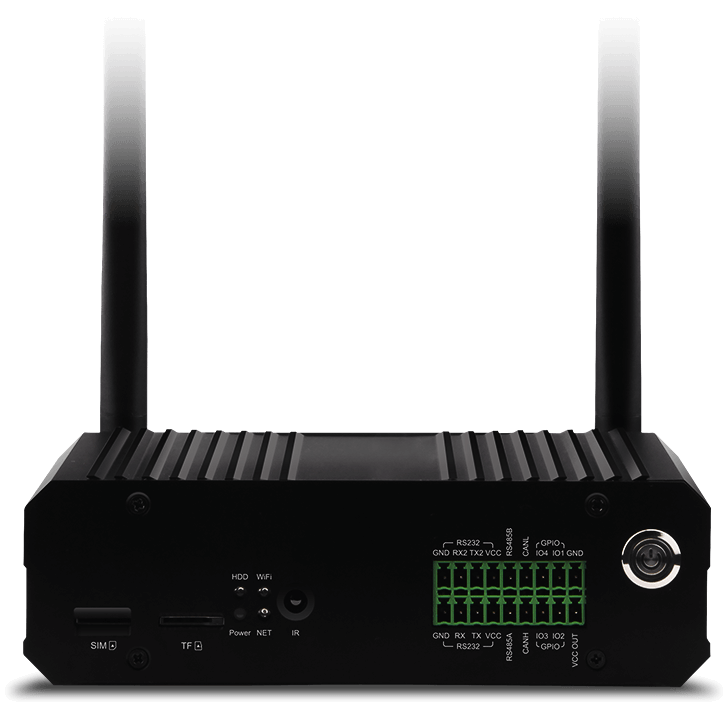

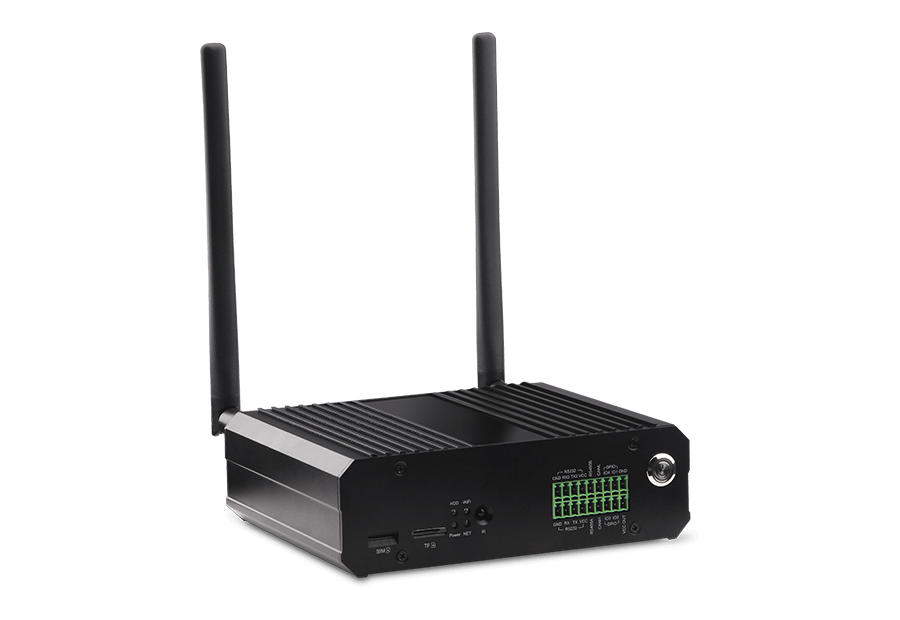

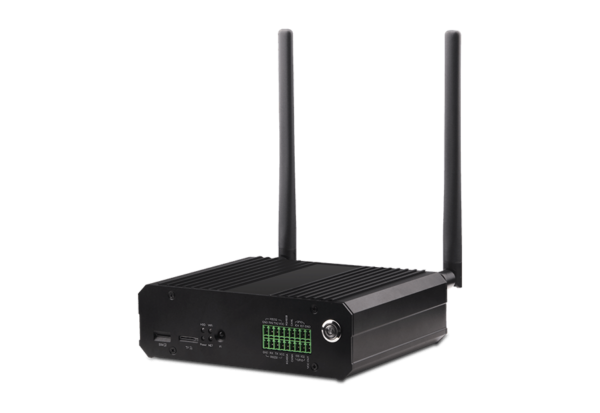

APC3588 Industrial Embedded Computer

  • RK3588 octa-core 64-bit (A76+A55) processor with 8nm advanced process and integrated 6Tops NPU.
  • supports up to 32GB RAM, RAM and ROM can be configured according to customer needs.
  • supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding
  • integrates Gigabit Ethernet, WiFi6, Bluetooth, 5G/4G LTE network communication module.
  • built-in HDMI, GPIO, CAN, RS485, USB2.0, USB3.0, RS232 and other rich peripheral interfaces.
  • industrial-grade hardware structure is designed for 7×24 hours stable operation in -40~85°C environment.
  • supports multiple operating systems such as Android 12.0, Ubuntu 18.04, Debian11, Buildroot and RTLinux.
  • API interface and SDK development tools and other perfect technical information, can efficiently carry out secondary development
Category:
Get A Quote

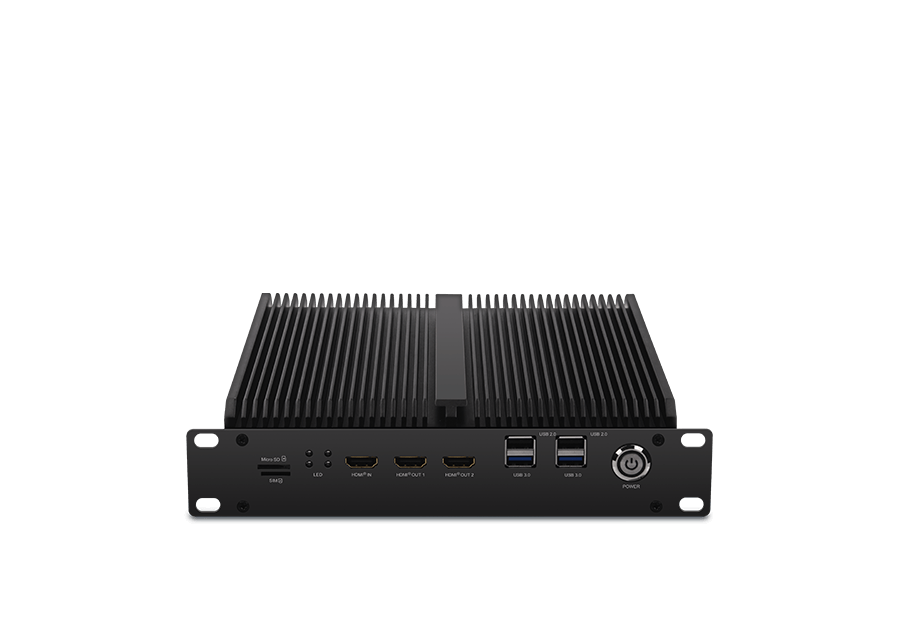

AI High Performance Industrial PC

APC3588 adopts Rockchip high-end 8nm flagship chip RK3588, can be equipped with up to 32GB of large memory, supports 8K video encoding and decoding, has a wealth of interfaces, supports Gigabit Ethernet, WiFi6, 5G/4G expansion and a variety of video inputs and outputs, -40~85°C wide temperature, and supports Android, Ubuntu, Debian, Buildroot, RTLinux and many other operating systems, which can be widely applied to industrial control computer, edge computing, artificial intelligence, cloud computing, blockchain, smart home, smart security, VR/AR and other fields.

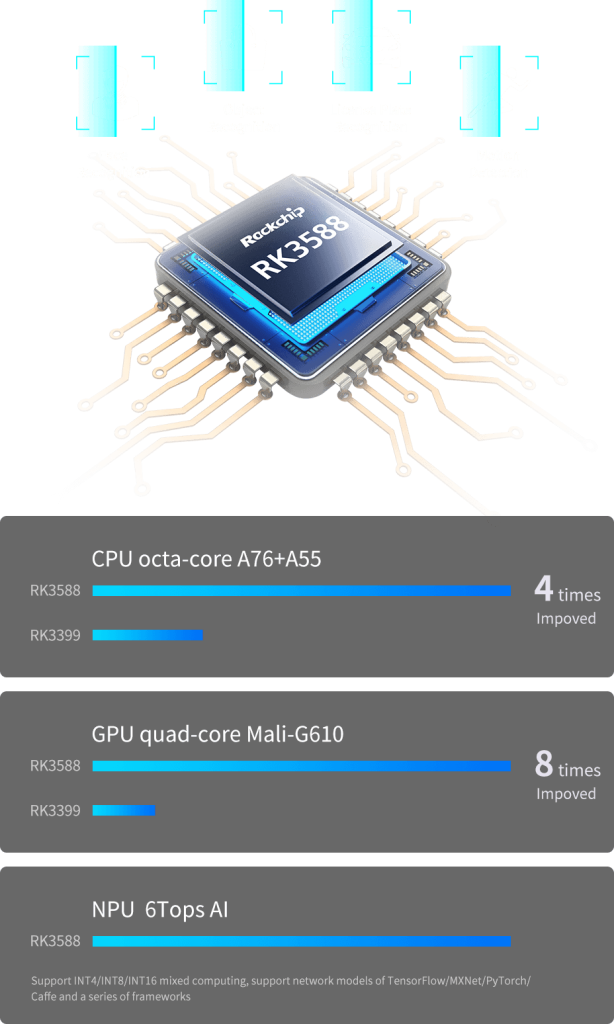

New generation of octa-core flagship processor

8nm advanced process, integrated ARM Mali-G610 MP4 quad-core GPU, supports 8K ultra HD video decoding, built-in 6TOPs AI NPU, supports mainstream deep learning frameworks, which can bring better performance for various AI application scenarios.

8K video encoding and decoding, high-definition multi-screen heterodyne display

Support 8K@60fps video decoding and 8K@30fps video encoding, support the same coding and decoding, can output multiple 8K videos through HDMI 2.1 and DP interfaces, and can realize 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding at the highest, and support multi-screen heterodyne display, which can be applied to various high-definition multi-screen interactive display scenarios.

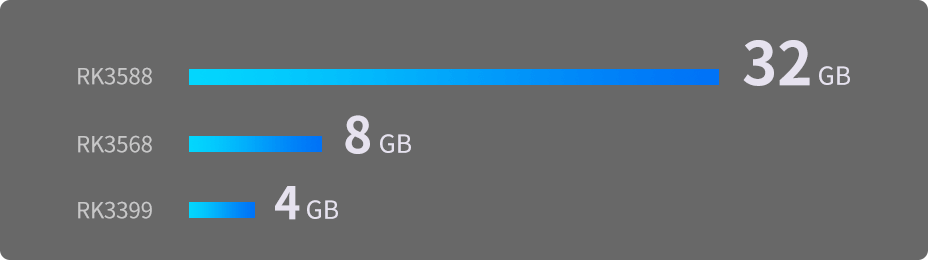

32GB large RAM, large-capacity storage expansion

Up to 32GB RAM, onboard M.2 PCIe2.0 interface, expandable SSD mass storage device, to meet the needs of large memory and storage applications.

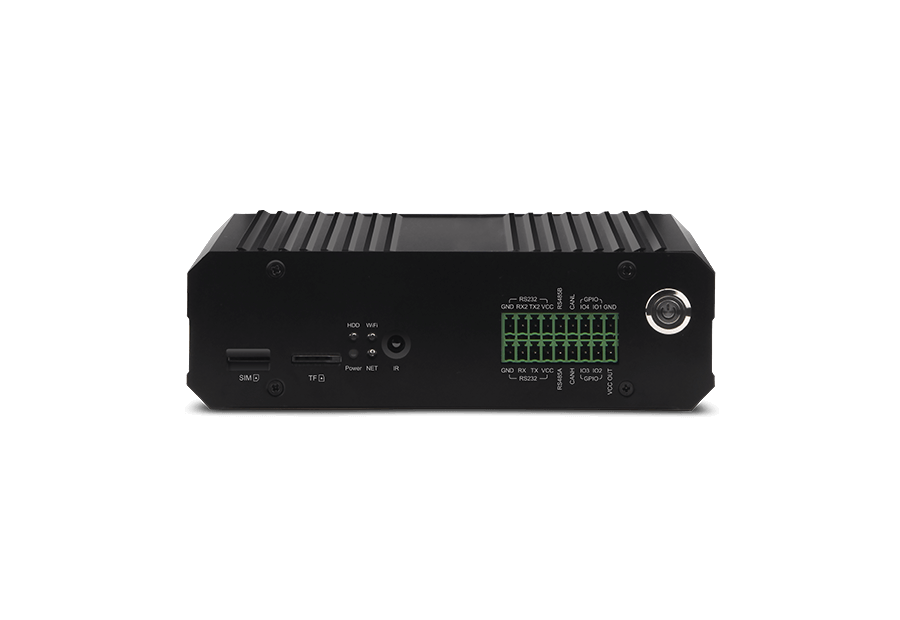

Strong Expandability with Rich Interfaces

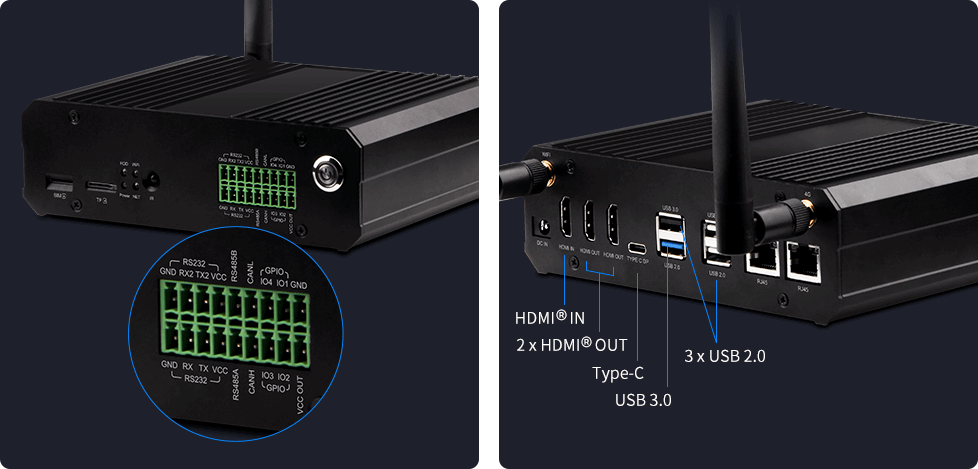

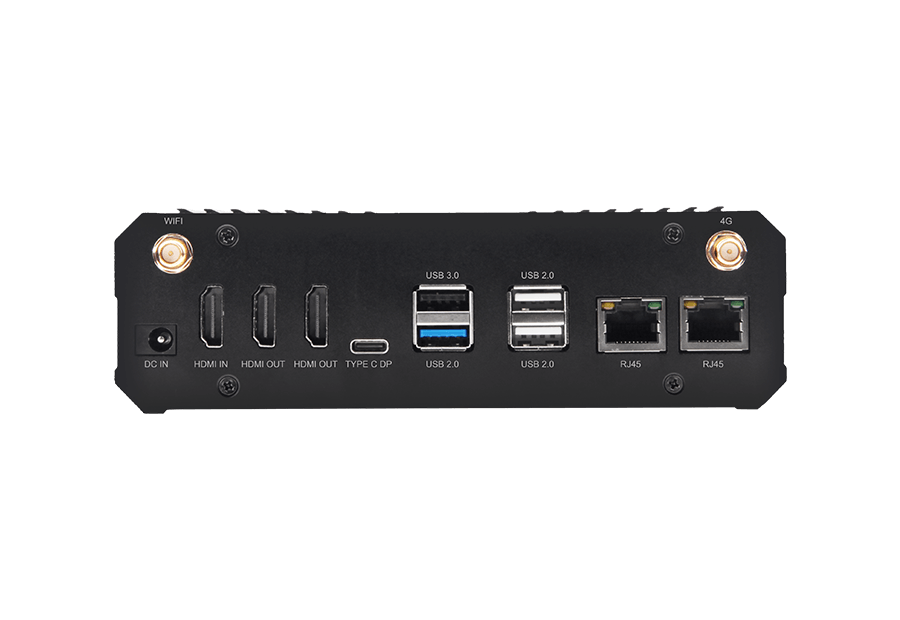

With 1 USB 3.0, 3 USB 2.0 and 1 DP (including Type-C), 1 HDMI 2.1 input and 2 HDMI output, 4 GPIO, 1 RS485, 2 RS232 or 2 TTL, 1 CAN and other expansion interfaces, providing a wealth of peripheral connectivity for different industry applications.

Put a product interface description diagram

Superior network communication capability

On-board 1000M Ethernet interface, 2.4GHz/5GHz dual-frequency WiFi, reserved for 5G/4G LTE expansion, to achieve uninterrupted network access, users can flexibly choose the network access mode according to the site environment, to meet the network requirements of outdoor and indoor applications.

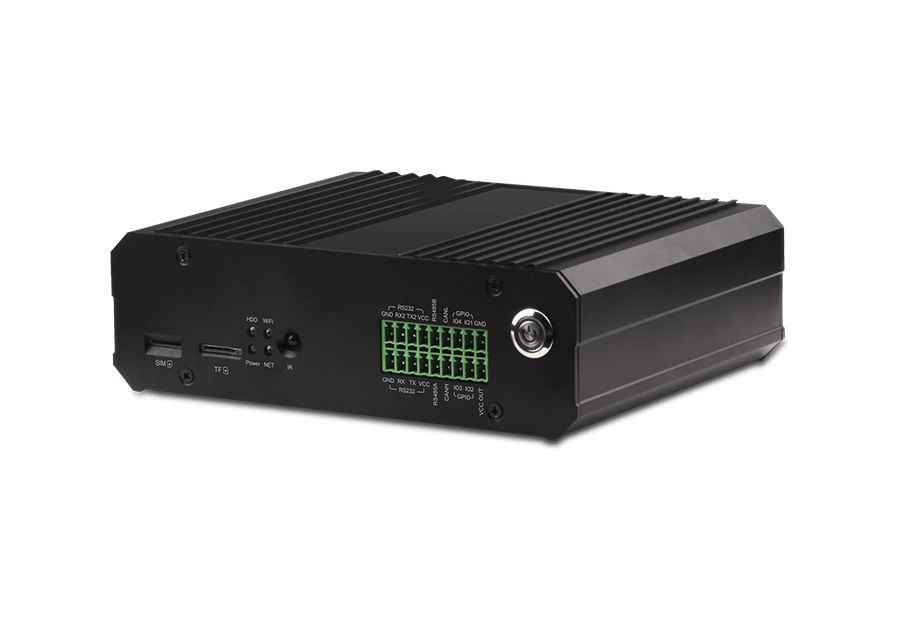

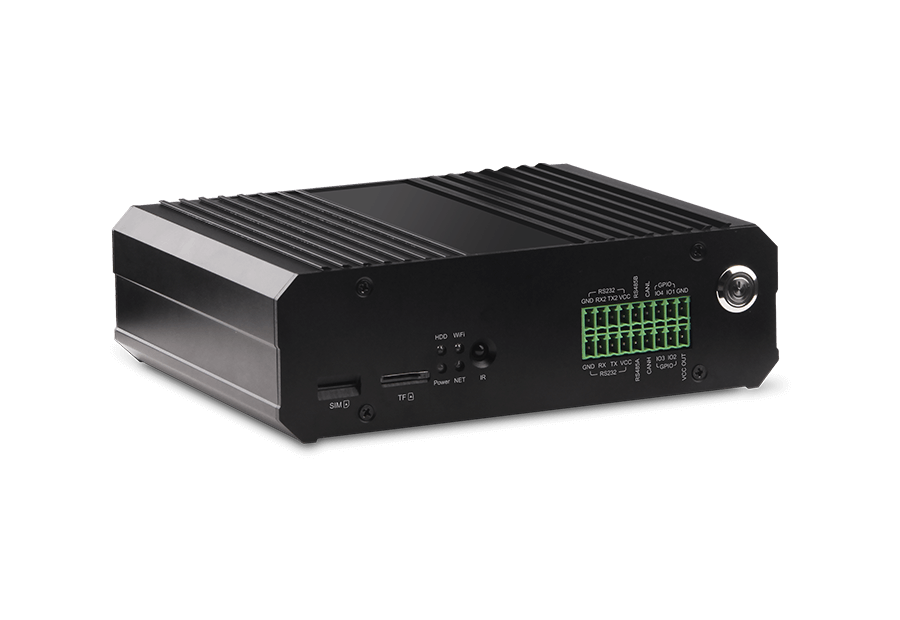

Industrial-grade hardware structure design

Adopting ultra-strong solid lightweight aluminum alloy material and integrated fanless structure heat dissipation design, it can be stably operated for 7×24 hours under -40~85°C environment, which is suitable for various harsh industrial use environments.

Open system architecture, support multiple operating systems

Support Android 12.0, Ubuntu 18.04 (Desktop and Server), Debian11, Buildroot, RTLinux kernel, can be based on the Linux system kernel depth of customization and development of the service layer, to achieve the remote upgrade and management of the device, which greatly improves the convenience of the later operation and maintenance and operation and maintenance efficiency.

Ultra-long supply period, escorting the product's long life cycle

Provide 10 years + ultra-long life cycle protection, and at the same time provide ultra-long-term, traceable Linux Kernel maintenance, to provide stable and traceable protection for the long life cycle of customer products.

Provide complete technical data for efficient secondary development.

We provide complete technical data including baseboard reference design data, supporting source code, technical documents, API interfaces and SDK development tools, which makes secondary development easier, more convenient and more efficient, and helps customers quickly build self-controlled customized products.

More than hardware, one-stop customization service

With 25 years of ARM product technology R&D precipitation and partner resources, Gold Asia Pacific can not only provide customers with customized design of hardware functions, but also provide one-stop customization services such as operating system porting across SoC platforms, BSP kernel cutting and driver debugging, scenario-based application software development, overall system software testing services, and perfect SDK secondary development interface, etc. With the help of the company’s own production factory of nearly 30,000 square meters, we can help customers to greatly improve the quality of their products, and to improve the quality of their products. With the company’s own production plant of nearly 30,000 square meters, we can help customers greatly shorten the cycle from product selection, R&D project, small trial production to mass production and delivery, and quickly seize the first opportunity in the market.

Application Scenarios

Widely used in edge computing, cloud computing, artificial intelligence, VR/AR, blockchain, intelligent security, industrial control, smart home and other fields.

Chip RockChip RK3588
Market-oriented  Global
processors CPU Octa-core 64-bit (4 x Cortex-A76 + 4 x Cortex-A55), 8nm advanced process up to 2.4GHz
GPU Mali-G610 MP4 quad-core GPU

OpenGL ES 1.1/2.0/3.1/3.2、Vulkan 1.1、OpenCL 2.2,450 GFLOPS

NPU NPU computing power up to 6TOPS, support INT4/INT8/INT16 hybrid computing

Can realize network model transformation based on TensorFlow/MXNet/Pytorch/Caffe and other series of frameworks.

ISP Integrated 48MP ISP and HDR & 3DNR multi-algorithm gas pedal
codecs Video decoding:

8K@60fps H.265/VP9/AVS2

8K@30fps H.264 AVC/MVC

4K@60fps AV1

1080P@60fps MPEG-2/-1/VC-1/VP8

Video encoding:

8K@30fps encoding, support H.265 / H.264

*Up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding.

Storage Memory 4GB 64bit LPDDR4/LPDDR4x/LPDDR5 up to 32GB
Flash 16GB (8GB/32GB/64GB/128GB optional) eMMC
SD 1-bit / 4-bit SD bus, support default, high speed, UHS-I/SDR50, SDR104 transmission mode
Network Ethernet Support 1000/100/10 Mbps transmission speeds
WiFi support 2.4GHz, 5GHz dual-band WiFi, 802.11 a/b/g/n/ac (802.11ax optional) protocols

Support Bluetooth 4.0 wireless technology (BLE support)

2G/3G/4G/LTE LTE for EU、LTE for AU、LTE for US(Optional)
Video Output HDMIOutput 1 x HDMI2.1  8K@60fps or 4K@120fps
Video Input HDMIInput 1 x HDMI2.1  4K@60fps
USB 1 x USB Host3.0,2 x USB Host2.0 , 1 x USB OTG 2.0
RS232 × 1   ±5~±15V
RS485 × 1   TIA485/EIA-485-A   -7~+12V
CAN × 1   ISO11898-2:2016 and SAE J2284-1 to SAE J2284-5ESD保护(8kV IEC and HBM)  5Mbit/s
GPIO × 4  3.3V level ±15KV (air) ±10KV (contact)
TTL × 1  3.3V level ±15KV (air) ±10KV (contact)
SIM × 1  Micro SIM Card
LED  × 4 Power, Ethernet network, WiFi, 4G
Extended I/O interface  1 infrared remote control receiver, × 1 DC 5V voltage output, × 1 DC 3.3V voltage output
OS Android12.0、Linux Ubuntu Desktop、Linux Ubuntu Server、Debian11.0、Buildroot、RTLinux
Mechanical characteristics Dimensions 160mm×125.5mm×48mm
Housing Aluminum profile with fixing holes on the bottom sides
Environment Working Temperature -40~85°C
Storage Temperature -40~85°C
Storage humidity 10%~90%
power power wastage Standby power consumption: approx. 0.42W (12V/35mA)

Typical power consumption: approx. 2.25W (12V/190mA)

Maximum power consumption: approx. 12W (12V/1000mA)

DC IN DC Input Voltage 12V(DC5.5 × 2.1mm)
