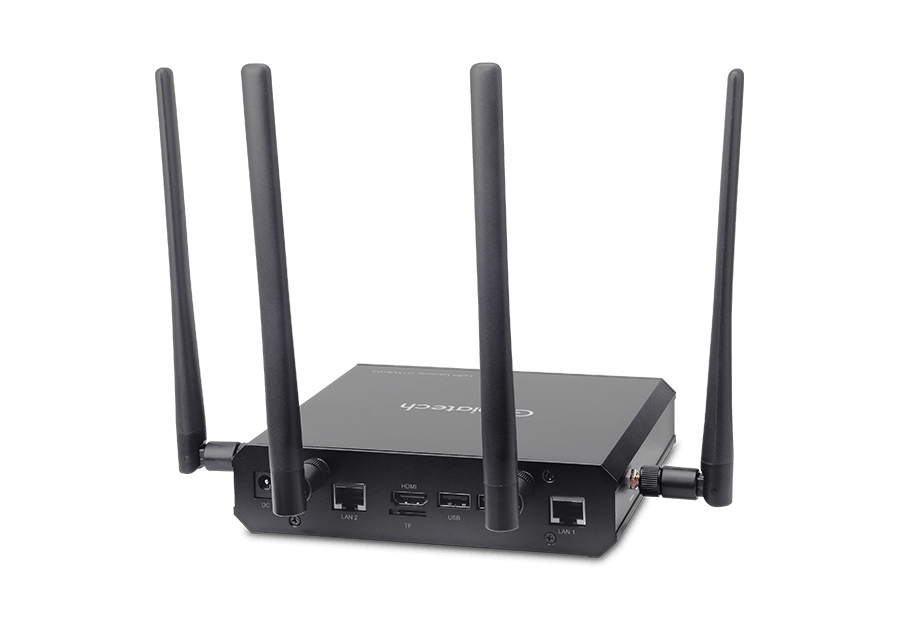

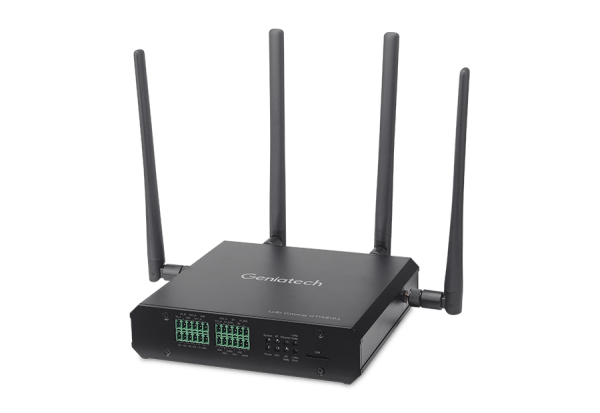

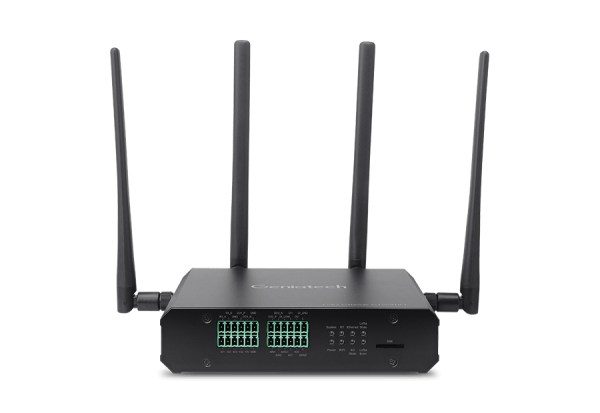

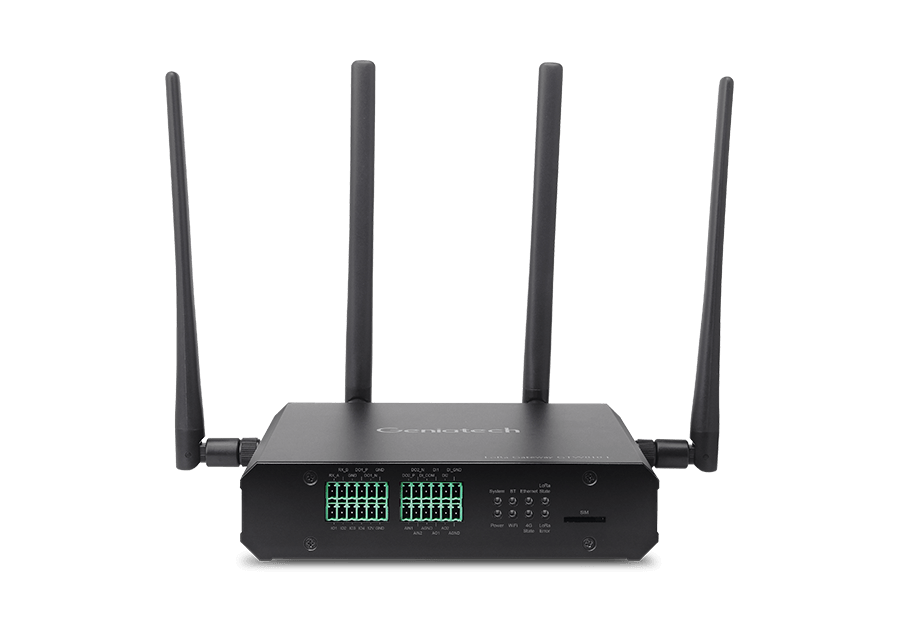

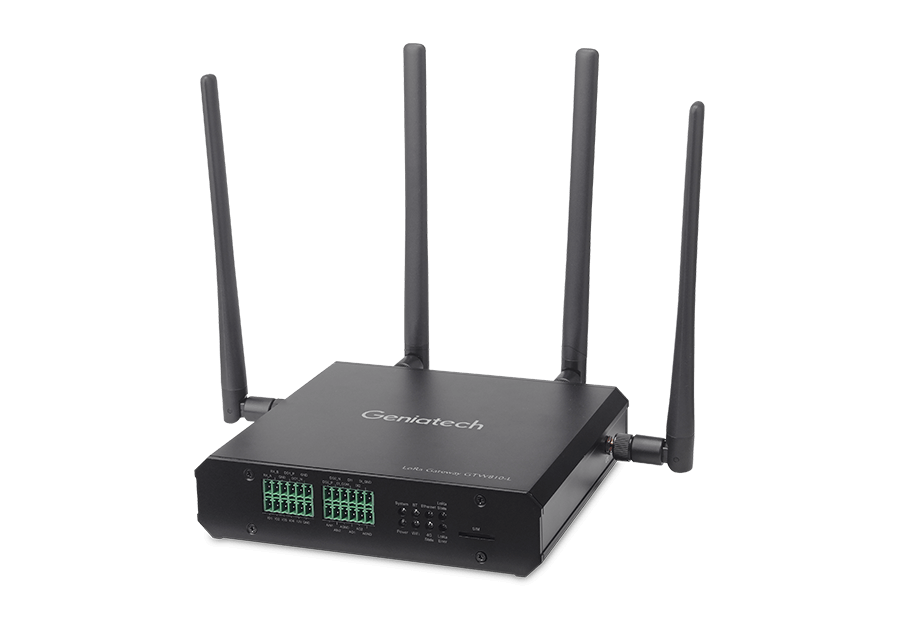

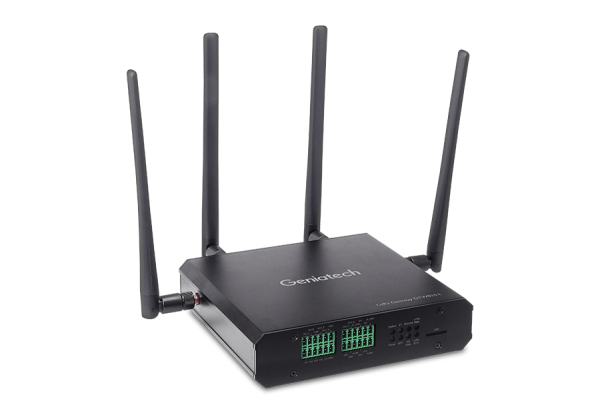

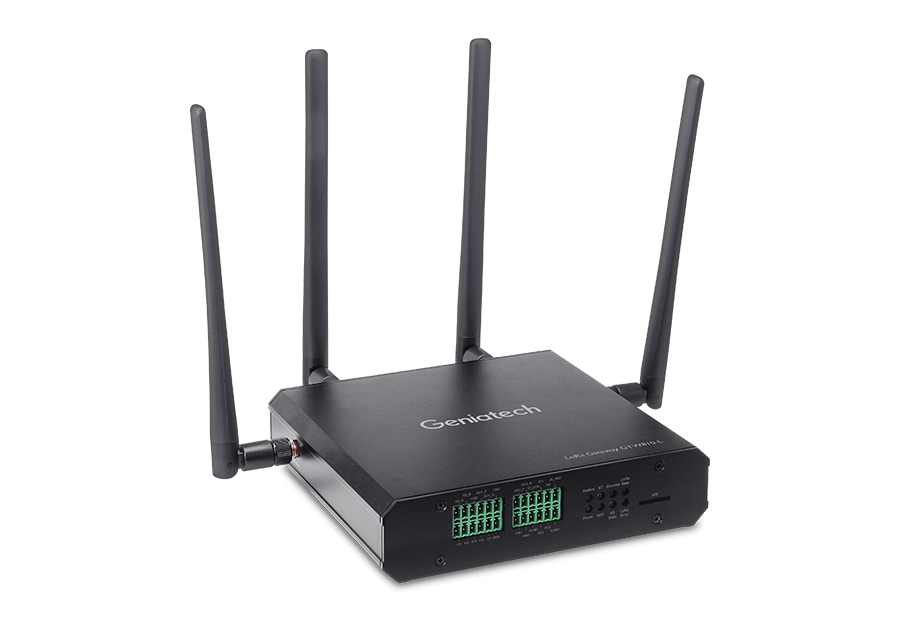

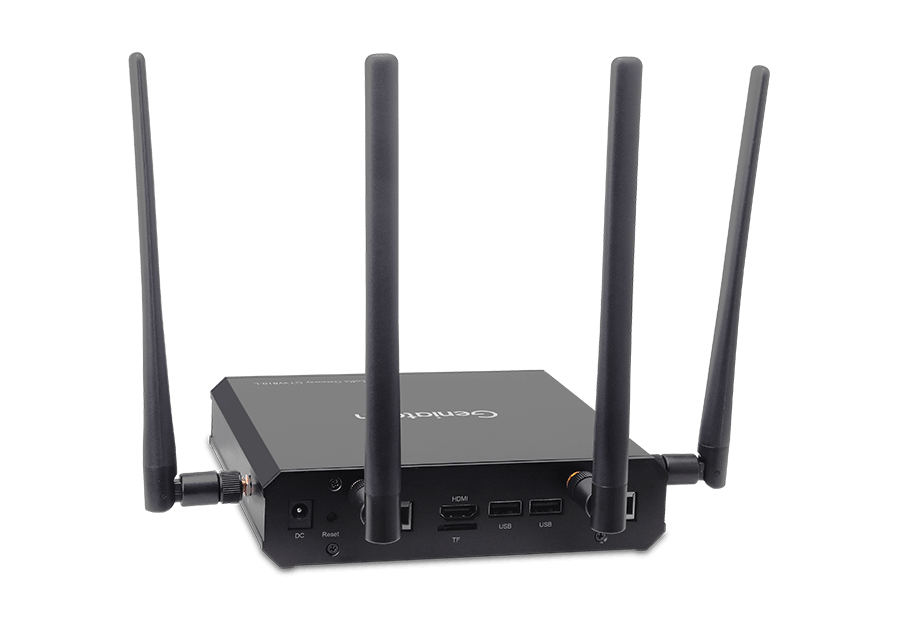

GTW810L Industrial Internet of Things Edge Gateway

GTW810L uses NXP’s latest generation of embedded Multi-core application processor i.MX8M Mini (A53+M4), offering industry-leading audio, voice, and video processing performance while maintaining a low-power design. On the practical side, GTW810L enables customers to quickly Design, Debug, and Deploy.

Get A Quote

High Performance

2GB LPDDR4(1-4GB Optional)+8GB eMMC5.1(8-128GB Optional)

High Reliability

  • Selectived external interfaces: MIPI CSI/DSI,SPI, PCIE,SDIO, etc
  • Metal aluminum shell, Compact and Portable
  • Wide temperature optional: Consumer and Industrial control
  • Applied to the operation and demonstration of algorithm DEMO
GTW810L Industrial Internet of Things Edge Gateway

Generic Connection

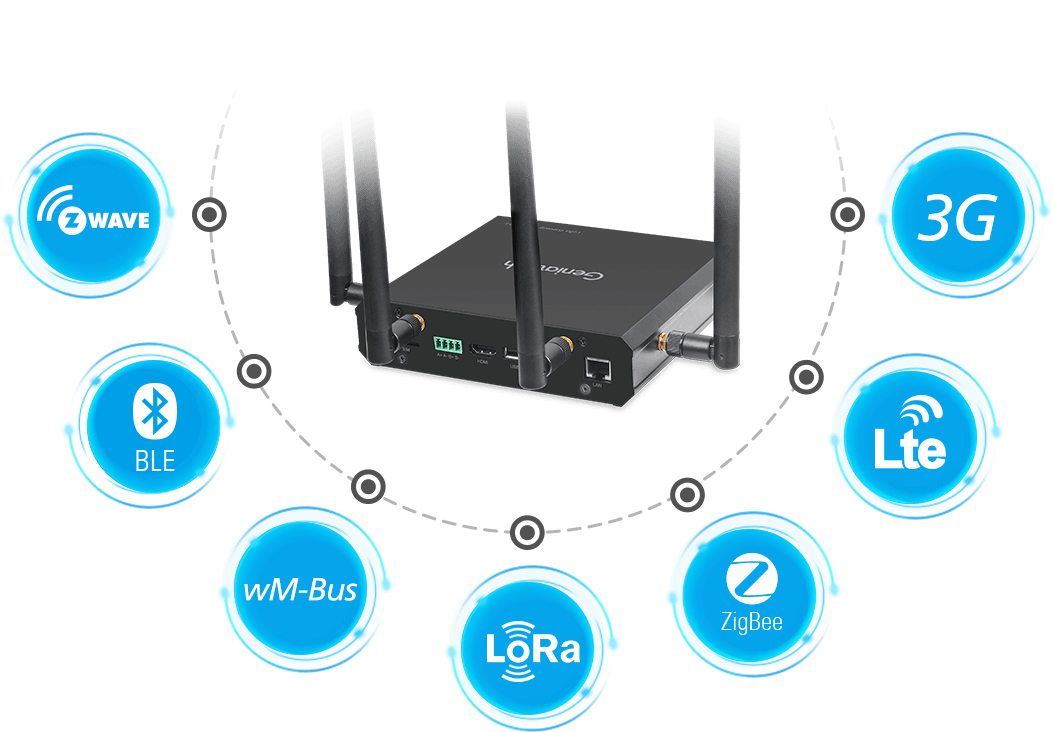

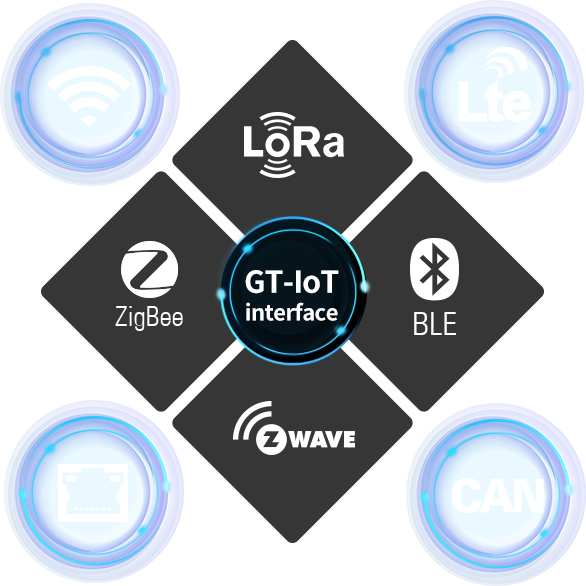

GT-LOT interface is a dedicated interface developed by Geniatech for IoT. You can add new RF modules through GT-LOT interface or USB port and support existing popular connections such as: Z-Wave, BLE5.0, WM-Bus, Lora, ZigBee3.0, LTE, 3G.

GTW810L Industrial Internet of Things Edge Gateway

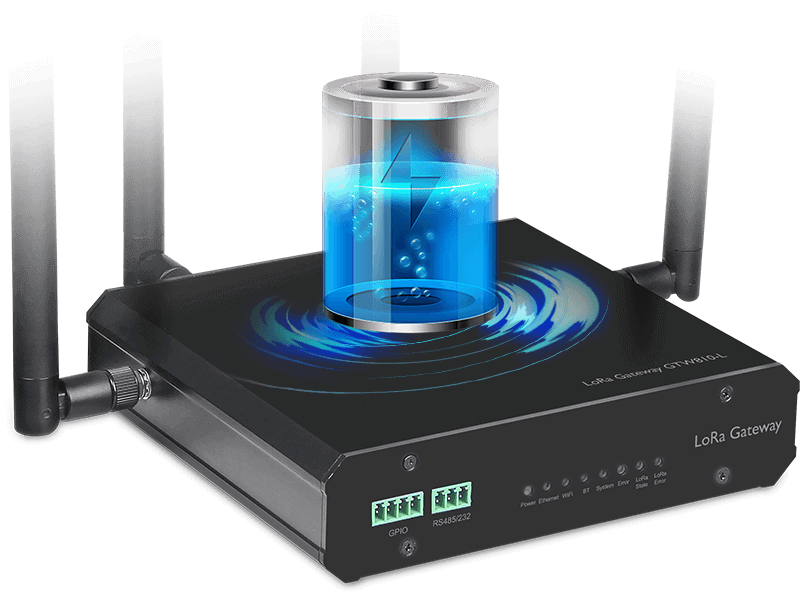

Rechargeable Battery

Choose to use the built-in rechargeable battery version, it can stay connected to the smart sensor even if the power is accidentally cut off.

GTW810L Industrial Internet of Things Edge Gateway

Selective Universal Interface

The independent LORA interface is compatible with common LORA modules at home and abroad, Open pin definitions to allow customers to develop the onboard functionality as required (customization is acceptable).

GTW810L Industrial Internet of Things Edge Gateway

System Diversity

Supported systems: Android, Linux, Yocto (Linux)

Application Scenarios

Edge calculation, industrial control, audio and video,

Software and Hardware Customization Service

Carrier board function customization
Shell structure customization edge computing devices ODM
Other customized services + supply
Provide SDK for secondary
Mass production service
Processor Quad core ARM Cortex A53(64bit) Cortex M4
CPU Frequency 1.2GHz
RAM 2GB LPDDR4(1-4GB Optional)
ROM 8GB eMMC5.1(8-128GB Optional)
OS Linux(Yocto), Free RTOS,MCU
WLAN Wi-Fi 5 dual band 2.4GHz/5GHz
Bluetooth 4.1(integration)
Separate Bluetooth
Support :BT4.0(optional)
Ethernet RJ45-100/1000 MHz
Security Encryption IC Support
Display HDMI® V1.4 Type A
USB USB 2.0 Type A *2
Micro-USB OTG
TF-Card SDIO 3.0
RTC (real-time clock) Support
Button Volume+/Volume-/Power
Indicator light User(Programmable)*4
System status*3
Connectivity 1x Mezzanineboards 40 pin Low-Speed connector
• UART, SPI, I2S, I2C x2, GPIO x12, DC power
1x Mezzanineboards 60 pin High-Speed connector
• 4L-MIPI DSI, USB, I2C x2, 2L+4L-MIPI CSI
1x Optional 16-pin Analog expansion connector
• Headset, Speaker, FM antenna
Mechanical properties
Size (mm) 160*145*37
Net weight (g) About 750
Power 12V/1.5A
Wide working range Consumer (0°C to 95°C Tj)
Industrial (-40°C to 105°C Tj)
RoHS and Reach compliant Yes
