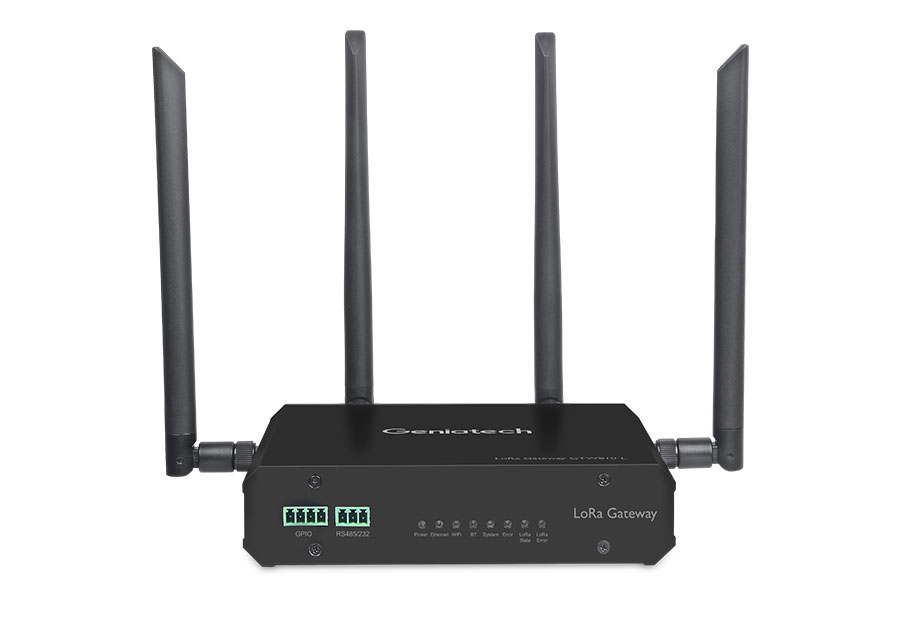

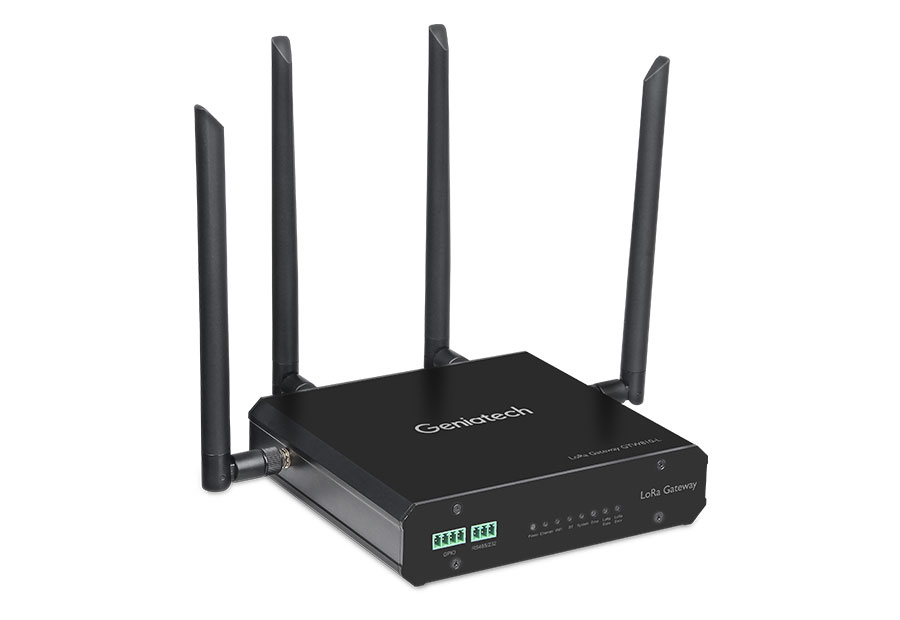

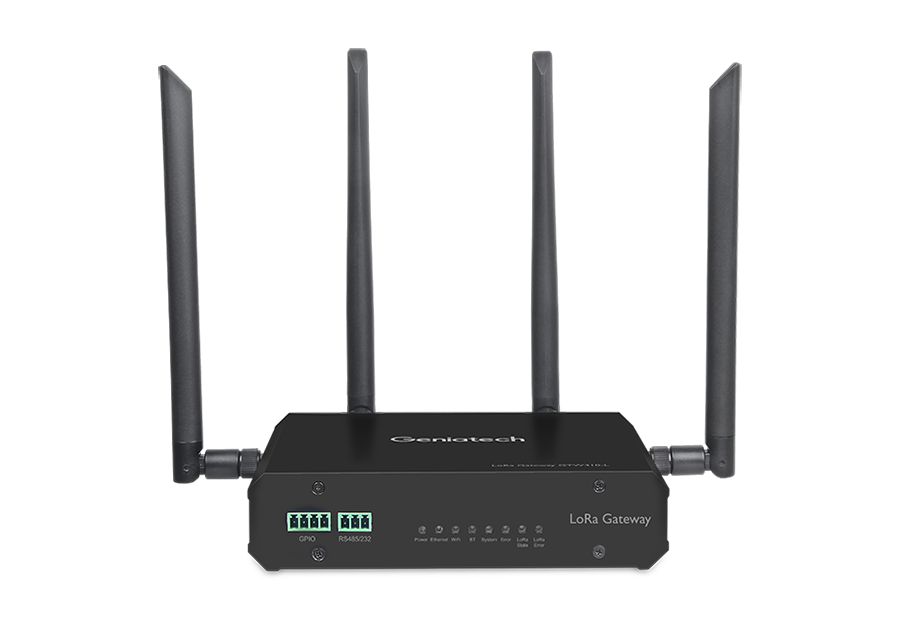

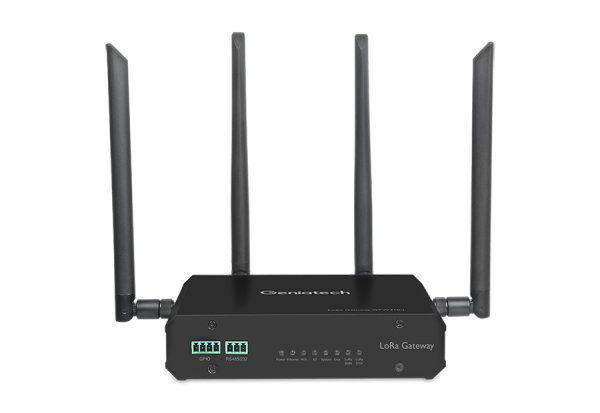

GTW410 Series High-Performance Industrial Gateway
- Qualcomm APQ8016E, quad-core ARM®Cortex™A53, up to 1.2GHz
- Equipped with large capacity storage (1G/2G+8G/16G), stable and superior performance
- Standard Ethernet and WIFI interface for direct connection to Ethernet devices and WIFI devices

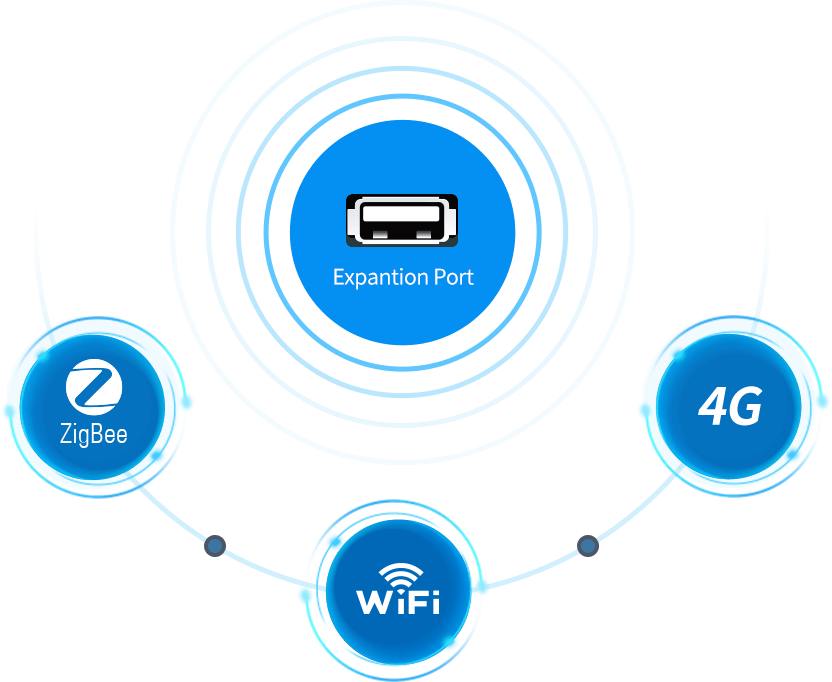

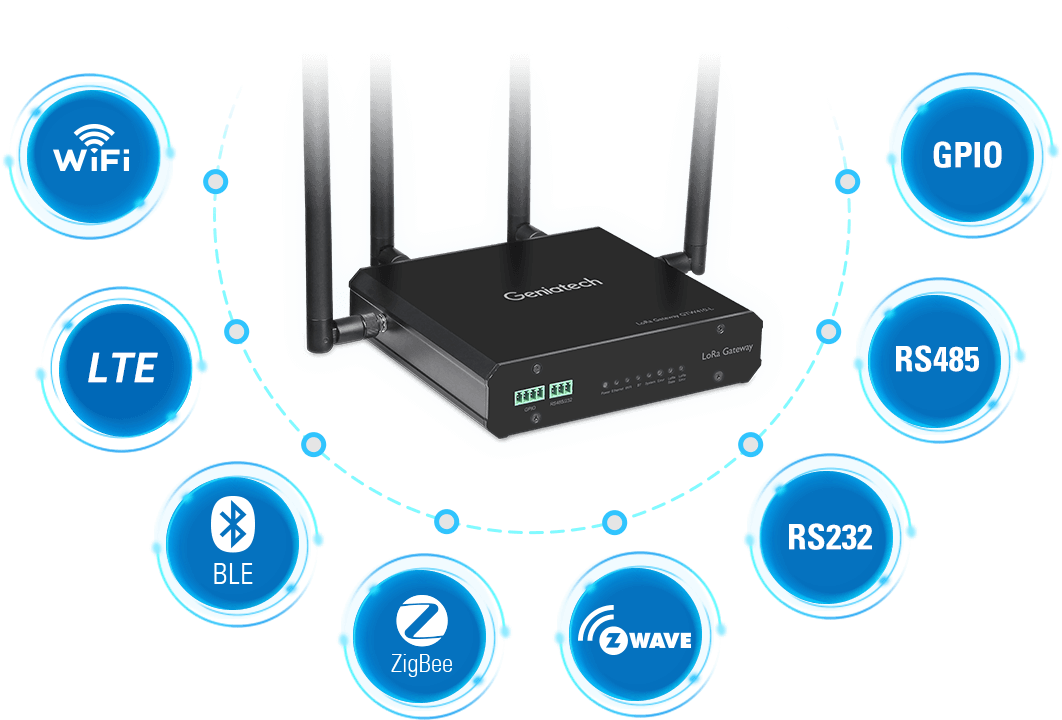

- Support WiFi, LTE, Bluetooth, Zigbee, LoRa, Z-Wave protocol
- Provides RS232,RS485, GPIO and other interfaces
- USB2.0 data interface, can be connected to USB storage devices, but also can be mounted on the USB network card dial-up Internet access
- Flexible customization for special applications, open API interface
- Support multiple systems: Android, Linux, Windows 10 IoT Core
- Operating temperature/humidity:0℃-45℃/20%-93%RH
- Storage temperature/humidity:-40℃- +55℃/10%-93%RH
- External dimension:145mm(L)x200mm(W)x46mm(H)
Categories: Intelligent Connectivity, IoT Gateway
Get A Quote -
CPUSnapdragon 410C quad core ARM® Cortex® A53 (64bit, 1.2GHz)
Qualcomm® Adreno™ 306 GPU -
CPU FrequencyUp to 1.2GHz
-
Internal Memory2GB RAM (1GB Optional)
-
Internal Storage8GB/16GB eMMC Optional
-
OSLinux(Full Function)
Android (Function is limited)
Windows 10 IoT -
Built-in 2G/3G/4GOptional Support 4G/LTE (EU/AU/US/CN) etc.
-
Built-in WiFiWi-Fi 4
-
Serial port1*RS232/RS485
-
Relay2*3A 250VAC
-
Interface4*GPIO
-
Ethernet port1*RJ45 10/100Mbps
-
USB Interface2*USB 2.0 ; 1*Micro USB
-
SIM SlotOnboard
-
BT 5.0/BLEOptional(Dongle and Module)
-
ZigBee3.0Optional(Dongle and Module)
-
Z-WaveOptional(Dongle and Module)
-
LoRaOptional(Module)
-
Wireless M-busOptional(Module)
-
Size (mm)145*165*45
-
Net Weight (g)500(No Module Inside)
-
PowerDC12/1.5A
