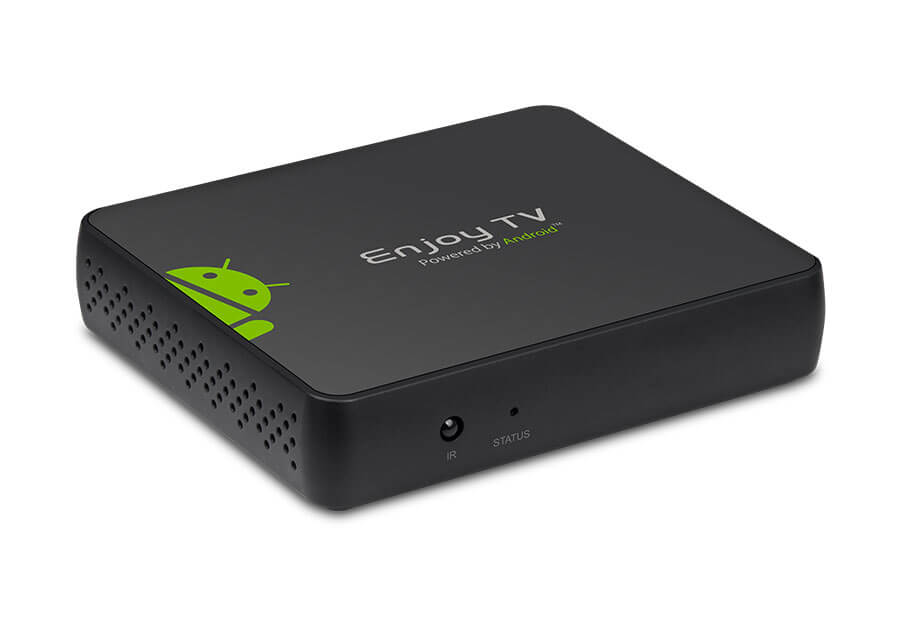

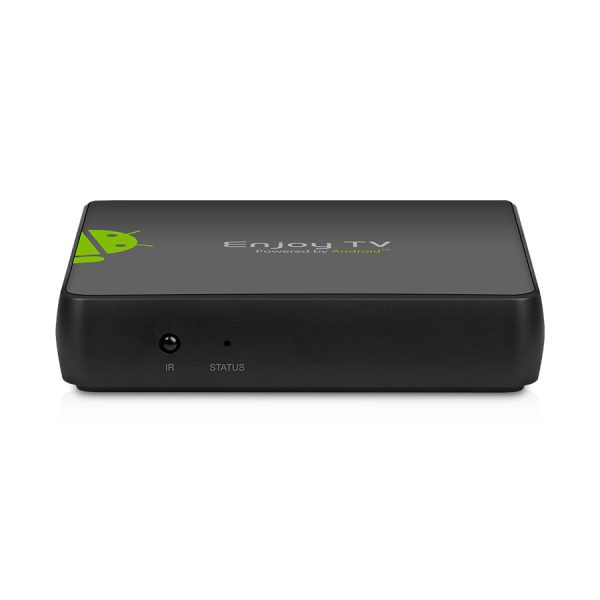

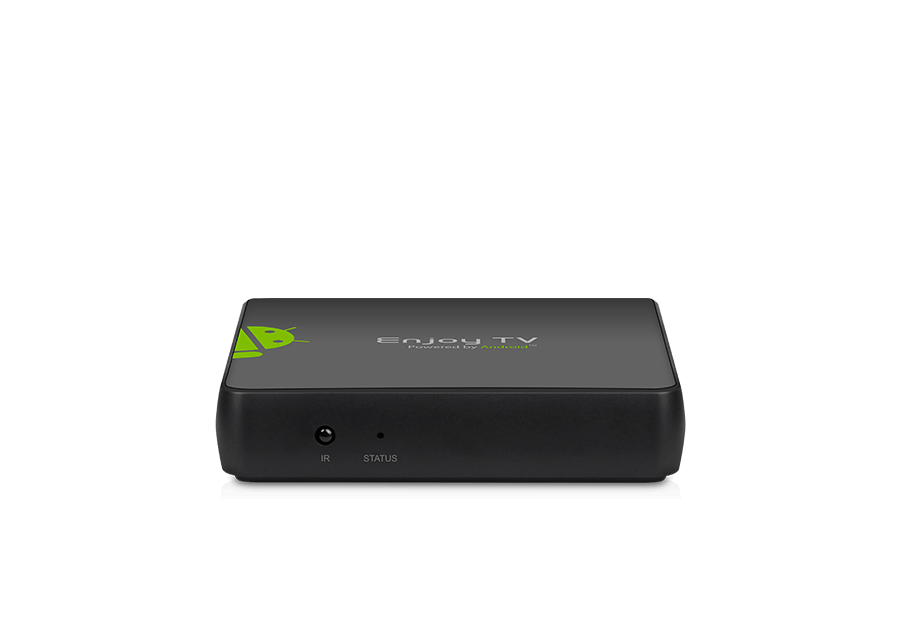

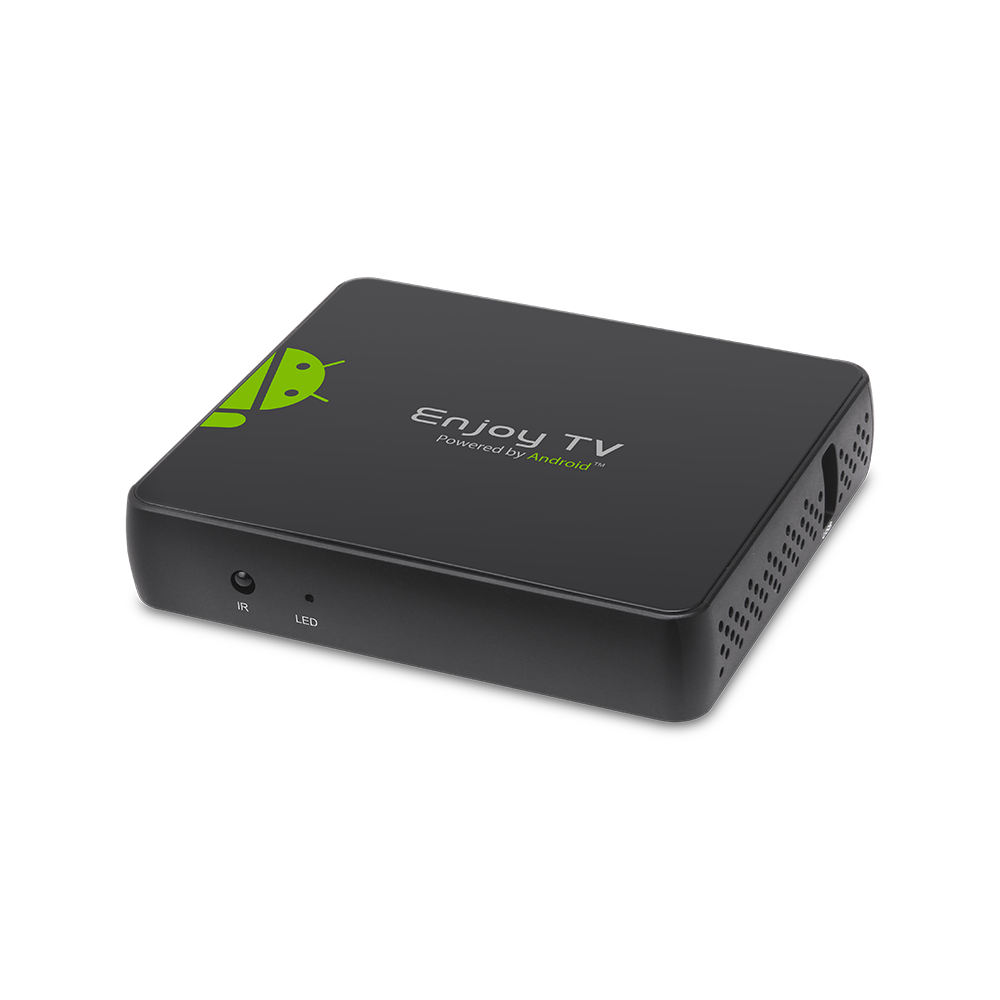

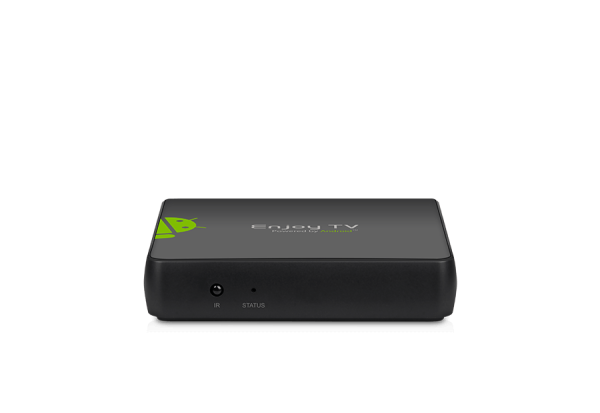

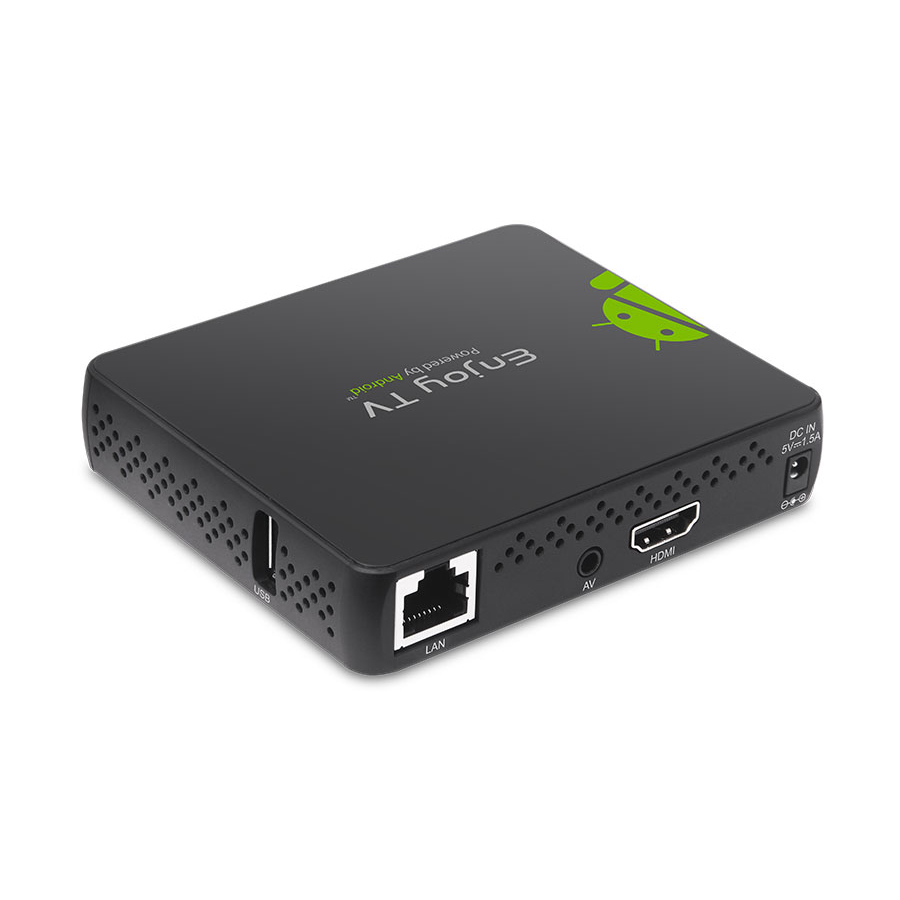

ATV315Y4 Android IPTV/OTT Box (Amlogic S905Y4)

Geniatech ATV315Y4 is a cost-effective 4K quad-core Android OTT box, uses Amlogic ultra-low power SOC and has a new generation of AV1 video standard, supports HDMI® and AV display interface, multiple communication methods, you can enjoy your favorite TV programs, and you can freely install various application software.

  • Excellent value for money choice
  • Rich interface, various app can be installed
  • Amazing Video Capabilities
  • Excellent heat dissipation performance
  • Can work 7×24H to achieve unattended
  • Support Personalized Customization

Buy a Sample

Categories: ,
Get A Quote
Low power consumption and high cost performance
Amazing video capabilities

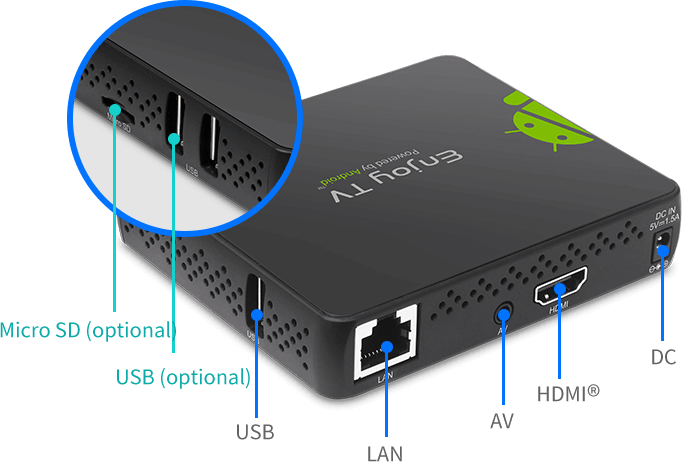

Multiple Interfaces and High Cost Performance

  • Video output: 1*HDMI®+1*AV
  • Audio output: 1*HDMI®+1*BT
  • LAN: RJ45 10/100M Ethernet
  • Wifi: IEEE 802.11 a/b/g/n/ac 2.4G/5.8G (optional)
  • USB: 1*USB 2.0 (default, 2*USB 2.0 optional)
  • Micro SD: 1*Micro SD (default: none, optional)
  • IR:1*IR

Amazing Video Capabilities

  • New hardware and Android11.0 system
  • Support mainstream video hardware decoding
  • AV1/MPEG4/AVS2/VP9 up to 4Kx2K@60fps / 4x1080P@60fps
  • Support Dolby Visionoptional, HDR10+,HDR10, HLG HDR

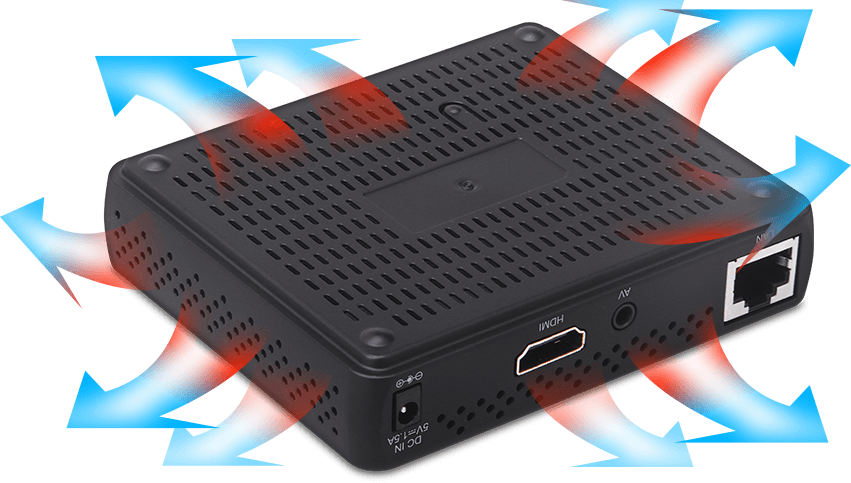

Excellent Capacity of Radiation

Adopt ultra-low power Amlogic S905Y4 platform;The four-sided honeycomb heat dissipation hole design allows the heat to be dissipated in time, which is more conducive to performance improvement in accordance with the principle of thermodynamics, and low temperature rise for long-term high frequency operation;

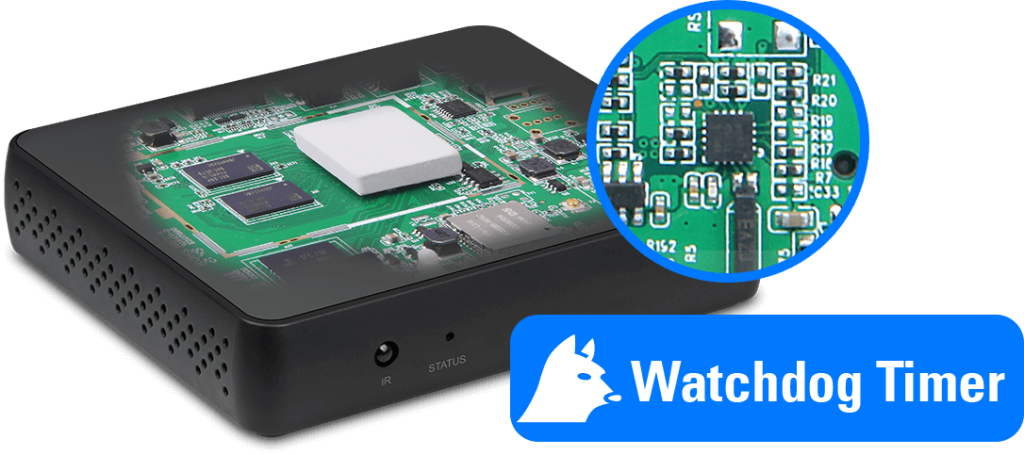

Achieve the Value of Unattended

Built-in independent and reliable hardware watchdog, which can realize 7*24H unattended continuous and stable work, release manual work to improve efficiency


Support Personalized Customization

Optional hardware configuration


Provide SDK secondary development

Customers can compile sensitive requirements by themselves

MDM customization (remote device management)

Remotely collect device status information and control the device (update firmware, uninstall/install APK, restart, standby/wake up, real-time advertising…)

APP customization

Easy to realize customer’s customized requirements, safe, fast and low-cost.

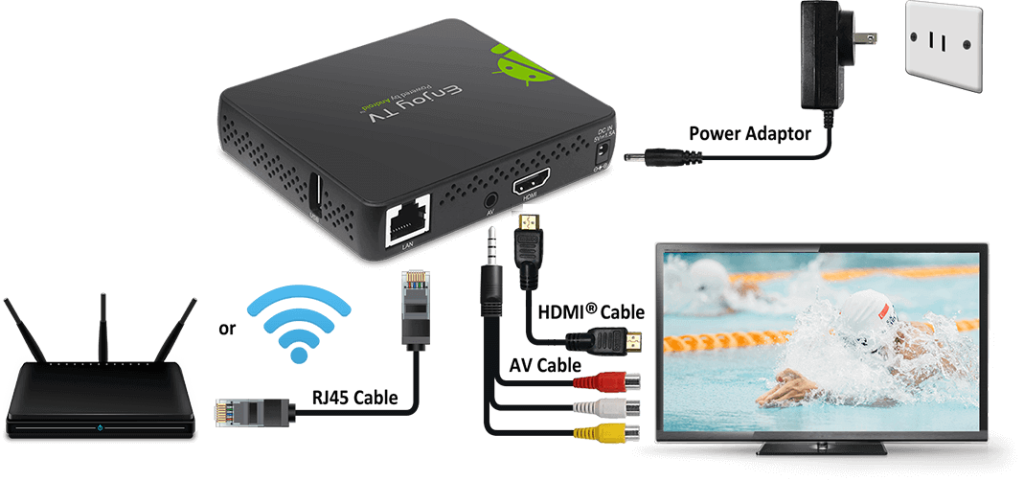

Product Connection Diagram

Application Scenarios

SoC Amlogic S905Y4
CPU Quad-core Cortex-A35
RAM 2GB DDR4(4GB Optional)
Storage 8GB eMMC(16G/32GB/64GB Optional)
Network 100M ethernet, 2.4G/5.8G Dual band
I/O HDMI®×1, AV ×1,USB ×1
Telecontrol BT/IR
OS Android 11
Operating temperature 0~50℃
Size 101.8×85.2×22.8mm
