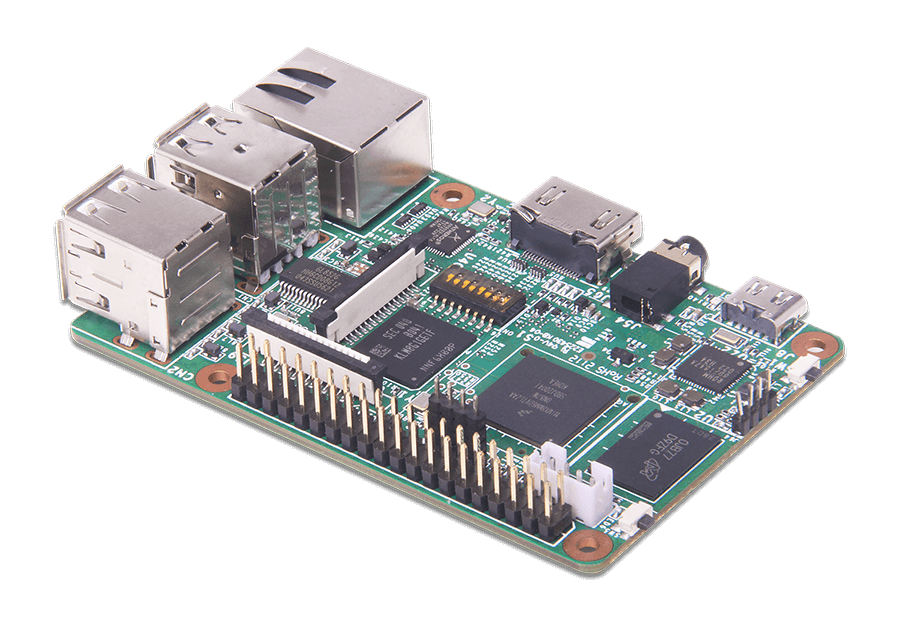

XPI-iMX8MM – Industrial SBC

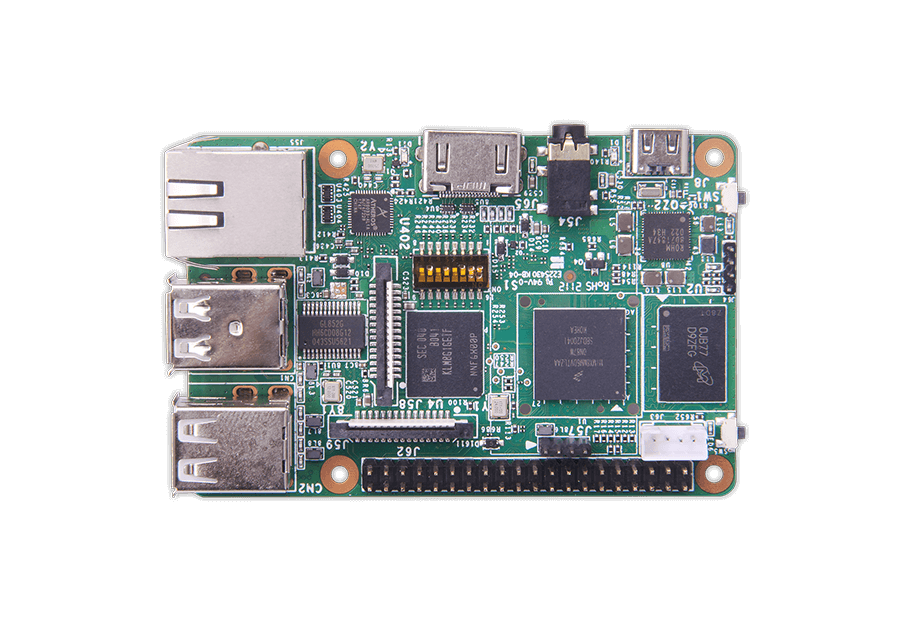

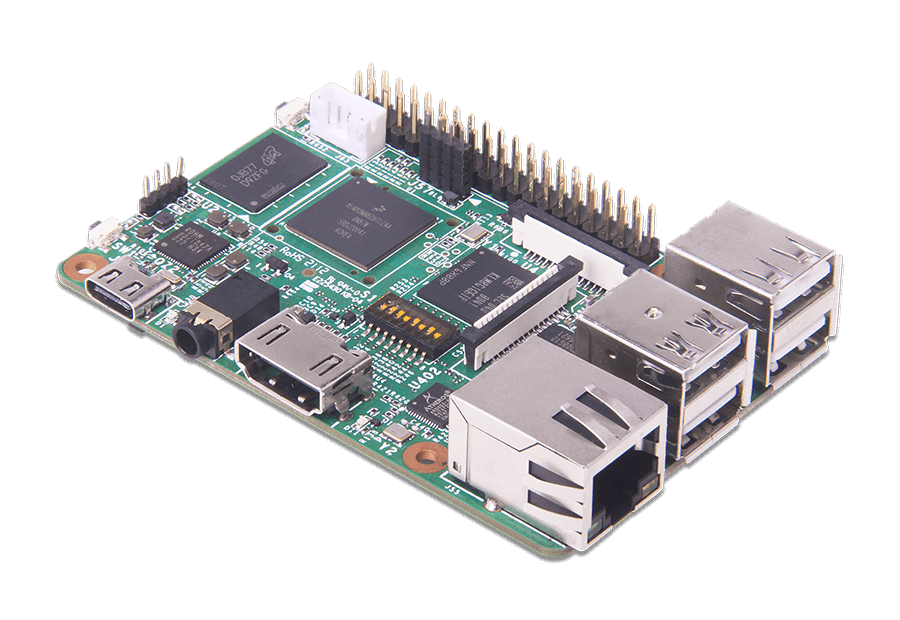

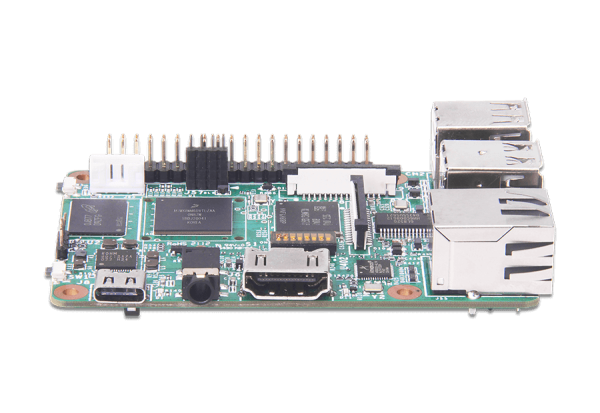

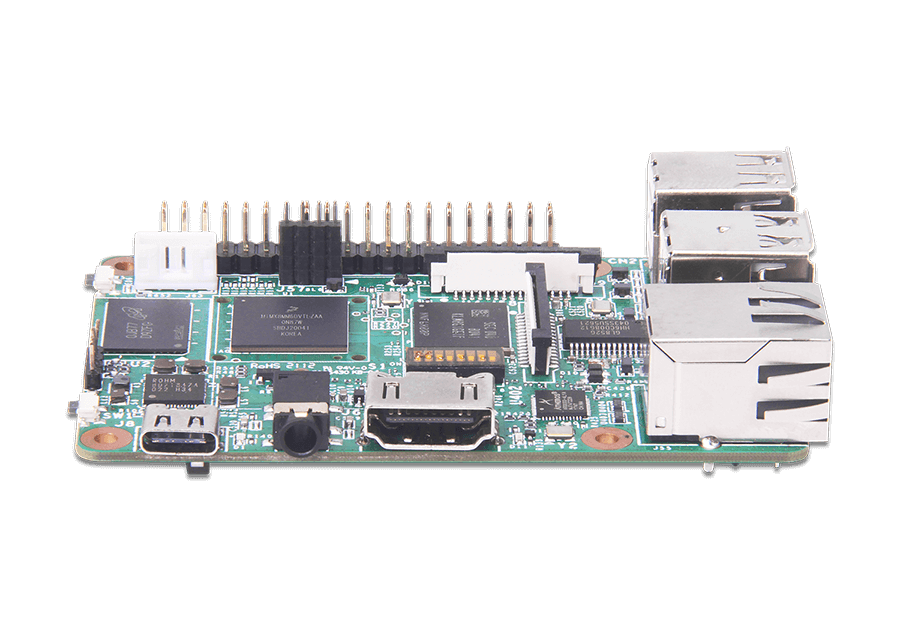

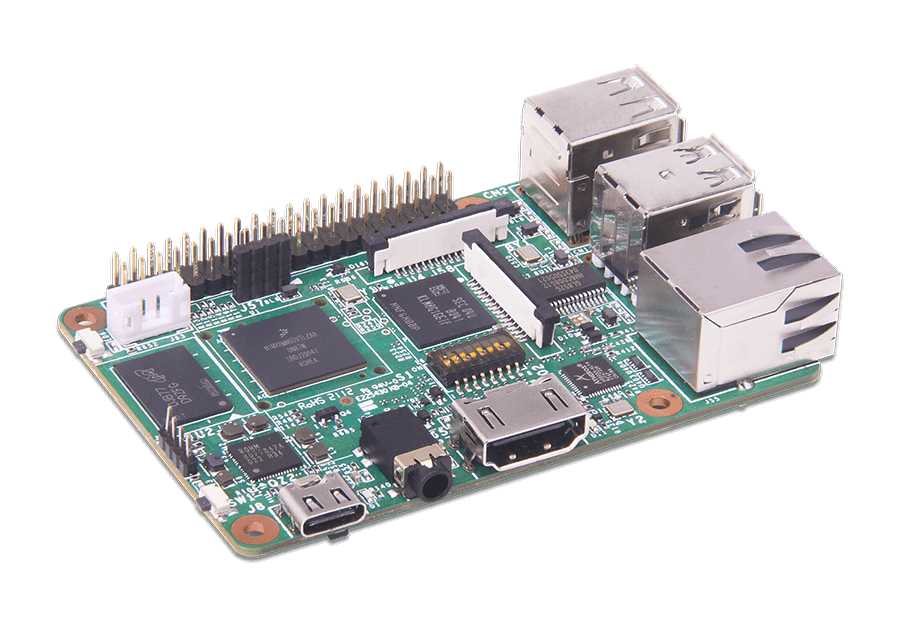

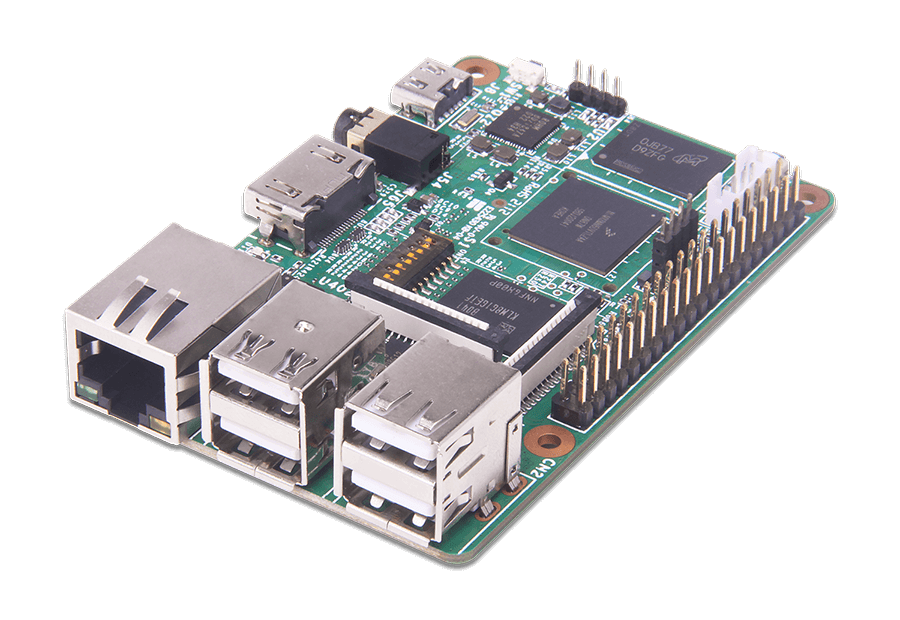

Geniatech XPI-iMX8MM is a credit-card-sized single-board computer that provides an industrial-grade alternative to Raspberry Pi. It is powered by the NXP i.MX8M Mini processor, has 2-4GB RAM, and 8-128GB eMMC storage. The XPI-iMX8MM features stable video encoding and rich expansion interfaces, including Gigabit Ethernet and WiFi/BT functions, four USB ports, and standard 40-pin GPIO headers. It also supports 2 lanes of MIPI LCD and MIPI Camera functions. Suitable for programming education, software education, multimedia terminals, and a wide range of industrial and IoT applications.

  • NXP iMX8M Mini with Quad-Cortex-A53 core up to 1.8GHz and Cortex-M4 core up to 400MHz
  • 1~4GB LPDDR4, 8G~128G eMMC5.1
  • 4*USB2.0 Host, 1*HDMI®Out, 1* USB-C Power supply, 1* Audio Out
  • 1*MIPI DSI Port & 1*MIPI CSI Port
  • 10/100/1000M Ethernet, Wifi 2.4G/5.8G and BT4.0 (optional)
  • 1*Standard 40-pin GPIO header can be expanded to UART,SPI,I2C,PWM function
  • Yocto(Linux)

Buy a Sample

Get A Quote
Higher power efficiency
Higher CPU speed
Industrial grade temperature range
Commercial grade temperature range

High Performance

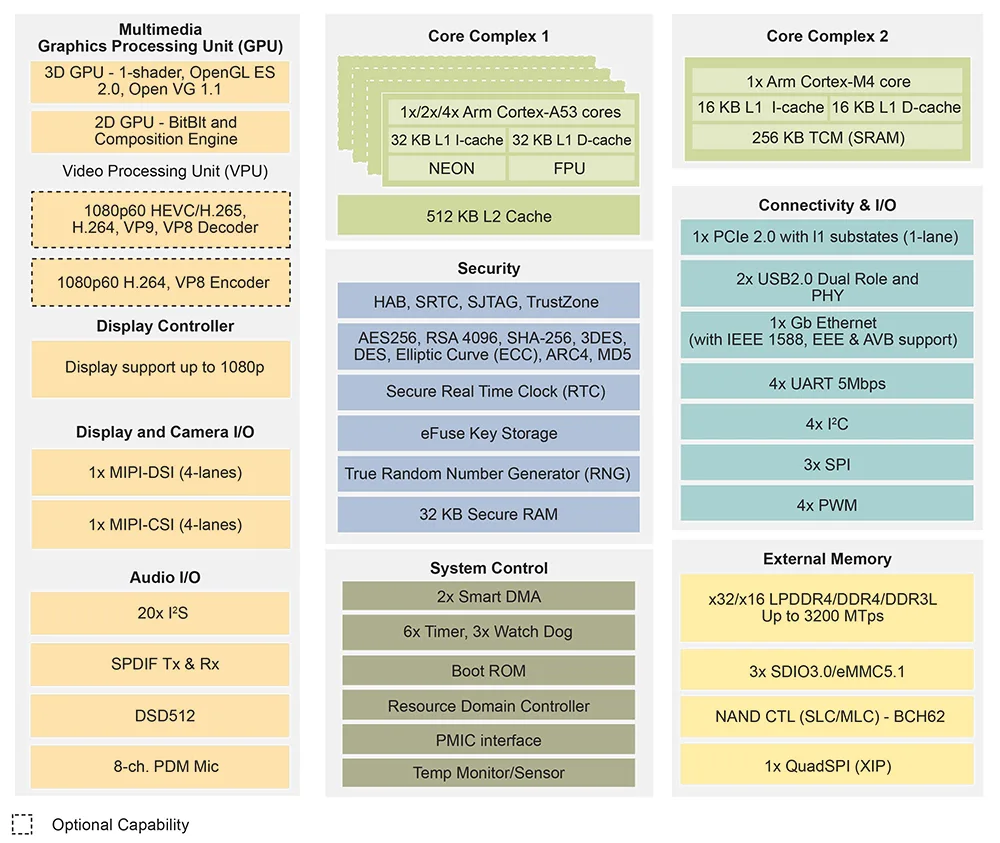

XPI-iMX8MM is powered by i.MX8M Mini processor, built using 14LPC FinFET process technology, coupled with 1GB~4GB LPDDR4 RAM and 8GB~128GB eMMC5.1 storage.

High Scalability

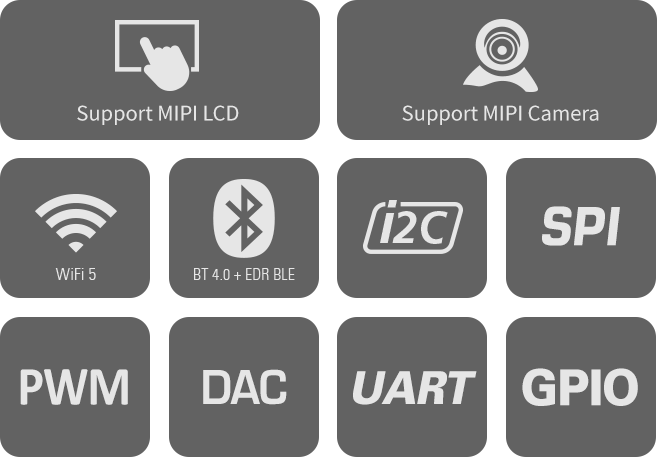

XPI-iMX8MM offers high scalability with its support for Gigabit Ethernet and WiFi/BT4.0 functions, four USB ports for USB devices, and 40-pin GPIO headers that can be designated as an input or output pin for various purposes. It also supports 2 lanes of MIPI LCD and MIPI Camera functions.



System Diversity

XPI-iMX8MM supports Yocto (Linux) operating systems, providing a flexible and customizable platform for developers.



Application Scenarios

Programming education, Software Development, Multimedia terminal

  • Processor
    Quad core ARM Cortex A53(64bit) Cortex M4
  • CPU Frequency
    1.8GHz
  • RAM
    1GB LPDDR4(1-4GB Optional)
  • ROM
    8GB eMMC5.1(8-128GB Optional)
  • OS
    Linux(Yocto)
  • WLAN
    Support USB-WIFI Module, Wi-Fi 5 dual band 2.4GHz/5GHz(optional) Bluetooth
    4.1(integration)
  • Ethernet
    Gigabit Ethernet
  • Mutlimedia
    • 1080p60 MPEG4 Decoder
    • 1080p60 AVC/H.264 Baseline, Main, High decoder
    • 1080p60 AVC/H.264 Encoder
  • Display
    HDMI®V1.4 Type A
  • USB
    USB 2.0 Type A *4,
  • TF-Card
    SDIO 3.0
  • Button
    Power/Reset
  • Audio
    4-pole stereo audio and composite video port
  • Indicator light
    Power light*1
    System status light*1
  • Connectivity
    1x Standard 40-pin GPIO header
    • Can be expanded to UART, SPI, I2C ,PWM function
    1×4 pin USB-Wifi connector
    • Support USB-Wifi Module
    1x MIPI DSI
    • 2-lane MIPI DSI display port
    1x MIPI cSI
    • 2-lane MIPI CSI camera port

Mechanical Properties

  • Size (mm)
    85*56
  • Power
    5V/3A USB-Type C
  • Wide working range
    Consumer (0°C to 95°C Tj)
    Industrial (-40°C to 105°C Tj)
  • RoHS and Reach compliant
    Yes
