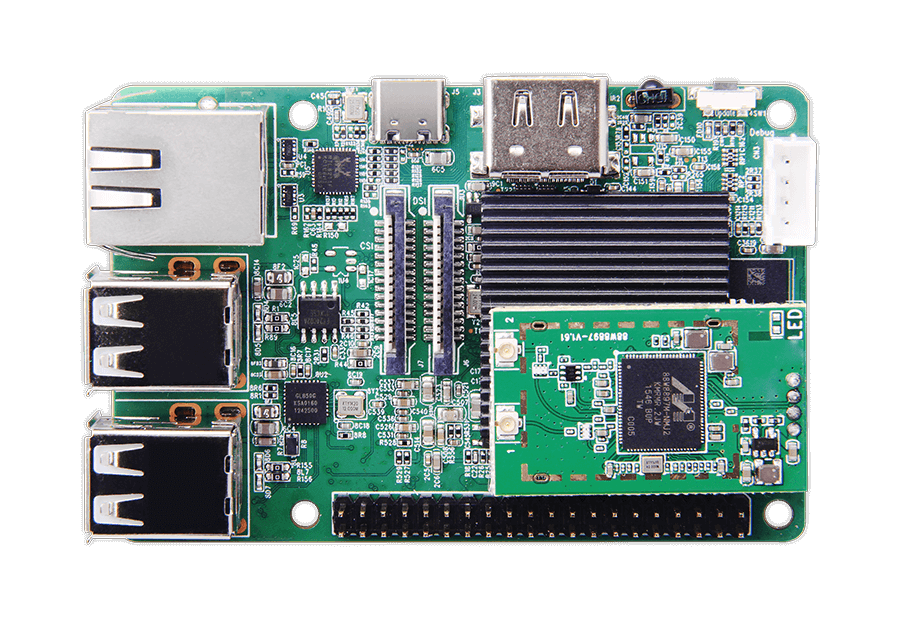

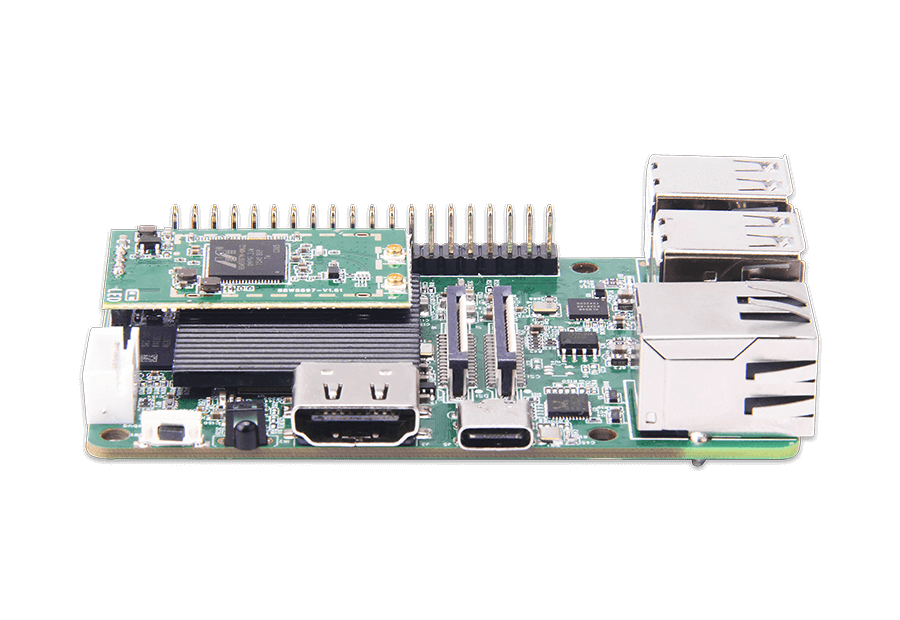

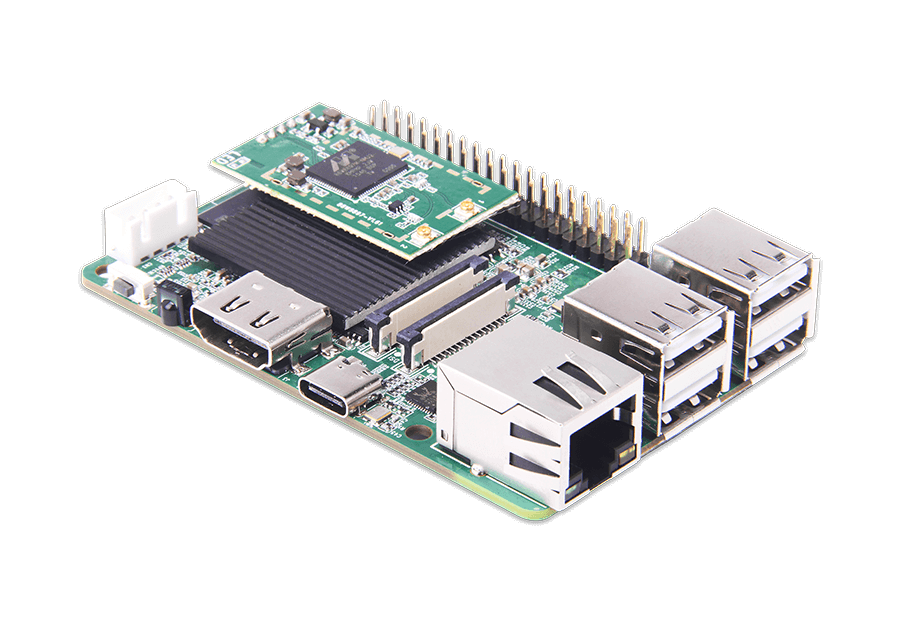

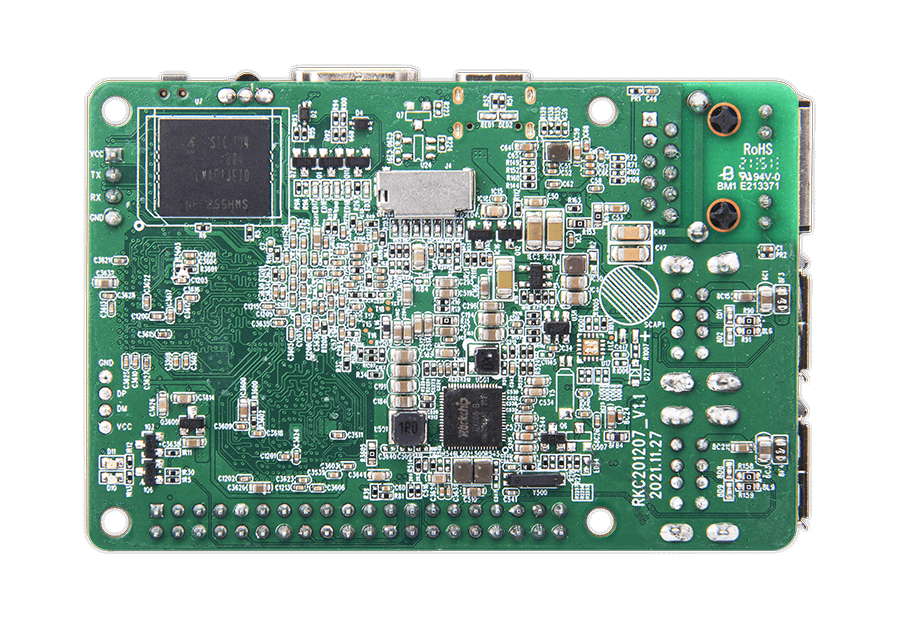

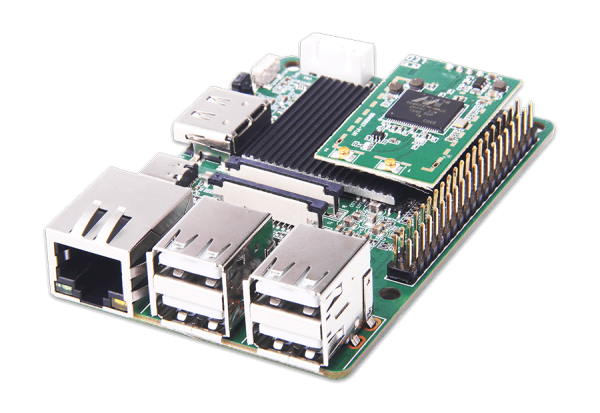

XPI-3288 – Custom SBC Board

  • Raspberry Pi Form Factor, 85mm*55mm, Only the size of a bank card
  • Rockchip RK3288 with Quad-core Cortex-A17 up to 1.6GHz
  • 2G LPDDR on board (1~4G RAM optional)
  • 16GB eMMc flash(8~64G optional), Micro SD card(TF card : Max64G)
  • 4* USB,1* HDMI® Out, 1* Type-C, 1* UART, 1* Extension GPIO interface
  • WiFi and 1000M LAN interface
  • 1*MIPI DSI and 1*MIPI CSI for dual display (4K@60)
  • Android 7.1 / Linux(Debian 9)

Buy a Sample

Get A Quote

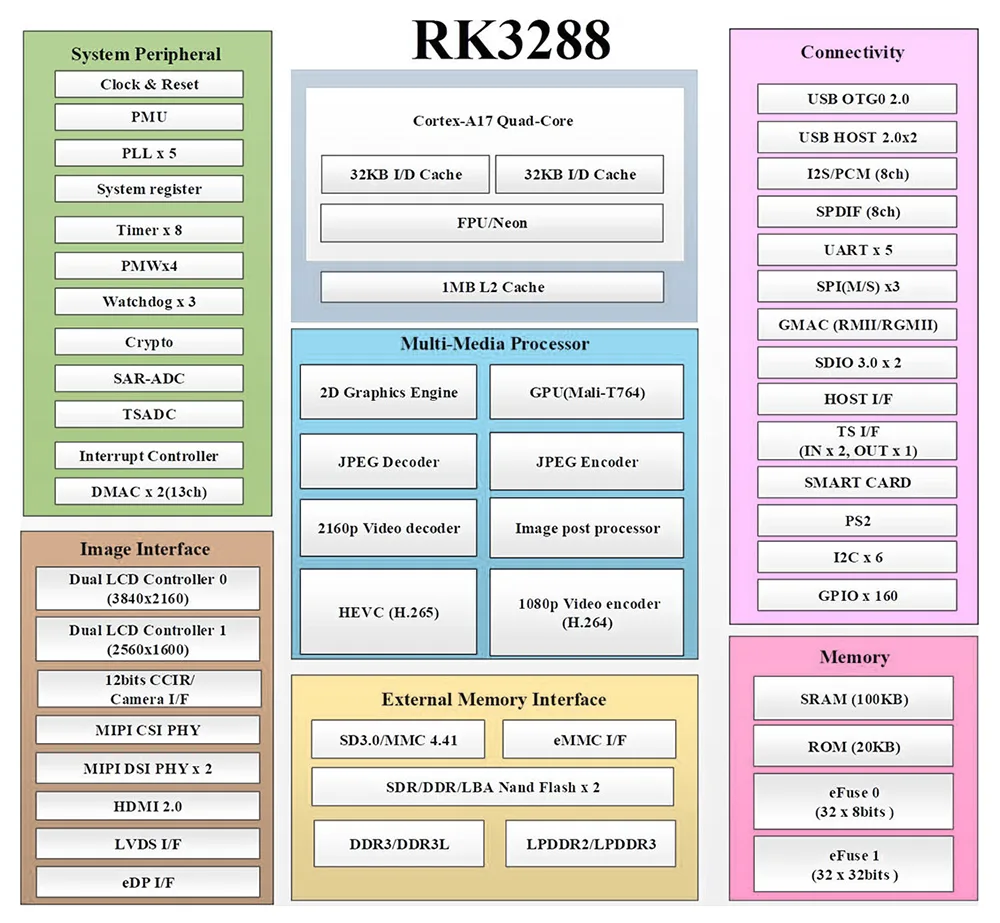

Rockchip RK3288 Quad-core Processor

Rockchip RK3288 is a high-performance application processor for high-end tablet computers. It integrates the ARM Cortex-A17 with the Neon and FPU coprocessors, respectively, and has many high-performance interfaces to provide very flexible solutions, such as as a multi-channel display with dual channel LVDS, dual channel MIPI-DSI, eDP1.1, HDMI®2.0, And embedded 13MP ISP dual channel MIPI-CSI2 interface.

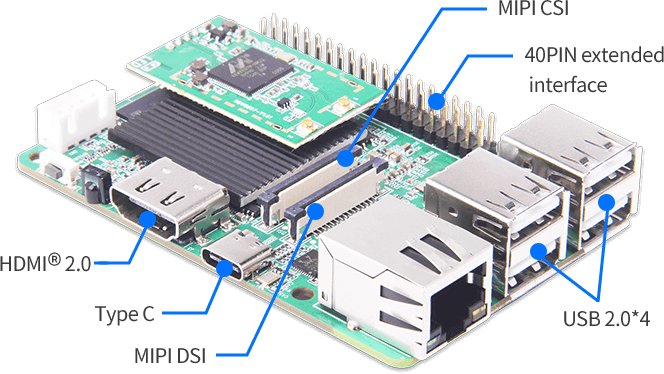

Rich Interface, can Meet a Variety of Extensions

  • Supports four USB2.0 channels and uses Micro USB power supply
  • Supports a variety of display interfaces: MIPI DSI*1, HDMI®2.0*1
  • Supports MIPI cameras
  • Built-in 40PIN extended interface, including the common GPIO, SPI, I2C, UART, PWM, PCM/I2S, SPDIF

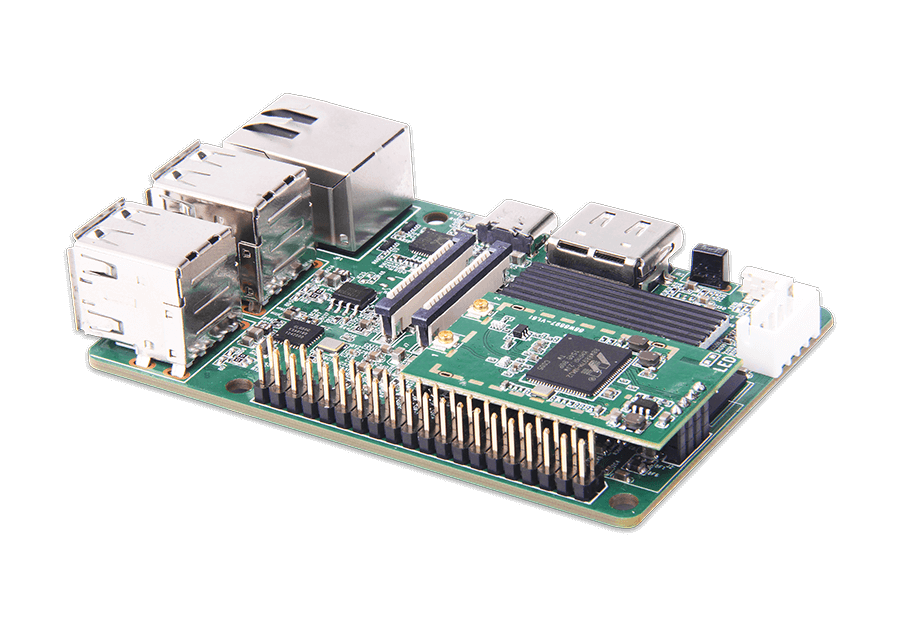

Card Board

The motherboard specification is like the bank card, which is convenient to use and does not occupy the position. It is also convenient to carry.

XPI-3288 – Custom SBC Board

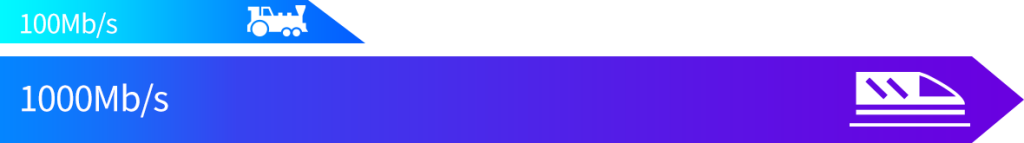

GigE Interface

Gigabit Ethernet can provide 1Gb/s communication bandwidth, a smoother data transmission experience.

Supports Multiple Operating Systems

Stable operation of Android, Linux operating system, reliable performance

Application Scenarios

Can be used for office learning, intelligent embedded, DIY electronics, games and entertainment

  • CPU Frequency
    Quad-core Cortex-A17 up to 1.8GHz
  • GPU
    Mali-T764 GPU
  • Internal Memory
    Up to 2 GByte LPDDR3
  • Internal Storage
    Up to 16 GByte eMMC
  • OS
    Android 7.1 and Linux(Debian 9)
  • Ethernet
    Bluetooth/NFC Single-Chip SoC
    IEEE 802.11ac/n/a/g/b, Bluetooth 4.0
  • USB
    USB2.0*4,Micro USB*1
  • TF slot
  • HDMI®
  • MIPI
  • Remote Control
    Support IR and USB remote control
  • I/O
    28 * GPIO Pins
    2 * SPI Bus
    2 * I2C Bus
    4 * Uart
    2 * PWM
    1 * PCM/I2S
    2 * 5V Power Pins
    2 * 3.3V Power Pins
    8 * Ground Pins
  • Power
    Micro USB 5V/2A
  • Size
    88 x 58 x 19.5 mm
  • weight




Source Codes
