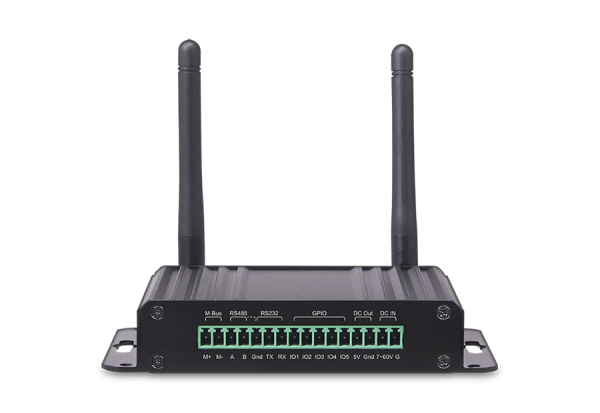

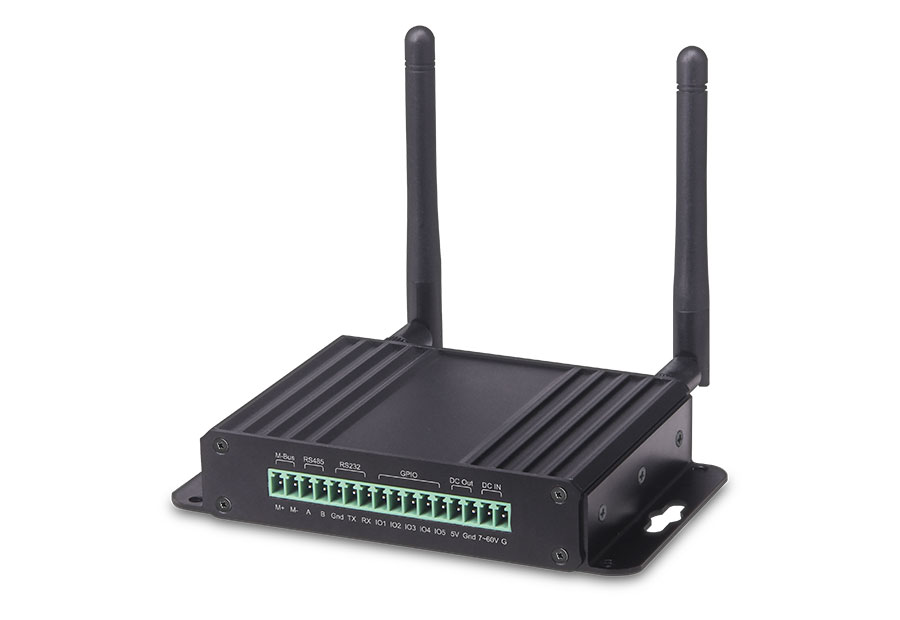

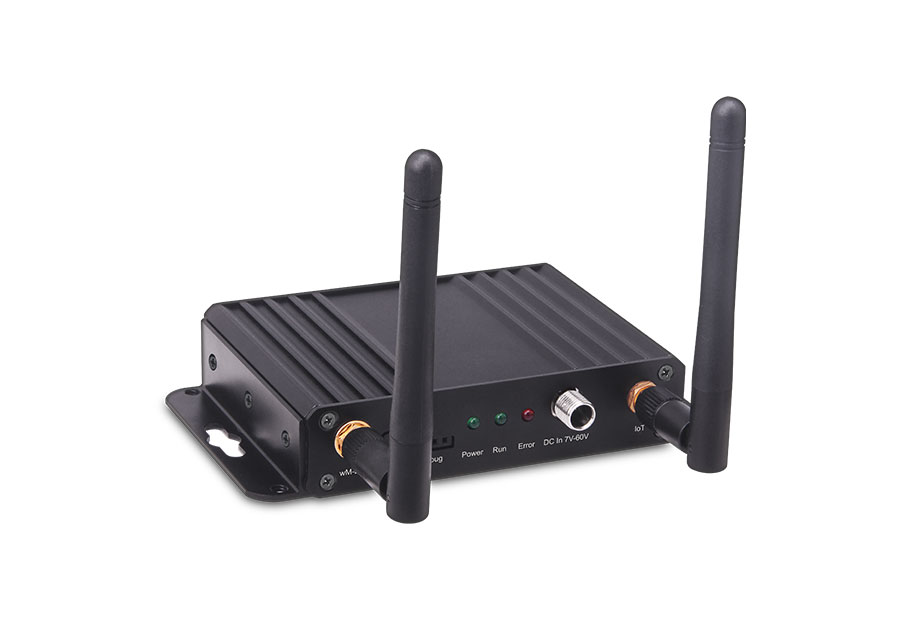

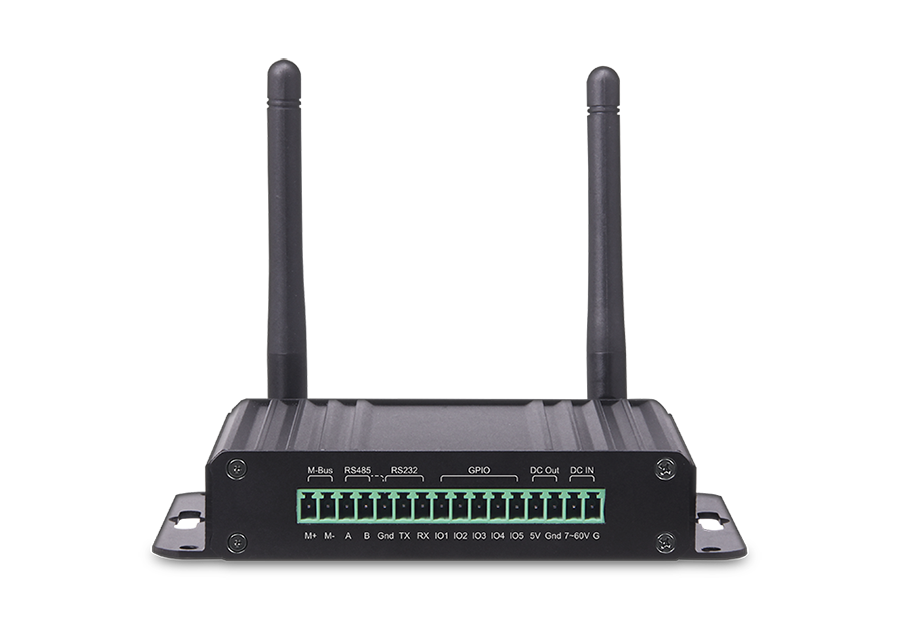

MSE32IM Wireless Sensor Data Acquisition Box

Sensor-Box MSE32IM data acquisition box can complete wired meter reading, wireless meter reading, sensor and other data transmission through wireless M-BUS protocol or other mainstream wireless protocols (Z-Wave, ZigBee3.0, BLE5.0, LTE CAT1, LoRa terminal,etc.).Traditional wired protocols (e.g. M-BUS) are also available.MSE32IM data acquisition box uses radio digital encryption communication technology, can replace the connection cable, greatly reducing the cost of human and material resources, reduce the difficulty of construction and maintenance.MSE32IM data acquisition box has standard RS485 and RS232 interface, can replace the wired RS485 and RS232 networking,And achieve wireless 485 and wireless 232 networking.The product is compact in size,The wide voltage input and aluminum housing design are customized for industrial grade,After a lot of tests, the quality is stable and reliable.Widely used in industrial automation, factories and mines,electric power, water conservancy, environmental protection, agriculture, transportation, military industry, security and other fields.

Get A Quote

Multiprocessor processor

Wireless M-Bus, wired M-Bus

Balanced power consumption

Industry-leading energy efficiency, super fast wake up speed


Rich interfaces can be supported ZigBee3.0 ,Z-Wave,BLE5.0 , LoRa terminal ,LTE cat, RS232/485,M-Bus

No distance restriction

With 4G, there is no limit to the wireless transmission distance between two points.

Safety performance

Independent hardware encryption accelerator, true random number generation terminal, enhance the privacy of data transmission.

Automatic error correction

Strong error correction ability, can take the initiative to correct the interfered packet, greatly improve the transmission reliability.

High Scalability

Support 4G/LTE Internet access and data transmission functions; Support Geniatech defined compatible interface:
GT-IoT interface(support ZigBee3.0, Z-Wave7, LoRa terminal, BLE, etc.)Compatible with several common module interfaces at home and abroad.

Rich IO Acquisition Interface

Data acquisition function adopts standard M-BUS to configure, read and control IO module, which can be read by IO, M-BUS 232/485
serial port or by And has rich read instructions and configuration functions, Collected data is transmitted via LTE.

MSE32IM Wireless Sensor Data Acquisition Box

Industrial Grade Sesign with High Reliability

Balanced power consumption, industry-leading energy efficiency, super fast wake up speed 7~60V wide voltage design, -40~+85℃ wide temperature design;
Isolated RS232 or RS485 design, 15 kV ESD protection;Software and hardware watchdog, once found abnormal, the module will automatically restart within 1 second, and resume normal operation;

Application Scenarios

It is suitable for wired meter reading, wireless meter reading, sensor protocol forwarding, mine, oil well, water conservancy monitoring,
intelligent agriculture, intelligent transportation, intelligent factory, industrial control, building monitoring, medical industry, hotel and other industries.

  • Processor
    32-bit ARM® Cortex®-M4 core
  • CPU Frequency
  • WDT
  • M-Bus
  • Wireless M-Bus
    S Mode:868MHz Band
    T Mode:868MHz Band
    C Mode:868MHz Band
    N Mode:169MHz
  • LTE
    Support:LTE Cat1
  • RS-232/RS485
  • GPIO
  • I2C
  • Battery
    Support(Support power report)
  • Connectivity
    GT-IoT(uart*1;spi*1; GPIO*1)
    Support Z-Wave7 terminal equipment
    Support ZigBee3.0 terminal equipment
    Support LoRa terminal equipment
    Support BLE5.0

Mechanical Properties

  • Size (mm)
  • Net Weight (g)
  • Power
  • Wide working range
    Consumer (-40°C to 85°C Tj)
    Industrial (-40°C to 105°C Tj)
  • RoHS and Reach compliant
