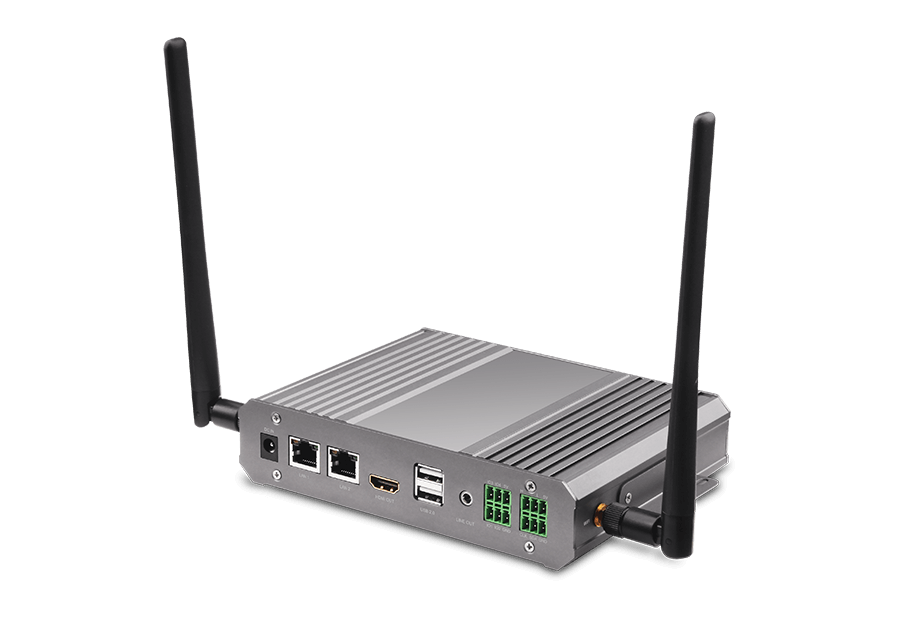

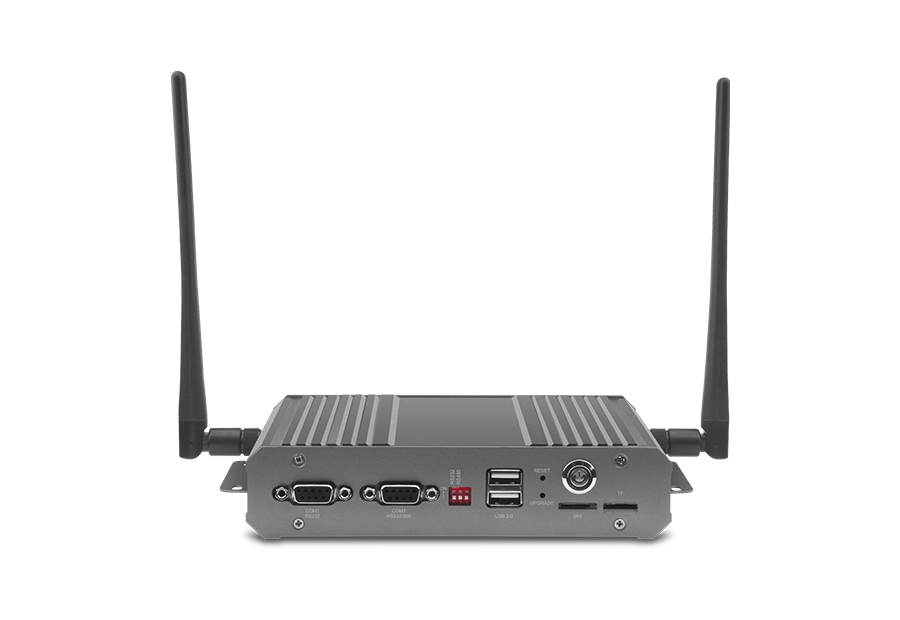

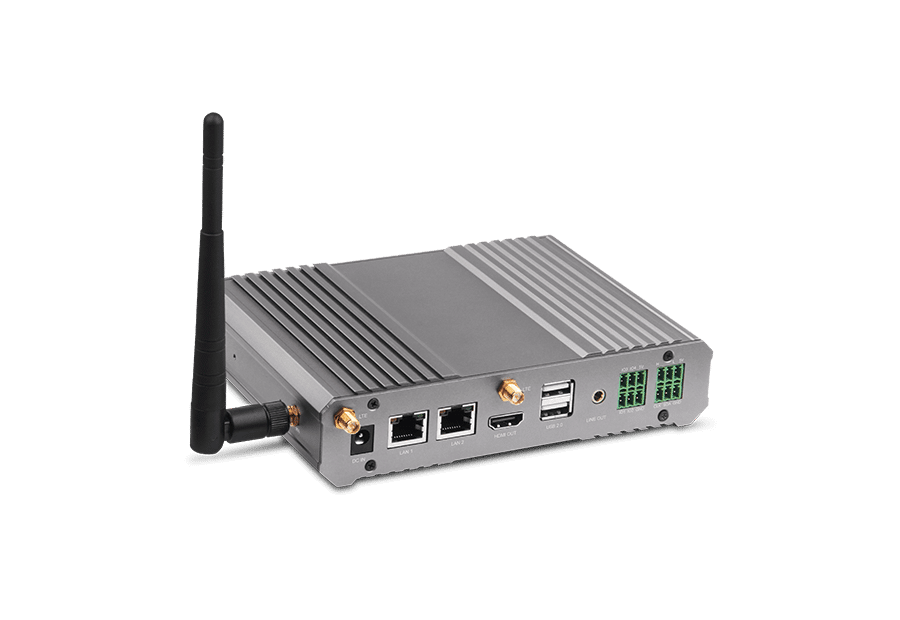

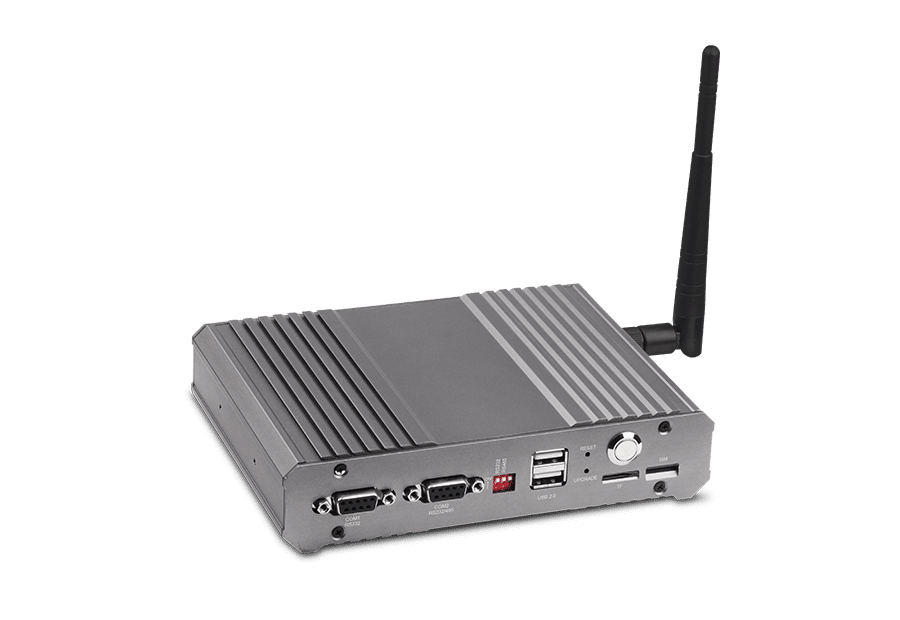

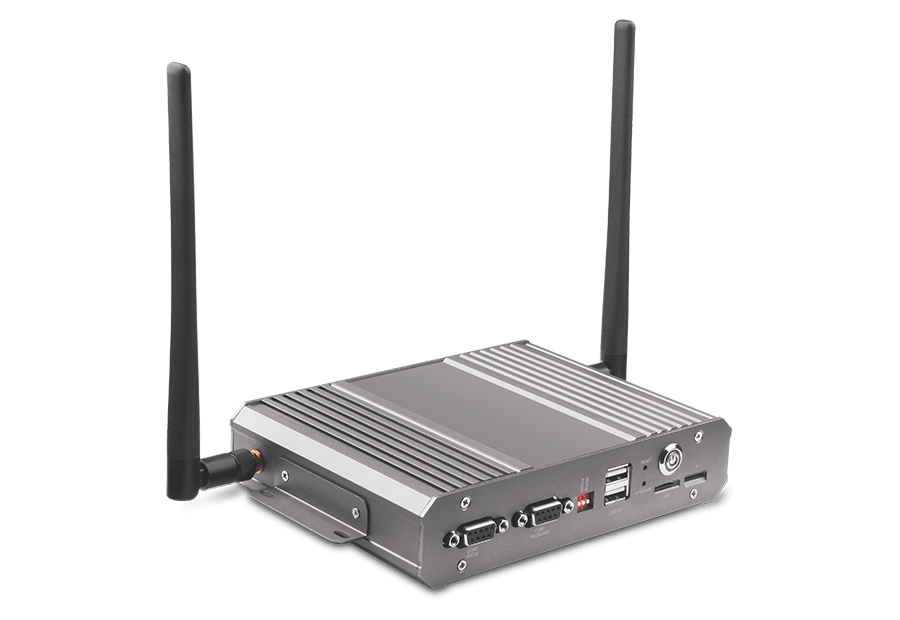

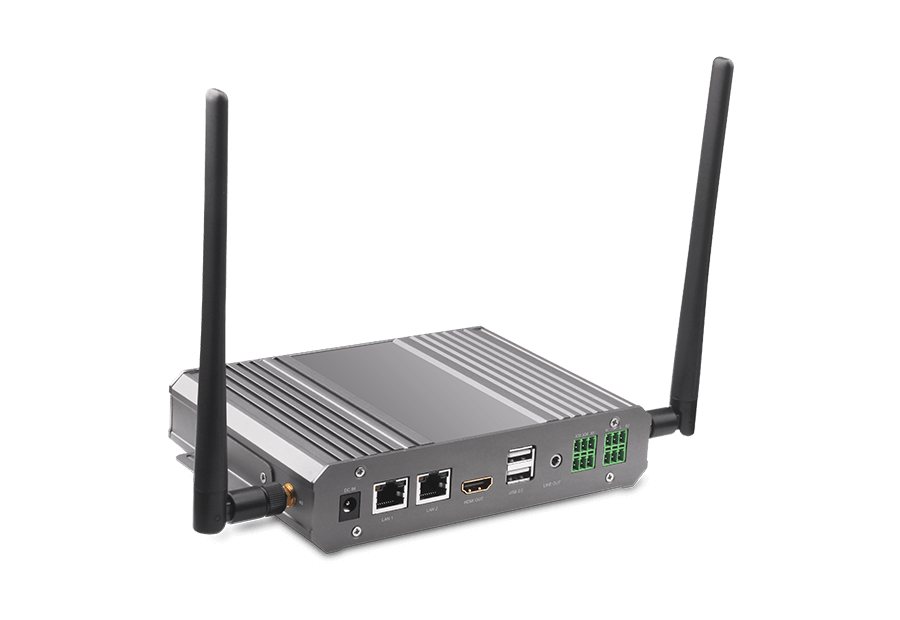

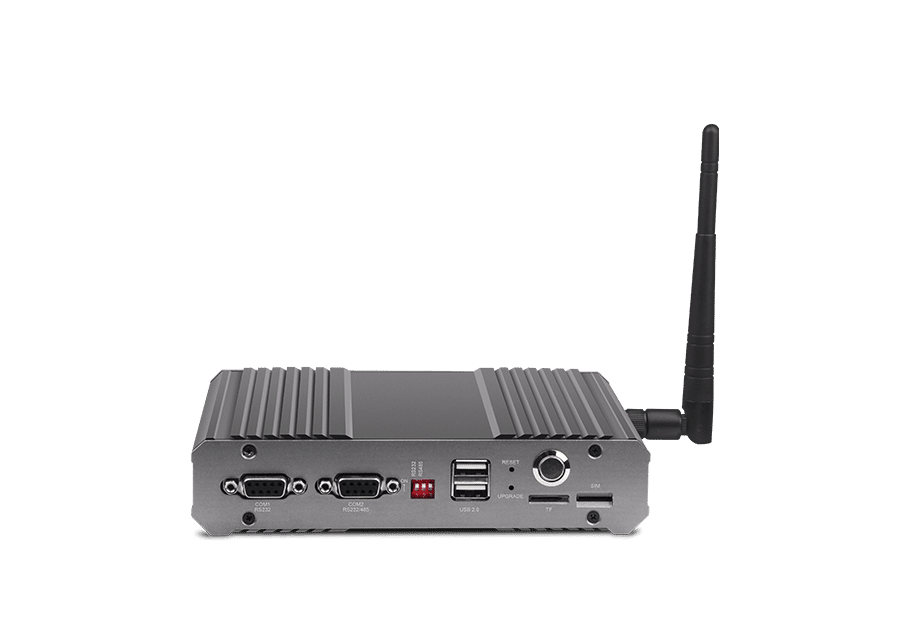

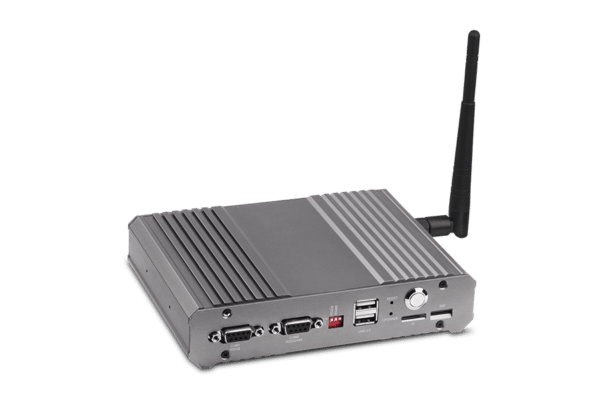

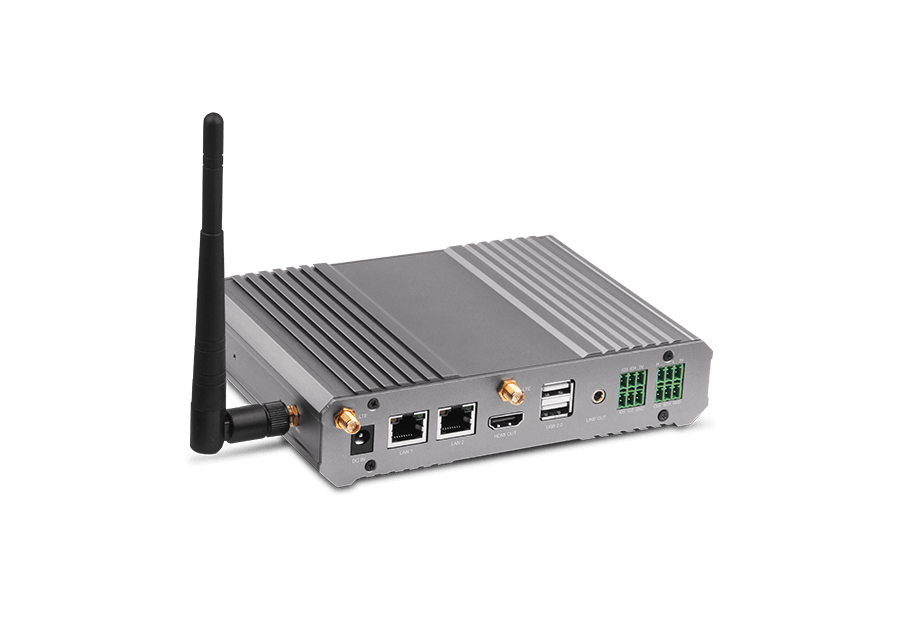

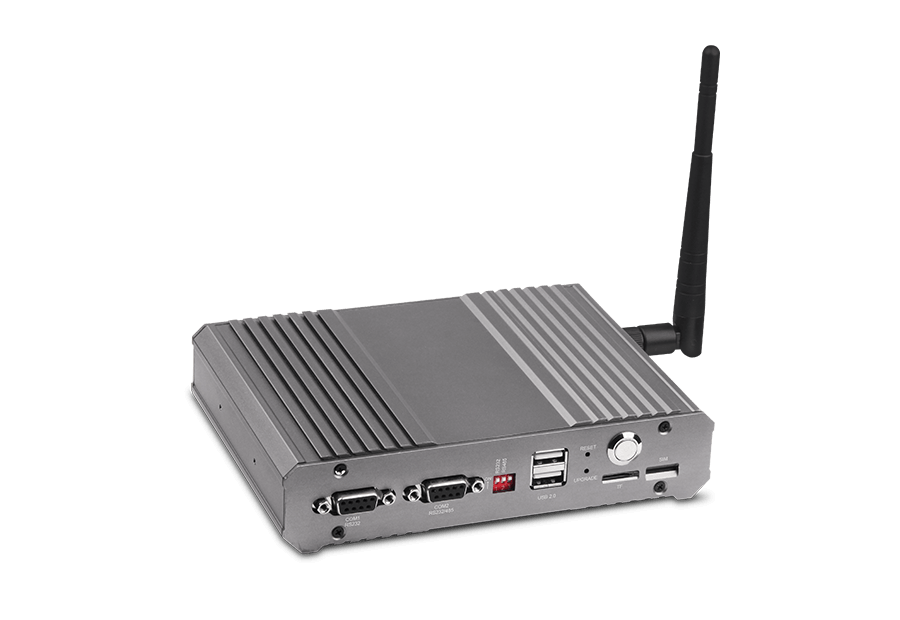

APC1126 Edge AI Box Computer

APC1126 is an AI edge computing box with Rockchip RV1126 processor, integrated AI NPU up to 2.0Tops, 4-way 1080@30fps video capture, 4K H.265/H.264 video encoding/decoding, rich expansion interfaces, and SDK support. It offers high performance, low power consumption, lightweight, and is ideal for security, transportation, finance, face recognition, access control, and more.

  • Rockchip RV1126 Quad-core A7 processor with integrated 2 TOPS AI power
  • Up to 4-way 1080@30fps video stream capture, 4K@30fps video decoding
  • Industrial wide-temperature design: -20℃~60℃
  • Dual Ethernet, Wi-Fi 6, optional 4G LTE, PoE
  • Integrated HDMI, RS232/RS485, GPIO, I²C, Line out, USB
  • Rich documentation support including SDK interface
Get A Quote

Powerful quad-core high-performance AI processor

The RV1126 processor from Rexchip Micro dedicated to AI vision, with integrated NEON and FPU, has a main frequency of up to 1.5 GHz. The built-in 2.0Tops neural network processor NPU enables easy conversion of models based on multiple frameworks, such as TensorFlow, MXNet, PyTorch, Caffe, etc., and provides a better performance for AI algorithm deployment and AI applications. Superior performance for AI algorithm deployment and AI applications.

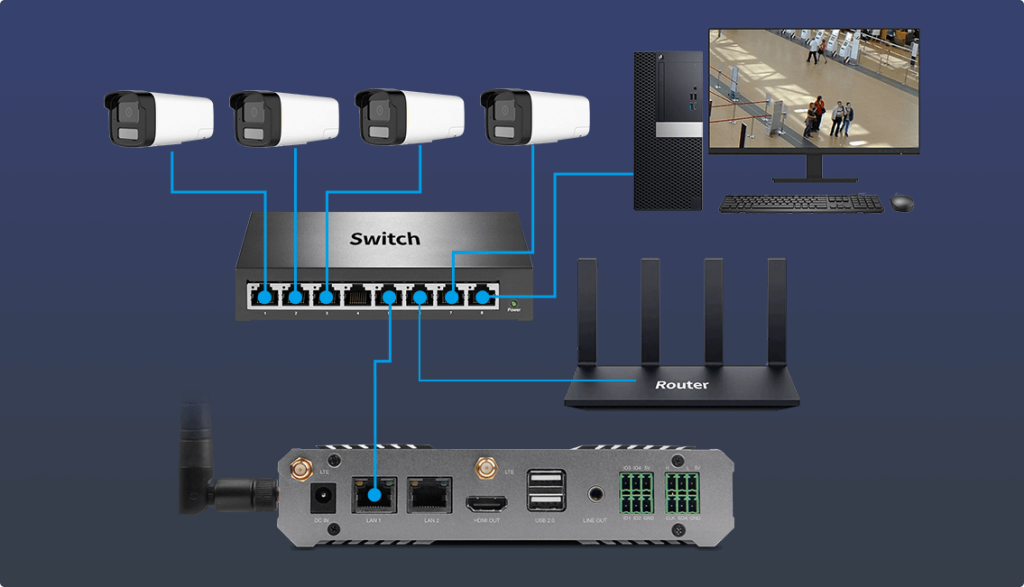

Supports 4-channel video stream and 4K H.265 UHD video encoding and decoding

Built-in Video Codec supports up to 4-channel 1080@30fps video stream capture and 4K@30fps H.265/H.264 UHD video codec, which meets the needs of low bit rate, low latency encoding and perceptual encoding.

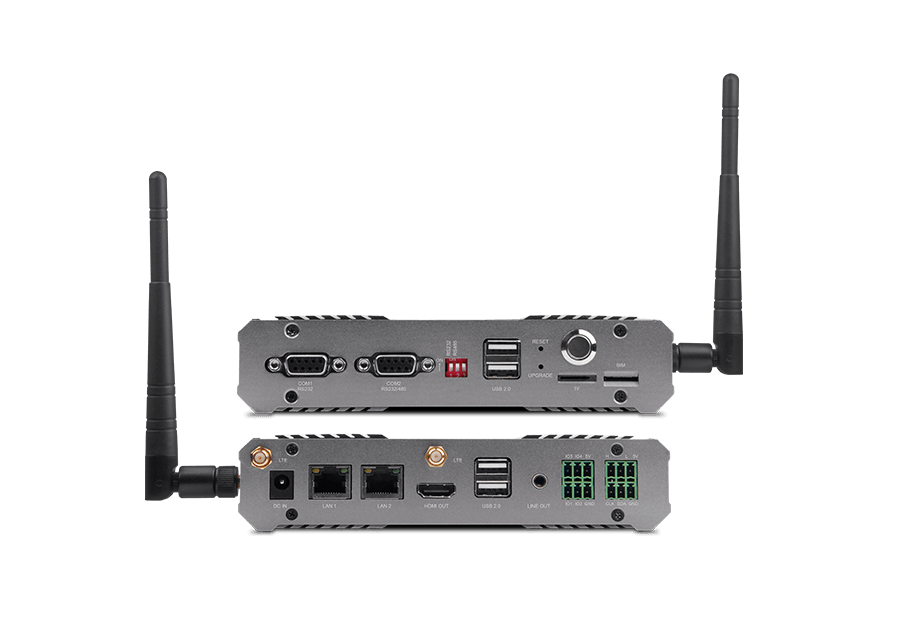

Rich expansion interfaces to meet the application requirements of more scenarios

Integrated HDMI, RS232/RS485, dual Ethernet ports, GPIO, I²C, Line out, USB and other rich expansion interfaces, easy to connect a variety of external devices and sensors, to meet the application needs of more scenarios.

Industrial wide temperature design to meet various industrial application scenarios

-20℃~60℃ industrial wide-temperature design, provide long-term, stable supply cycle, with high performance, low power consumption, lightweight, easy access, etc., suitable for a variety of long-time operation and for low-power industrial application scenarios.

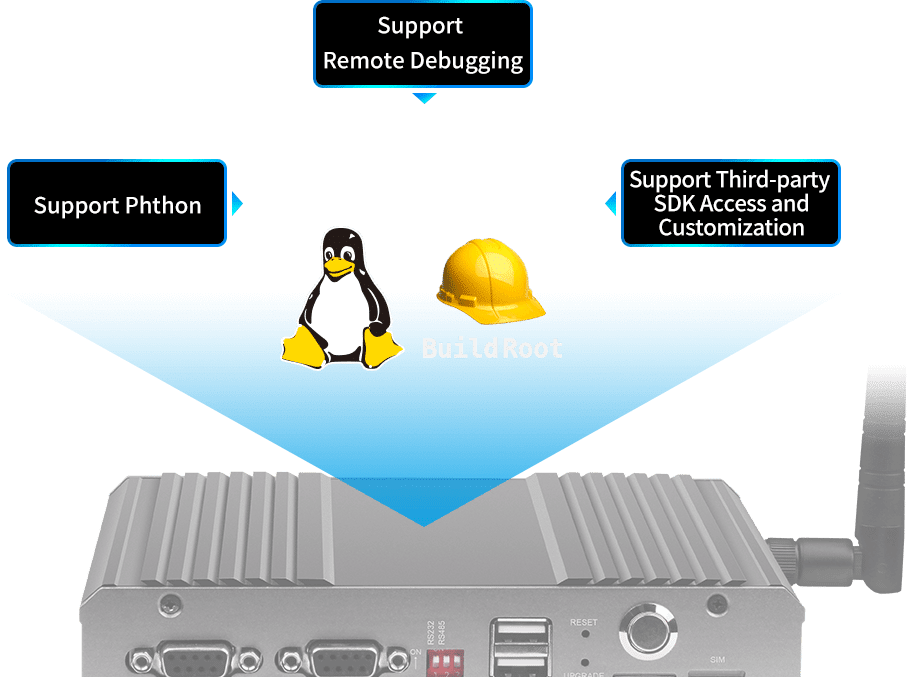

Support for Buildroot operating system

Support Linux Buildroot operating system, the system occupies small resources, fast startup, stable and reliable operation, can be based on the system kernel depth of customization and development of the service layer, to achieve the remote upgrade and management of the equipment, greatly enhance the convenience of the later operation and maintenance and operation and maintenance efficiency.

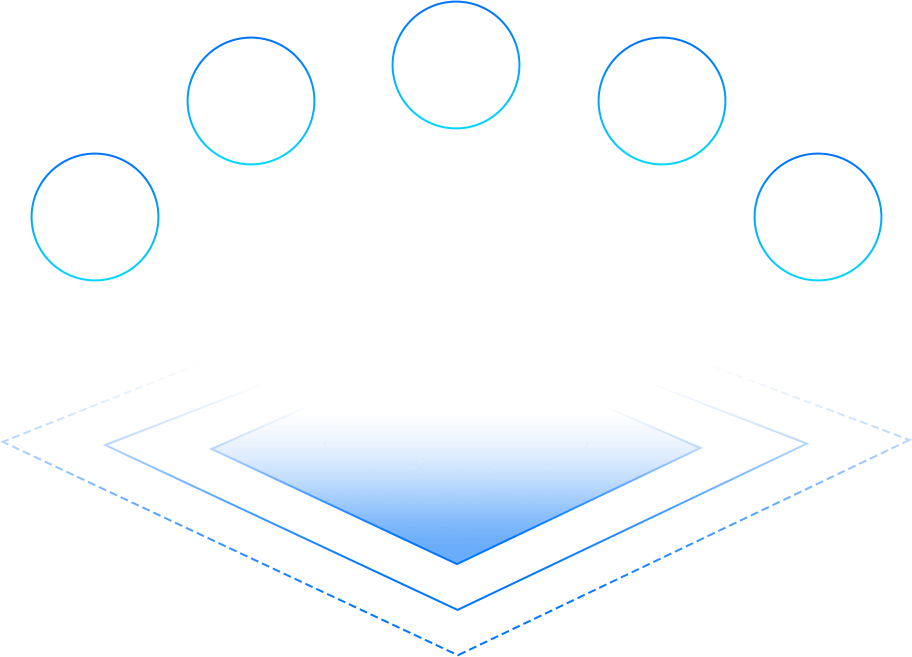

Provide complete technical data for efficient secondary development

Geniatech provide complete technical data including baseboard reference design data, supporting source code, technical documents, API interfaces and SDK development tools, which makes secondary development easier, more convenient and more efficient, and helps customers quickly build self-controlled customized products.

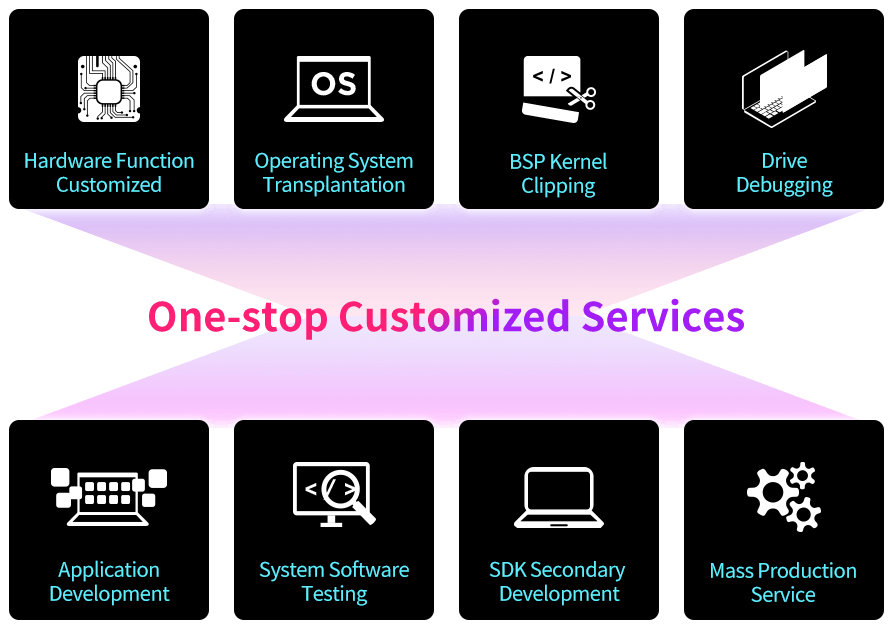

More than hardware, one-stop customization service

With 25 years of ARM product technology R&D precipitation and partner resources, Geniatech can not only provide customers with customized design of hardware functions, but also provide one-stop customization services such as operating system porting across SoC platforms, BSP kernel cutting and driver debugging, scenario-based application software development, overall system software testing services, and perfect SDK secondary development interface, etc. With the help of the company’s own production factory of nearly 30,000 square meters, we can help customers to greatly improve the quality of their products, and to improve the quality of their products. With the company’s own production plant of nearly 30,000 square meters, we can help customers greatly shorten the cycle from product selection, R&D project, small trial production to mass production and delivery, and quickly seize the first opportunity in the market.

Application Scenarios

APC1126 AI Edge Computing Box has powerful computing capabilities and rich expansion interfaces, and can be widely used in intelligent security (face recognition, behavior analysis, target detection and tracking), intelligent education (image recognition, machine learning and deep learning), intelligent transportation (vehicle recognition, intelligent signal control, traffic flow analysis and violation monitoring), intelligent construction sites (helmet recognition, dump truck recognition ), smart home and Internet of Things (face access control, smart security, smart home appliance control and environment monitoring), industrial automation (image recognition, object positioning and operation control), smart superstore (customer flow statistics, face recognition, product recognition) and other scenes.

  • CPU
    Rockchip RV1126, Quad-core ARM Cortex-A7 up to 1.5GHz and RISC-V MCU
  • NPU
    2TOPS
  • RAM
    2GB(1GB to 4GB optional)
  • Storage
    8GB eMMC (up to 128GB Optional)
  • Linux OS
    Buildroot 4.19
  • Ethernet
    1000 Mbps Gigabit Ethernet + 100 Mbps Ethernet
  • WIFI/BT Module
    1T1R WIFI-6E a/b/g/n/ac/ax and bluetooch 5.3 and 802.15.4/Thread
  • 4G Module
    EC20/EC25 Optional
  • POE
    Optional (Max: 24W)

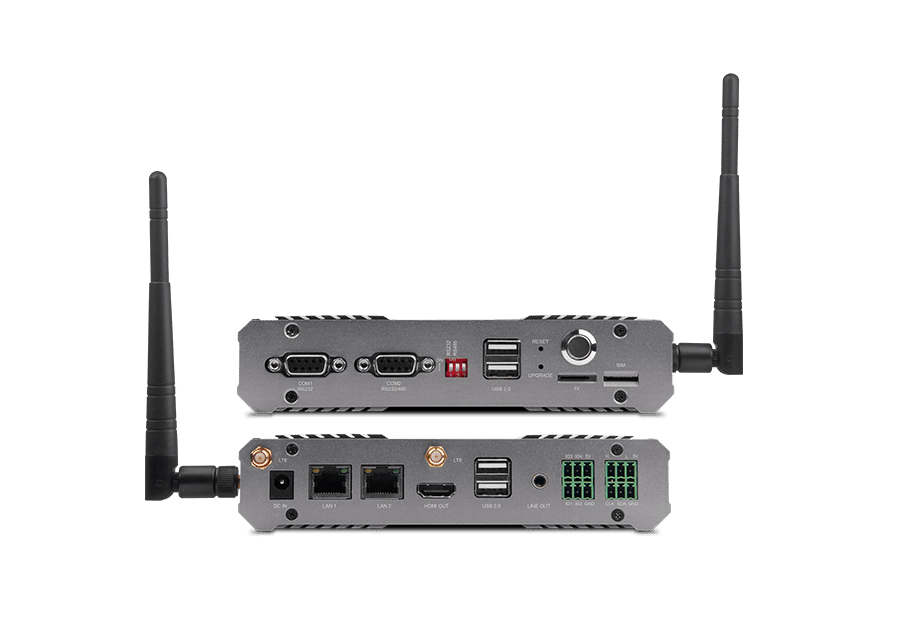

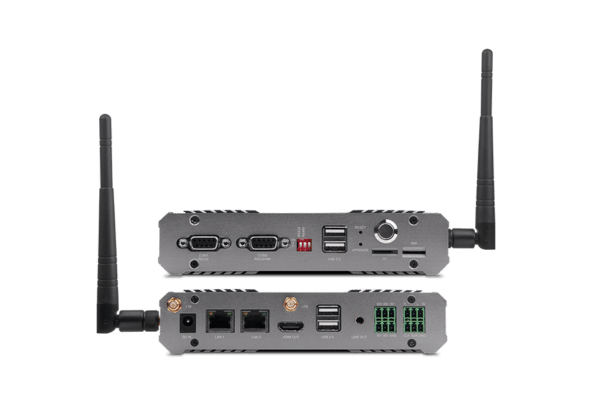

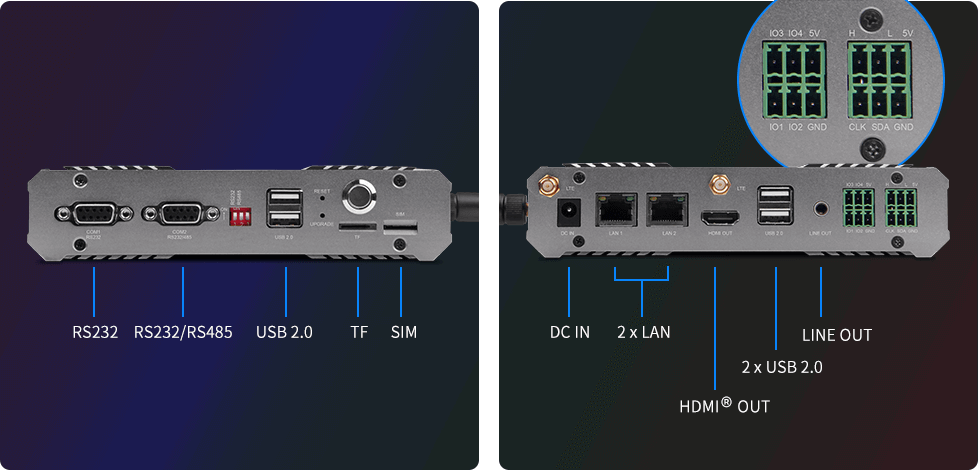

  • Interface
    1x HDMI® Out
    1x RS232
    1x RS485
    4x USB 2.0
    1x Line out
    4x GPIO
    1x I2C
    1x SIM (Micro)
    1x TF
  • Power
    DC 12V / 2A
  • Size
    170mm*125mm*38mm
