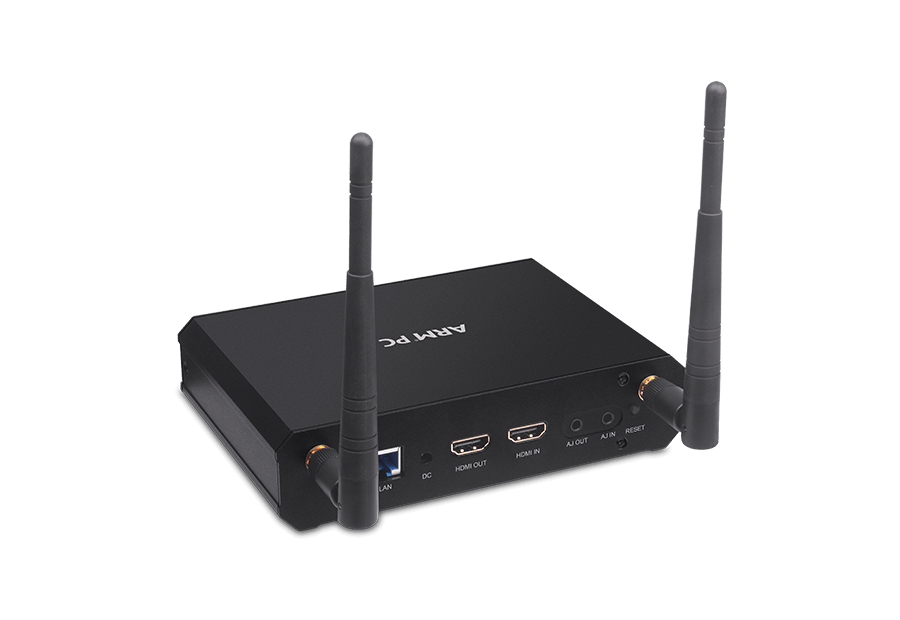

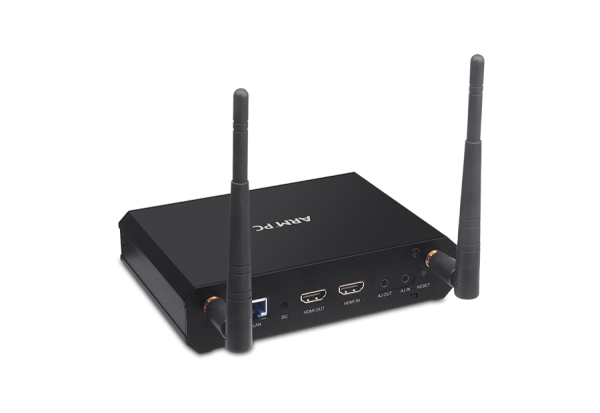

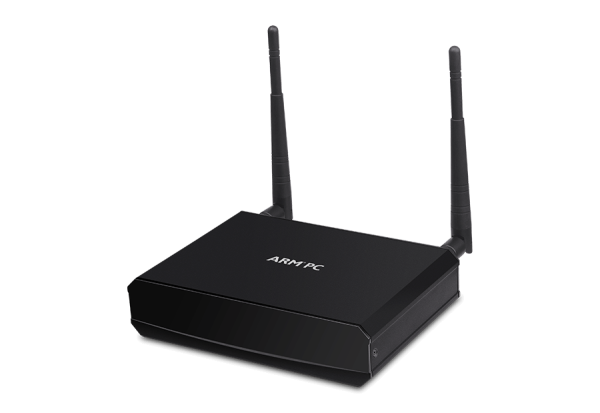

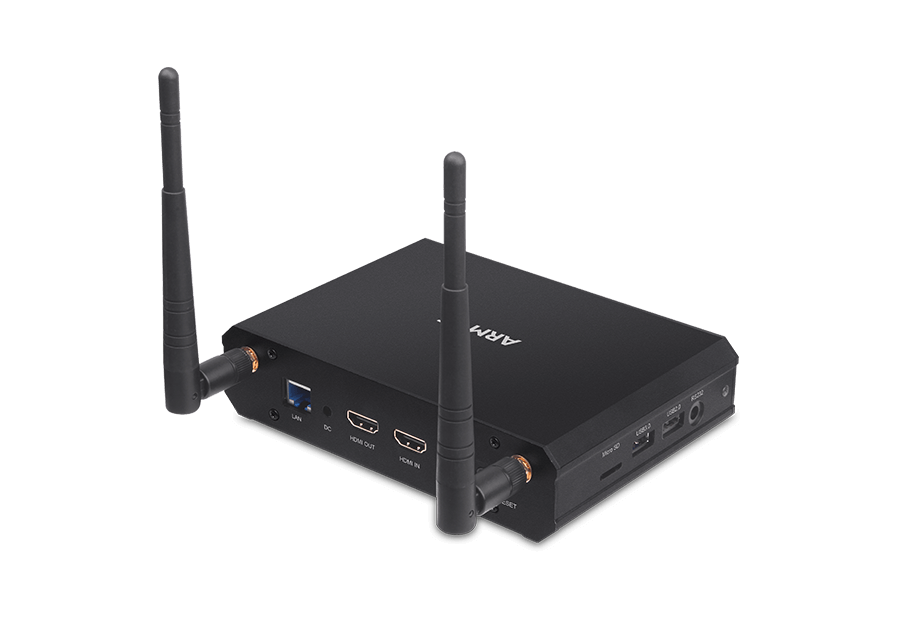

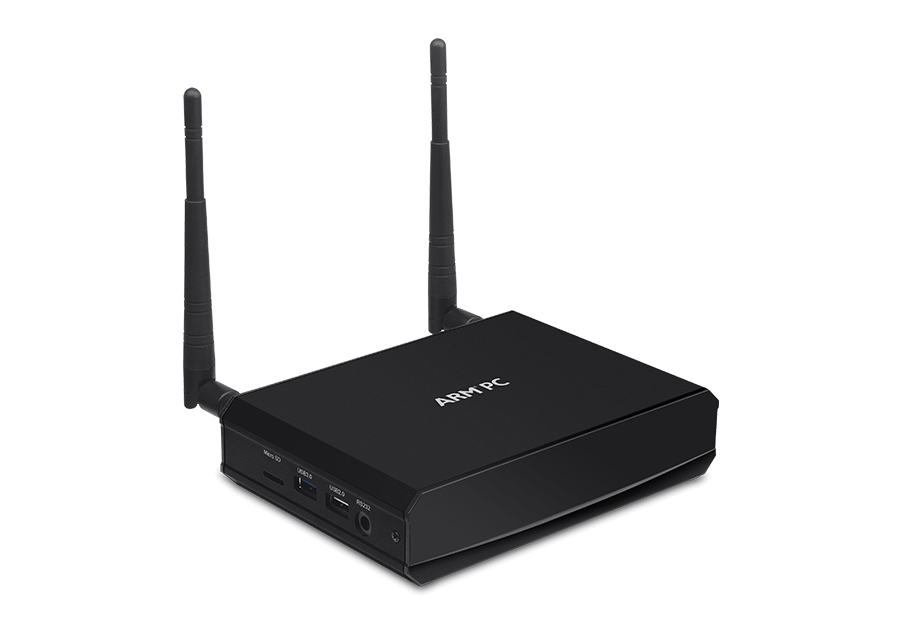

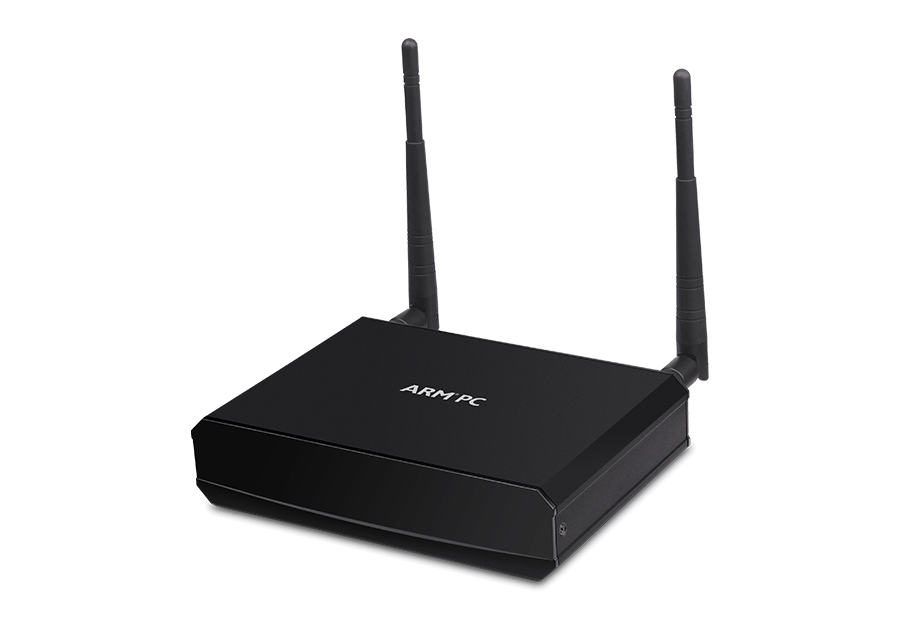

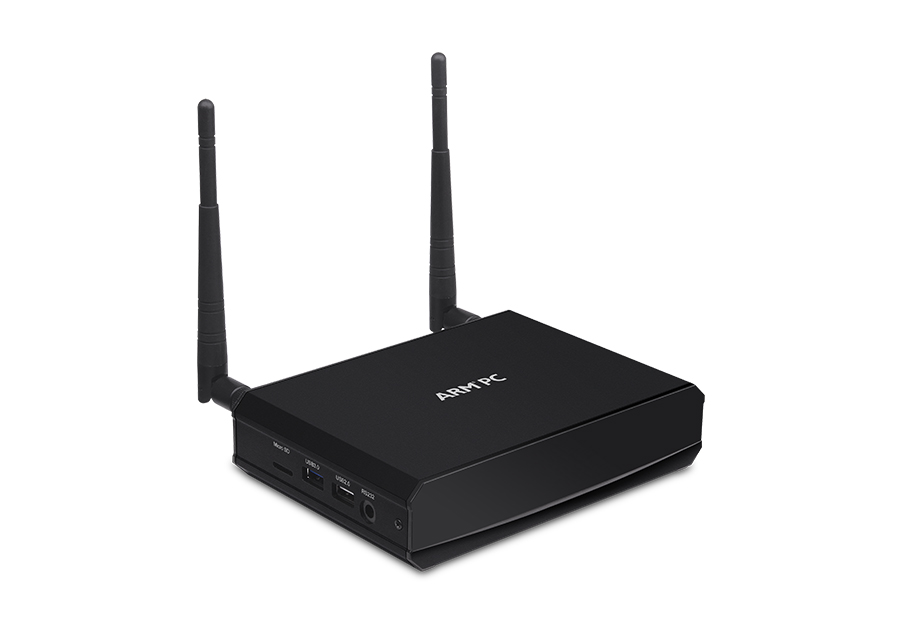

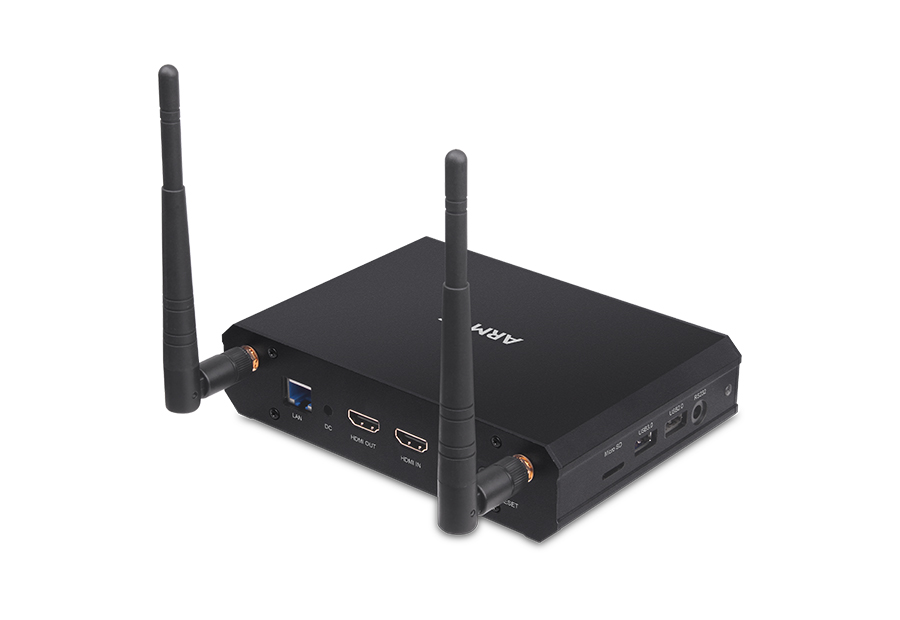

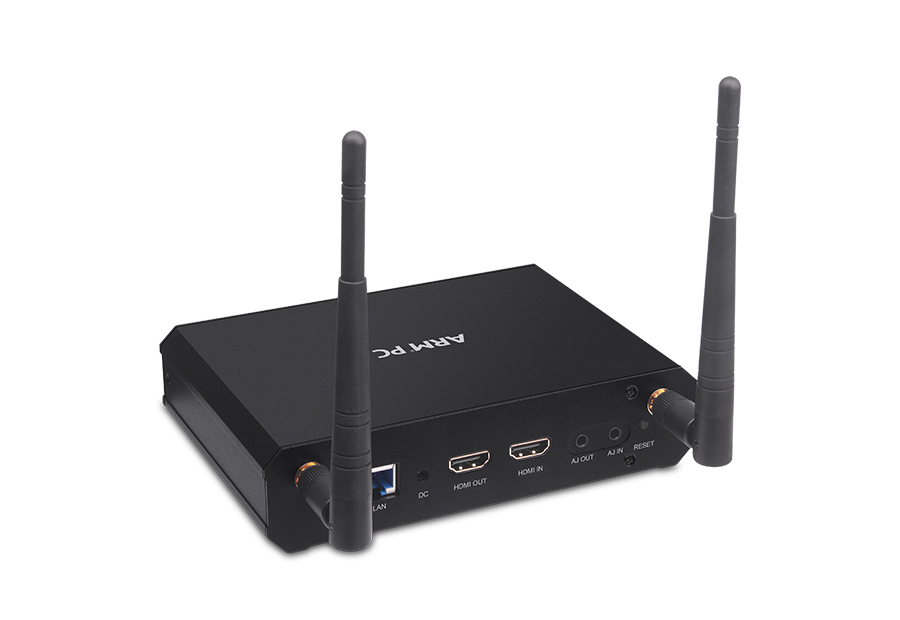

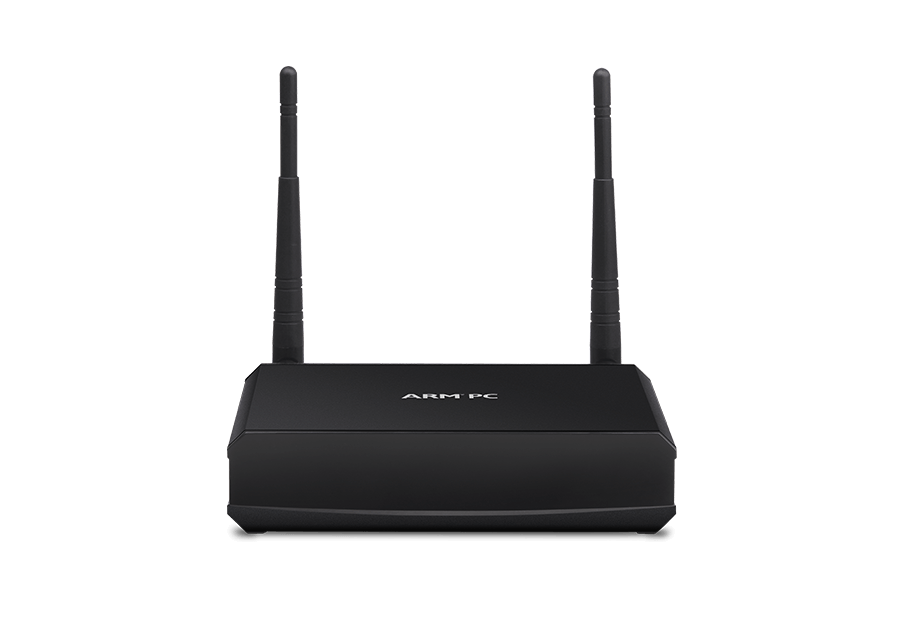

APC3399 Industrial Mini PC

APC3399 features a low-power, high-performance processor with a rich interface, including HDMI® IN, Line In/Out, POE Power Supply. It supports various video decoding formats like 4K*2K@60fps H.264/H.265/VP9 and 1080P@30fps H.264/MVC/VP8, making it suitable for computers, Internet mobile devices, VR, advertising machines, digital signage, and other intelligent terminal equipment.

  • Rockchip RK3399 ARM Dual-core Cortex-A72 and quad-core Cortex-A53
  • ARM Mali-T860MP4 GPU supporting OpenGL ES1.1/2.0/3.0, OpenCL1.2, DirectX11.1, etc.
  • 4GB LPDDR4 (1GB/2GB optional) + 8GB EMMC (16GB~64GB optional)
  • HDMI® output/input, Line In/Out, POE Power Supply
  • Seamless connectivity: Gigabit LAN, Wi-Fi, Bluetooth
  • SDK available for comprehensive display control
  • Android OS 10, 4K/2K Support

Buy a Sample

Get A Quote

Intelligent Performance

CPU adopts RK3399(ARM Cortex-A72) size core architecture, six-core ARM-A72+ four-core ARM-A53 main frequency 2.0GHz core configuration, while using 4G LPDDR4(1G/2G) memory, built-in 8G(16G-64G optional) storage, the ultimate performance makes the product with a sense of fluency and more possibilities.

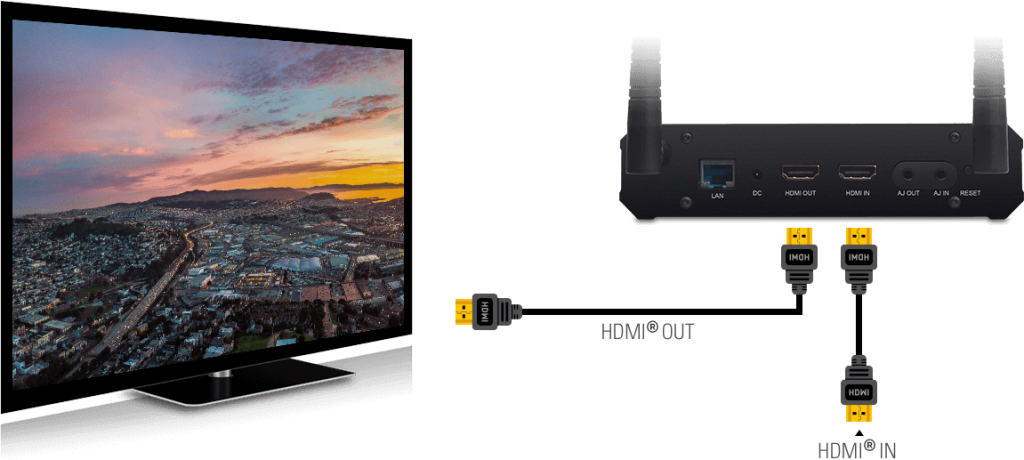

HDMI® IN

The APC3399 includes an HDMI®input port to which you can connect another media device and view it as a picture in a picture or in full screen without having to connect the device to your TV

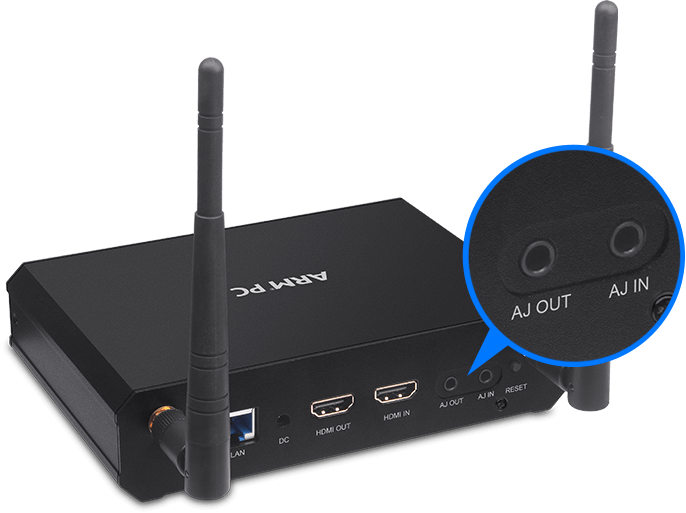

Line In and Line Out Can Be Supported

Support remote diagnosis of problems, remote control of online equipment.Support for remote management of content distribution, application deployment and service push.

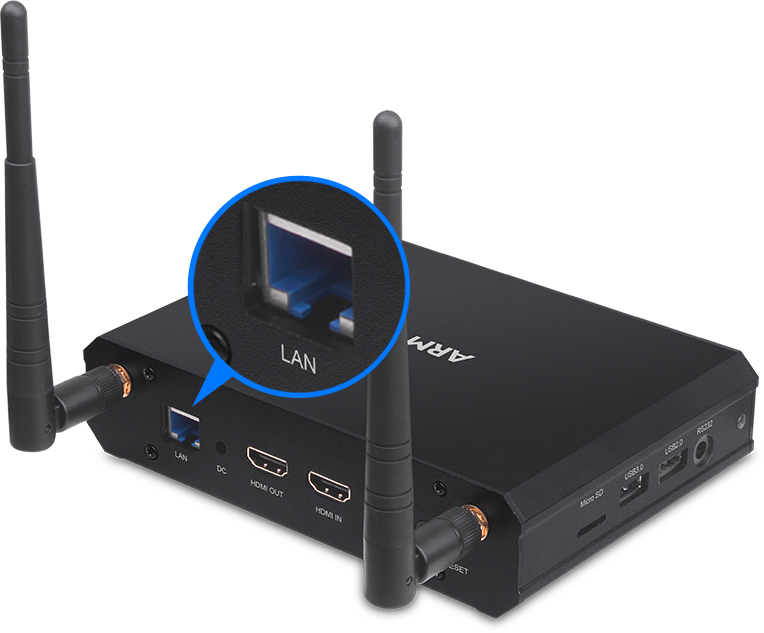

Support POE Power Supply

Stable performance, equipment installation position does not need to consider the power cord, socket position

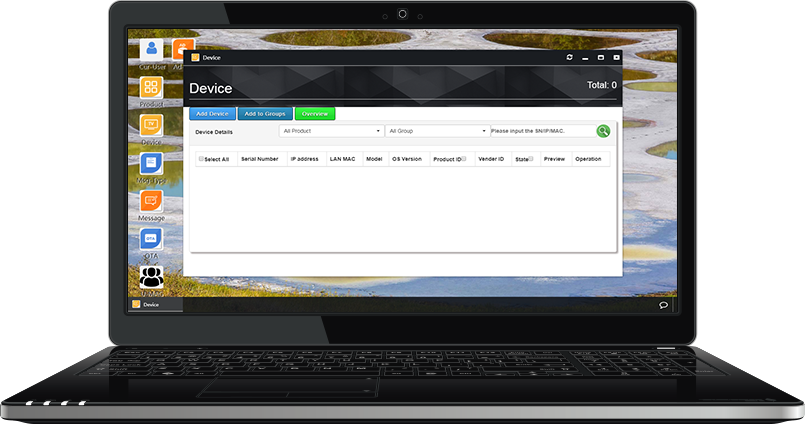

Remote Device Management System (MDM)

Support remote diagnosis of problems, remote control of online equipment Support for remote management of content distribution, application deployment and service push.

Support APP customization, SDK secondary development, to give you more choices.

Multiple Application Scenarios

It can be applied to intelligent education, POS solution, KTV solution, remote intelligent display system solution, smart home solution, digital signage solution, etc.

CPU Dual-core ARM Cortex-A72 MPCore processor and Quad-core ARM Cortex-A53MPCore

GPU

ARM Mali-T860MP4 GPU support OpenGL ES1.1 / 2.0 / 3.0,

OpenCL1.2,DirectX11.1
Internal memory 4GLPDDR4(1GB/2GB optional)
Internal storage 8G(16GB-64GB optional)
OS Android 10
USB interface USB2.0 x1,USB3.0x1
HDMI®IN Support
HDMI® OUT Support
BT Support BT4.1
Micro SD card Support 32G(max)
Video output interface HDMI®
Audio output interface HDMI®
IR Support
RS232 Support
POE power supply Support
NI(network interface) RJ45 10/100/1000M
Other interfaces Line in*1,line out*1
WiFi Built-in IEEE 802.11b/G/N AC dual-band 2.4g / 5G
Resolution The resolution supports 4096×2160 and 2560×1600 respectively
Size (mm) 113*160*37(Antenna not included)
Weight (g) 566g
Input power 5.0V-2A
