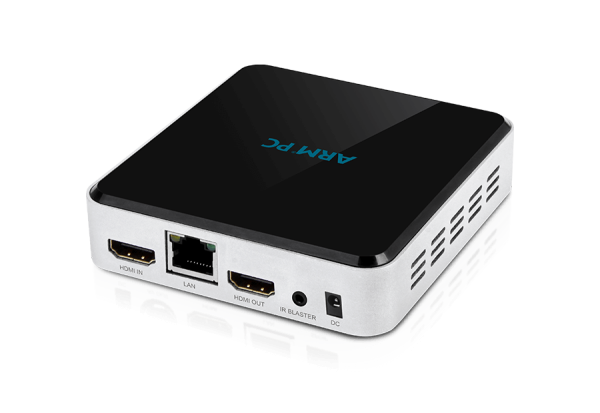

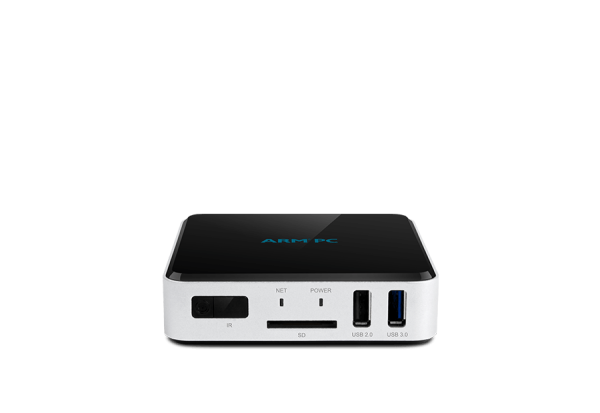

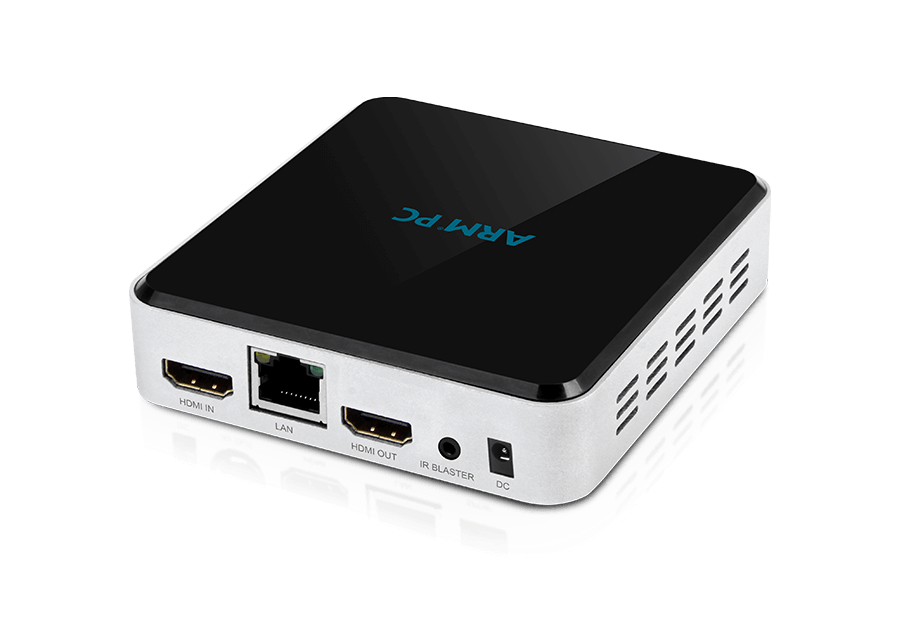

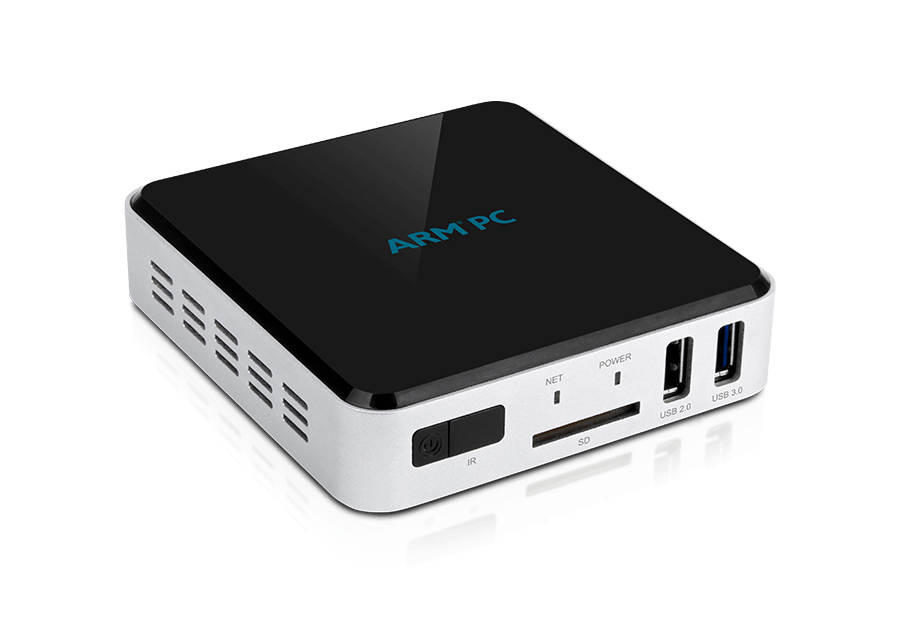

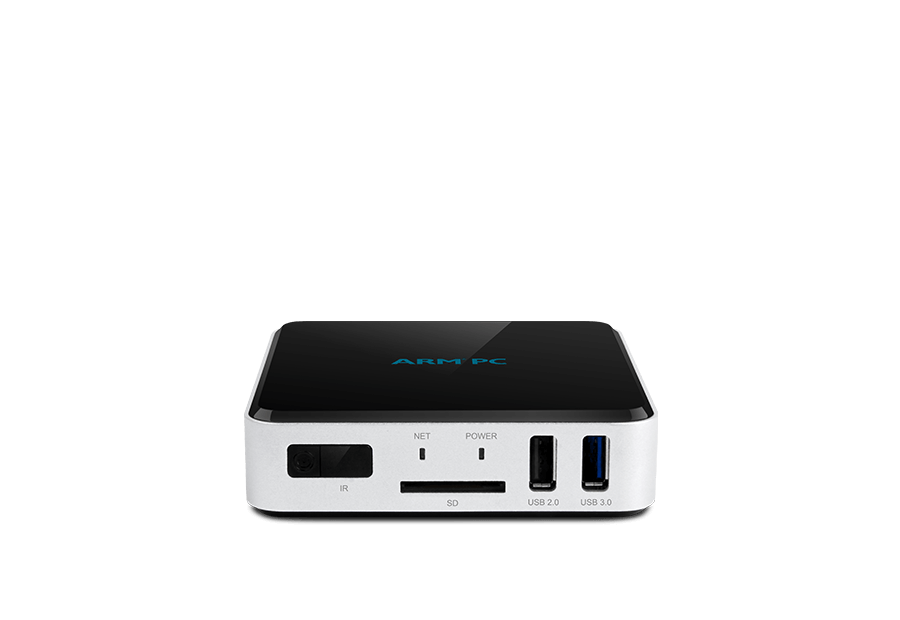

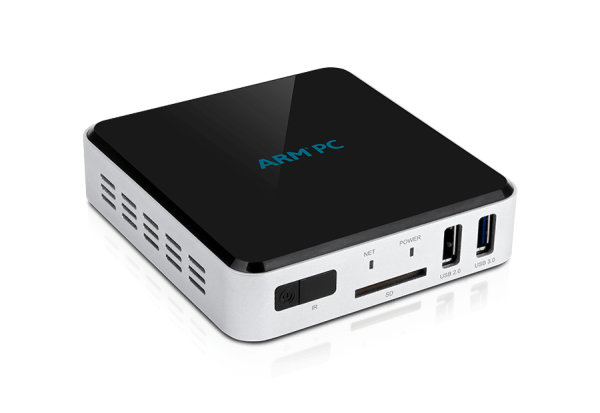

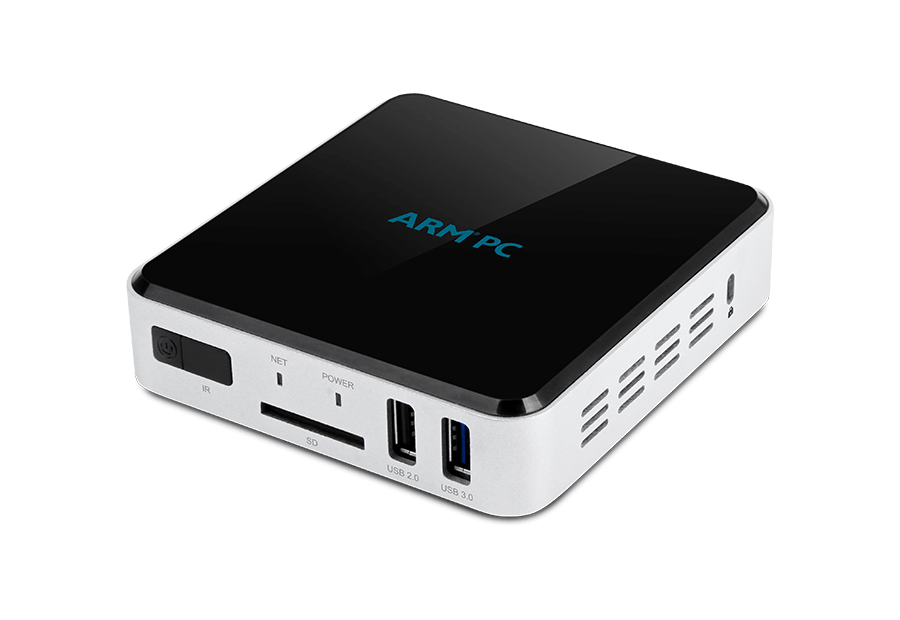

APC390R Android Mini PC with HDMI® In

APC390R is a High-performance industrial ARM PC, with HDMI®IN, 1000M network interface and 4K HDMI®output, metal frame and bottom case, good heat dissipation performance.

  • REALTEK RTD1295 Quad Core ARM Cortex-A53 CPU
  • ARM T820 MP3(3-core) GPU
  • 2GB DDR4 memory(Optional 1G DDR4)
  • 8GB EMMC(Optional 16G)
  • Android OS 6.0
  • Support 4K2K
  • H.265 up to 4K2K

Buy a Sample

Category:
Get A Quote

Good Heat Dissipation Performance

Around the body and the bottom of the metal material, at the same time with the corresponding heat dissipation hole location, excellent heat dissipation performance.

Industrial Grade Structural Design

The upper cover adopts ABS shell, the body around and the bottom shell adopts alloy material,the product is firm and reliable, lightweight.

Good Performance

  • REALTEK RTD1295 quad-core ARM Cortex-A53 CPU
  • 2G DDR4+built-in 16G EMMC
  • ARM T820 MP3 (3 core)GPU
  • Support Bluetooth, 4K2K, Dolby surround sound
  • Dual-Band WiFi(IEEE 802.11 AC 2.4G /5.8G)

HDMI®Input

The APC390R includes an HDMI®input port that allows you to connect another media device to it
and watch it as a picture in a picture or in full screen without having to connect the device to your TV.

Gigabit Network

Gigabit Ethernet can provide 1Gb/s communication bandwidth, more smooth data transmission experience.

Dual-Band WiFi

At present, there are more devices in the 2.4G band, which has more interference in the environment.
5G channels are cleaner and faster, and 5G will use less power for transmitting the same amount of data.
Therefore, dual-band WIFI gives users more choices and better experience.

Remote Device Management System (MDM)

Support remote diagnosis of problems, remote control of online equipment Support for remote management of content distribution, application deployment and service push.

Support APP customization, SDK secondary development, to give you more choices.

Multiple Application Scenarios

  • APC390R
  • Industrial ARM PC
  • CPU
  • Quad-core ARM Cortex-A53 CPU
  • GPU
  • ARM T820 MP3 GPU
  • Internal Memory
  • 1GB/2GB DDR4(optional)
  • Internal Storage
  • 8GB/16GB EMMC (optional)
  • OS
  • Android 6.0
  • Dual-band WiFi
  • IEEE 802.11 AC 2.4G /5.8G
  • USB
  • USB2.0 x1 + USB3.0 x1
  • HDMI®
  • HDMI®IN*1 and HDMI®OUT*1
  • DC Input
  • 5.0V-2A
  • MicroSD Slot
  • Max: 32G
  • Video Output
  • HDMI®
  • Audio out
  • HDMI®
  • IR Receiver
  • Remote controller
  • BT
  • Optional
  • DOLBY
  • Optional
  • LAN
  • RJ45 10/100/1000M
  • Audio Interfaces and Functions
  • Built-in Audio Codec with 24-bitresolution;One I2S interface (2 channels) for Audioinput output ;       7.1 CH down-mix
    MPEG I Layer 1, 2, 3 (2-CH) and MPEG II Layer 1, 2 (Multi-Channel)
Video and Picture Decoding Functions
VP9 Profile 0;MPEG4 MP@L5.1 Main Tier;Supports HD MPEG2 (up to MP@HL 1080i), ISO/IFO/VOB/TS
Supports HD MPEG4 SP/ASP (720p/1080i/1080p), Xvid
H.264 BP@L3, MP and HP@L4.2
HD JPEG,HD JPEG with 32k x 32K maximum resolution
Video up-scaling from SD to UItra HD(720p/1080/1080p/2160p)
  • Size (mm)
  • 100x106x25
  • Net Weight (g)
  • 212
  • Power Adapter
  • AC100 ~ 240V 50/60Hz
