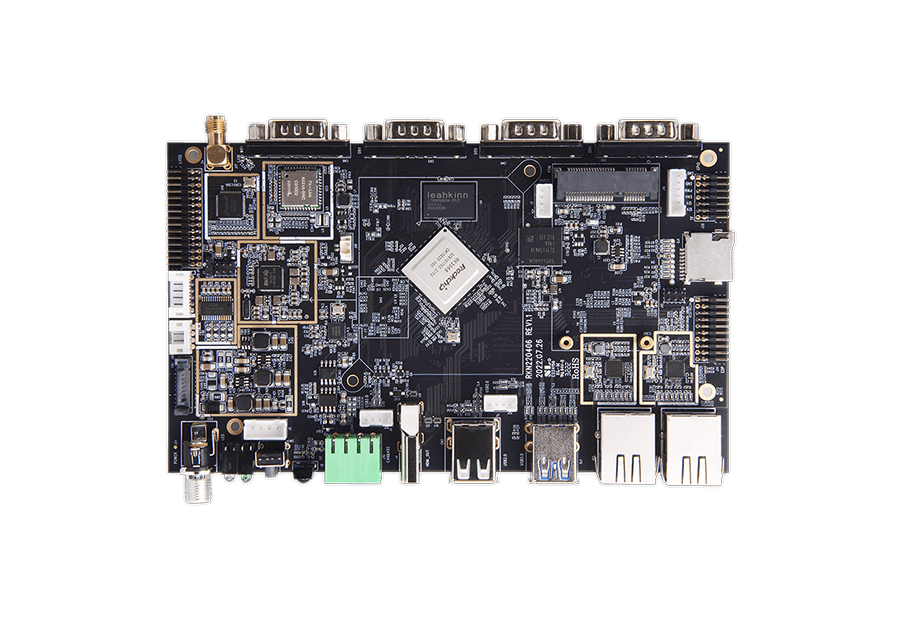

DS3568

DS-3568 is based on Rockchip RK3568 Cortex-A55 quad-core processor, supporting up to 8GB high-speed low-power LPDDR4, integrated dual-core Mali-G52 architecture GPU and high-performance NPU, up to 1 Tops AI computing power. With a rich interface expansion, support for a variety of video input and output interfaces. Equipped with 4G network, dual gigabit adaptive Ethernet port, combined with virtual gateway technology to achieve self-organization and efficient transmission of internal and external network data, can be extended to integrate DTU and NVR-related functions, which can significantly reduce the solution cost of smart courier cabinets, smart retail terminals, smart power exchange cabinets, smart take-out and food pickup cabinets and other products.

Buy a Sample

Get A Quote

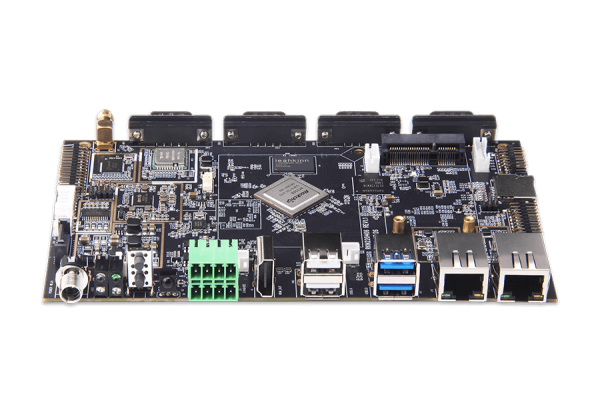

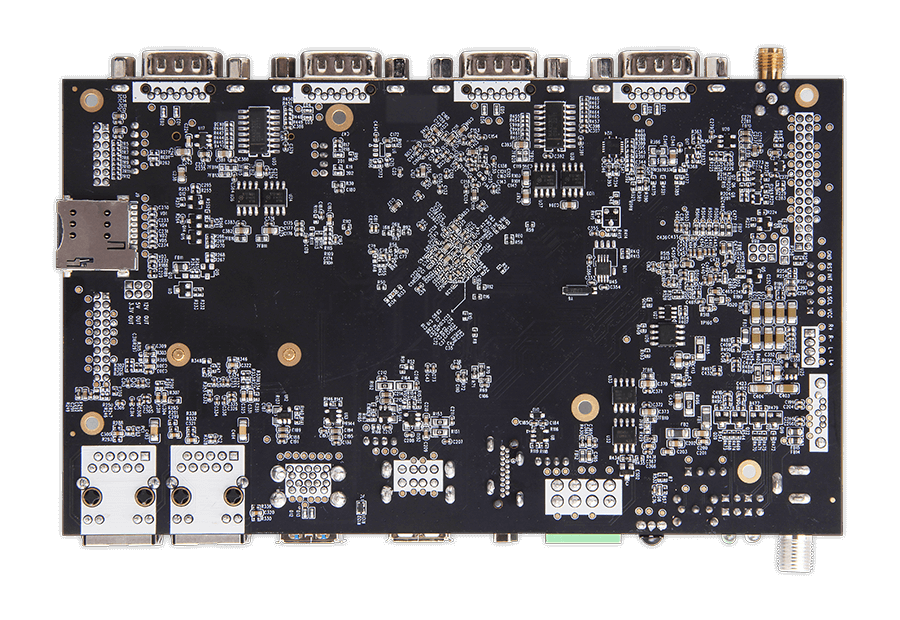

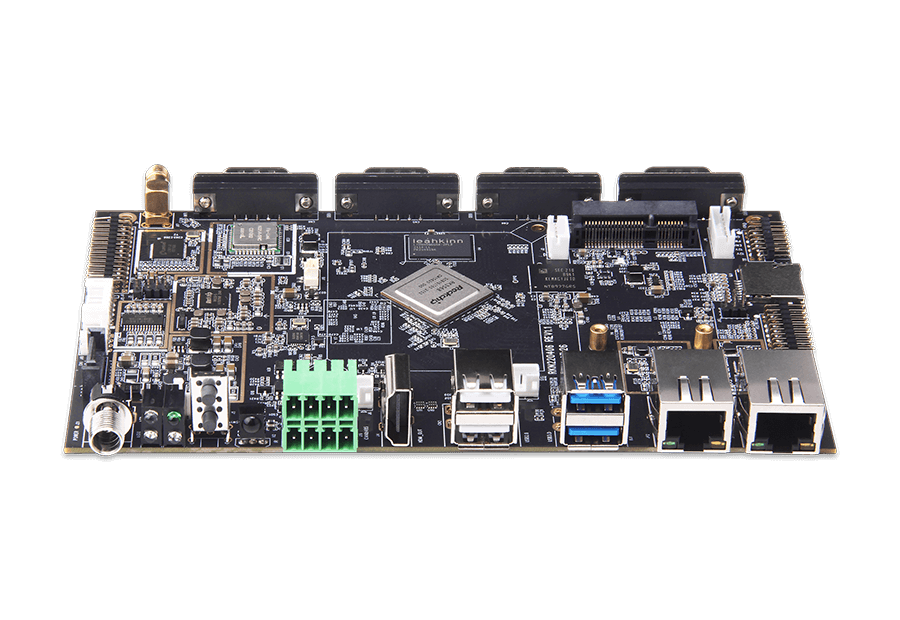

DS-3568 intelligent self-service terminal motherboard

High-performance quad-core processor Dual Gigabit LAN/WiFi/Bluetooth Rich display and expansion interface Integrated virtual gateway communication technology Support Linux/Android system

Super powerful quad-core 64-bit processor

DS-3568 adopts RK3568 quad-core 64-bit Cortex-A55 processor with 22nm advanced process technology and main frequency up to 2.0GHz, while providing 1 Tops AI algorithm and supporting one-click switching of mainstream architecture models such as Caffe/TensorFlow to meet customers’ needs for rapid implementation of deep learning projects.

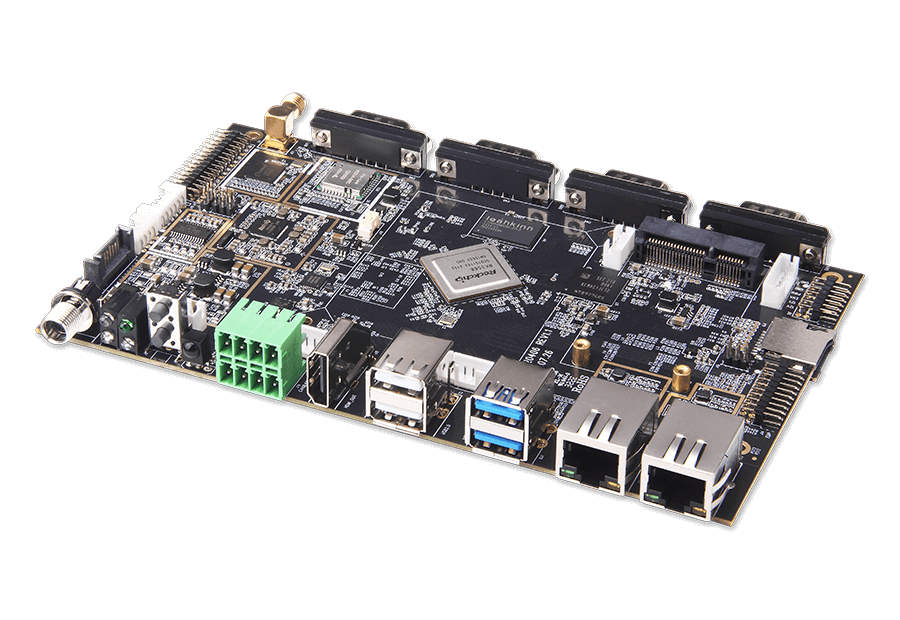

Dual Gigabit Ethernet ports, virtual gateway communication technology

Equipped with dual Gigabit network interface, 2.4G/5.8G dual-band WiFi, Bluetooth, 4G communication module, combined with virtual gateway technology to achieve self-organization and efficient transmission of internal and external network data, extended integration of DTU and NVR-related functions to meet the needs of NVR, DTU, industrial gateway and other multi-network transmission.

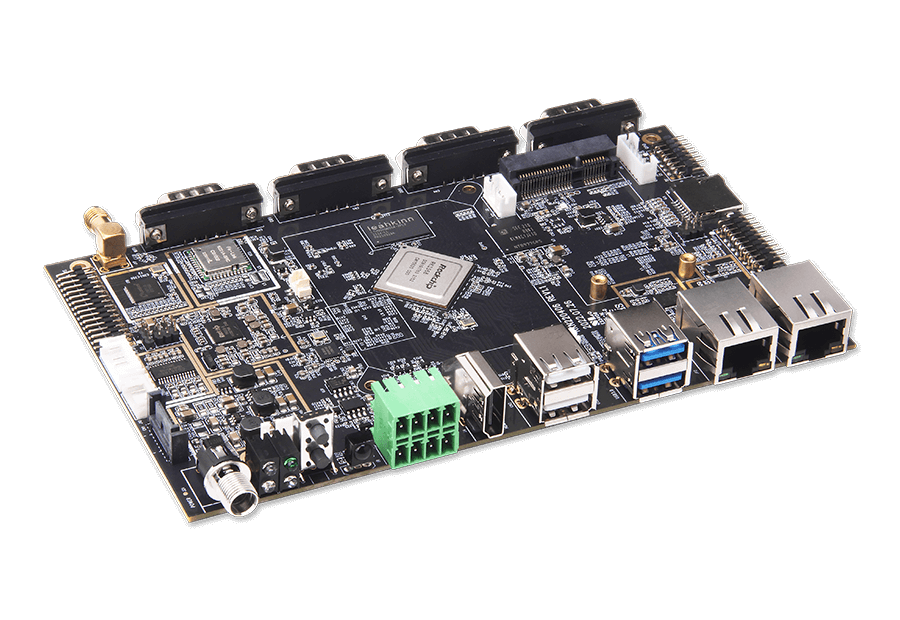

Rich expansion interface to meet the needs of a variety of scenarios

On-board 4-way zinc alloy RS232/TTL (DB9) precision interface
1 RS485 electrification interface;
One CAN bus communication interface and multiple GPIO interfaces to meet more application control requirements.
Supports expansion of SATA3.0 SSD/HDD and multiple USB/webcams for massive surveillance video local loop storage, remote preview, and video playback

Rich display interface, 4K video decoding

With a variety of video output interfaces such as HDMI®, LVDS and EDP, support multi-screen display, multi-screen different display, multi-screen rotating splicing, maximum support for 4KP60 resolution, H.264/VP9/VP8 multi-way video source decoding at the same time.

Support Android & Linux multi-system

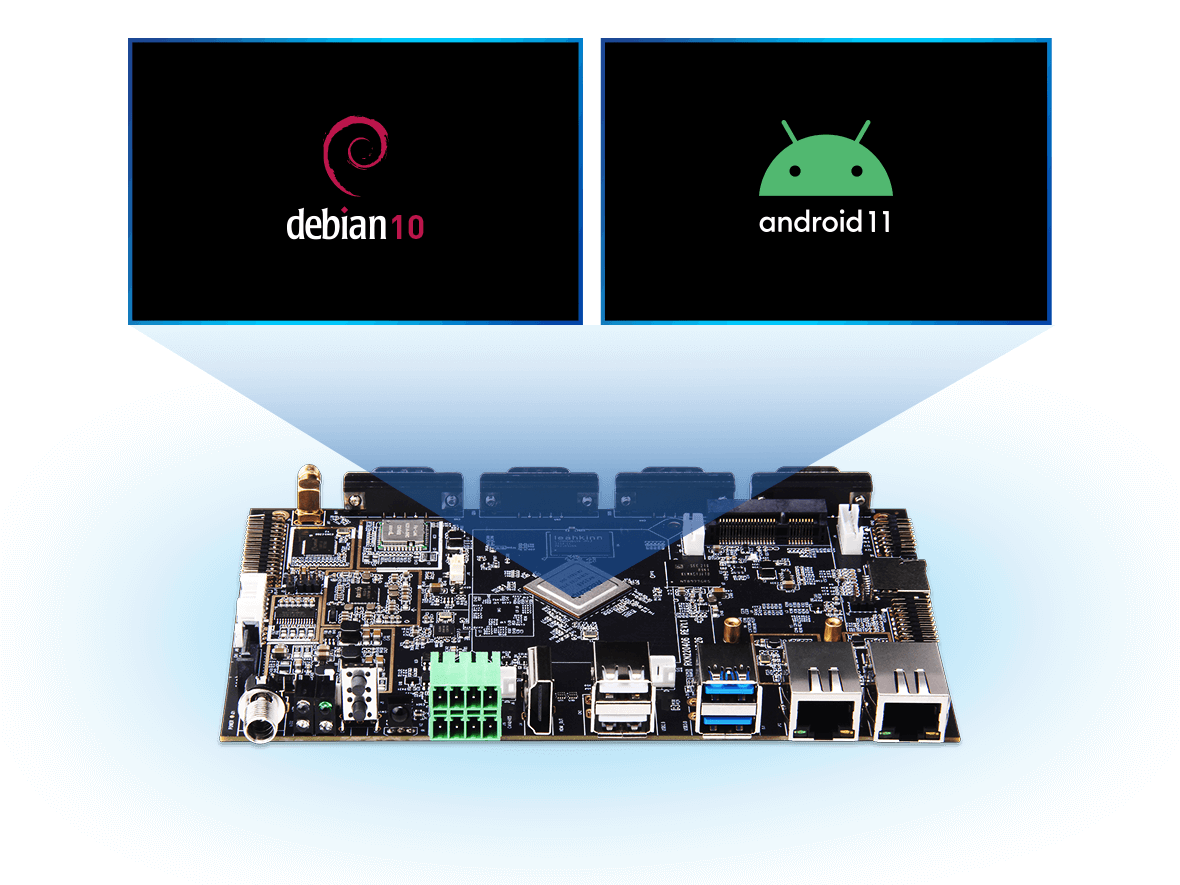

It supports Android 11.0, Debian 10, Ubuntu and other operating systems to meet customers’ diverse customization needs and provide a safe and stable system environment for terminal product development.

Industrial-grade protection, suitable for a variety of outdoor scenes

DC 9~24V wide voltage power supply design, independent hardware watchdog + RTC, standard EMC and ESD protection design.
Industrial-grade protection standard, to ensure safe and reliable operation in the harsh outdoor environment of the equipment.

More than hardware, a full range of one-stop customized services

With 25 years of technical R&D precipitation of ARM products and partner resources, Geniatech not only provides customers with hardware function customization design, but also provides one-stop consulting services such as cross-SOC platform OS porting, BSP kernel cutting and driver development, scenario-based application software development, overall system software testing services, and perfect SDK secondary development interface, etc. With the company’s own nearly 30,000㎡ production plant, we can help customers greatly shorten the cycle from product selection, R&D project, small volume trial production to mass production delivery.

Wide range of application scenarios

DS-3568 is a custom-developed industry motherboard for smart logistics, smart security, smart business display, AIoT field, which can be widely used in smart express cabinets, smart retail terminals, smart power exchange cabinets, smart NVR, smart cloud terminals, industrial control control, IoT and other fields.

CHIPSET RockchipRK3568
MARKET AREA Global
OSD LANGUAGE English/Chinese (multi language OSD)








Processor





OS Android 11.0 / Linux Debian
CPU Quad-core ARM Cortex-A55 up to @2.0GHz
GPU ARM Mali-G52 GPU, support OpenGL ES1.1/2.0/3.2, OpenCL2.0 and Vulkan 1.1.etc.
NPU Neural network acceleration engine with processing performance up to 0.8 TOPS
LPDDR4 4GB (2G/8G Optional)
EMMC FLASH 16GB(8~128G Optional)




NETWORK

Ethernet 2 * RJ45(10/100/1000M)
WiFi IEEE 802.11b/g/n/ac
Bluetooth BT4.2(Optional 5.0)
3G/4G 1 * Mini PCIE (Optional)
Interface HDMI®OUT 1 * HDMI®
RJ45 2 * RJ45(LED)
RS232 4 * DB9
RS485 1 * 3Pin3.81mm
Can bus 1 * 4Pin3.81mm
GPIO 1 * 2x7Pin2.0mm 90°
LVDS 1 * 2x15Pin2.0mm 90°
eDP 1 * 2x10Pin2.0mm 90°
Back light 1 * 6Pin2.0mm
USB3.0 2 * USB3.0 Type A
USB2.0 2 * USB2.0 Type A+2 * 4PIN2.0mm
TP(I2C) 1 * 6Pin2.0mm
SATA3.0 1 * SATA3.0
SATA Power 1 * 4Pin2.54mm
Speaker 1 * 4Pin2.0mm
SIM 1 * Micro Sim + 1 * Mini PCIE (LTE)
SD 1 * Micro SD
Fault LED 2 * LED(Red/Blues)
Working LED 2 * LED(Red/green)
WIFI+BT ANT 1 * SMA
IR 1 * IR
Update 1 * Switch
Reset 1 * Switch
DC IN 1 * DC IN
Adapter DC9~24V  (Φ5.5mm / φ2.1mm)
Accessory 1 * Adapter (AC 100 ~ 240V 50/60Hz)
Customizable GUI We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from.
