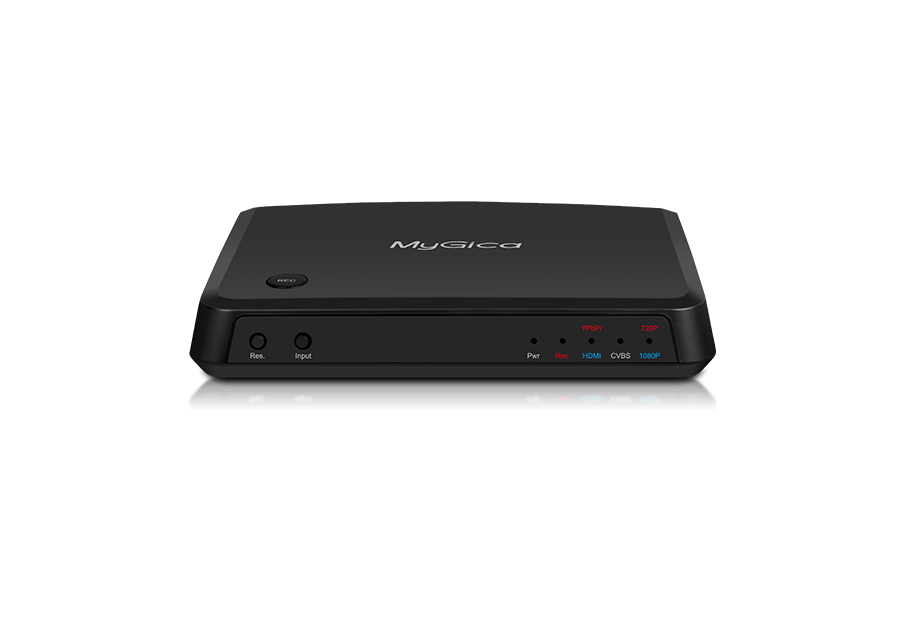

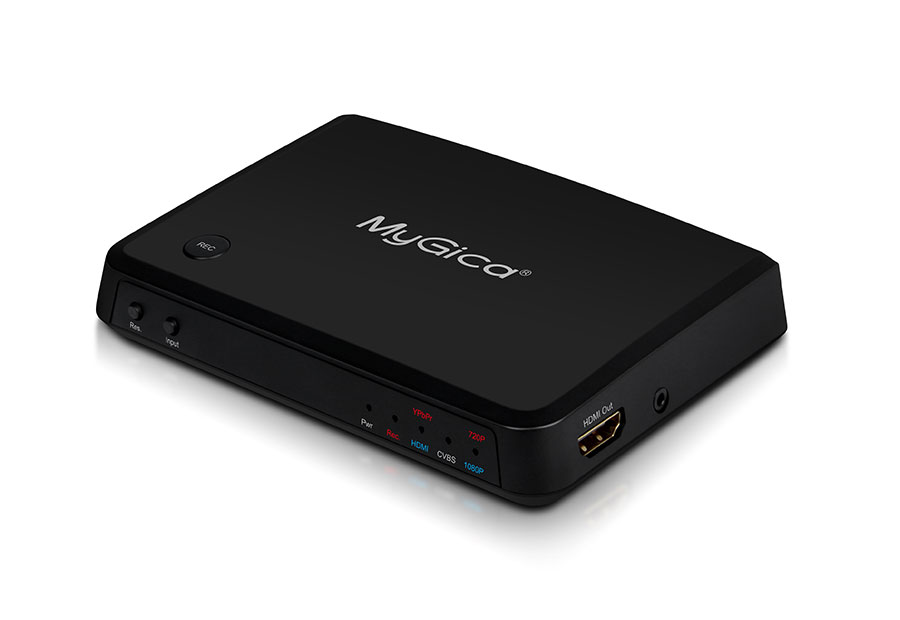

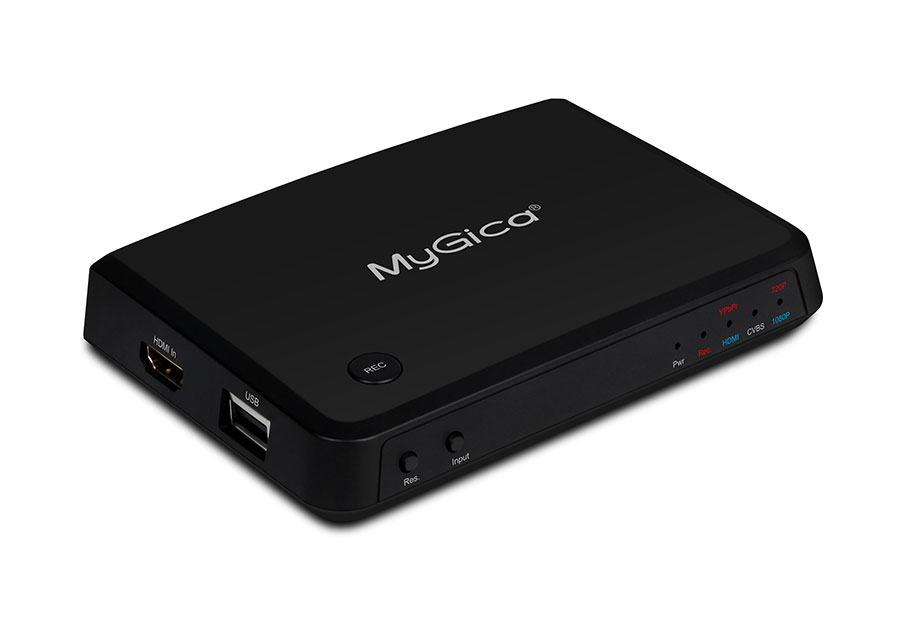

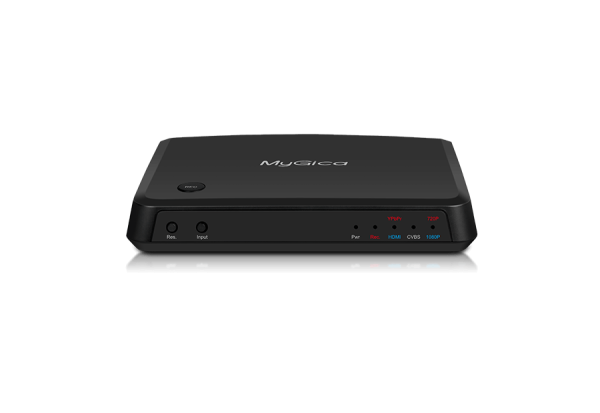

HD Cap X-II HD Video Capture

HD capX II is a box that can help you record which you like. HDcapX II with below features:

  • IT9919 Processor, 200MHz 32-bit, video scaling engine
  • Full HD 1920×1080 resolution input & output + Recording to USB Drive/HDD
  • Mirco USB device for PC connection, can use 3rd party software to record, edit and upload videos.
  • Compliant HDMI® 1.3, 1.4a and HCDP 1.4 compliant
  • Powerful audio by embed a 32-bit RISC CPU and a DSP engine
  • Support HDMI/YPbPr/CVBS input and HDMI® output
  • 3.5mm Microphone input, can record your voice during video recording.

Buy a Sample

Categories: ,
Get A Quote

Video Capture

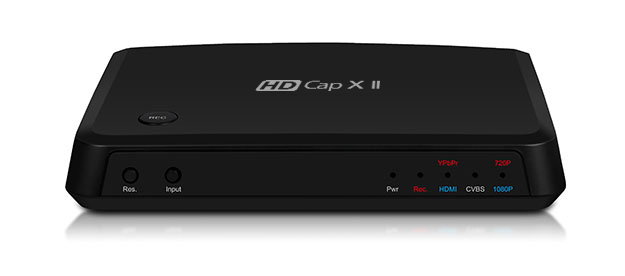

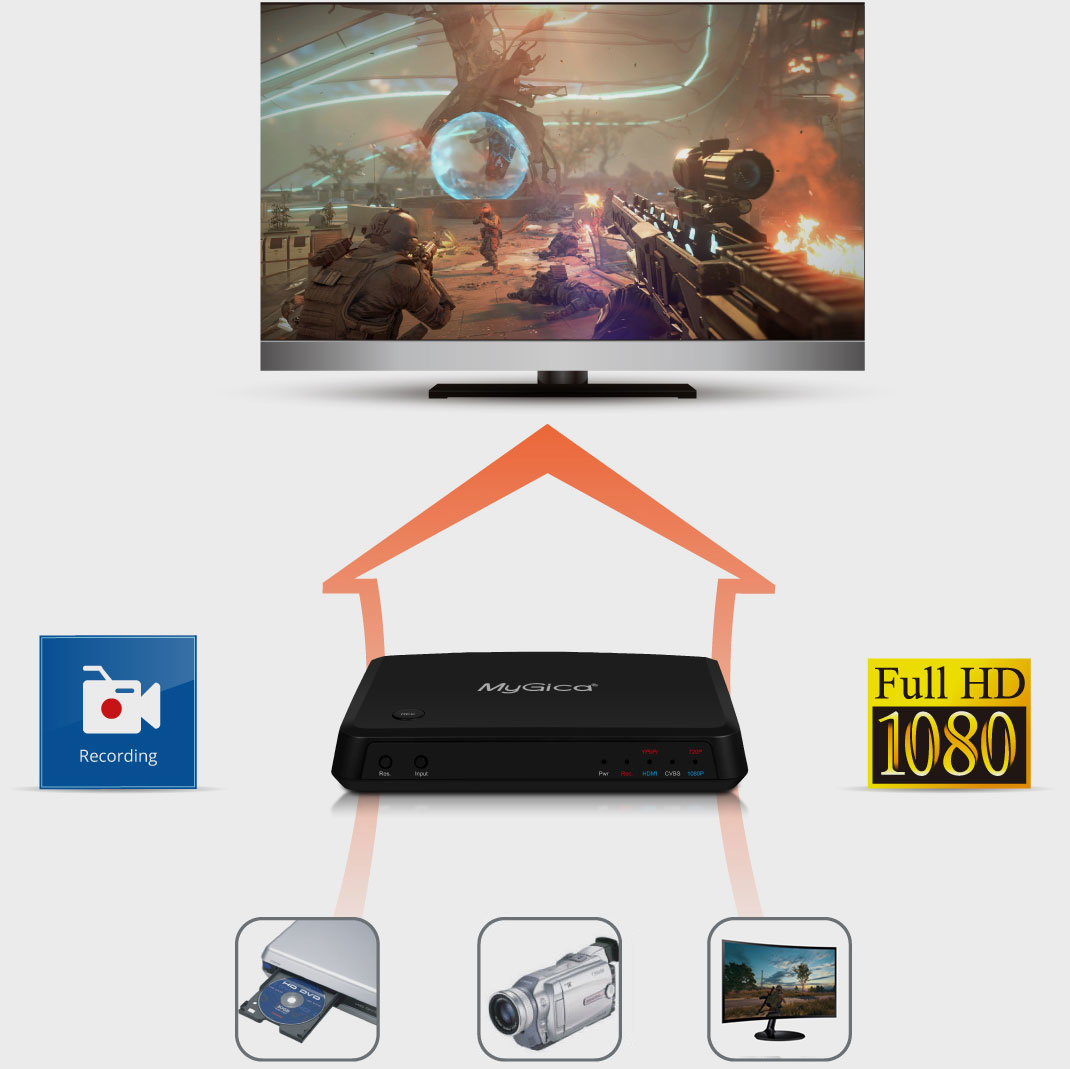

HD Cap X-II video capture device can record 1080P Full HD video,stereo audio and with microphoneinput to record speeches to the recording video. The setup is very easy, just plug in the cables anda usb storage device and you are ready to capture videos with a single click!

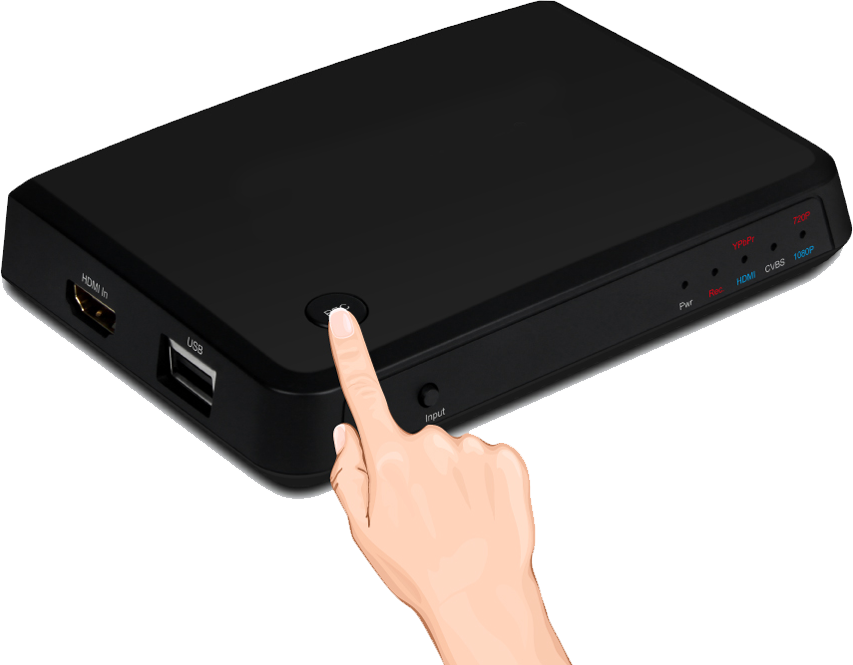

Easy setup, Just clign to start recording

Full HD 1920×1080
Resolution Recording to USB DeviceR

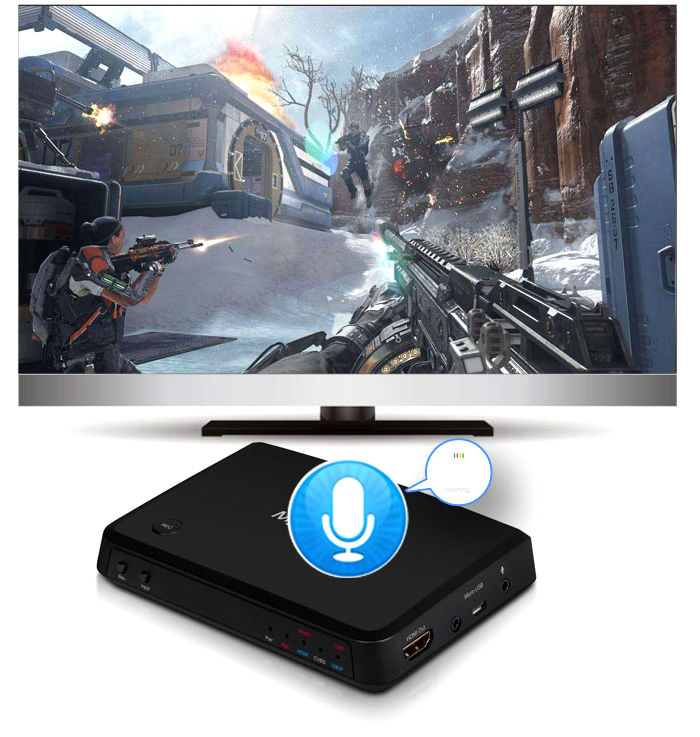

Full HD Video Capture Box with Microphone input

Simply plug in the microphone and you can add live commentary when recording the gameplay!
The Mic input is only available on HD CAP XII

CPU 200MHz 32-bit, video scaling engine
DC Input 5.0V-2A
HDMI® Input V1.4a, HDCP 1.4
HDMI® Output V1.4a
External SD Max: 32G

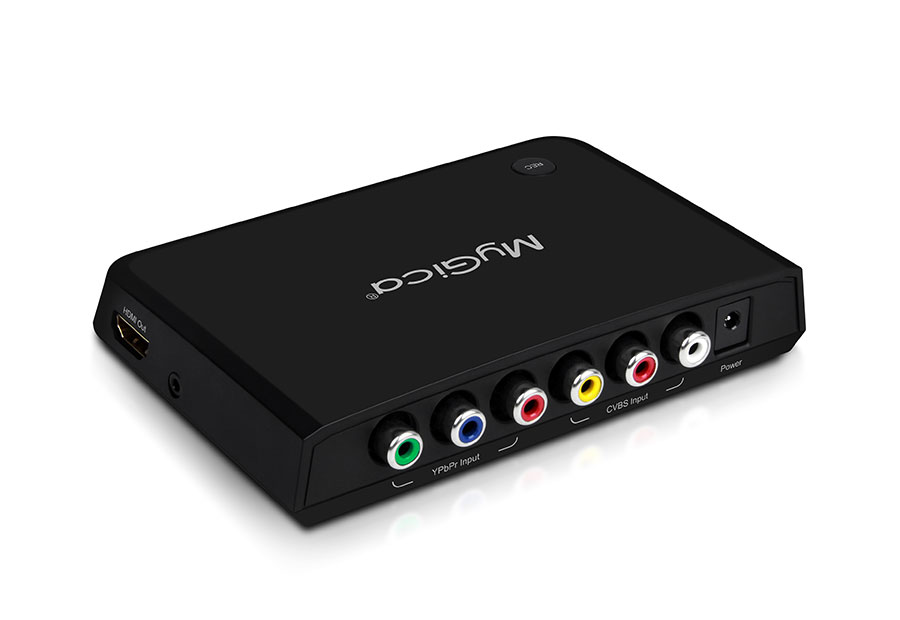

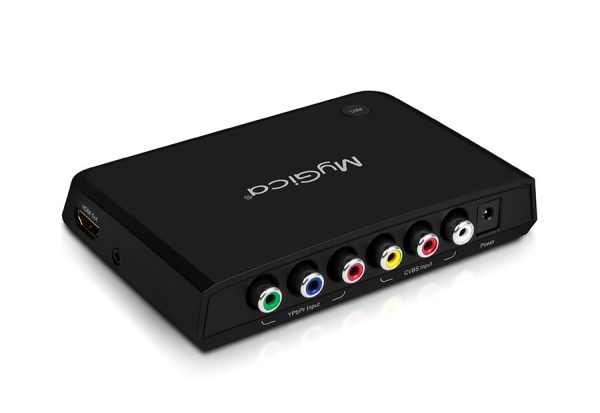

Video Input HDMI/YPbPr/CVBS
Audio Input HDMI/RCA/YUV
A/V output HDMI
Microphone input 3.5mm socket
Video Encoder 720p, Max 1920x1080p @ 30fps H.264: AVI, MOV, MP4, MKV, TS, M2TS, M3TS, M4TS, M5TS, MTS, M4V, FLV
Video Recording Record to USB Storage or PC hard drive
Size 131x85x24 mm
Net Weight 123g
