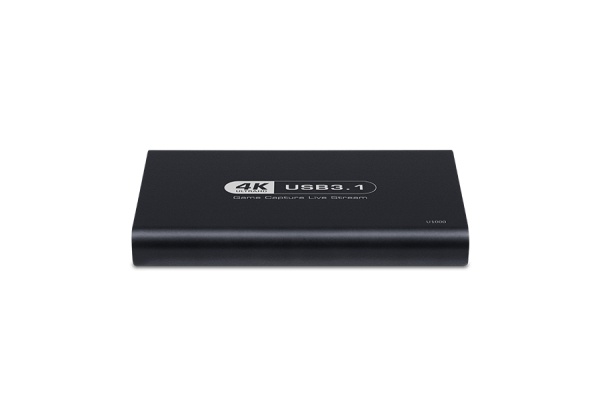

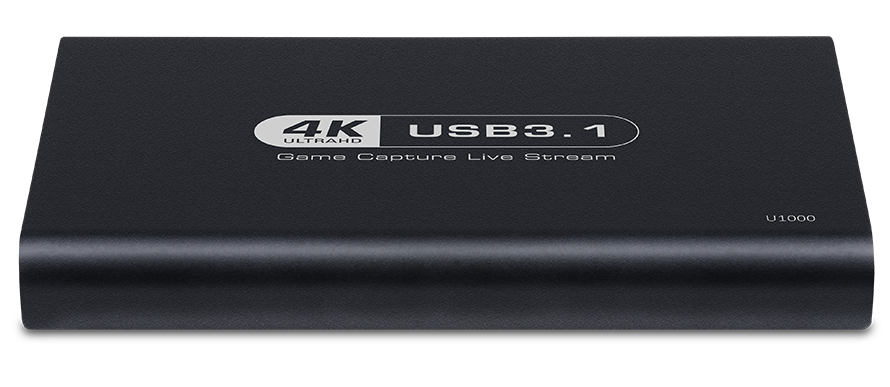

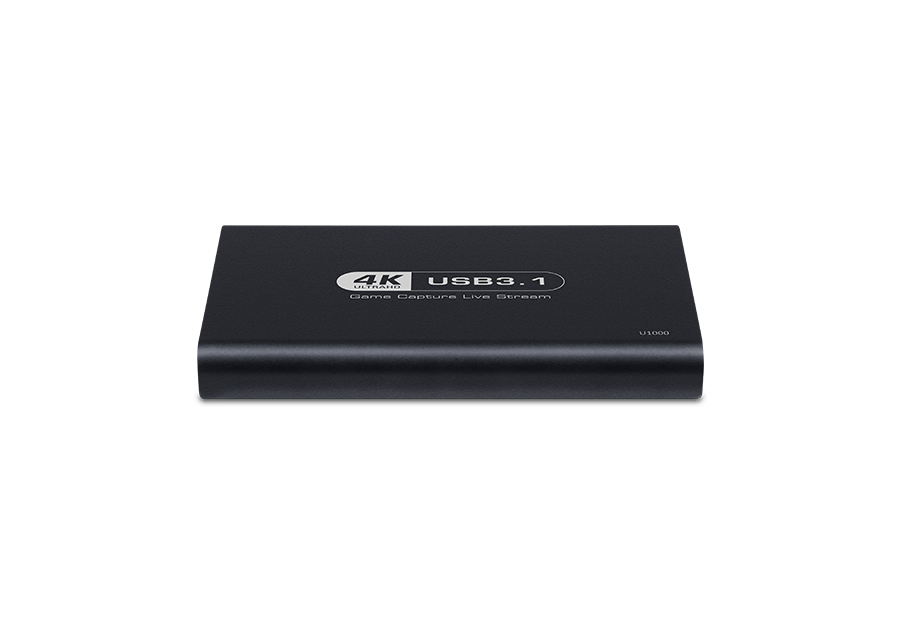

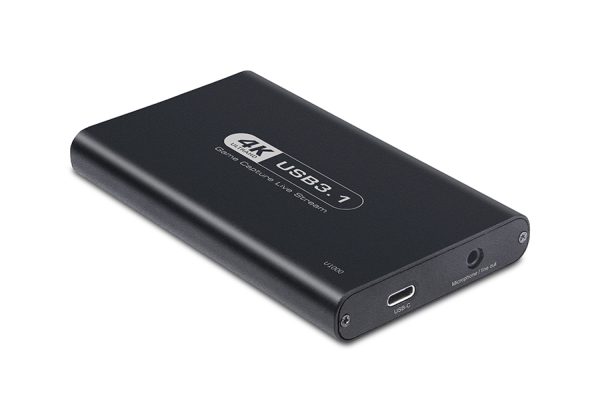

U1000 4K HDMI® Capture Card

U1000 Video capture is 4k 30ftp capture with USB 3.0. It support UVC and no need to install driver any more comparing with other captures. Moreover, support bypass,it can be compatible with most third party media player,smoothly connecting with the mainstream broadcast platform which can transfer web broadcast, video conference and so on to Skype,Facebook Live、YouTube Live、ZOOM、LiveStream、UStream、Dacast、Wowza Cloud.

  • Compatible with UVC driver
  • Supports HDMI® 4Kp60 HDR video input Capture resolution up to 4K@30
  • Auto detection of video resolution
  • Portable, good thermal performance.
  • Aluminum shell design, good thermal performance
  • Compatible with OBS potplayer and other 3rd party software
  • Support Mic input,Support Audio output
  • Type-c interface design

Buy a Sample

Categories: ,
Get A Quote

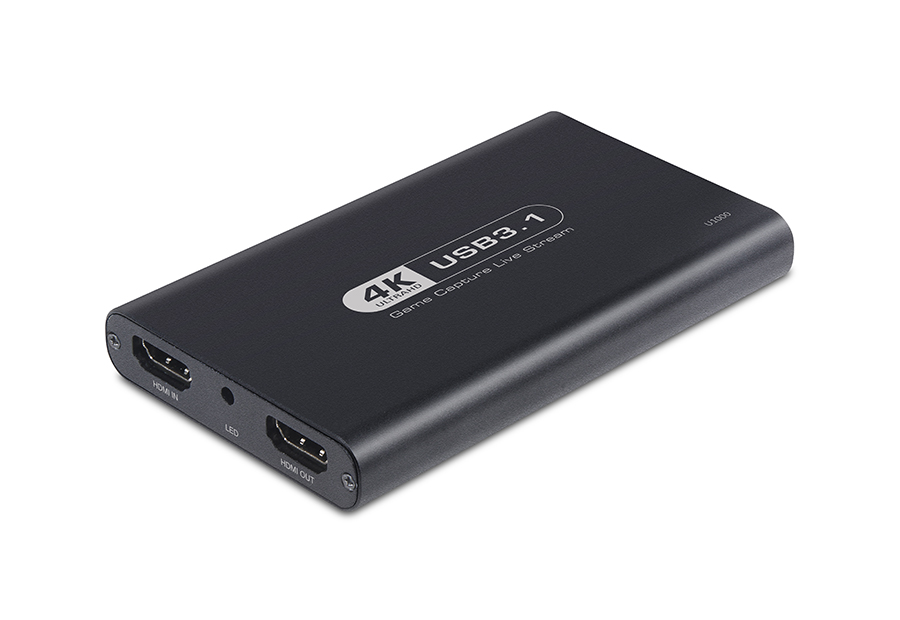

4K HDMI® Video Capture


4Kp60 HDR / 2Kp240 / 1440p144 input and loop out

U1000 has a 100% delay-free 4Kp60 HDR video looping function, allowing you to play 4K HDR games and record at 4Kp30,U1000 also supports 1080p240 and 1440p144 input and loop output

240FPS smooth experience

240FPS high frame rate picture ring out, wonderful moments more enjoyable U1000 is an external game capture device that can record 120 FPS in full HD quality, keeping every moving moment for you.U1000 can support 240 Hz high frame rate at the same time

USB3.1 ultra-fast transfer rate

The USB 3.1 interface is 10 times faster than USB 2.0, providing you with the fastest video capture and the fastest video streaming,allowing viewers to watch videos on the global live broadcast platform at the same time.

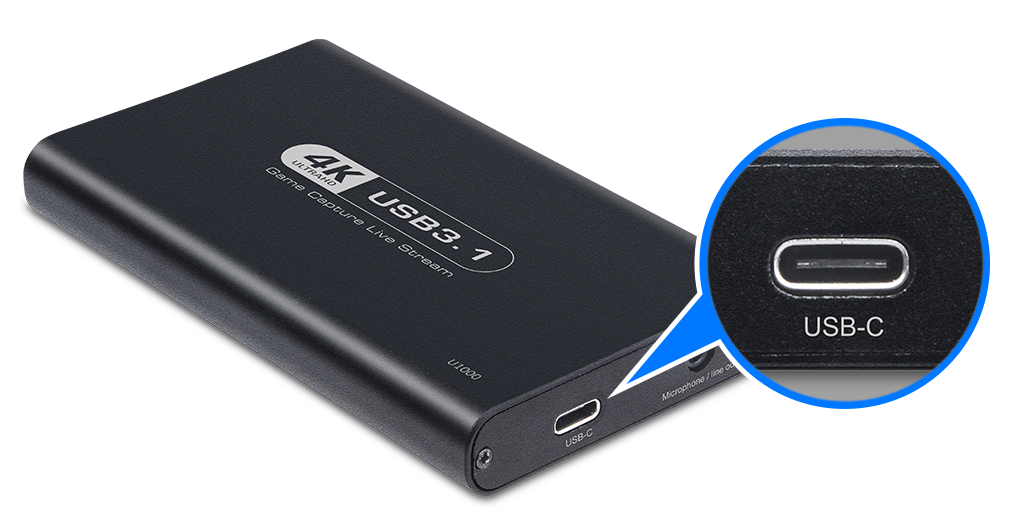

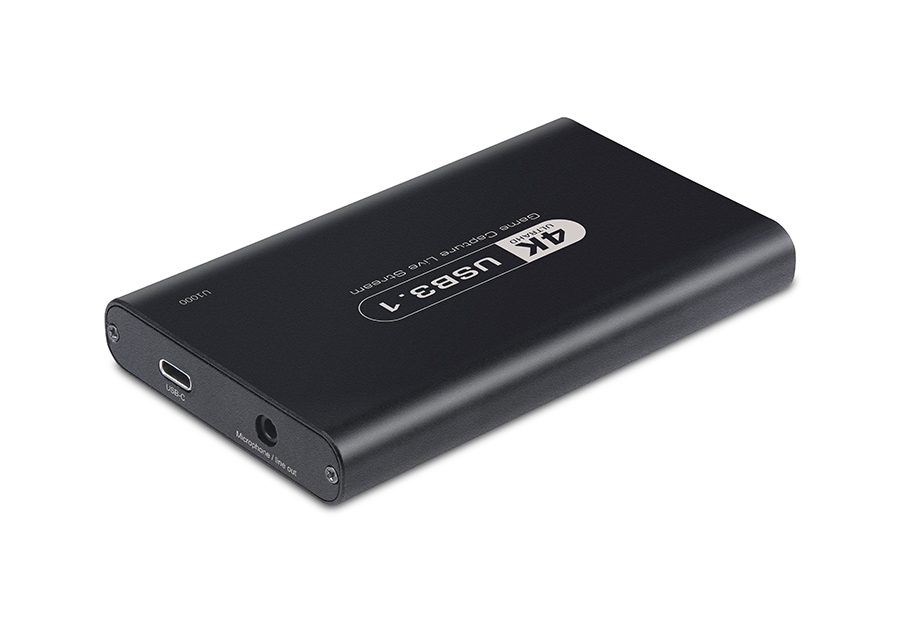

USB Type-C interface
suitablefor new laptops

And easy to plug and unplug, the U1000 live capture box uses a USB Type-C interface,suitable for a new generation of laptops and Android smart phones

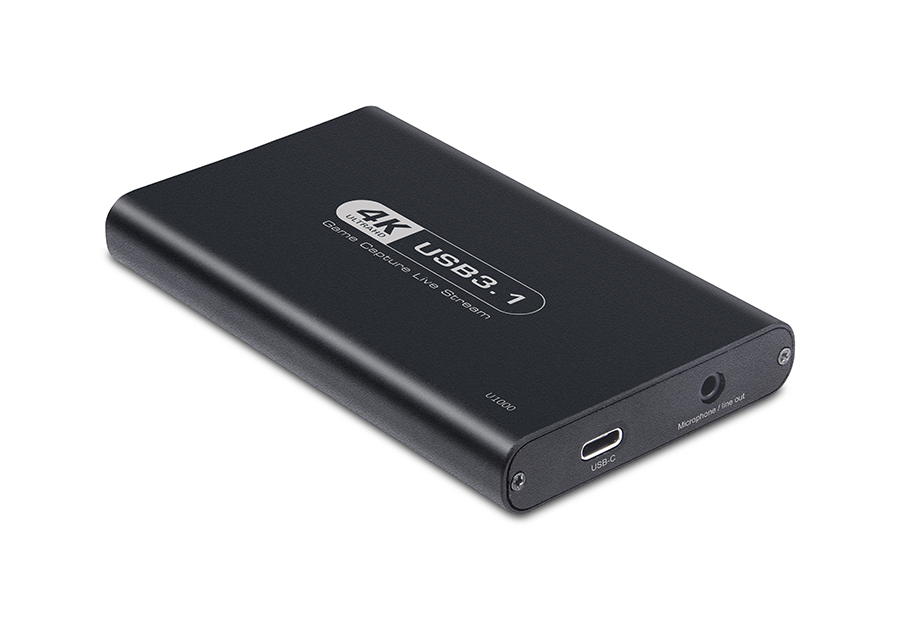

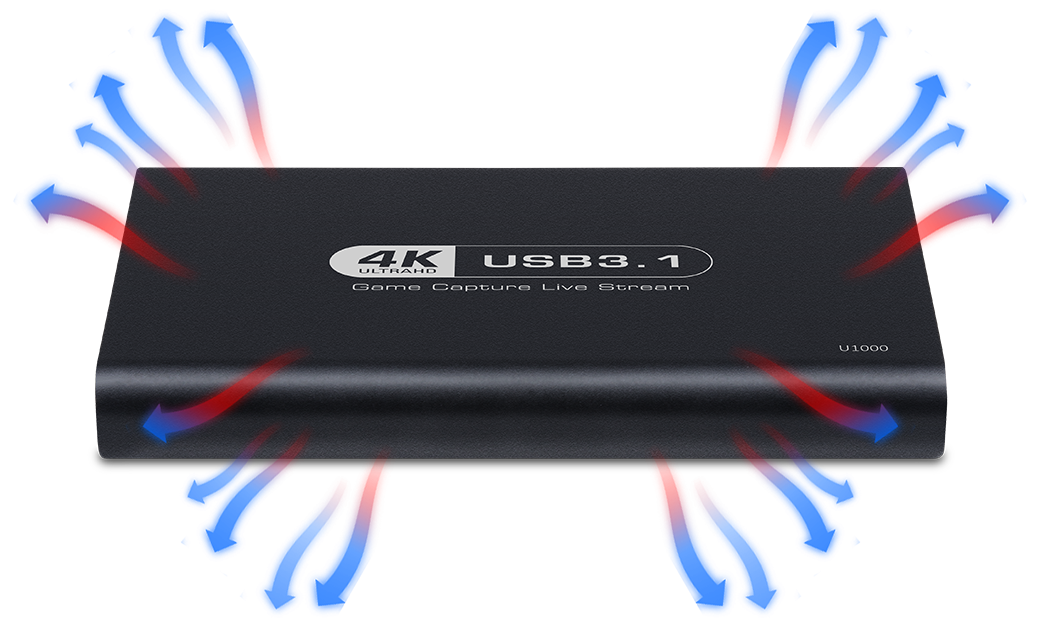

Aluminum alloy shell design

The shell is designed with aluminum alloy material, which is strong and wear-resistant, good thermal conductivity and corrosion

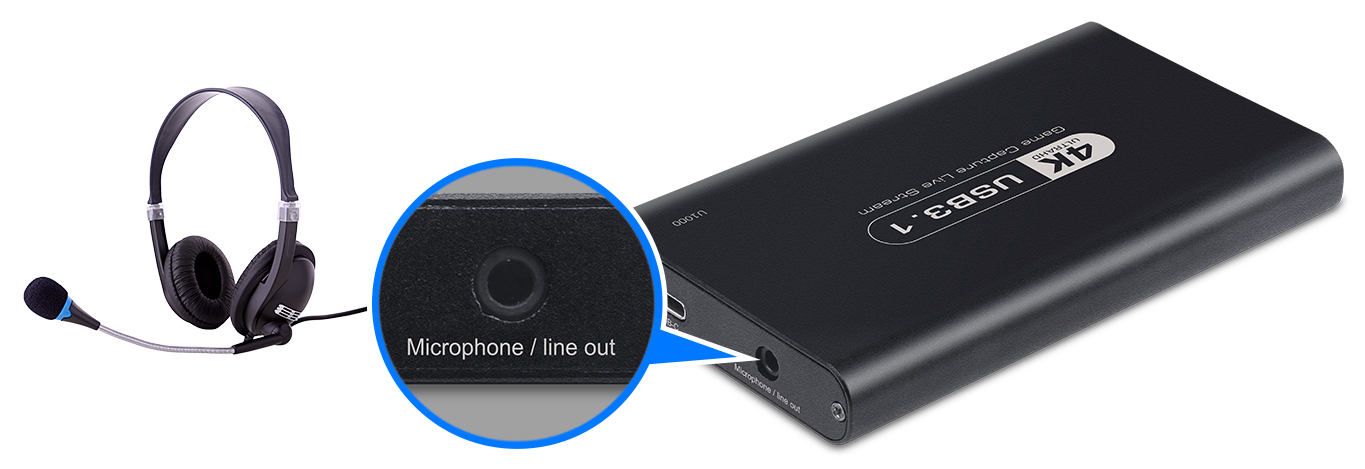

Two-in-one interface design
for microphone and line out

The Microphone/Line out two-in-one interface can mix your own sound into the video source or game sound,and you can also hear the mixed sound, which can be achieved with only a headset


Product application connection diagram

Application Scenarios:
Game Capture and Live Broadcast

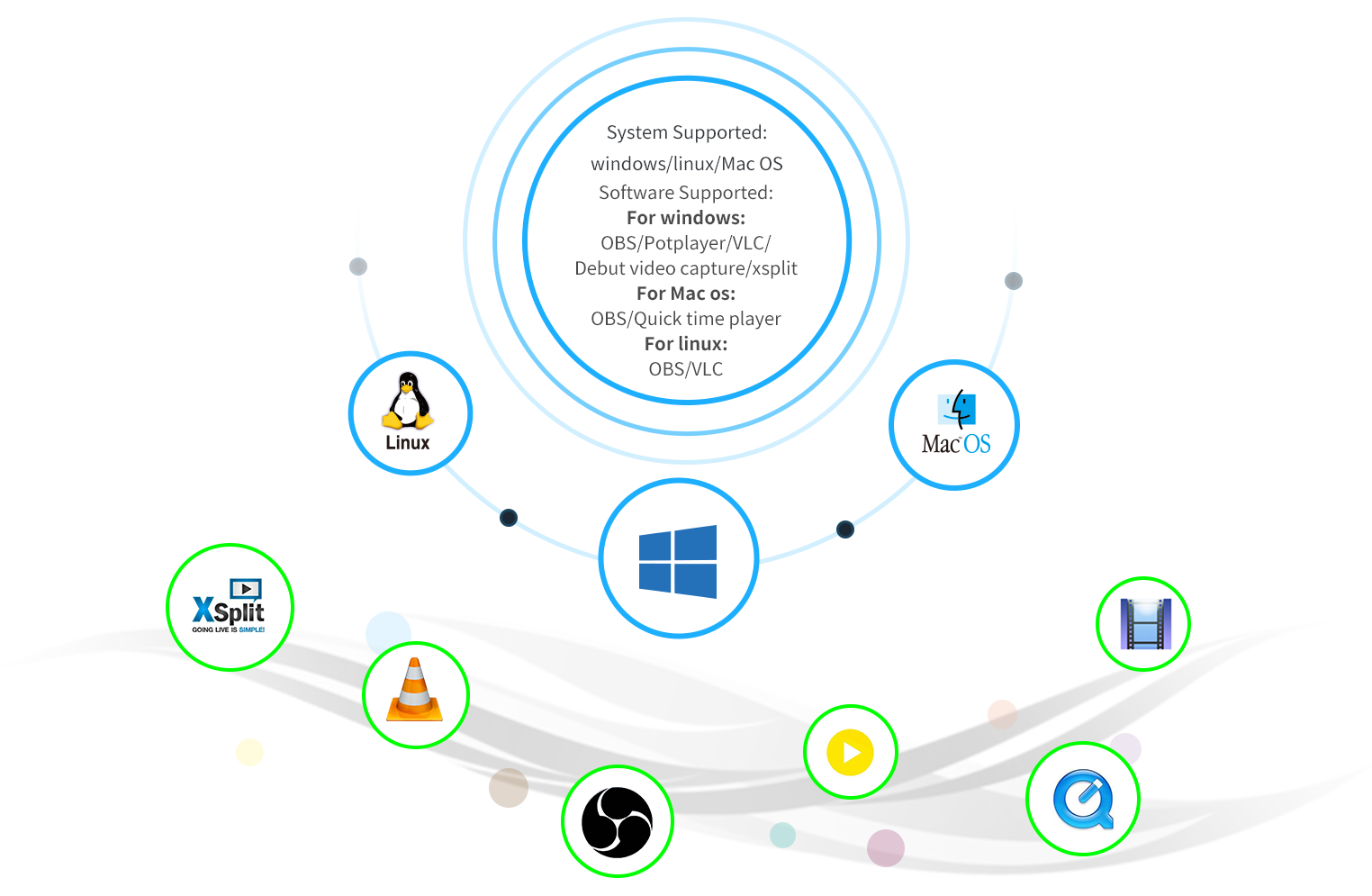

Support systems and software

Video input/output HDMI2.0
Interface Type-C USB3.1 Gen
Microphone audio input and output 3.5mm 4 section line input and output
Maximum input/loop out resolution 4K HDR (3840*2160@60HZ/2560*1440p144/1920*1080p240),HDMI® 2.0b (Not encrypted)
Maximum recording resolution 4K (3840*2160@30HZ/1920*1080p120)
Recording resolution and maximum frame rate 3840*2160-NV12/30;2560*1440-NV12/60,YUY2/50;1920*1080-NV12/120,YUYV/60,XRGB/30;1280*720-NV12/60,YUYV/60,XRGB/60
Support resolution 3840*2160p/2560*1440p/1920*1080p/1280*720p
Video format YUY2,NV12,RGB
Work indicator Red-power, blue-HDMI® input signal
Operating temperature 0 – 40 ºC
storage temperature -20 – 60 ºC
size (L x W x H) 81*29*13mm
House Aluminum alloy
weight 108g
Minimum computer hardware configuration laptop: 4Kp30 or 1080p120
Record: Intel Core i7-7700HQ, NVIDIA® GeForce® GTX1050 Ti, 8 GB RAM. 1080p60
Record: Intel Core i7-4810MQ, NVIDIA® GeForce® GTX 870M, 8 GB RAM
Desktop PC: 4Kp30 or 1080p120
Record:Intel® Core™ i5-6XXX / AMD, Ryzen™ 3 XXX, NVIDIA® GTX 1060 / AMD RX 5700, 8 GB RAM. 1080p60
Record:Intel® Core™ i7-3770, NVIDIA® GeForce® GTX 650 / AMD Radeon™ R7 250X, 4 GB RAM
System Support Windows 7/windows10 32bit and 64bit
Mac OS X 10.13 and above
Linux:Ubuntu 14.0 and above
