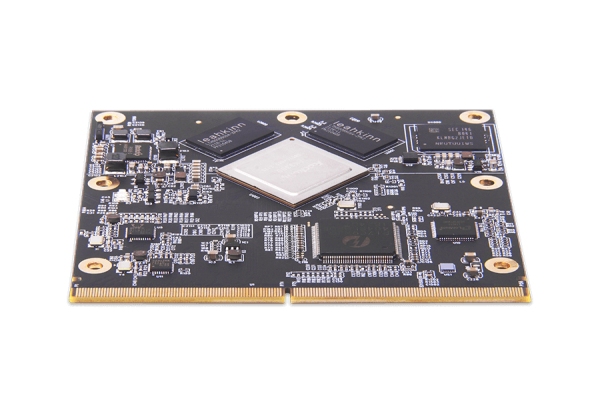

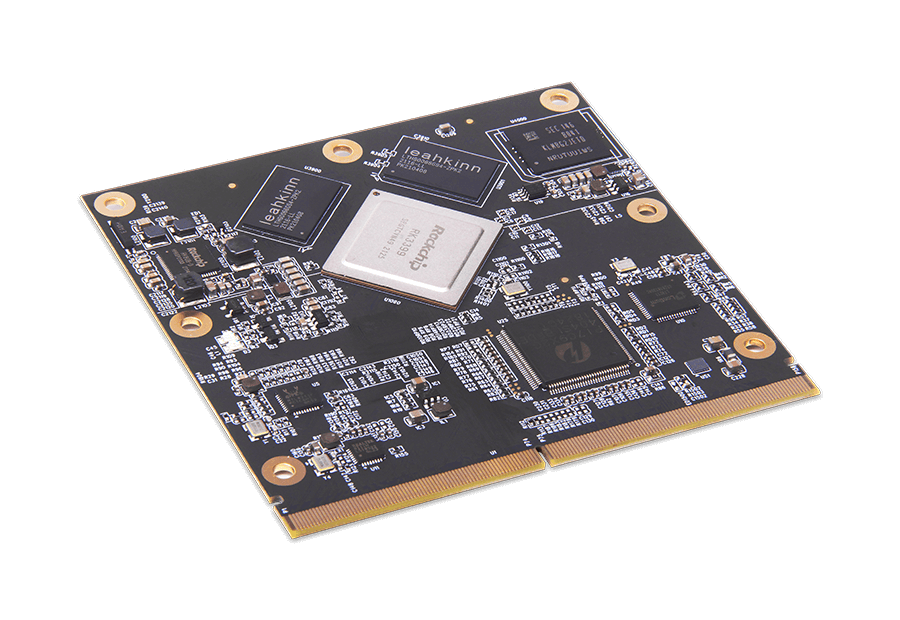

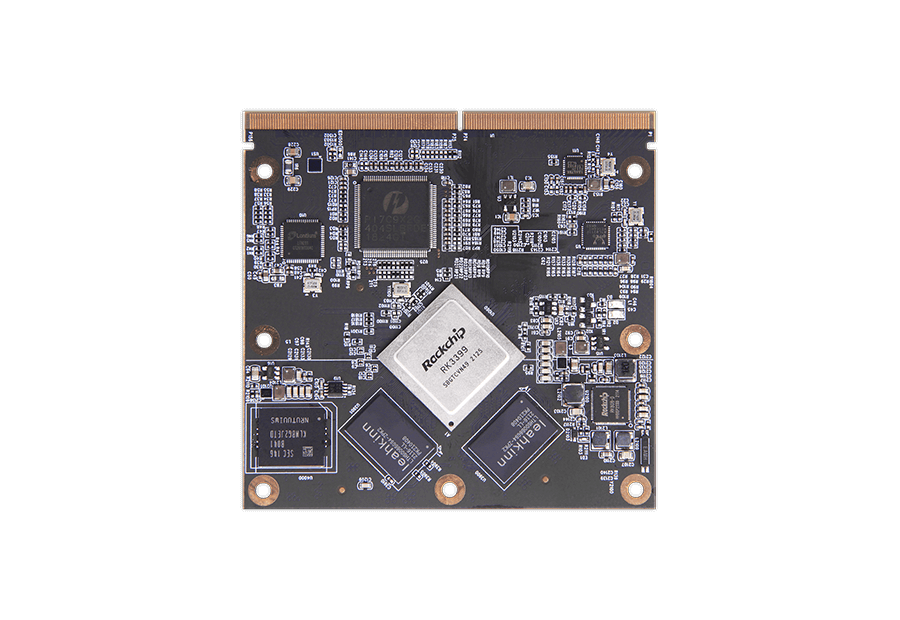

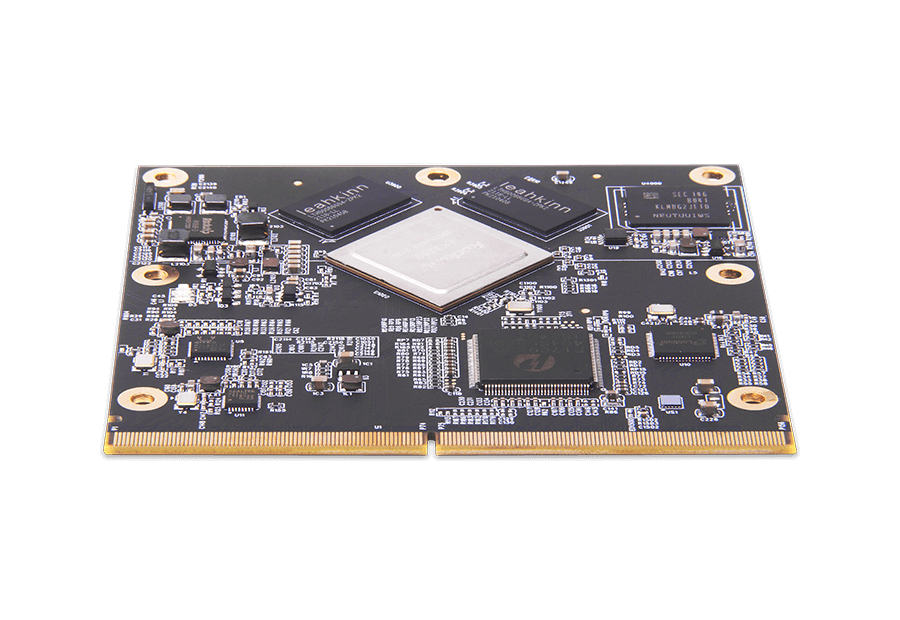

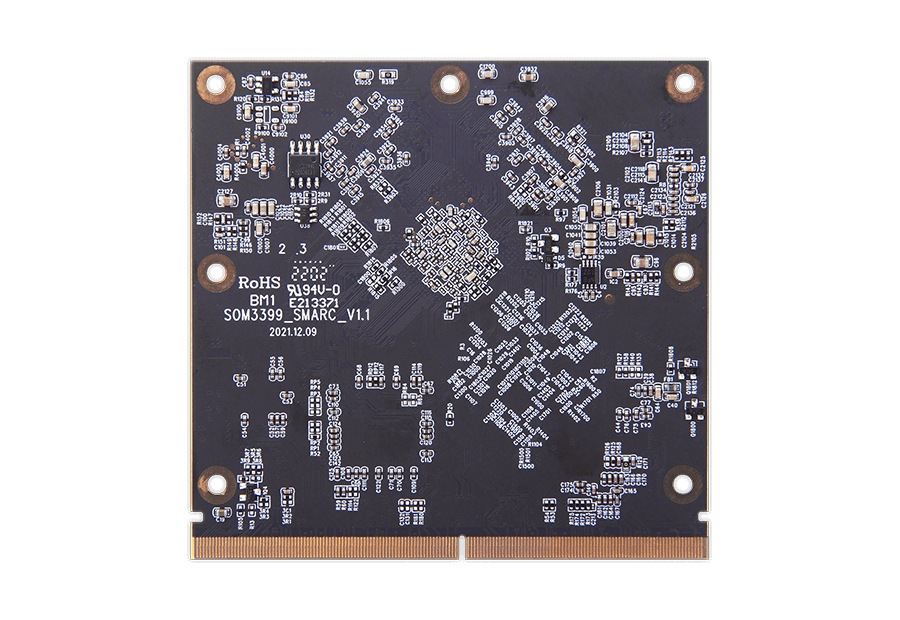

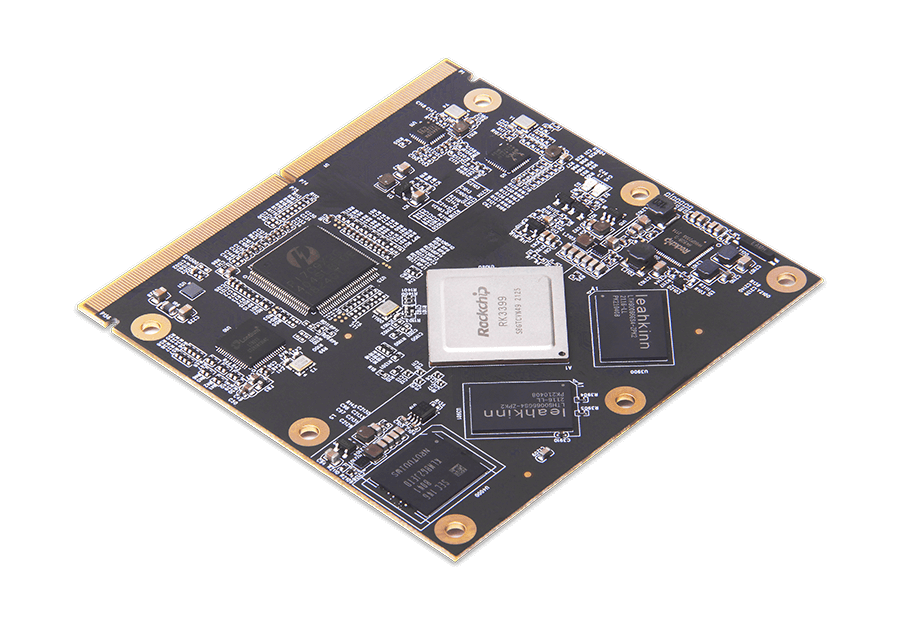

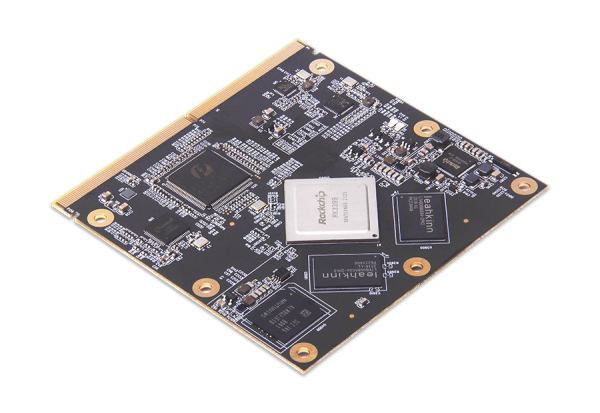

SOM-3399-SMARC

SoM3399-SMARC is a system on module (SoM) designed based on Rockchip RK3399 processor which consists of two Cortex-A72 featuring cores with frequency up to 1.8GHz and four Cortex-A53 featuring cores with frequency up to 1.4GHz, provides a variety of storage configuration options, users only need to expand the function of the base plate can quickly achieve project research and production



Categories: ,
Get A Quote
The configuration is optional

DDR2/4G, eMMC16/32/64G

High scalability

Rich interface, compatible with mainstream screen

Stable and reliable

Built-in watchdog module runs stably for 7*24 hours without downtime

Dual operating systems

Support Android and Linux system

Abundant Application Interfaces

1. Gold-plated precision plate, corrosion resistant, firm and reliable
2.SMARC2.1 standard interface is adopted, and all pin pins of the chip are introduced. Data transmission and expansion performance are greatly brought into play.  To have the strength, reliable partners to create quality products

Support Personalized Customization

Shell structure customization
Carrier board function customization
Provide SDK for secondarydevelopment
Mass production service

Widely Used

With the function of the bottom plate can be applied to advertising screen display, industrial PC, medical equipment, human-computer interaction, image processing, portable devices, automotive applications, infrared systems, control systems and other products in various industries


  • CPU Frequency
    Dual-core Cortex-A72 up to 1.8GHz
    Quad-core Cortex-A53 up to 1.4GHz
  • GPU
    Mali-T860 GPU
  • Internal Memory
    2G LPDDR4(4G optional)
  • Internal Storage
    16G EMMC(32G/64G optional)
  • OS
    Android/Linux
  • Ethernet
    2 x GIGABIT Ethernet
  • PCIe
    1 x PCIe 2.1(x4) or 2 x PCIe 2.1(x4 and x1)
  • USB
    3 x USB2.0,1 x USB2.0 OTG,2x USB3.0
  • CSI
    *2
  • LVDS
    *1(1 x Single Channel 24-bits LVDS(Default) or 1 xDual Channel 24-bits LVDS(Shared with eDP))
  • I2S
    *2
  • HDMI®
    *1(up to 4096 x 2160)
  • CAN
    *1
  • GPIO
    *12(1 x PWM)
  • SATA
    *1
  • SDIO
    *1(WIFI Module ,Wifi fromSDIO/BT from UART)
  • eDP
    *1
  • DP
    *1
  • RS-232
    *3(1 x 4-wire UART,1 x 2-wire UART,1 x 2-wireUART/Debug)
  • SPI
    *1
  • I2C
    *5
  • POWER
    5V/3A
  • Size
    82*80mm
  • Weight
    30g

SoM Specification

Carrier Board Specification
