CHIPSETAmlogic T982
-
OSAndroid 11.0
-
CPUQuad-core Cortex-A55 to 1.8GHz
-
GPUMali-G52 MP2(2EE)
-
DDR2GB (4G optional)
-
EMMC FLASH16GB (32G/64G optional)
-
Touch Screen10 Point Capacitive
-
EthernetRJ45, 10/100M/1000M
-
WiFiIEEE 802.11 ac (2.4G & 5.8G Dual Band)
-
BluetoothBT4.1(BT5.0 optional)
-
4G LteOptional
-
Speakers2*3W
-
CameraFront 2M/5M pixels(Optional)
-
AdapterDC 9V ~24V
-
Interface3*HDMI®IN
1*3.5mm Jack AV IN
1*RS232&SPDIF (3.5mm Jack)
1*UART (4Pin2.0mm)
1*LAN RJ45 (LED)
1*USB3.0
5*USB2.0 (one build in)
1*PDM (30Pin0.5mm FPC)
1* Update key (3.5mm jack back)
1*Backlight (6Pin2.0mm)
1*I2C (TP) , 6Pin2.0mm
1*10Pin2.0mm (Power, Menu, Source, LED, IR)
1*GToit (2x5Pin1.27mm)
2*IPXE, WIFI/BT ANT
RF ATSC3.0(optional) -
DisplayPanel: 12.5”/15.6” color TFT LCD
Resolution: 1920*1080
Viewing Angle: 85°
Contrast: 600:1
Brightness: 300 cd/m2(Optional)
Screen: 16:9

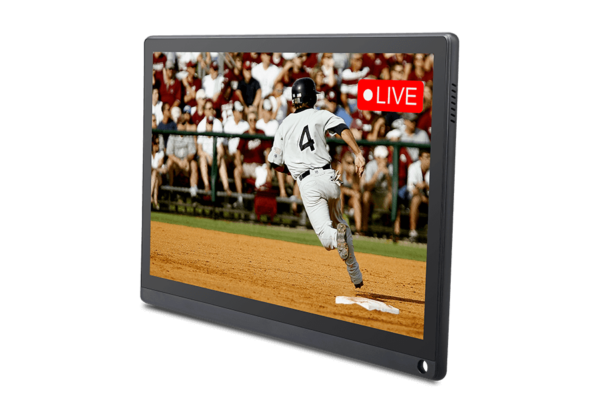

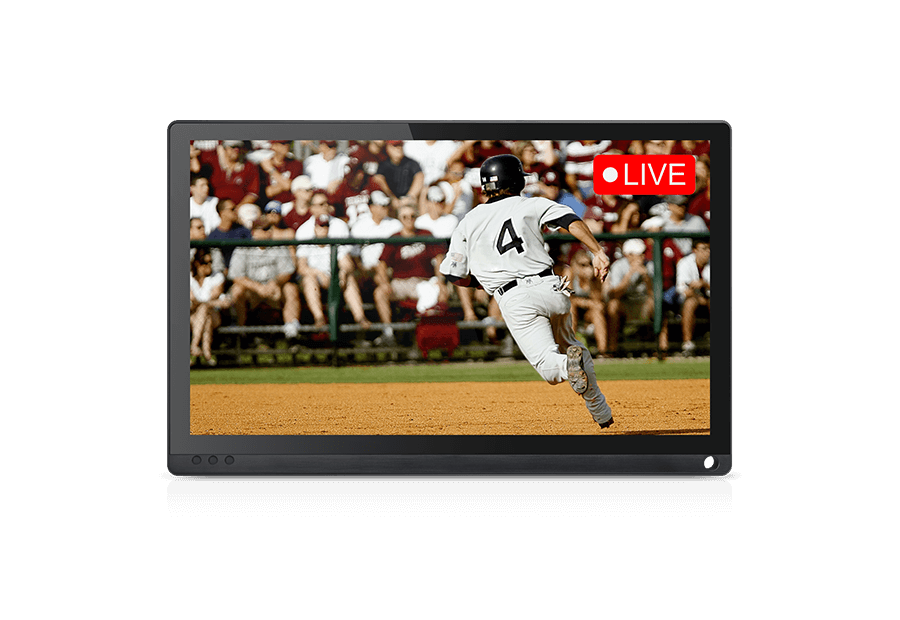

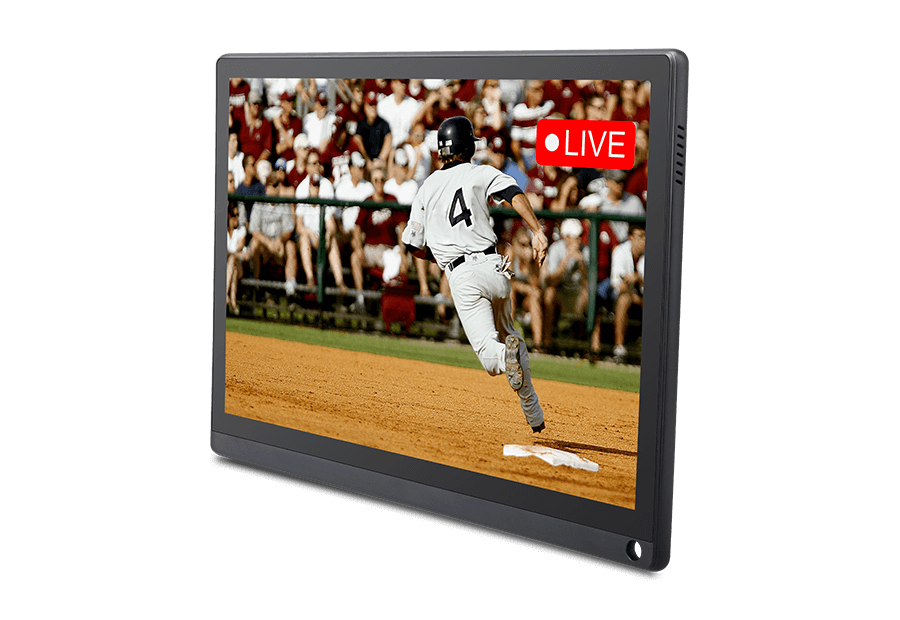

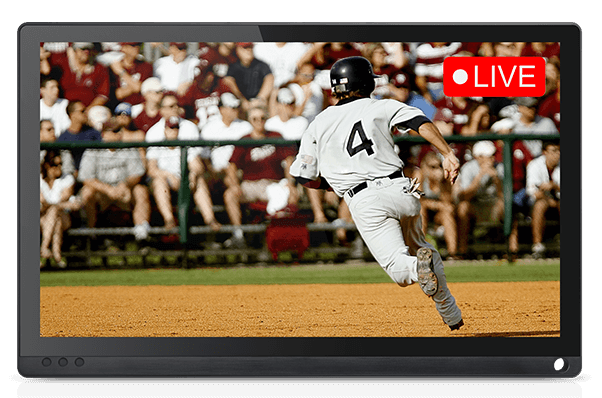

ATSC 3.0 Television
- Supports ATSC3.0 Live TV Input(Optional)
- 10points projected capacitive touch screen
- Quad Core Cortex A55 @1.8GHz, Android 11.0
- 2GB RAM(4GB Optional), 16GB eMMc flash(32GB/64GB optional)

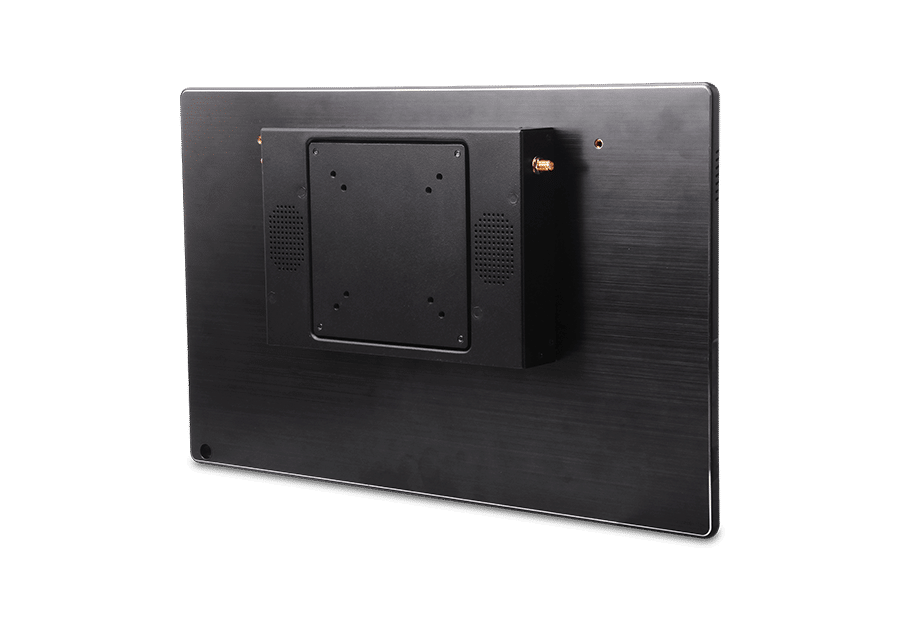

- Metal frame, support customizing wall mount
- Supports Mini PCIE (for 4G LTE), 3*HDMI®IN 4KP60 + 1*AV IN
- USB, Micro SD, external storage, support program playback
- Built-in WiFi, LAN interface and Front camera(optional)
- Designed for retail, interactive communication, desk display etc.
