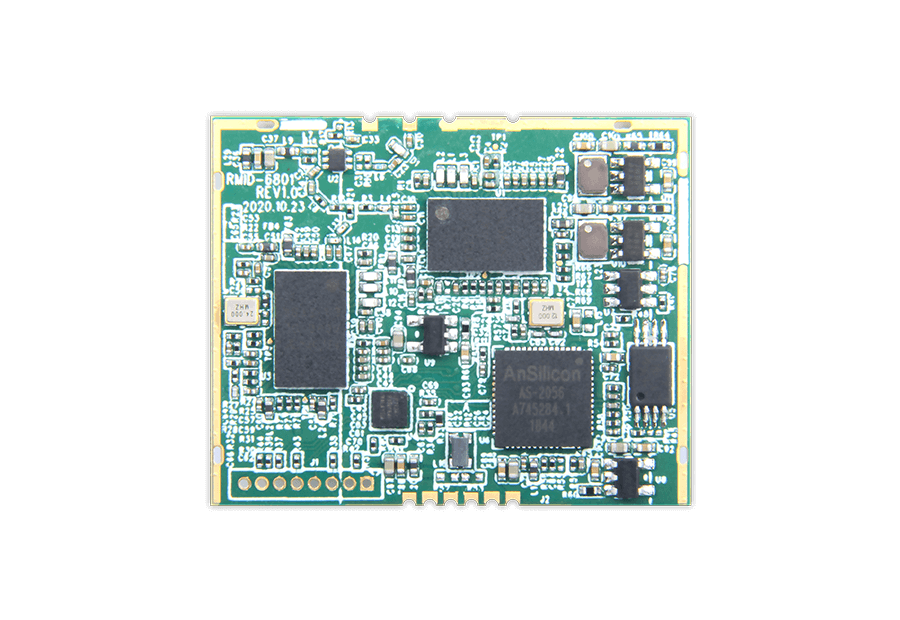

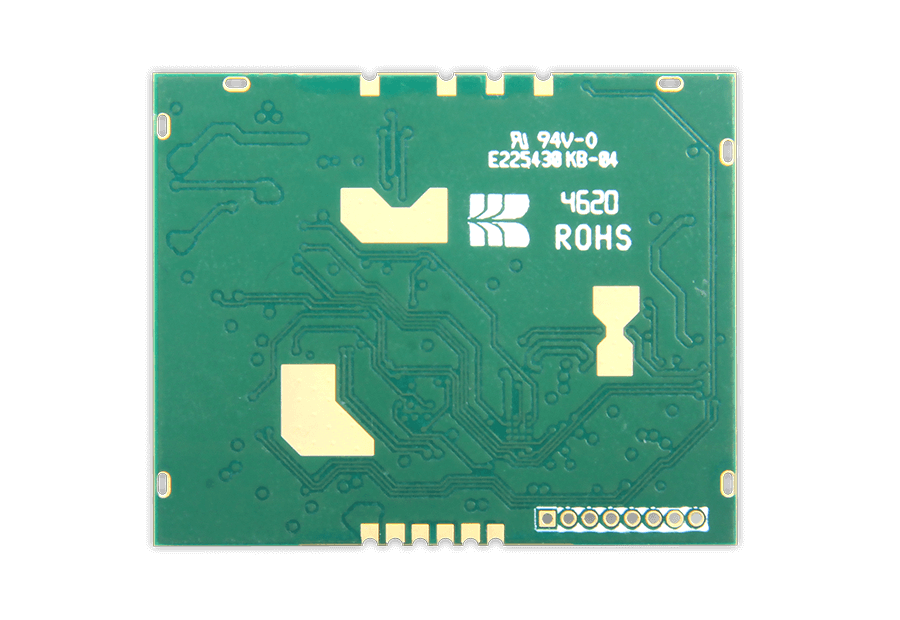

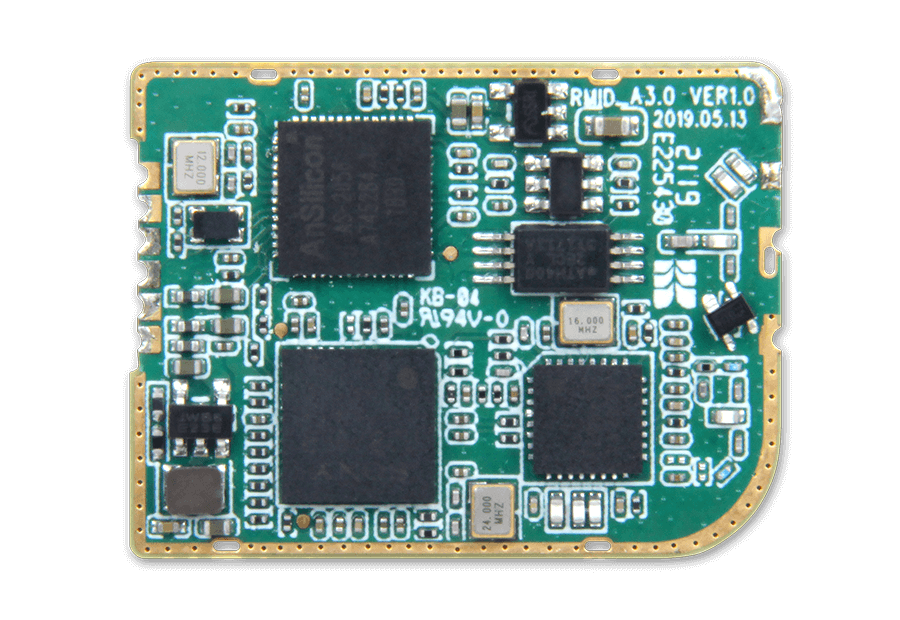

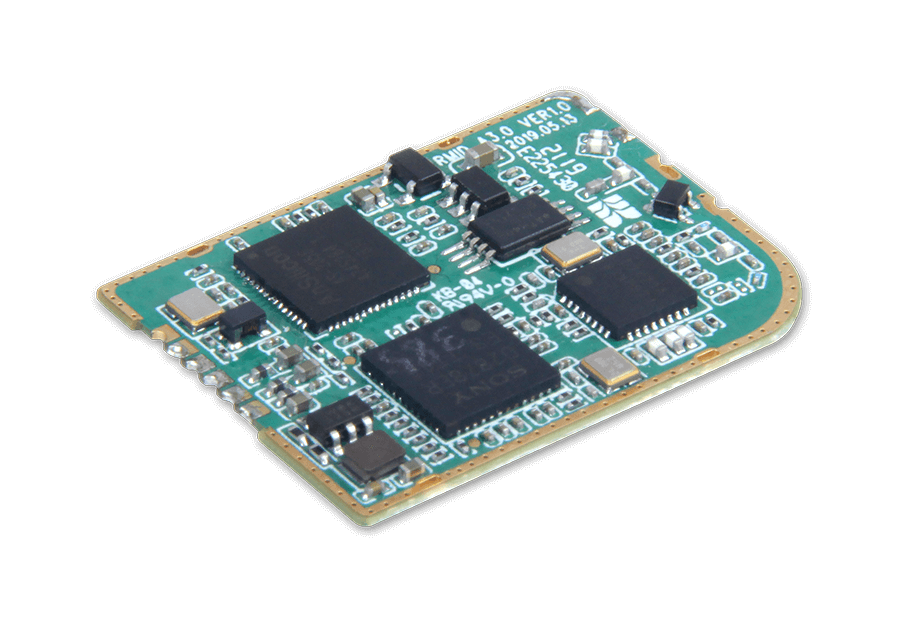

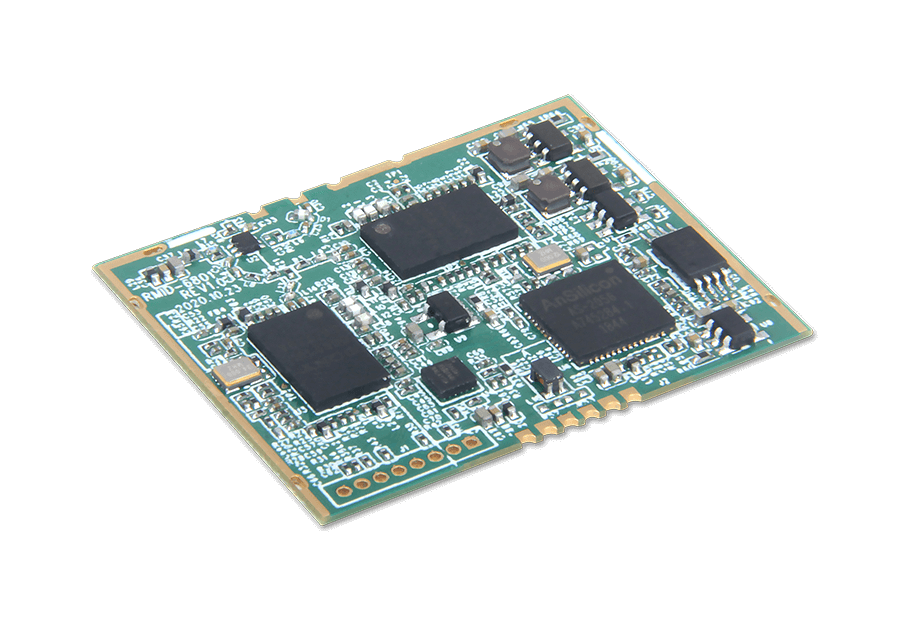

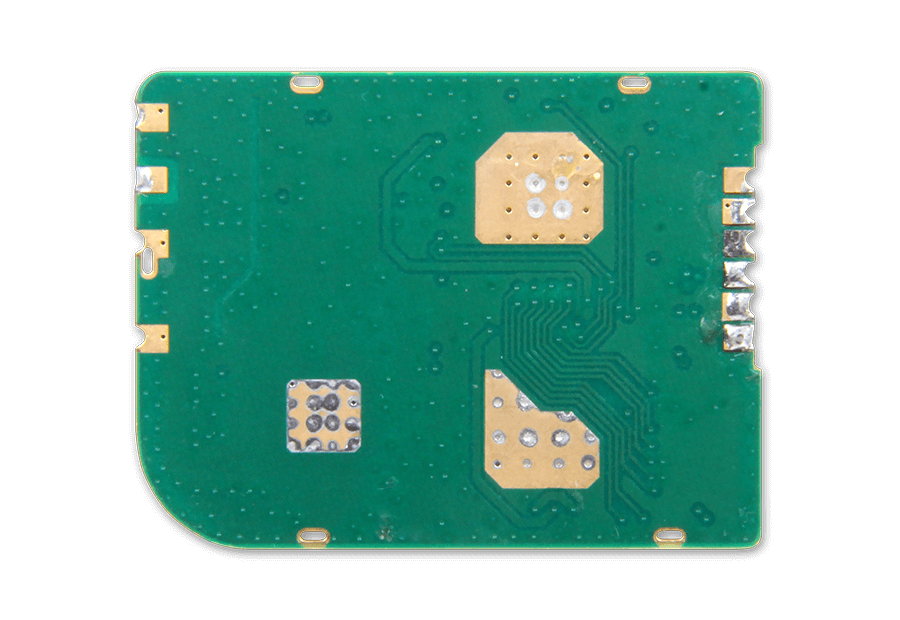

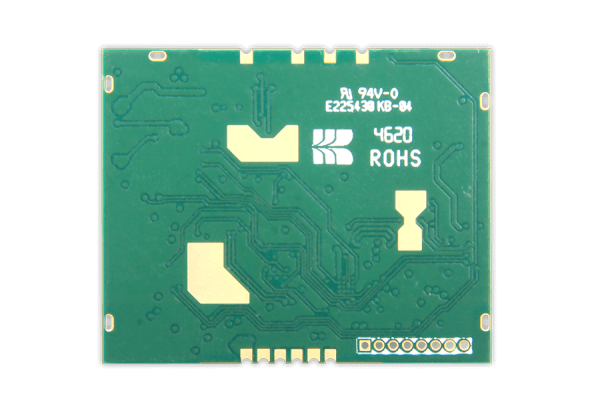

MA683/MA683B ATSC3.0 TV Tuner Module

Geniatech MA683/MA683B TV Tuner Module is a module that supports ATSC 3.0, a new standard for terrestrial television in USA and Korea. Single/Dual tuner design, support up to watch two frequency points at the same time, The module can be used for getting TV stream for decoding by the main SoC, like a PC, notebook, Linux STB and Android devices, through USB2.0 interface. It provides ATSC 1.0/3.0 digital TV and transforms your Android tabletinto a flat panel TV. It is fully compatible with ATSC 1.0/3.0 digital TV standard.

  • Singe/Dual Tuner inside Optional
  • Sony tuner and demodulator inside
  • Small foot print, Low power comsuption
  • USB2.0 interface to host SoC
  • Support Software Development Kit (SDK) and Driver
  • Ideal for STB and TV Manufacturers



Categories: ,
Get A Quote

Ultra-Small Size, Easy to Add to Your Device




Convenient USB interface, No Peripheral Circuits Needed

No Internet Needed

Enjoy Free to view channels without using your airtime, 3G/LTE or any internet connection!MA683B requires an Dual Core Android device with a 1 GHz or up and Android 4.1 or later.MPEG-4/H.264 video playback requires a processor with NEON support.

Real Live TV Without Internet

MA683B lets your PAD receive the great variety of free-to-view TV programs that are broadcast over-the-air.

EPG for Program Guide & Record TV Shows

Application work with MA683B/MA683 that has built-in EPG for you to check TV program schedule easilyYou can click the record button to record TV show and store in your mobile device.

Product MA683B MA683
Tuner Dual tuner Single tuner
Input Signal 75 Ohm Digital TV Antenna Input
Receive Frequency: TV 57 ~ 803 MHz
ATSC compliant 8-VSB
Open Cable , ANSI/SCTE DVS-031,ITU-T J.83 Annex B, and DOCSIS compliant 64/256 QAM
ATSC 3.0 FEC length:16200, 64800
Code Rate:2/15, 3/15, 4/15, 5/15, 6/15, 7/15, 8/15, 9/15, 10/15, 11/15, 12/15, 13/15
Constellation:QPSK,NUC,16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
Transmission mode:SISO, MISO, MIMO, Channel bonding
Interleaving:Convolutional Time Interleaver, Hybrid Time Interleaver
FFT size:8K, 16K, 32K
Max bitrate:SISO 8 MHz 78.5 Mbps – 2×2 MIMO 8 MHz 157Mbps
Frame duration:from 50ms to 5s
PLP number:from 1 up to 64 (min 4 in parallel for demod)
Versatile PLP mapping:TDM, FDM, TFDM, LDM
De-Multiplexing Max No. Section filtering: 32PIDS
Engine: Software
Stream capture: PES & TSA/V Format
Recording Format Video Format: mpg-II Main Profile & Main Level
Audio Format: mpg-II Audio Layer I & II
Support OS Android, Linux, Windows

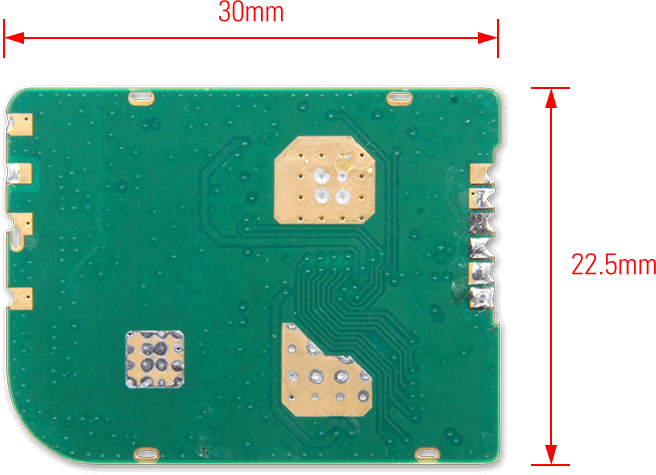

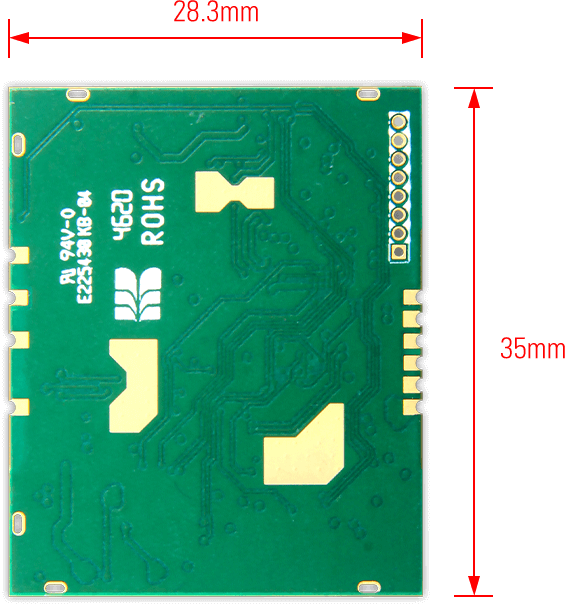

size 28.3mm*35mm 30mm*22.5mm
