SOM201/SOM202

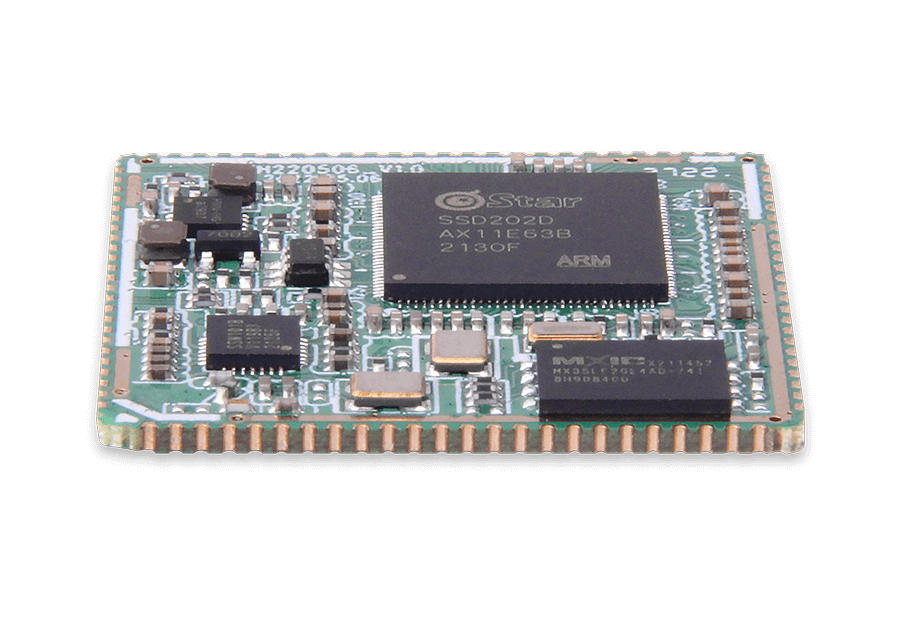

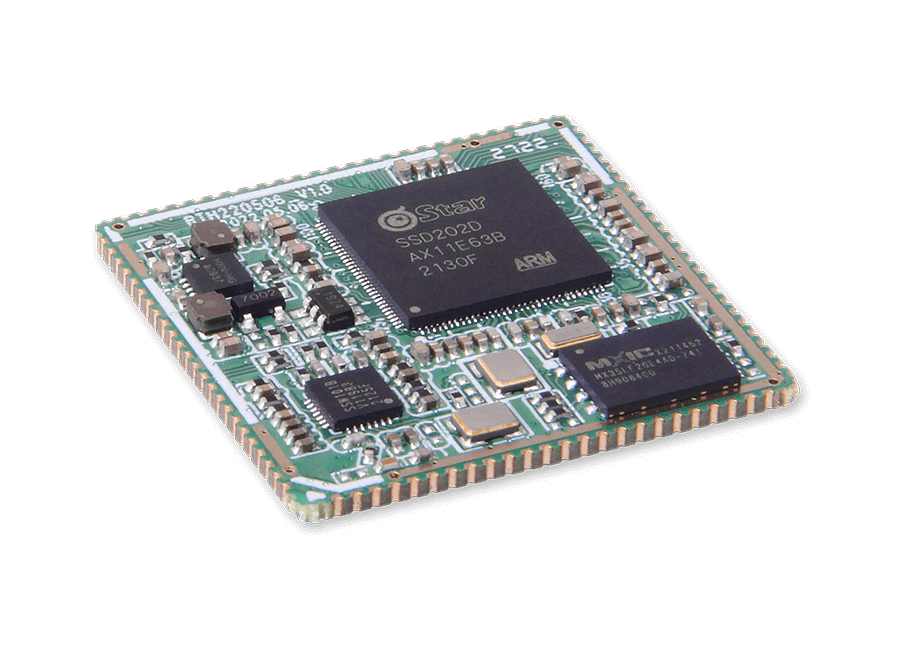

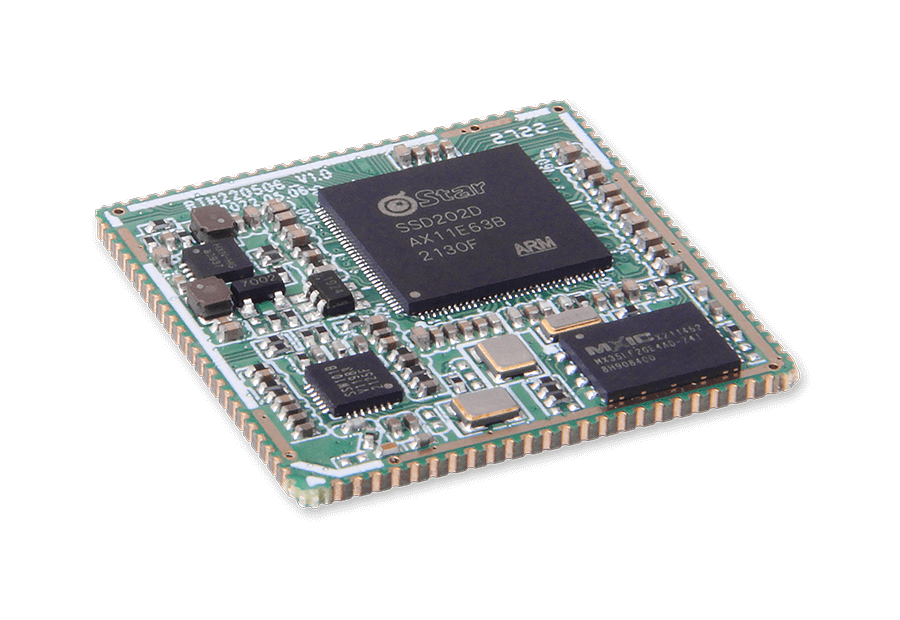

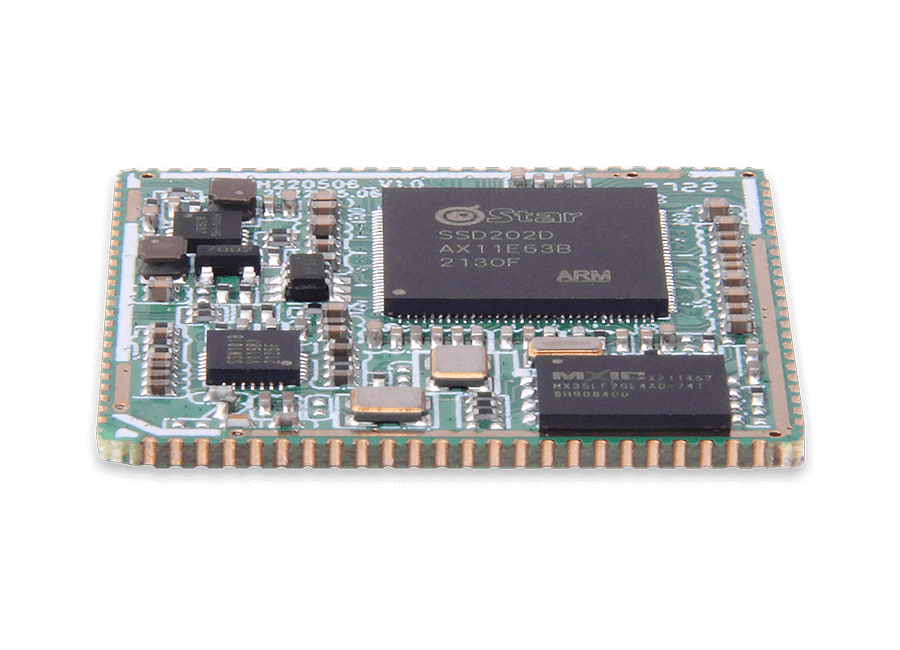

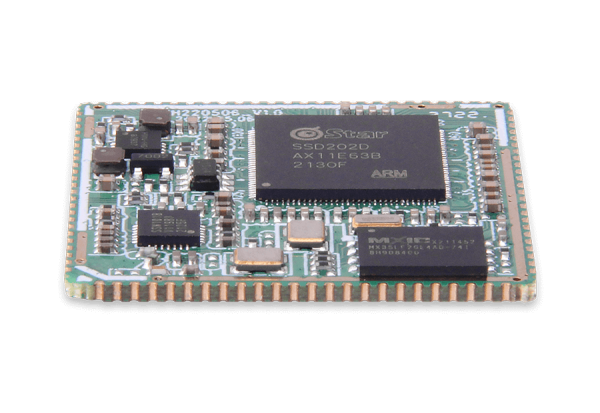

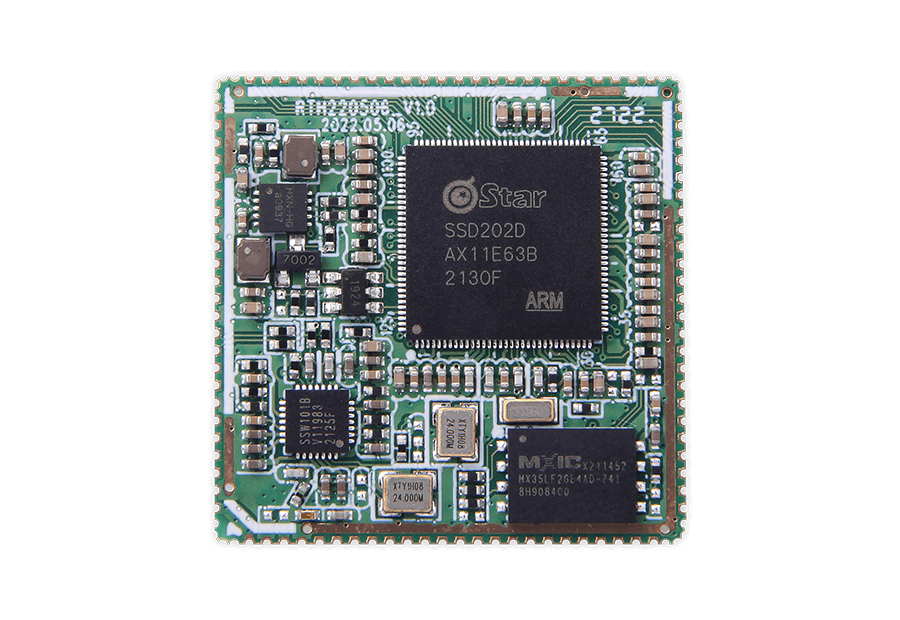

SoM20X core board adopts Sigmastar SSD201/SSD202 SoC, size is only 29.5x 29.5mm, built-in Neon and FPU, integrated H.265/HEVC/AVC decoder, core board built-in memory, Wi-Fi, flash, PHY, display output and power circuit, Widely used in intelligent building display terminal, smart home appliances, smart home display screen, VOIP-SIP phone, electric vehicle instrument, industrial Internet of Things gateway, industrial HMI and other application scenarios.

Buy a Sample

Get A Quote

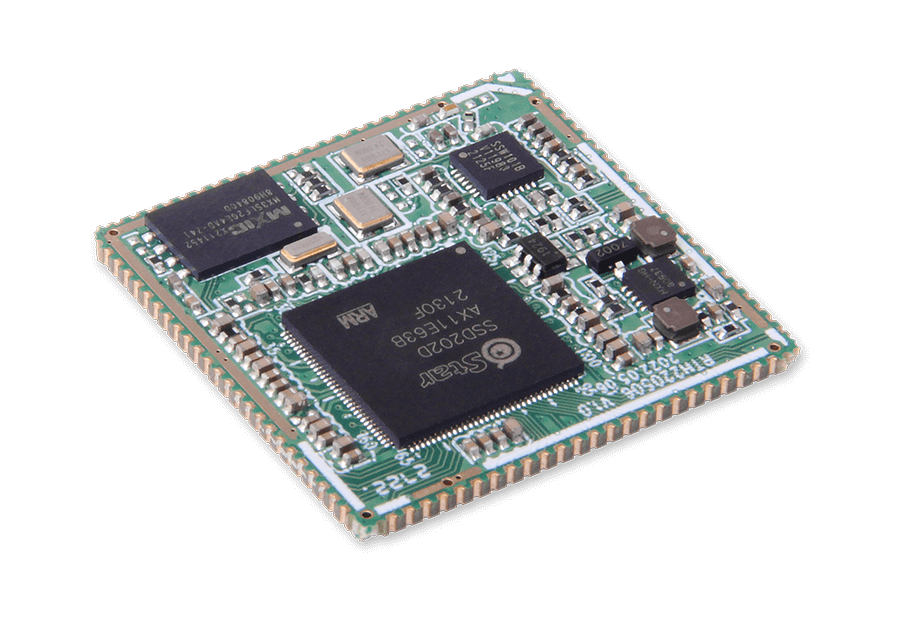

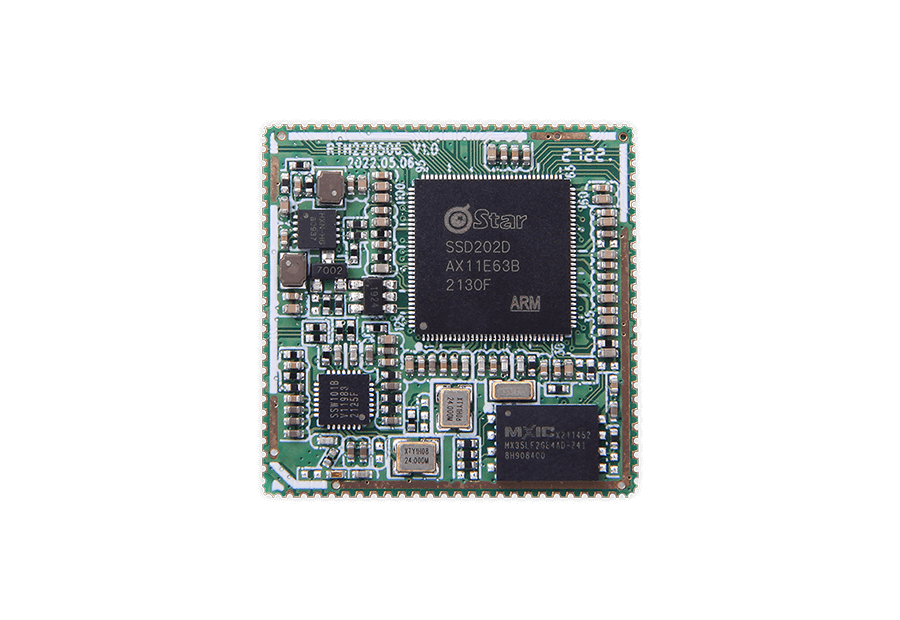

Sigmastar SSD201/SSD202D System on Module

SoM20X core board adopts Sigmastar SSD201/SSD202 SoC, size is only 29.5x 29.5mm, built-in Neon and FPU, integrated H2.64/AVC、H.265/HEVC decoder, core board built-in memory, Wi-Fi, flash, PHY, display output and power circuit, Widely used in intelligent building display terminal, smart home appliances, smart home display screen, VOIP-SIP phone, electric vehicle instrument, industrial Internet of Things gateway, industrial HMI and other application scenarios.

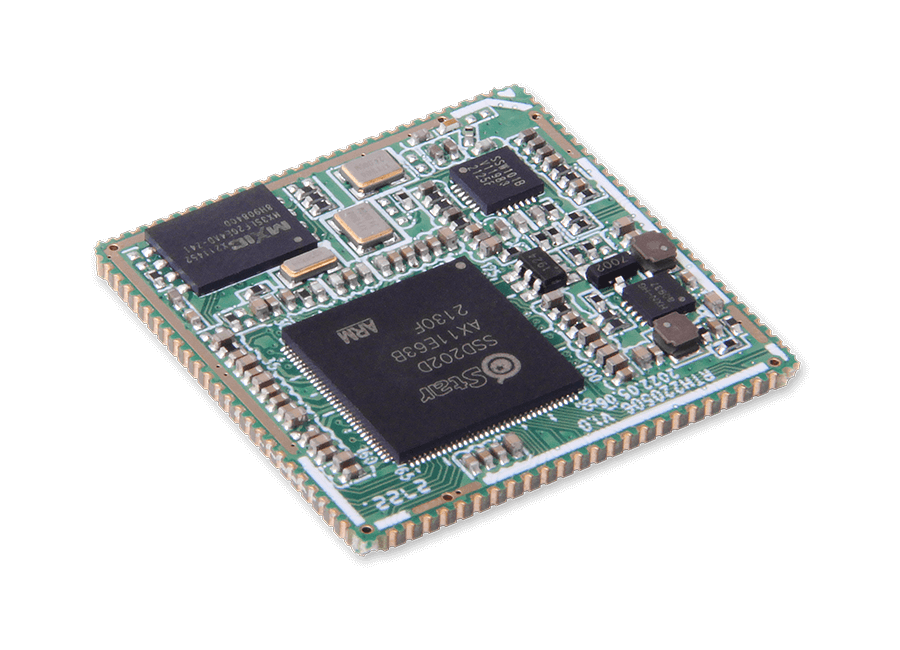

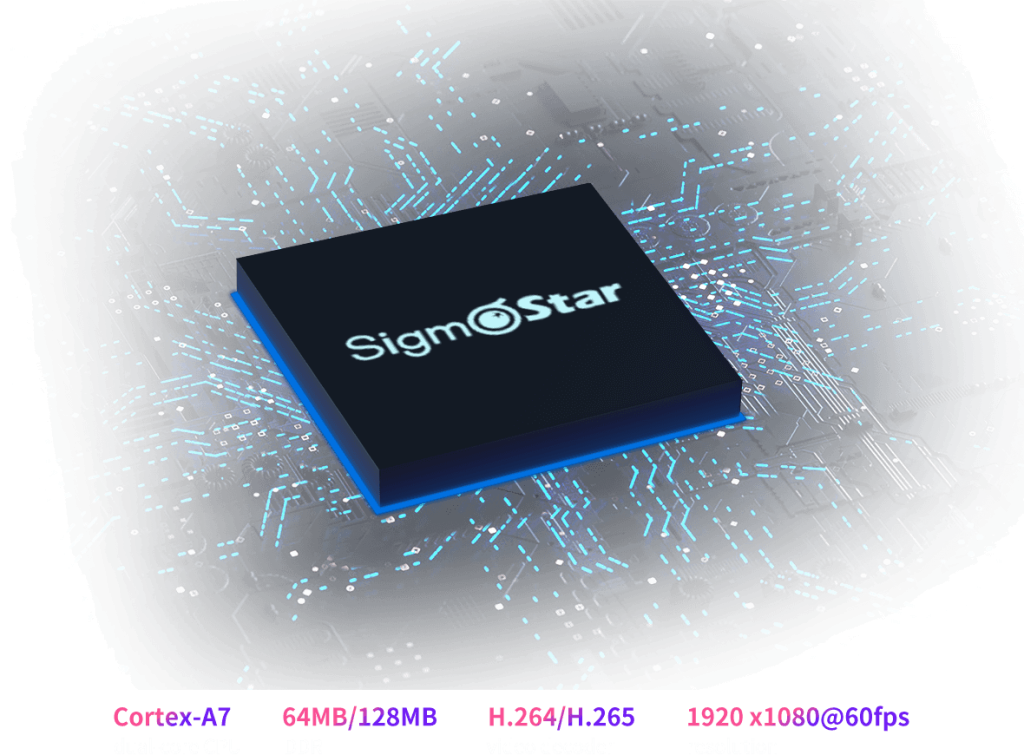

Highly integrated processor, high cost performance

ARM Cortex-A7 dual-core processor, 1.2GHz main frequency, built-in 64MB/128MB DDR RAM, built-in 2D graphics engine, integrated H.264/H.265 video decoder, support MIPI-DSI/RGB and other display interfaces. 1920 x1080@ 60fps maximum resolution.

Open system architecture design, powerful software customization ability

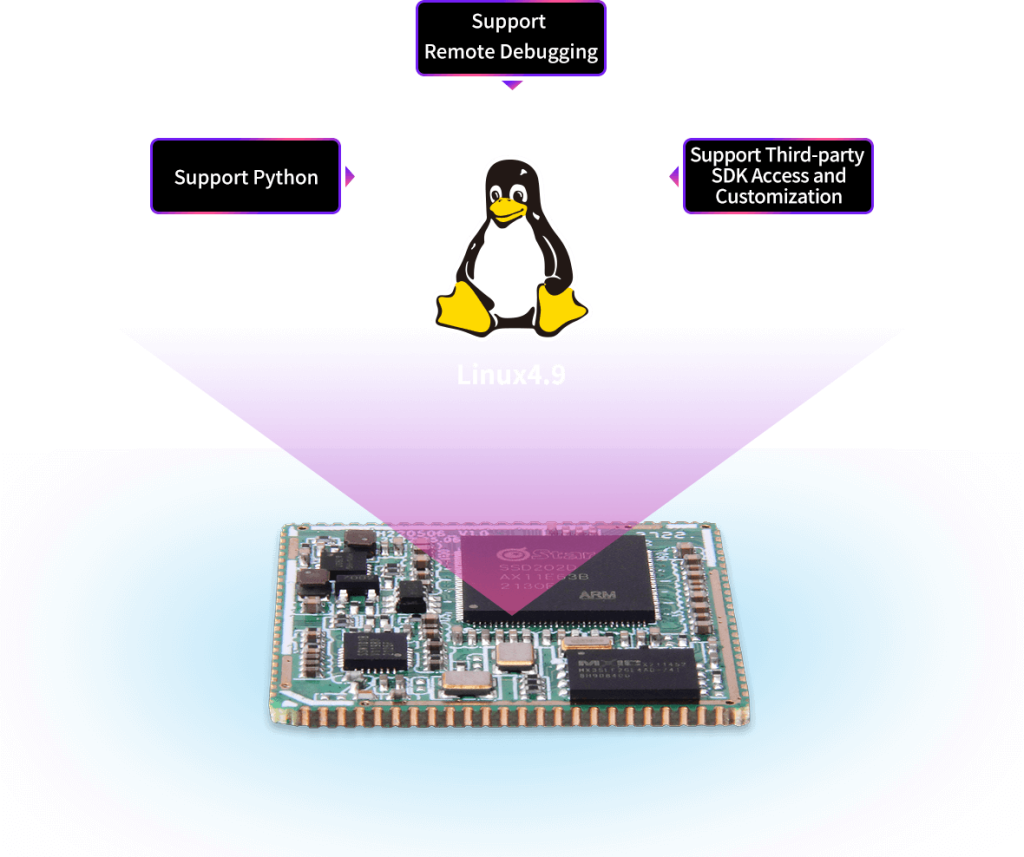

Custom-built embedded linux4.9 operating system, which can boot up very fast, support Phthon, remote debugging,support for third-party SDK access and customization,can provide complete set of software system customization services, including system kernel modification, driver migration, application development and UI interface customization, thus providing a safe and stable system environment for product research and production.

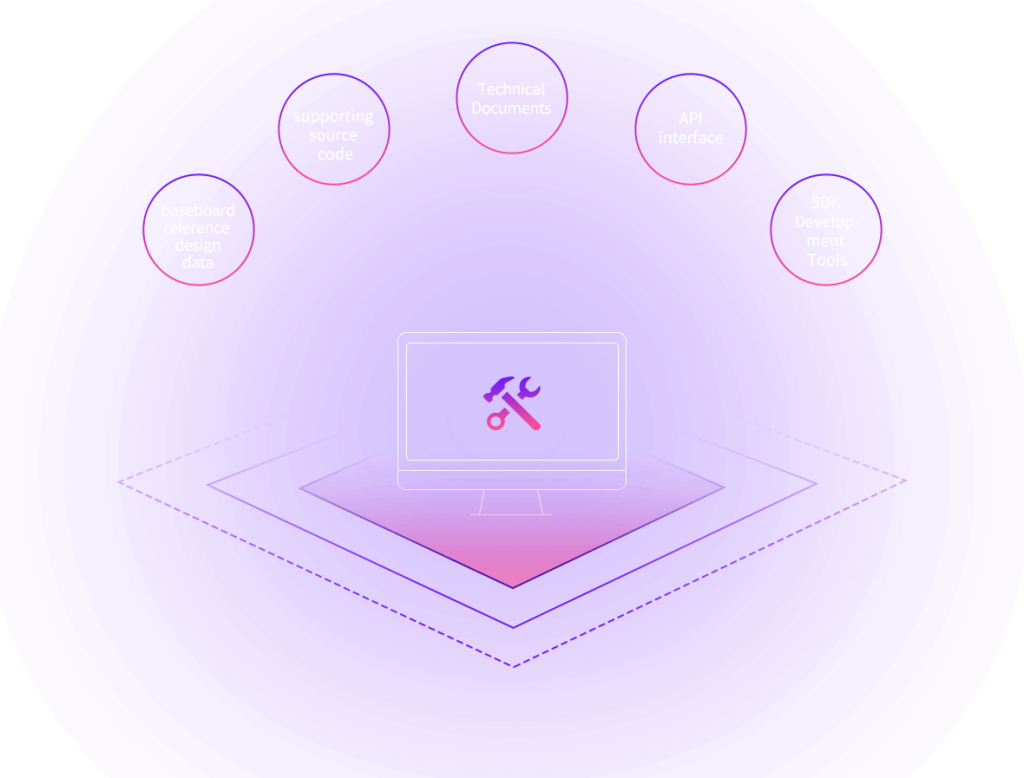

Provide complete technical documentation and can be efficient for secondary development

Can provide comprehensive technical data including baseboard reference design data, supporting source code, technical documents, API interface and SDK development tools, making the secondary development more simple, convenient and efficient, and helping customers to quickly create independent and controllable customized products.

Long life circle

SSD201/SSD202 chip is included in Sigmastar long-term product supply plan, 10 years + ultra-long and stable supply period, to provide customers with stable product supply for customized embedded products, to ensure the long life cycle of products.

Rich extended interface, support for variety of network communication

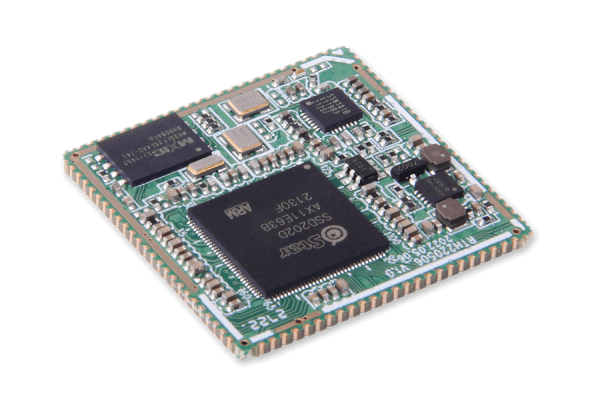

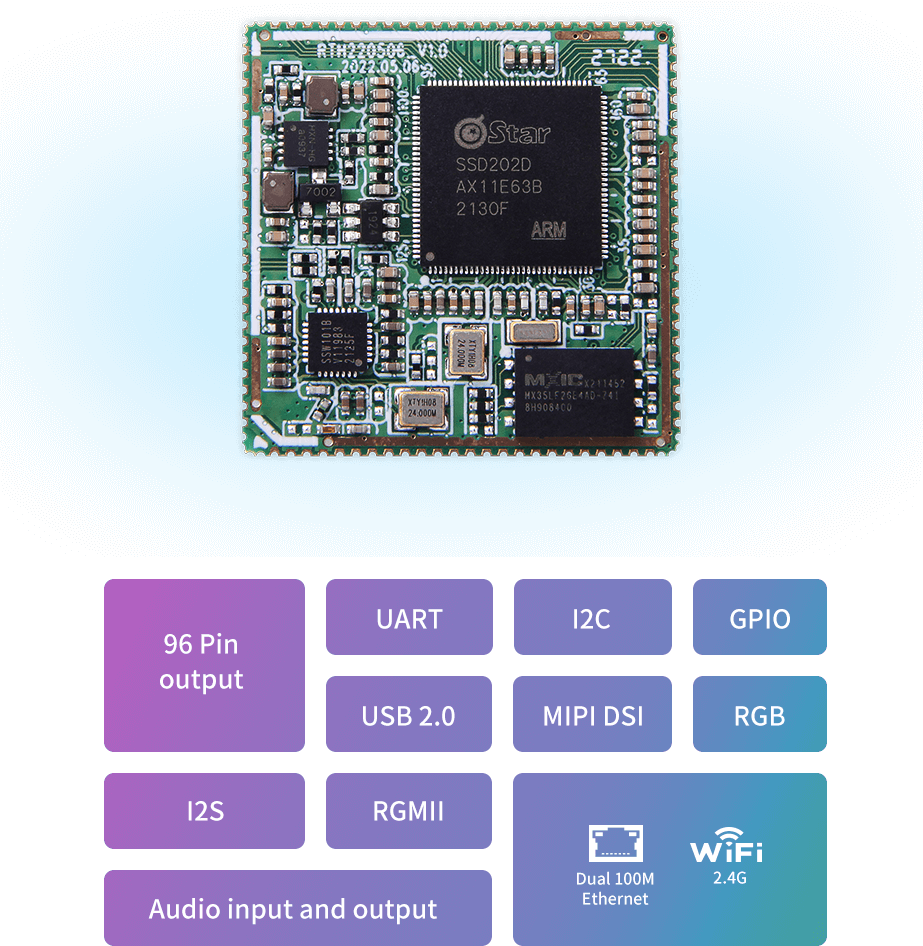

96 Pin output, support UART, I2C, GPIO, USB2.0, MIPI DSI, RGB, I2S, RGMII, audio input and output and other rich expansion interface, support double 100M Ethernet, 2.4G Wi-Fi, Provides rich function expansion for product applications.

A full range of one-stop customization service

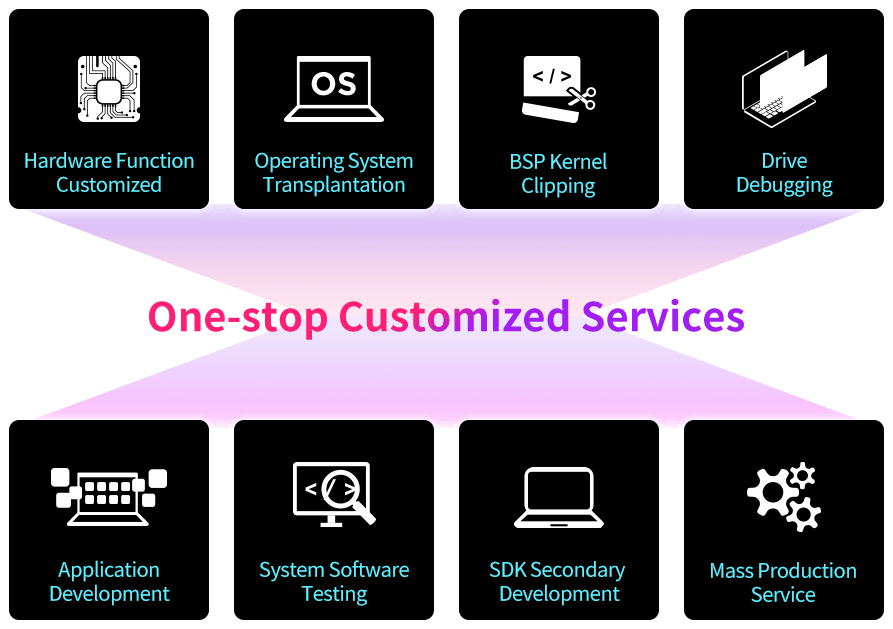

Geniatech has 25 years of technology research and development of ARM products and abundant partner resources, which can not only provide customized hardware but also cross-SOC platform operating system transplantation, BSP kernel tailoring and driver debugging, scenario-based application software development, overall system software testing services, perfect SDK secondary development interface and other one-stop consulting services. With our own production plant of nearly 30,000 square meters, it helps customers greatly shorten the cycle from product selection, research and development project approval, small trial production to mass production and delivery.

Application

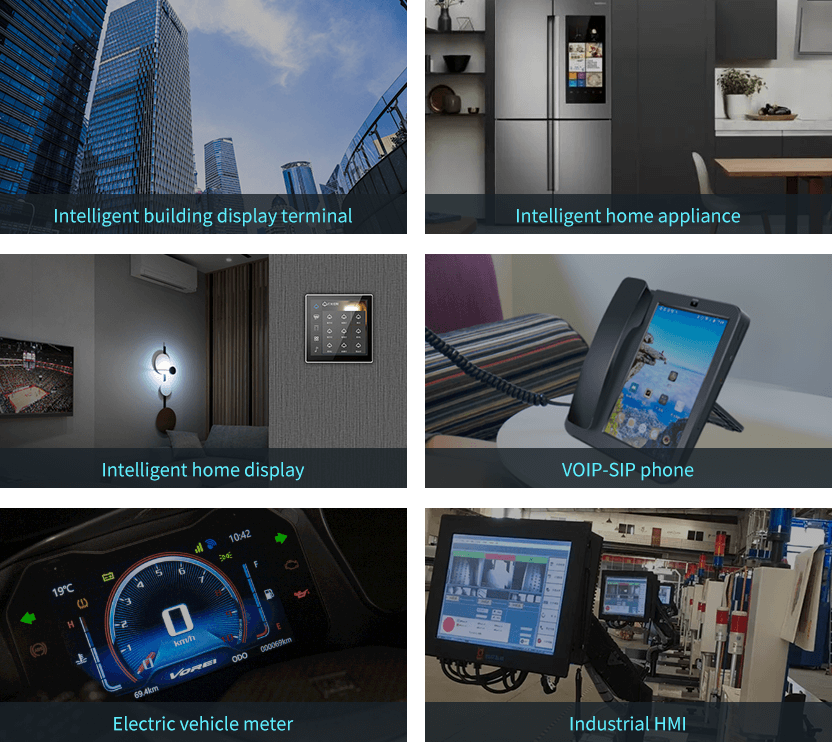

Widely used in intelligent building display terminal, smart home appliances, smart home display screen, VOIP-SIP phone, electric vehicle instrument, industrial Internet of Things gateway, industrial HMI and other application scenarios.

  • CPU
    SigmaStar SSD201/SSD202
    Dual Core ARM® Cortex-A7, Frequency up to 1.2GHz, built-in Neon和FPU
  • Internal Memory
    SoM202:DDR3 128MB
    SoM201: DDR2 64MB
  • Internal Storage
    1/2/4 bit SPI-NOR/SPI-NAND Flash 128MB/256MB/512MB
  • Ethernet interface
    Two Ethernet ports, support 10 / 100Mbps half-duplex / full duplex
    a built-in 10 / 100M Ethernet physical layer, support an RMII connection to the external PHY, and support two LEDs for ePHY
  • Wi-Fi
    Sigmaster Wi-Fi (SSW101B)
  • Display
    MIPI DSI
    RGB
  • Secure boot
    Support AES/DES/3DES/RSA/SHA-I/SHA-256, support safe boot
  • USB interface
    1 x USB 2.0 HOST
  • Audio interface
    One mono ADC for microphone input, two stereo DMIC inputs,
    and one stereo DAC for line output, which support the 8K / 1 6K / 32K / 48 KHz sampling rate
  • IR Interface
    1 x IR input
  • Extended interface
    4 x UART (PM_UART used for Debug Serial)
    1x SDIO2.0 (SD 2.0)
    2x I2C, 1 x I2S, 1 x SPI, 4 x PWM, GPIO
  • Power pack
    3.0V
  • PCB
    1.2mm 4 layer
  • Core board packaging

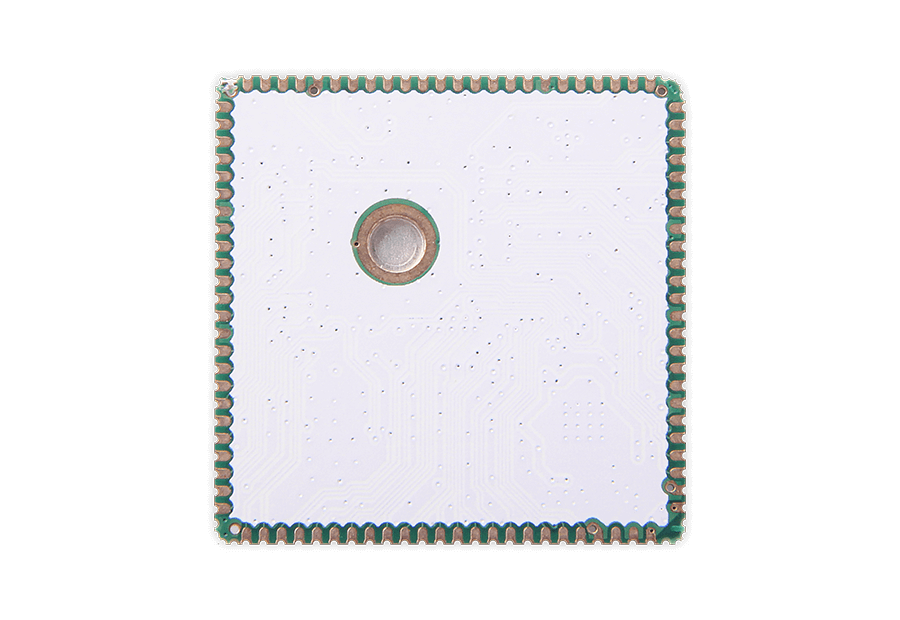

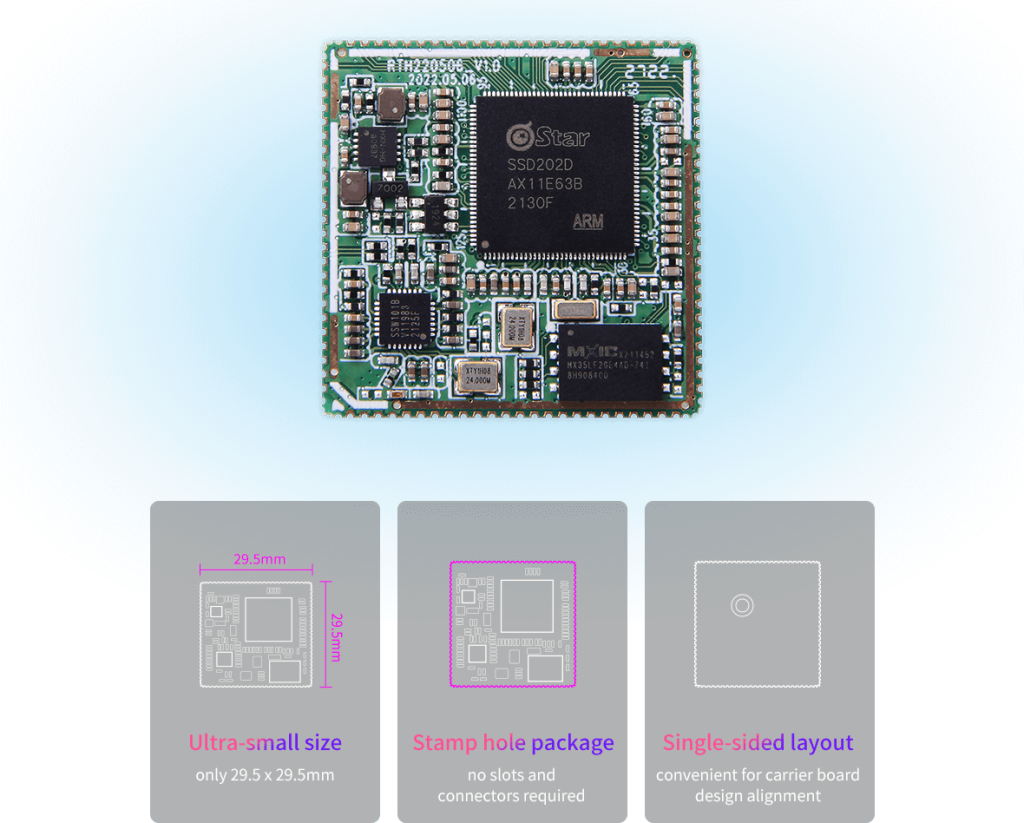

    Stamp hole packaging(96 PIN, 1.1mm pitch)
  • Mechanical properties
    Size: 29.5mm x 29.5mm
    Net Weight 8(g)
  • Operating system(OS)
    Linux kernel version:4.9.84 UI flythings,littleVGL,miniGUI,QT
