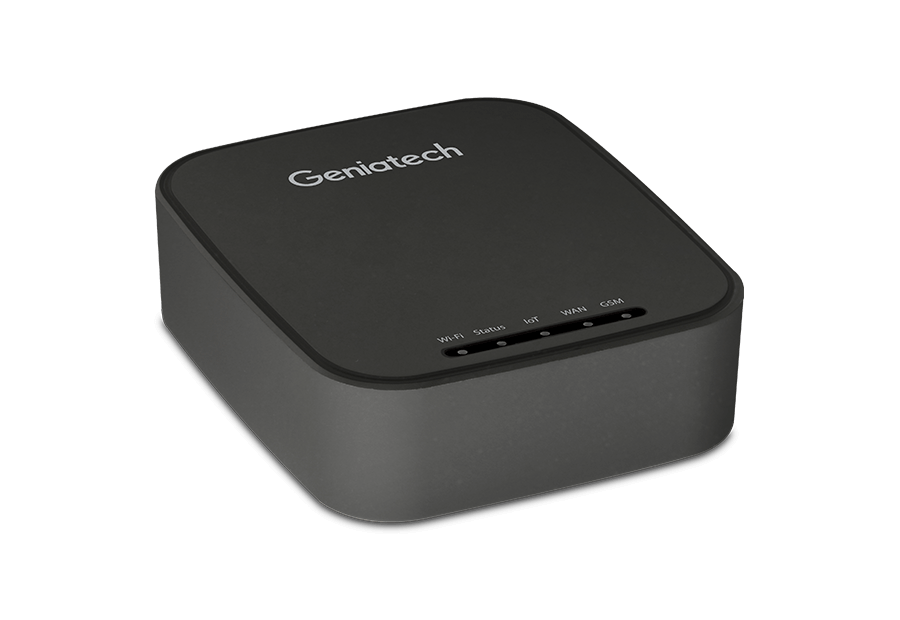

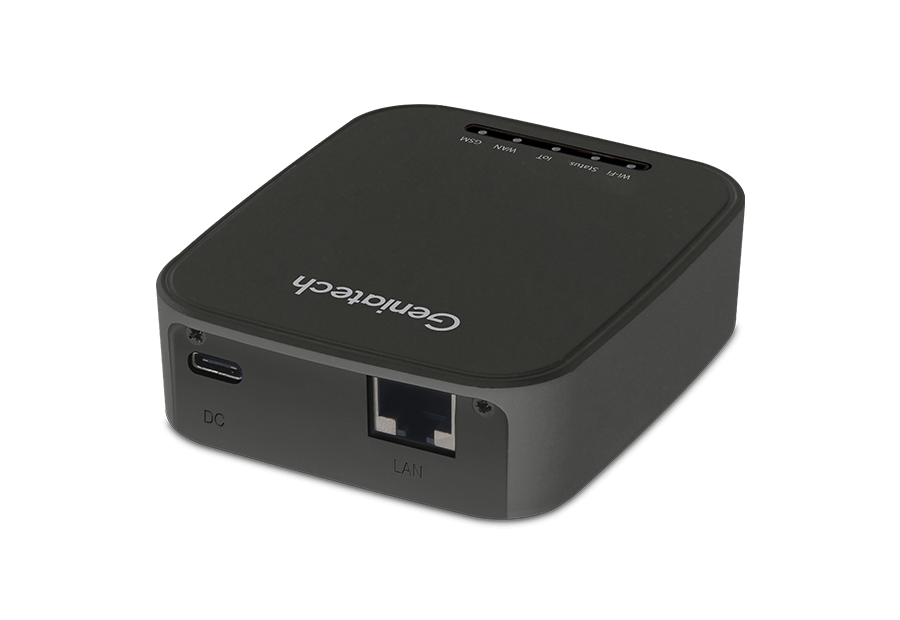

GTW360 Linux Zigbee Gateway

  • Using NXP i.MX6ULL scheme, single Arm CortexA7 core, the frequency up to 792MHz.
  • 512MB (256MB/1GB optional) memory , 8GB eMMC Flash (4GB optional)
  • IEEE 802.11a/b/g/n/ac dual band radio with virtual synchronous dual band operation
  • Support Bluetooth v4. 2 + EDR, Simultaneous BT/WLAN receive with single antenna.
  • The mature, stable and extensible Yocto system is adopted
  • Unique software algorithms ensure network security.
  • Customization for special applications, open API interface.
  • Commercial grade operating temperature: -10°C to +65°C
Get A Quote

NXP i.MX6ULL 792MHz

The i.MX6ULL is a power-efficient and cost-optimized processor family with a single Cortex-A7 core operating at speeds up to 792MHz.

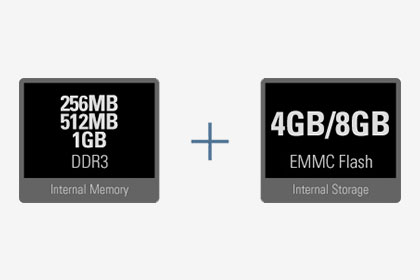

4G / 8G

The utilization of eMMC memory offers an array of benefits in terms of performance security and reliability,resulting in a richer end-user experience

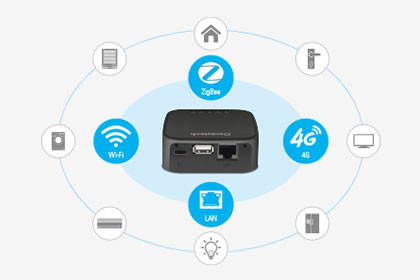

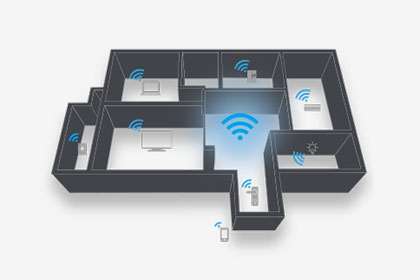

Easy to use, Easy to setup

Connect to your home network using Wi-Fi, or 3G to internet, you can easily remote control your home smart device.

Popular Connectivity

Support different popular connectivity including ZigBee, Wi-Fi, 3G, can add new RF module through USB port.

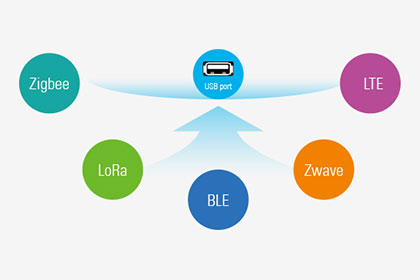

RF Module Expandable

Support external RF module like Zwave, BLE, LoRa, Zigbee, Lte

High Security Standard

Using Industrial grade wireless technology and Highest Level Encryption to ensure your smart home network security.

CPU ARM Cortex-A7 NXP i.MX6ULL
CPU Frequency 792MHz
Internal Memory 512MB(256MB/1GB optional)DDR3
Internal Storage 8GB(4GB optional)EMMC
OS Linux/Yocto
Built-in WiFi 802.11 a/b/g/n/ac
WiFi 2.4G Frequency Range 2.400~2.497GHz
WiFi 5G Frequency Range 4.9~5.845GHz
Bluetooth/BLE 4.2

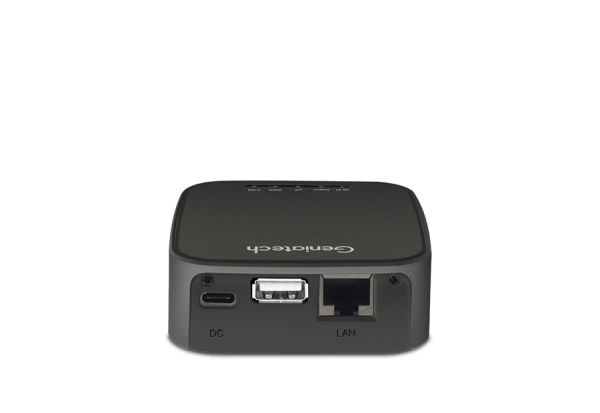

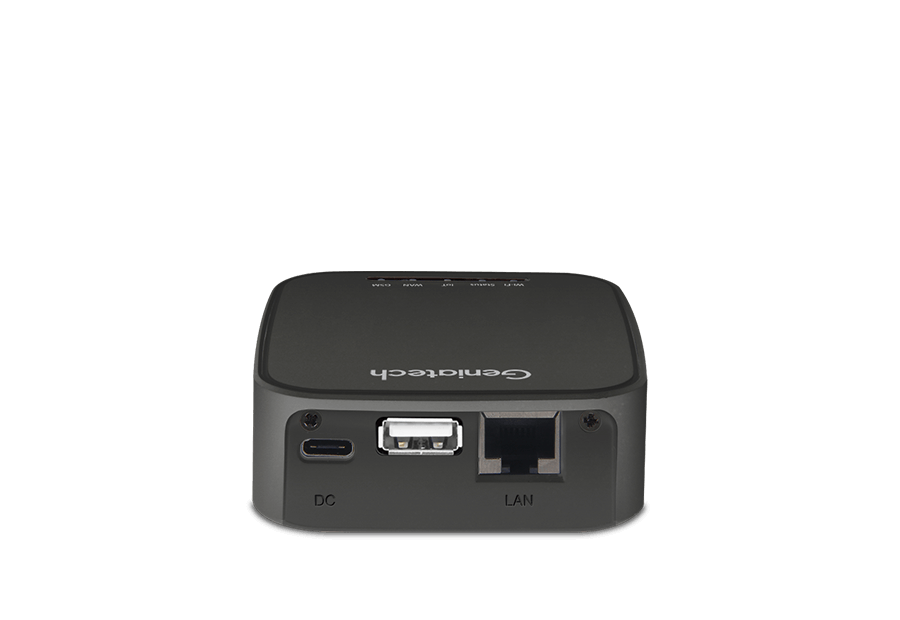

Ethernet port(LAN) RJ45 10/100Mbps
USB Interface Type C for Power Supply
SIM Slot Support(This function can be used when there are 4G modules.)

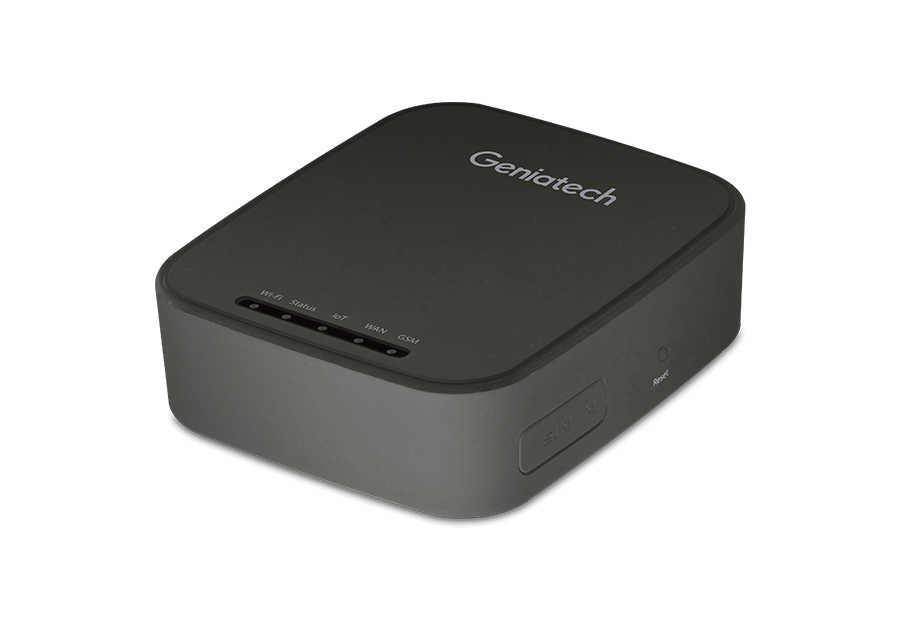

Switch and Button Reset button
LEDs Wi-Fi,Status,IoT,Error,4G(This function can be used when there are 4G modules.)
Antenna Built in WiFi/BT
Mechanical properties
Size (mm) 72*83.2*25.3
Net Weight (g) 240
Power Plug Types DC5V 2A
Certification EU&FCC
