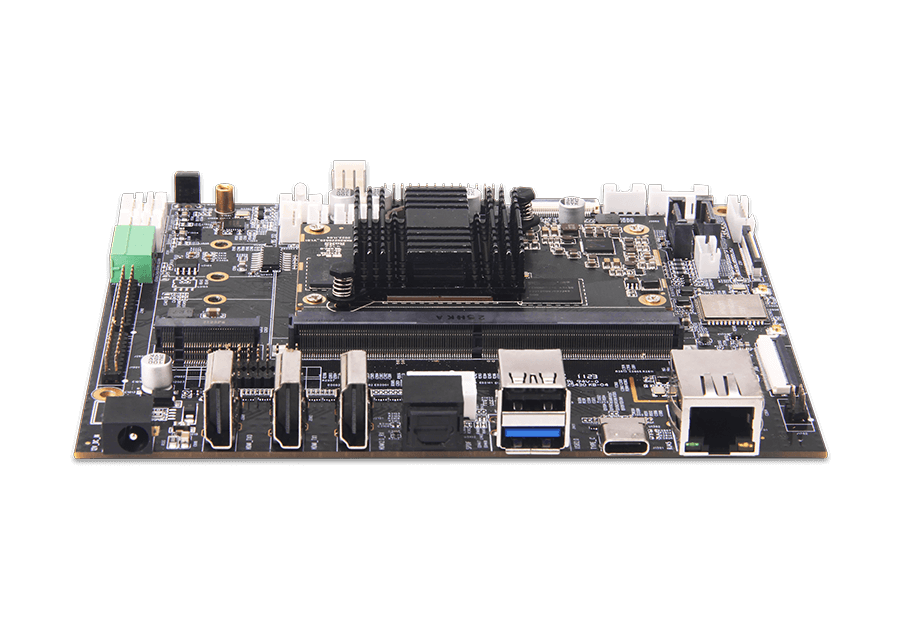

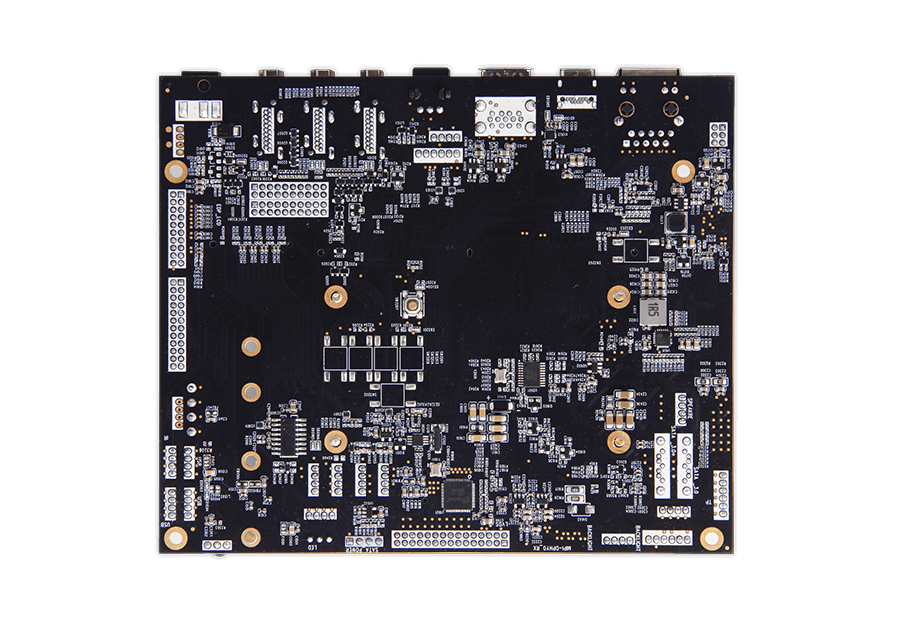

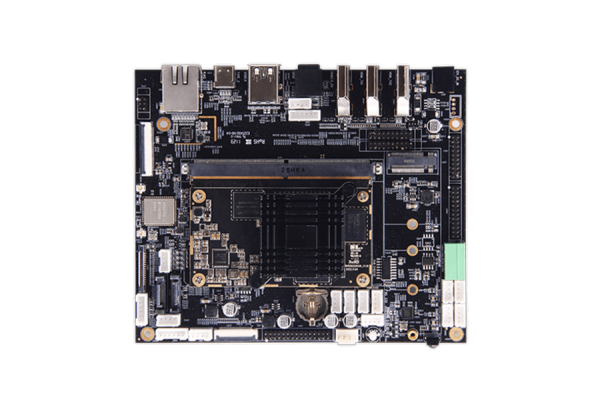

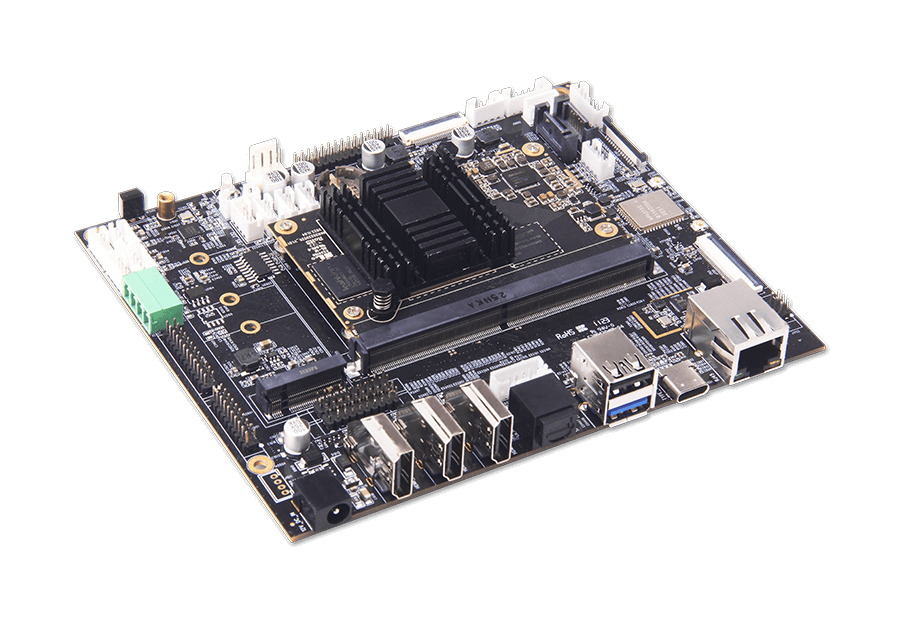

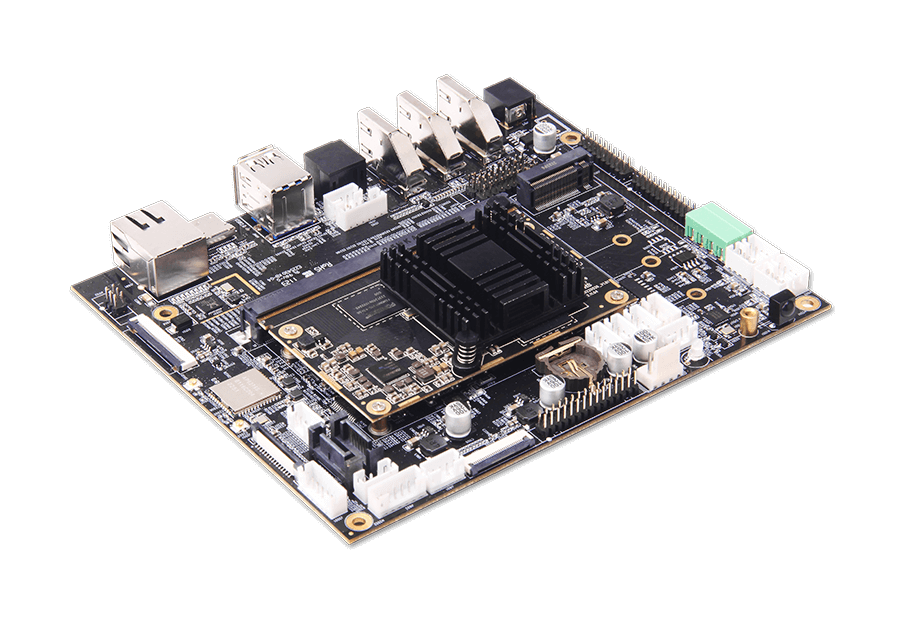

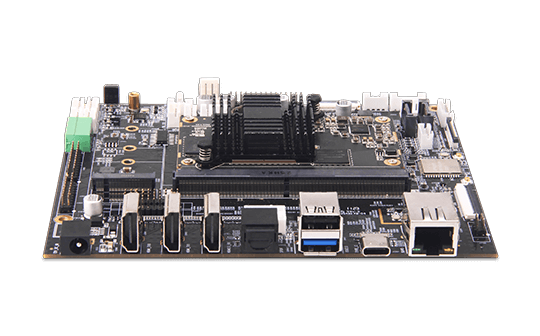

Rockchip RK3588 Single Board Computer

DB3588

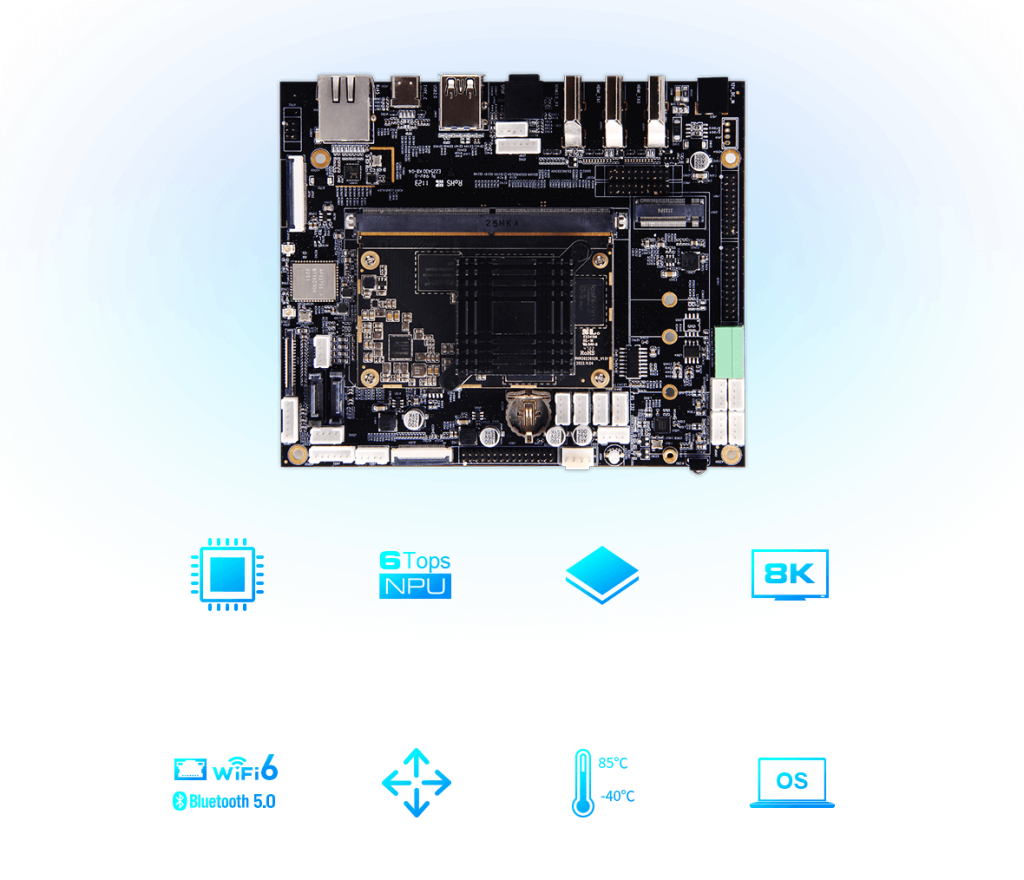

RK3588 Development kit is featured with powerful performance, rich interface and high stability. It is based on Rockchip RK3588’s new generation flagship octa-core 64-bit processor, with a maximum of 32GB memory, the RK3588 mainboard supports 8K video decoder and encoder, 6Tops computing, supports mainstream deep learning framework and a variety of operating systems. This kind of embedded sbc board can be applied to ARM PC, edge computing, cloud server, intelligent NVR and other fields.

Features of RK3588 SBC Board

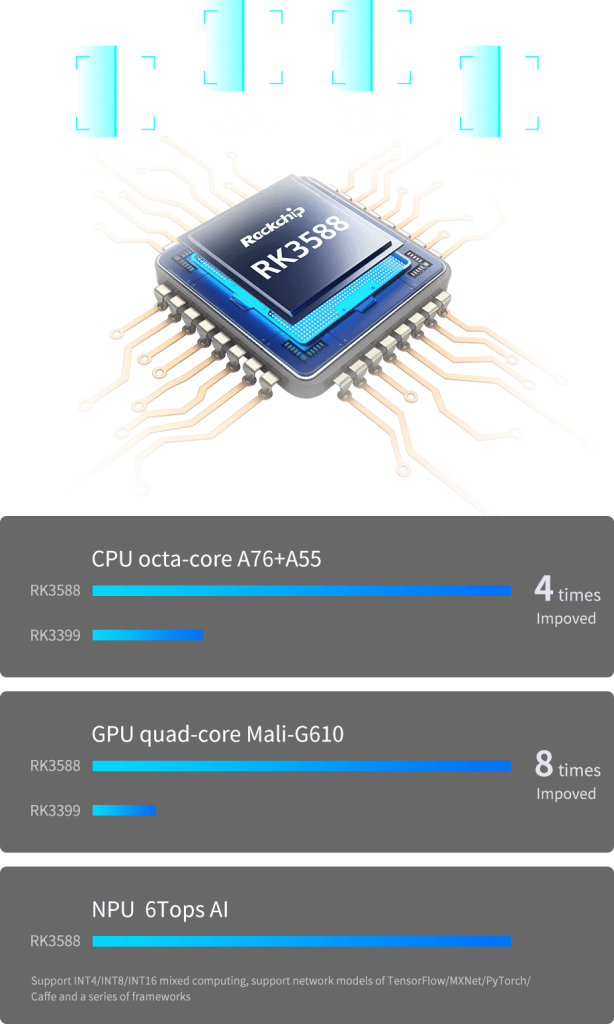

Quad-core Cortex-A76 and quad-core Cortex-A55, build-in NPU up to 6TOPs, and with GPU Mali-G610 MP4 , Android 12 OS or Linux

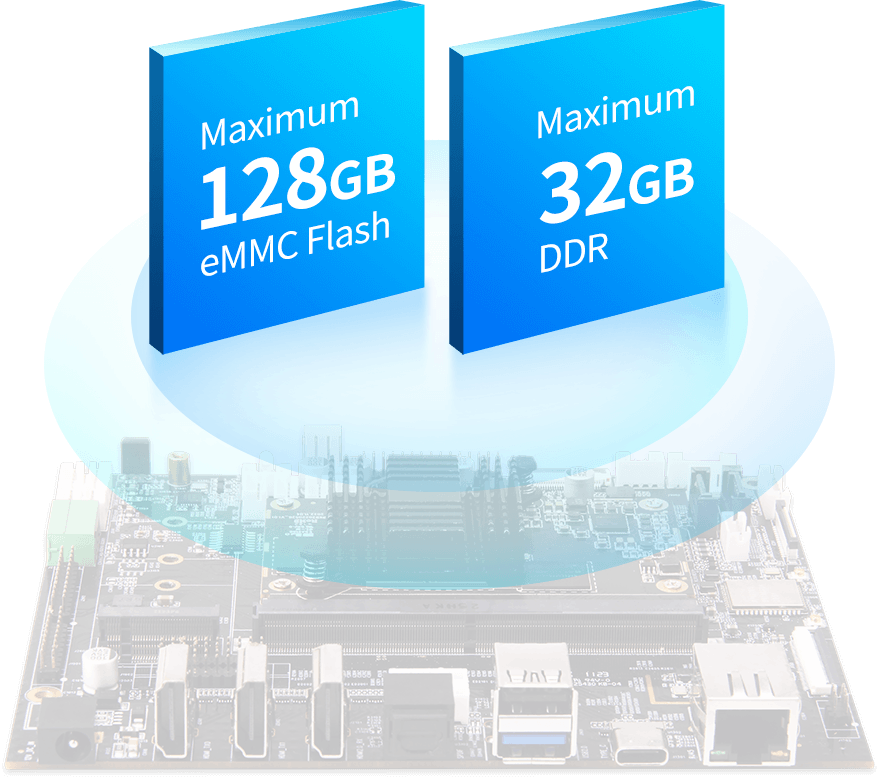

Support 2~32GB RAM, 8~256GB eMMc flash, external expansion storage Micro SD card (Max 512GB)

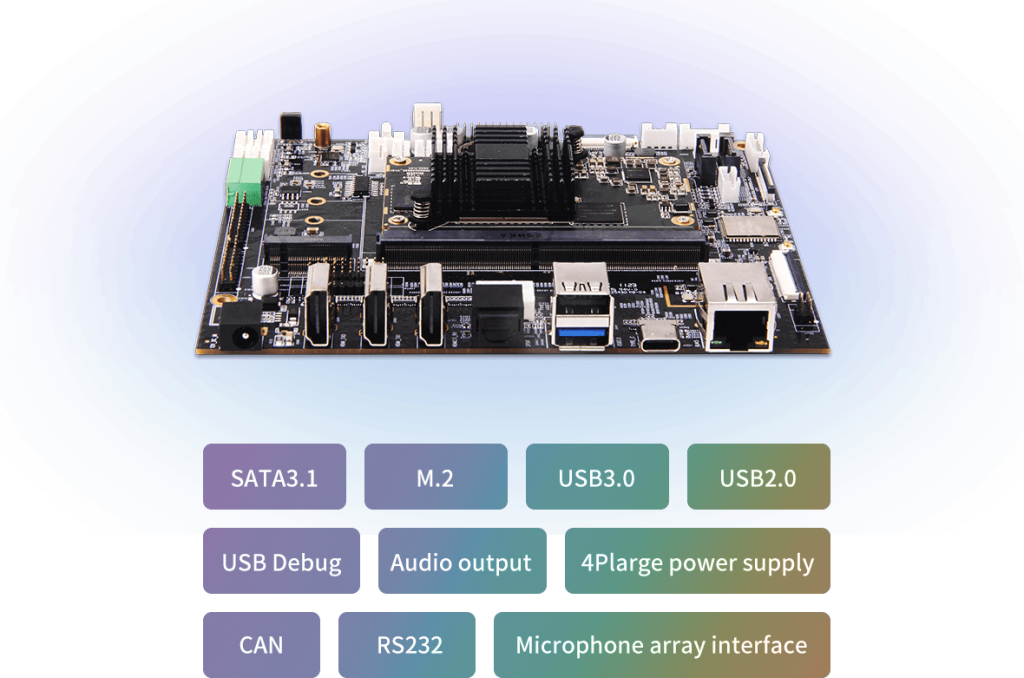

Peripheral interface: USB2.0 * 1, USB3.0 * 1, Type-C *1, Earphone * 1, Debug(Type-C) * 1, Uart to USB (MiniUSB) *1, JTAG * 1

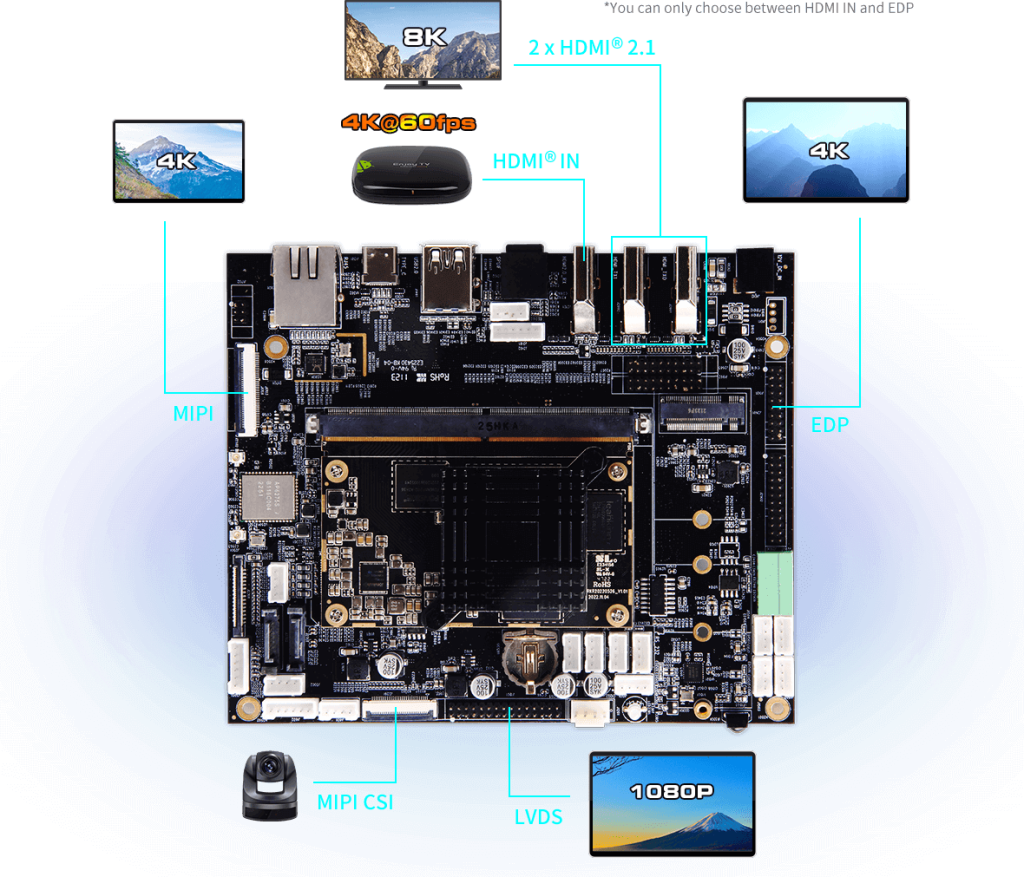

Display interface: HDMI IN * 1, HDMI OUT * 2, VGA * 1
Build-in: MIPI CSI * 2, MIPI DSI * 1, MIPI D/C PHY * 1, PCIe * 1, SATA * 2, MIC * 2

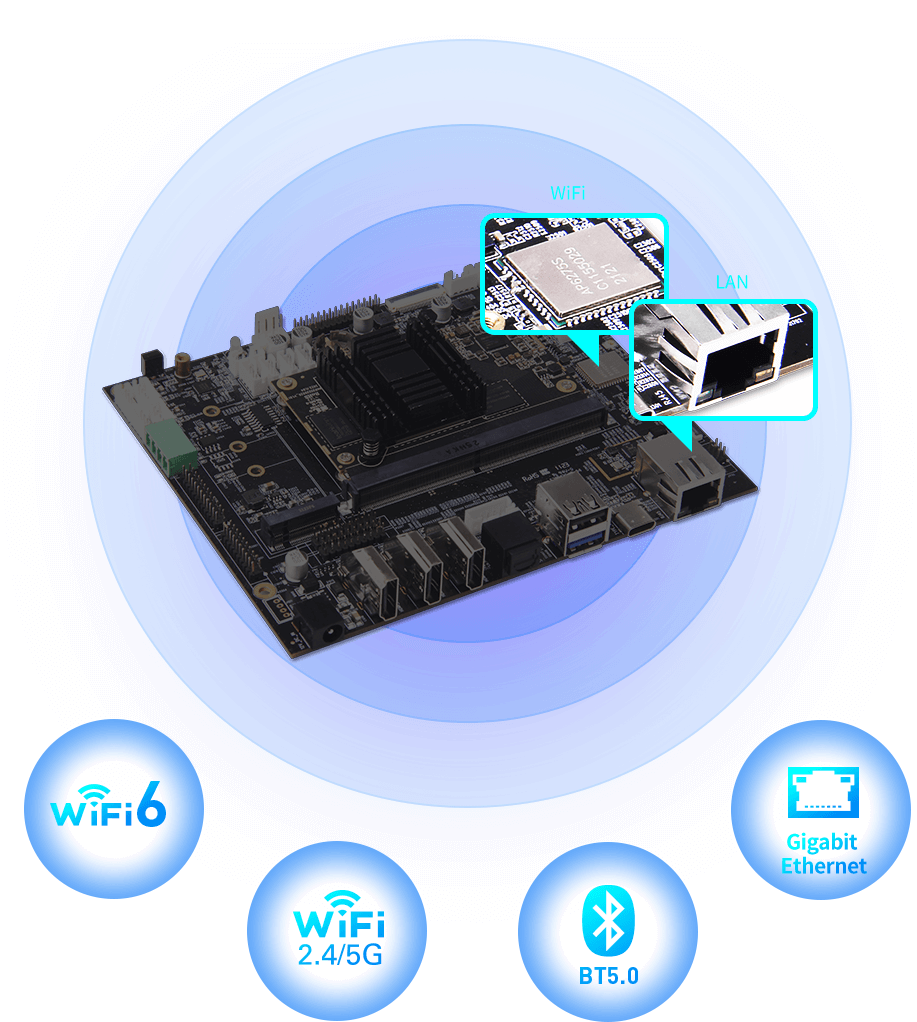

Network: WIFI6(2.4G+5.8G), BT5.0, Gigabit Ethernet * 2

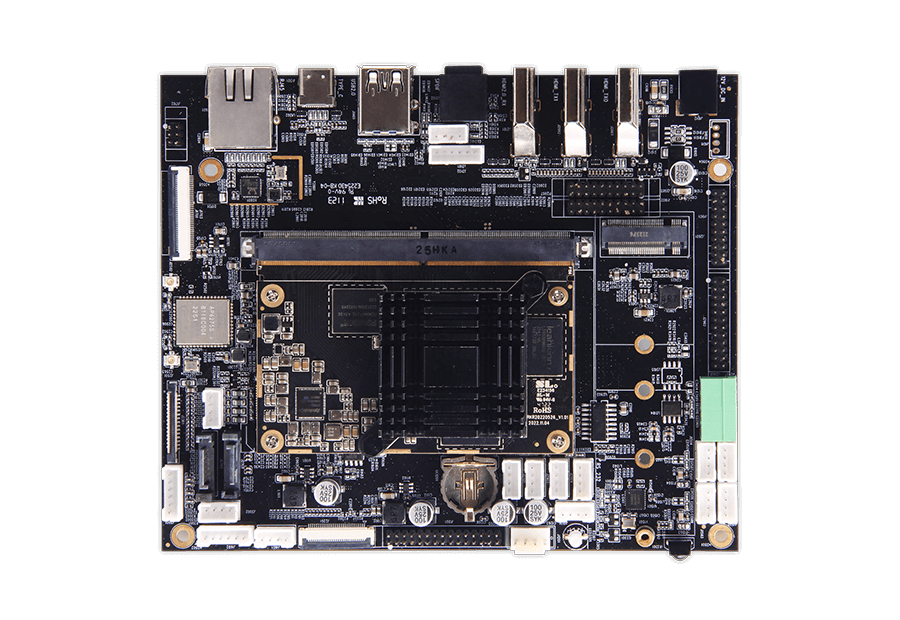

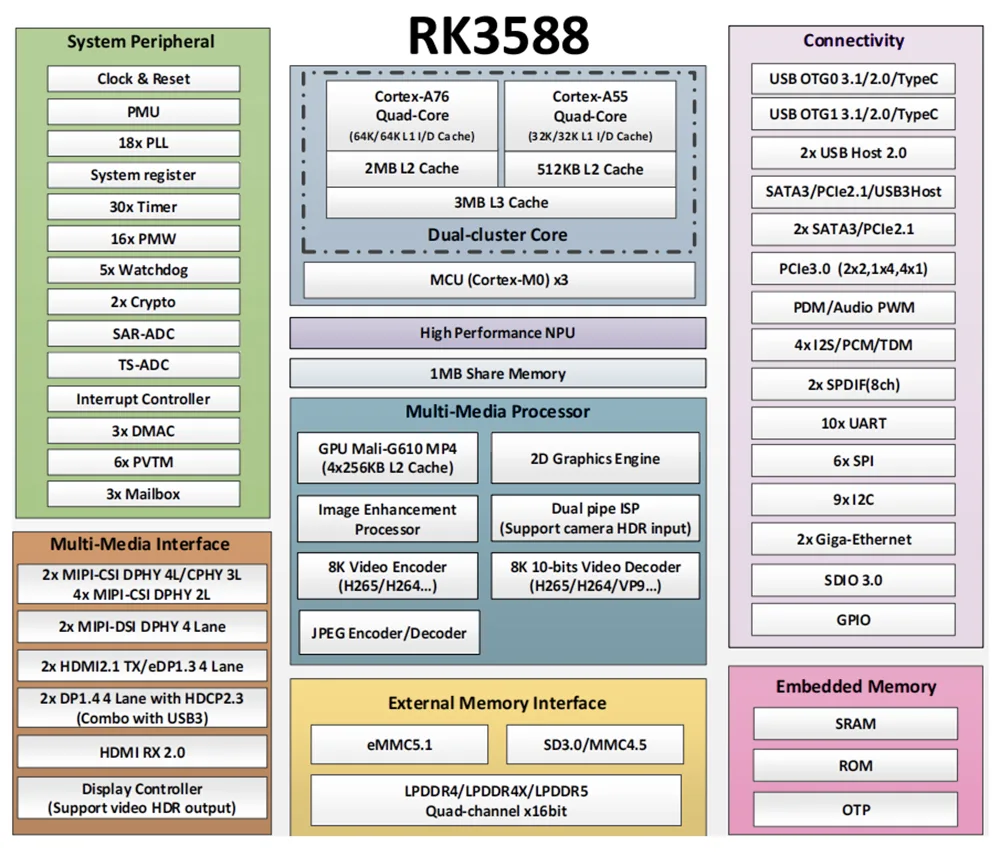

Diagram of RK3588 Single Board Computer

Product Specification

CHIPSET
Rockchip RK3588
OS

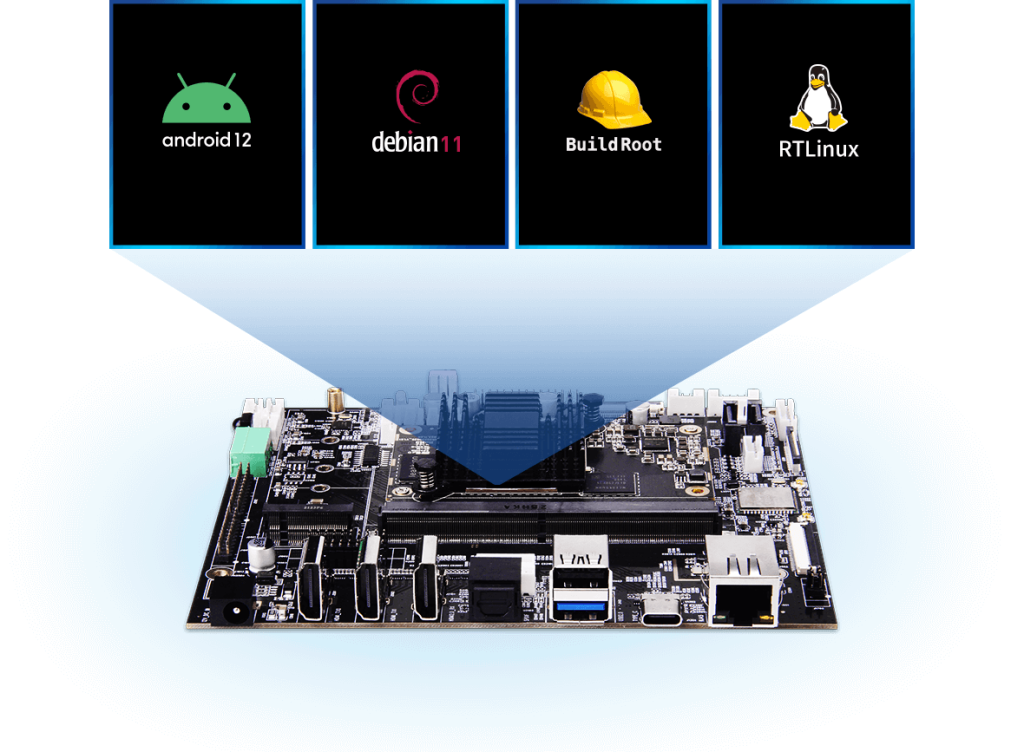

Android 12.0/Linux
CPU
Quad-core Cortex-A76 and
Quad-core Cortex-A55
GPU
Mali-G610 MP4 GPU
LPDDR4
4GB（2/8/16/32GB optioal）
EMMC FLASH
16GB（8/32/64/128/256G Optional）
Ethernet
RJ45*2, 10/100/1000M
WiFi
WIFI/802.11.AX，MIMO
Bluetooth
BT5.0
Adapter
DC12V / 2A
Dimension
180mm * 180mm
Weight
160g
Customizable GUI
We provided GUI customization and we have a vast collection of Launcher created by our R&D team for you to choose from.
Video Decoder
Real-time video decoder of MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC-1, VP9, VP8, MVC, AV1
MMU Embedded
Multi-channel decoder in parallel for less resolution
H.264 AVC/MVC Main10 L6.0 : 8K@30fps (7680×4320)②
VP9 Profile0/2 L6.1 : 8K@60fps (7680×4320)
MPEG4/MVC Main10 L6.1 : 8K@60fps (7680×4320)
AVS2 Profile0/2 L10.2.6 : 8K@60fps (7680×4320)
AV1 Main Profile 8/10bit L5.3 : 4K@60fps (3840×2160)
MPEG-2 up to MP : 1080p@60fps (1920×1088)
MPEG-1 up to MP : 1080p@60fps (1920×1088)
VC-1 up to AP level 3 : 1080p@60fps (1920×1088)
VP8 version2 : 1080p@60fps (1920×1088)
Video Encoder
Real-time MPEG4/H.264 video encoding
Support up to 8K@30fps
Multi-channel encoder in parallel for less resolution
