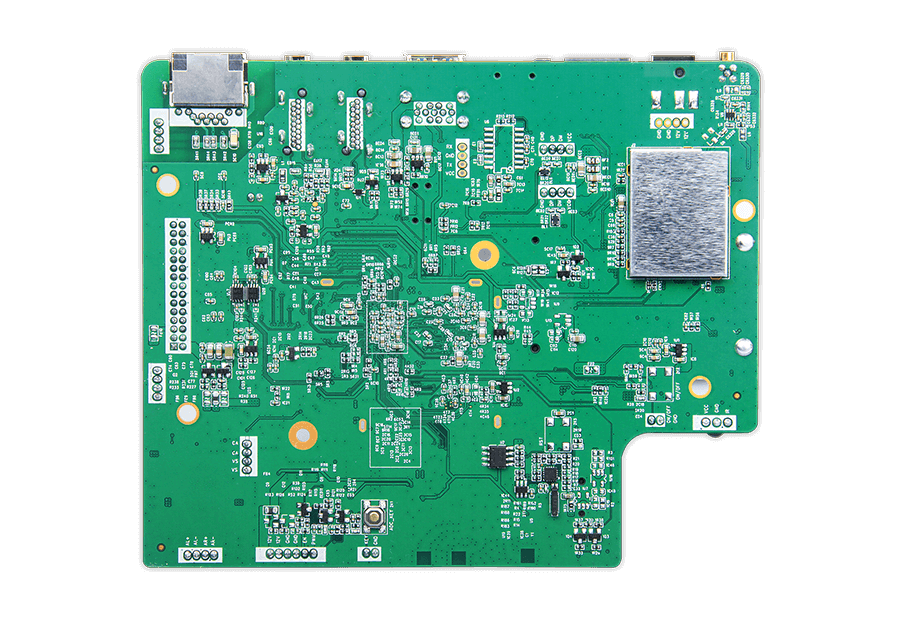

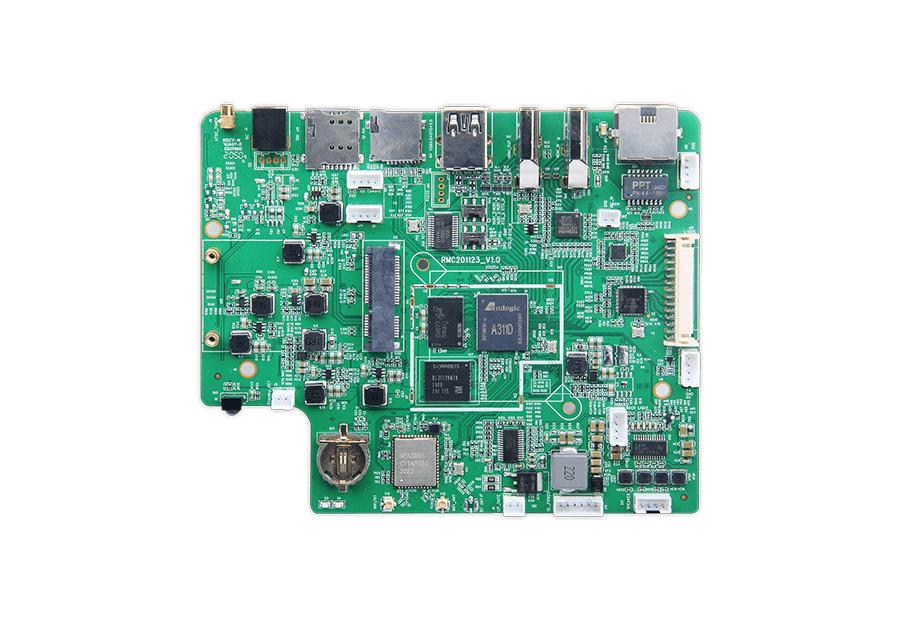

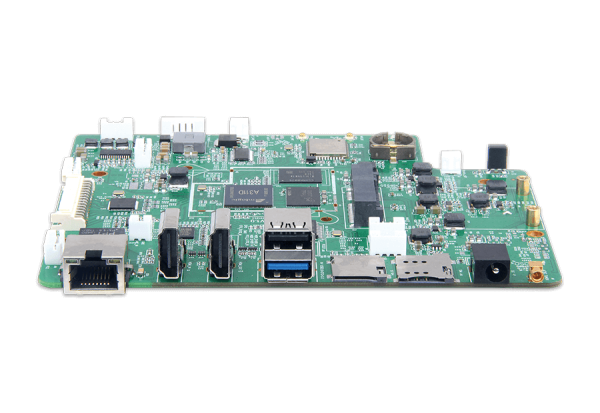

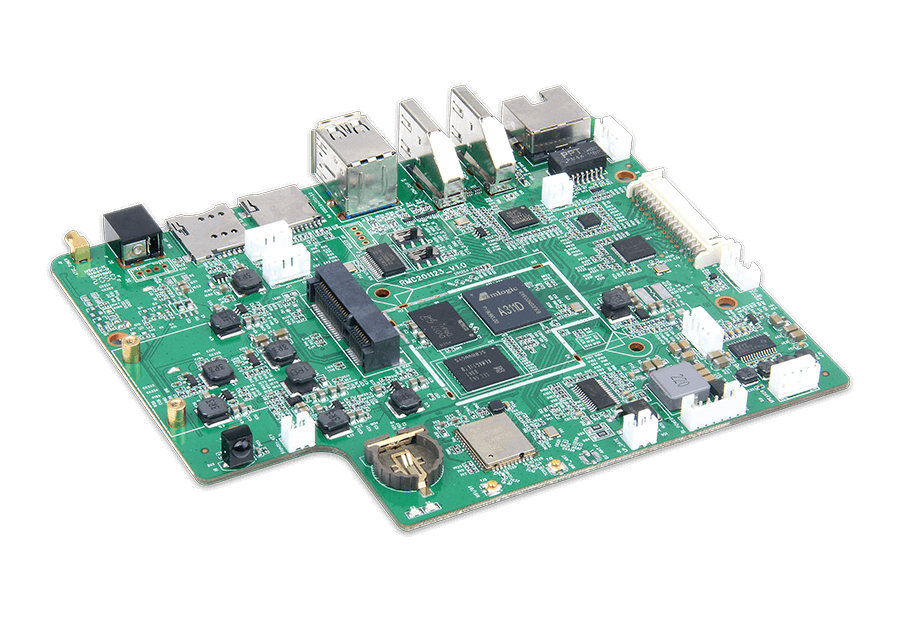

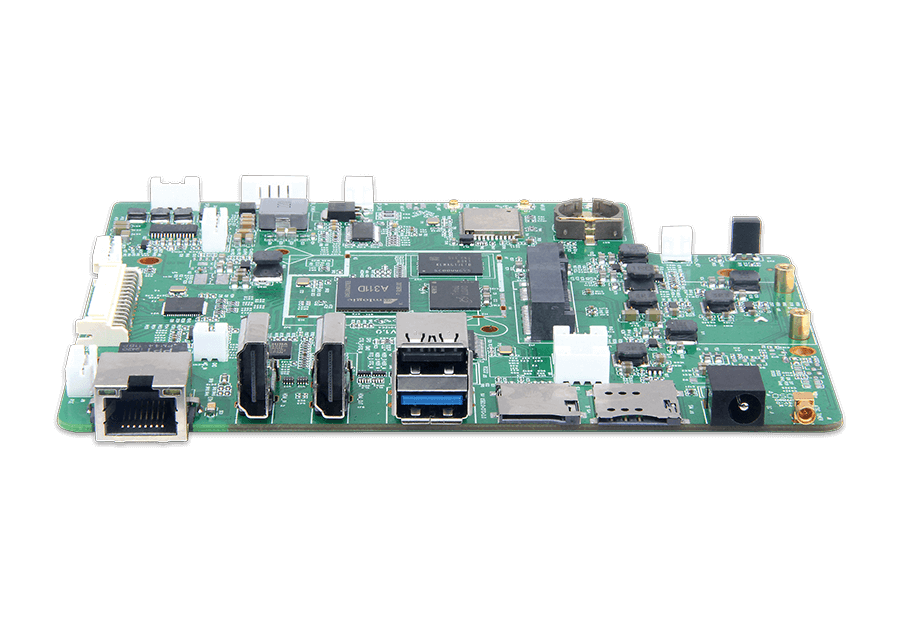

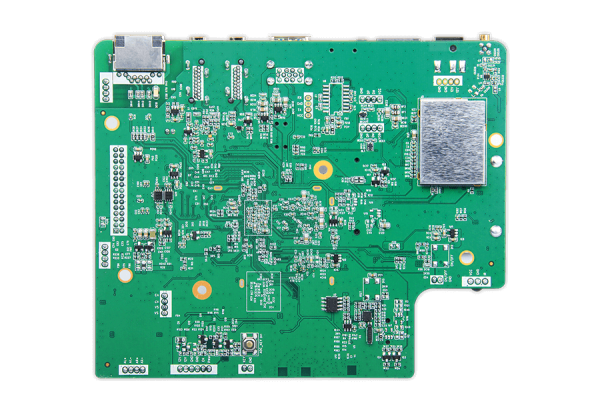

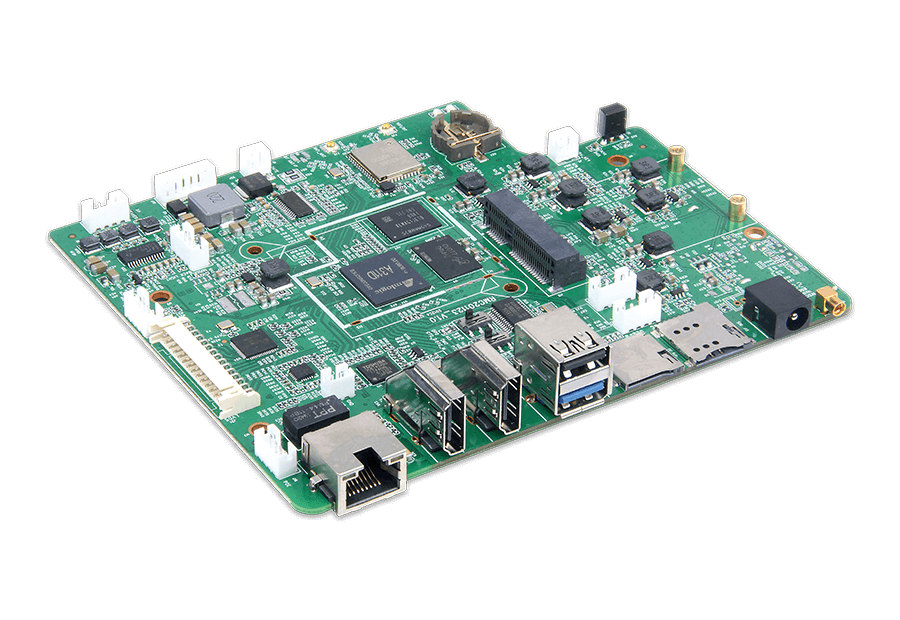

DB10 – AI Development Board

DB10 is Geniatech’s latest super-performance AI 4K development board, built-in 5TOPS ultra-high computing power NPU, integrated HDMI® OUT and LVDS mainstream dual display output interface, At the same time, LTE, Tuner and POE functions are added to make the functions more abundant and meet the needs of more developers in different scenarios.

Categories: Development Board, Single Board Computers Tags: Amlogic, ARM processor, Cortex-A53, Cortex-A73, Hexa-core

Get A Quote

Strong performance

Multiple interface

Multi-functioning

Personalized customization

High-performance

CPU：4x Arm Cortex A73，2x Arm Cortex A53；GPU：ARM MaliTM-G52 MP6(6EE)
NPU（5TOPS）：INT8 inference neural network accelerator up to 1536 MAC,internal L2 cache (512KB) and system workspace buffer (1MB), supporting all major deep learning frameworks, including TensorFlow and Caffe
Adopting a new 12-nanometer production process, with higher performance, lower power consumption and lower heat generation

Various Display Interfaces

POE

The motherboard integrates a POE interface, and is equipped with a small POE module (802.3at) to solve the trouble of power wiring for customers in special environments

Multi-functioning

Standard RS232 protocol, multiple applications；
Build-in WatchDog&RTC，Unguarded 7*24H stability；
LTE（Mini PCIE Interface/global standard）Meet outdoor network coverage；
Three-antenna design, dual-band WIFI and BT signal transmission at the same time without interference, improve working stability, WIFI speed can reach 440Mbits/sec, and BT conforms BT5.0 for networking requirements

Support Personalized Customization

Optional hardware configuration：
CPU/memory/storage/WiFi+BT

Provide SDK secondary development: customers can compile sensitive requirements by themselves

MDM customization (remote device management): remotely collect device status information and control the device (update firmware,uninstall/install APK, restart, standby/wake up, real-time advertising…)

APP customization: easy to realize customer’s customized requirements, safe, fast and low-cost.

Tuner

Application Scenarios

Commercial display, digital signage, smart home, video conference, video capture card, 4K wireless projector, AI UVC camera…

CPU	Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU
GPU	ARM Mali-G52 MP4 (6EE) OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support
NPU	5 TOPS
RAM	2GB LPDDR4（4GB optional）
ROM	16GB eMM（8~64GB optional）
3G/4G	Optional
LAN	1*RJ45 10/100/1000Mbps （LED）
WiFi	802.11 a/b/g/n/ac（2.4G/5G）
BT	BT 4.2/5.0(Optional)
POE	Support 802.3at
WatchDog / RTC	Support
OS	Android 11.0 or Linux
POWER	DC 12V/2A
Size(mm)	142*117
Certifications	CE/FCC
I/O	I/O1 x Dual Channel 24-bits LVDS(Shared with eDP)
	1 x HDMI®IN( up to 1920 x 1080P60)
	1 x HDMI®Out(HDMI®2.1, up to 4096 x 2160P60)
	1 x USB3.0, 3 x USB2.0
	2 x Serial Port(1 x 2-wire UART， 1 x 2-wire UART/Debug)
	2 x MIPI CSI(1 x 4-lane MIPI CSI, 1 x 2-lane MIPI CSI)
	1 x PCIe(3G/4G LTE)
	1 x SPEAKER
	1 x MIC
