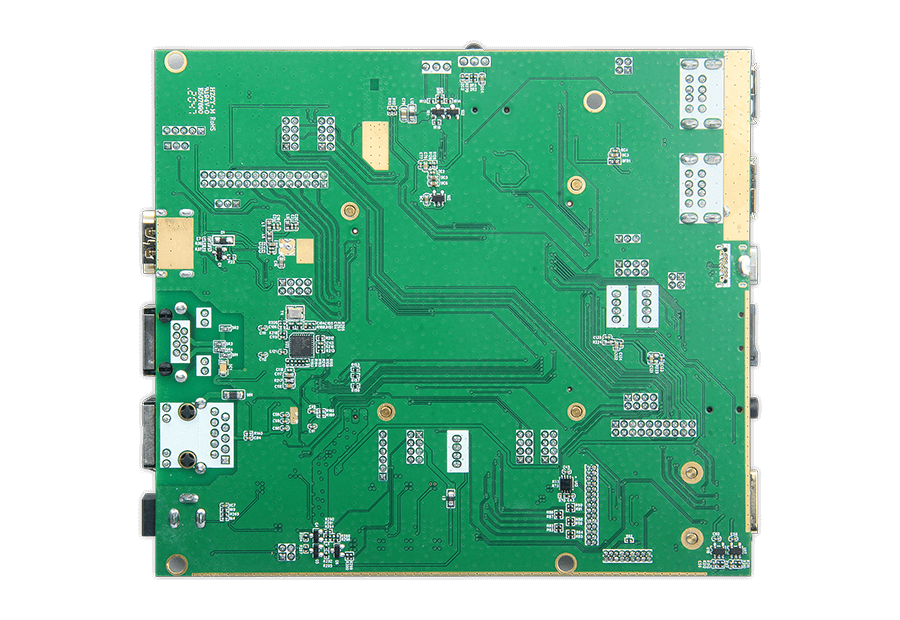

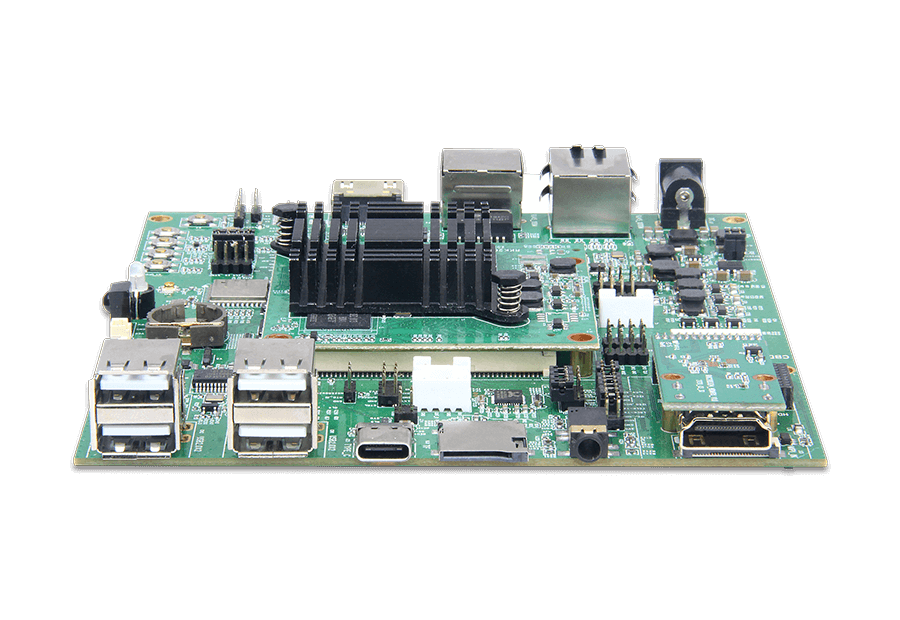

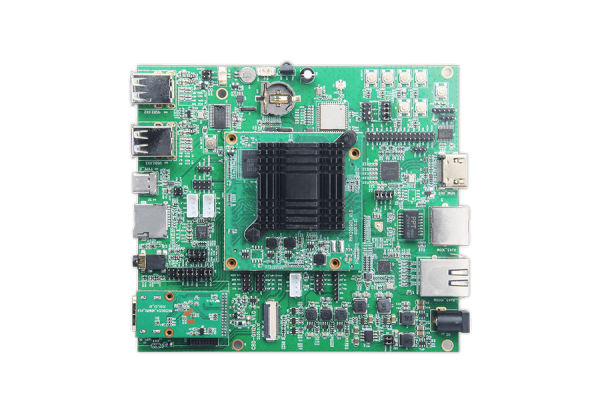

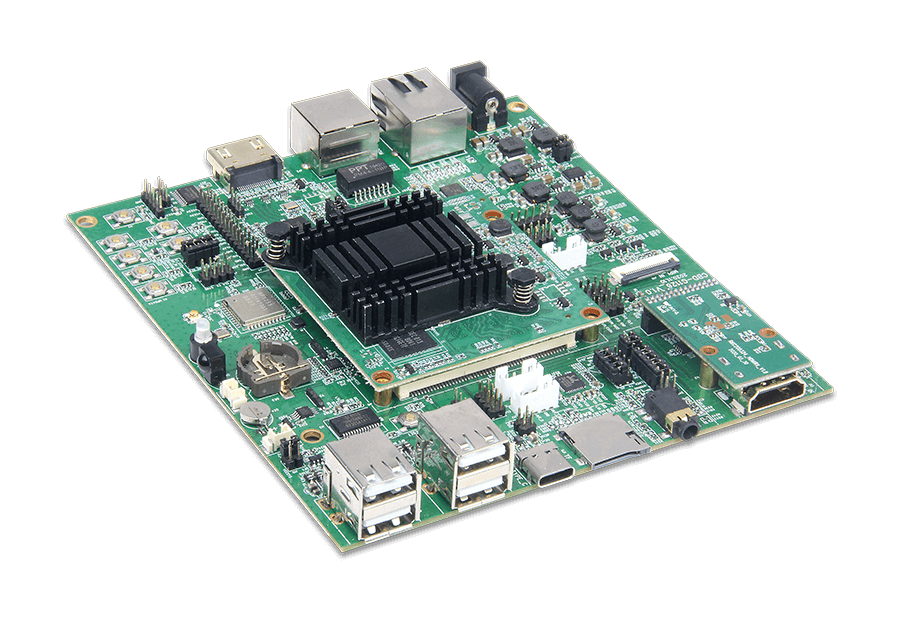

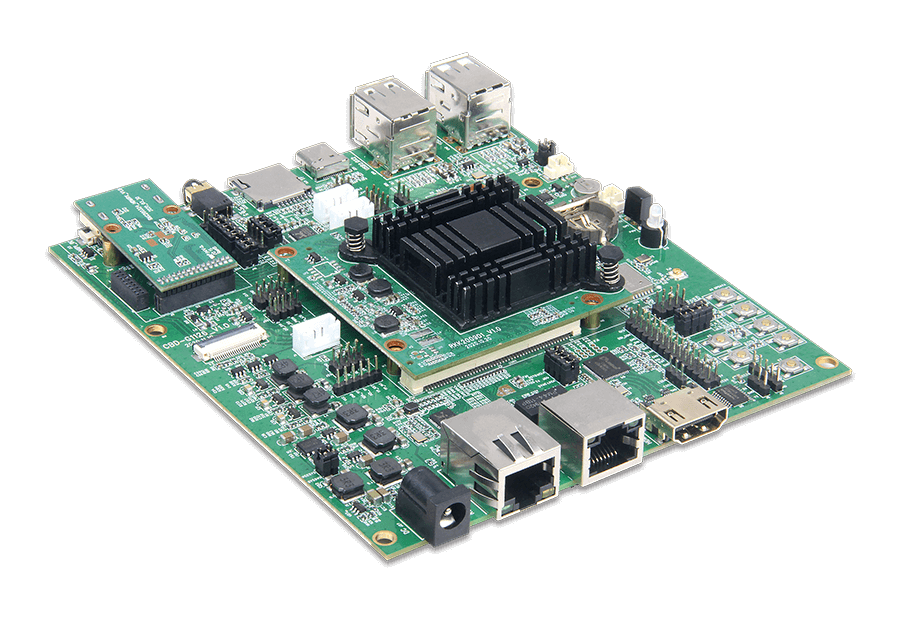

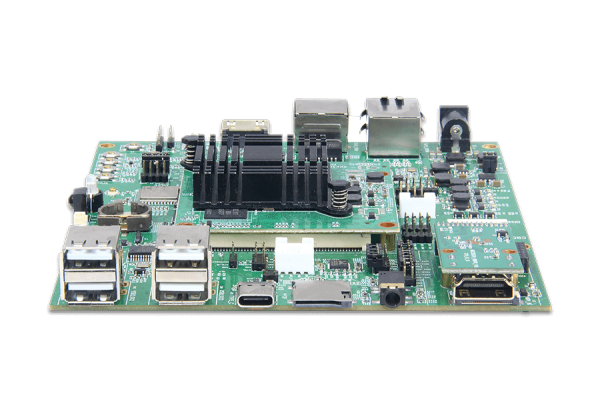

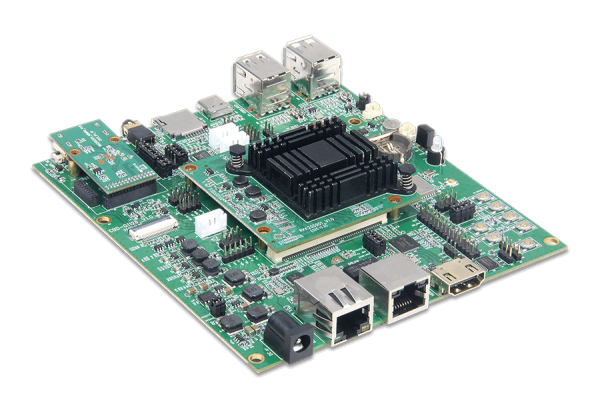

DB1126 is a high-performance, versatile(14 million pixel image signal processor), high-computing (2TOPS) general-purpose intelligent integrated carrier board + core board.The product configuration can be flexibly updated in parallel by replacing the core board/module, reducing the cost of enterprise upgrades, and at the same time using the carrier board protocol to partially debug the core board, reducing workload and improving stability.

Get A Quote

Complete functions,strong performance

Multiple interface


Personalized customization


  • Quad core ARM Cortex-A7 and RISC-V MCU
  • The built-in NPU supports INT8/INT16 mixed operation, and the calculation can be easily converted to the network model of a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe.
  • A new generation of 14 million pixel ISP (image signal processor) and post processor based on hardware, which realizes HDR, 3A functions (AE, AF, AWB), LSC, 3DNR, 2DNR, sharpening commonly used in IPC and CVR , Defogging, fisheye correction, gamma correction, feature point detection and other algorithm acceleration, are all real-time processing, while receiving video data from 3 camera sensors, very suitable for AI smart cameras.

Modular Management

Module Stacking

Rich Display Interface

High Performance Network

• Built-in dual RJ45 interface(1*100M+1*1000M)
• IEEE 802.11 a/b/g/n/AC 2.4G/5.8G (Optional)
• BT4.2(Optional BT5.0)

Support Personalized Customization

Optional hardware configuration:

Provide SDK secondary development: customers can compile sensitive requirements by themselves

MDM customization (remote device management): remotely collect device status information and control the device (update firmware,uninstall/install APK, restart, standby/wake up, real-time advertising…)

APP customization: easy to realize customer’s customized requirements, safe, fast and low-cost.

Diversified Functions

• GTIOT:(Z-WAVE / ZIGBEE / LoRa / LTE / GPS / WiFi / BT5.0 )
• Two-way noise reduction microphone: mainly for the processing of sound pickup technology in the surrounding noisy environment, eliminating external noise
• Built-in WatchDog&RTC:7*24H Stable and unguarded
• OS:Linux

Application Scenarios

Commercial display, digital signage, smart home, video conference, video capture card, 4K wireless projector, AI UVC camera…

CPU RV1126 Quad core ARM Cortex-A7 and RISC-V MCU
NPU Neural network acceleration engine with processing performance up to 2.0 TOPS
RAM 256M(Up to 64GB optional)
ROM 8GB eMMC (Up to 16GB optional)
LAN 2*RJ45(LED)10/100M + 10/100/1000M
WiFi 802.11 a/b/g/n/ac(2.4G/5G)
BT BT 4.2/5.0(optional)
GTIOT Support Z-WAVE / ZIGBEE / LoRa / LTE / GPS / WiFi / BT5.0 / LTE
MIC Support
OS Embedded Linux
Size(mm) 140*125
Certifications CE/FCC
1 x HDMI®Out
1 x HDMI®IN (Up to 1080P60 input)
1 x Type C
4 x USB 2.0
1 x Serial Port ( 2-wire UART)
1 x TF
1 x Earphone
1 x IR
1 x DC IN
