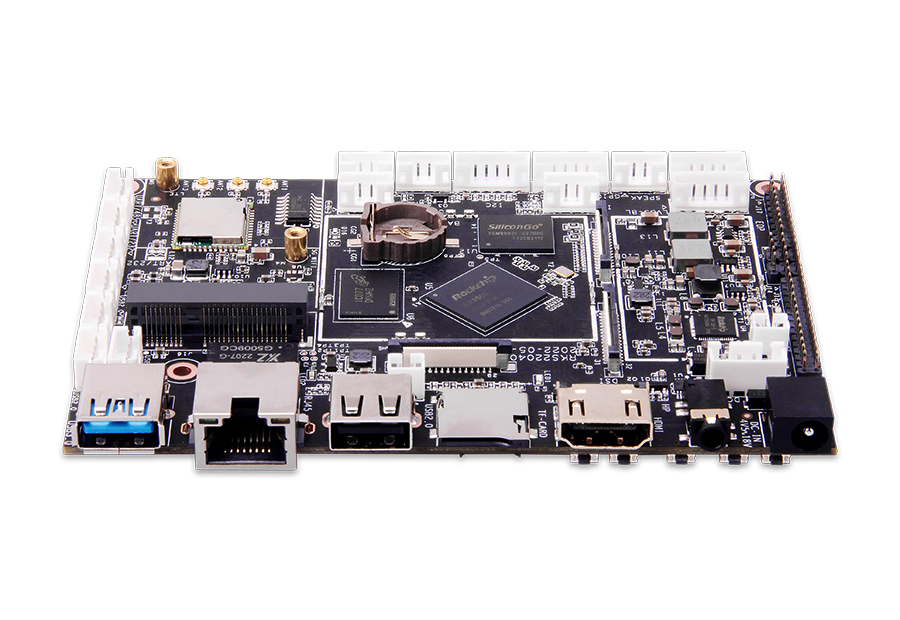

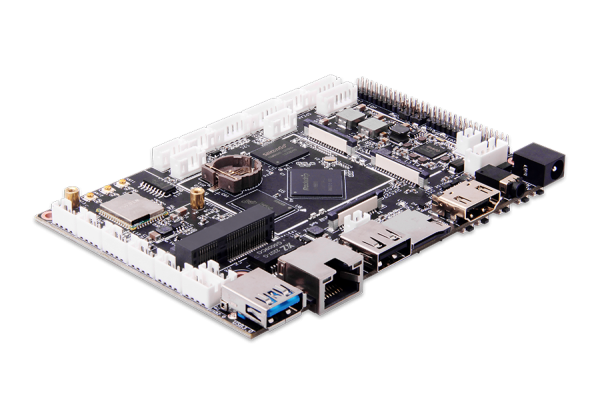

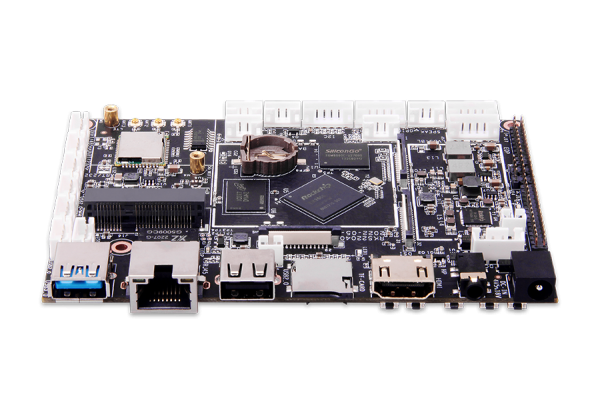

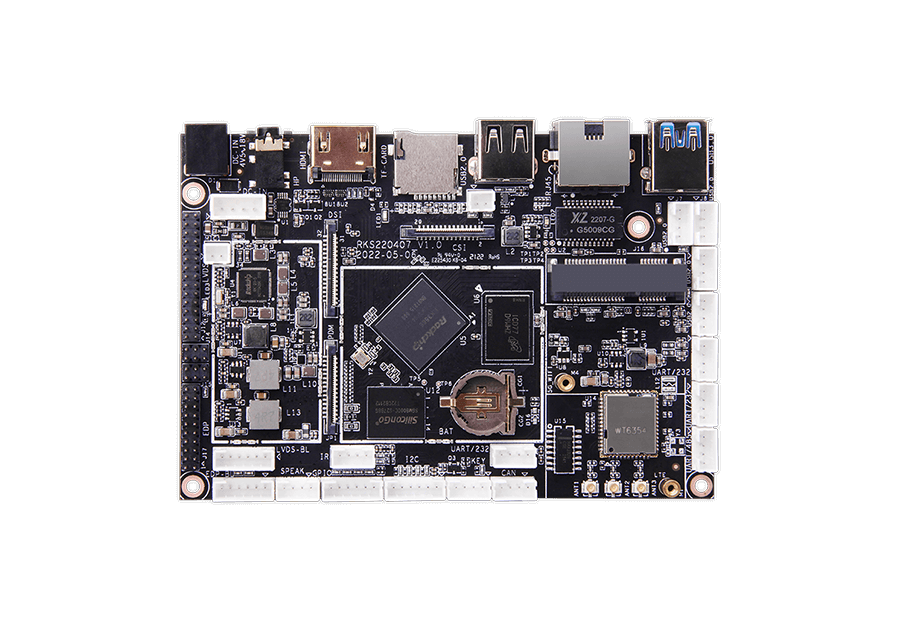

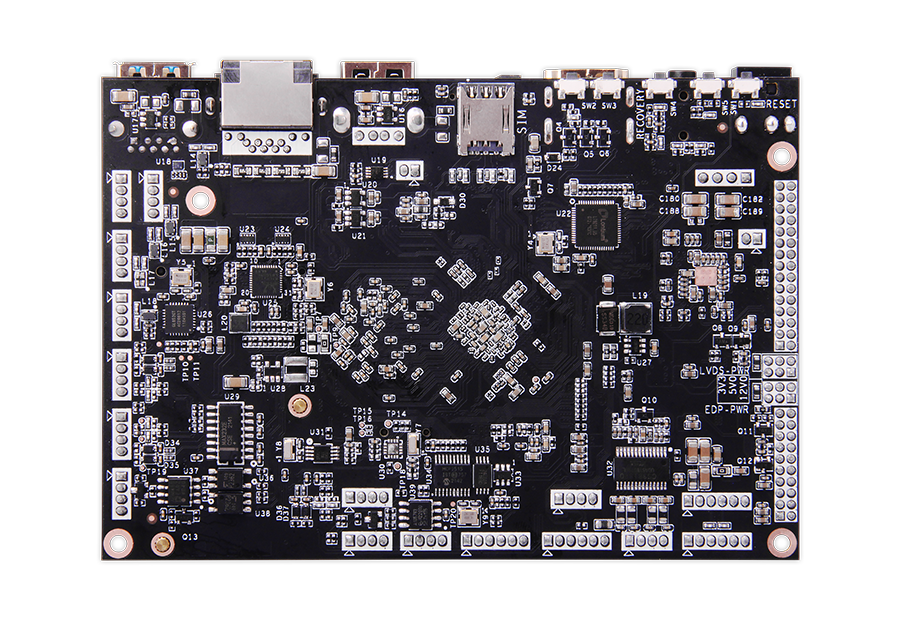

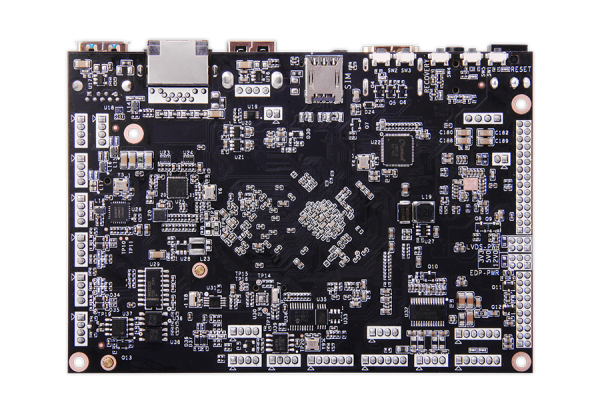

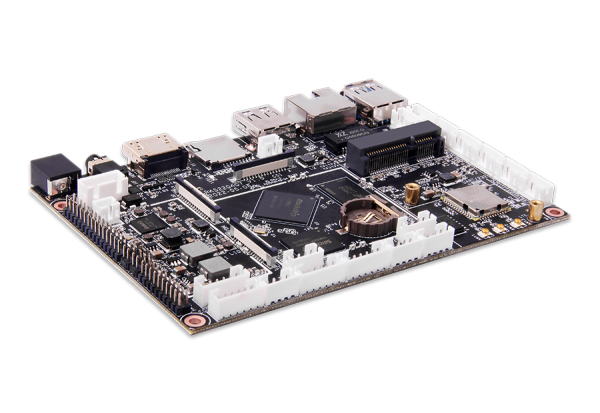

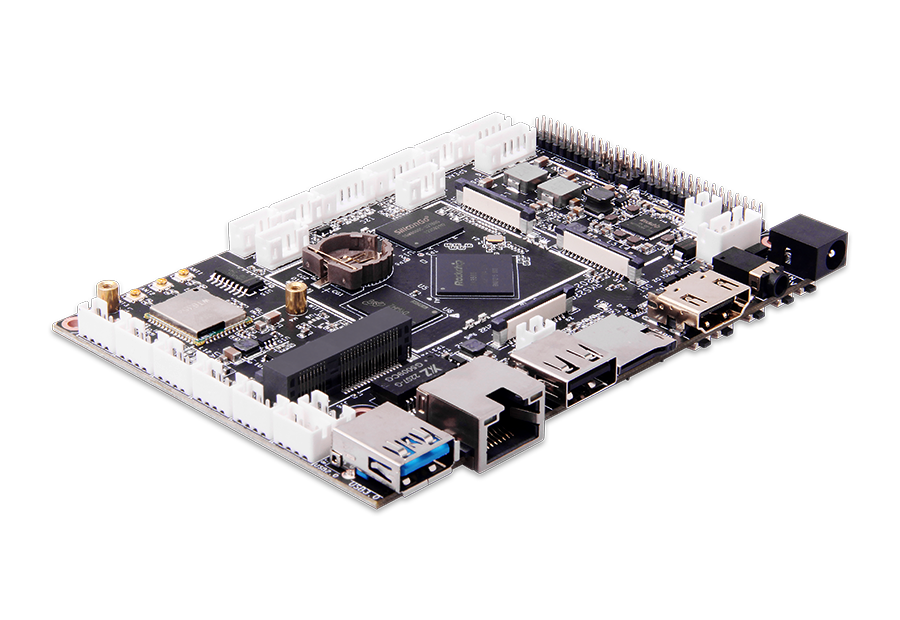

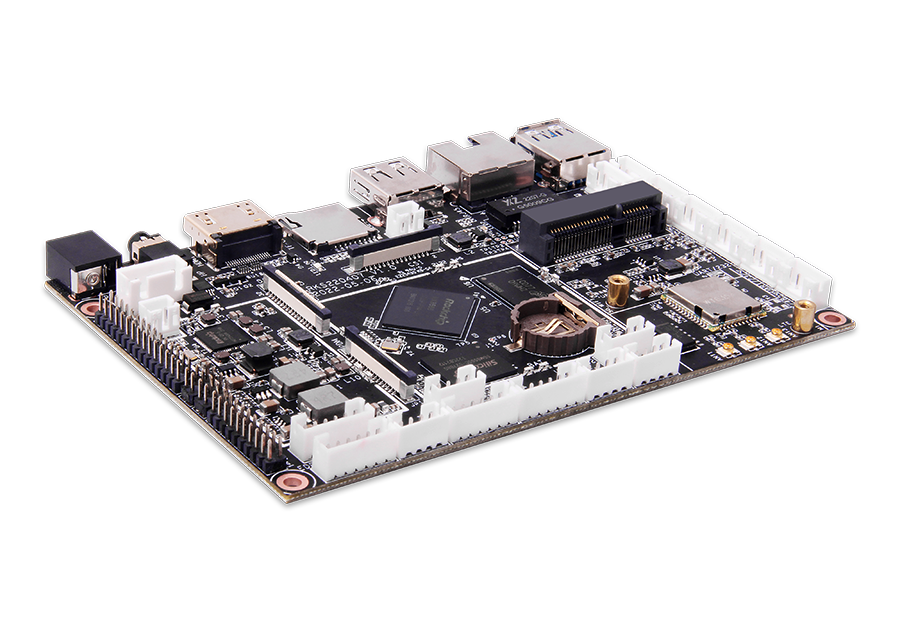

DS3566

Geniatech DS-3566 is a high-performance intelligent display SBC which is specially developed for commercial display industry. It adopts Rockchip RK3566 processor, and supports HDMI® 4K display output. DS-3566 also features LVDS、eDP、MIPI-DSI display interfaces and can access internet through 4G、WiFi and wired network. It supports Linux Debian10/Android 11 system. With open system architecture design, we provide technical datasheet for your secondary development. It is the best choice for commercial display advertising machine, touch control machine, conference tablet, cash register and self-service terminal.

Buy a Sample

Get A Quote

RK3566 Smart Display SBC

Geniatech DS-3566 is a high-performance intelligent display SBC which is specially developed for commercial display industry. It adopts Rockchip RK3566 processor, and supports HDMI® 4K display output. DS-3566 also features LVDS、eDP、MIPI-DSI display interfaces and can access internet through 4G、WiFi and wired network. It supports Linux Debian10/Android 11 system. With open system architecture design, we provide technical datasheet for your secondary development. It is the best choice for commercial display advertising machine, touch control machine, conference tablet, cash register and self-service terminal.

Abundant display and peripheral expansion interfaces

Equipped with MIPI-CSI, MIPI-DSI, LVDS, eDP, HDMI® and other video input and output interfaces, HDMI® supports 4K display output. Supports PCIe2.0, USB3.0 high-speed communication interfaces, industrial communication interfaces such as RS232, RS485, GPIO, SPI, I2C and CAN field bus interfaces, which can meet the requirements of interface expansion in industrial control and automotive computer control systems.

Powerful network communication capability

Provides multiple network communication modes with high rates and low latency to achieve reliable and uninterrupted network access. Users can flexibly select networks based on the onsite environment, meeting the network requirements of outdoor and indoor application scenarios.

RK3566 High performance processor

Equipped with RK3566 high-performance processor, integrated with dual core architecture GPU and high-performance VPU, it can realize 4K@60fps high-definition video decoding, with built-in 8M ISP image signal processor, it supports camera and HDR functions. With integrated 0.8Tops computing NPU, it meets customers’ needs for fast landing AI application development.

24 hours *7 days continuous stable work

The built-in hardware watchdog function can remotely monitor the system running status in real time, ensuring the continuous and stable operation of products 24 hours *7 days, and effectively improving the operation and maintenance efficiency of products

Open system architecture design, powerful software customization ability

It supports mature, stable, and highly extensible Linux Debian10/Android 11 systems and provides a complete set of software system customization services, including system kernel modification, driver migration, application development, and UI customization for customers’ personalized and diversified customization requirements. Provide a safe and stable system environment for terminal product research and development.

Provide perfect technical datasheet for efficient secondary development

It can provide complete technical datasheet including baseboard reference design data, supporting source code, technical documents, API interface and SDK development tools, making the secondary development more simply, convenient and efficient, and helping customers to quickly create independent and controllable customized products.

Provides a full range of one-stop customized services, more than hardware

Geniatech has ARM product technology research and development precipitation and partner resources over 25 years. We not only provide customers with hardware function customized design, but also provide one-stop consulting services such as cross-SOC platform operating system transplantation, BSP kernel clipping and driver development, based on scenario application software development, overall system software testing services, and complete SDK secondary development interface. With the company’s own production plant of nearly 30,000 square meters, It helps customers greatly shorten the cycle from product selection, research and development project, small trial production to mass production delivery

Application scenarios

DS-3566 is an industrial SBC specially developed for intelligent business Display. It has the advantages of high performance, ultra-high Cost-effective, extensibility and so on. It can be widely used in Business Display advertising machine, touch all-in-one machine, conference tablet, cash register, self-service terminal, automotive electronics and other scenarios.

Chipset Rockchip RK3566
Market area Global
CPU Quad-core ARM Cortex-A55 1.8GHz
RAM 2GB~8GB LPDDR4
ROM 16GB~128GB eMMC
Network • Cellular: 2G/3G/4G/LTE
• WiFi: 802.11 a/b/g/n/ac
• Ethernet: 1*RJ45 10/100/1000 Mbps LAN
I/O USB: USB-A 3.0 x 1, USB-OTG 2.0 x1, USB2.0 4P 2.0 Pinx4
DS-IN: Power supply
RS232: 4P 2.0Pin,UART/RS232 x3
RS485: 4P 2.0Pin,UART/RS485 x1
GPIO: 2P 2.0Pin,GPIOx2
CAN: 4P 2.0Pin,CANx1
SPI: 6P 2.0Pin,SPIx1
I2C: 6P 2.0Pin,I2Cx1
Mic: 2 × Mic
SPEAKER: 4P 2.0Pin, SPEAKERx1
PDM: FPC, PDMx1
Communication protocol • Bluetooth 4.1
• RS485: TIA485/EIA-485-A -7 ~ +12V
• CAN: ISO11898-2:2016 and SAE J2284-1 to SAE J2284-5
ESD(8kV IEC and HBM)
5Mbit/s
• RS232: ±5 ~ ±15V
• GPIO: 3.3V ±15KV ±10KV
Display LVDS x1
eDP x1
MIPI-DSI x1, 4Lane
MIPI-CSI X1, 4Lane
Expansion interface IR
Micro SIM Card
TF Card
Debug Port 4P 2.0pin
ADC Key
Operating system Debian10/ Android11
Mechanical properties • Size: 124mm*85mm
• Net weight: 70g
Operating temperature 0~60℃
Power supply DC5V 2A
