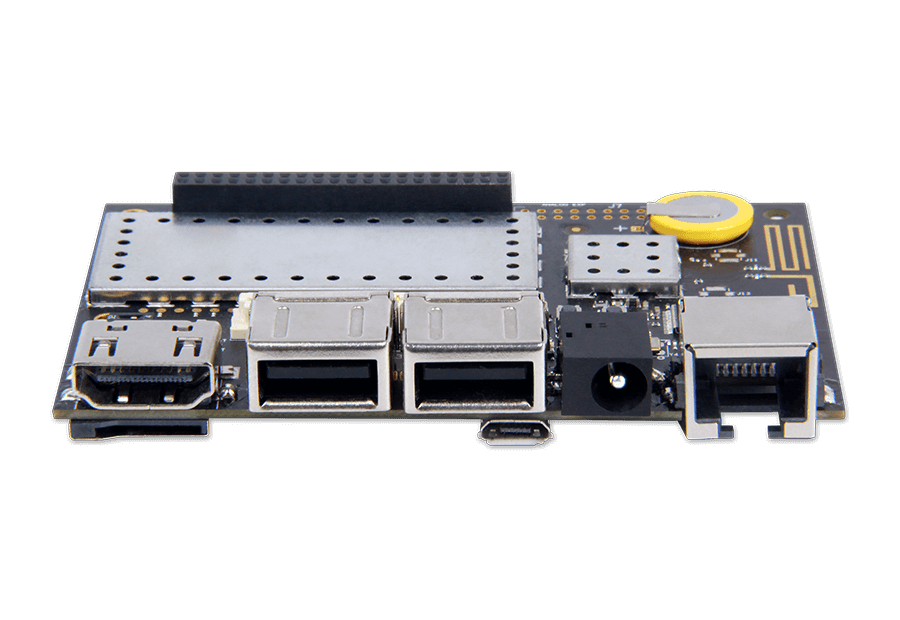

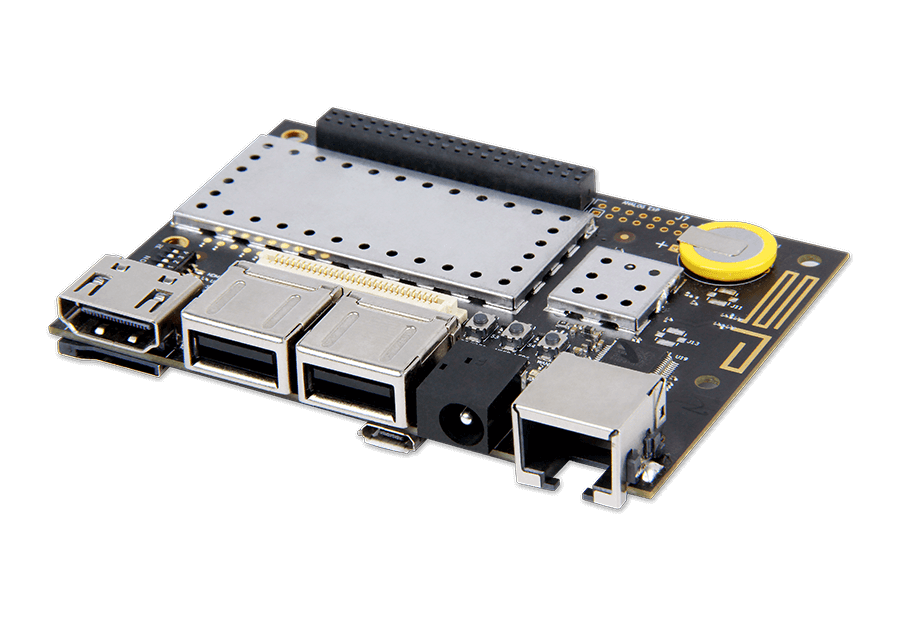

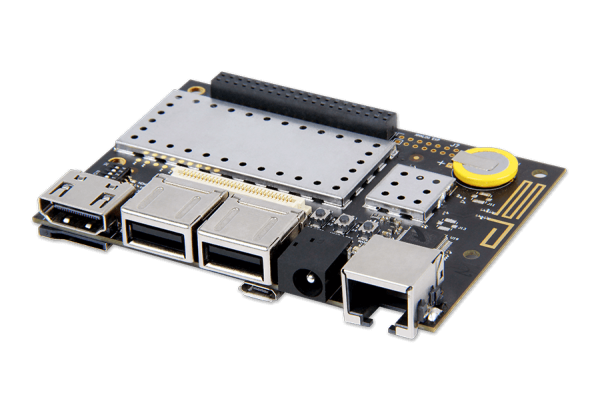

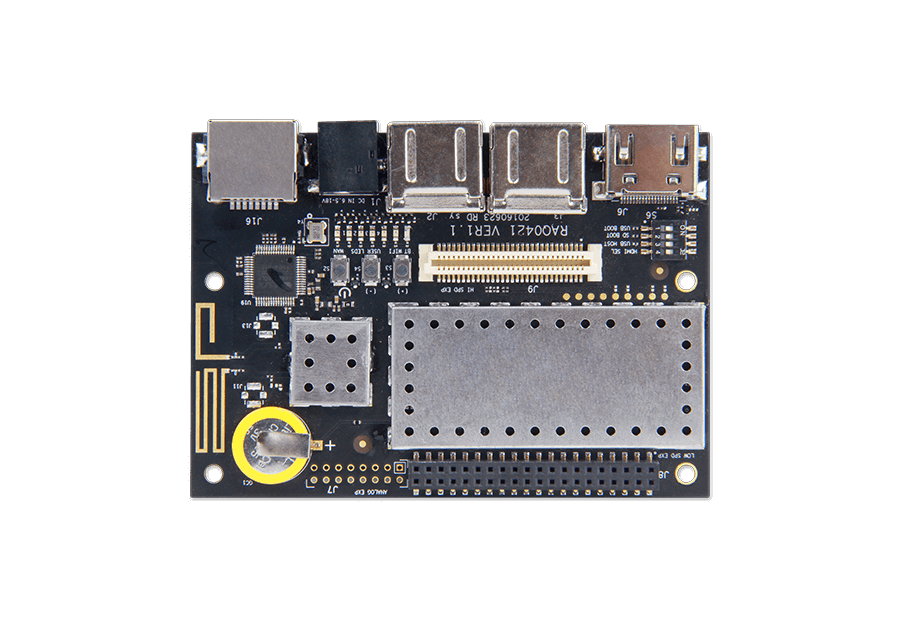

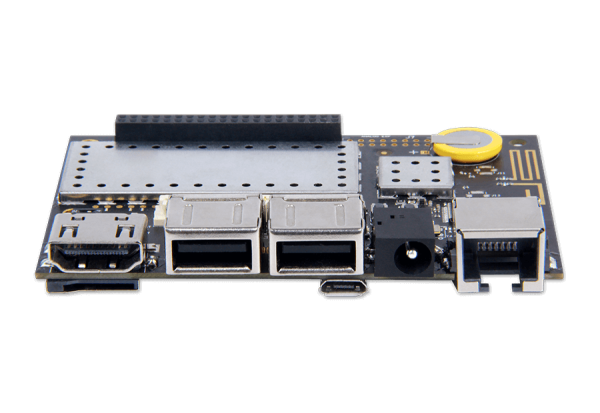

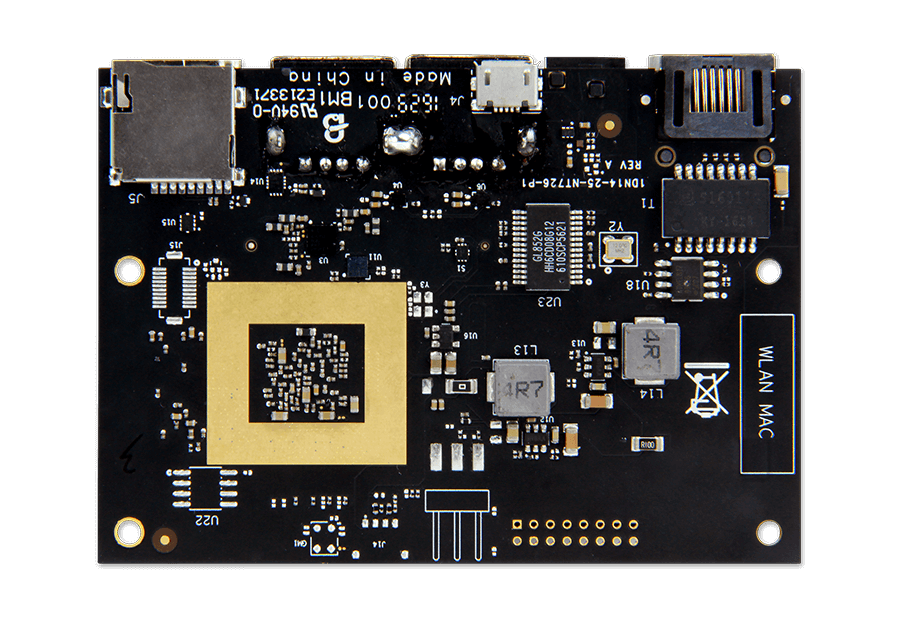

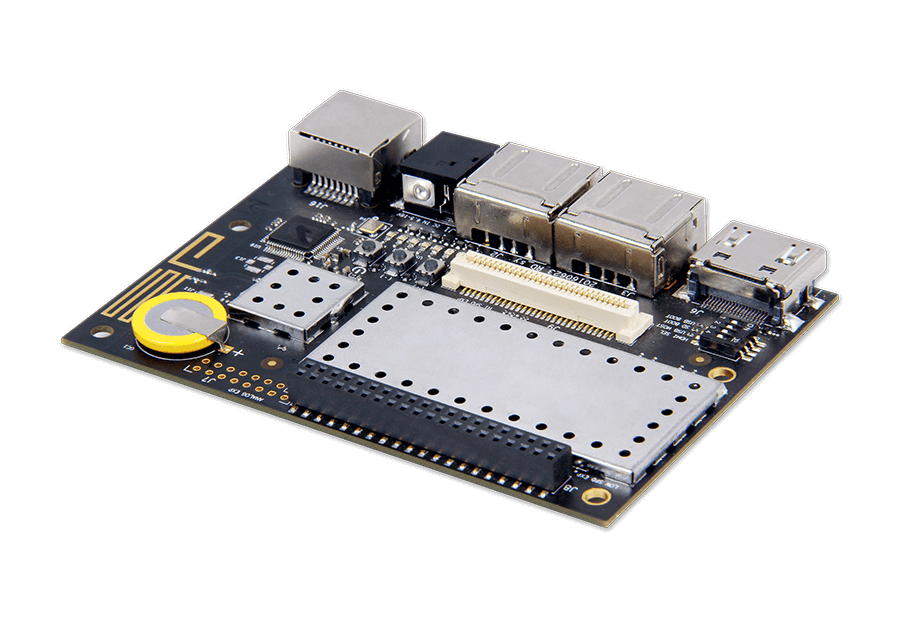

Developer Board IV
Developer Board 4 is a 96Boards-like single board computer based on Qualcomm Snapdragon 410 SoC
with 2GB DDR3, 16GB EMMC, HDMI, MIPI-CSI, 40- and 60-pin expansion connectors.
It features advanced processing power, WLAN, Ethernet, Bluetooth, GPS, all packed into a board the size of a credit card.
The DB4 is designed for a variety of embedded and IoT categories. These include robotics, cameras, set-top-boxes,
wearables, medical devices, vending machines, building automation, industrial control, digital signage, and casino gaming, etc.
Qualcomm Snapdragon 410 quad-core
Developer Board 4 features Qualcomm Snapdragon 410 processor, a Quadcore ARM® Cortex™ A53
at up to 1.2GHz clock speed per core, capable of 32-bit and 64-bit operation.
2G + 16G
The utilization of eMMC memory offers an array of benefits in terms of performance security and reliability,resulting in a richer end-user experience
Connectivity: 802.11n (2.4GHz) WiFi, Bluetooth
10/100 LAN provides more stable local network for video streaming.
Dual band 802.11n (2.4GHz) WiFi gives wider signal coverage and less interference.
- Internal Memory
- 1GB or 2GB LPDDR3 533MHz
- Internal Storage
- 8GB or 16 GB eMMC 5.0
- Micro SD Sard Slot
- 2x MIPI-CSI: 1x 4-lane, 1x 2-lane, up to 13MP
- External Storage
- 1x Micro SD socket
- SATA HDD Slot
- 85 X 60mm
- Operating Temp
- -10°C to +85°C
- Android 5.1,Linux based on Debian ,Windows 10 IoT core
1x MIPI-DSI 4-lane, up to 720p 60fps or 1080p 30fps for optional display/touch
All signals are routed to the analog expansion connector
1x 10/100M Ethernet
1x USB 2.0 micro B (device mode only)
2x USB 2.0 type A (host mode only)
On-board GPS antenna
On-board BT and WLAN antenna
-UART, SPI, I2S, I2C x2, GPIO x12, DC power
b. 1x 60 pin High Speed (HS) expansion connector
-4L-MIPI DSI, USB, I2C x2, 2L+4LMIPI CSI
c. Footprint for one optional 16-pin Analog expansion connector
-Headset, Speaker, FM antenna
7 LED indicators
-4 – user controllable
-3 – for BT、WLAN and Ethernet activity
