| CHIPSET | NXP iMX8M Mini | ||
| MARKET AREA | Global | ||
|
OSM-Module |
OS | Yocto(Linux)/Android | |
|
CPU |
4xCortex-A53 core up to 1.8GHz per core 1x Cortex-M4 core up to 400MHz | ||
| LPDDR4 | 2GB（1G-8G optional） | ||
| EMMC FLASH | 8GB eMMC5.1(8-32GB Optional) | ||
|
Development board Interfaces |
Gigabit
Ethernet |
*2 Port (JP2 Support POE PD Function with POE Module) | |
| Wi-Fi/BT | AP6275S module, support 802.11 a/b/g/n/ac | ||
| USB 3.0 | *2 (SOM-iMX8MM-OSM not support ) | ||
| USB 2.0 | *4 (2* USB2.0 TypeA, 2* Expansion Connector ) | ||
| HDMI® OUT | *1 (HDMI® 1.4A) | ||
| HDMI® IN | *1 | ||
| TF Slot | *1 | ||
| SIM Card Slot | *1 | ||
| Mini-PCIE | *1(Support 4G module) | ||
| RGB Conn | *1 | ||
| GTIOT Conn | *1 | ||
| LVDS | *1 | ||
| MIPI CSI | *1 | ||
| eDP | *1 | ||
| JTAG | *1 | ||
| IR Module | *1 (Support USB IR RECEIVE MODULE) | ||
| Speaker | *1 | ||
| CAN | *2 | ||
| M.2 Key-E | *1(Support Wifi/BT Module) | ||
| M.2 Key-M | *1 (Support PCIEx4) | ||
| DC-IN | 12V2A | ||
|
SW |
SW1 |
1.4pin Switch for Wi-Fi onboard module and M.2 Key-E Module 2.3pin Switch for USB
Firmware update function |
|
| SW2 | System Reset | ||
| SW3 | Power ON/OFF | ||
| SW4/SW5/SW6 | User customize | ||
| S1 | BOOT Module Switch | ||
|
Indicators |
D31 | System status indicator | |
| D32 | System power indicator | ||
| D33/D34/D35 | User customize indicator | ||
| Dimensions | 190*150mm | ||

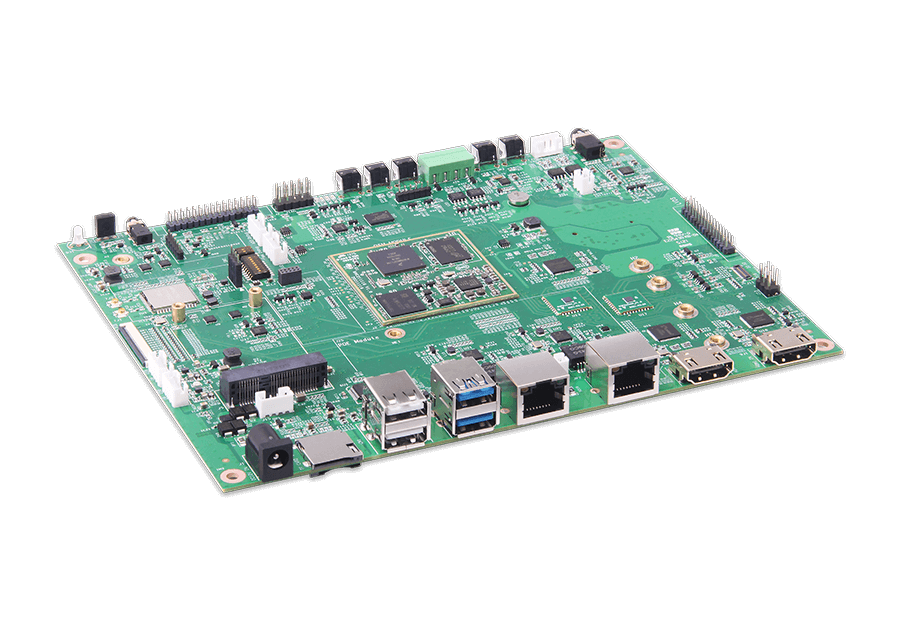

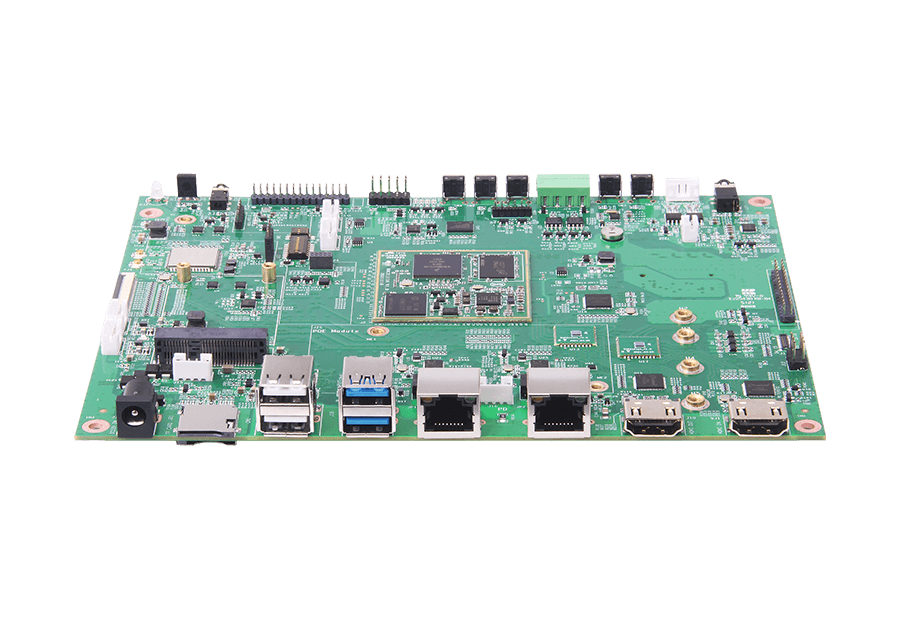

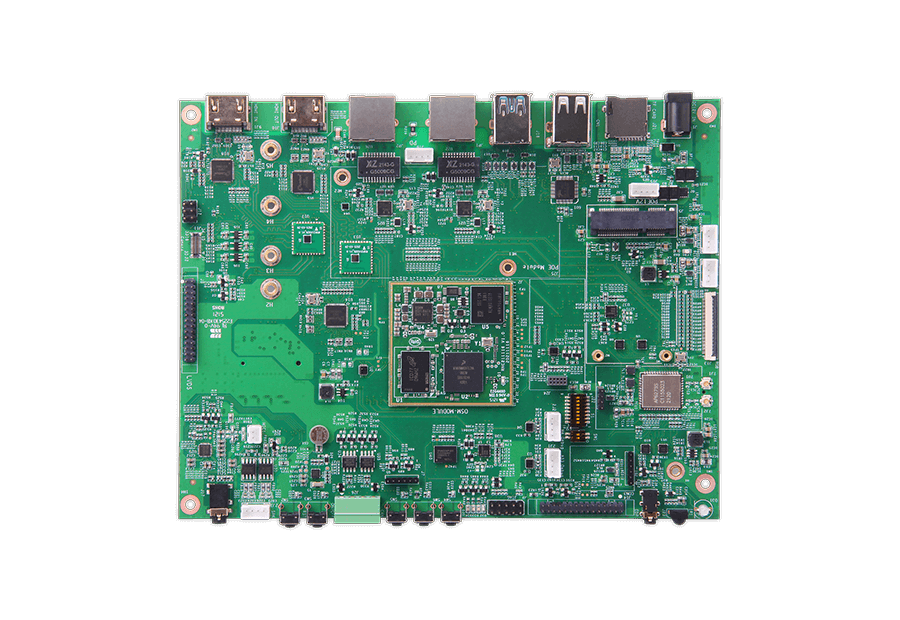

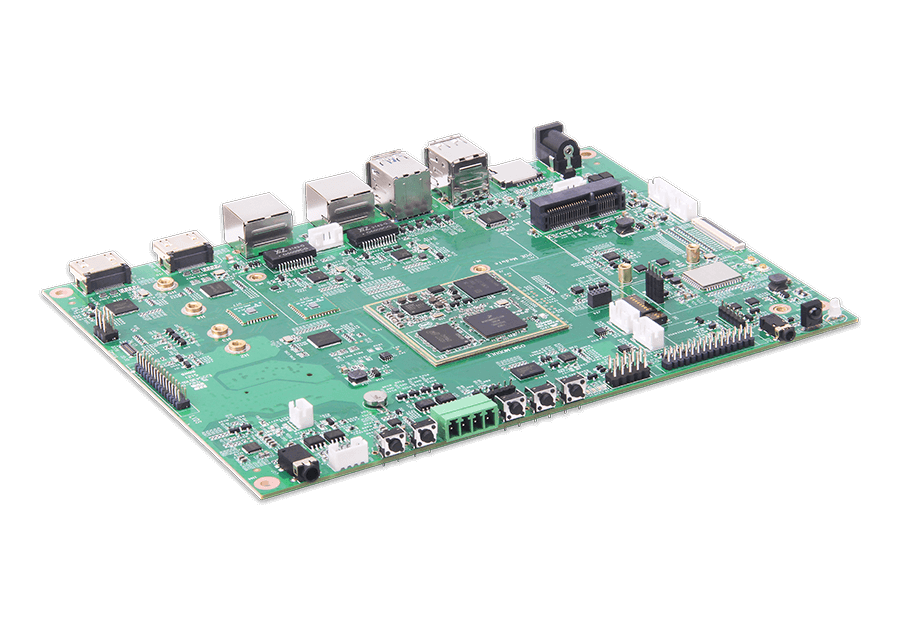

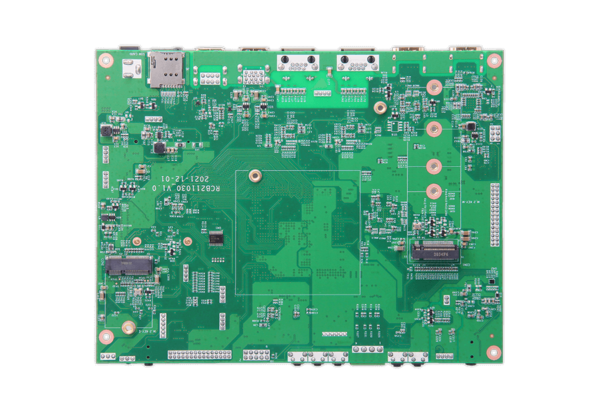

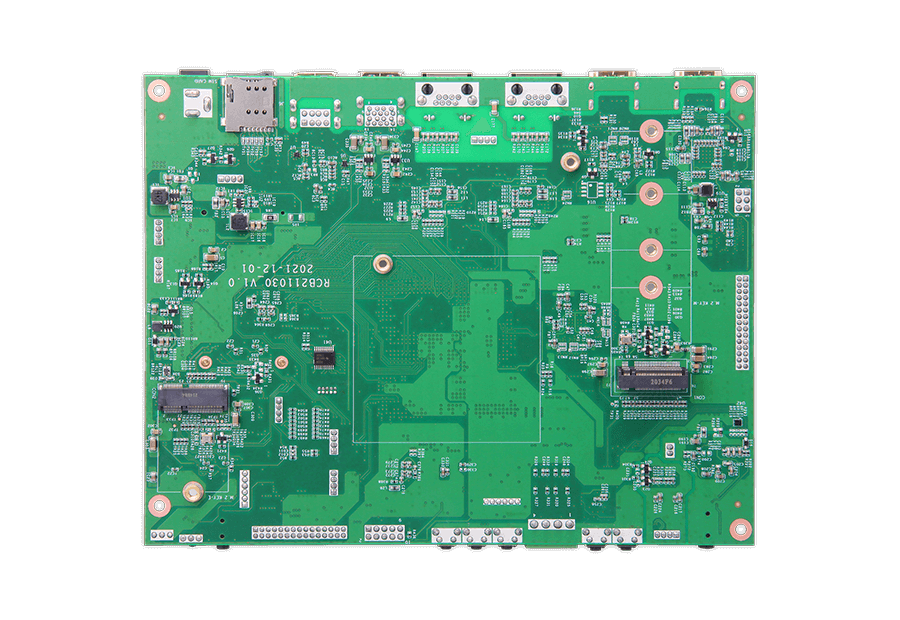

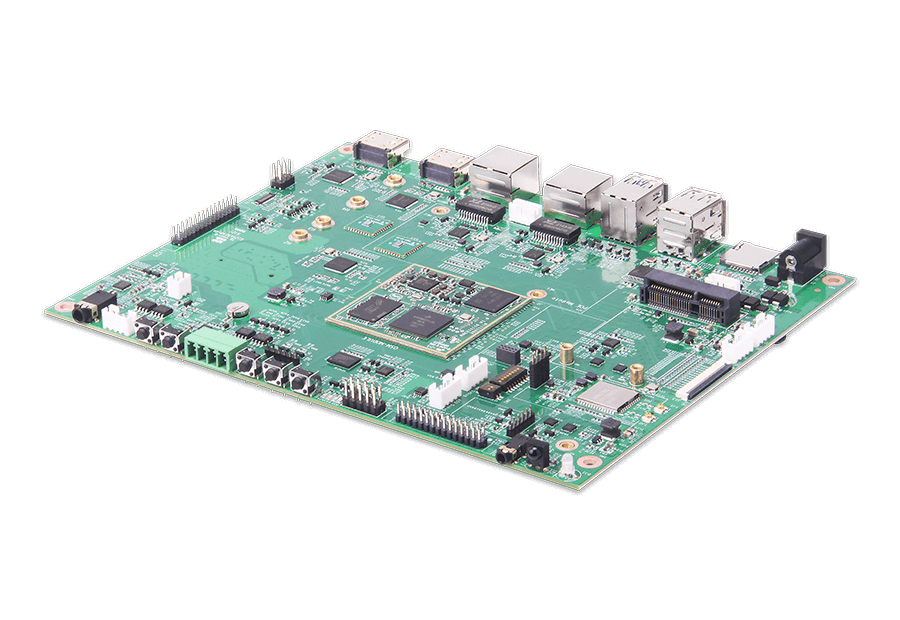

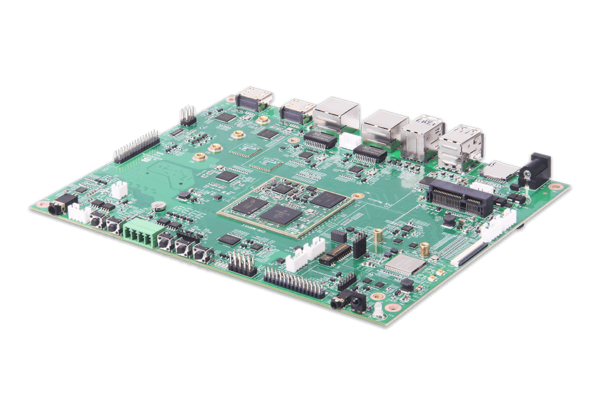

CBD-iMX8MM-OSM

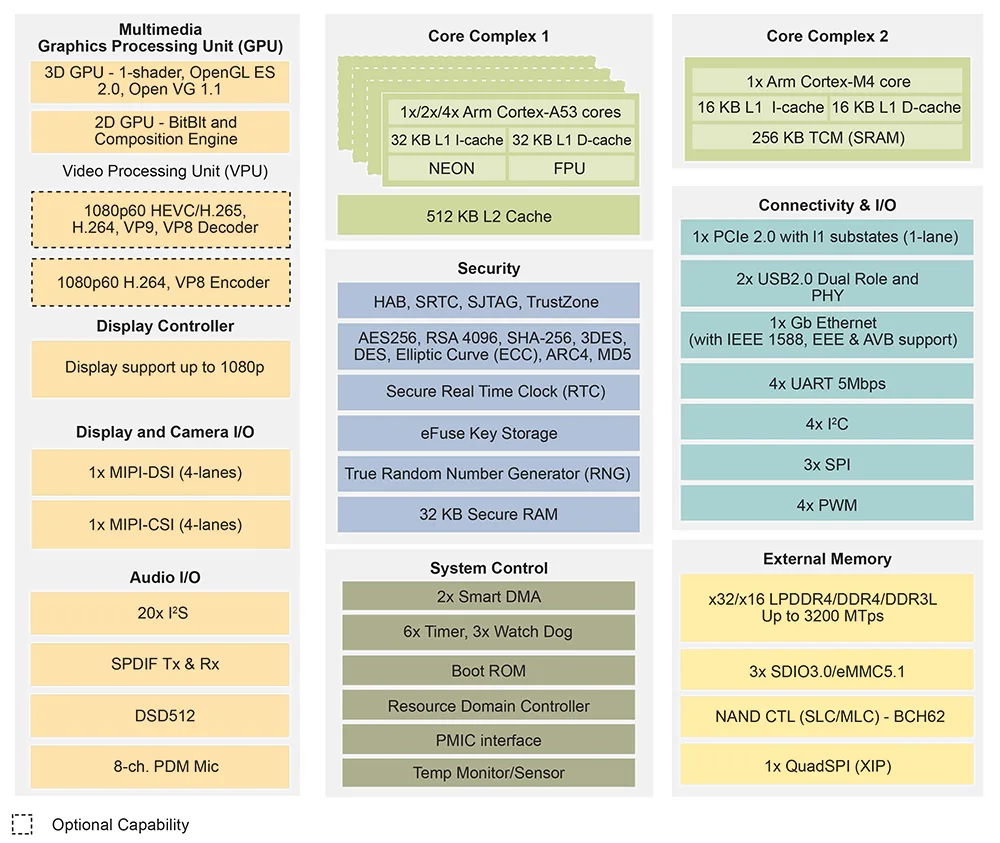

The i.MX 8M Mini OSM Development Platform incorporates i.MX 8M Mini SoC based OSM SOM and OSM Carrier board for complete validation of i.MX 8M Mini SoC functionality. The Development board CBD-IMX8MM-OSM can be used for quick prototyping of various applications targeted by the i.MX 8M Mini Applications Processor. With the 195mmx150mm size, OSM Carrier board is highly packed with all the necessary on-board connectors to validate the features of i.MX 8M Mini OSM SOM. With the high SOC performance, Applications focusing on Machine Learning and Artificial Intelligence, NPU & Vision System, advanced multimedia and industrial automation, Vision and advanced sensing, Factory Automation, Machine Vision and more.
