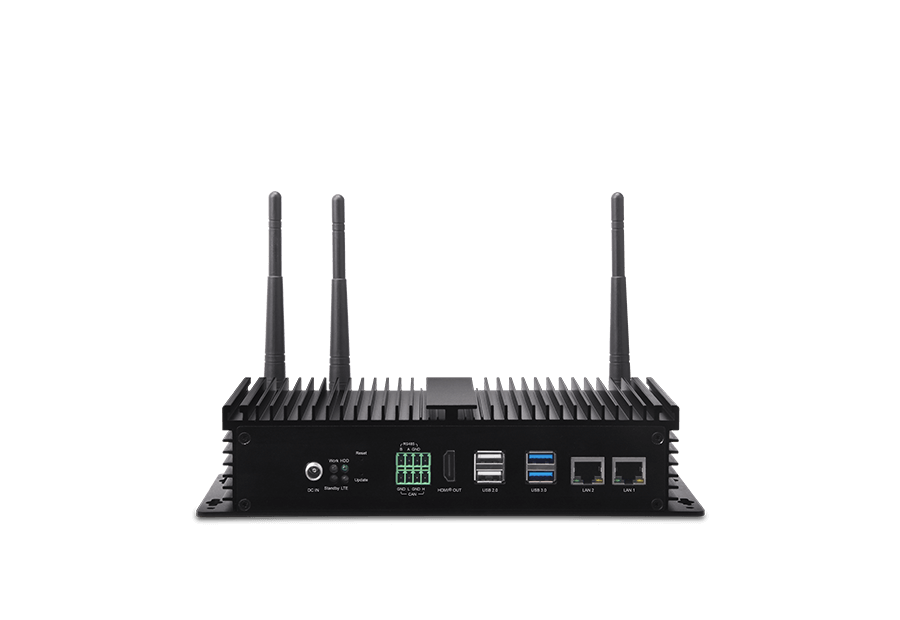

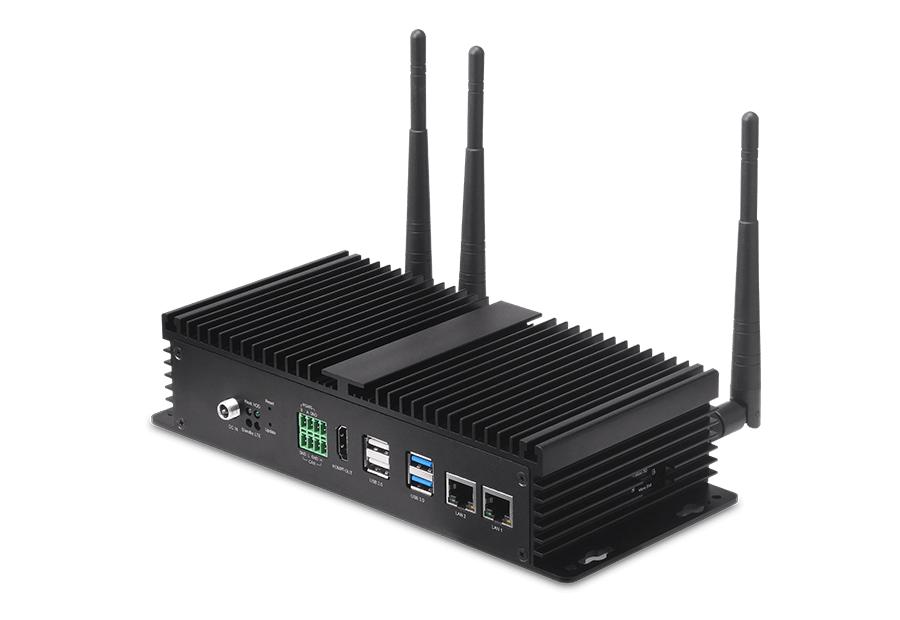

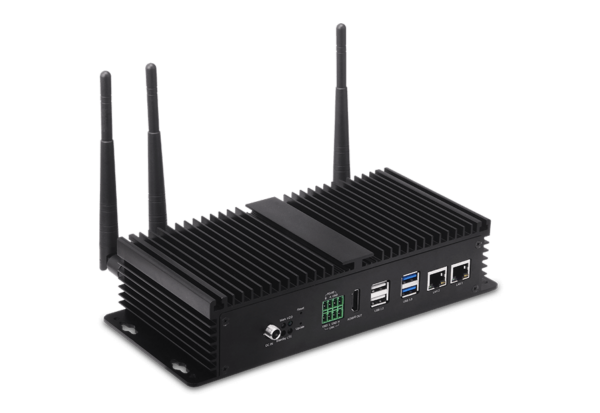

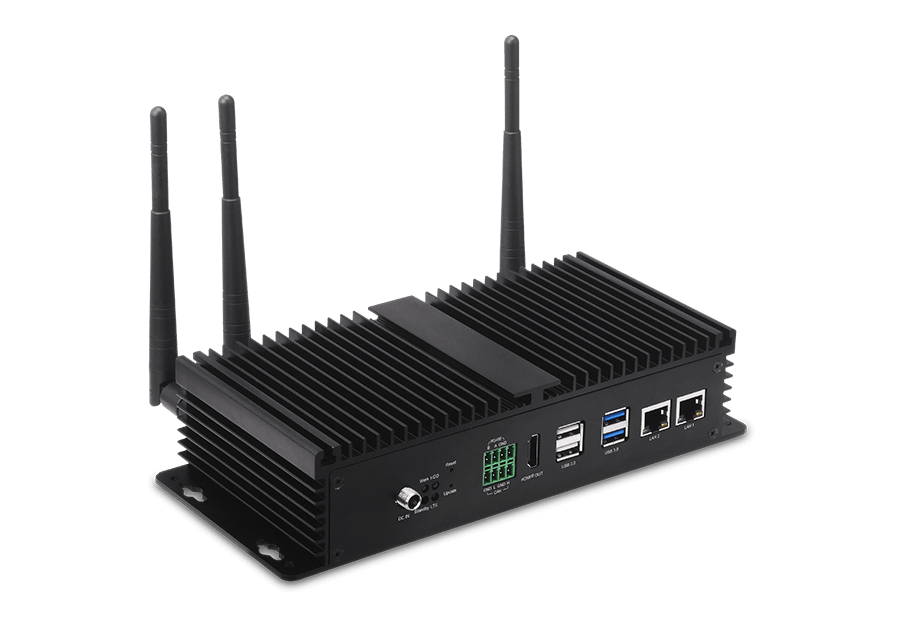

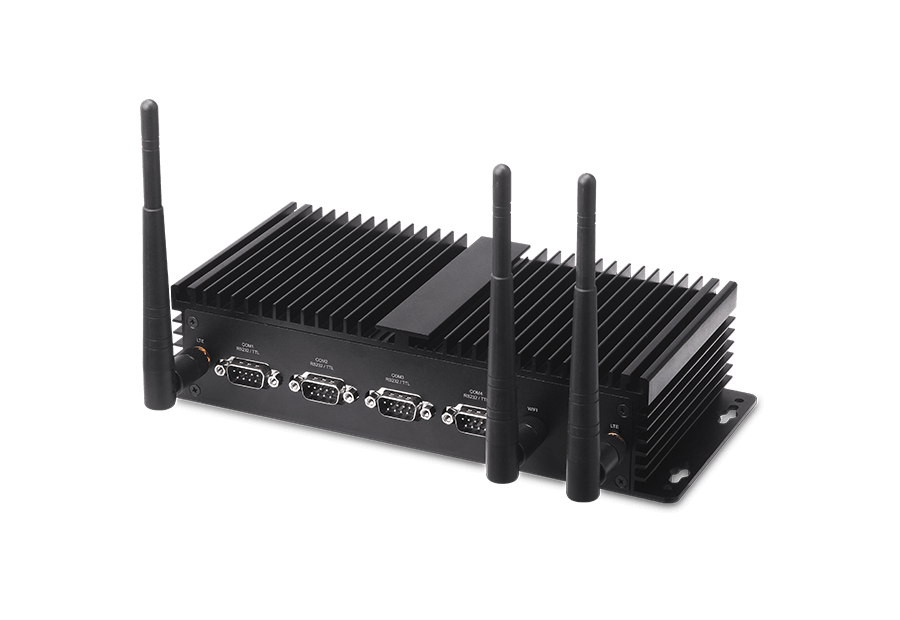

APC3568 Terminal Computer

APC3568 is based on Rockchip RK3568 Cortex-A55 quad-core processor, integrated dual-core Mali-G52 architecture GPU and 1 TOPS NPU, with rich interface expansion, support for a variety of video input and output interfaces, configured with a 4G network, dual Gigabit adaptive Ethernet ports, combined with the virtual gateway technology, to realize the self-organization of the network and internal and external data transmission efficiently. Combined with virtual gateway technology, it can realize self-organized network and efficient data transmission between internal and external networks, and can expand and integrate DTU and NVR related functions, which can significantly reduce the program cost of intelligent express cabinets, intelligent retail terminals, intelligent power exchange cabinets, and intelligent take-out food pickup cabinets.

Buy a Sample

Get A Quote

Industrial-grade quad-core 64-bit processor

APC3568 adopts RK3568 quad-core 64-bit Cortex-A55 processor with a main frequency of up to 2.0GHz, while providing 1 TOPS AI arithmetic power, supporting one-click switching of Caffe/TensorFlow and other mainstream architectural models, to meet the needs of customers to quickly land AI projects.

Full-metal housing design to meet the needs of industrial-grade applications

Full metal housing design, industrial wide temperature products available (-40~85℃), built-in independent hardware watchdog + RTC, standardized EMC and ESD protection design to meet the needs of industrial-grade applications for a variety of harsh working environments.

Built-in dual Gigabit Ethernet ports, integrated virtual gateway communication technology

Integrated dual Gigabit Ethernet port, 2.4G/5.8G dual-band WiFi, Bluetooth, 4G communication module, combined with virtual gateway technology, to realize self-organized network and efficient transmission of internal and external network data, can be extended to integrate DTU and NVR related functions, to meet the needs of NVR, DTU, industrial gateway and other multi-network transmission.

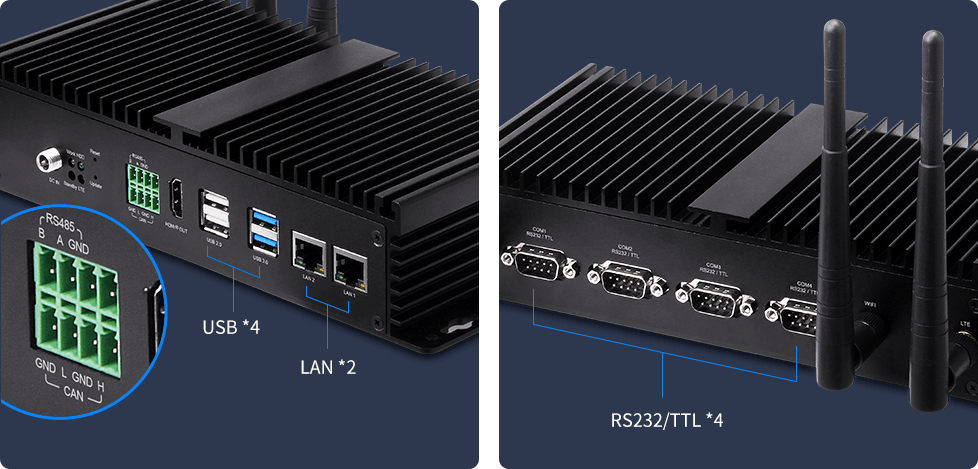

Rich expansion interfaces to meet the needs of various scenarios

On-board 4-way zinc alloy RS232/TTL (DB9) electrification interface

One way RS485 electrification interface;

One way CAN bus communication interface, multiple GPIO interfaces to meet more application control needs.

Support expanding SATA3.0 SSD/HDD and multi-channel USB/webcam to realize massive surveillance video local loop storage, remote preview and movie playback.

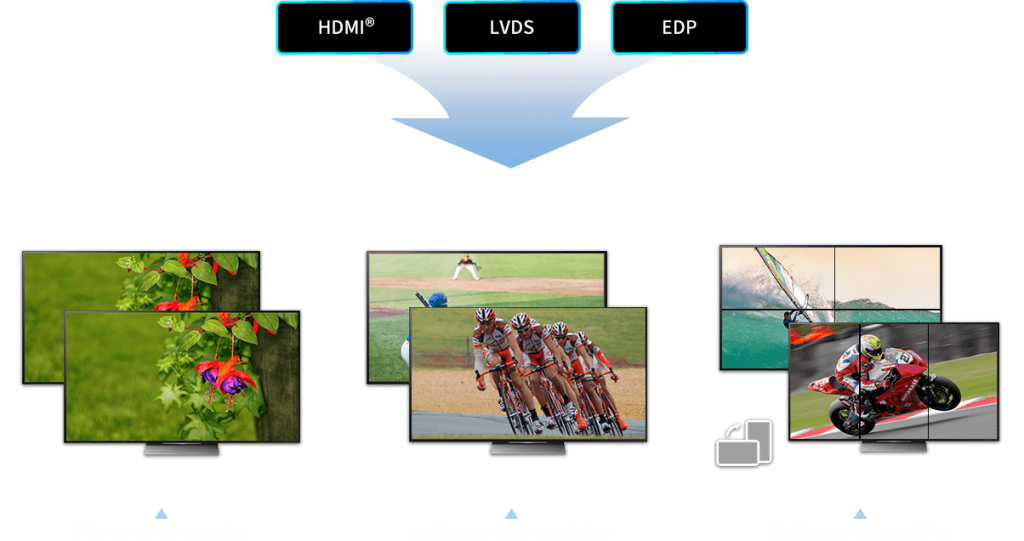

Rich display interface, 4K video decoding

Built-in HDMI, LVDS and eDP video output interfaces, support multi-screen same display, multi-screen different display, multi-screen rotary splicing, maximum support 4KP60 resolution, H.264/VP9/VP8 video decoding.

Debian/Ubuntu/Android multi-system support

Support Debian, Ubuntu, Android and other operating systems to meet the diverse needs of customers. The service layer can be customized and developed based on the system kernel to realize remote upgrade and management of the equipment, which greatly improves the convenience and efficiency of operation and maintenance in the later stage.

Ultra-long supply period, escorting the long life cycle of the product

More than 10 years of supply period, while providing ultra-long-term, traceable Linux Kernel maintenance, to provide customers with a stable guarantee for the long life cycle of the product.

More than hardware, one-stop customization service

With 20+ years of ARM product technology R&D precipitation and partner resources, Geniatech can not only provide customers with customized design of hardware functions, but also provide one-stop customization services such as operating system porting across SoC platforms, BSP kernel cutting and driver debugging, scenario-based application software development, overall system software testing services, and perfect SDK secondary development interface, etc. With the company’s own production plant of nearly 30,000 square meters, we can help customers greatly shorten the cycle from product selection, R&D project, small trial production to mass production and delivery, and quickly seize the first opportunity in the market.

Wide range of application scenarios

APC3568 is an industrial computer customized and developed for the field of intelligent logistics, intelligent security, intelligent commercial display and AIoT, which can be widely used in the fields of intelligent courier cabinet, intelligent retail terminal, intelligent power changer, intelligent NVR, intelligent cloud terminal, industrial control control, and Internet of Things.

CHIPSET Rockchip RK3568
MARKET AREA Global
OSD LANGUAGE English/Chinese (multi language OSD)
Processor OS Android 11.0 / Linux Debian
CPU Quad-core ARM Cortex-A55 up to @2.0GHz
GPU ARM Mali-G52 GPU, support OpenGL ES1.1/2.0/3.2,
OpenCL2.0 and Vulkan 1.1. etc
NPU Neural network acceleration engine with processing
performance up to 0.8 TOPS
LPDDR4 4GB (2G/8G Optional)
EMMC
FLASH
16GB(8~128G Optional)
NETWORK Ethernet 2 * RJ45 (10/100/1000M)
WiFi IEEE 802.11b/g/n/ac
Bluetooth BT4.2(Optional 5.0)
3G/4G 1 * Mini PCIE (Optional)
Interface HDMI® OUT 1 * HDMI
RJ45 2 * RJ45(LED)
RS232 4 * DB9
RS485 1 * 3Pin3.81mm
Can bus 1 * 4Pin3.81mm
GPIO 1 * 2x7Pin2.0mm 90°
LVDS 1 * 2x15Pin2.0mm 90°
eDP 1 * 2x10Pin2.0mm 90°
Back light 1 * 6Pin2.0mm
USB3.0 2 * USB3.0 Type A
TP(I2C) 1 * 6Pin2.0mm
SATA3.0 1 * SATA3.0
SATA Power 1 * 4Pin2.54mm
Speaker 1 * 4Pin2.0mm
SIM 1 * Micro Sim + 1 * Mini PCIE (LTE)
SD 1 * Micro SD
Fault LED 2 * LED(Red/Blues)
Working LED 2 * LED(Red/green)
WIFI+BT
ANT
1 * SMA
IR 1 * IR
Update 1 * Switch
Reset 1 * Switch
DC IN 1 * DC IN
Adapter DC 9~24V (Φ5.5mm / φ2.1mm)
Accessory 1 * Adapter (AC 100 ~ 240V 50/60Hz)
Customizable
GUI
We provided GUI customization and we have a vast collection of
Launcher created by our R&D team for you to choose from.
