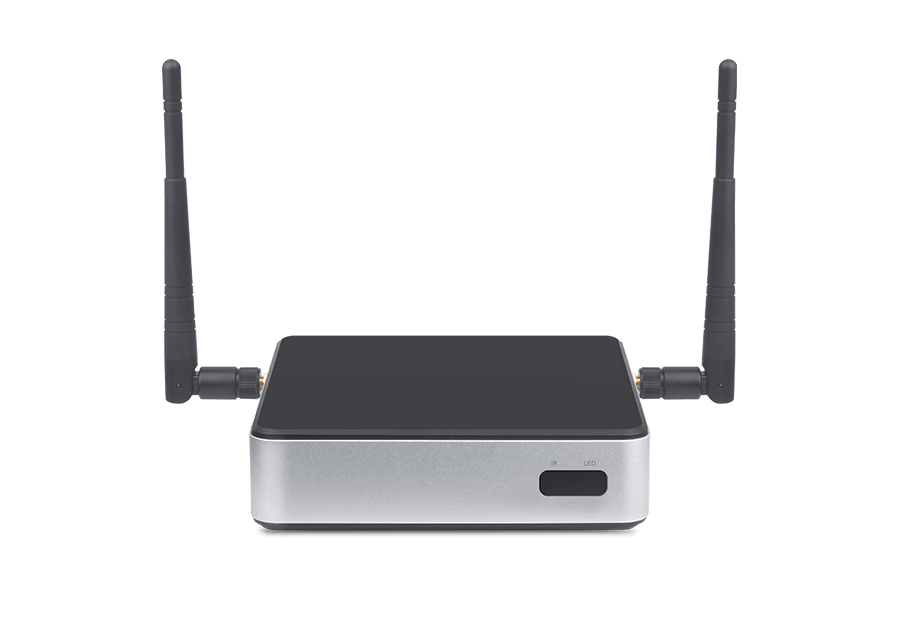

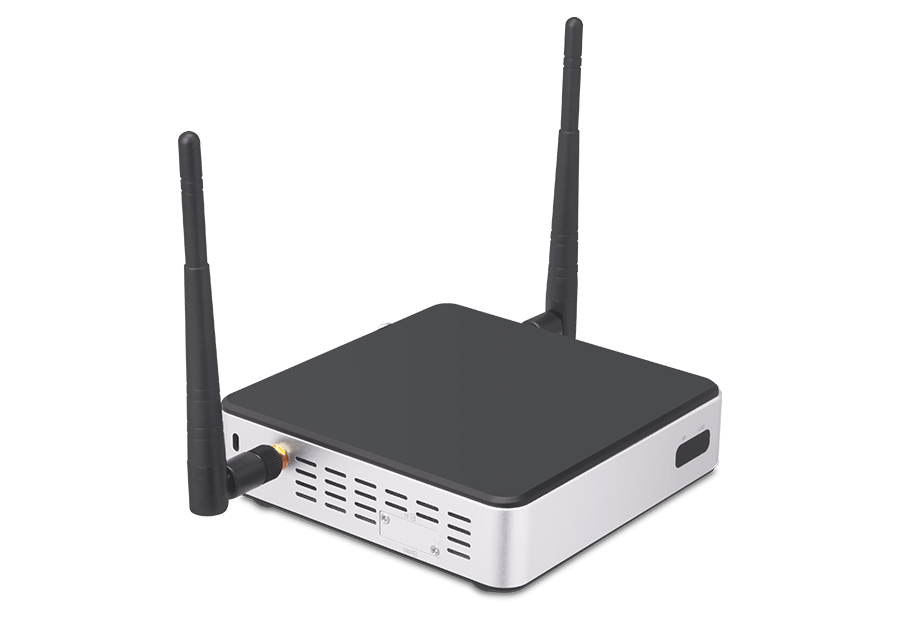

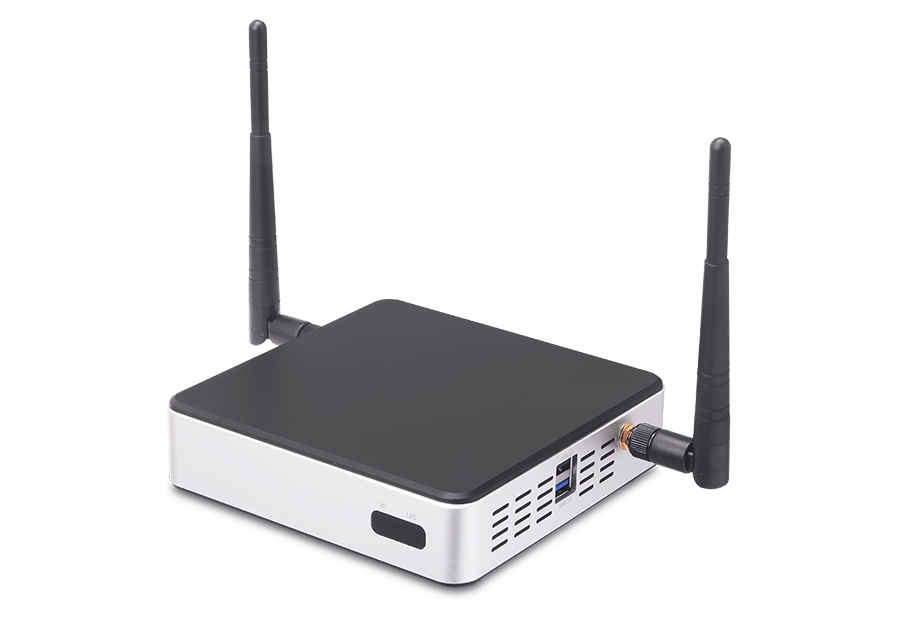

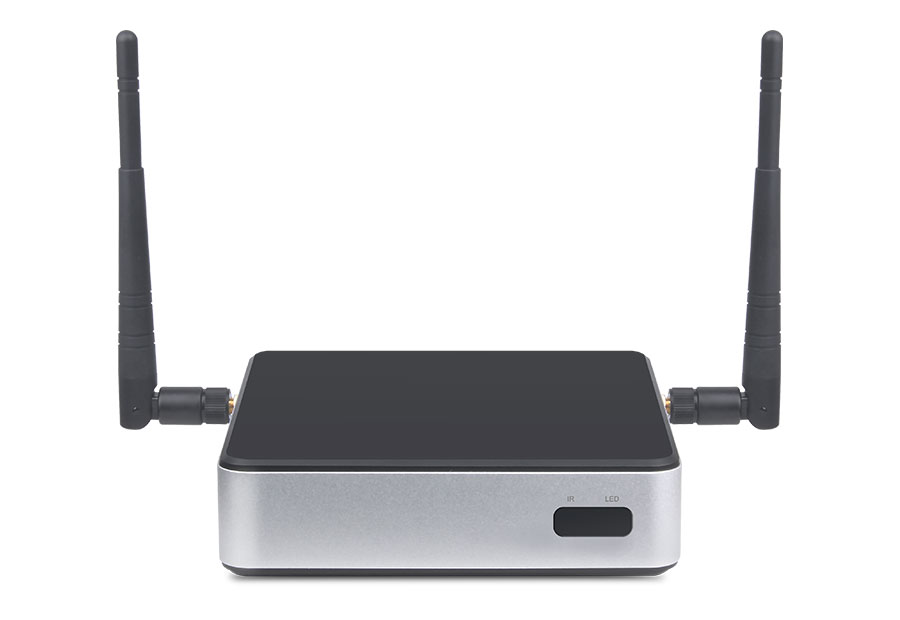

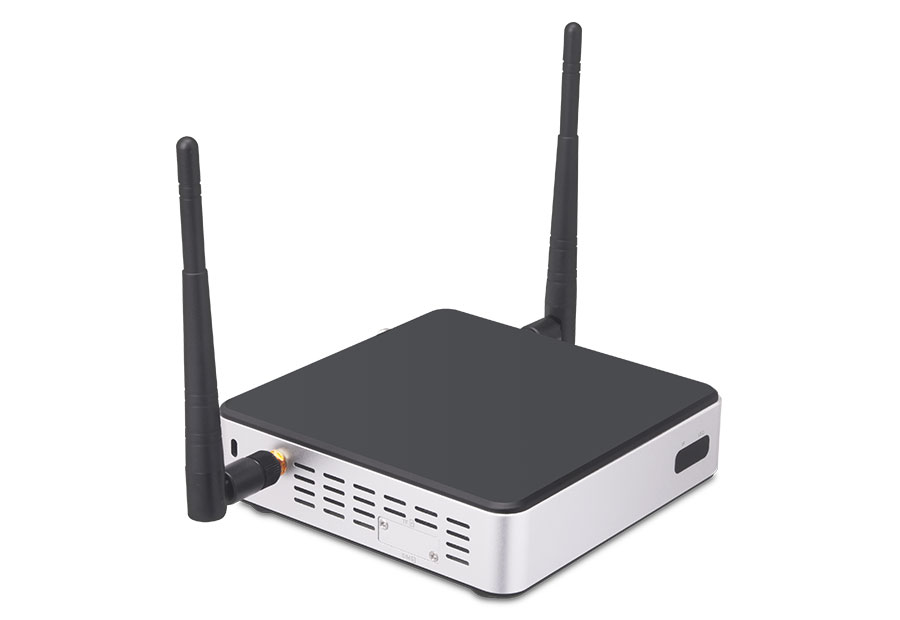

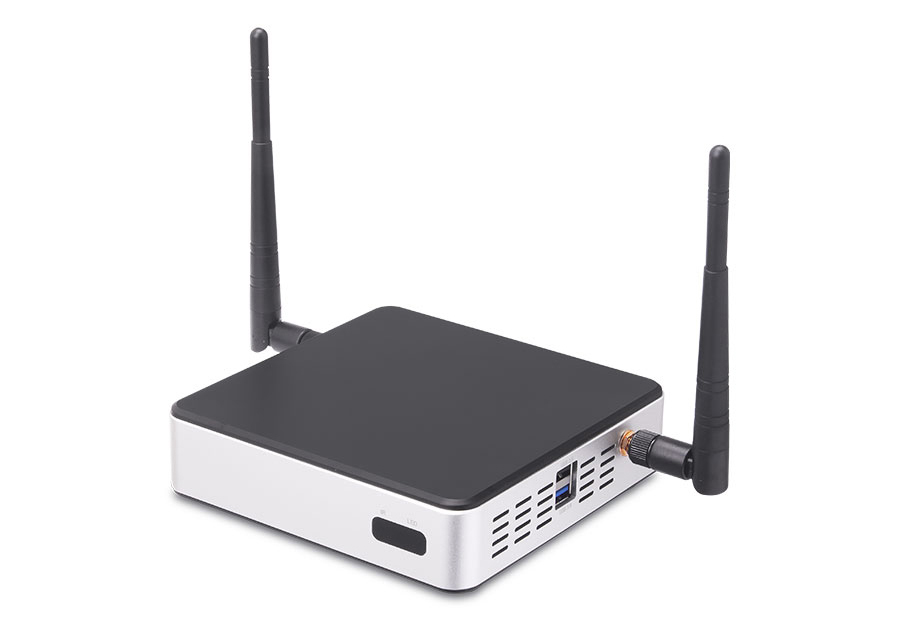

APC820 RK3399 High-performance Commercial Media Player

Rockchip RK3399 ARM Dual-core ARM Cortex-A72 MPCore processor and Quad-core ARM Cortex-A53MPCore processor @1.8GHz+1.4GHz
Android 10.0 / Linux DebianOS
Support 2GB/4GB LPDDR4, 8G~128GB eMMc flash, external expansion storage TF card (Max512G)
Built-in Tuner Module, support DVB-T2/T/C/S2,ATSC1.0/3.0,ISDB-T or DTMB
Support 4G networks（Optional）
2* USB Type-A(USB2.0+USB3.0), 1*USB Type-C
Built-in WiFi(2.4G/5.8G) /BT (4.2/ 5.0 Optional）
10/100/1000M LAN interface
1 * HDMI®Input, 1*HDMI®Output, support 4K video play
RS232 or IR blaster (pick one of two)
Built-in WatchDog and RTC for 24/7 stability
GTIOT (SupportZ-WAVE / ZIGBEE / LoRa / LTE / GPS / WiFi / BT5.0)
Advanced decoding capabilities to decode up to 4 channels of 1080P video simultaneously

Buy a Sample

Categories: ARM Mini PC, Embedded Computer

Get A Quote

Multiple interfaces and high cost performance

Multi-mode display

GTIoT

Personalized customization

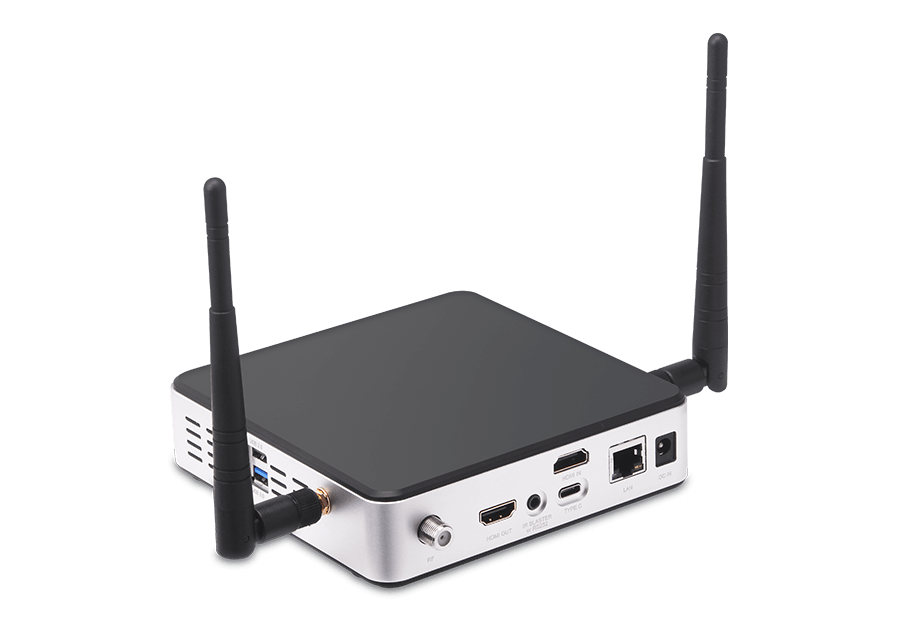

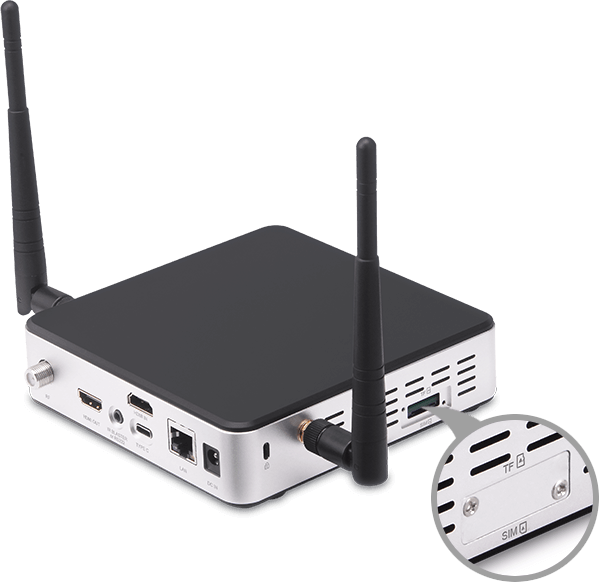

Multiple Interfaces and High Cost Performance

Video output：1*HDMI®+1*Type C
Video input: 1*HDMI®(4KP30
Audio output: 1*HDMI®+1*BT
USB: 1*TYPE C+1*USB 3.0+2*USB 2.0 (built-in 1*4pin2.0mm jack)
LAN：1*RJ45 10/100/1000M
Wifi：IEEE 802.11 a/b/g/n/ac 2×2 MIMO 2.4G/5.8G(optional);
Tuner：1*RF
LTE：1*mini-PCIE+1*Micro SIM
IR blaster：1*IR blaster (3.5mm jack or RS232 optional)
RS232：1*RS232(3.5mm jack or IR blaster optional)
SD：1*Micro SD
K Lock: 1* K Lock

Display Mode

Multi-screen simultaneous display mode

Multi-screen display mode

Multi-screen splicing mode (support horizontal screen / vertical screen rotation)

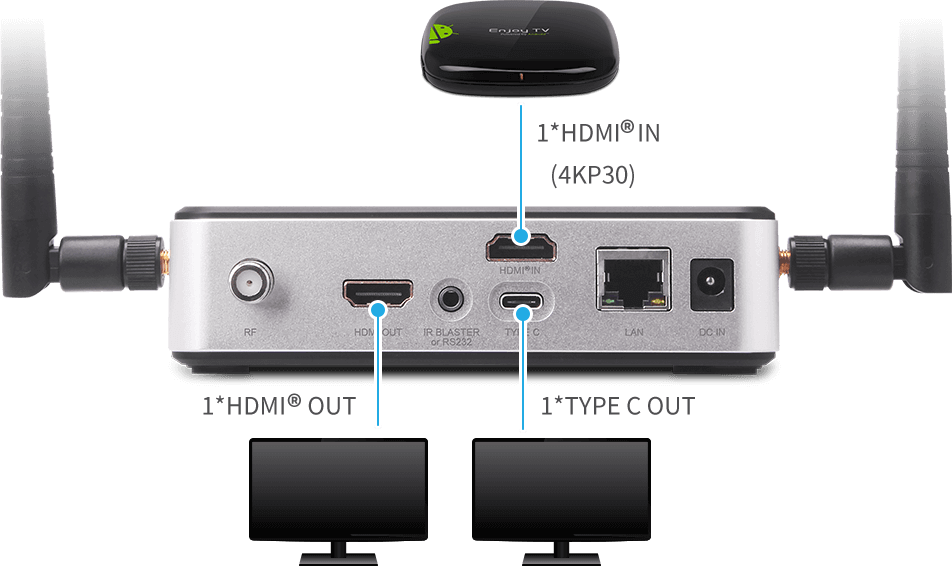

Multiple Display Interface

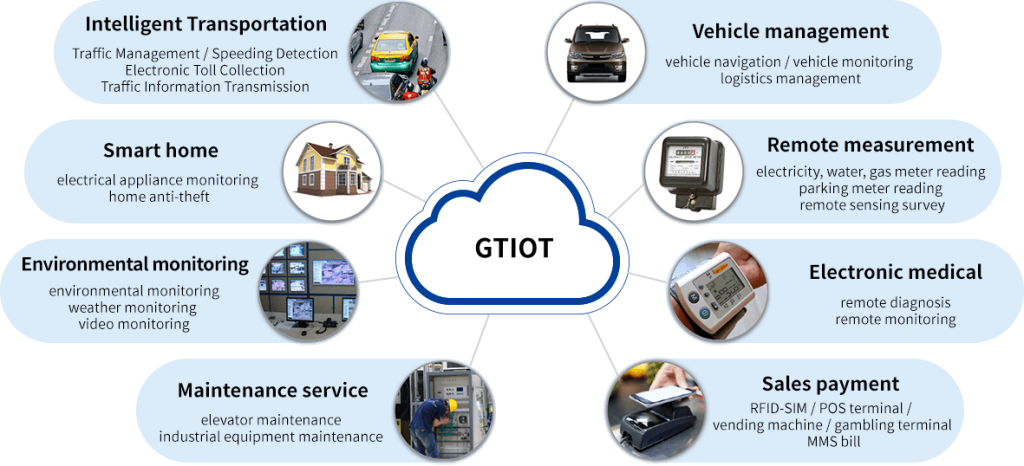

Support Multiple Optional Wireless Protocols

Z-WAVE / ZIGBEE / LoRa / LTE / GPS / WiFi / BT5.0

Support a Variety of Digital TV Reception

Functional Versatility Can be Reliable

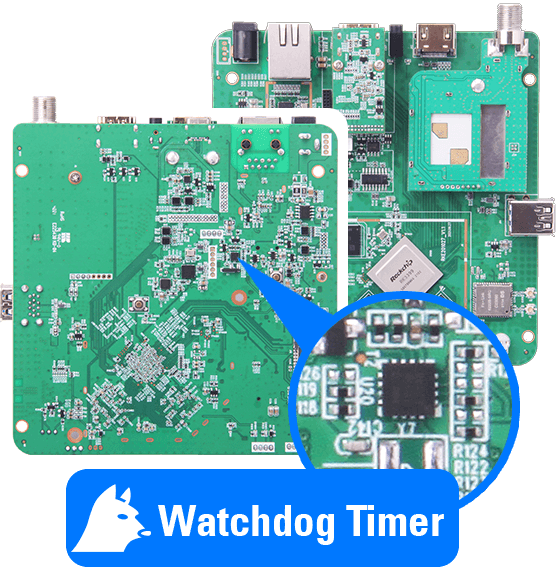

Built-in WatchDog&RTC，7*24H Stable and unguarded
The PCBA board is made of solid materials and metal shell, with good heat dissipation, The maximum operating temperature can reach -20~85℃(optional)
Dual OS optional：Android 10.0 / Linux

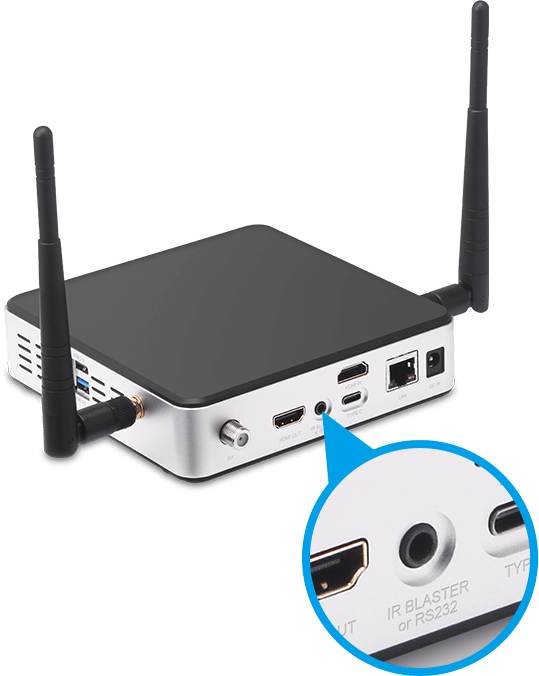

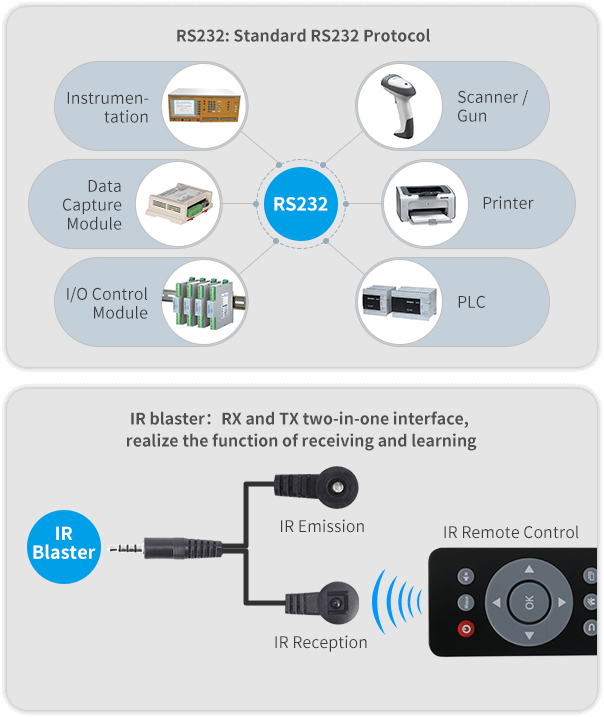

Various Interface Functions

RS232 / IR blaster function optional

Support Personalized Customization

Optional hardware configuration

CPU/memory/storage/WiFi+BT

Provide SDK secondary development

Customers can compile sensitive requirements by themselves

MDM customization (remote device management)

Remotely collect device status information and control the device (update firmware, uninstall/install APK, restart, standby/wake up, real-time advertising…)

APP customization

Easy to realize customer’s customized requirements, safe, fast and low-cost.

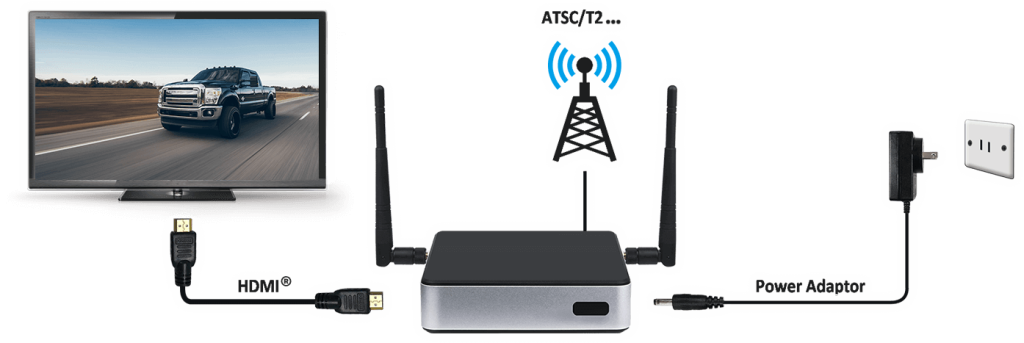

Product Connection Diagram

Application Scenarios

Commercial display, digital signage, smart home, video conference…

CPU

Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.4GHz
GPU

Mali-T860 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1
RAM

2GB （4GB optional）
ROM

16GB eMMC（8~128GB optional）
LAN

1*RJ45 10/100/1000Mbps （LED）
WiFi

IEEE 802.11 a/b/g/n/ac 2×2 MIMO（2.4G/5G）
BT

BT4.2/5.0(optional)
GTIOT

Support multiple optional wireless protocols: Z-Wave/Zgibee / LoRa /LTE/GPS/WiFi / BT5.0
Tuner

Support a variety of digital TV reception: DVB-T2/T/C/S2,ATSC1.0/3.0, ISDB-T/DTMB
WatchDog & RTC

Support

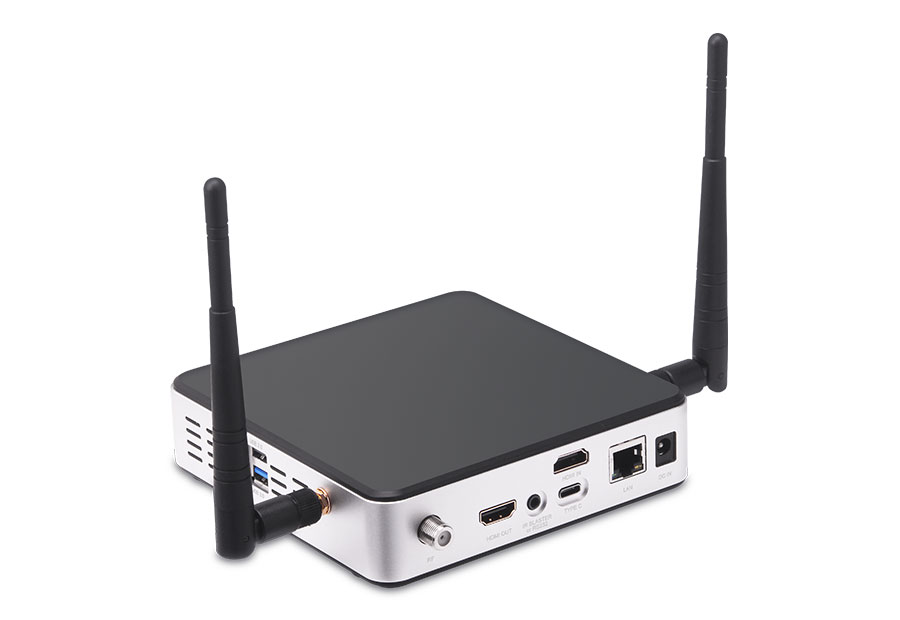

I/O

1 x HDMI® IN
1 x HDMI® OUT
1 x Type C（Shared OTG / Video）
1 x GTIOT（Built-in）
1 x RJ45 10/100/1000M(LED)
1 x IR blaster (3.5mm jack, or RS232 optional)
1 x RS232 (3.5mm jack, or IR blaster optional)
1 x RF
1 x USB3.0 + 2x USB2.0 (1 x Built-in 4PIN2.0mm)
1 x Micro SD
1 x Mini pcie LTE(Built-in) + 1 x Micro SIM
1 x DC IN（Φ5.5/2.1mm）
1 x IR（Built-in）
1 x Power_Key（Automatic power-on optional）
2 x WIFI/BT Antenna interface
OS

Android 10.0 / Linux
Power

DC 12V/2A
Size(mm)

136*136*35(no interface)
Certifications

CE / FCC
