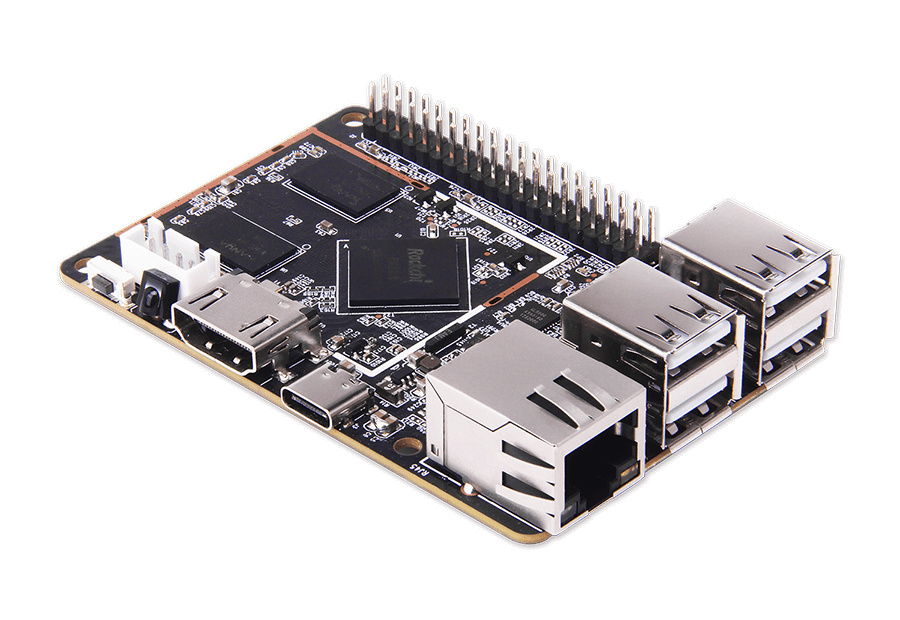

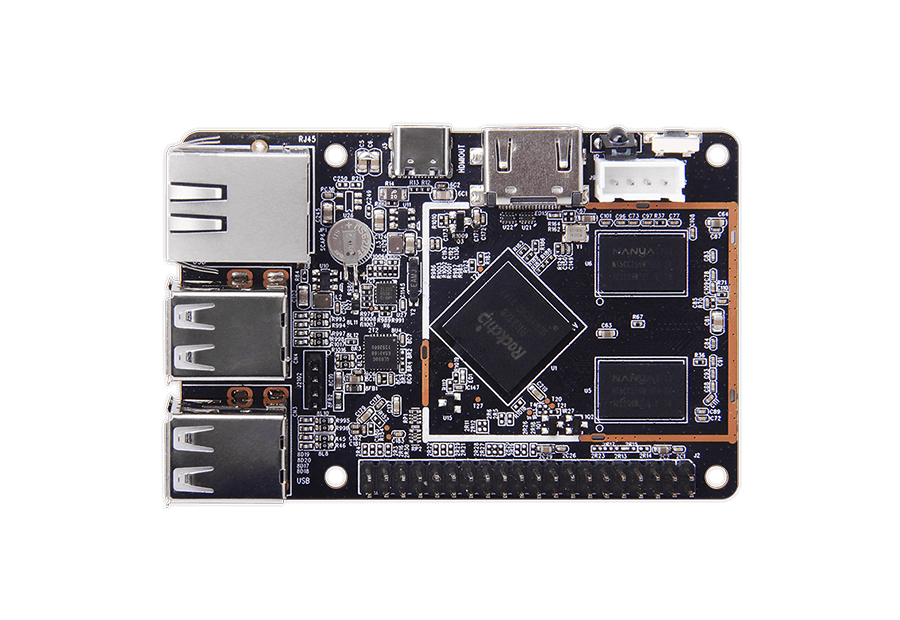

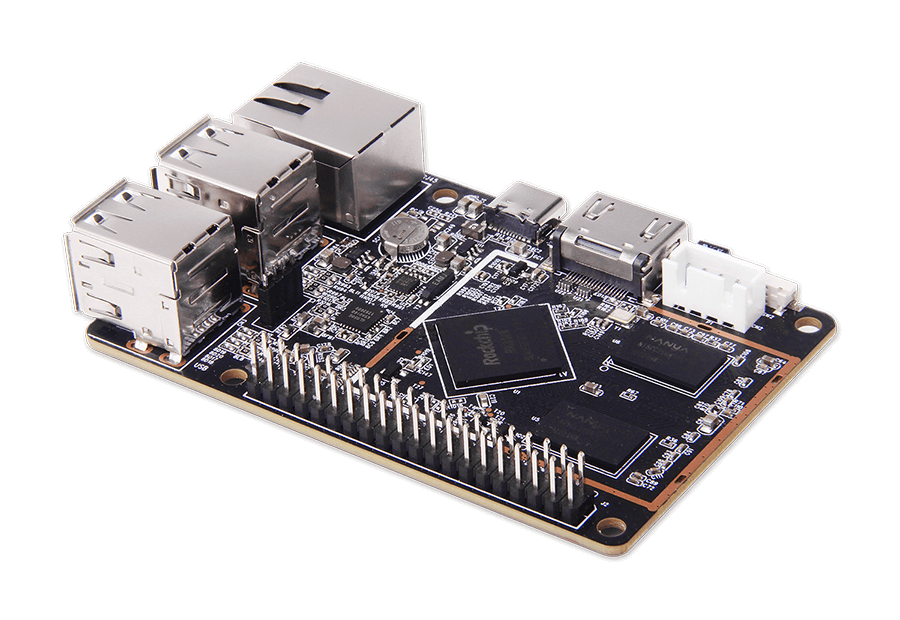

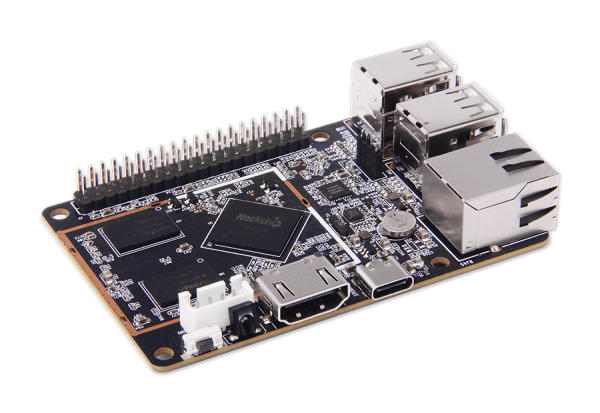

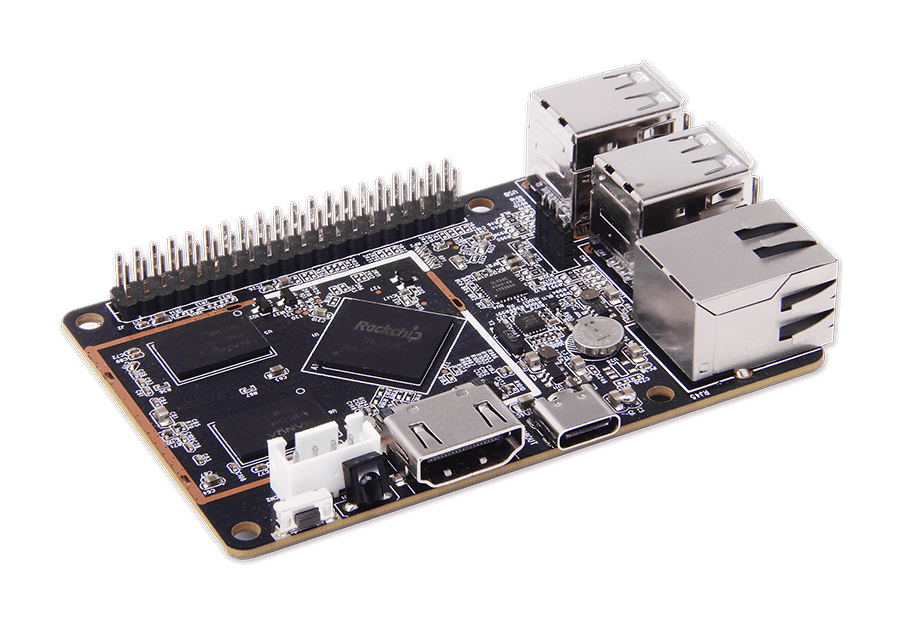

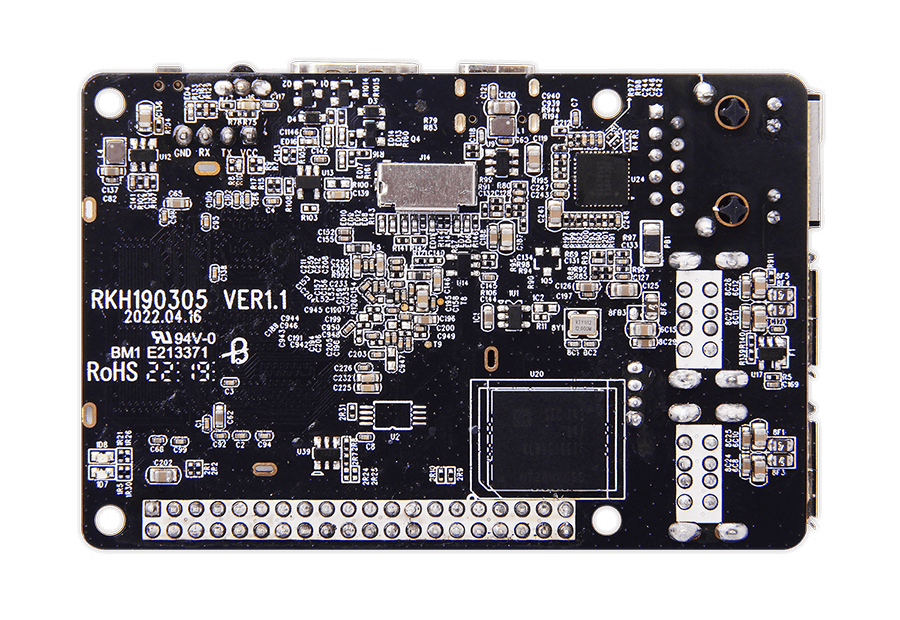

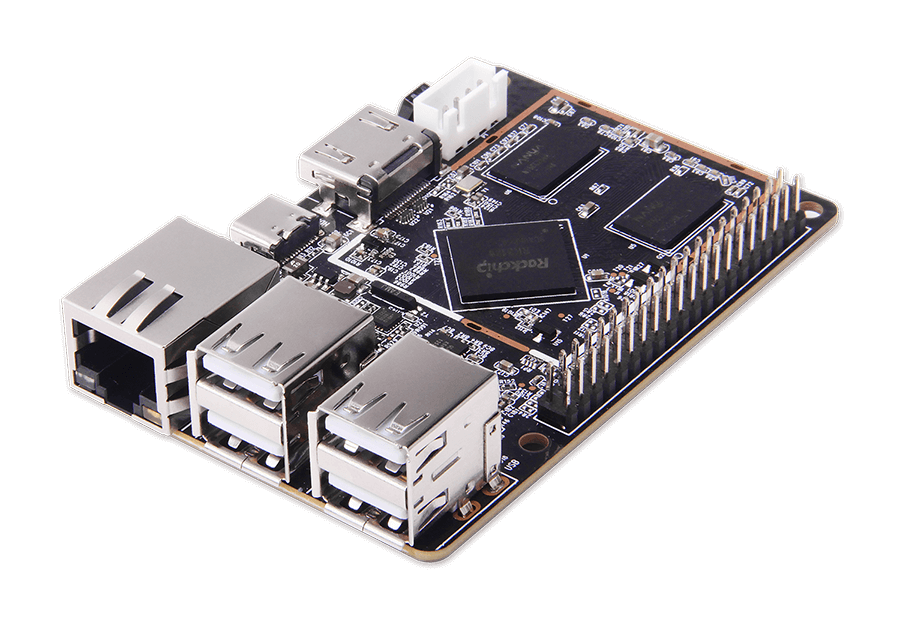

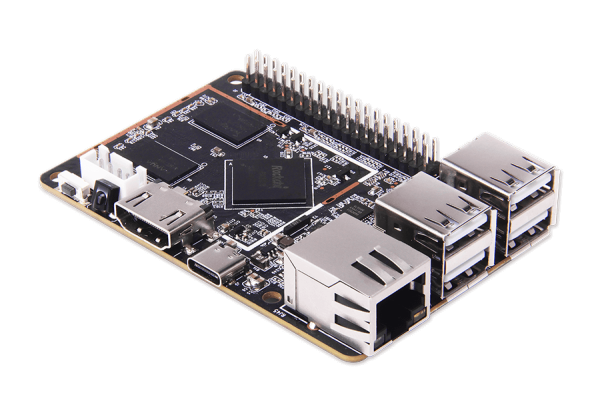

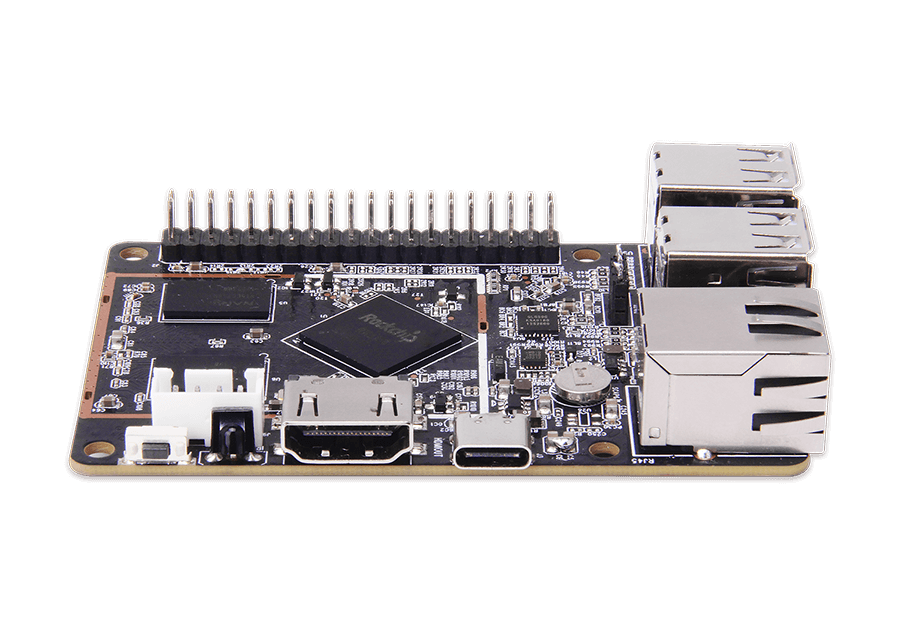

XPI-3128 – Low Cost ARM SBC

Geniatech’s XPI-3128 is a quad-core Cortex-A7 1.2GHz SOC that integrates a Mali-400MP2 GPU. It has excellent arithmetic and graphics processing capabilities, providing high-performance video output and a smoothly high-resolution (1080p@60fps) display. It supports 2.4G/5GHz Wi-Fi, 802.11a/b/g/n/ac, and BT4.0. It also has an onboard 100M Ethernet port and supports an external 40-pin interface, including UART, I2S, PCM, I2C, GPIO, and PWM, giving users a very flexible solution.

  • 85mm*56mm, Only the size of a bank card
  • Raspberry Pi Form Factor & GPIO Compatibility with RPI for Maximum Re-usability
  • Rockchip RK3128 with Quad-core Cortex-A7 up to 1.2GHz
  • 512MB/1G/2G RAM, 8GB/16G/32G/64G eMMc flash
  • 4*USB HOST, 1*HDMI®Out, 1*Type-C, 1*UART,
  • 2.4&5.8G WiFi,BT4.0 and 100M LAN interface
  • Rasberry Pi OS emulater, Linux(Debian 10/buildroot), Android

Buy a Sample

Get A Quote
  • CPU
    Quad-core Cortex-A7,Up to 1.2GHz
  • GPU
    Mali-400MP2 GPU,Support OpenGL ES1.1/2.0
  • RAM
    1 GB DDR3
  • Storage
    16 GB eMMC
  • OS
    Rasberry Pi OS emulater, Linux(Debian 10/buildroot), Android
  • WLAN
    100 M
  • WIFI/BT
    2.4&5.8G IEEE 802.11ac/n/a/g/b, Bluetooth 4.0(WIFI/BT optional)
  • USB
    USB2.0*4,TYPE-C*1
  • TF slot
    MAX 64G
  • HDMI®
    HDMI®OUT*1
  • Remote
    Support and USB remote
  • I/O
    28 * GPIO Pins
    4 * SPI
    2 * I2C Bus
    4 * Uart
    2 * PWM
    1 * PCM/I2S
    2 * 5V Power Pins
    2 * 3.3V Power Pins
    8 * Ground Pins
  • Power
    TYPE-C 5V/2A
  • Size
    85 x 56 x 20 mm
  • Weight
    45g
